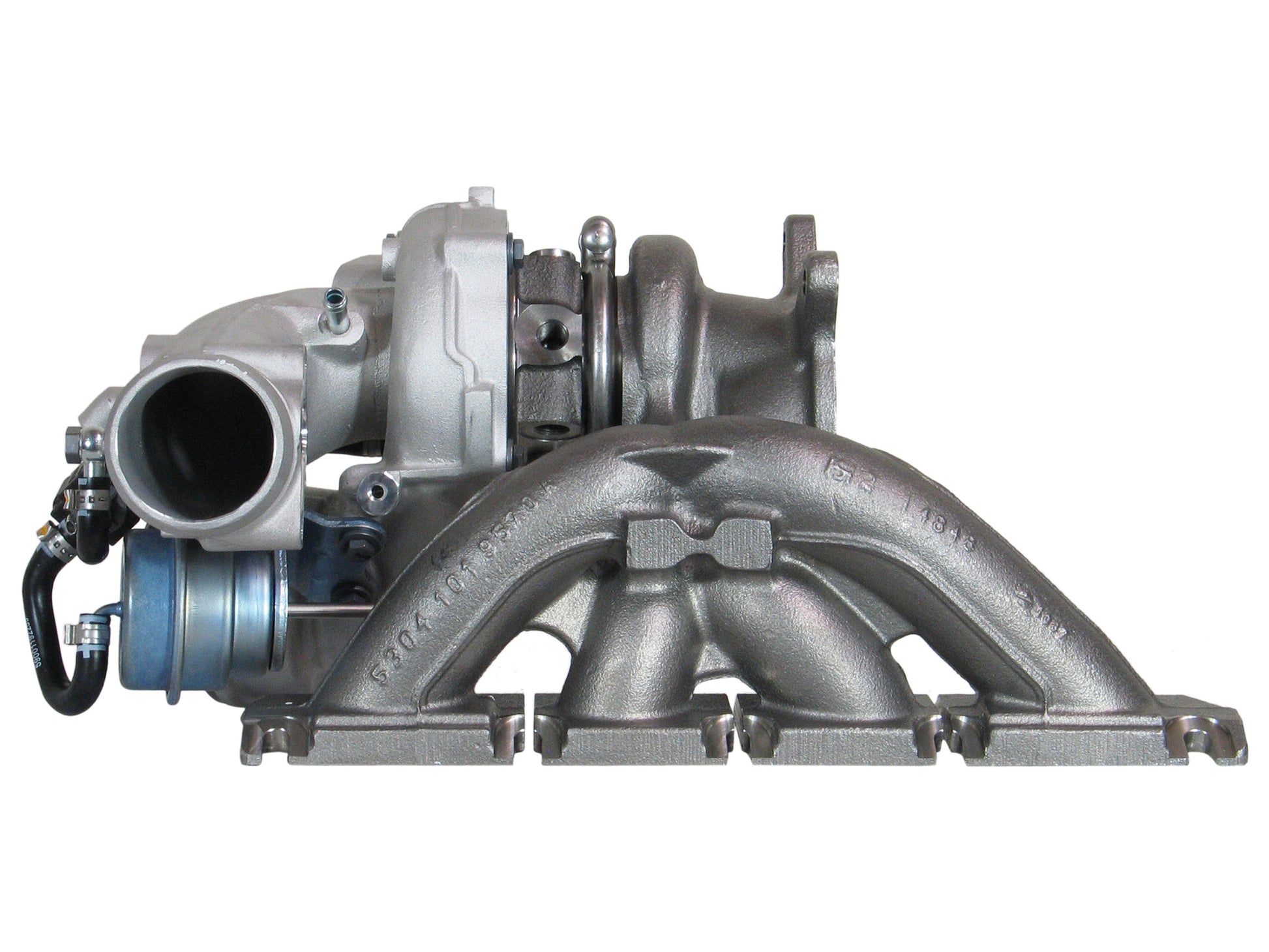

NEW OEM BorgWarner K04 Turbo Audi S3 TTS VW Golf VI 2.0L TFSI Gas 53049880064SKU: 53049880064
This is a BRAND NEW GENUINE BORGWARNER TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: 53049880064
Interchangeable Number: 5304-988-0064, 5304 988 0064, 53049700064, 5304-970-0064, 5304 970 0064
OEM Number: 06F145702C, 06F145702CX, 06F145702D
Turbo Model: K04, K04-2283DXBAA6.88GCAXM
Manufacturer: BorgWarner - 3K - Schwitzer, BWTS DE
Engine: 2.0L TFSI quer/transversal, BHZ, BWJ, BYD, CDLD
Displacement: 2.0L, 1984 ccm, 4 Cylinders
Power: 195/200 kW, 265/272 HP
Speed: 6000/6800 RPM
Bearing Housing: 53041500067 (53041500070)(Water Cooled)(1302004463, 1900011235H)
CHRA: 53047100518 (5304-710-0518)(1302004918, 1000030240T)
Compressor Back Plate (O-Ring Type): 53041515721 (1302003308)
Compressor Cover: 53041004903 (53041004907)
Compressor Wheel: 53061232014 (Ind. 46.39 mm, Exd. 59.43 mm, Trim 4.64, 6+6 Blades, Super Back)(1302004404, 1200016598T)
Frequency Valve (Electronic): 59001170401
Gasket Kit: 215312 (2090010097M)
Heat Plate: 53041652009 (1302004345, 2030016064)
Repair Kit: 53047110000 (1303050754)
Silencer: 53041830001 (53041830002)
Turbine Housing A/R: 6
Turbine Housing with Manifold: 53041009514
Turbine Wheel: 53041206511 (53041202100, 53041202101, 53041205004, 53041205008, 53041205010, 53041205015, 53041205018, 53041206503, 53041206506)(Ind. 50.01 mm, Exd. 44.55 mm, Trim 6.3, 12 Blades)(1302004446, 1100-016-133)
NOTE: Intercooler, integrated manifold, water cooled bearing housing.
2003- Audi S3 with 2.0L TFSI (8P/PA), BHZ Engine
2003- Audi TTS with 2.0L TFSI (8J), BHZ Engine
2003- Seat Leon, Cupra with 2.0L TFSI, BWJ, CDLD Engine
2003- Volkswagen Golf V with 2.0L TFSI, BYD Engine
2003-10 Audi S3 with 2.0L TFSI quer, transversal Engine
2003-10 Audi TTS with 2.0L TFSI quer, transversal Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
