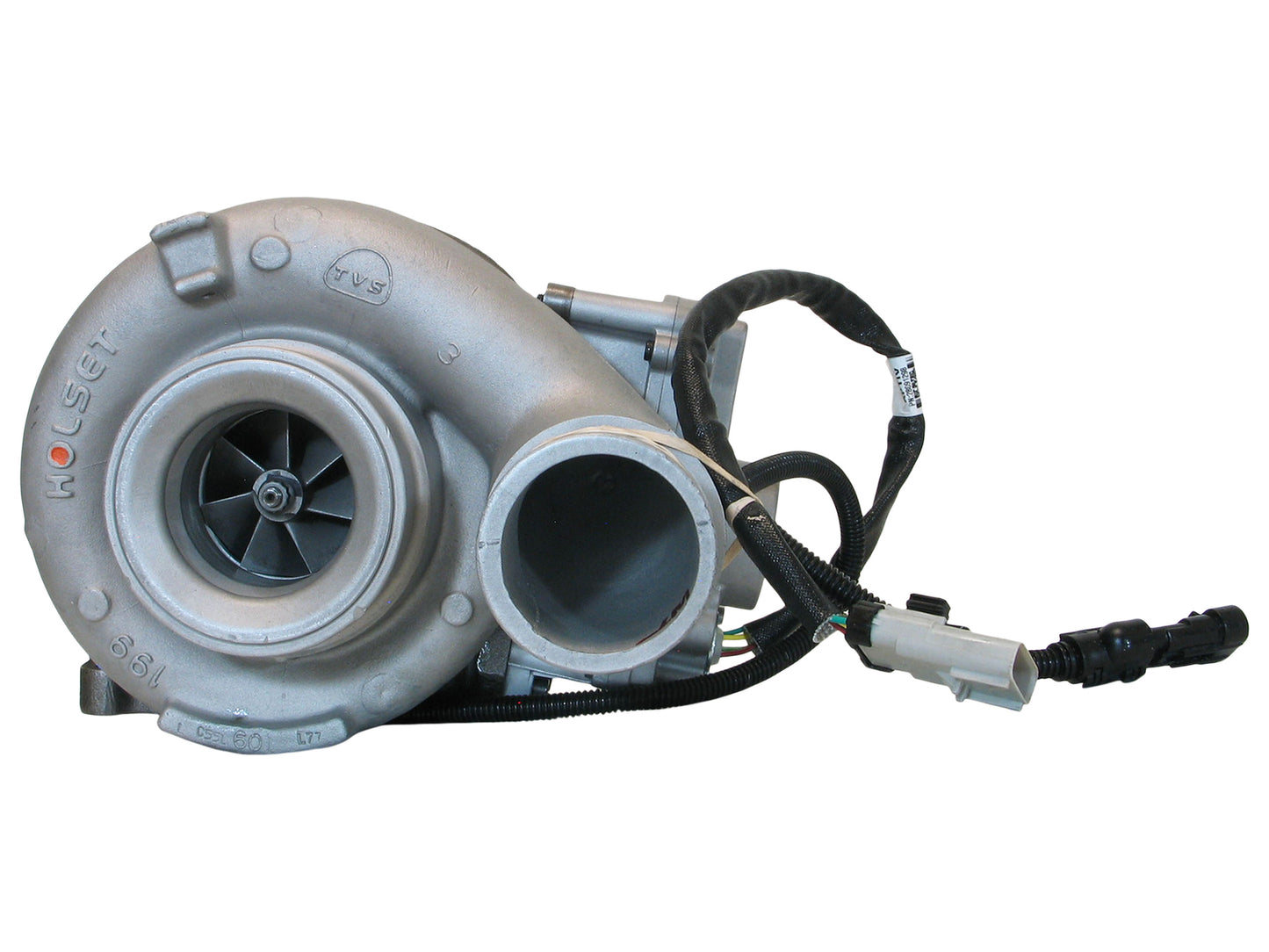

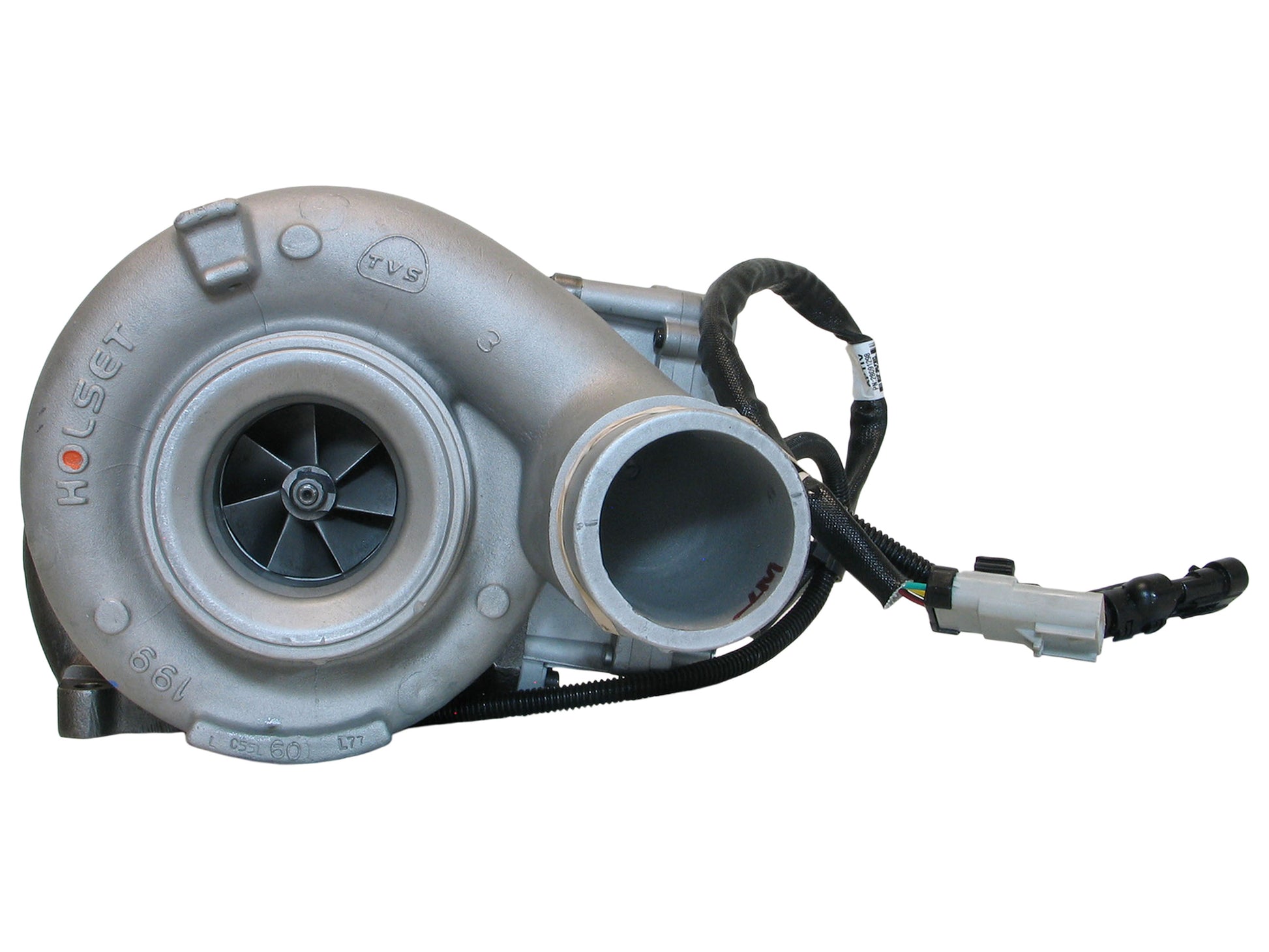

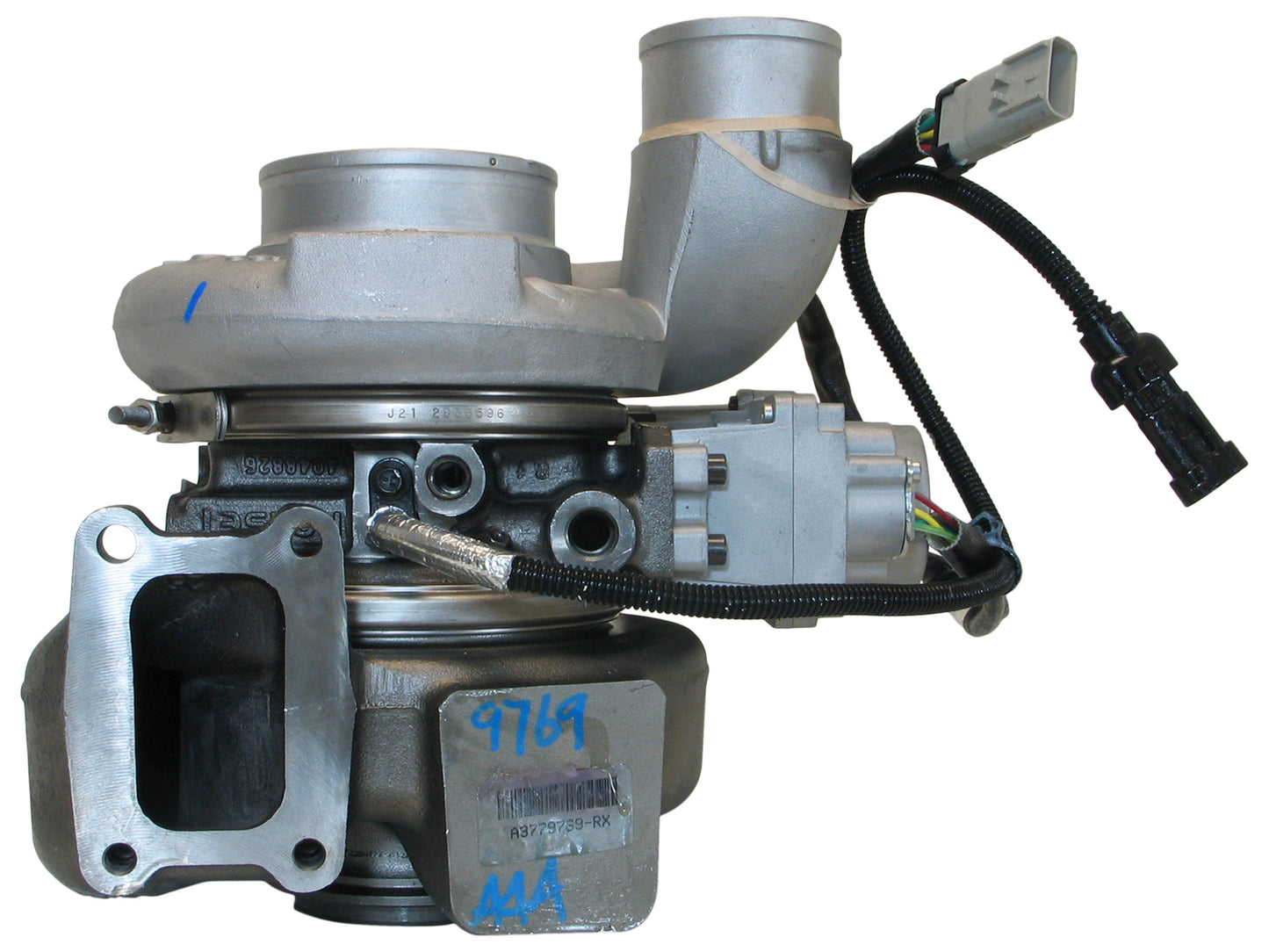

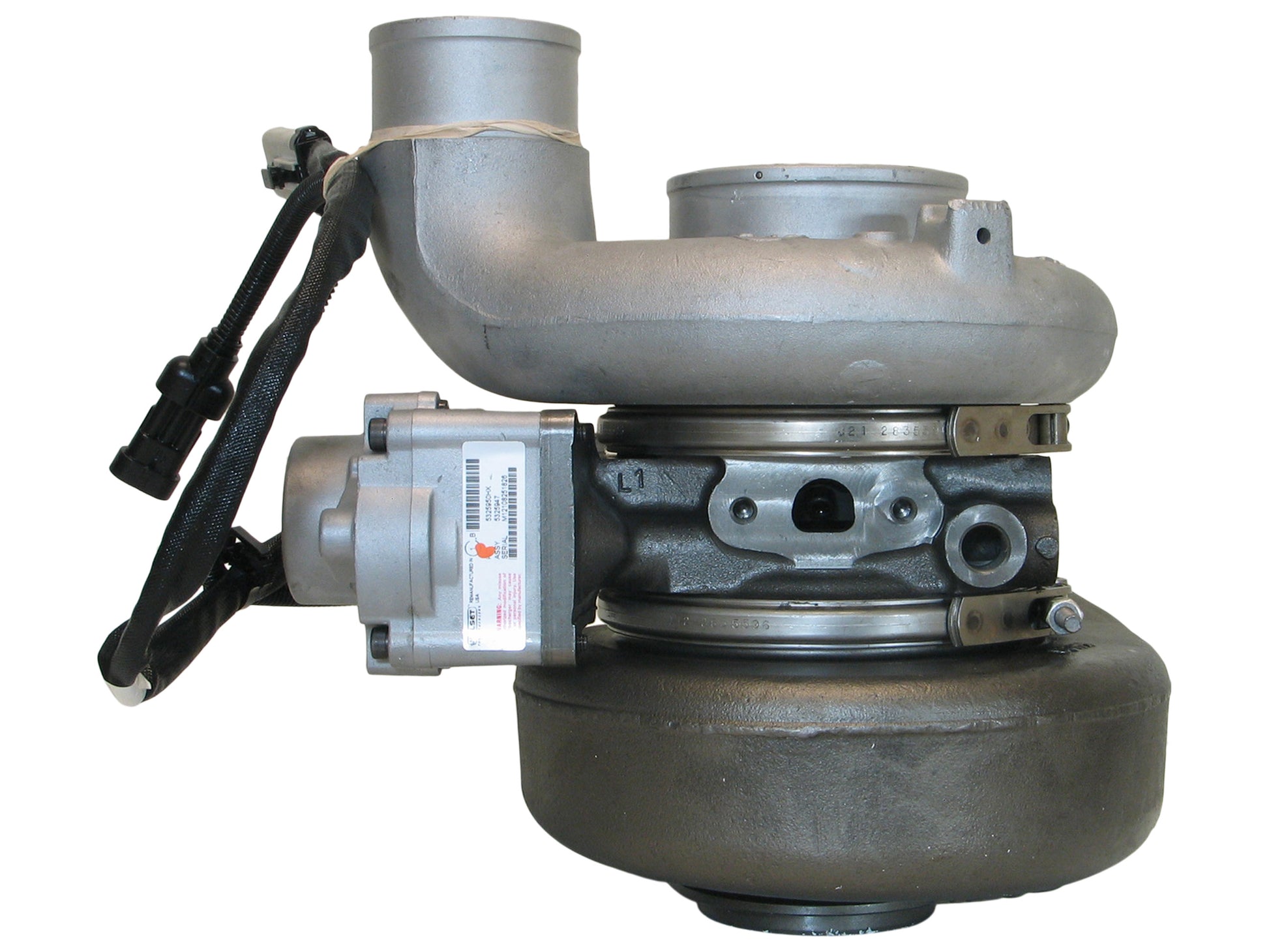

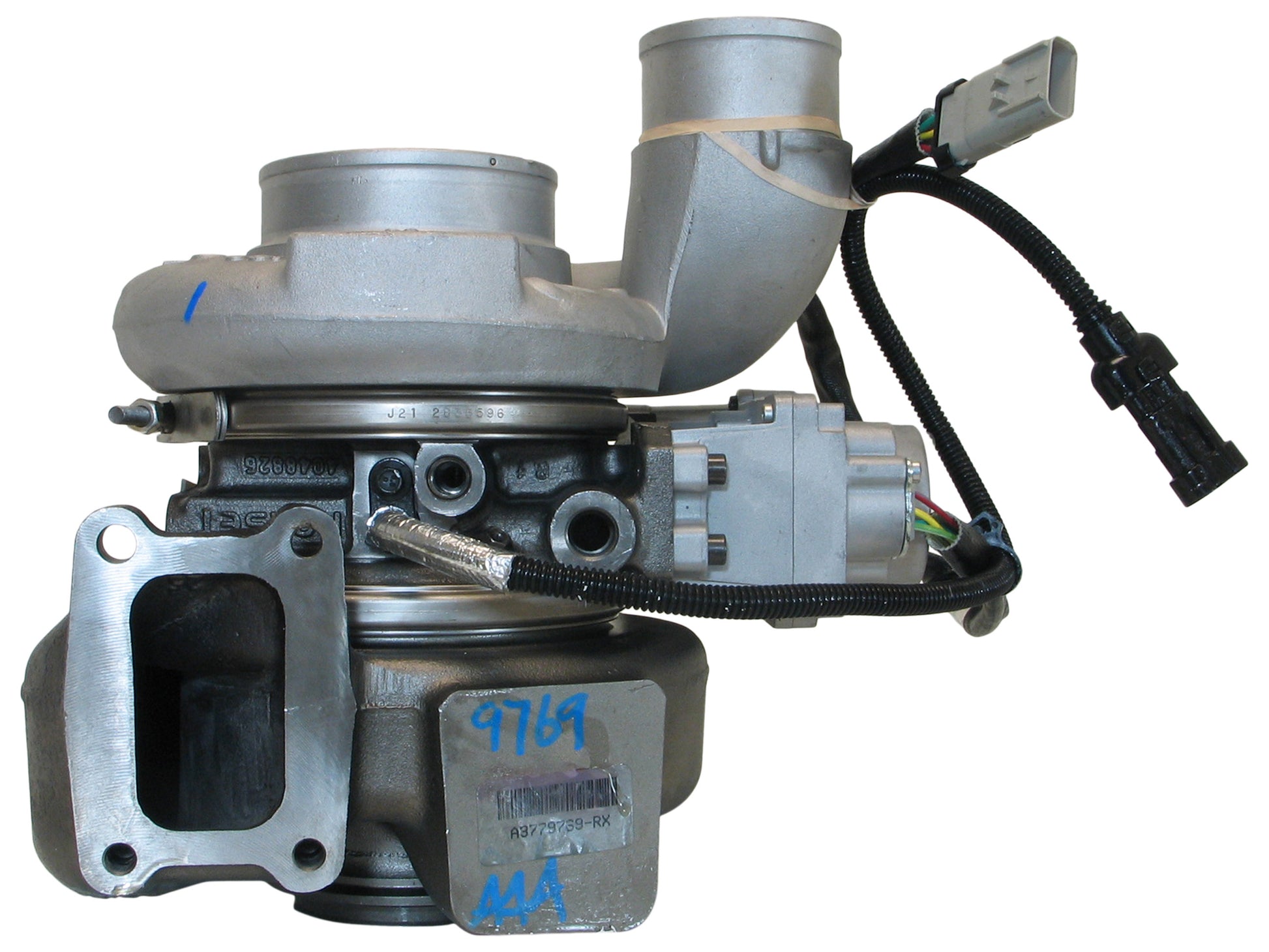

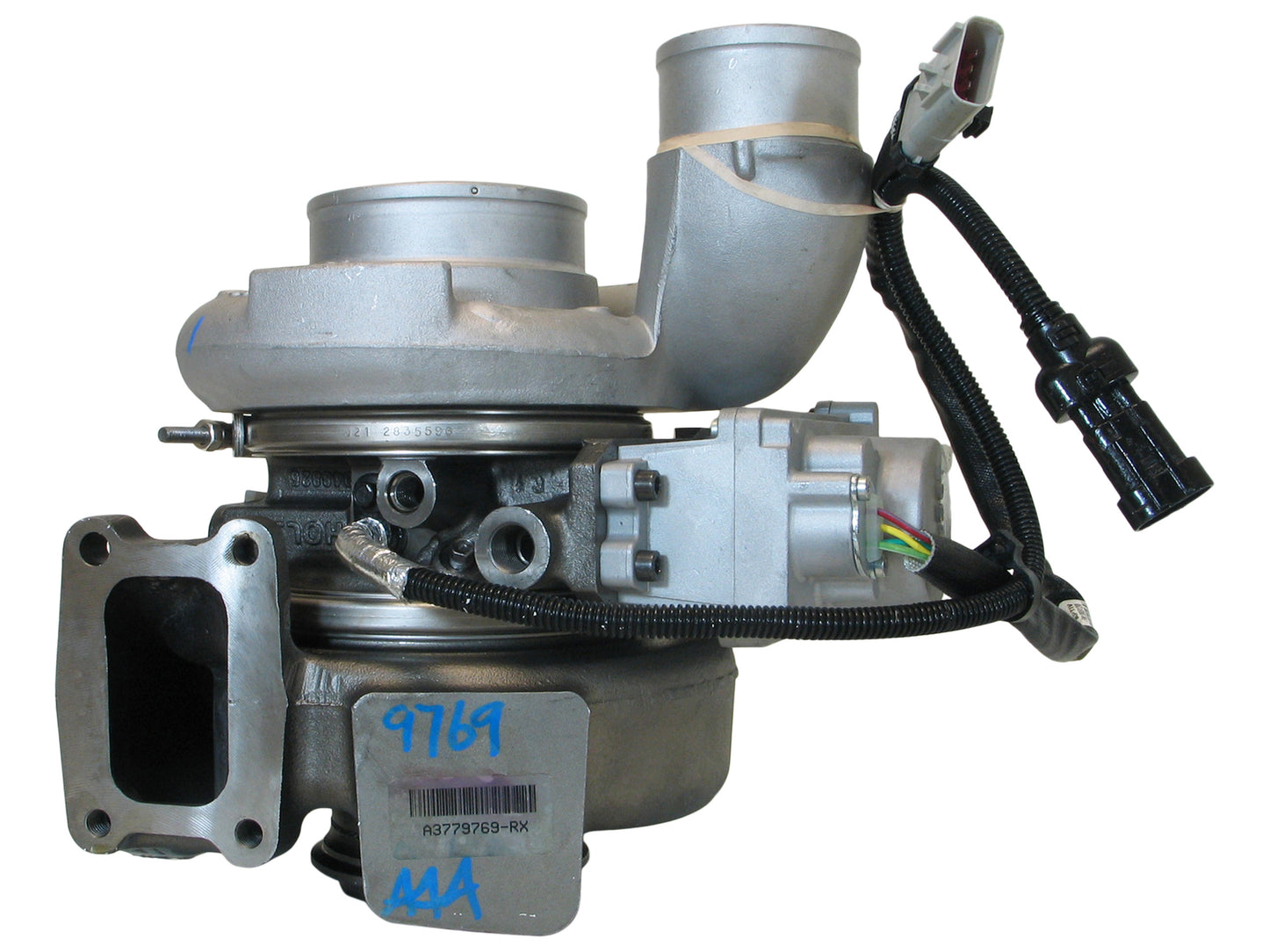

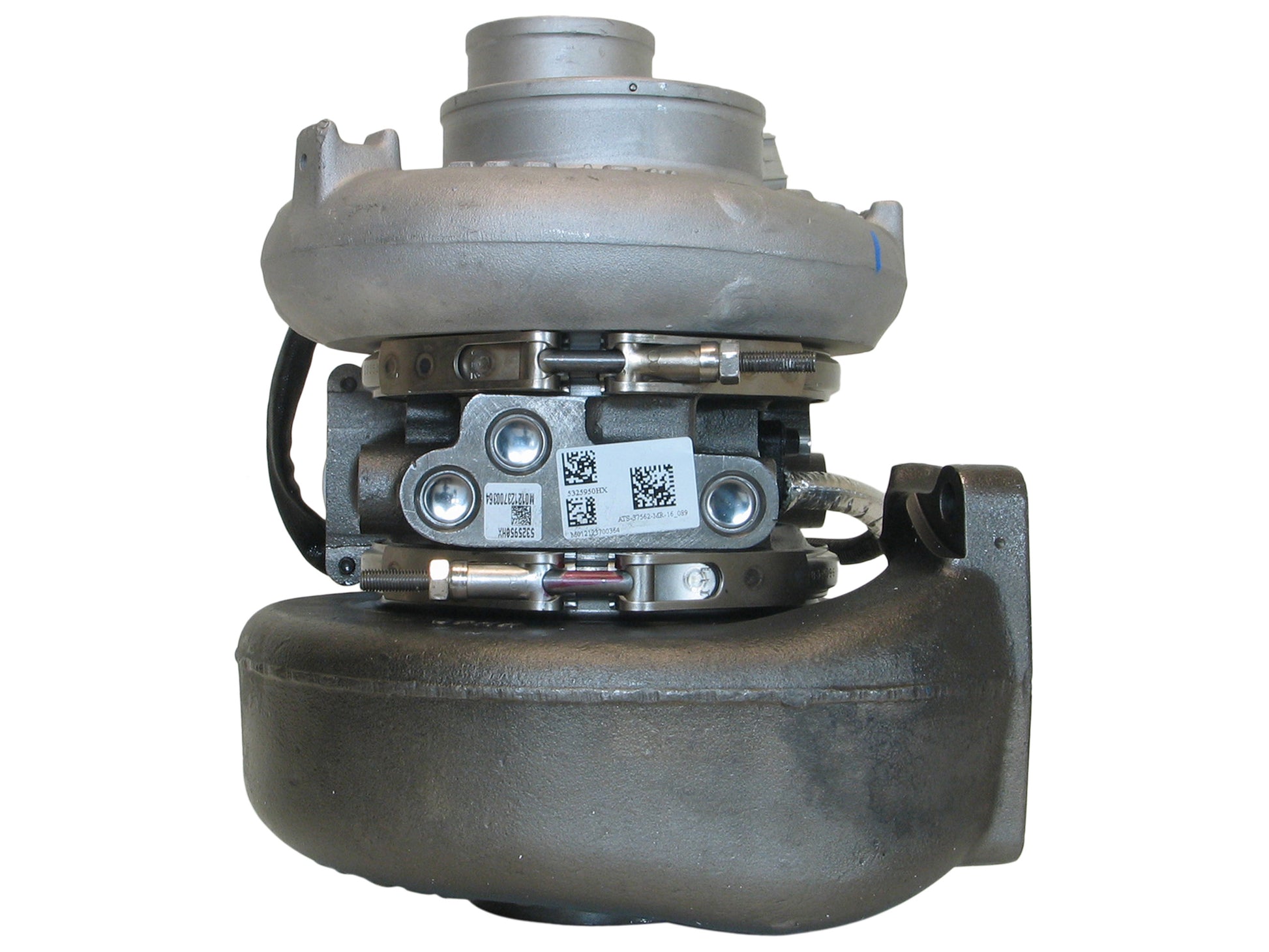

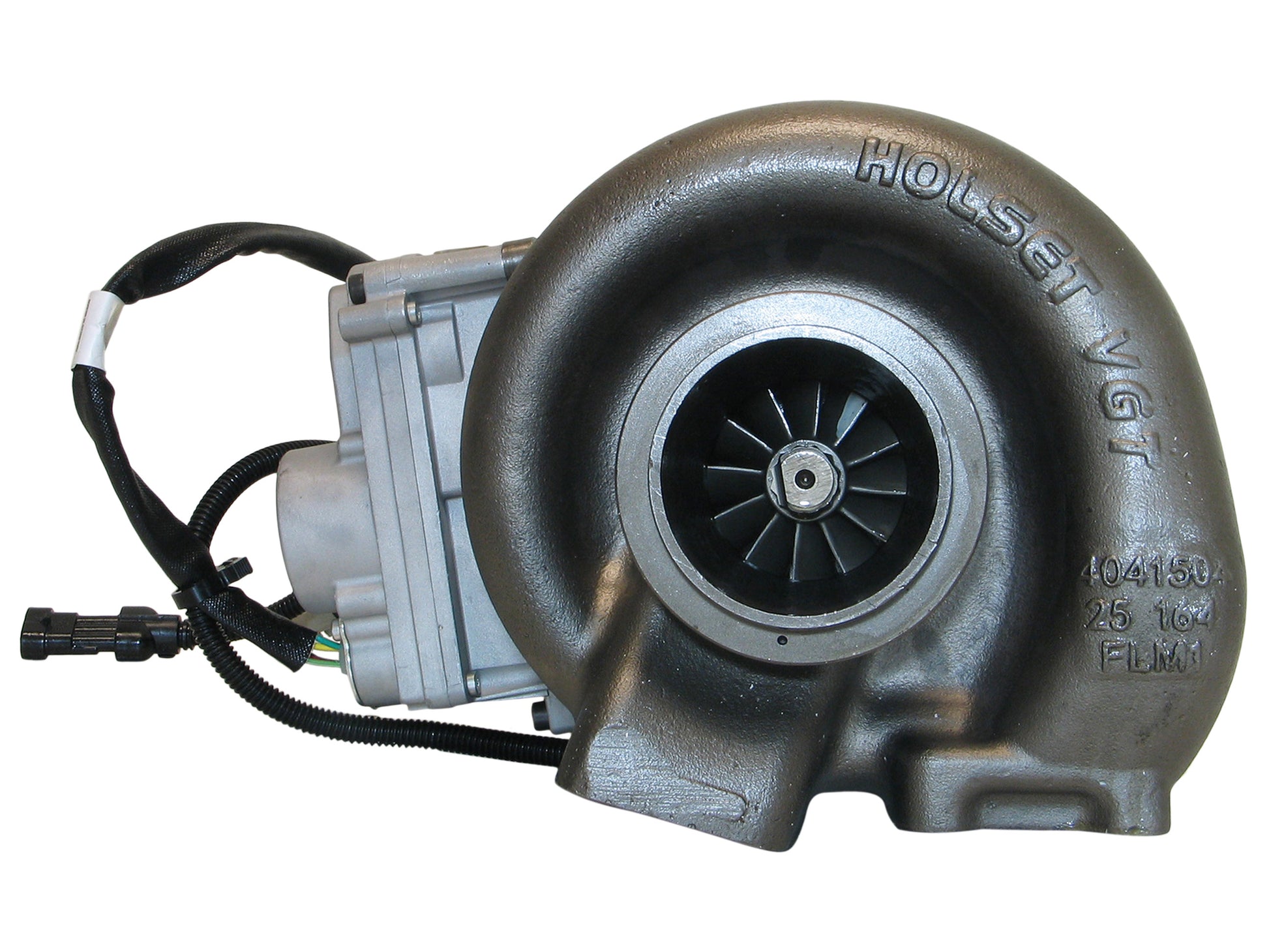

Remanufactured Holset HE300VG Turbo Dodge Ram 2500 3500 Cummins ISB 5325950HX

OEM REMANUFACTURED HOLSET TURBOCHARGER

This is an OEM REMANUFACTURED HOLSET TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

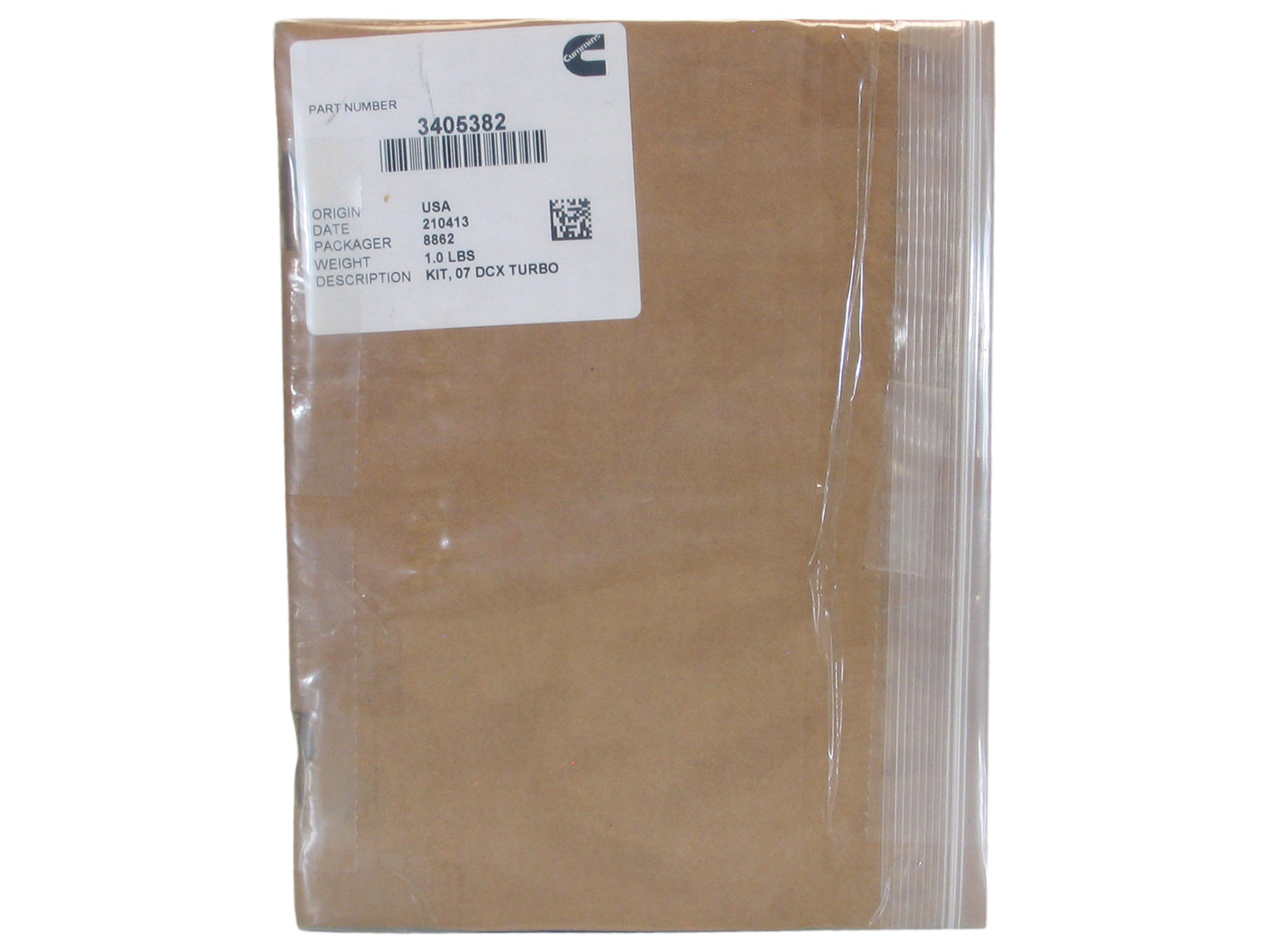

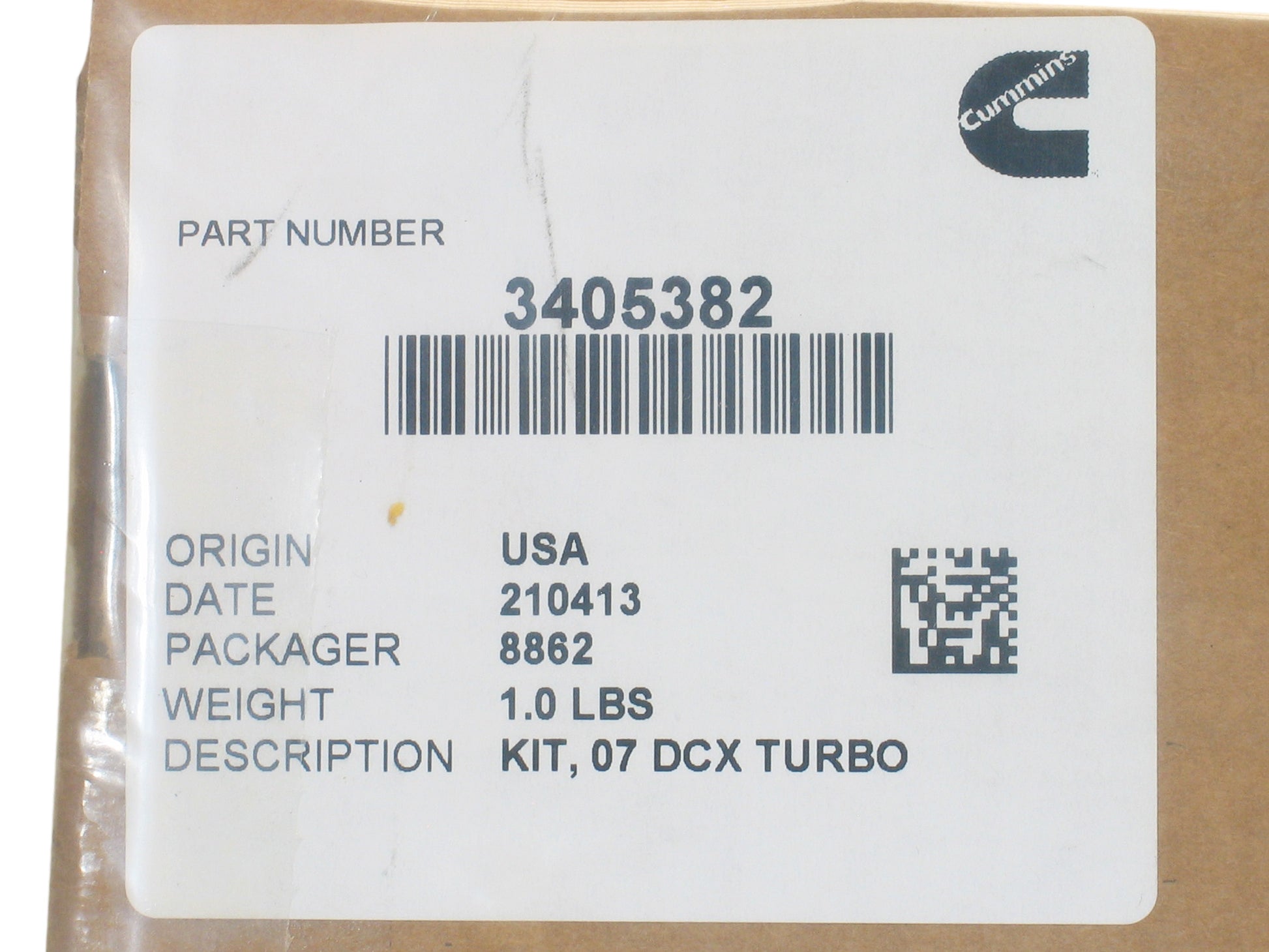

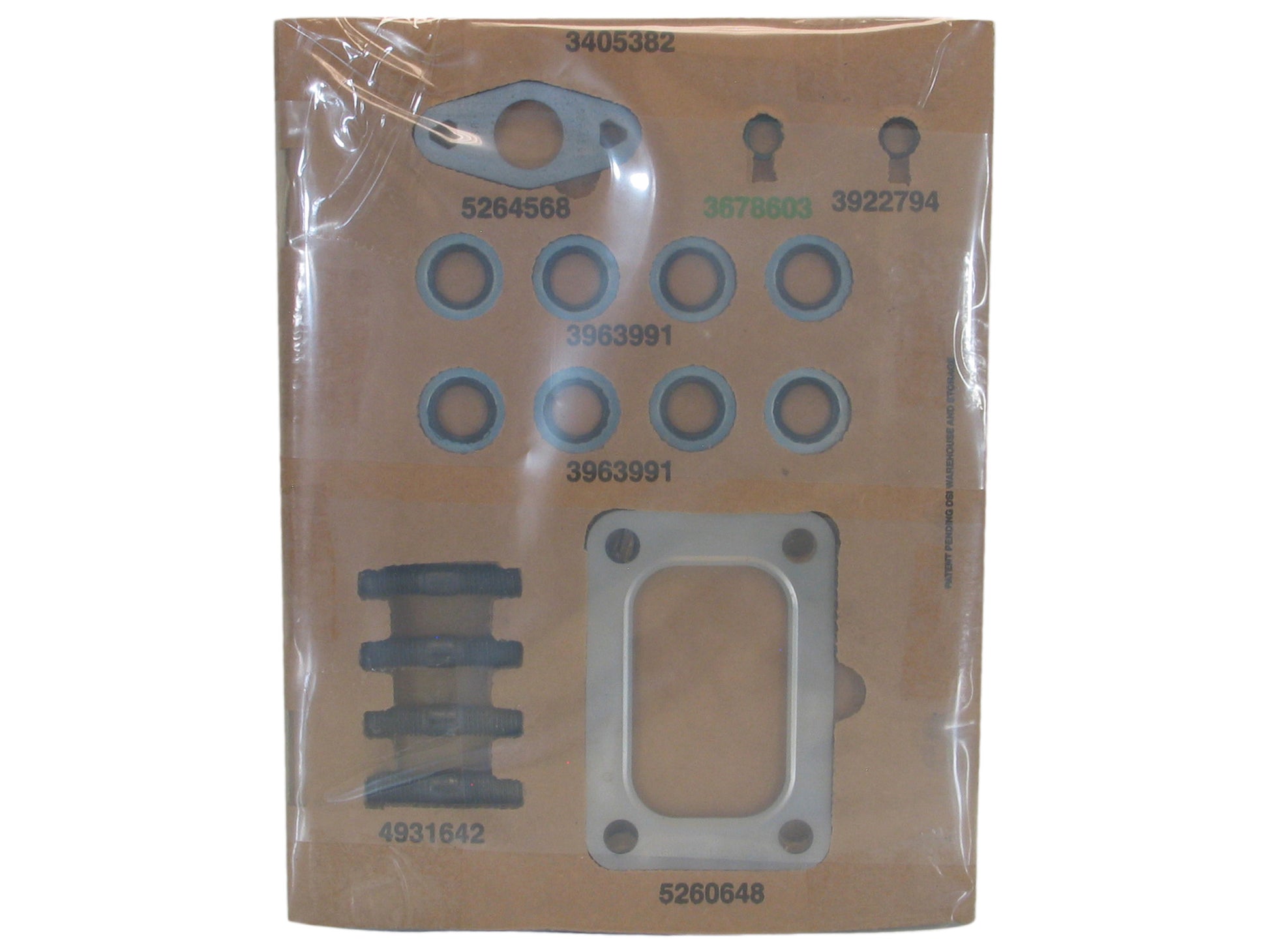

NOTE: This turbocharger package also comes with the gaskets.

Fits the following:

Part Number: 5325950HX
Interchangeable Number: 0433522, 2834229, 2834603, 2834644, 2834900, 2835908, 2835909, 2837649, 2837666, 2838190, 2839681, 2842406, 2842407, 2880275NX, 2881683, 2881755, 2881755NX, 2881755RX, 2881847, 2881847NX, 2881847RX, 2882013, 2882013RX, 2882075, 2882075NX, 2882075RX, 3768087, 3770973, 3770975, 3790480, 3790481, 3799833, 379984000, 379984000HX, 3799840H, 3799840HX, 4042034, 4044965, 4046264, 4046836, 4955361, 4955361NX, 4955361RX, 4955447, 4955447NX, 4955447RX, 4955876, 4955876NX, 4955876RX, 4956088, 4956088NX, 4956088RX, 5325947, 5325950H, 5608776
OEM Number: 2834228, 2834955, 2835910, 2835911, 2837647, 2837665, 2838191, 2839682, 3768088, 3770974, 3770978, 3790482, 3790483, 3799840, 4042035, 4043137, 4046837, 5325950, 68002428AA, 68003401AA, 68027068AA, 68031095AA, 68032290AB, 68038167AA, 68048234, 68048234AA, 68048234AB, 68048234AC, 68048234AD, 68048234AE, 68048234AG, 68048234AH, 8048234, H8350112R, R8048234AA, R8048234AB, R8048234AC, R8048234AD, R8048234AE, R8048234AF, R8048234AG, R8048234AH, RL048234AA
Turbo Model: HE300VG, HE351CW, HE351VE
Manufacturer: Holset

Year: 2003-12
Engine: ISB, ISB5.9, ISB6, ISB 6.7 Blackbird, ISB 6.7 Raptor, ISB EPA 07
Engine Manufacturer: Cummins
Displacement: 6.7L, 6700 ccm
Fuel: Diesel
Power: 350 HP

Angle α (Compressor Housing): 175°
Angle β (Turbine Housing): 189°
Back Plate: (1300016093)
Bearing Housing: (1900011227)
CHRA: (1000020127)

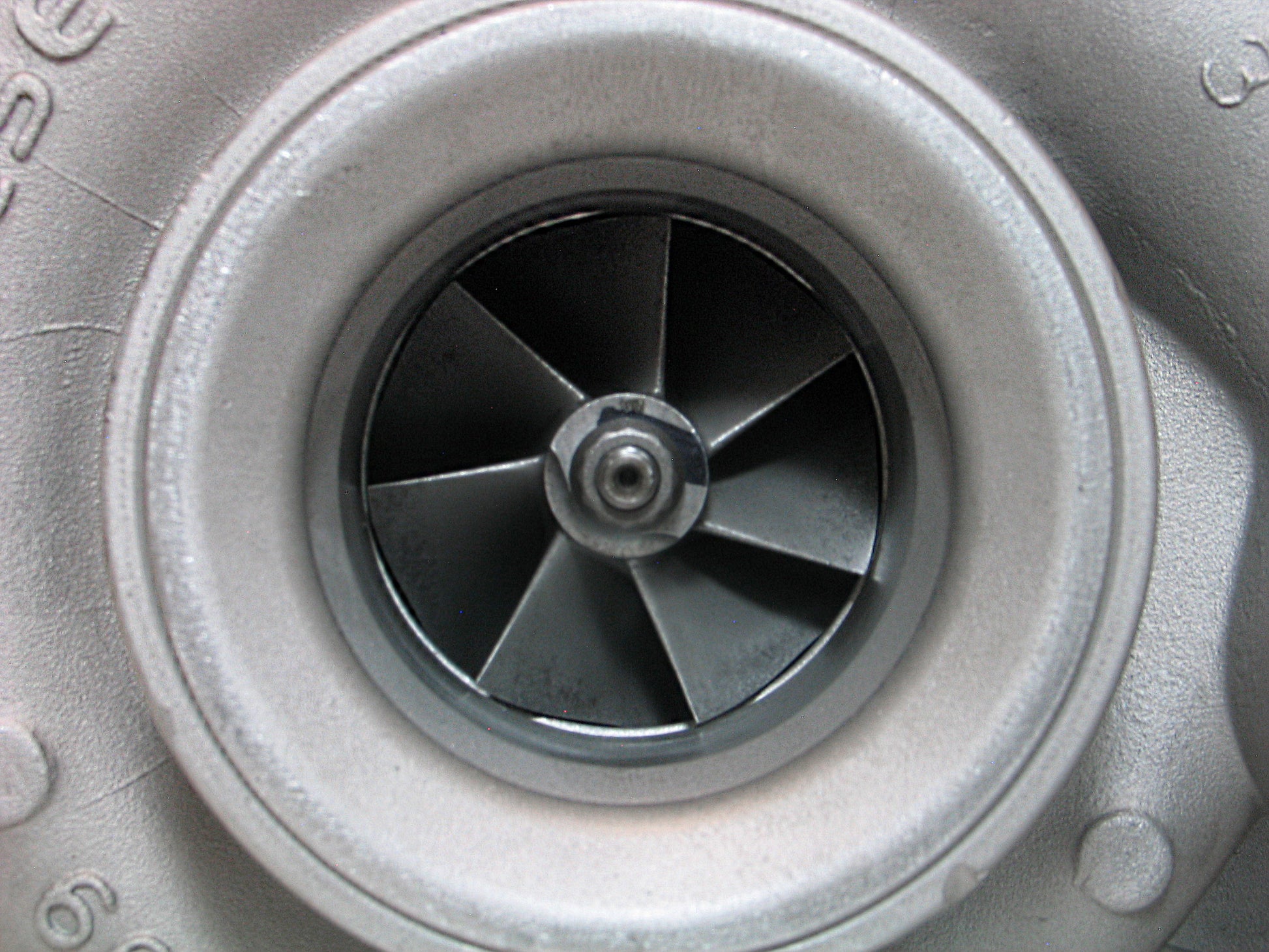

Compressor Wheel: (Ind. 50.3 mm, Exd. 72.6 mm, 6+6 Blades, Billet)(1200016234)

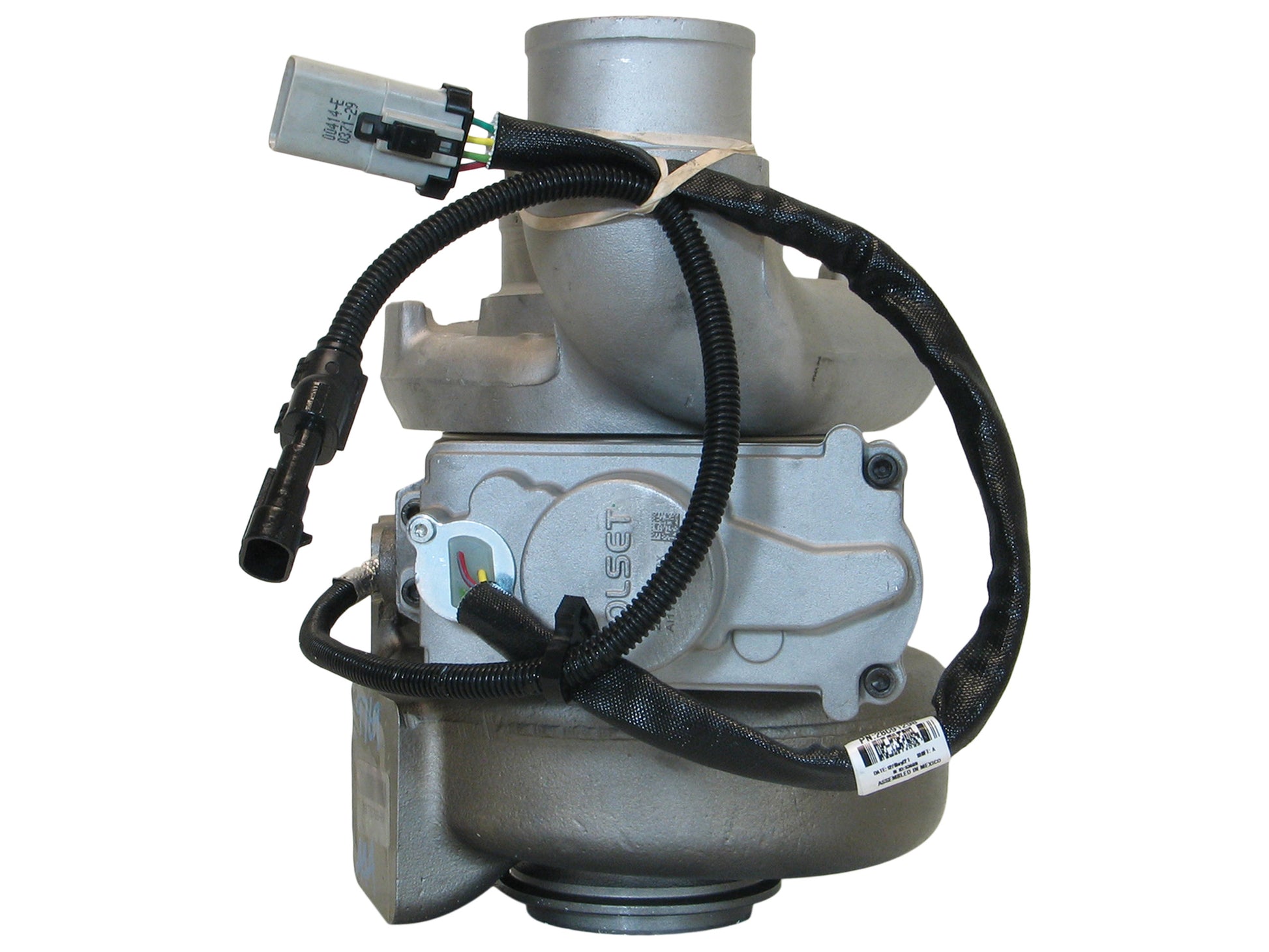

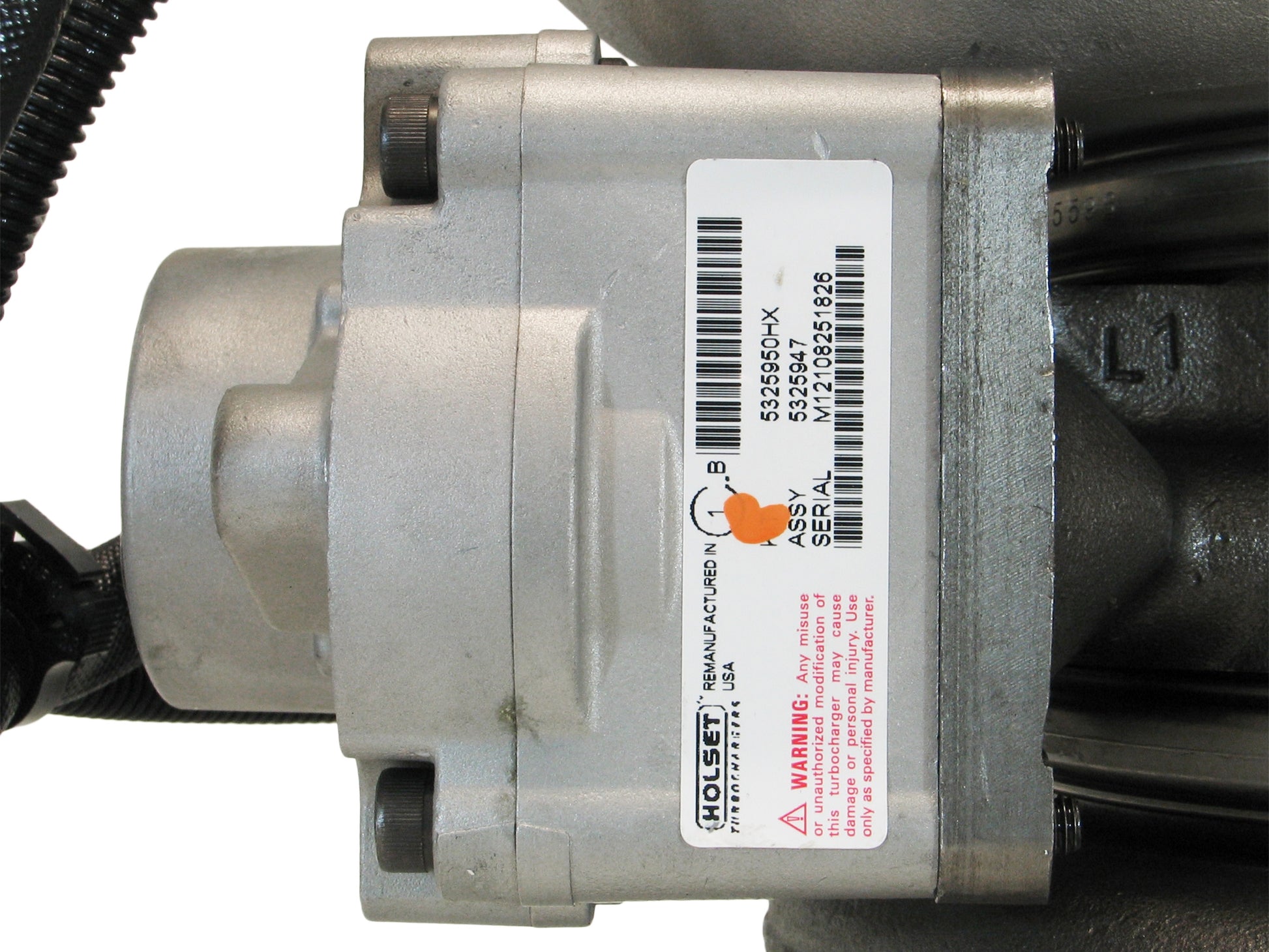

Electronic Actuator: 4032772 (2836400, 2836004, 2837675, 4032163, 4032659, 4032771, 4032772, 403277200, 403277200H, 403277200HX, 4032772H, 4032772NX, 4032772RX, 4032773, 4032773NX, 4032773RX, 4032772HX, 4034315HX, 4043827, 4045123, 4046534, 4046535, 4049828)(12 Volts)
Gasket Kit: 3977338 (3678603, 3678786, 3883284, 3928624, 4032568, 4931365)
Nozzle Ring: (3000016048)
Repair Kit: (1154351752)
Turbine Housing A/R: VGT

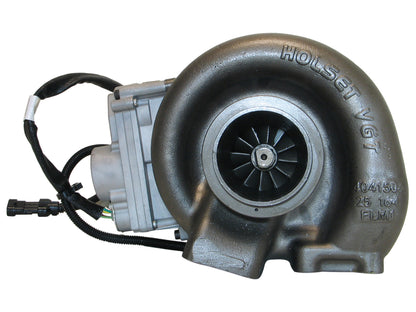

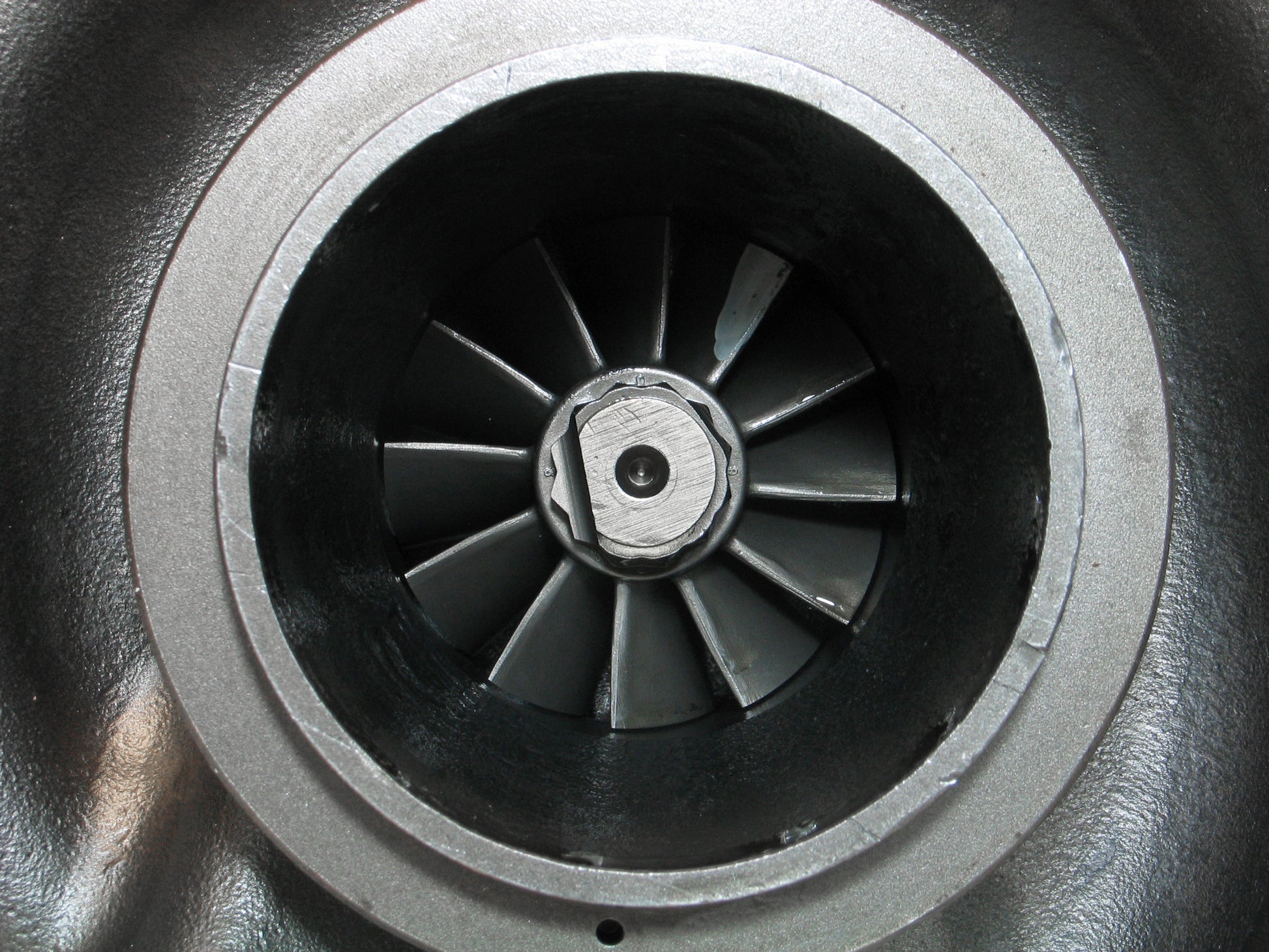

Turbine Wheel: (1100016231)(Ind. 70.2 mm, Exd. 60 mm, 12 Blades)

Application:
2003-12 Dodge Ram 2500, 3500 Truck with Cummins ISB (All) Engine
Chrysler with Cummins ISB Engine

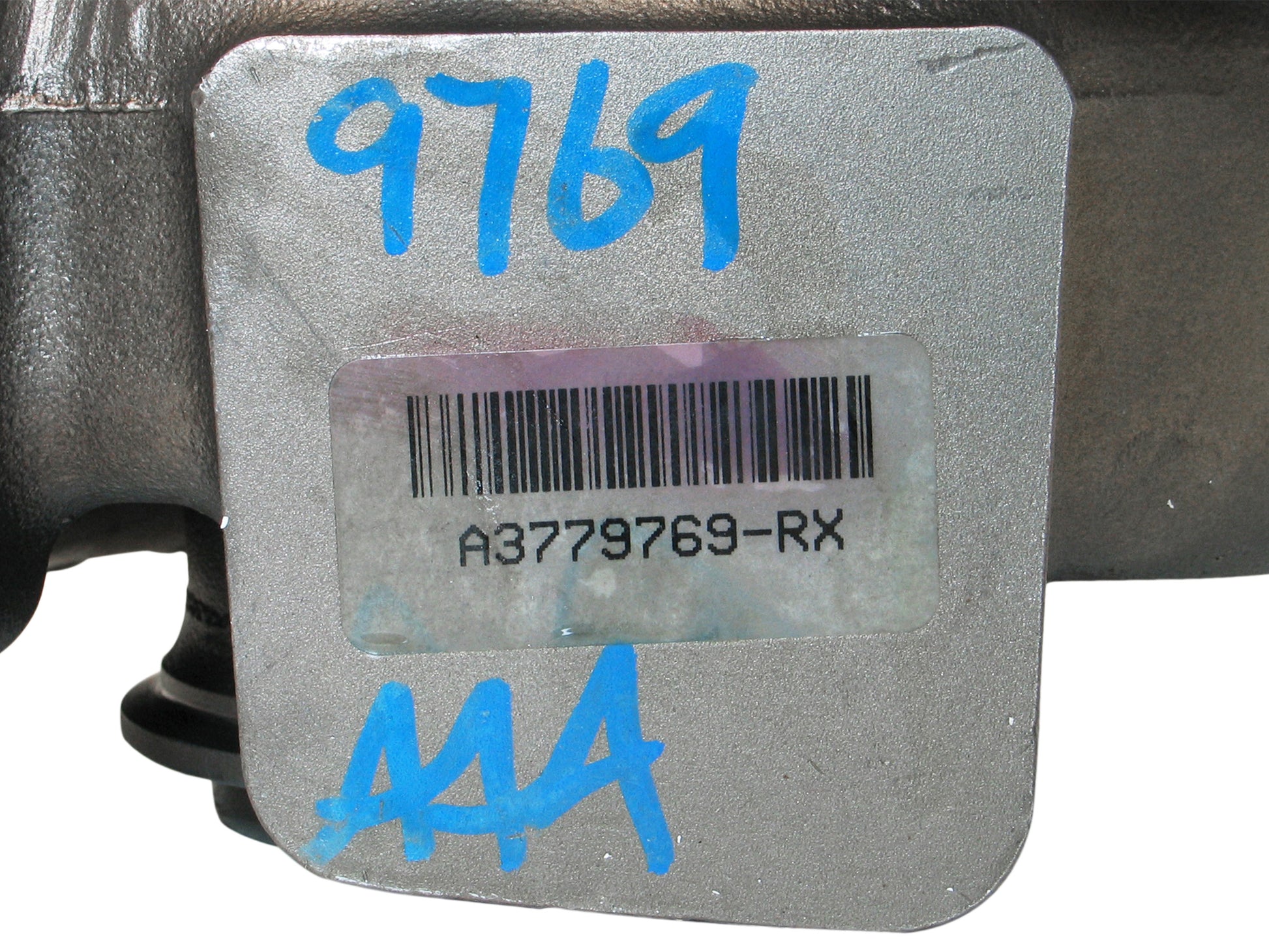

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
