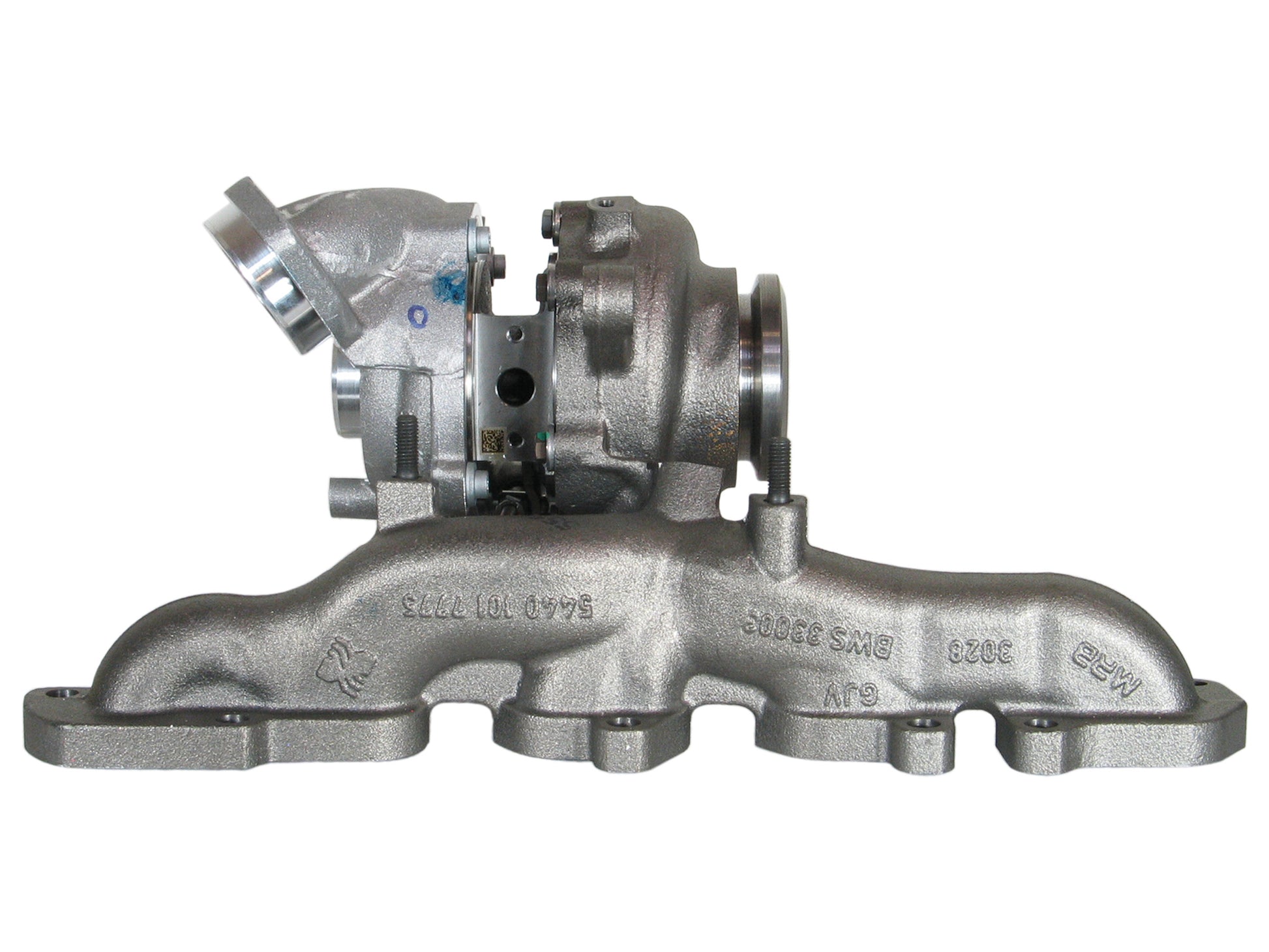

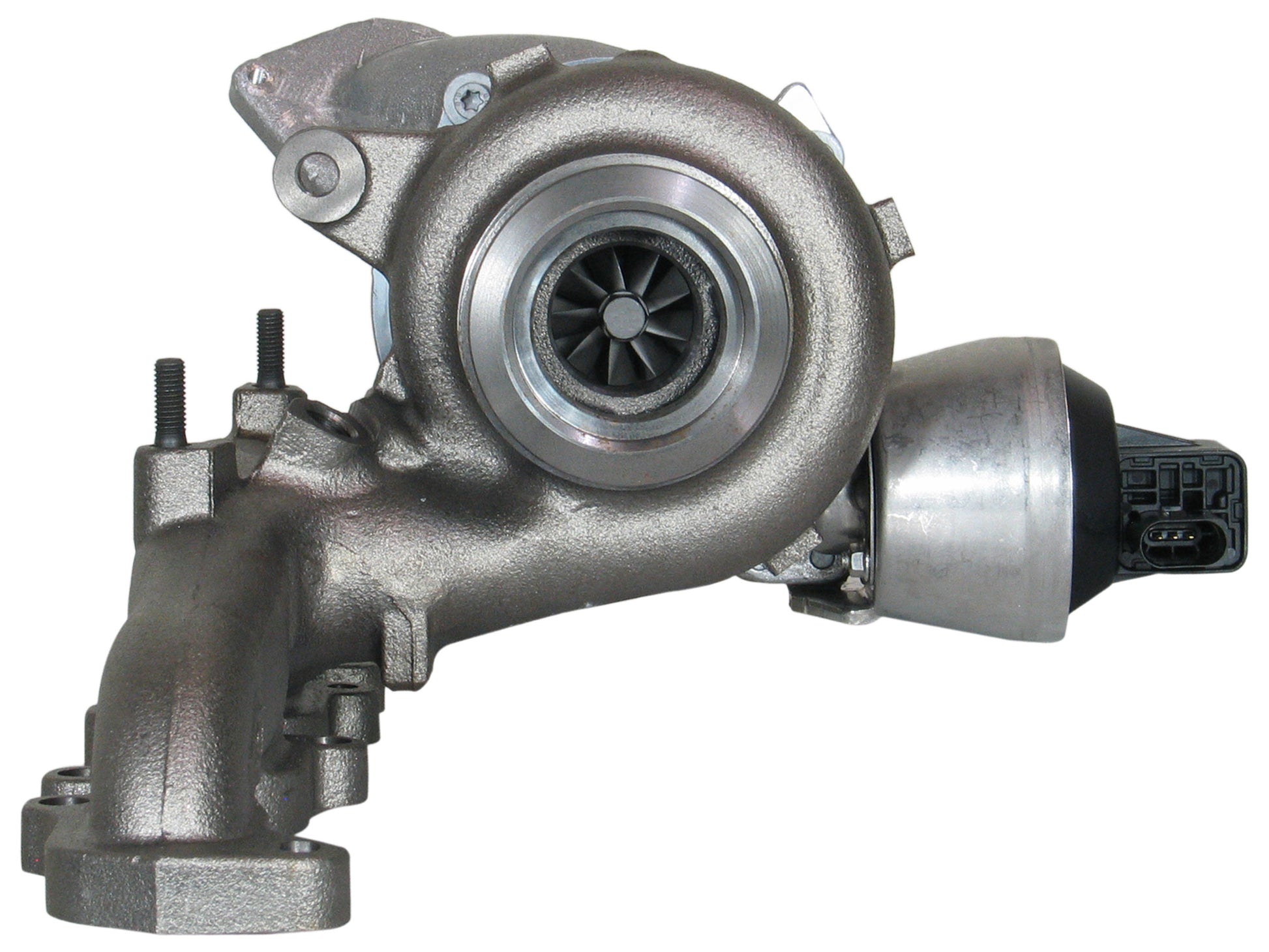

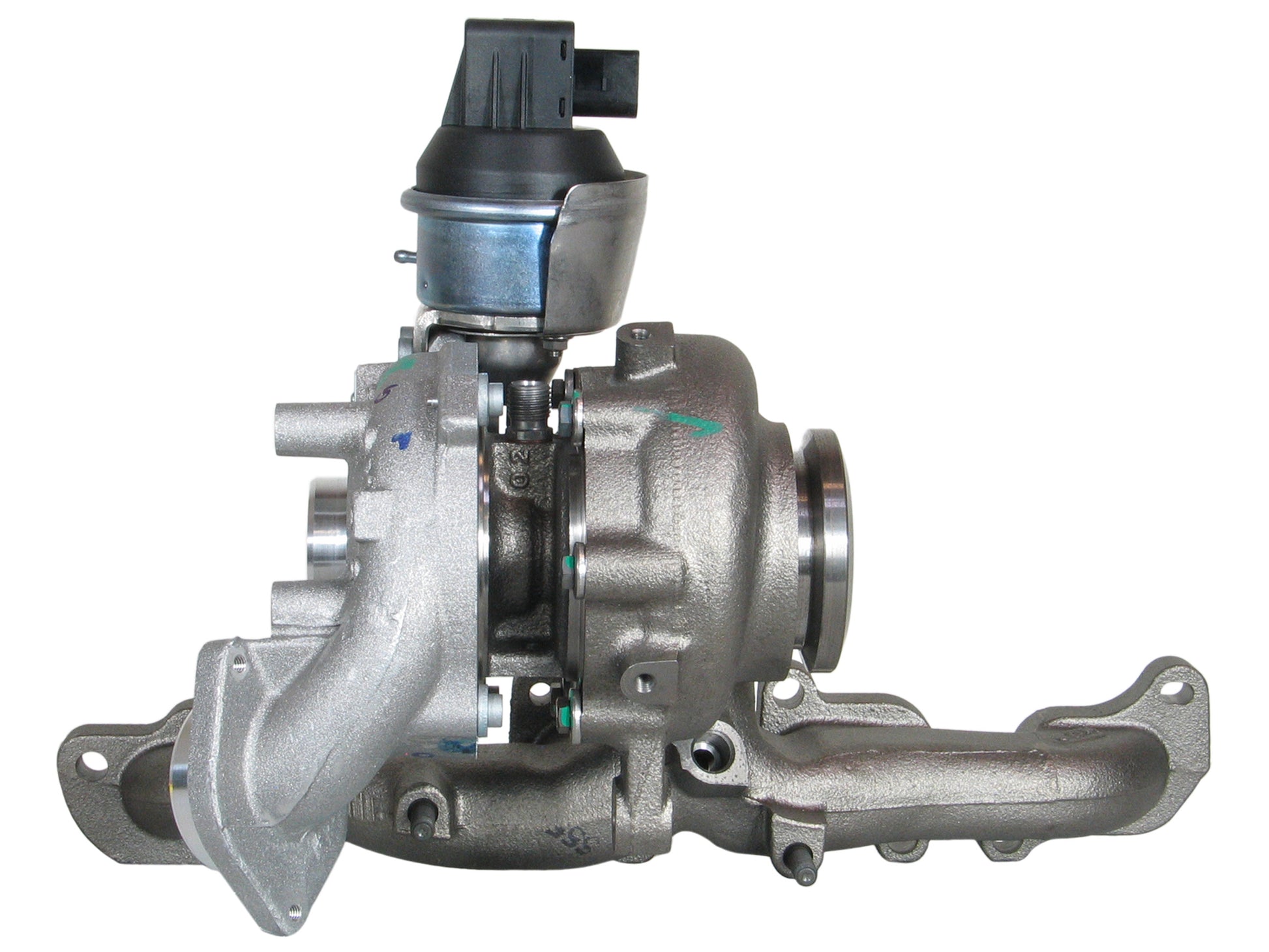

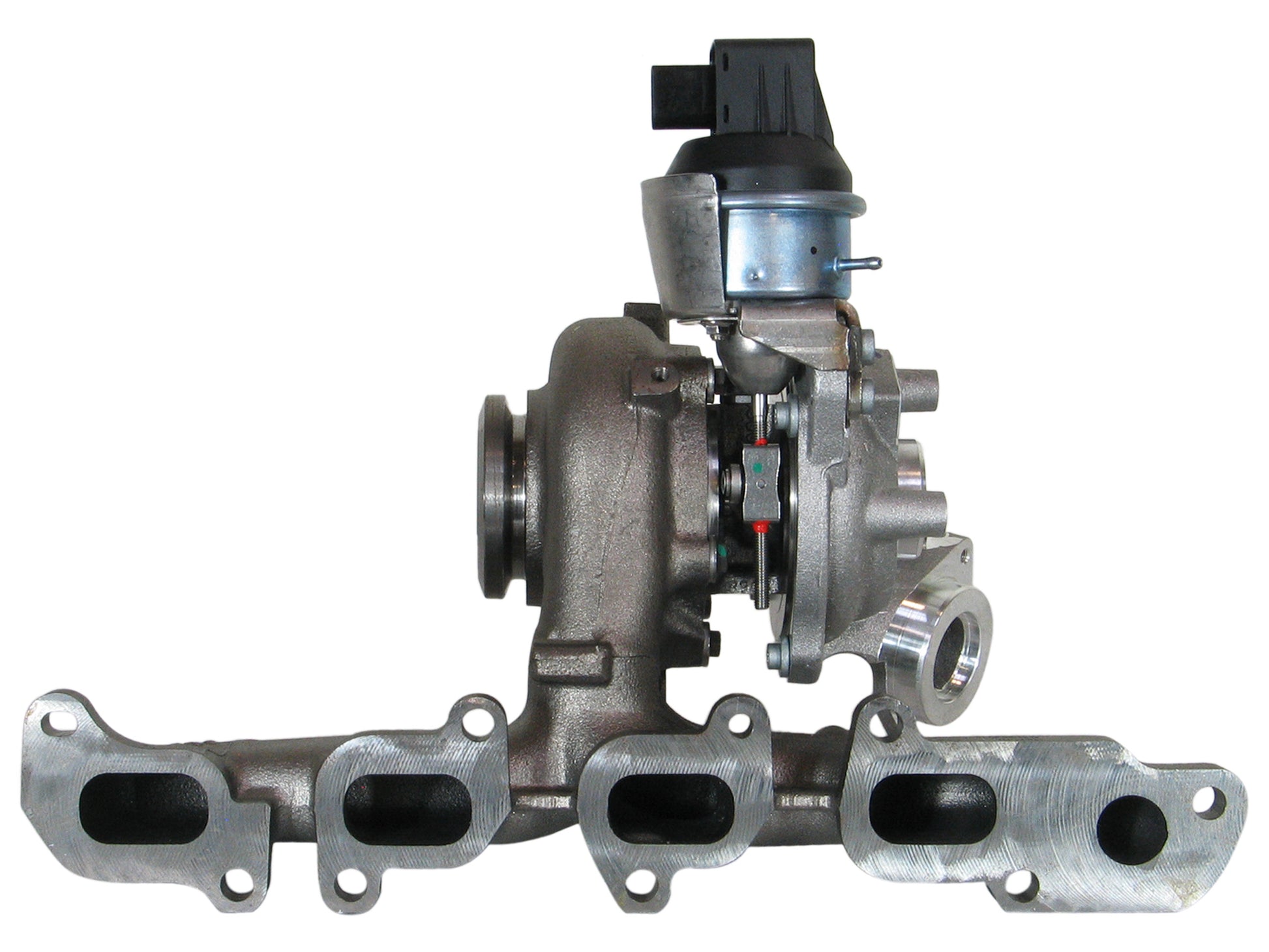

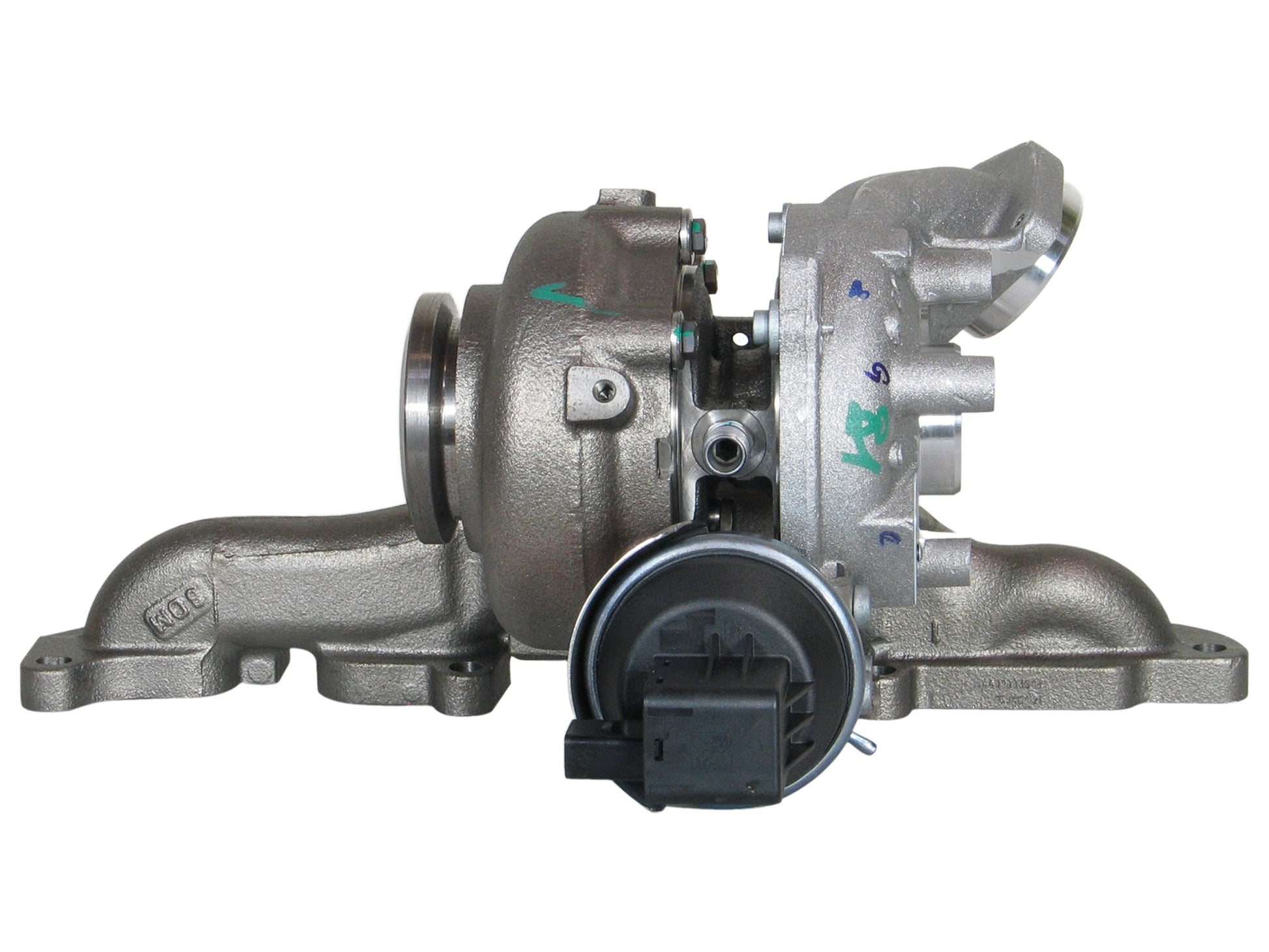

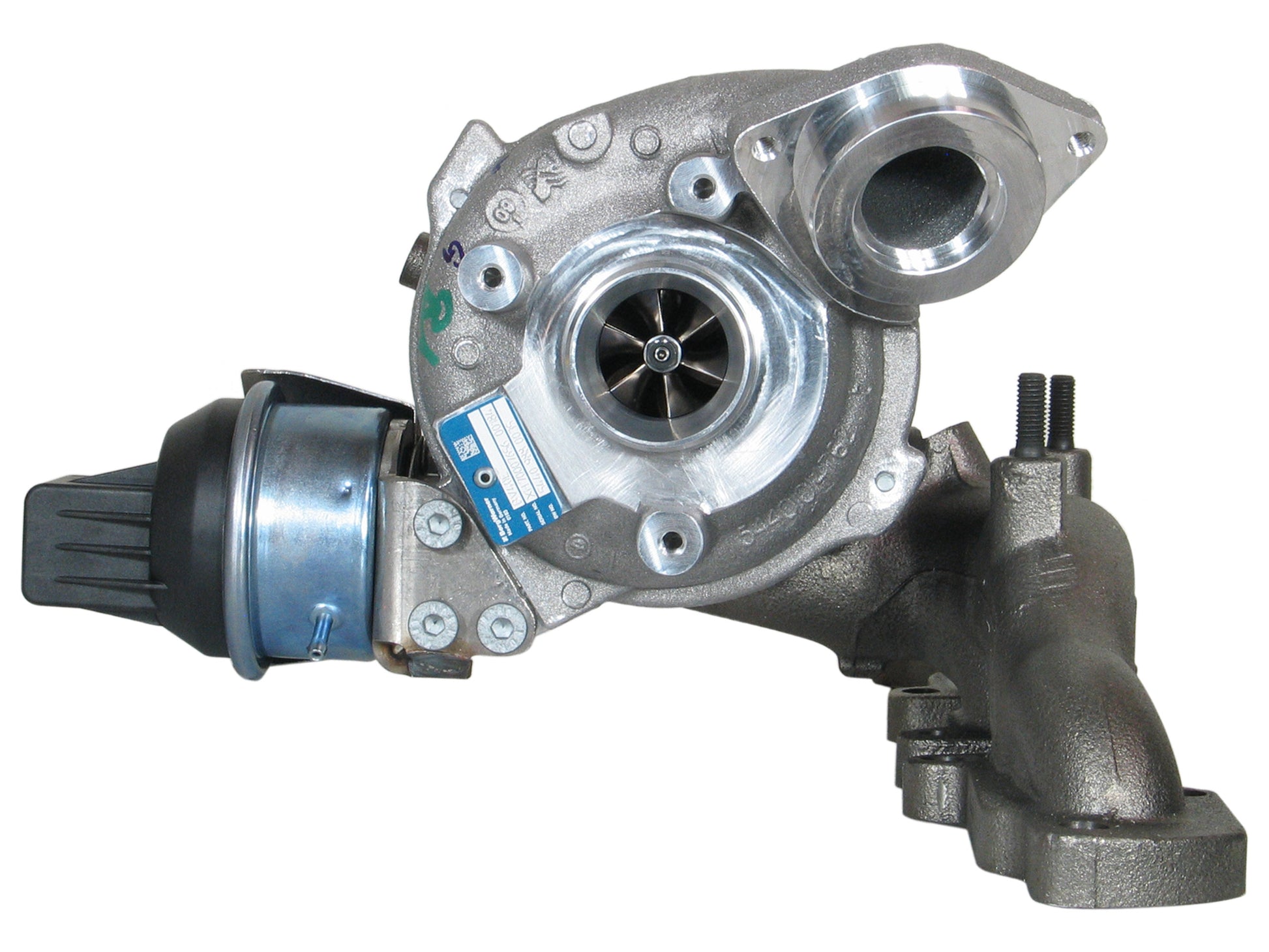

NEW BorgWarner BV40 Turbo VW Passat Golf Beetle Audi A3 2.0L TDI-CR 54409880035SKU: 54409880035
This is a BRAND NEW GENUINE BORGWARNER TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: 54409880035
Interchangeable Number: 5440 988 0035, 5440-988-0035, 54409700035, 5440 970 0035, 5440-970-0035, 54409700002, 5440 970 0002, 5440-970-0002, 54409700005, 5440 970 0005, 5440-970-0005, 54409700007, 5440 970 0007, 5440-970-0007, 54409700020, 5440 970 0020, 5440-970-0020, 54409880002, 5440 988 0002, 5440-988-0002, 54409880005, 5440 988 0005, 5440-988-0005, 54409880007, 5440 988 0007, 5440-988-0007, 54409880020, 5440 988 0020, 5440-988-0020
OEM Number: 03L253010J, 03L253010JX, 03L253056E, 03L253056EV, 03L253056EX, 03L253056Q, 03L253056QV, 03L253056QX, 220-01-4114, 220014114, 829-929-7575, 8299297575
Turbo Model: BV40, BV40-1874KCB/340.18, BV40-1874KCB340.18AVAXC, BV40E-0005, BV43-0207
Manufacturer: BorgWarner 3K - Schwitzer, BWTS DE
Engine: 2.0L TDI-CR, 2.0L TDI-CR ULEV, 2.0L TDI CR-PQ35, CFFB, CFFE, CFHC, CKR, CKRA
Engine Manufacturer: Volkswagen
Displacement: 2.0L, 1970 ccm, 5 Cylinders
Platform: 1F7, 1F8, 362, 365, 3T4, 5C1, 5C2, 5K1, 710, 8UB, 8UG, 8V1, 8V7, 8VA, 8VS
Power: 103 kW/140 HP
Speed: 4400 RPM
Actuator: 03L198716 (03L198716B, 03L198716A)(1303040380)
Back Plate: 54431523005 (1303039301, 1800016057)
Bearing Housing: 54401504026 (Oil Cooled)(1303040450, 1900011136D)
CHRA: 54407100501 (5440-710-0501)(1303040902, 1000030241T)
Compressor Wheel: 54431232055 (54431232043)(Ind. 34.4 mm, Exd. 46 mm, 6+6 Blades, Super Back)(1303040401, 1200016599T)
Gasket (Oil Outlet): (03L145757M, 03G-145-757-A, 03G145757A)
Gasket (Turbine Inlet): (03L145757A, 03L145117C)
Gasket (Turbine Outlet): (03L253039B, 03G-253-039, 03G253039)
Gasket Kit: 8272169947 (827-216-9947)
Heat Shield: (1303040341, 2030016045/131B)
Repair Kit: (1303040755, 5000040039)
Turbine Housing A/R: VTG
Turbine Wheel: 54401208503 (54401205000)(Ind. 35.6 mm, Exd. 40 mm, Trim 6.77, 9 Blades)(1303040435, 1100016429)
NOTE: VTG, DPF (Diesel Particulate Filter), integrated manifold, actuator with position sensor.
2006-14 Volkswagen Ibiza V with 2.0L TDI-CR Engine
2006-14 Volkswagen Passat (3AA B7) with 2.0L TDI-CR Engine (USA, Mexico)
2015-04 Volkswagen Passenger Car with 2.0L TDI-CR ULEV Engine
Audi A3, A3 Cabriolet, A3 Limousine, A3 Sportback, Q3
Skoda Superb II
Volkswagen Beetle, Eos, Golf VI, Passat Alltrack
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
