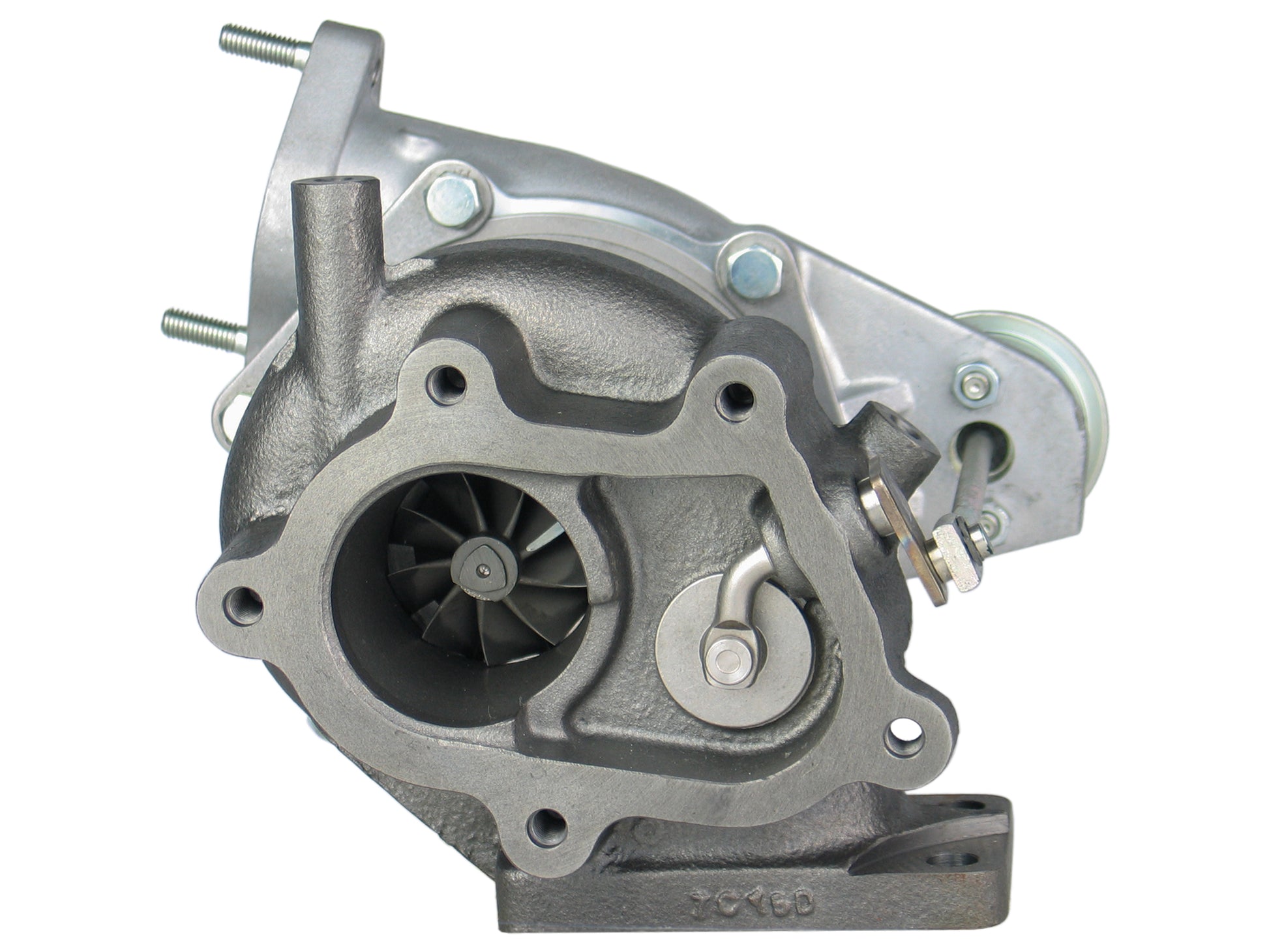

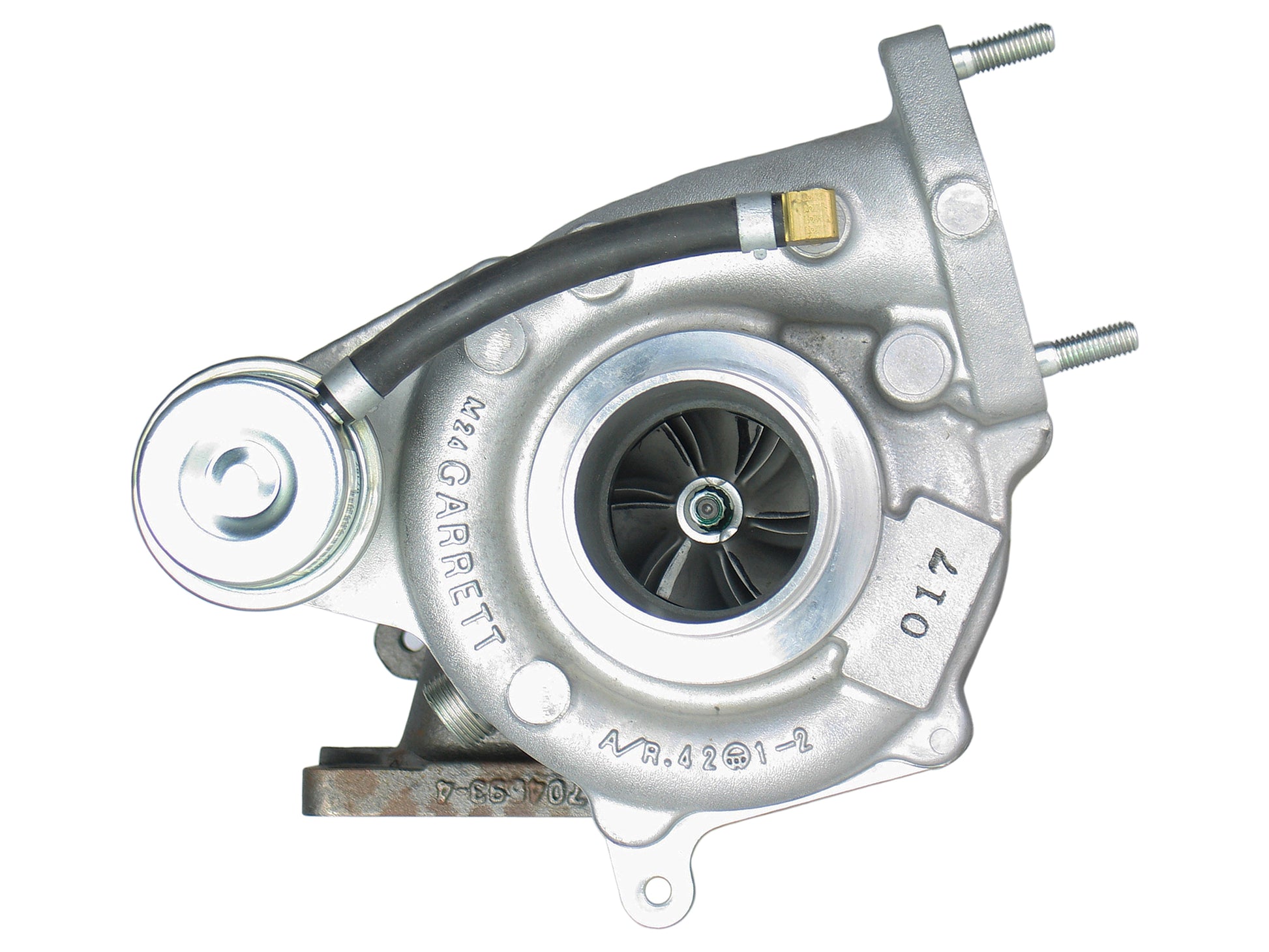

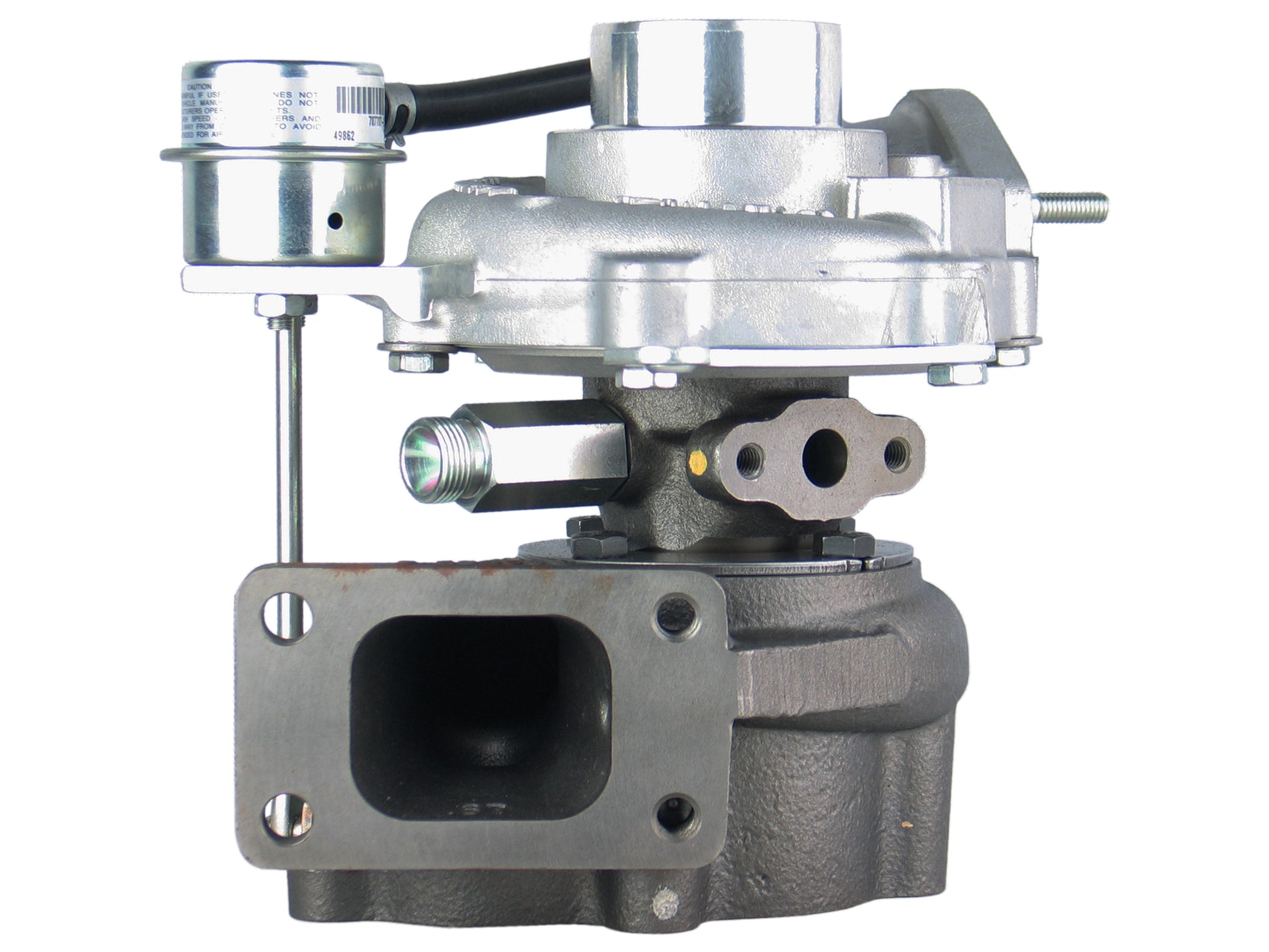

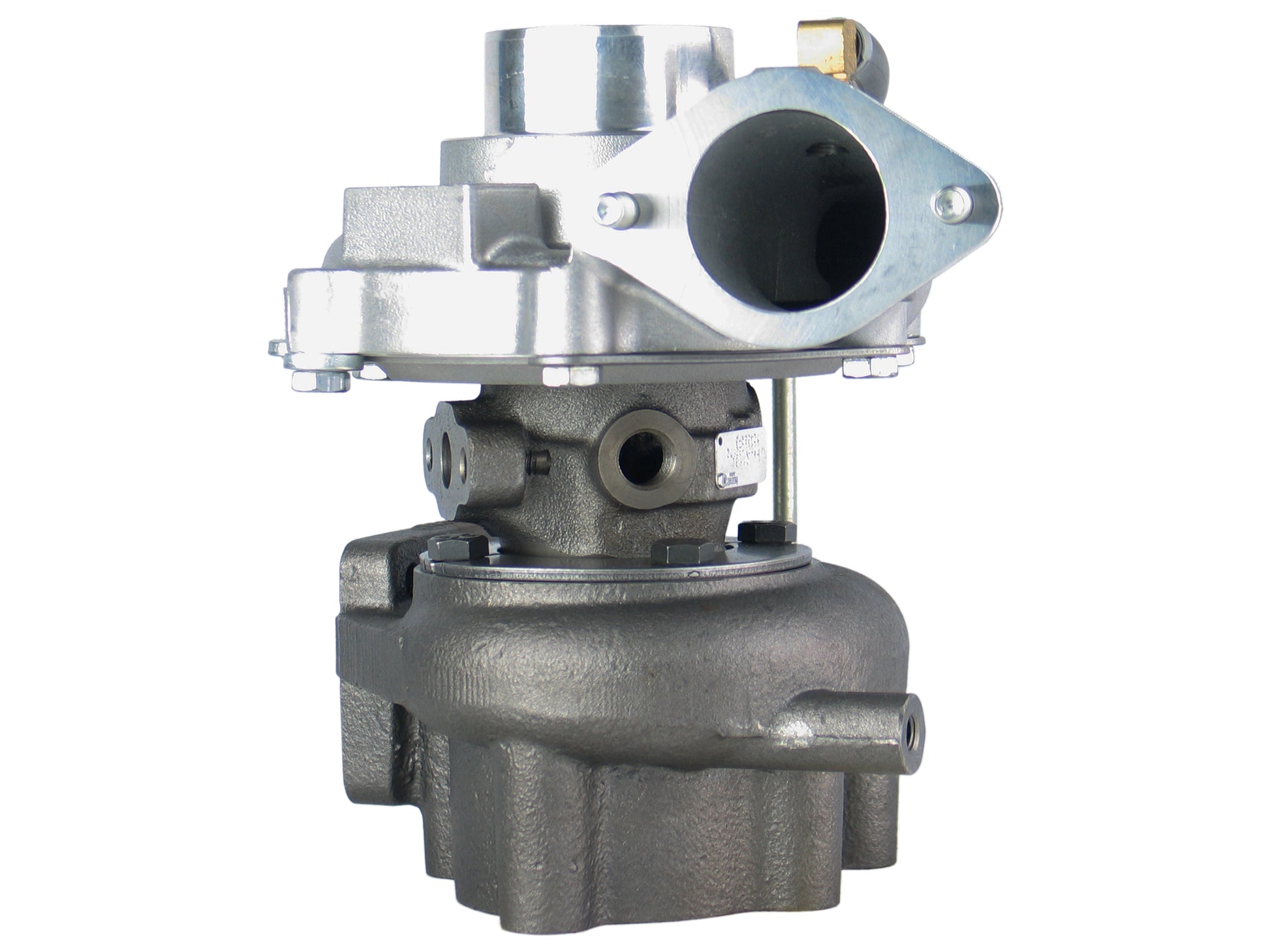

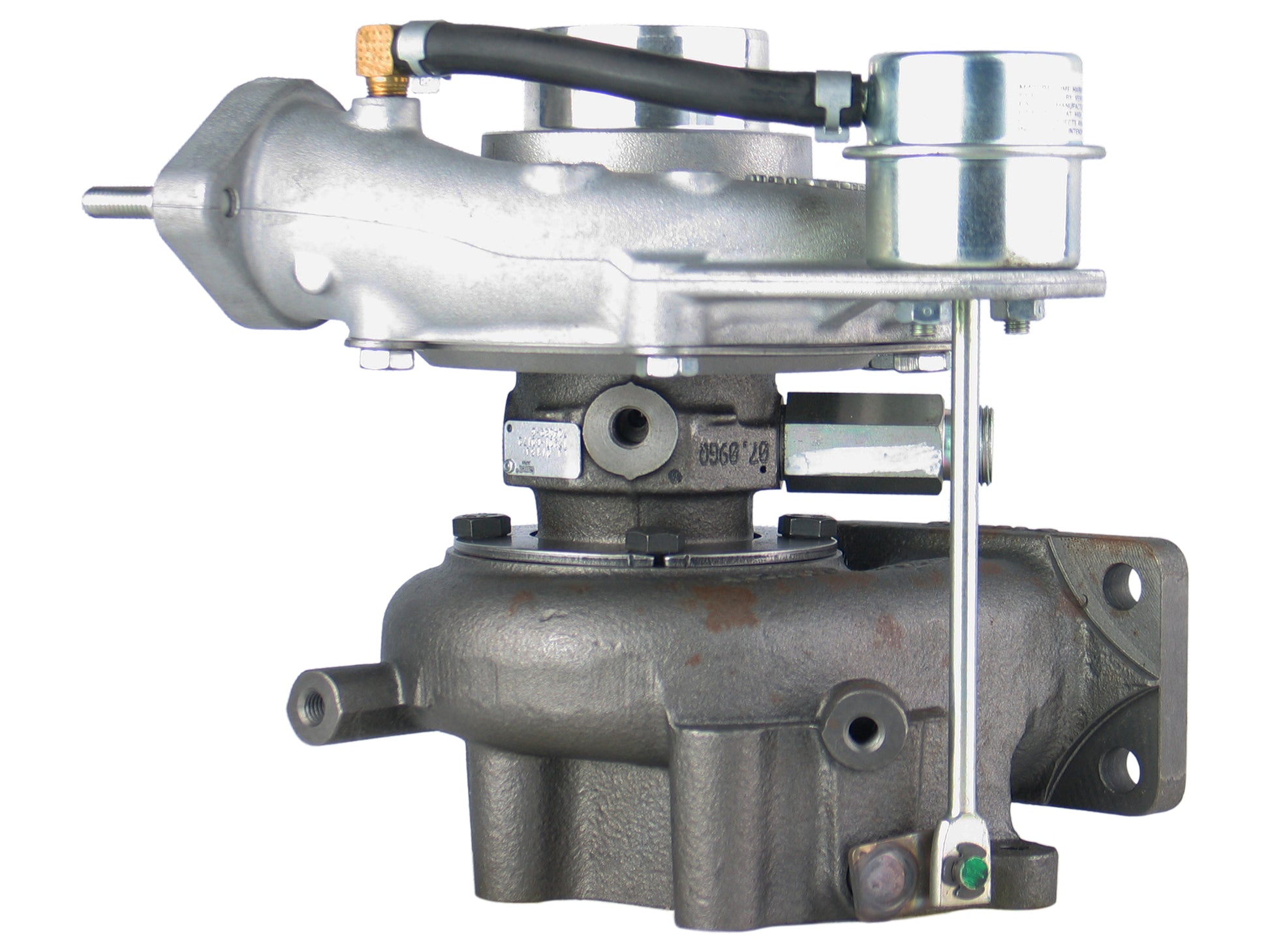

NEW OEM Garrett GT2560S Turbo Hino Truck Toyota Dyna 400 S05C W04D 704689-5006SKU: 704689-5006
This is a BRAND NEW GENUINE GARRETT TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: 704689-5006S
Interchangeable Number: 704689-0006, 704689-5006, 704689-0002, 704689-5002, 704689-5002S, 704689-0003, 704689-5003, 704689-5003S, 704689-0005, 704689-5005, 704689-5005S
OEM Number: 1720178050, 17201-78050, 17201E0170, 17201-E0170, 241003970, 24100-3970, 241003970A, 24100-3970A, 241003971, 24100-3971, 241003971A, 24100-3971A, 241003971B, 24100-3971B, 241004430, 24100-4430, 241004430A, 24100-4430A, S241004430, S24100-4430
Turbo Model: GT2560S
Engine: S05CTB, W04D, S05C, S05C-TB Euro III
Engine Manufacturer: Hino
Displacement: 3.8/4.6L, 4 Cylinders, 8 Valves
Power: 96 kW, 121/165 HP
Speed: 3000/3200 RPM
Back Plate: 432280-0001
Bearing Housing: 479807-0009
CHRA: 431876-0116 (431876-5116S, 431876-0149)
Compressor Cover: 733916-0083
Compressor Wheel: 445436-0024 (Ind. 61.7 mm, Exd. 45.8 mm)
Gasket (Turbine Inlet)(Compressor Housing): 709375-0001
Gasket (Turbine Inlet): 210218
Gasket (Turbine Outlet)(Compressor Housing): 210343
Gasket (Turbine Outlet): 210269
Gasket (Oil Outlet): 413709-0001
Heat Shield: 431055-0003 (431055-0001)
Repair Kit: 709143-0001 (200423-0000, 707903-0002)
Turbine Housing: 700717-0007
Turbine Wheel: 435737-0027 (435737-0106)(Ind. 53.85 mm, Exd. 45.7 mm, 9 Blades)
2004-06 Hino XZU404, XZU414, XZU424, XZU434, Highway Truck with W04D, S05C Engine
2004-06 Toyota Dyna 400 Highway Truck with S05C-TB Euro III Engine
2006- Hino Highway Truck with W04D Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
