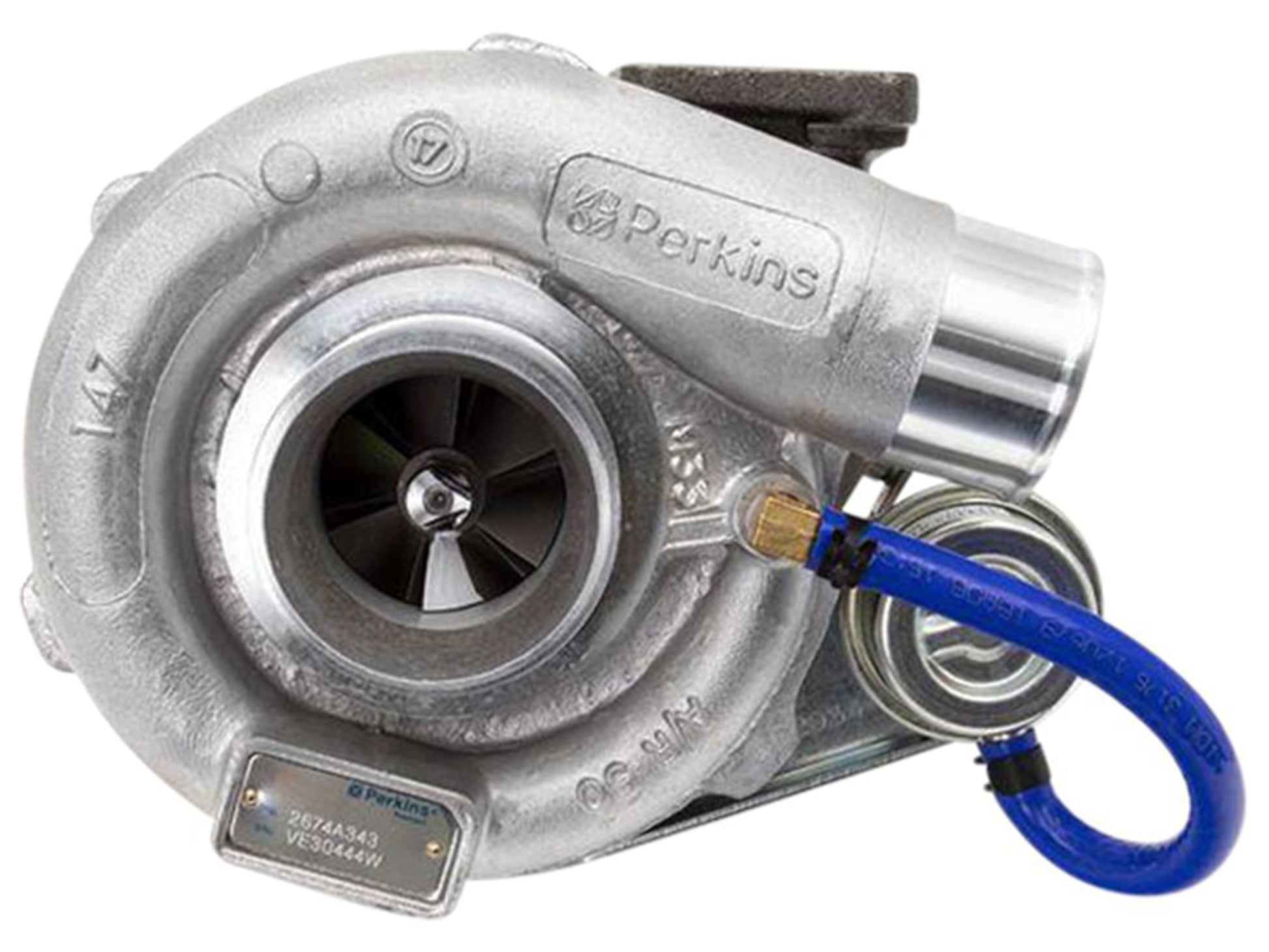

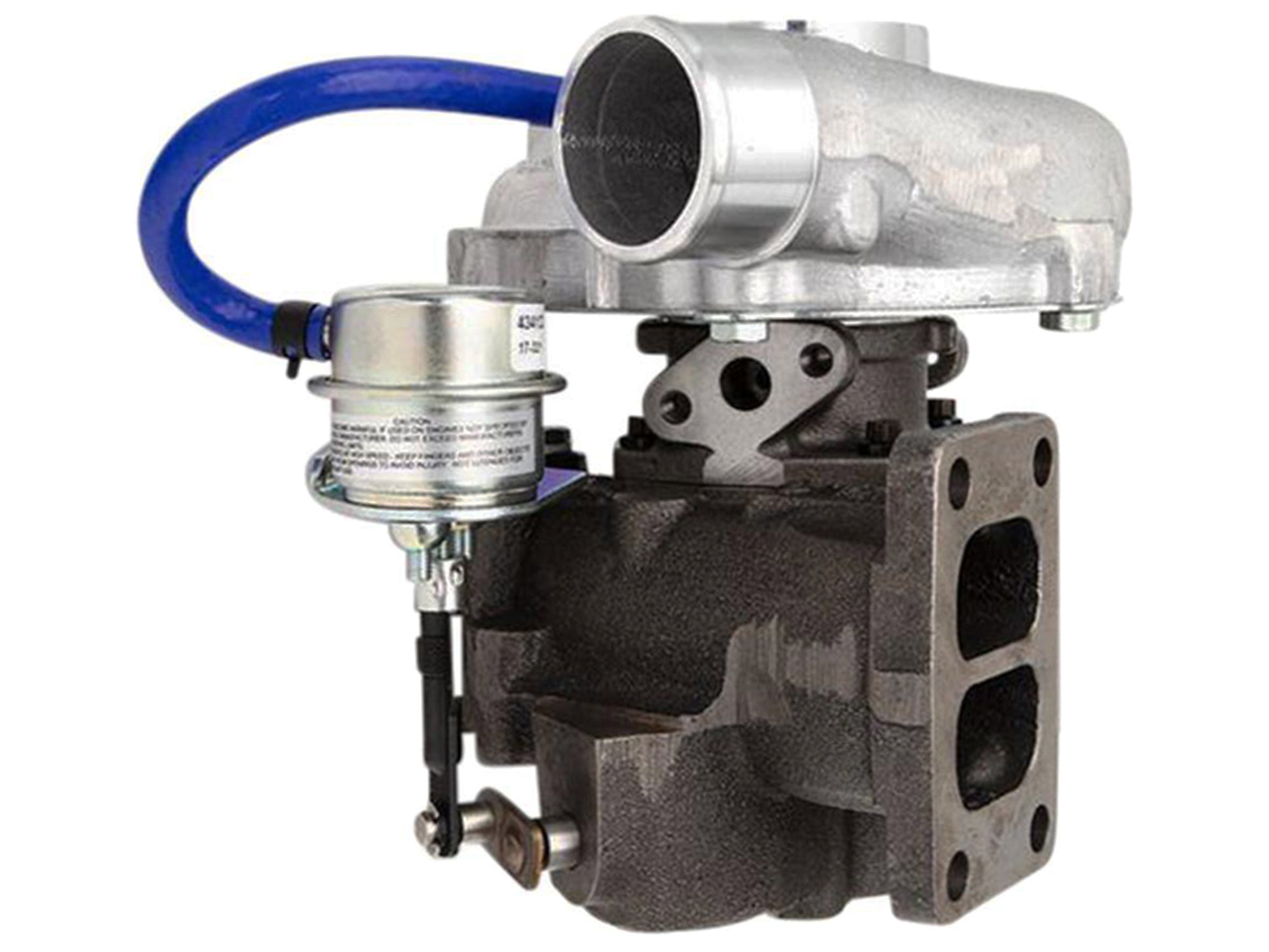

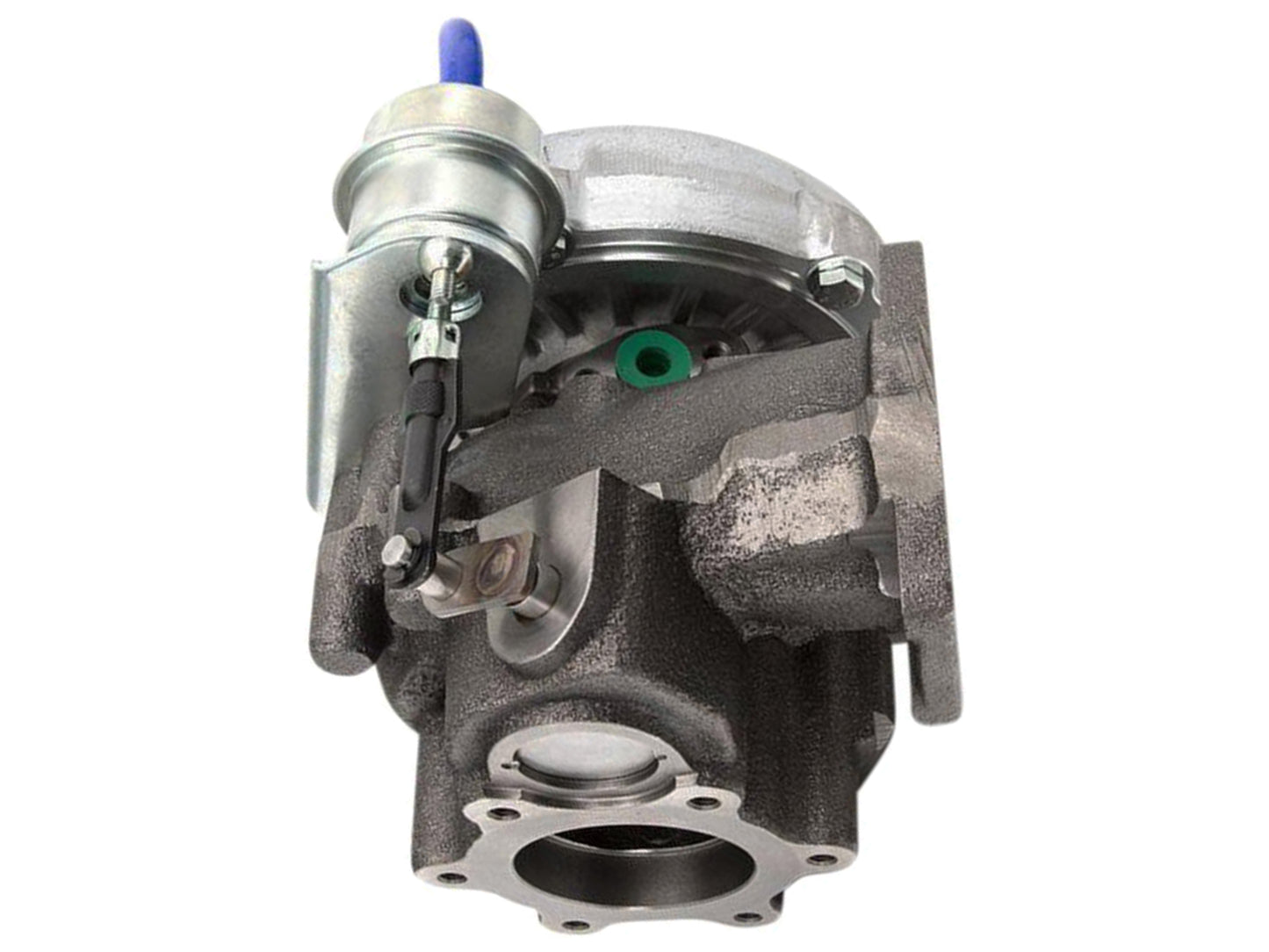

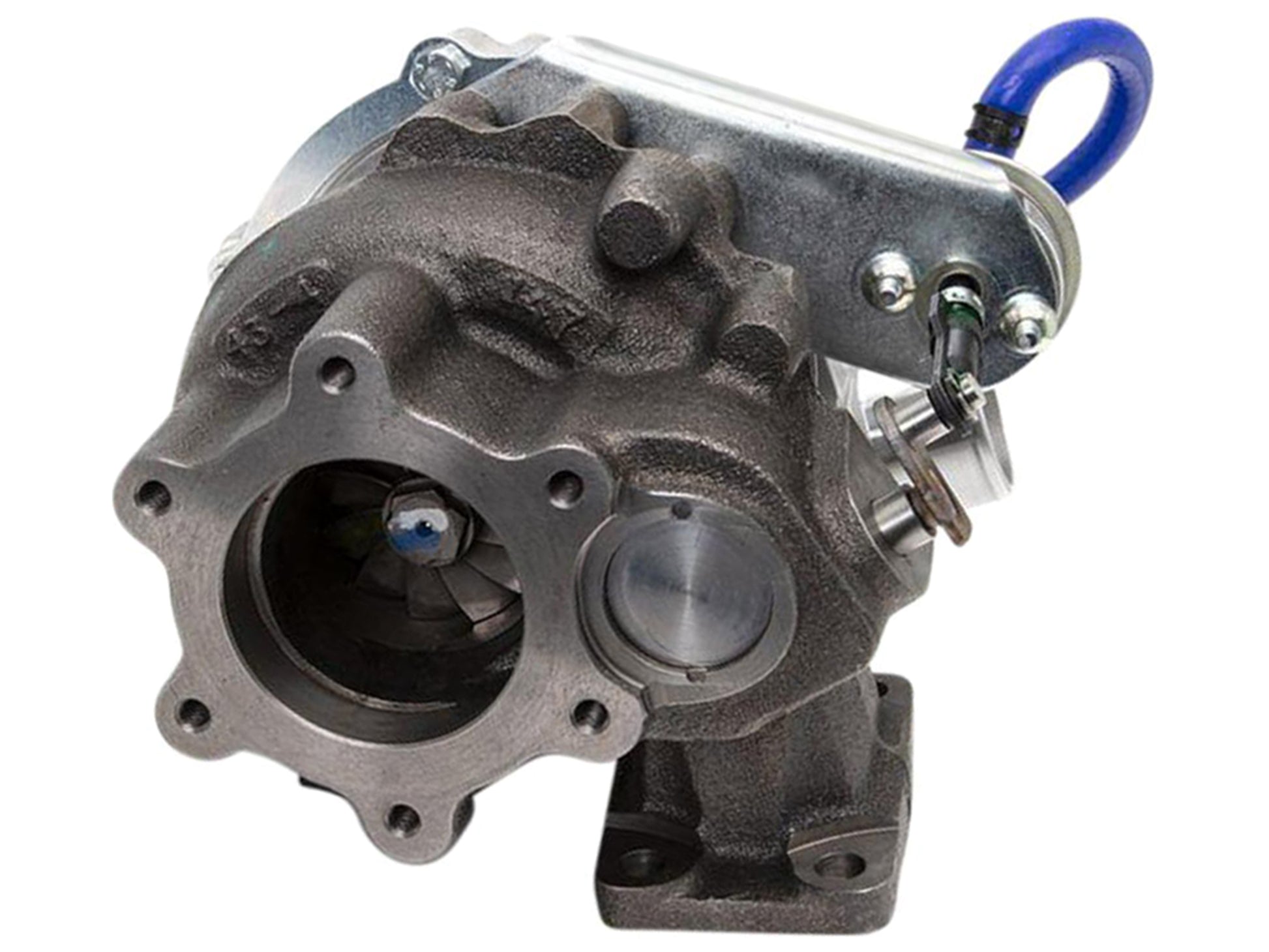

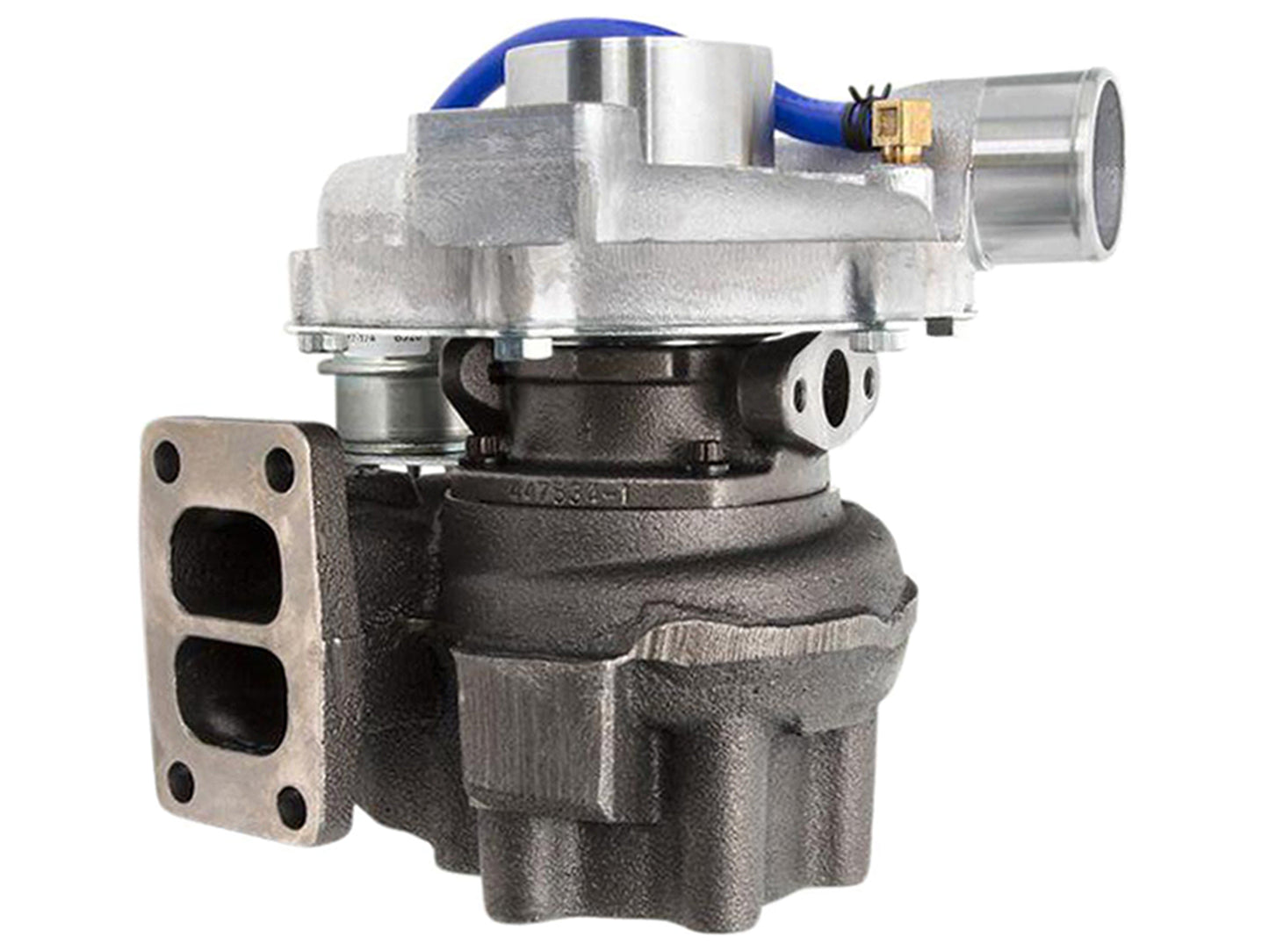

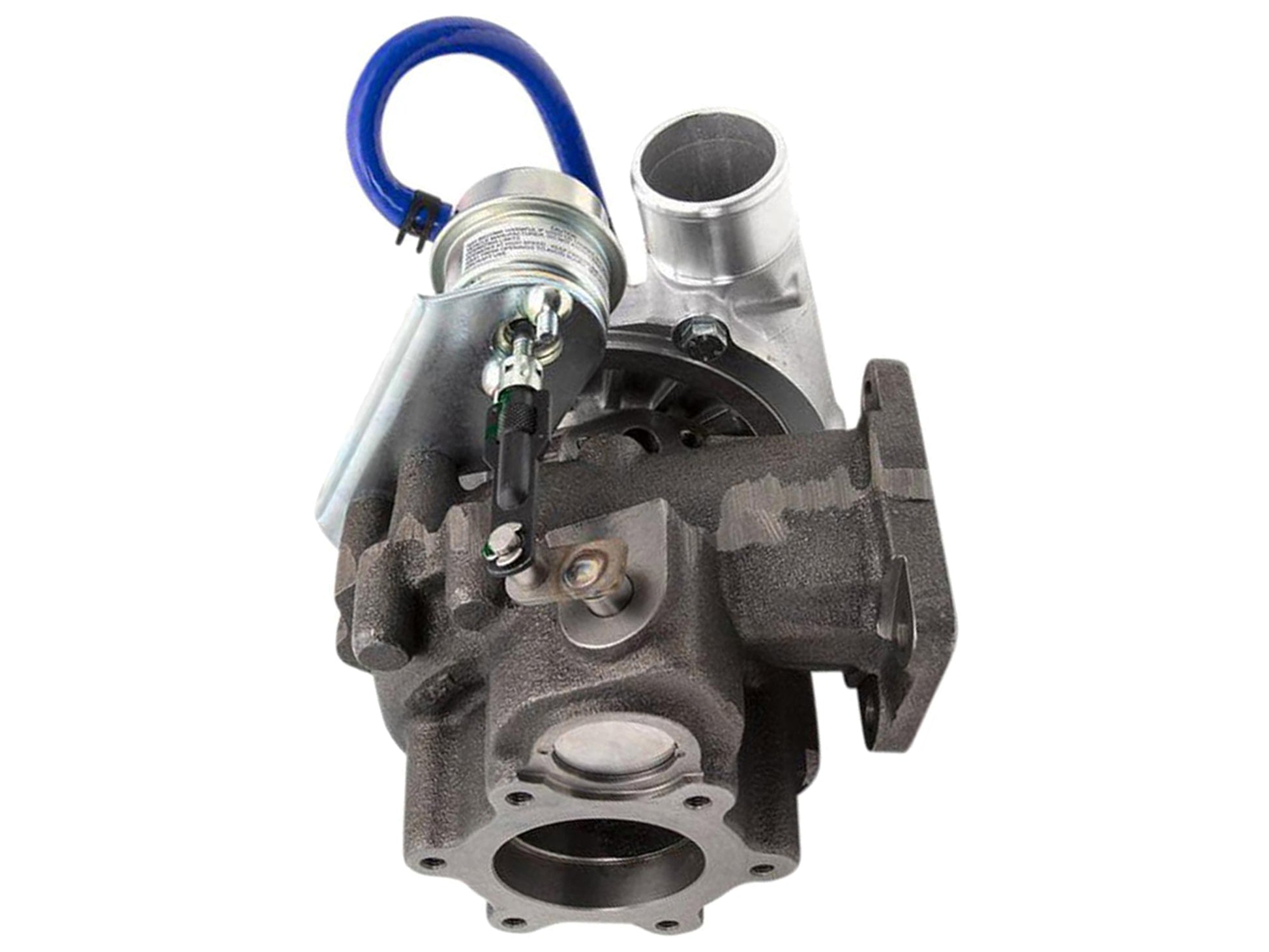

NEW Garrett GT3571S Turbo Perkins Agricultural Vista 6 Engine 6.0L 709942-5002SKU: 709942-5002
This is a BRAND NEW GENUINE GARRETT TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: 709942-5002
Interchangeable Number: 709942-0002, 709942-5002S, 709942-0005, 709942-5005, 709942-5005S, 709942-0010, 709942-5010, 709942-5010S
OEM Number: 2674A343, 2674A346
Turbo Model: GT3571S
Engine: Vista 6 (Step 2 Emissions), Vista 6 Tier 2
Engine Manufacturer: Perkins
Displacement: 6.0L, 6000 ccm, 6 Cylinders
Power: 174 HP
Speed: 2200 RPM
Back Plate: 436040-0001 (1102035300, 1300016138)
Bearing Housing: 447535-0003 (Oil-cooled)(1900011181)
CHRA: 709947-0004 (709947-5004S, 709947-0002)(1000010514, 1000010390)
Compressor Cover: 436163-0041
Compressor Wheel: 434244-0007 (434244-0019)(Ind. 49.25 mm, Exd. 71 mm, Trim 4.7, 6+6 Blades, Super Back)(1200016594, 1200016459Z)
Gasket (Oil Inlet): 210019 (409266-0004, 210019-0000, 201049, 129119, 409267-0002, 409266-0003)(Paper)(1900000035)
Gasket (Oil Outlet): 210060 (409267-0003, 409267-0002, 129120, 1S4810, 201048, 3709738, 3500682, 3519763, 210060-0000, 51914, 148062, 311585)(1900000025)
Gasket (Turbine Inlet): 409039-0000 (409039-0001, 210019, 2405022)(Inox Steel)(1900000006)
Gasket (Turbine Outlet): 210551(Inox Steel)
Gasket Kit: 215028 (215130)(XJTC11319)(1900100300, 2090505315)
Heat Shield: 447553-0005 (447553-0006)(2030016048)
Repair Kit: 709147-0002 (709147-0001)(1102032751, 5000010173)
Turbine Housing: 709948-0002
Turbine Wheel: 711242-0001 (711244-0003)(Ind. 68 mm, Exd. 57.7 mm, Trim 9.57, 12 Blades)(1100016326)
2003- Perkins Agricultural with Vista 6 Engine (Step 2 Emissions)
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
