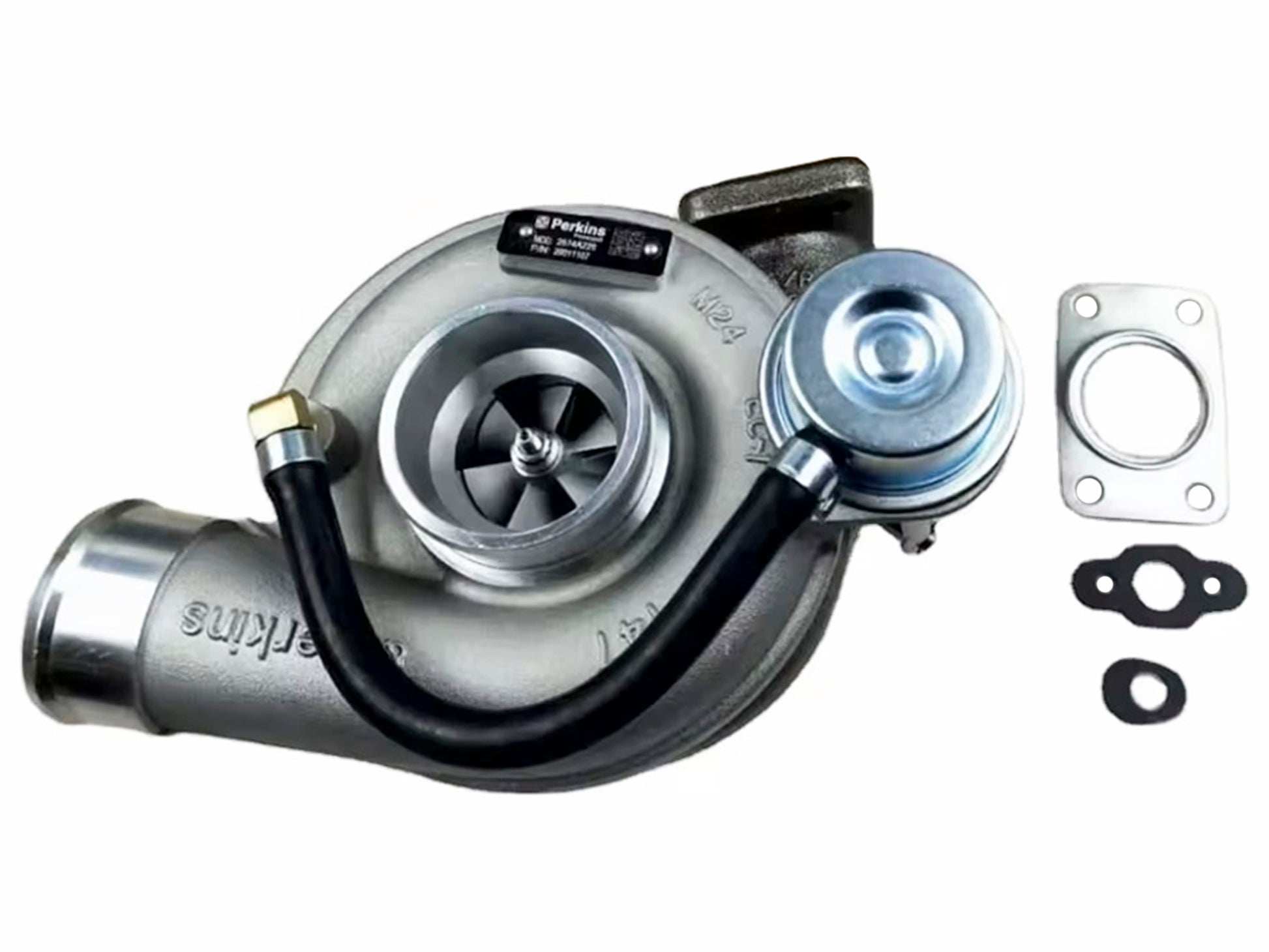

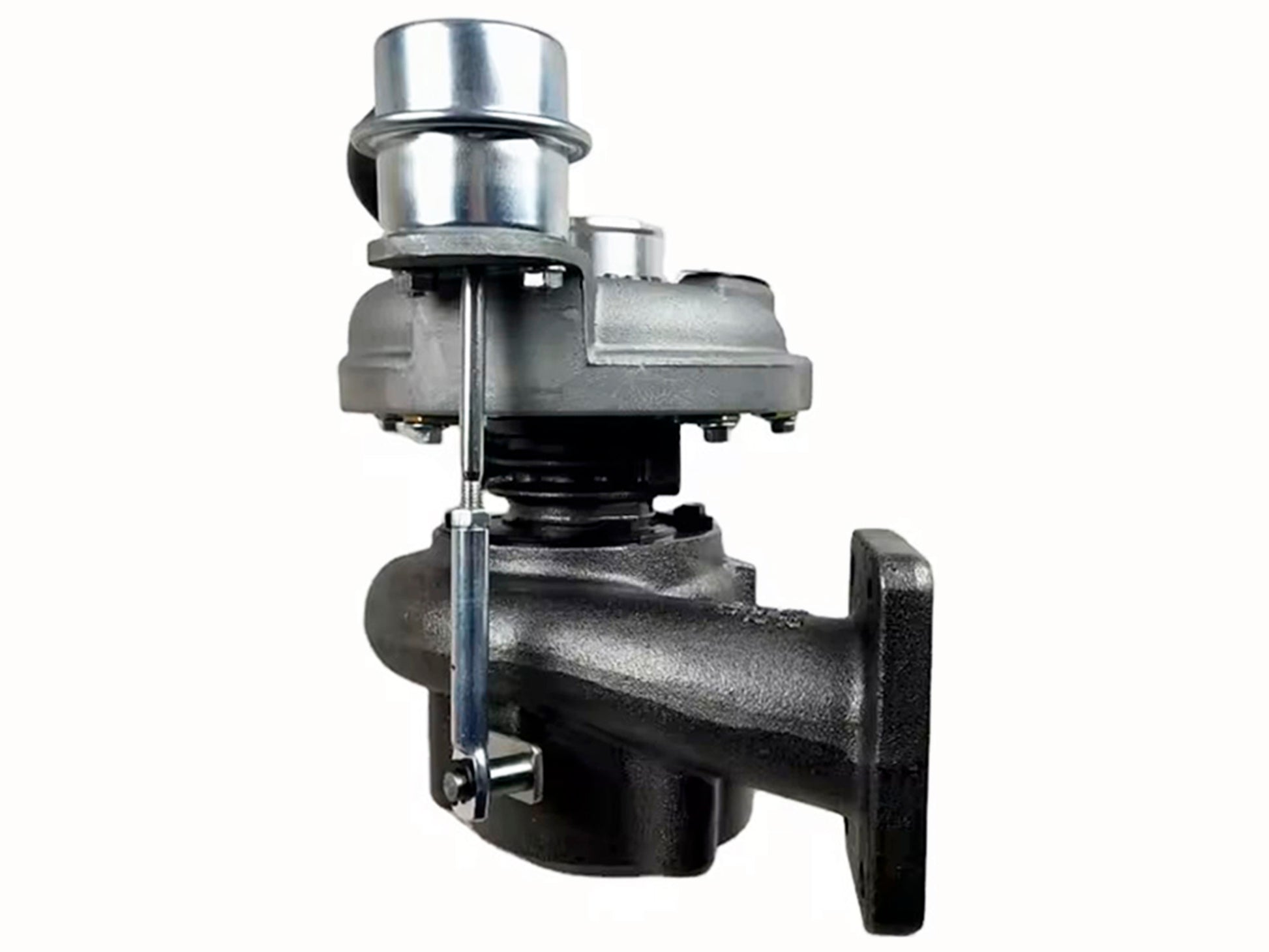

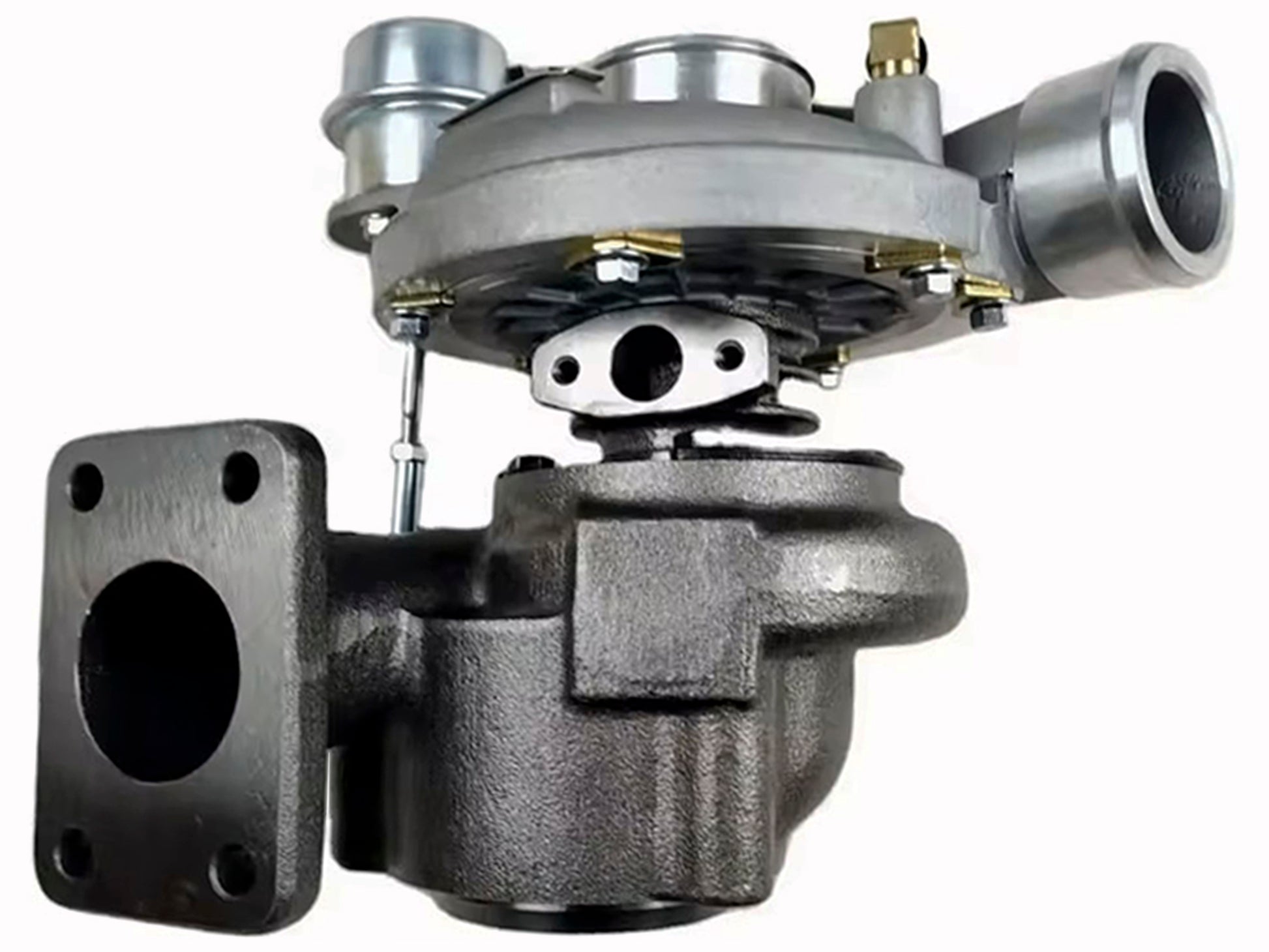

NEW Garrett GT25 Turbo Massey Ferguson 5455 Tractor Vista 4 Tier 2 711736-5026
SKU: 711736-5026This is a BRAND NEW GENUINE GARRETT TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
NOTE: This turbocharger package also comes with the gaskets.
Fits the following:
Part Number: 711736-5026
Interchangeable Number: 711736-0026, 711736-5026S, 711736-0003, 711736-5003, 711736-5003S, 711736-0010, 711736-5010, 711736-5010S, 711736-0016, 711736-5016, 711736-5016S
OEM Number: 2373786, 237-3786, 2674A226, 2674A227
Turbo Model: GT25, GT2556S
Manufacturer: Honeywell-Garrett
Year: 2003-
Engine: Vista 4 EPA Tier 2
Engine Manufacturer: Perkins
Displacement: 4.4L, 4400 ccm, 4 Cylinders
Fuel: Diesel
Angle α (Compressor Housing): 336°
Angle β (Turbine Housing): 338°
Actuator: 436806-0022
Back Plate: 721086-0001
Bearing Housing: 713782-0010 (433275-0002, 433275-0005, 435793-0002, 713782-0002)(Oil Cooling Type)
CHRA: 433289-0185 (433289-5185S, 433289-0255)(1000010381, 1102025901)
Compressor Cover: 721260-0003
Compressor Wheel: 436336-0019 (436563-0002) (Ind. 39.7 mm, Exd. 56 mm, 6+6 Blades, Super Back)(1102022408)
Gasket (Oil Outlet): 210553 (210243)(Non-Metallic)
Gasket (Turbine Inlet): 210658
Heat Shield: 434686-0001
Repair Kit: 732252-0001 (1102015756)
Turbine Housing A/R: 0.52
Turbine Housing: 711739-0001
Turbine Wheel: 436563-0003 (436563-0010)(Ind. 54 mm, Exd. 45.72 mm, 12 Blades)
Wastegate Settings (Lift Shaft): 1.00 mm
Wastegate Settings (Pressure): 0.970-1.030 bar
Application:
2003- Caterpillar 416E Tractor, 420D IT Backhoe Loader, Truck with Vista 4 EPA Tier 2 Engine
2003- Massey Ferguson Agricultural 5455 Tractor, Loader, Truck with Vista 4 EPA Tier 2 Engine
2003- Perkins Agricultural Tractor, Loader, Truck with Vista 4 EPA Tier 2 Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
