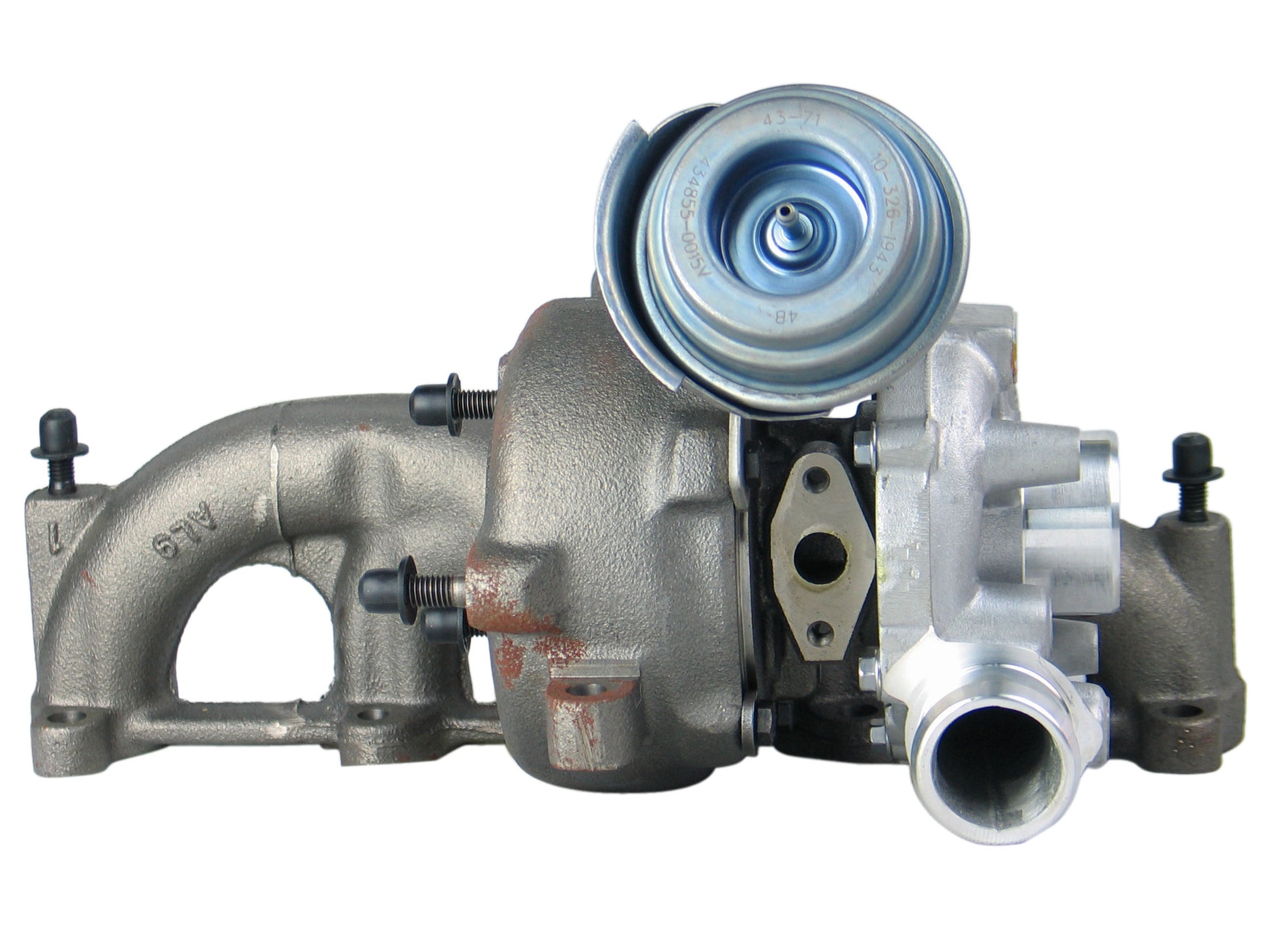

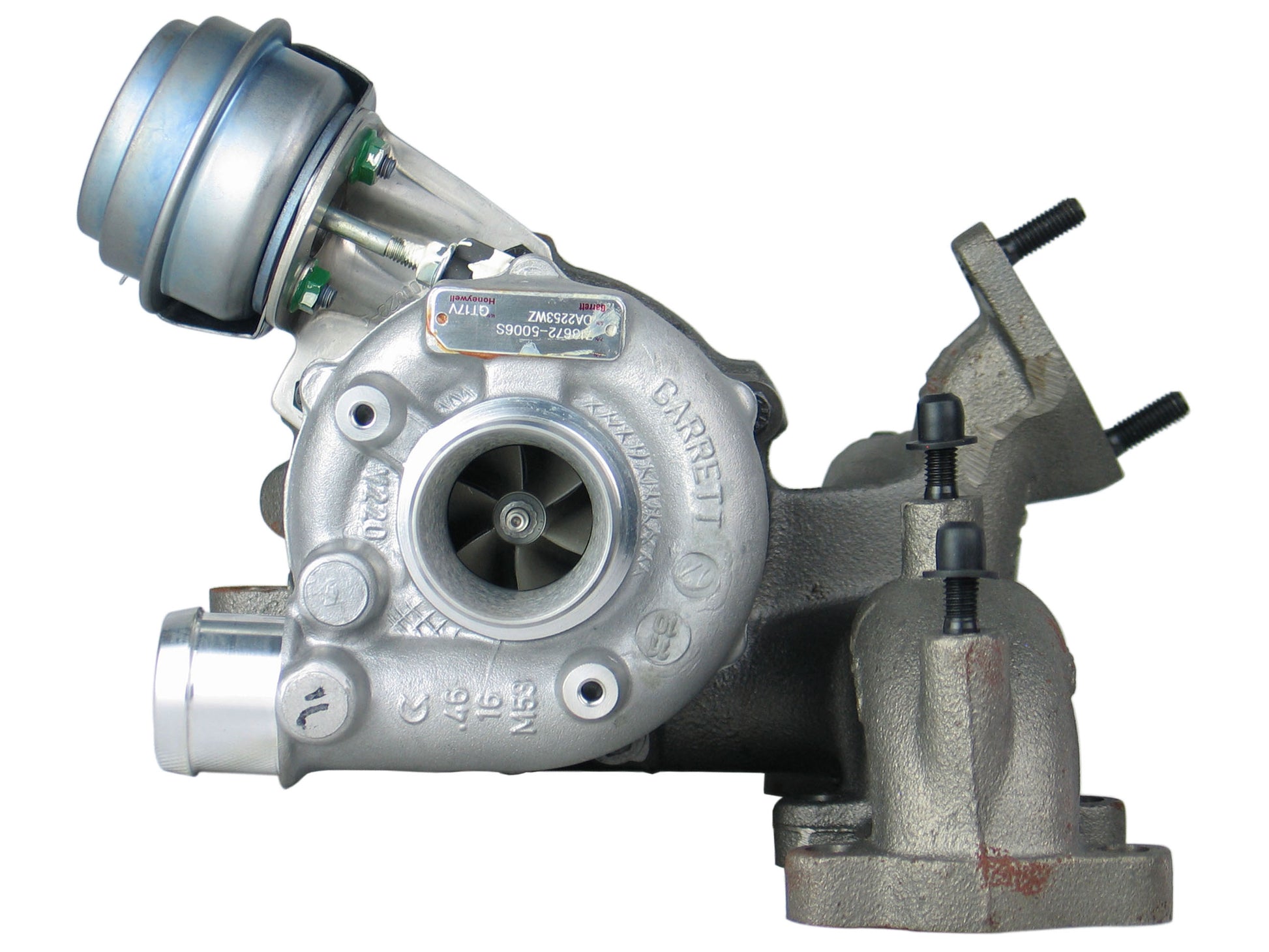

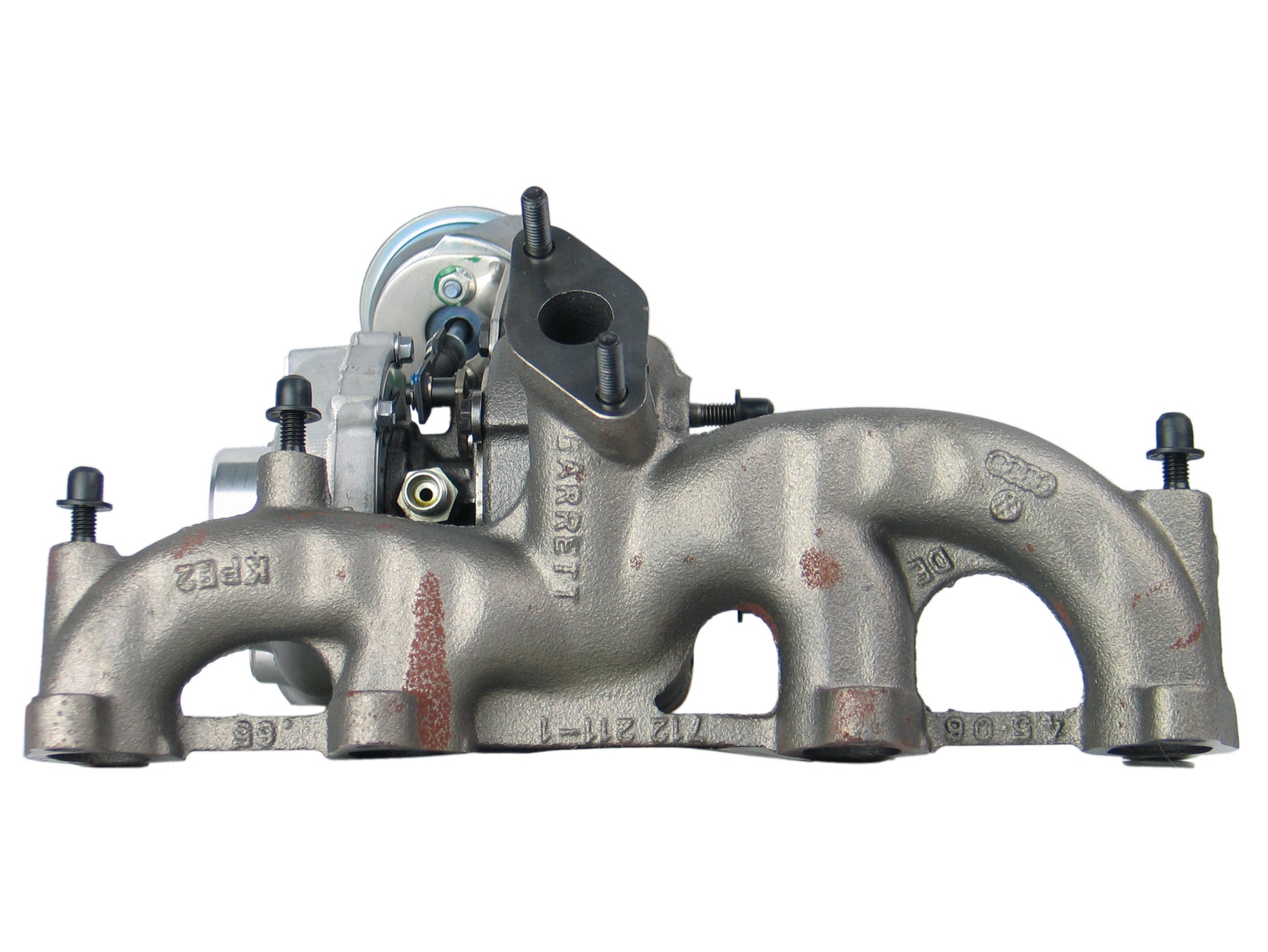

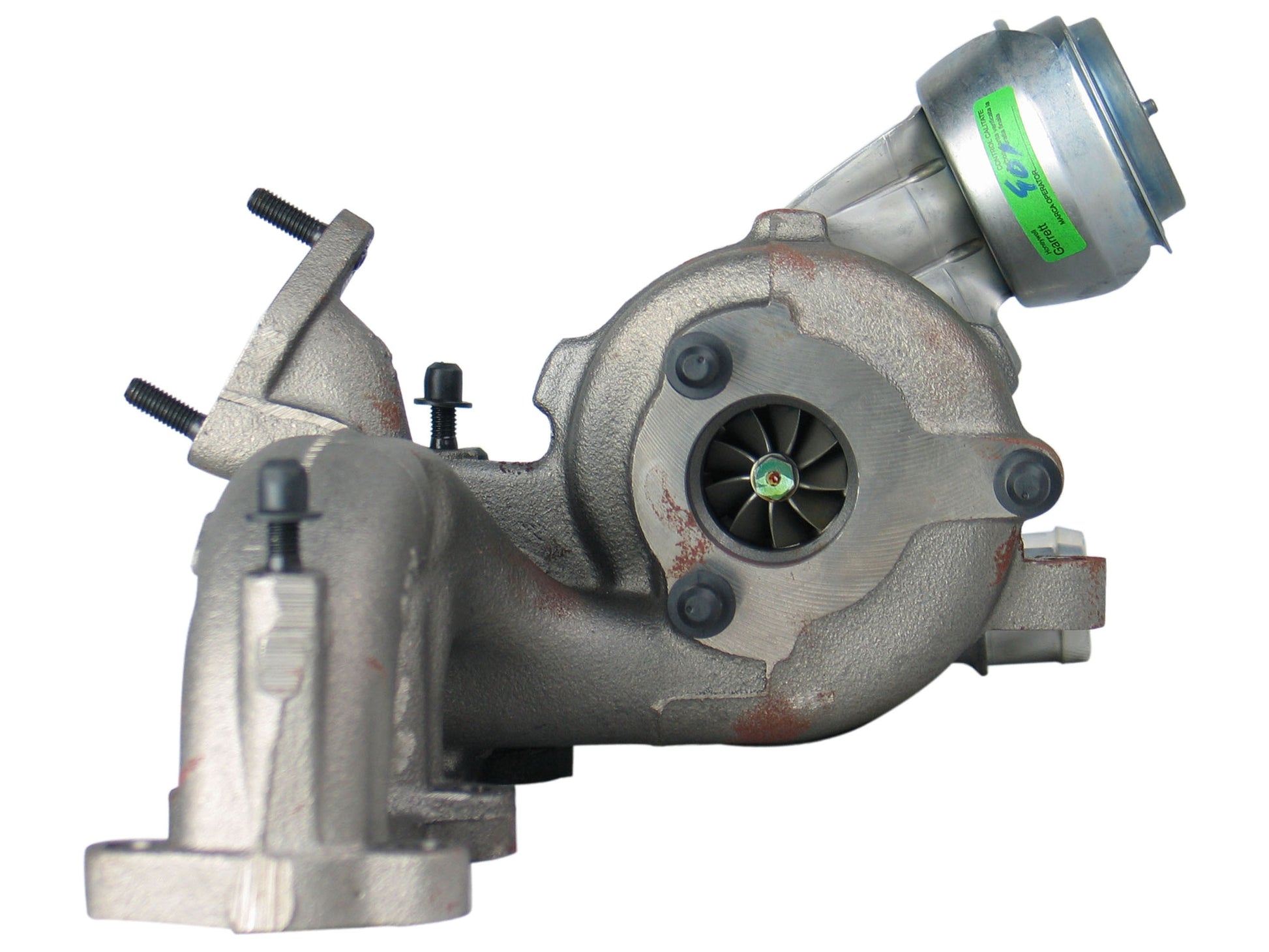

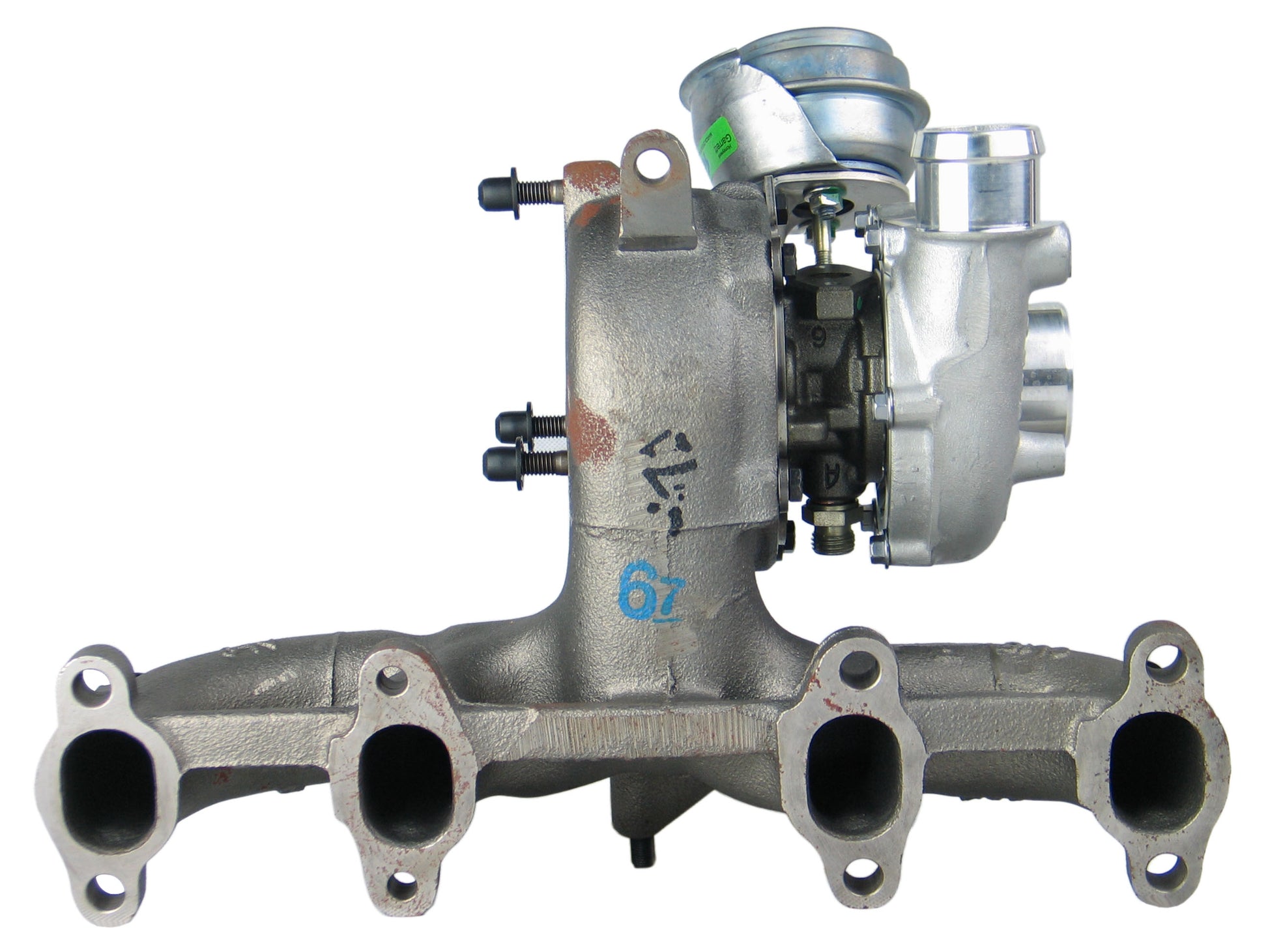

NEW OEM Garrett GT1749V Turbo Audi A3 A4 Skoda VW Bora Beetle 1.9TDI 713672-5006
SKU: 713672-5006This is a BRAND NEW GENUINE GARRETT TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: 713672-5006
Interchangeable Number: 713672-0006, 713672-5006S, 439970-0017, 439970-5017, 439970-5017S, 454195-0001, 454195-5001, 454195-5001S, 454232-0001, 454232-5001, 454232-5001S, 454232-0002, 454232-5002, 454232-5002S, 454232-0003, 454232-5003, 454232-5003S, 454232-0004, 454232-5004, 454232-5004S, 454232-0005, 454232-5005, 454232-5005S, 454232-0006, 454232-5006, 454232-5006S, 454232-0007, 454232-5007, 454232-5007S, 454232-0009, 454232-5009, 454232-5009S, 454232-0010, 454232-5010, 454232-5010S, 454232-0011, 454232-5011, 454232-5011S, 454232-0014, 454232-5014, 454232-5014S, 54399700017, 5439 970 0017, 5439-970-0017, 54399880017, 5439 988 0017, 5439-988-0017, 713672-0001, 713672-5001, 713672-5001S, 713672-0002, 713672-5002, 713672-5002S, 713672-0003, 713672-5003, 713672-5003S, 713672-0004, 713672-5004, 713672-5004S, 713672-0005, 713672-5005, 713672-5005S, 713672-0006, 713672-5006, 713672-5006S, 713672-0007, 713672-5007, 713672-5007S, 716372-0002, 716372-5002, 716372-5002S, 716372-0003, 716372-5003, 716372-5003S, 716372-0004, 716372-5004, 716372-5004S, 716372-0006, 716372-5006, 716372-5006S, 768329-0001, 768329-5001, 768329-5001S, 768329-0002, 768329-5002, 768329-5002S, 768329-0003, 768329-5003, 768329-5003S, 768331-0001, 768331-5001, 768331-5001S, 768331-0002, 768331-5002, 768331-5002S, 768331-0003, 768331-5003, 768331-5003S
OEM Number: 030TC1423300, 030TC14233000, 030TC1511600, 030TC15116000, 030TC1511610, 030TC15116100, 038253010A, 038253010AX, 038253010S, 038253010SX, 038253014A, 038253014AX, 038253019, 038253019A, 038253019AX, 038253019C, 038253019CV225, 038253019CV500, 038253019CX, 038253019D, 038253019DX, 038253019X, 03G253014L, 03G253014LX, 03G253014R, 03G253014RX, 03G253016K, 03G253016KX, 03G253016L, 03G253016LX, 03G253016N, 03G253016NX, 03G253016S, 03G253016SX, 2N-506, 2N506, 2T-506, 2T506
Turbo Model: GT1749V(S1)
Manufacturer: Honeywell-Garrett
Year: 1996-
Engine: PD UI, AGR, AHF, AJM, ALH, AHF, AUY
Engine Manufacturer: Volkswagen
Displacement: 1.9L, 1896 ccm, 4 Cylinder
Power: 81/85 kW, 88/90/109/110/116 HP
Speed: 4000 RPM
Angle α (Compressor Housing): 177°
Angle β (Turbine Housing): 90°
Actuator: 434855-0015
Back Plate: 434813-0001/700593-0006/703682-0023/703682-0045 (1102015306)(1102015300)
Bearing Housing: 433145-0005/722282-0002 (1102017450)
CHRA: 433395-0020 (433395-0040)
Compressor Wheel: 434812-0001/434812-0002 (Ind. 49 mm, Exd. 32 mm, Trim 45, Extended Back Disc Type 6 Blades)(1102015400)
Gasket (Oil Outlet): 210243 (Paper)
Gasket (Turbine Inlet)(Inlet): 210293 (Inox Steel)
Gasket (Turbine Inlet)(Outlet): 210311 (Inox Steel)
Heat Shield: 433112-0001 (1102015342)
Nozzle Ring: 704013-0001 (1102017830)
Repair Kit: 732252-0001 (1102015756)
Thrust Kit: 732248-0003/732252-0001
Turbine Housing A/R: VNT1
Turbine Wheel: 434533-0002/434533-0037/434533-0039 (1102017441, 1102017438)(Ind. 43 mm, Exd. 35.9 mm, Trim 69, 9 Blades)
Wastegate Settings (Lift Shaft): 0.2 mm
Wastegate Settings (Lift Shaft): 0.5-4.0 mm
Wastegate Settings (Pressure): 0.135-0.215 bar
Wastegate Settings (Pressure): 0.224-0.229 bar
Application:
1996-03 Audi A3 with 1.9 TDI (8L) ALH, AHF Engine
1996-10 Skoda Octavia with 1.9 TDI AGR Engine
1997-02 Audi A3 with 1.9 TDI (8L) AHF Engine
1997-03 Volkswagen Golf IV with 1.9 TDI ALH, AHF Engine
1997-04 Volkswagen Golf IV with 1.9 TDI AGR, AHF Engine
1997-04 Volkswagen Golf Van (Hatchback) IV with 1.9 TDI AHF Engine
1997-06 Skoda Octavia with 1.9 TDI AHF Engine
1997-07 Skoda Octavia I with 1.9 TDI ALH, AHF Engine
1998-01 Volkswagen Bora with 1.9 TDI AJM Engine
1998-03 Volkswagen Beetle with 1.9 TDI ALH Engine
1998-04 Volkswagen Beetle with 1.9 TDI ALH, AHF, AJM, AUY Engine
1998-04 Volkswagen Bora with 1.9 TDI LH, AHF, AJM, AUY Engine
1998-05 Volkswagen Bora with 1.9 TDI AGR, AHF Engine
1998-05 Volkswagen New Beetle with 1.9 TDI ALH Engine
1999-01 Volkswagen Bora, Bora Estate with 1.9 TDI AJM Engine
1999-01 Volkswagen Golf IV, Golf Estate IV with 1.9 TDI AJM Engine
1999-02 Volkswagen Golf Estate IV, Golf Van IV with 1.9 TDI AJM Engine
1999-03 Seat Toledo II with 1.9 TDI ALH Engine
1999-04 Seat Toledo II with 1.9 TDI AHF Engine
1999-04 Seat Toledo with 1.9 TDI AGR, AHF Engine
1999-04 Volkswagen Golf with 1.9 TDI ALH Engine
1999-04 Volkswagen Jetta with 1.9 TDI ALH Engine
1999-05 Seat Leon with 1.9 TDI AGR, ALH, AHF Engine
1999-05 Volkswagen Bora Estate with 1.9 TDI AHF Engine
1999-06 Volkswagen Golf Estate IV, Golf Van IV with 1.9 TDI AGR, AHF Engine
2000-01 Volkswagen Golf IV with 1.9 TDI AJM Engine
2000-01 Volkswagen Golf Van (Hatchback) IV with 1.9 TDI AUY Engine
2000-06 Audi A3 with TDI PD UI Engine
2000-06 Seat Leon with TDI S PD UI Engine
2000-06 Volkswagen Golf with TDI PD UI Engine
2000-10 Skoda Octavia with 1.9 TDI ALH Engine
2004-05 Volkswagen Bora Estate with 1.9 TDI AGR Engine
2006- Audi A3 with 1.9 TDI ALH, AHF Engine
2006- Volkswagen Beetle, Bora with 1.9 TDI ALH, AHF Engine
2006- Volkswagen Golf IV with 1.9 TDI ALH, AHF Engine
2007- Skoda Octavia with 1.9 TDI ALH, AHF Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
