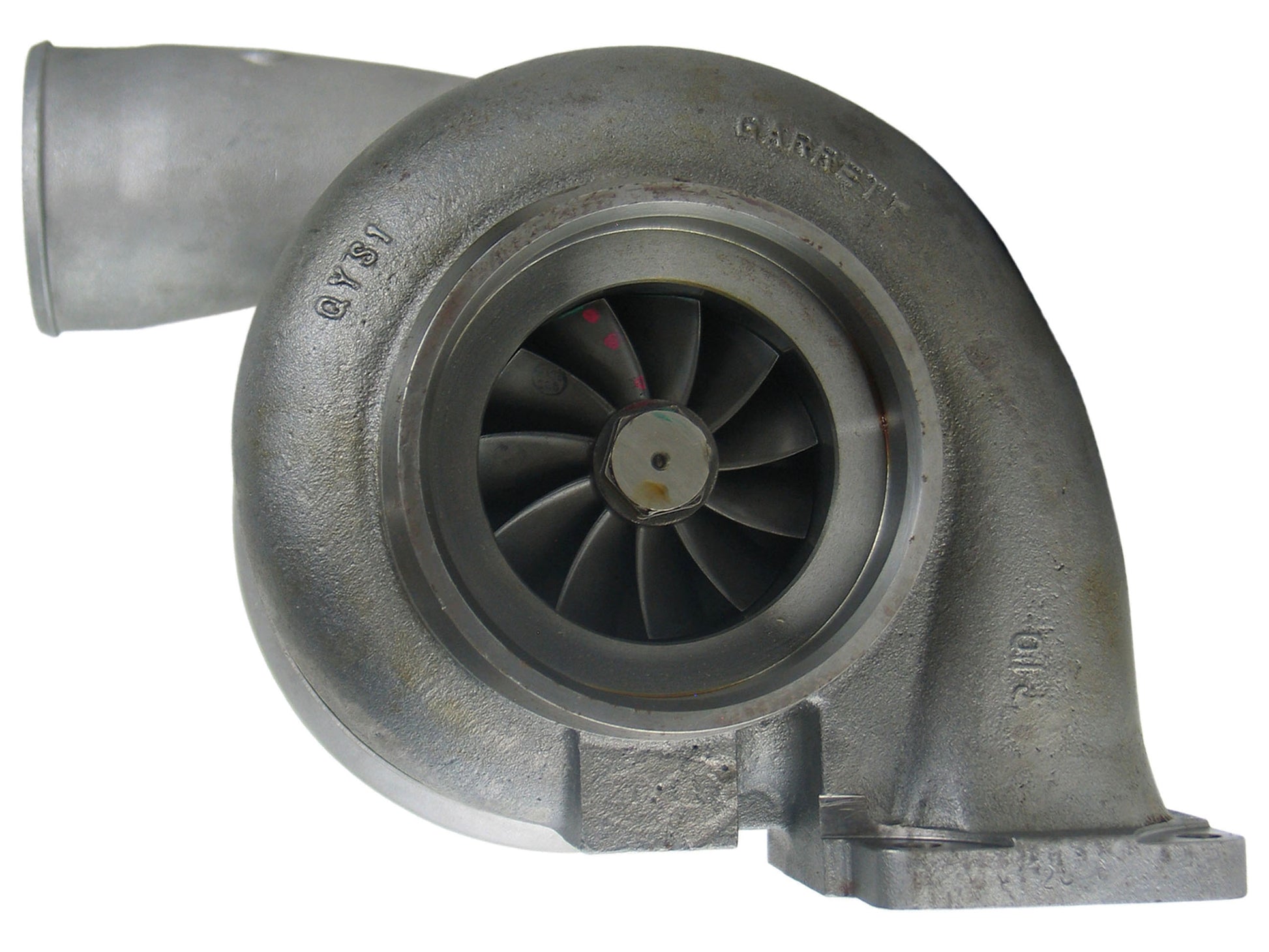

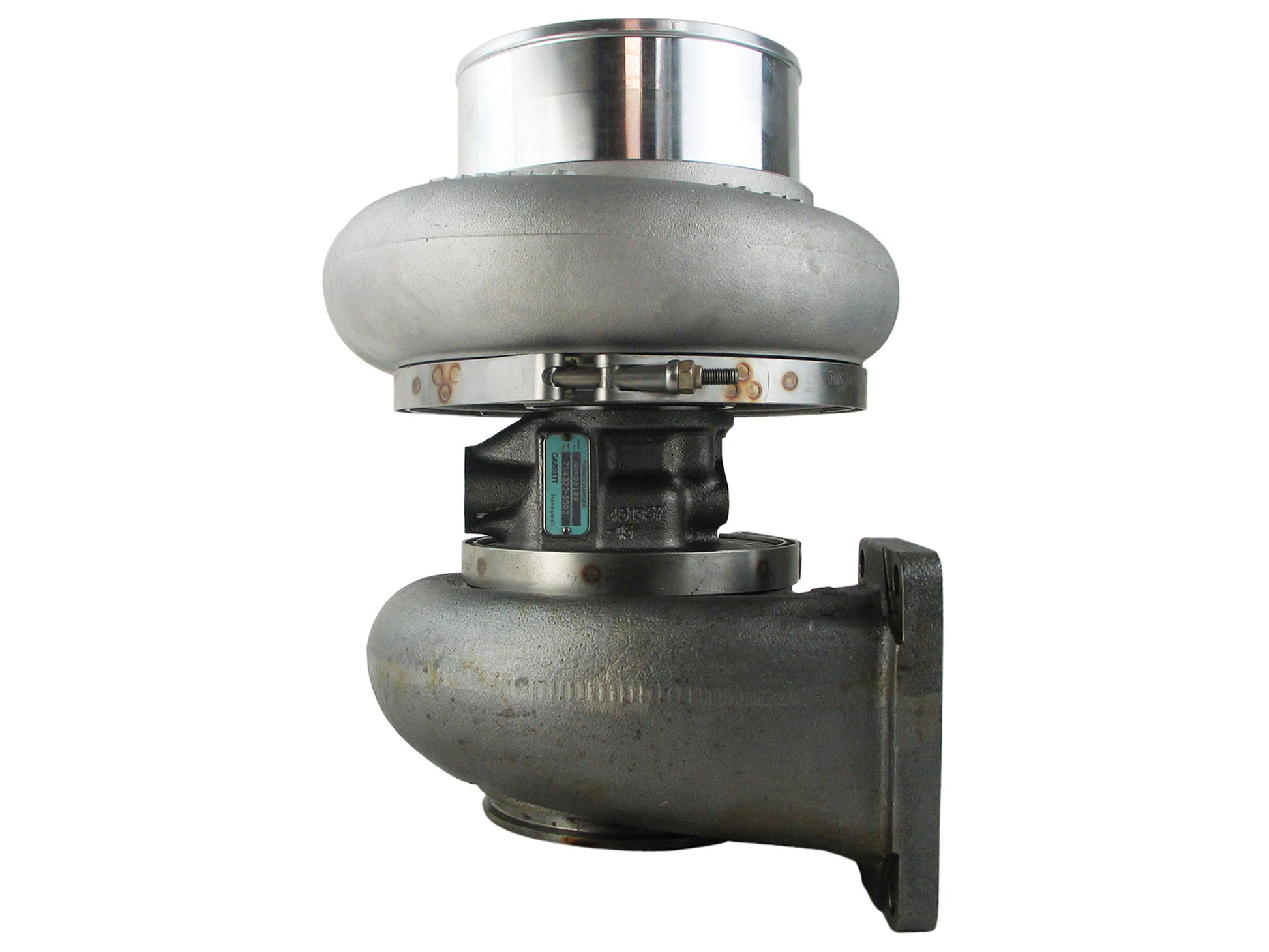

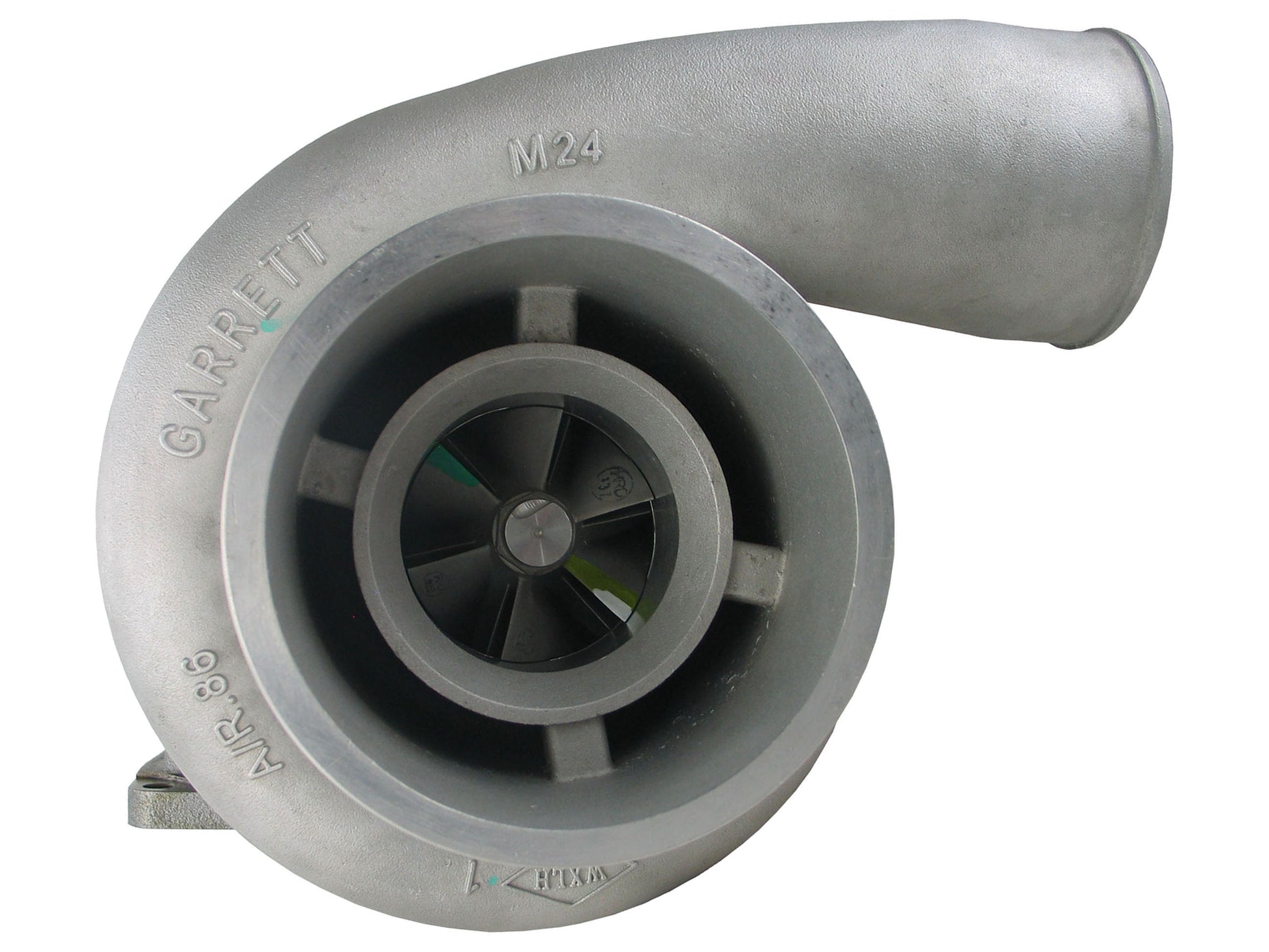

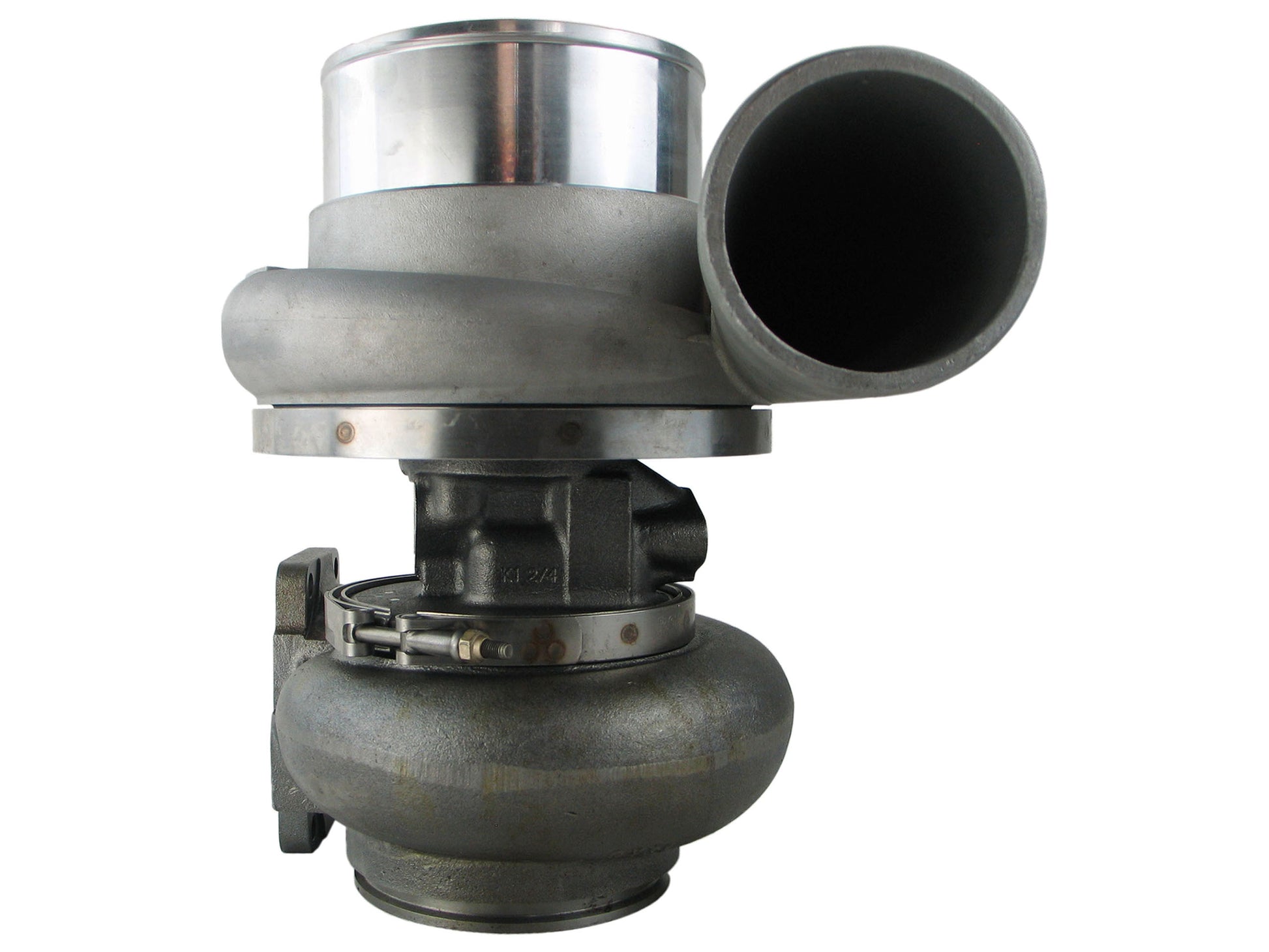

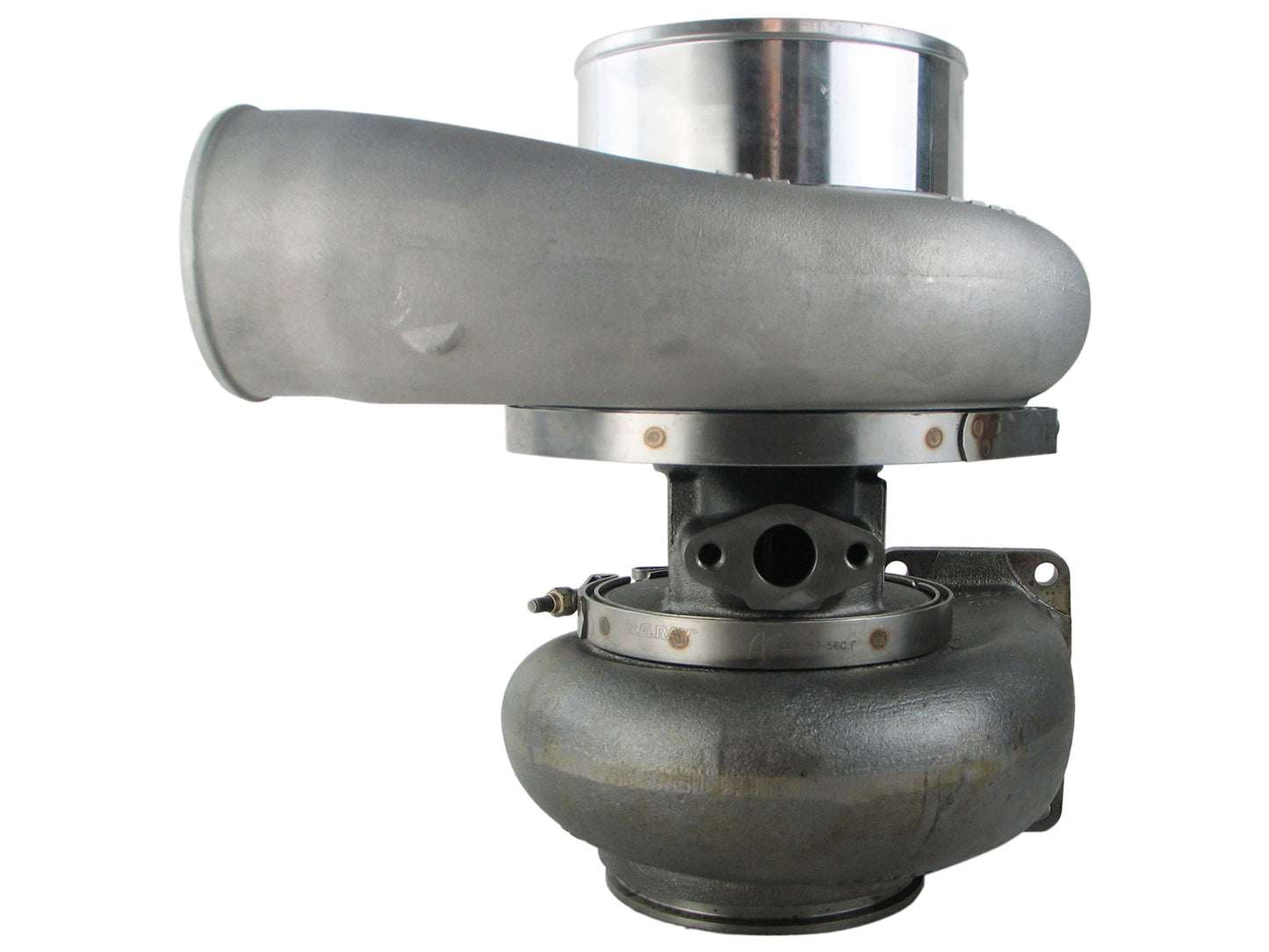

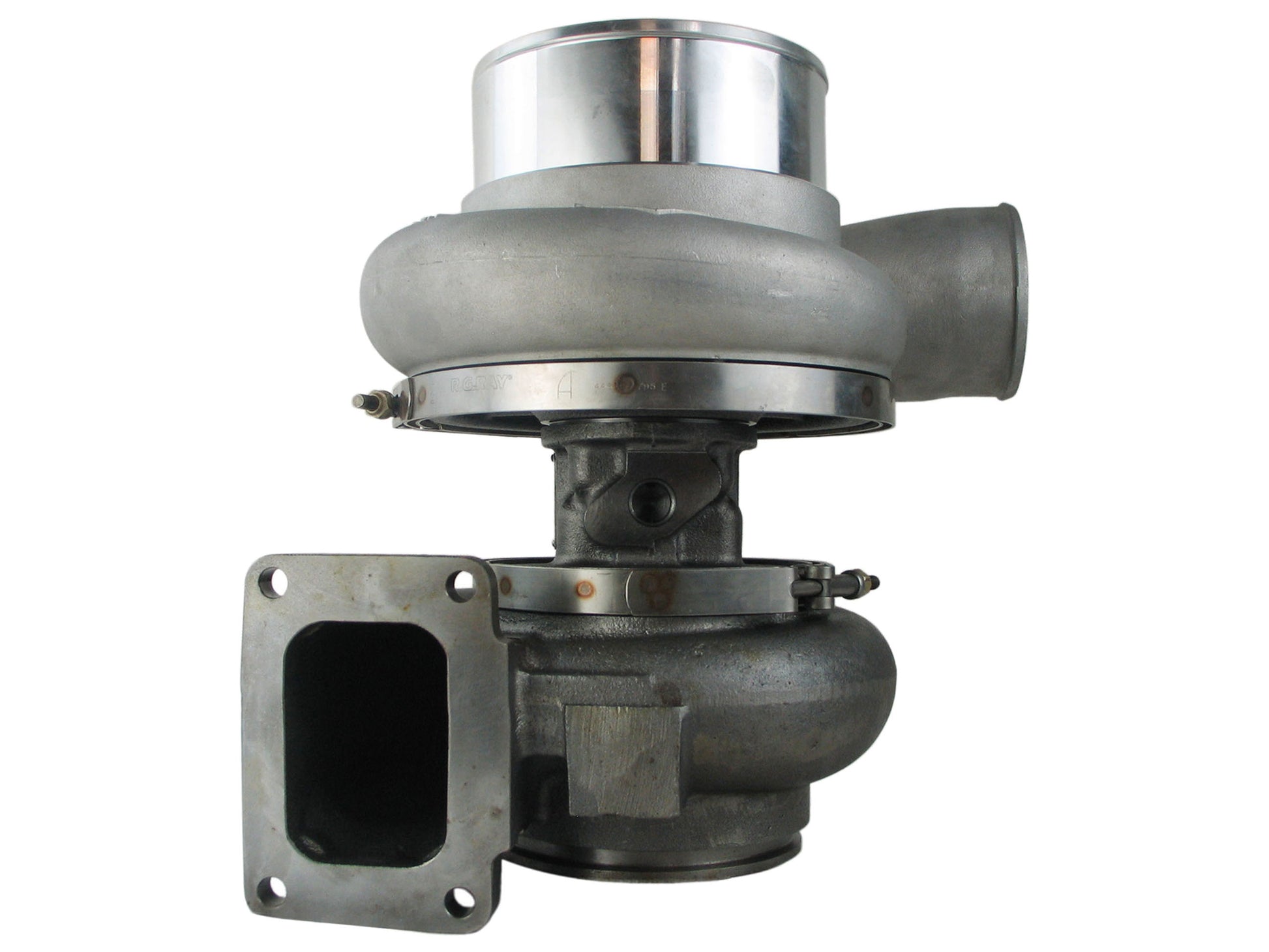

NEW OEM Garrett BTV7501 BTV8501 Turbo DDC-MTU Genset 12V4000 48.0L 714322-0002

BRAND NEW GENUINE GARRETT TURBOCHARGER

This is a BRAND NEW GENUINE GARRETT TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

Fits the following:

Part Number: 714322-5002S
Interchangeable Number: 714322-0002, 714322-5002, 714322-0005, 714322-5005, 714322-5005S, 471084-0006, 471084-5006, 471084-5006S, 471084-0008, 471084-5008, 471084-5008S
OEM Number: 23540088, 5260200805, 5260200905, 5260201005, E23540088
Turbo Model: BTV7501, BTV8501
Manufacturer: Honeywell-Garrett

Year: 2000-
Engine: 12V4000
Engine Manufacturer: DDC-MTU
Displacement: 48.0L, 48000 ccm, 12V Cylinders
Fuel: Diesel
Power: 2025 HP
Speed: 1900 RPM

Back Plate: 451361-0001
Bearing Housing: 451358-0006 (Water Cooled)
CHRA: 451491-0016 (451491-5016S, 5260200305)
Compressor Cover: 706505-0002 (23540091)
Compressor Wheel: 448671-0019 (Ind. 74.7 mm, Exd. 102.3 mm, 7+7 Blades)
Gasket (Oil Outlet): 210018 (129120)
Gasket (Turbine Inlet): 409038-0001 (7M7273)
Heat Shield: 407967-0003
Repair Kit: 468267-0007
Turbine Housing A/R: 1.08
Turbine Housing: 441881-0037 (5240810101)
Turbine Wheel: 448953-0003 (Ind. 99.1 mm, Exd. 87.9 mm, 11 Blades)

Application:
2000- Genset with DDC-MTU 12V4000 Engine
2010- Mine Truck, Genset (60Hz) with DDC-MTU 12V4000 Engine
Generator (50Hz) with DDC-MTU 12V4000 Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
