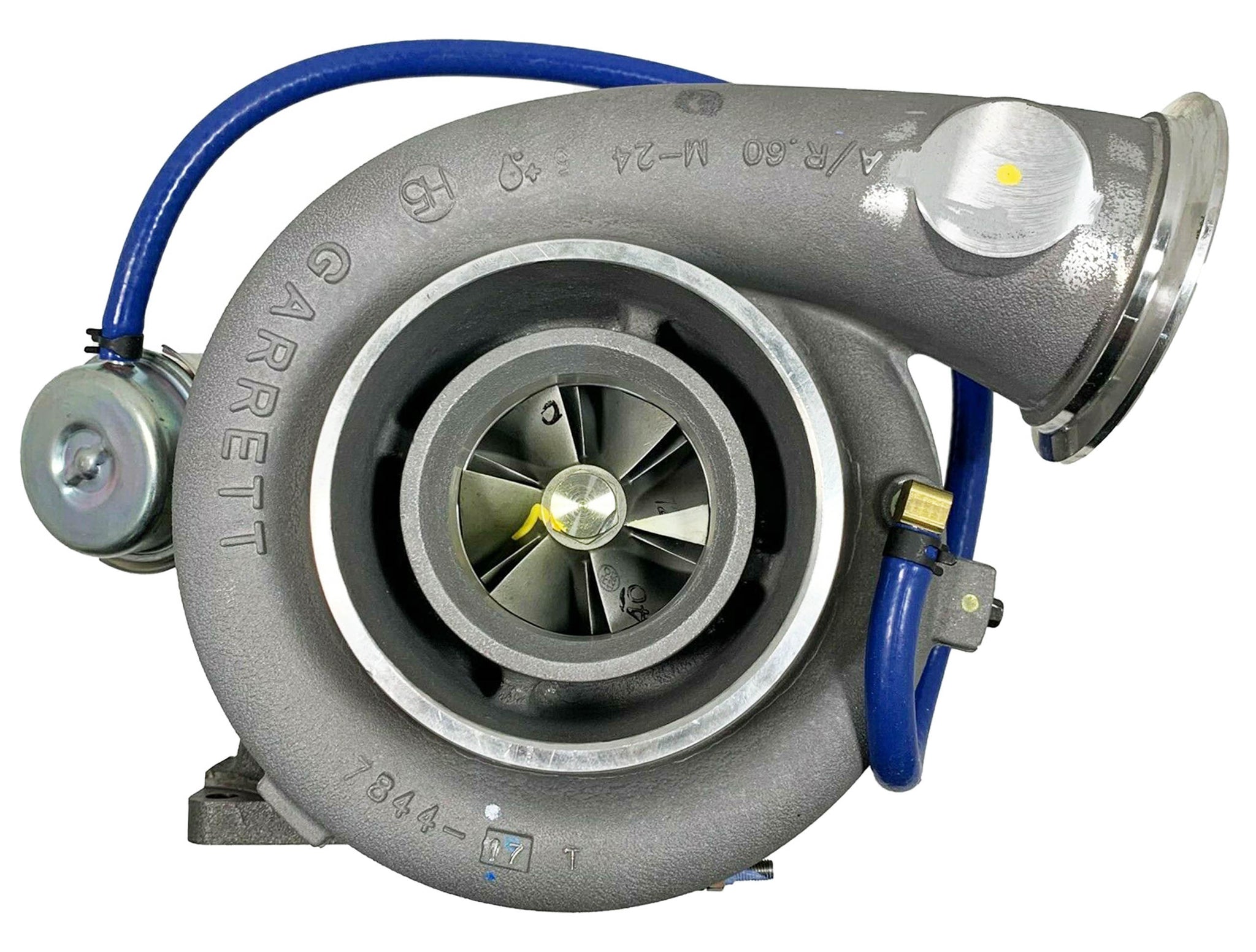

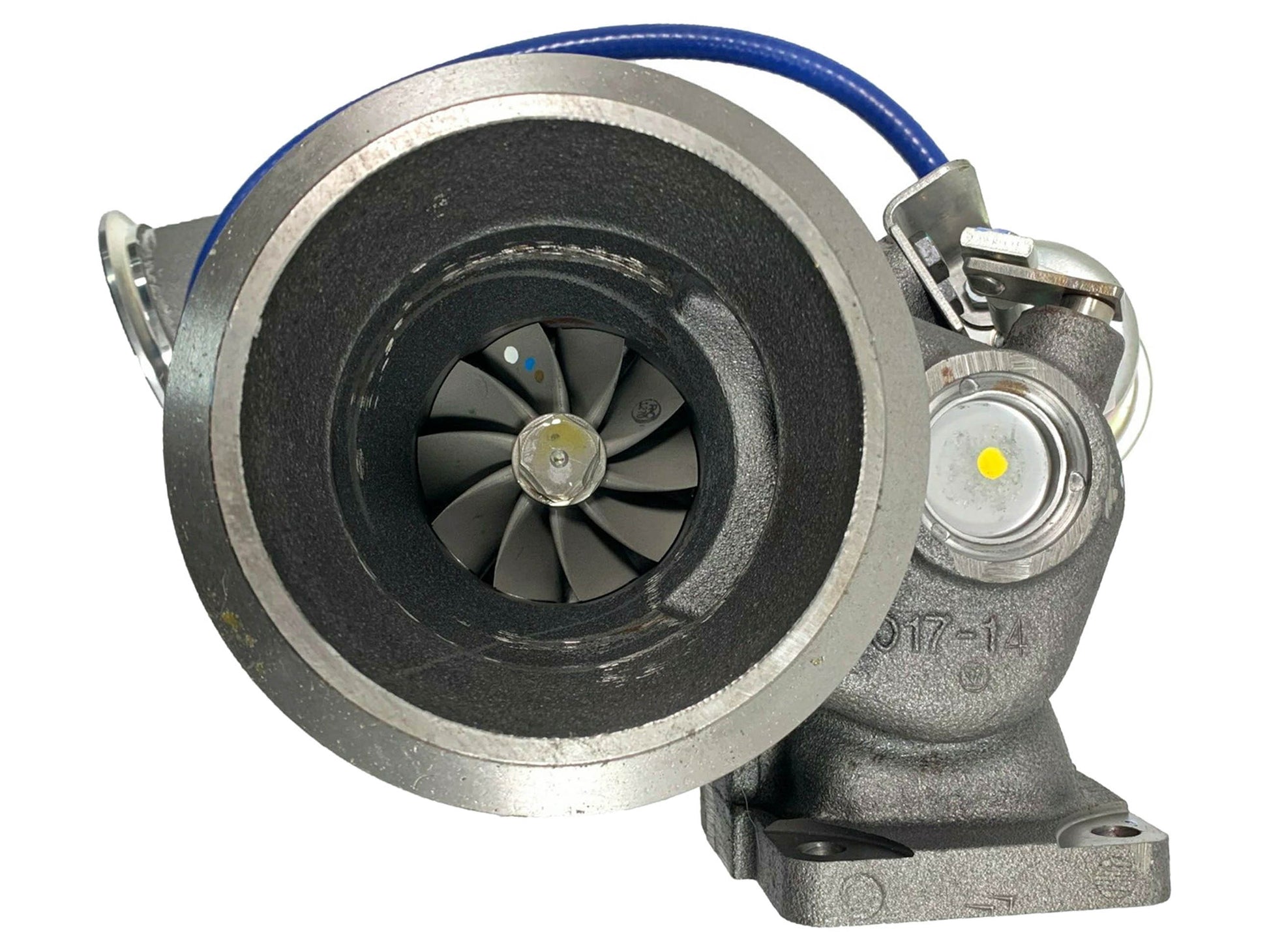

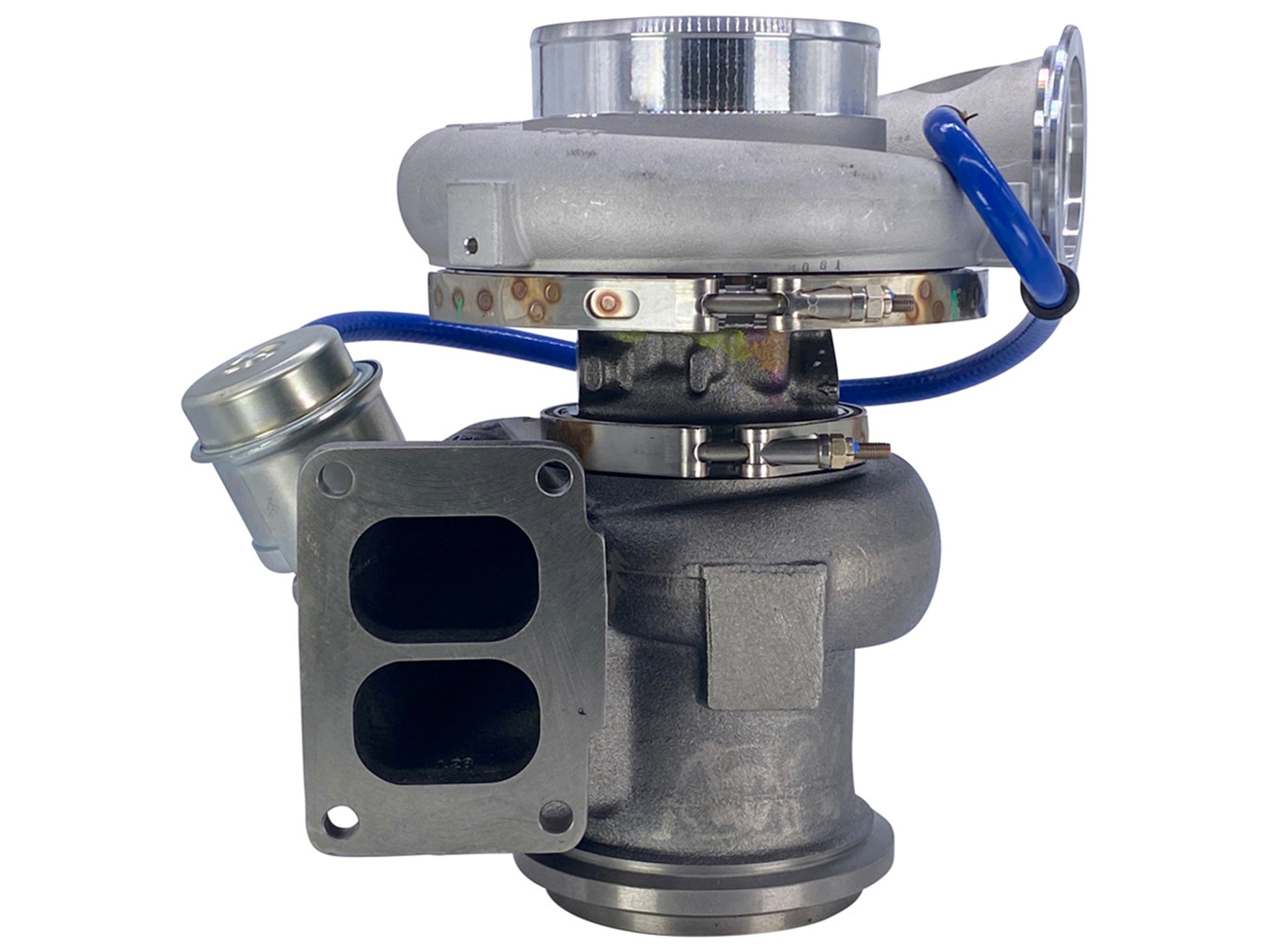

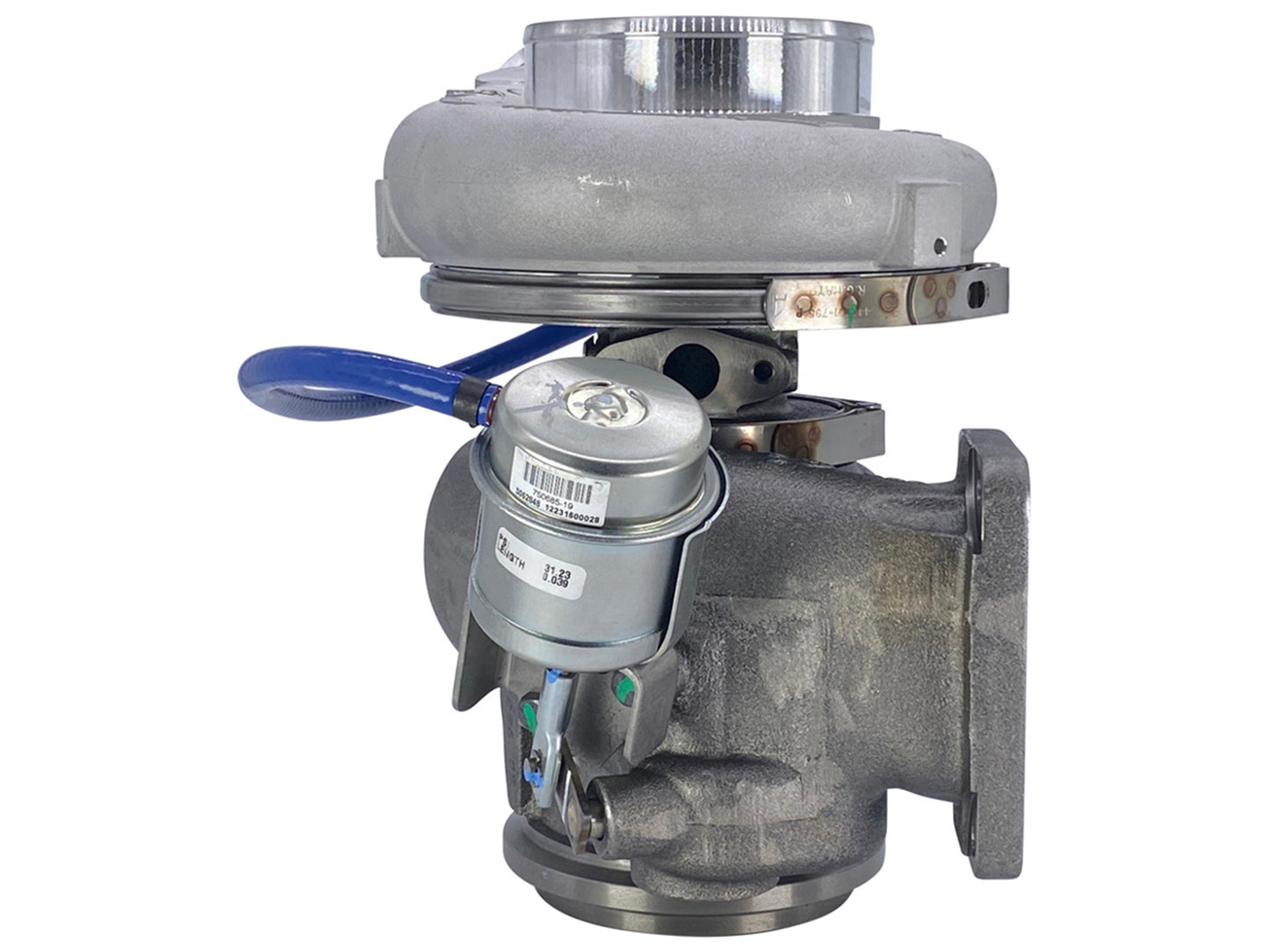

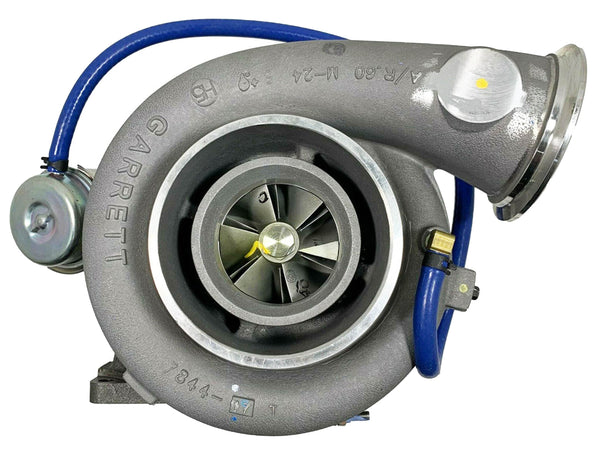

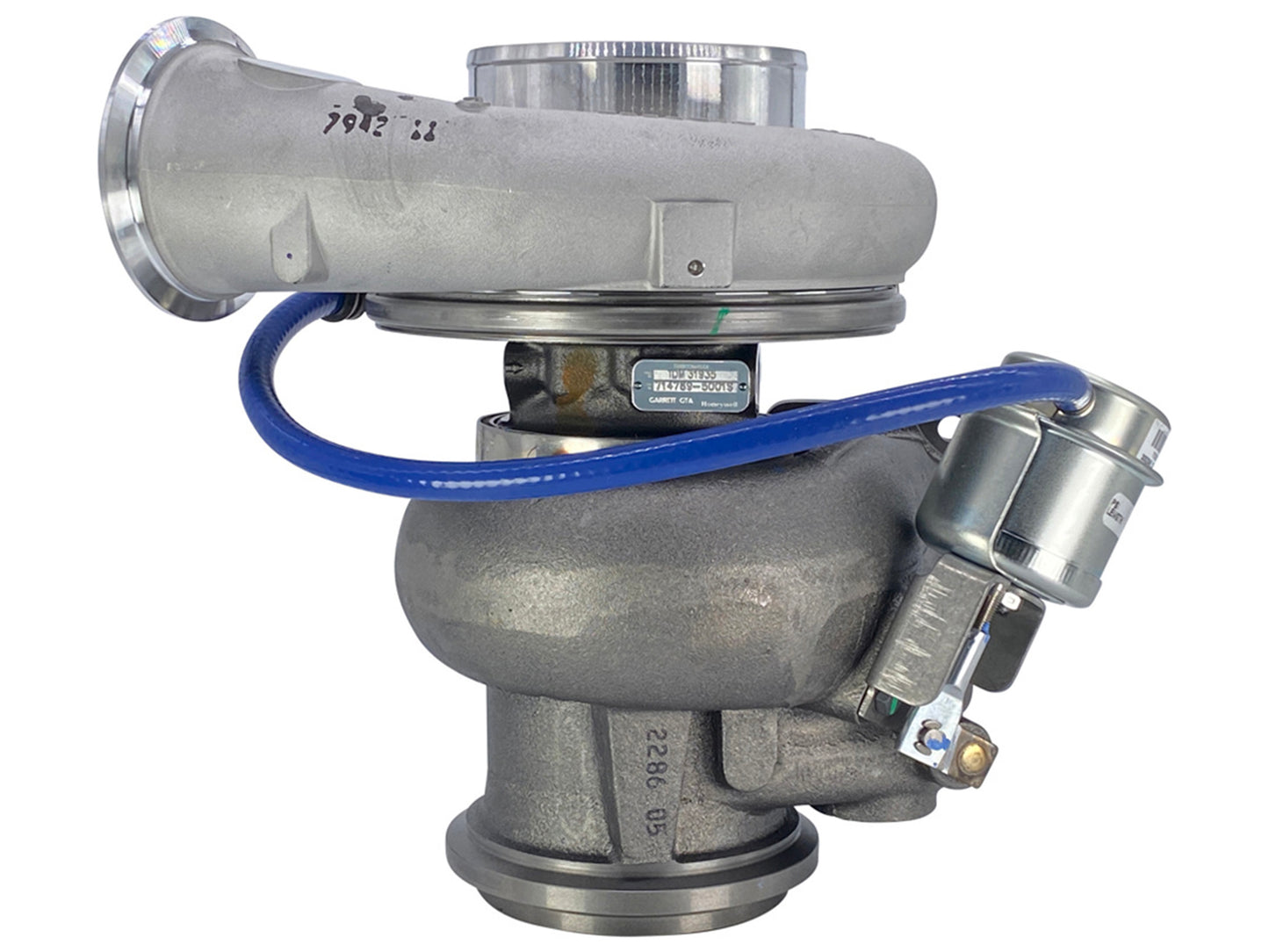

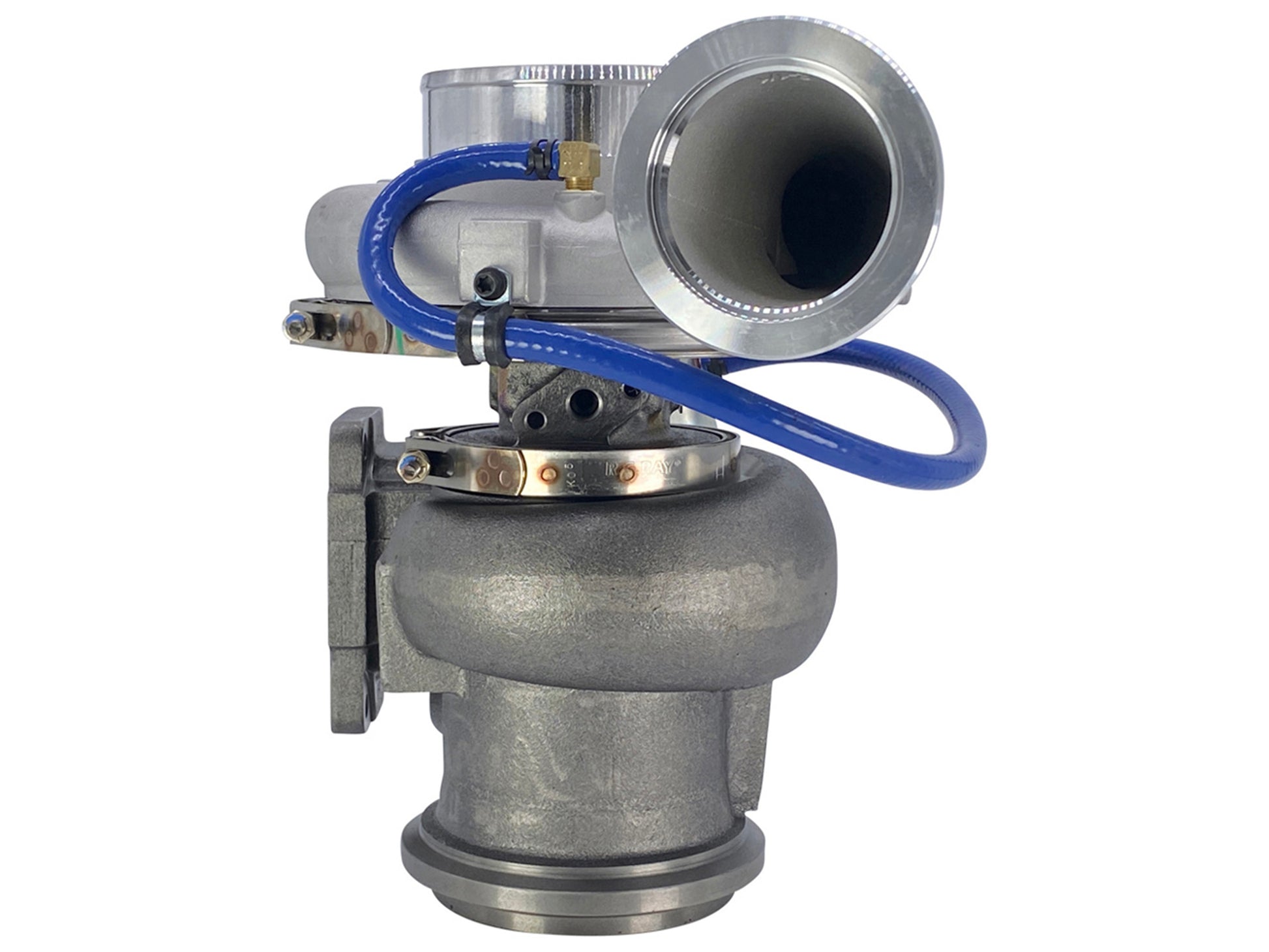

NEW Garrett GTA4294BNS Turbo Truck Detroit Diesel Series 60 12.7L 714789-5001SKU: 714789-5001
This is a BRAND NEW GENUINE GARRETT TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: 714789-5001
Interchangeable Number: 714789-0001, 714789-5001S, 702284-0001, 702284-5001, 702284-5001S, 702284-0003, 702284-5003, 702284-5003S, 702284-0006, 702284-5006, 702284-5006S, 714789-0003, 714789-5003, 714789-5003S, 714789-0006, 714789-5006, 714789-5006S, 714789-0008, 714789-5008, 714789-5008S, 714789-0009, 714789-5009, 714789-5009S
OEM Number: 19511129, 23522306, 23522781, 23526017, 23528067, 23528530, 500457, E23522306, E23522781, E23526017, E23528067, E23528530, R23522306, R23522781, R23526017, R23528067, R23528530
Turbo Model: GTA4294BNS
Engine: Series 60
Engine Manufacturer: Detroit Diesel
Displacement: 12.7L, 12700 ccm, 6 Cylinders
Power: 430 HP
Speed: 2100 RPM
Back Plate: 712339-0001
Bearing Housing: 712342-0003 (Oil Cooled)
CHRA: 712402-0007 (712402-5007S, 23528070)
Compressor Cover: 447844-0017
Compressor Wheel: 712340-0002 (712340-0009)(Ind. 70.25 mm, Exd. 93.98 mm, Trim 8.83, 6+6 Blades, Super Back)
Gasket (Oil Inlet): 210019 (409266-0004, 210019-0000, 201049, 129119, 409266-0003)
Gasket (Oil Outlet): 210060 (311585, 2475013, 51914, 148062, 210060-0000, 409267-0002, 409267-0003)(Paper)
Heat Shield: 410366-0007 (410366-0003, 410366-0004)
Repair Kit: 709153-0001/709153-0002/709153-0005 (1102042750)(13***75)
Turbine Housing + Actuator: 702286-0005
Turbine Housing: 702017-0011
Turbine Wheel: 714470-0001 (714470-0007)(Ind. 82.65 mm, Exd. 75.23 mm, Trim 15.49, 10 Blades)
2000- Highway Truck with Detroit Diesel Series 60 Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
