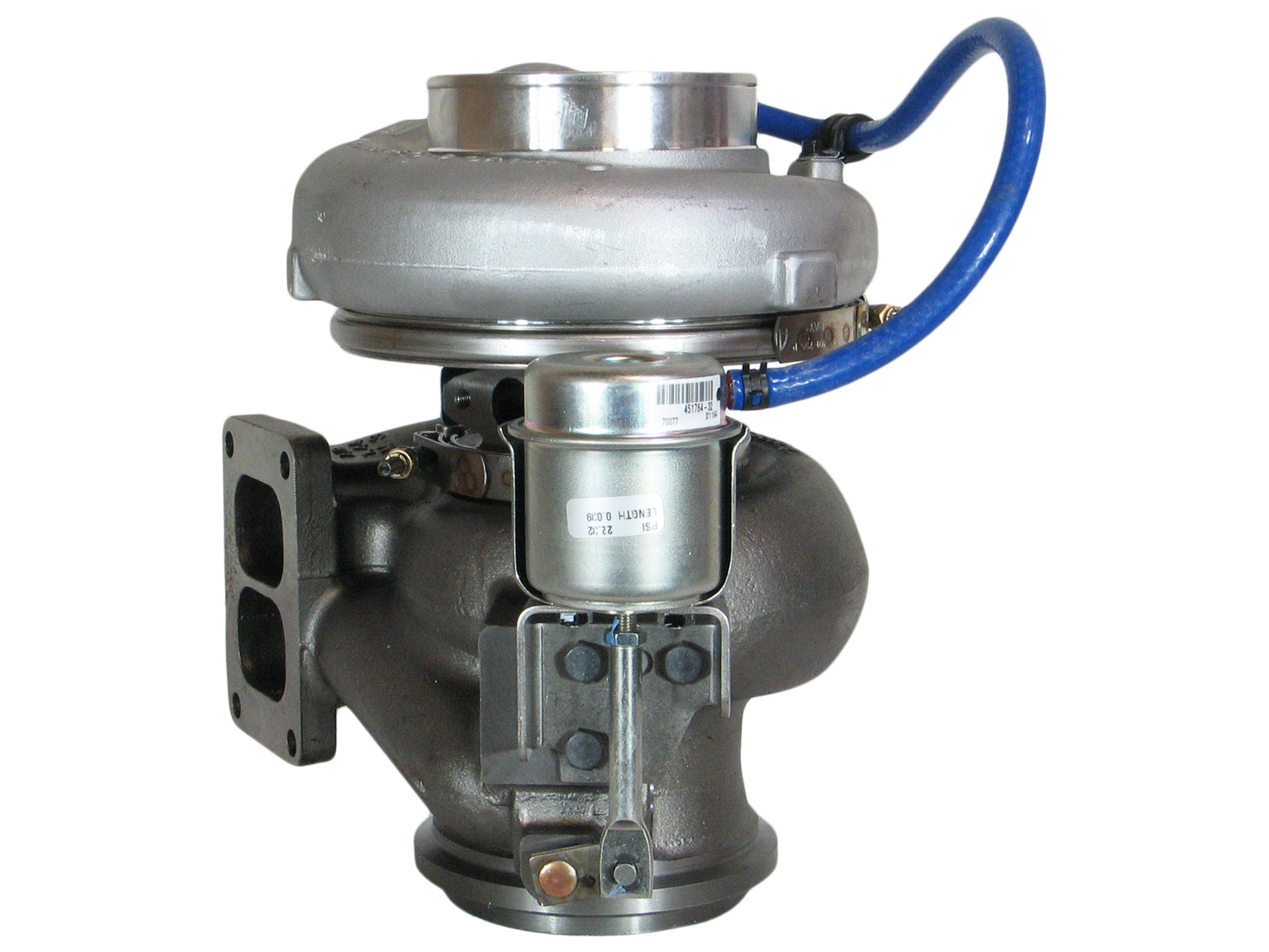

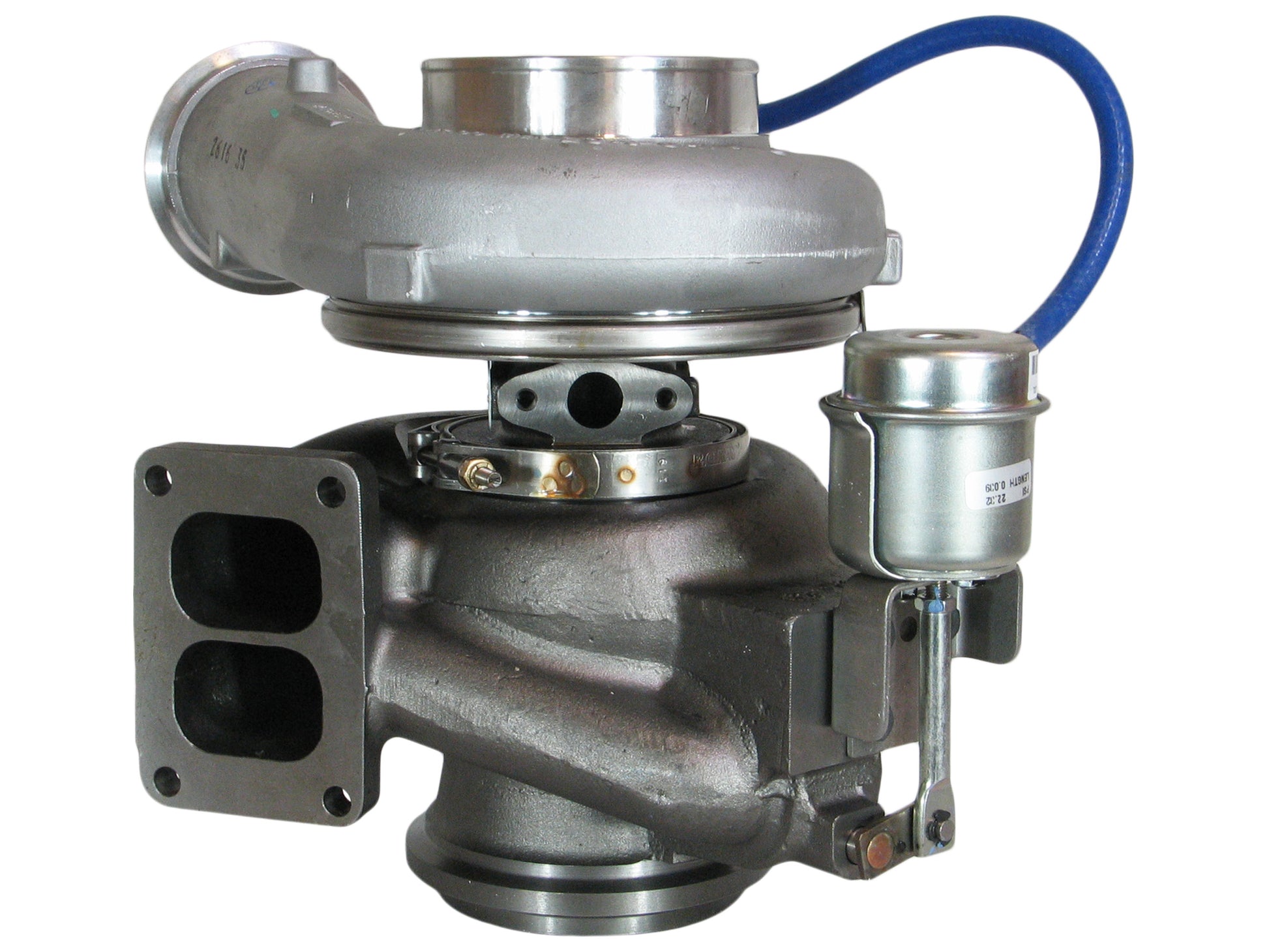

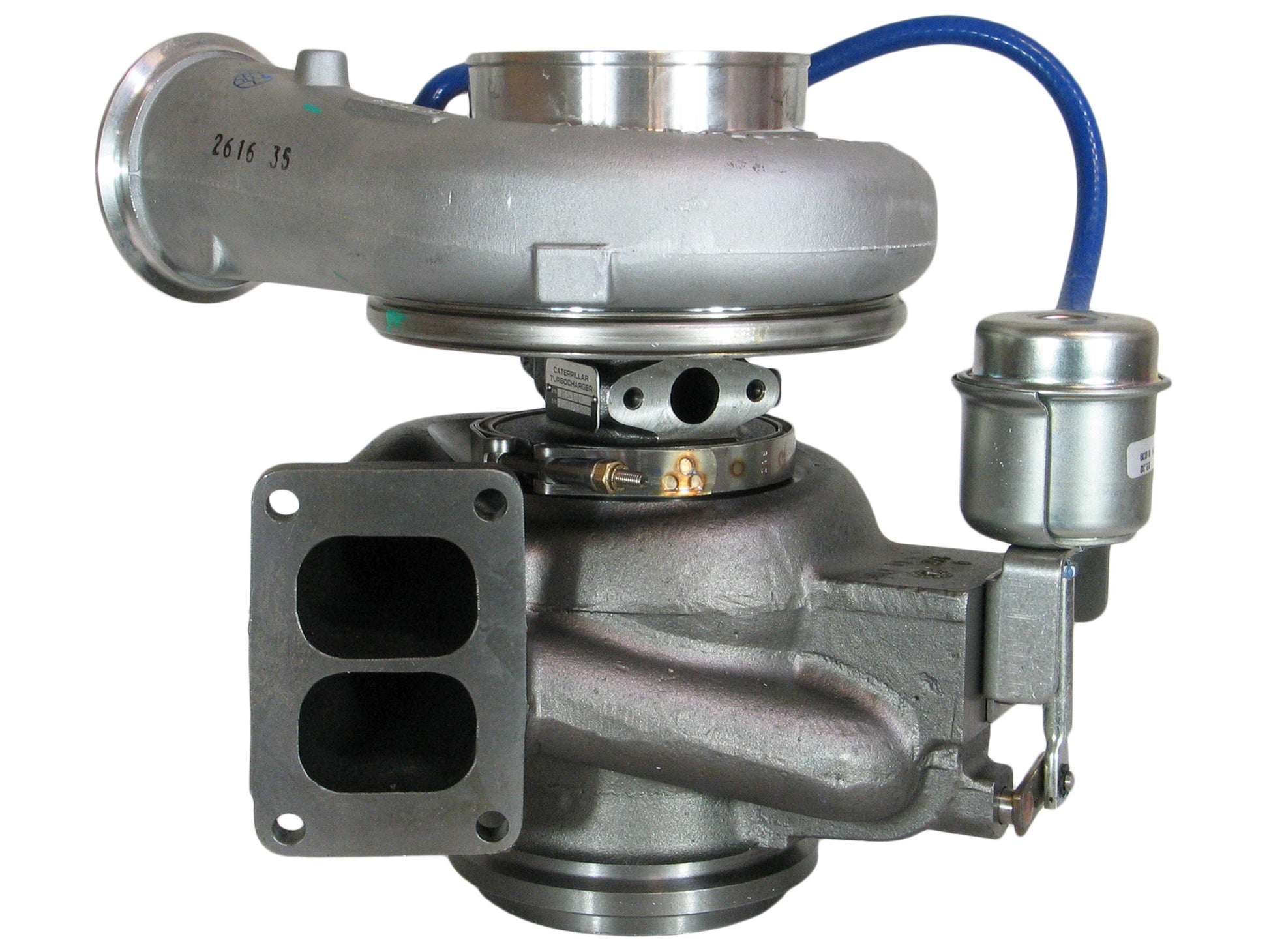

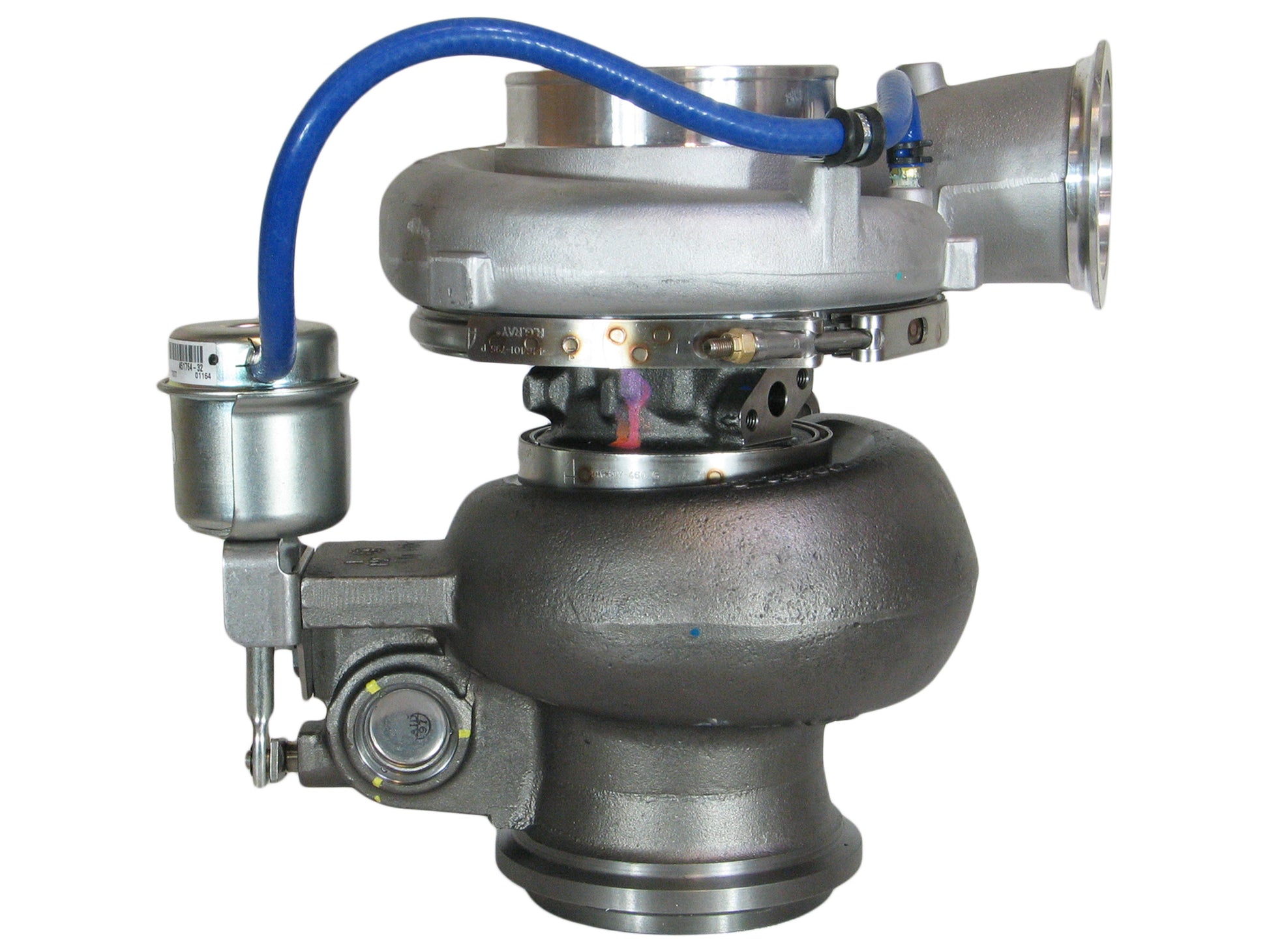

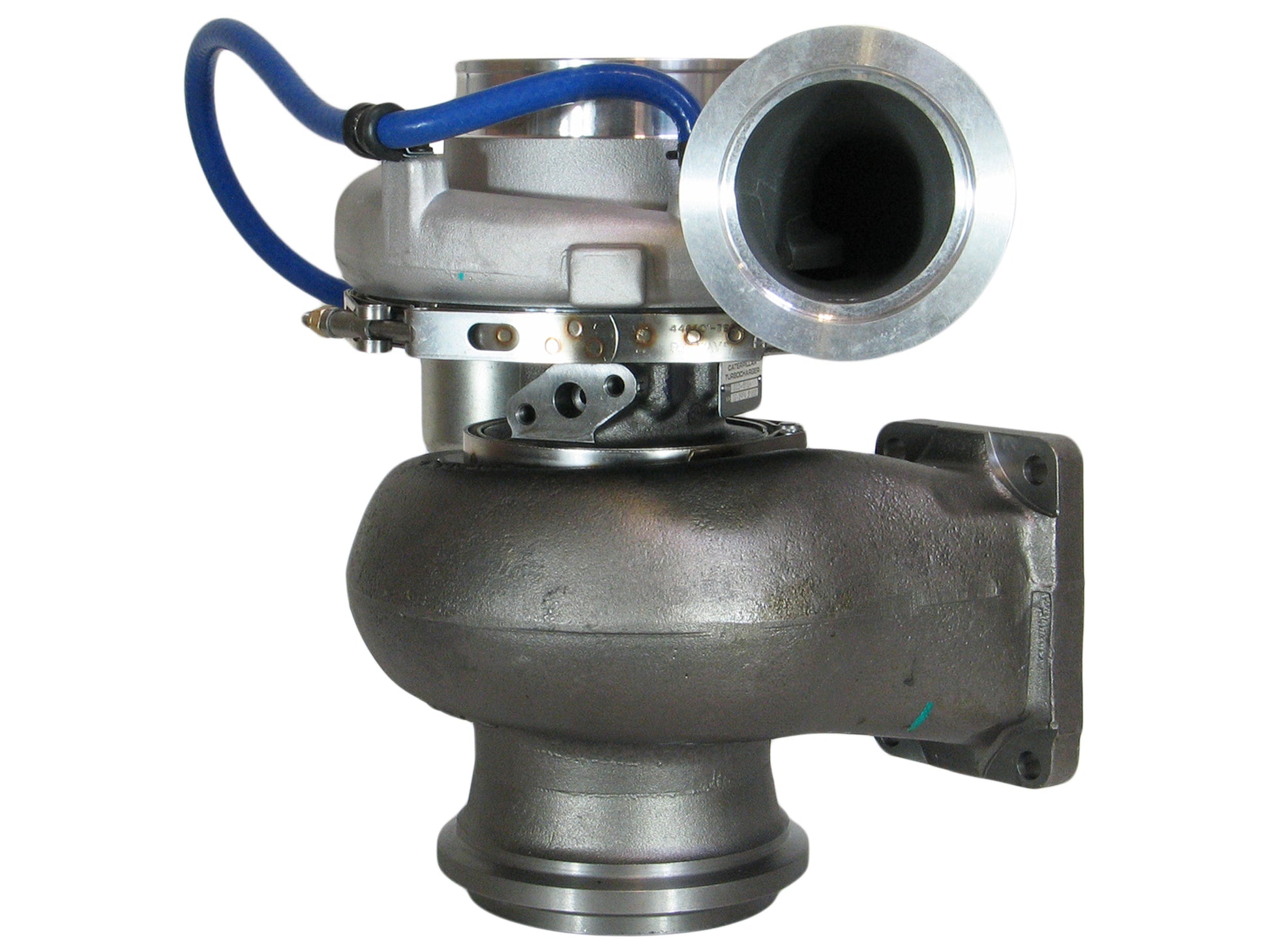

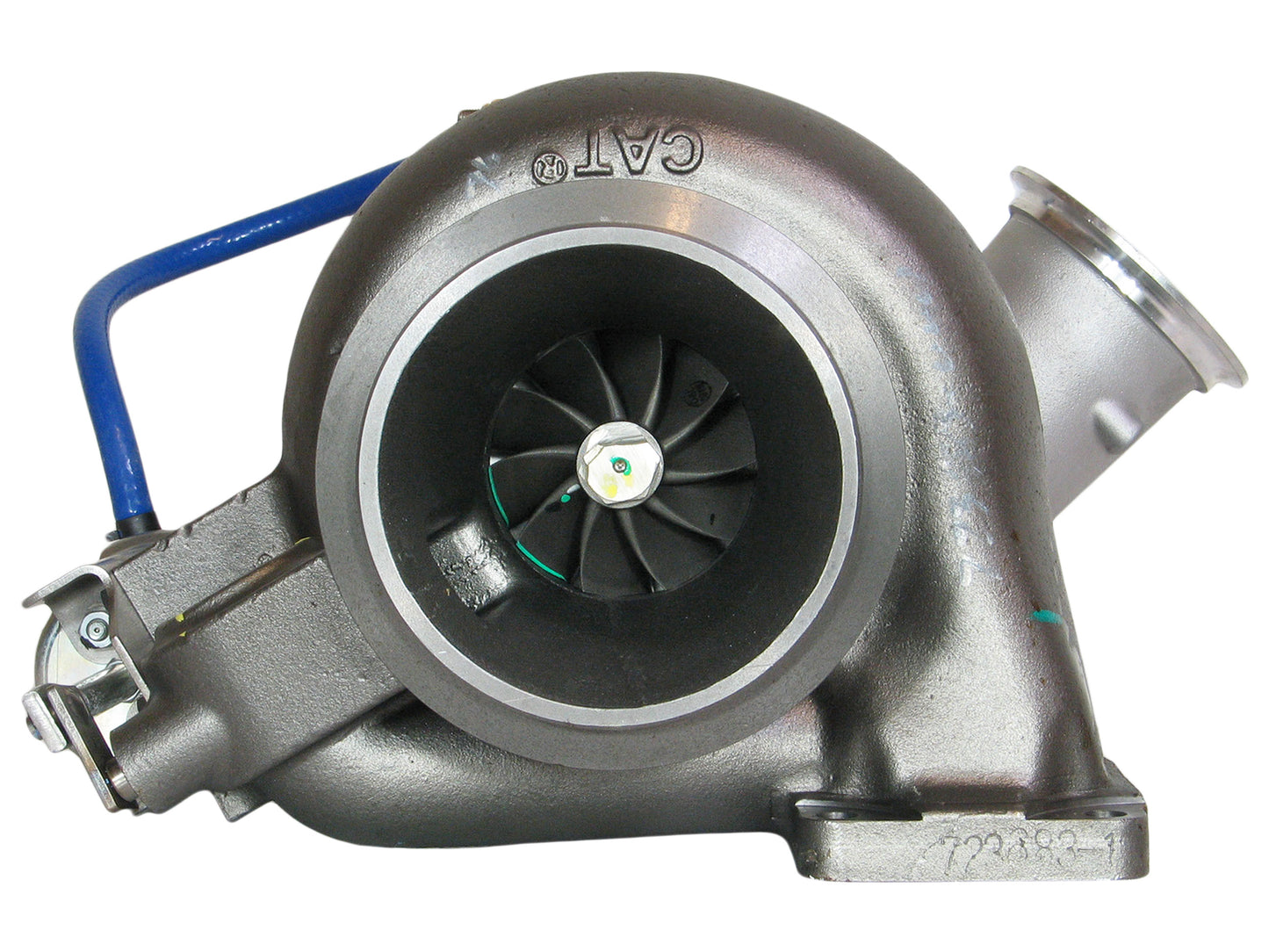

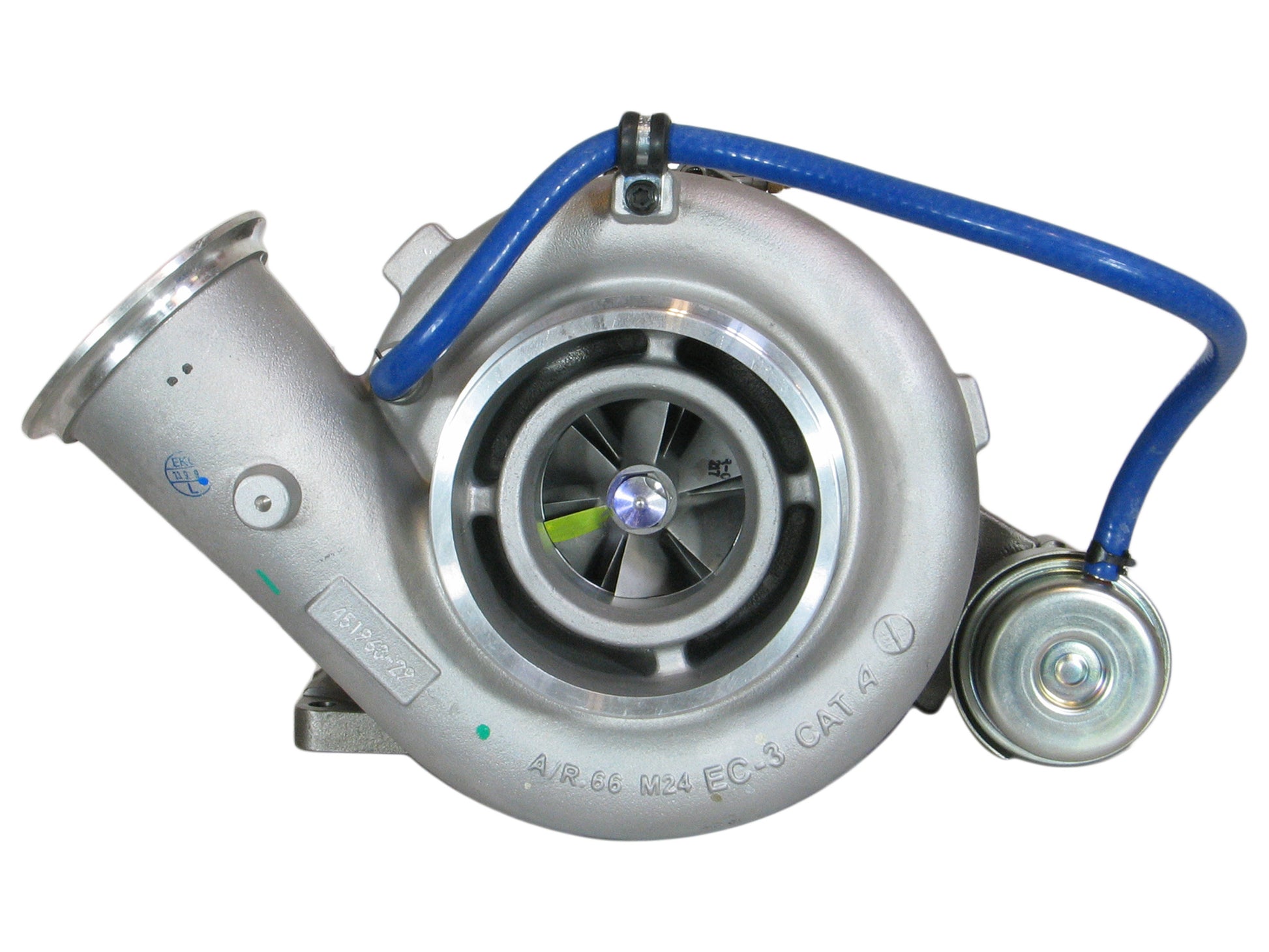

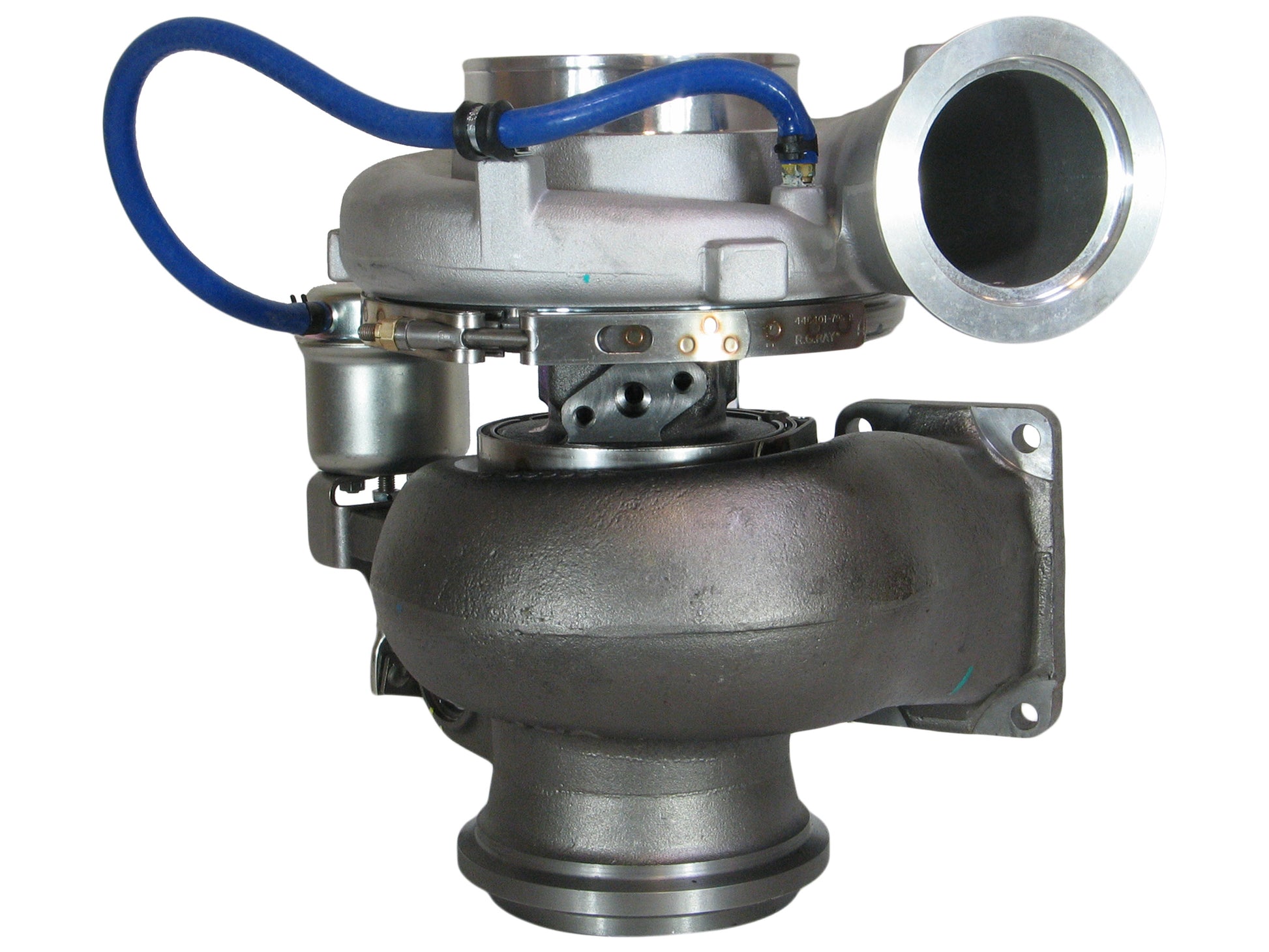

NEW OEM Garrett GTA429402BS Turbo Caterpillar Industrial C10 12.0L 724390-5002SKU: 724390-5002
This is a BRAND NEW GENUINE GARRETT TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: 724390-5002
Interchangeable Number: 724390-0002, 724390-5002S, 724390-0001, 724390-5001, 724390-5001S, 724390-0003, 724390-5003, 724390-5003S, 724390-0004, 724390-5004, 724390-5004S, 724390-0005, 724390-5005, 724390-5005S, 724390-0008, 724390-5008, 724390-5008S, 724390-0009, 724390-5009, 724390-5009S
OEM Number: 10R-0457, 10R0457, 10R-0759, 10R0759, 203-3376, 2033376, 203-6124, 2036124, 214-6091, 2146091, 238-4450, 2384450, 241-1700, 2411700, 247-2967, 2472967, 255-8140, 2558140
Serial Number: BCX00001-UP, BCX121-UP
Turbo Model: GTA429402BS, GT4294S
Displacement: 12.0L, 12000 ccm, 6 Cylinders
Angle α (Compressor Housing): 134°
Angle ß (Turbine Housing): 30°
Back Plate: 712339-0001 (451333-0001)(6N7962, 331640848713)
Bearing Housing: 712342-0001 (432104-0001)(Oil Cooled)
CHRA: 712401-0001 (712401-5001S, 451814-0005, 451814-0009, 1506304, 150-6304, 190-6222, 1906222)
Compressor Cover: 452616-0035/452616-0043/451963-0007 (1923358, 1378930)
Compressor Wheel: 712340-0003 (451193-0005, 712340-0009, 712340-0010, 434354-0014)(Ind. 67.7 mm, Exd. 94 mm, 6+6 Blades, Super Back)
Gasket (Oil Inlet): 210019 (409266-0003, 3819900, 9737, 1S6595, 201049, 129119)(1900000035)
Gasket (Oil Outlet): 210060 (409267-0003, 409267-0002, 210060-0000, 51914, 148062, 201048, 311585, 3709738, 3500682, 1S4810, 9988, 9738, 3519763, 210018-0000)(Paper)(1900000025)
Heat Shield: 410366-0007 (410366-0003, 410366-0004)
Repair Kit: 709153-0001 (709153-0002, 709153-0005)(13***75)
Turbine Housing: 723684-0001/723864-0005 (2033377)

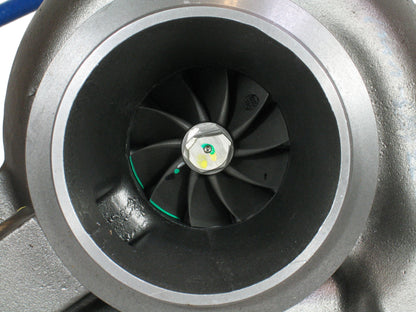

Turbine Wheel: 715713-0001 (451724-0002)(Ind. 75 mm, Exd. 82.17 mm, 10 Blades)
Caterpillar Industrial with C10 Engine

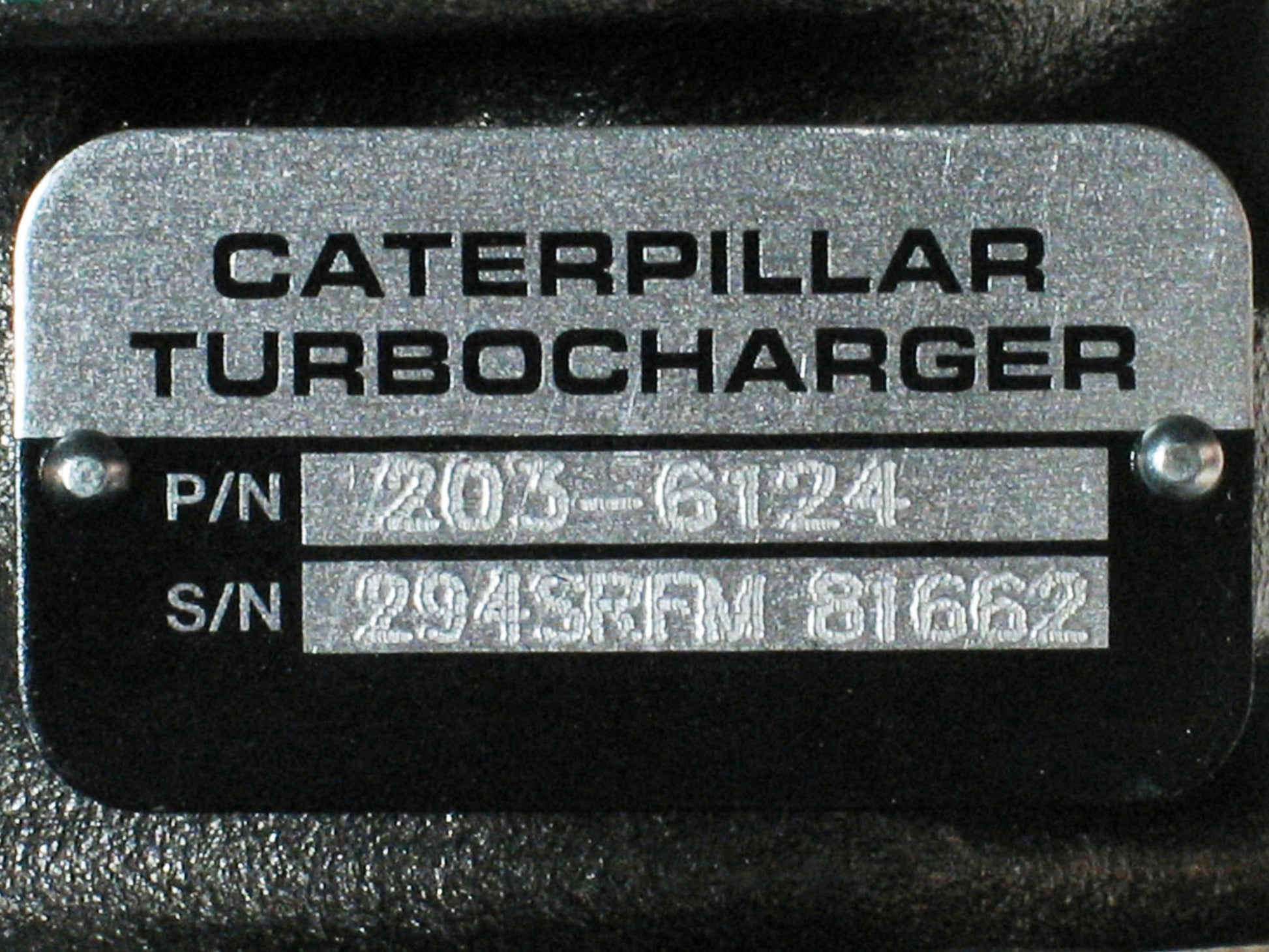

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
