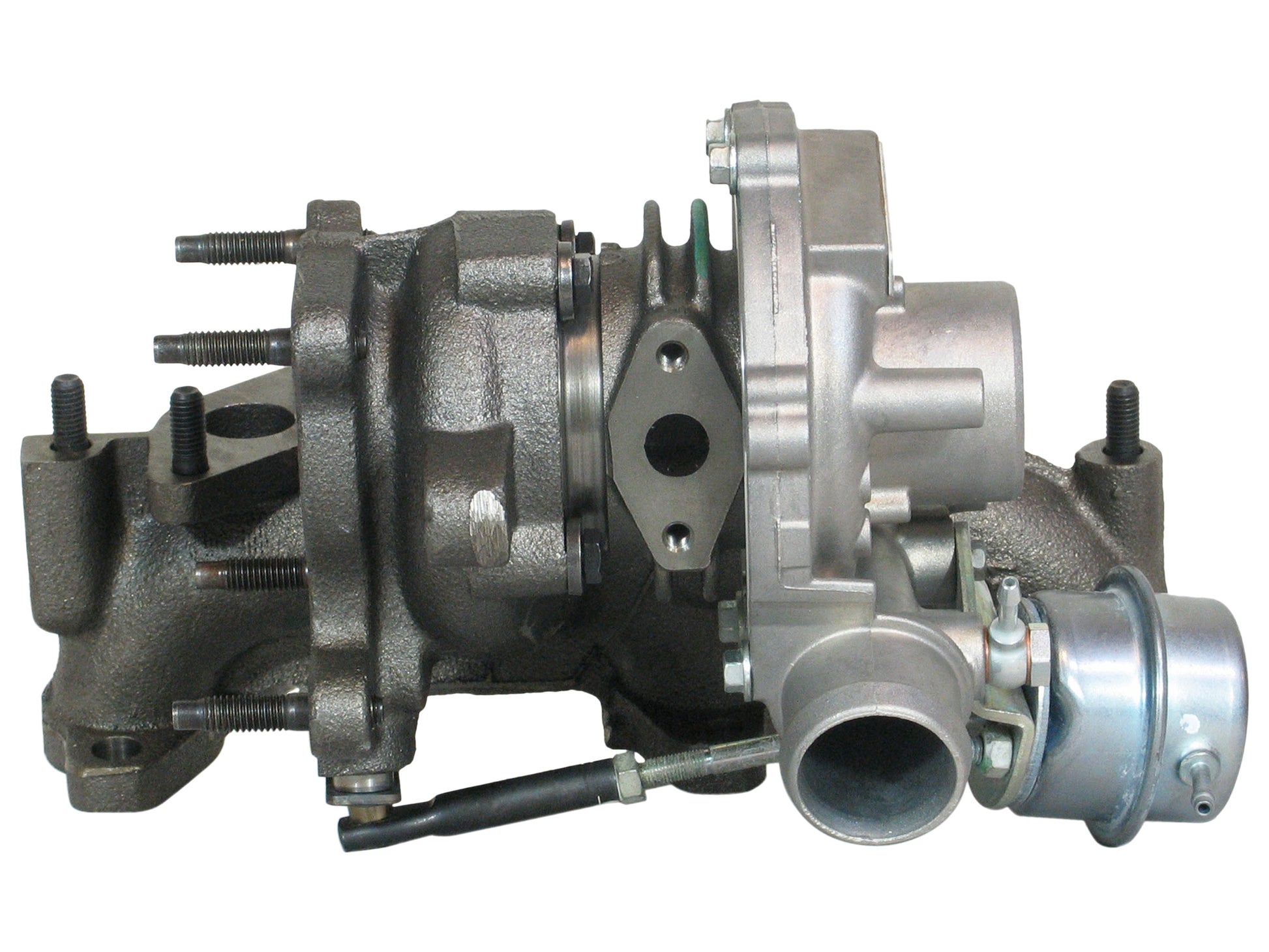

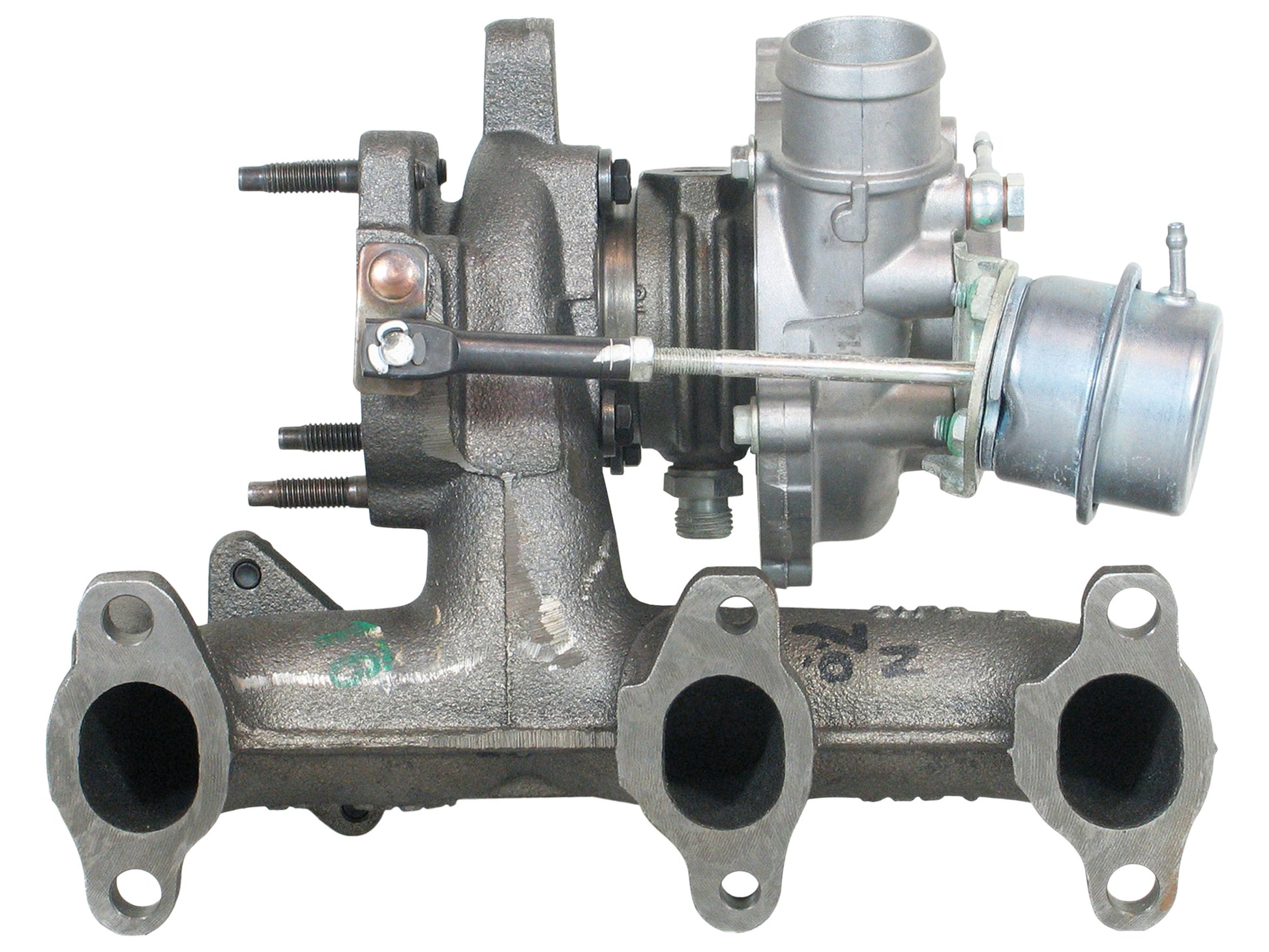

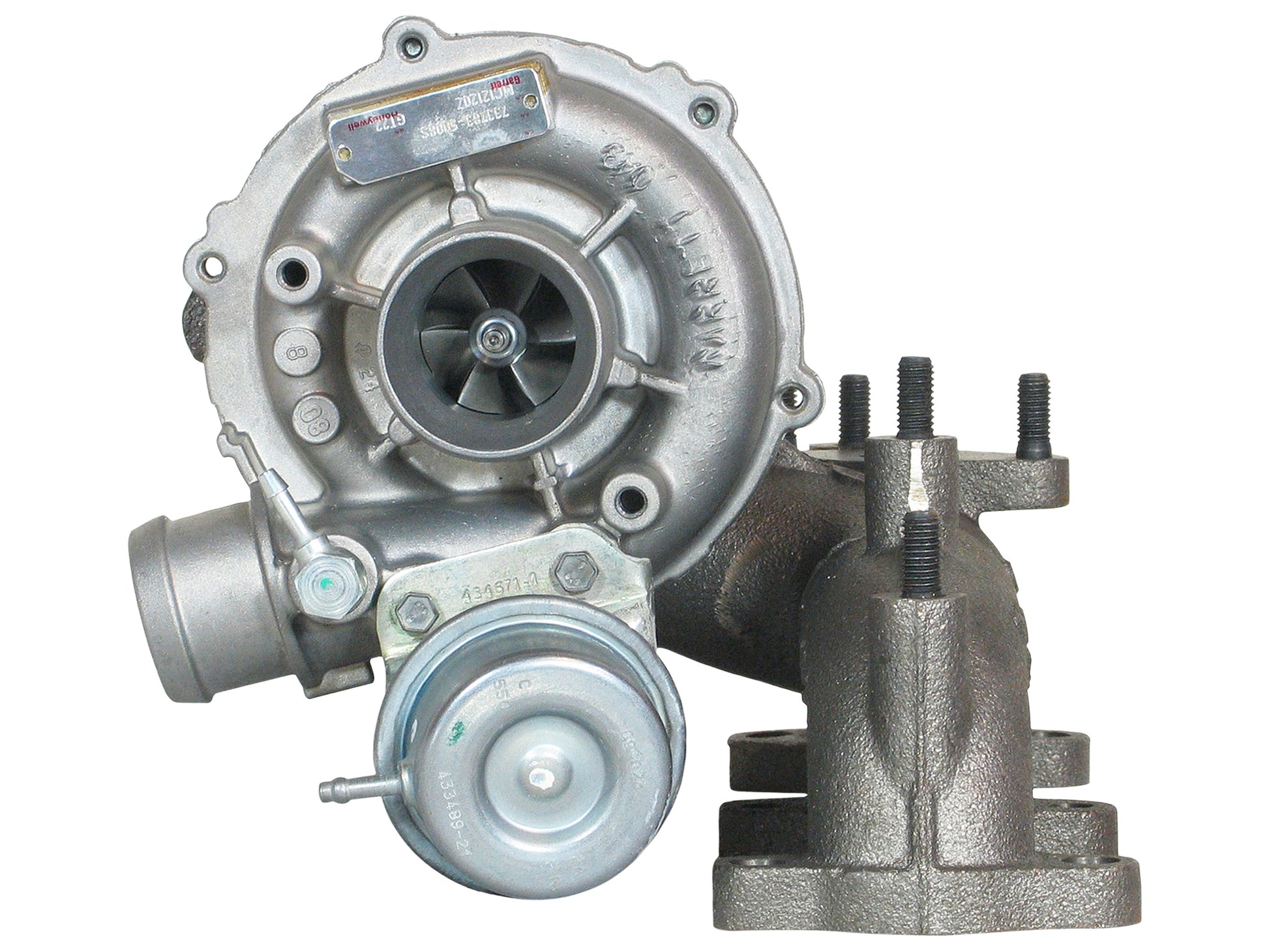

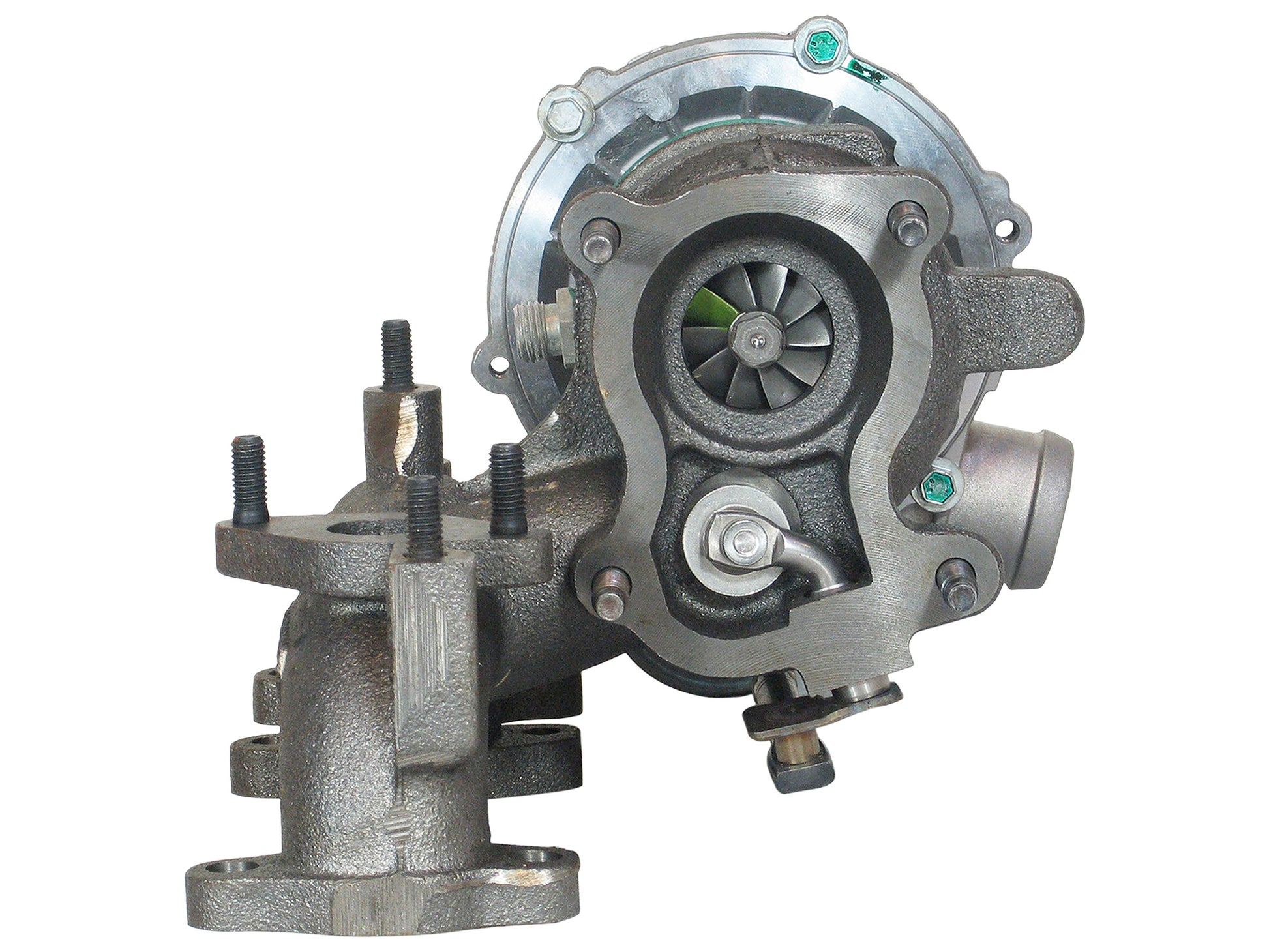

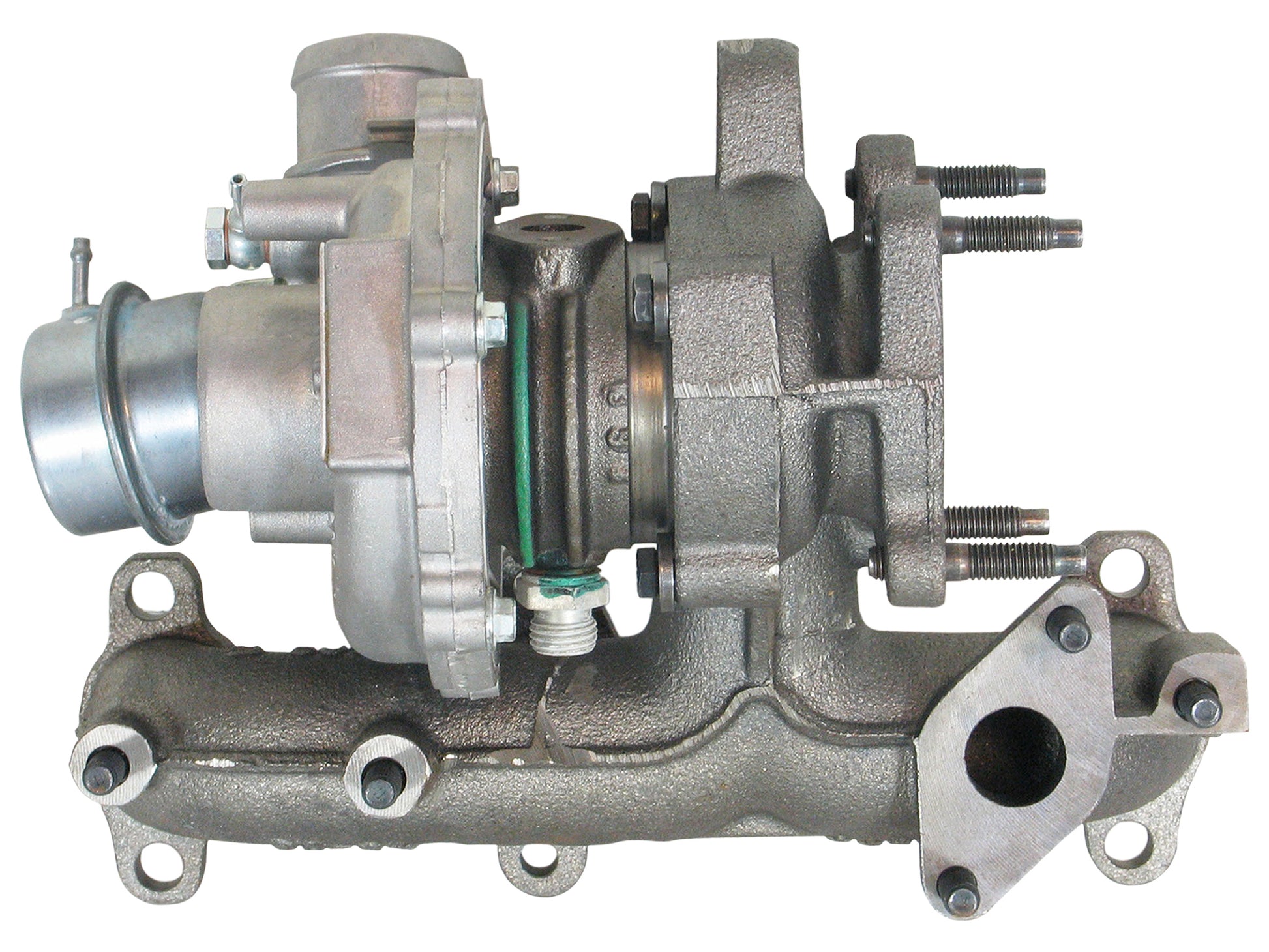

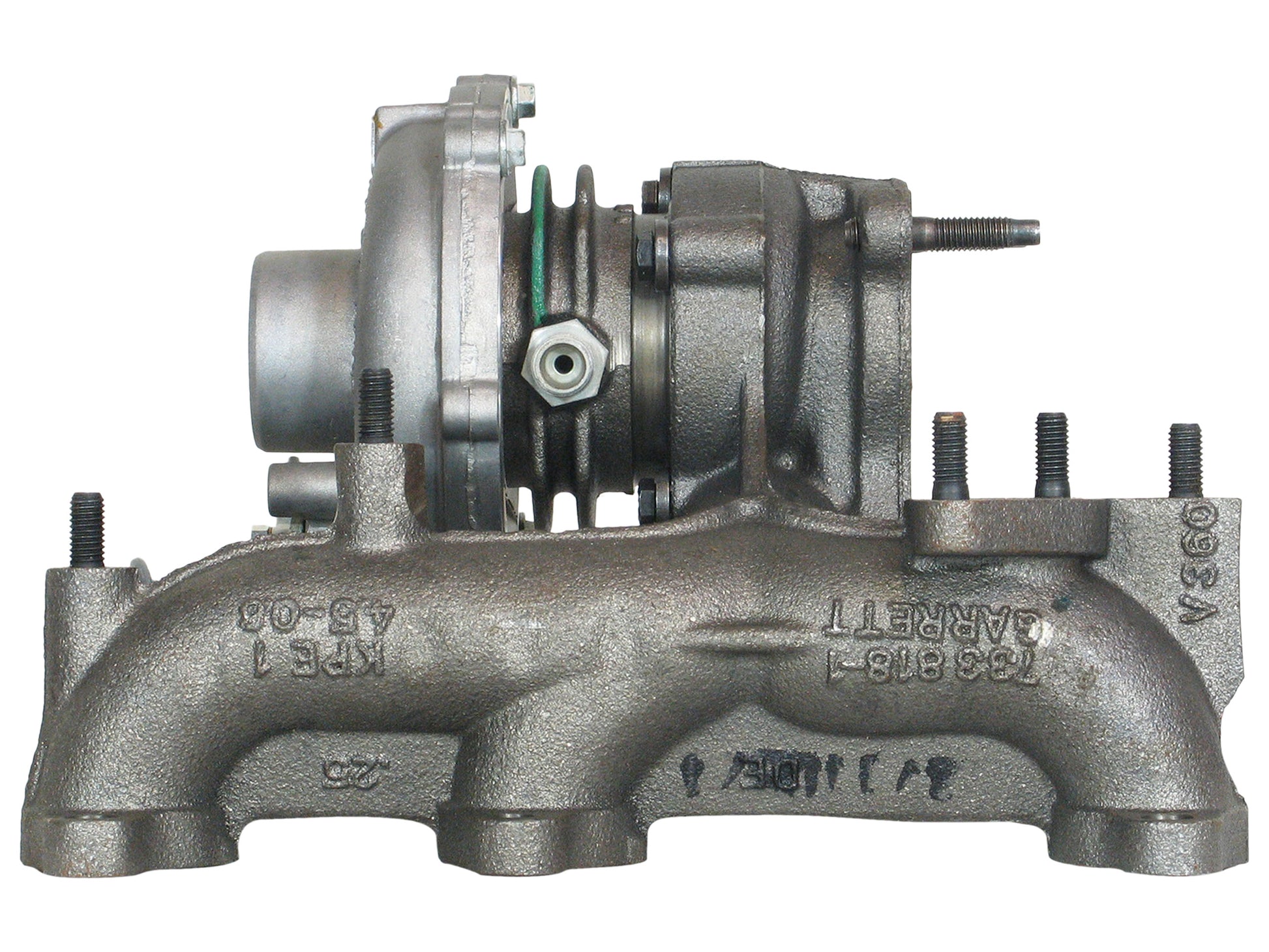

NEW OEM Garrett GT1544SM Turbo Audi A2 VW Fox Lupo Polo 1.4L TDI 733783-5008
SKU: 733783-5008This is a BRAND NEW GENUINE GARRETT TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: 733783-5008S
Interchangeable Number: 733783-0008, 733783-5008, 720243-0001, 720243-5001, 720243-5001S, 720243-0002, 720243-5002, 720243-5002S, 733783-0004, 733783-5004, 733783-5004S, 733783-0007, 733783-5007, 733783-5007S
OEM Number: 045253019D, 045253019DV405, 045253019DV500, 045253019G, 045253019L, 045253019LV, 045253019LX
Turbo Model: GT1544SM
Manufacturer: Honeywell-Garrett
Year: 2001-
Engine: BAY, BNM, BAY Euro 4, BNM Euro 4
Engine Manufacturer: Volkswagen
Displacement: 1.4L, 1400/1422 ccm, 3 Cylinders
Fuel: Diesel
Power: 69/74/75/79/80 HP
Speed: 4000 RPM
Angle α (Compressor Housing): 167°
Angle β (Turbine Housing): 85°
Actuator: 433489-0021
Back Plate: 434824-0003
Bearing Housing: 435911-0002
CHRA: 433289-0232
Compressor Cover: 435791-0076/433380-0012
Compressor Wheel: 436133-0010
Gasket (Actuator EGR): 210313
Gasket (Exhaust Manifold): 210687
Gasket (Oil Outlet): 210243
Gasket (Turbine Outlet): 210296
Heat Shield: 434302-0001
Repair Kit: 732252-0001
Turbine Housing A/R: 0.25
Turbine Housing: 722745-0002
Turbine Wheel: 701698-0031
Wastegate Settings (Lift Shaft): 1.00 mm
Wastegate Settings (Pressure): 0.767-0.833 bar
Application:
1999-05 Volkswagen Lupo with 1.4L TDI BAY Engine
2000-05 Audi A2 with 1.4L TDI AMF Engine
2001-04 Seat Arosa with 1.4L TDI BAY Engine
2001-05 Volkswagen Polo, Polo IV with 1.4L TDI AMF, BAY Engine
2004- Volkswagen Polo IV with 1.4L TDI BNM Engine
2005- Volkswagen Fox with 1.4L TDI BNM Engine
2005-07 Skoda Fabia with 1.4L TDI BNM, BNV Engine
2005-07 Skoda Praktik with 1.4L TDI BNM Engine
2005-08 Seat Cordoba with 1.4L TDI BNM Engine
2005-08 Skoda Fabia with 1.4L TDI BNM Engine
2005-09 Seat Cordoba with 1.4L TDI BMS, BNM Engine
2005-09 Seat Ibiza with 1.4L TDI BMS, BNM Engine
2005-09 Volkswagen Fox with 1.4L TDI BNM Engine
2005-09 Volkswagen Polo with 1.4L TDI BMS, BNM Engine
2006- Skoda Roomster with 1.4L TDI BAY Engine
2006-10 Skoda Roomster Scout with 1.4L TDI BMS Engine
2006-10 Skoda Roomster with 1.4L TDI BMS, BNM Engine
2007- Seat Arosa with 1.4L TDI BAY, BNM Engine
2007- Seat Ibiza with 1.4L TDI BAY, BNM Engine
2007- Skoda Fabia with 1.4L TDI BAY, BNM Engine
2007- Volkswagen Fox with 1.4L TDI BNM Engine
2007- Volkswagen Lupo with 1.4L TDI BAY Engine
2007- Volkswagen Polo with 1.4L TDI BAY, BNM Engine
2007-10 Skoda Fabia with 1.4L TDI BMS, BNM Engine
2007-10 Skoda Roomster Praktik with 1.4L TDI BMS, BNM Engine
2008- Skoda Roomster with 1.4L TDI BAY, BNM Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
