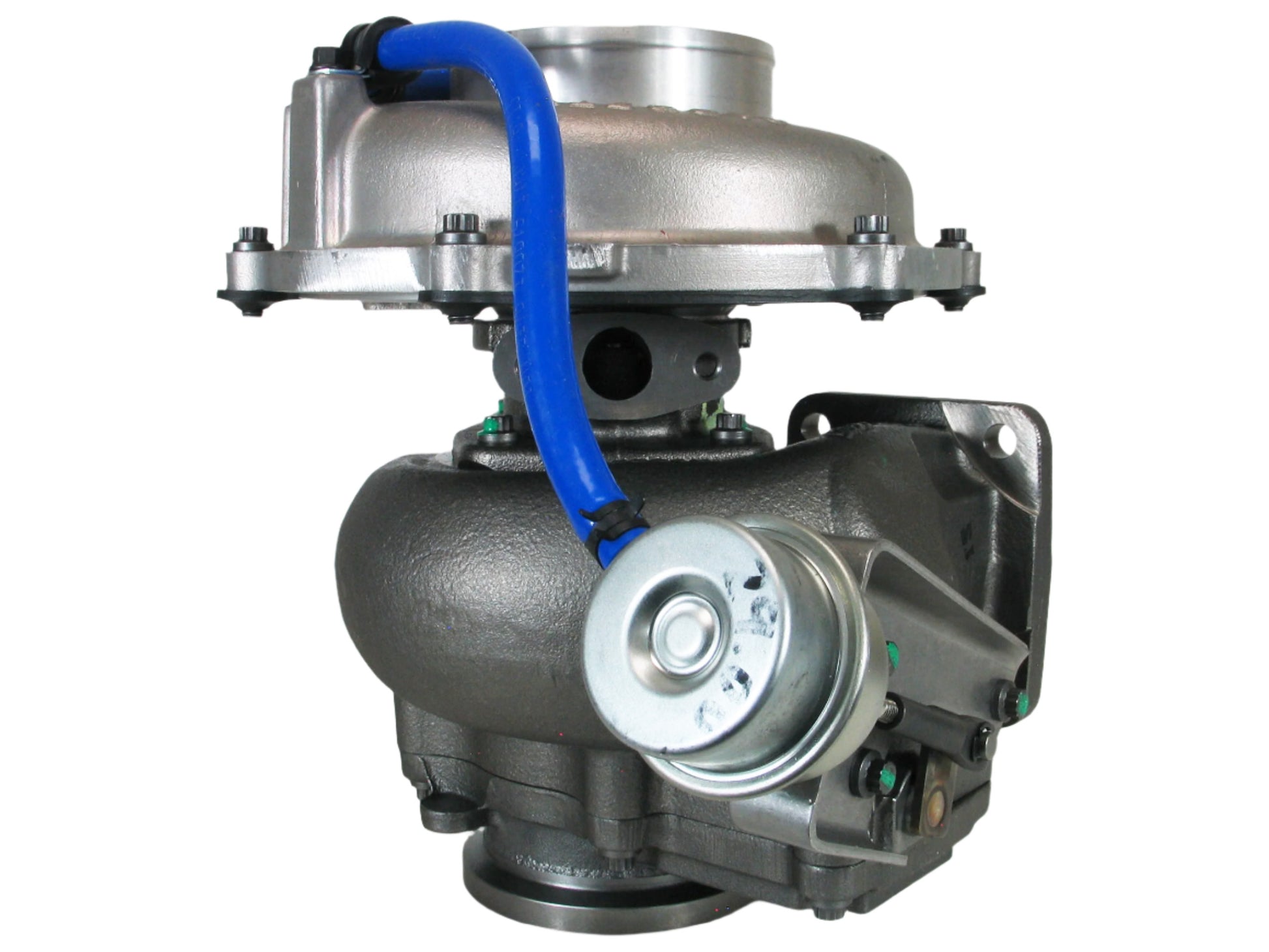

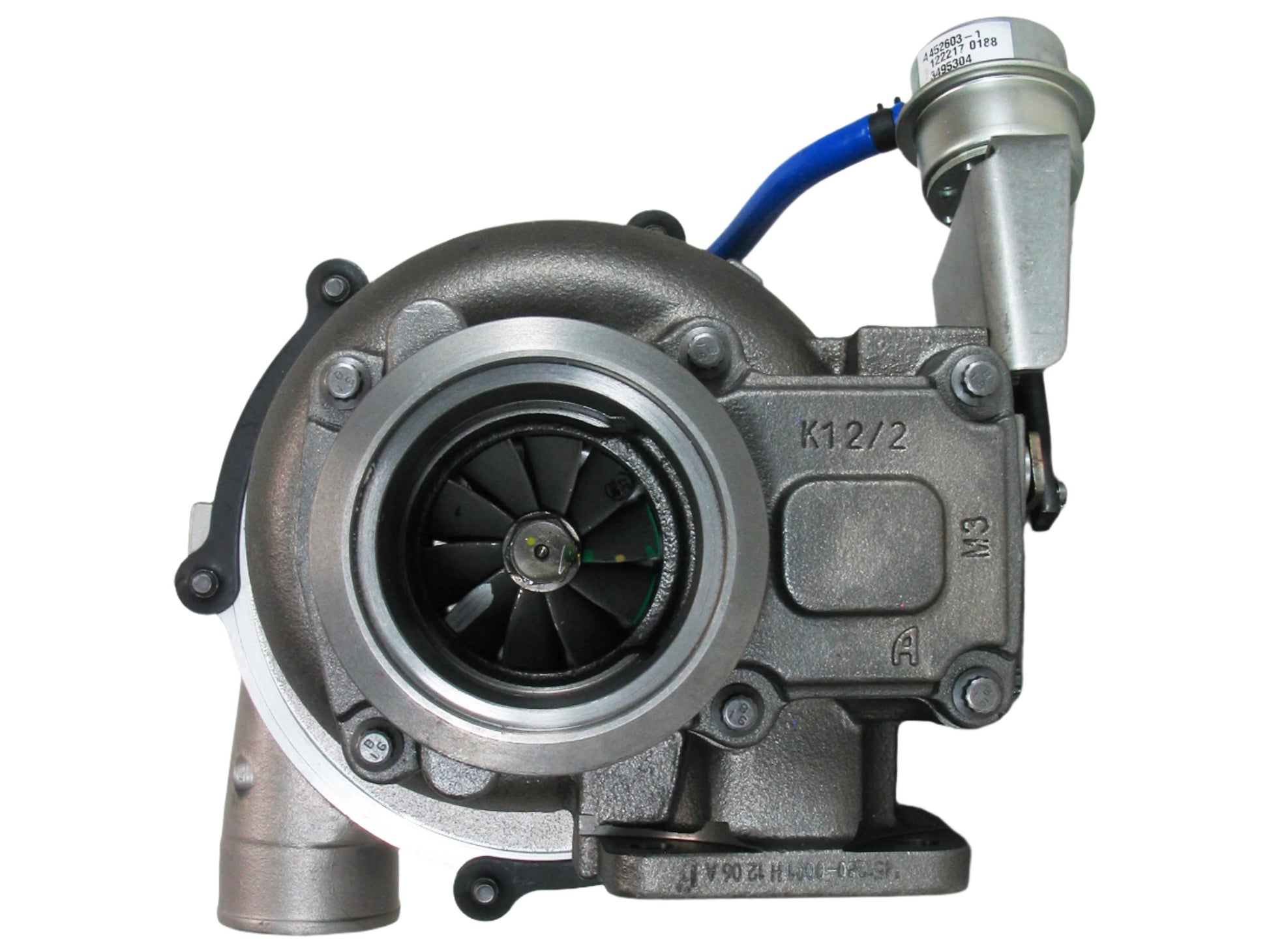

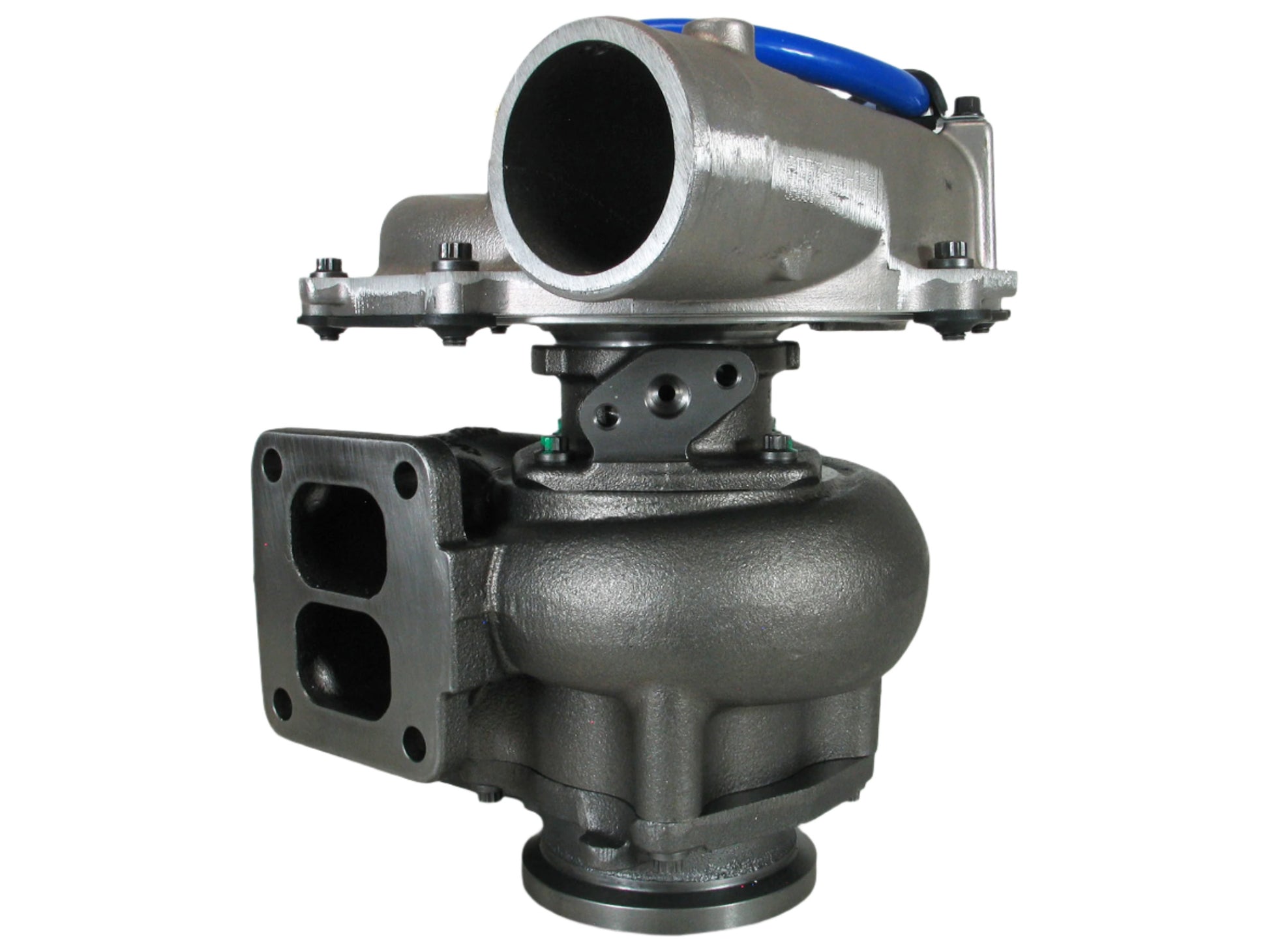

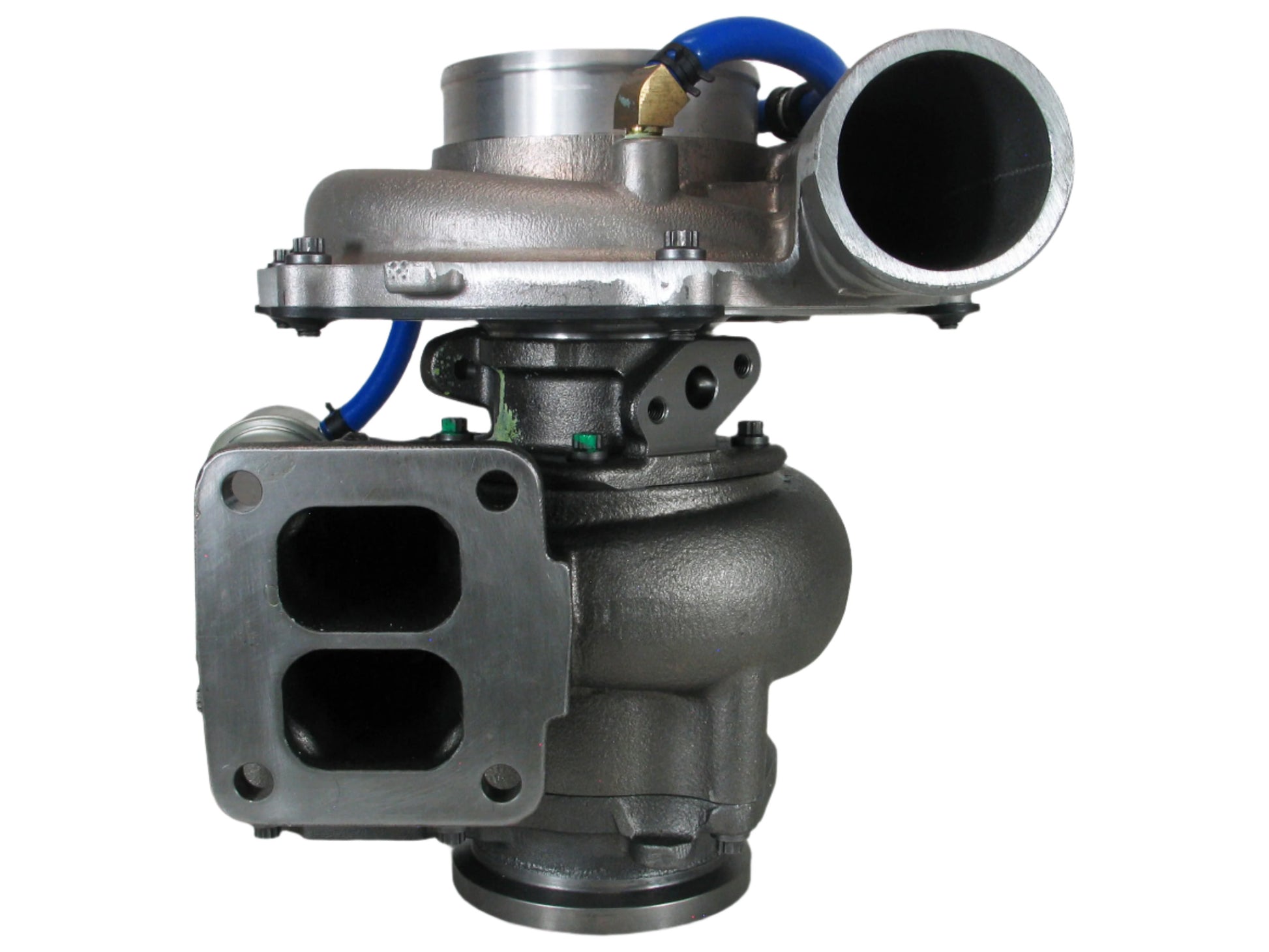

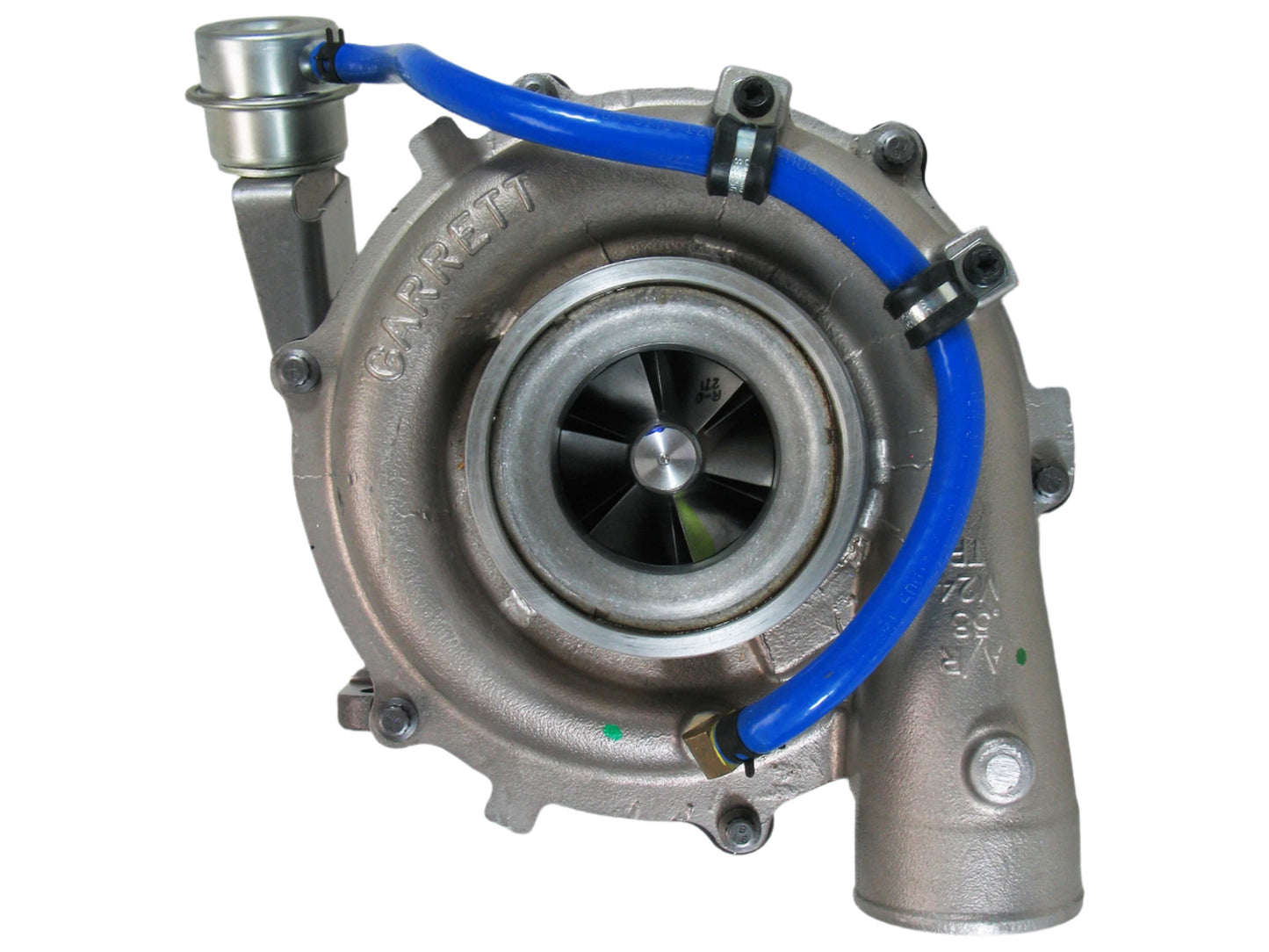

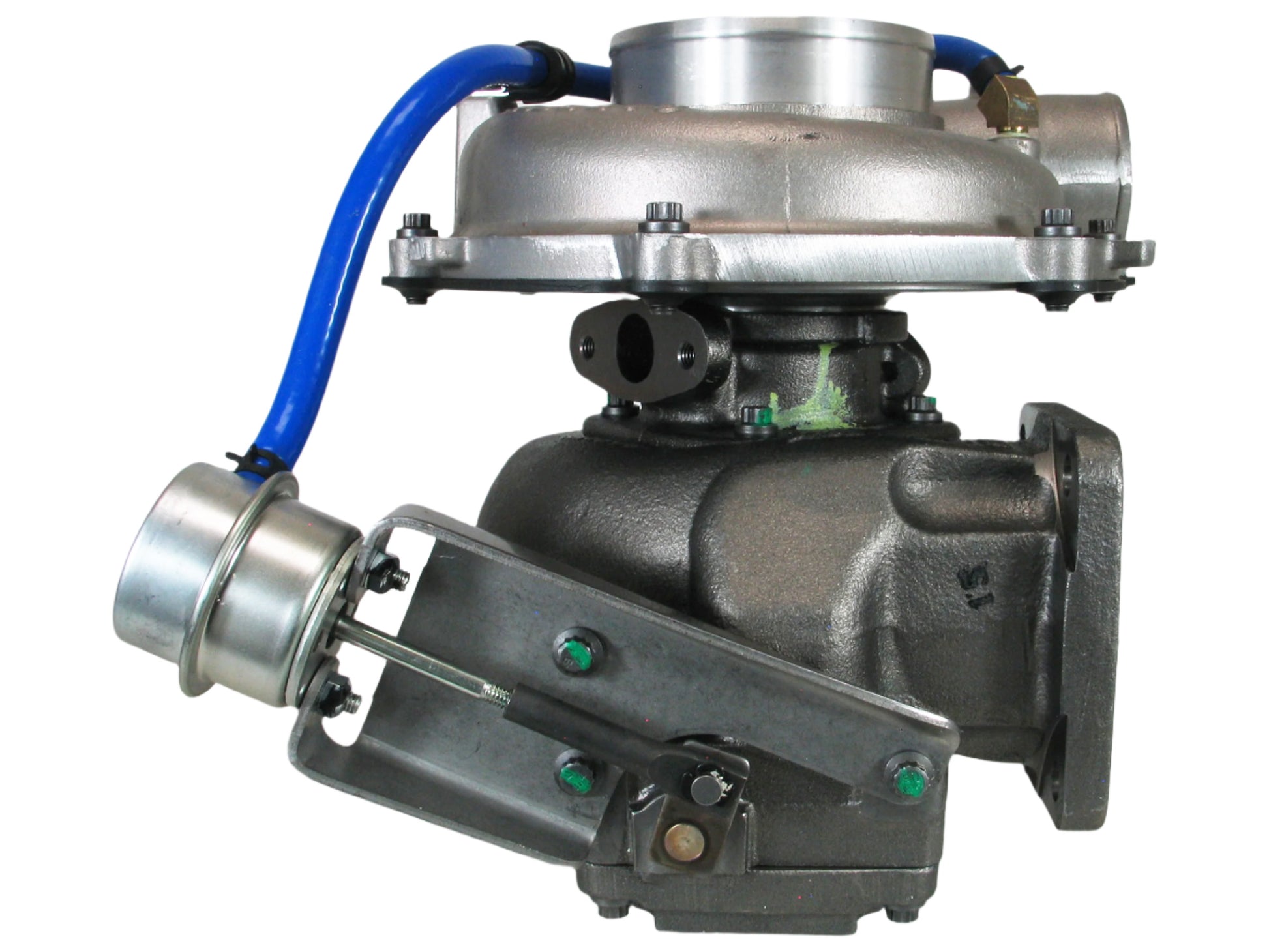

NEW Garrett GT3782BD Turbo International Truck Navistar DT466E I530E 751361-5004

BRAND NEW GENUINE GARRETT TURBOCHARGER

This is a BRAND NEW GENUINE GARRETT TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

Fits the following:

Part Number: 751361-5004
Interchangeable Number: 751361-0004, 751361-5004S, 179078, 466743-0007, 466743-5007, 466743-5007S, 466743-0014, 466743-5014, 466743-5014S, 466743-0015, 466743-5015, 466743-5015S, 466743-0021, 466743-5021, 466743-5021S, 466743-0022, 466743-5022, 466743-5022S, 466743-0024, 466743-5024, 466743-5024S, 466743-0025, 466743-5025, 466743-5025S, 466743-0027, 466743-5027, 466743-5027S, 466743-0028, 466743-5028, 466743-5028S, 466743-0030, 466743-5030, 466743-5030S, 466743-0034, 466743-5034, 466743-5034S, 466743-0035, 466743-5035, 466743-5035S, 466743-0037, 466743-5037, 466743-5037S, 466743-0038, 466743-5038, 466743-5038S, 466743-0040, 466743-5040, 466743-5040S, 466743-0041, 466743-5041, 466743-5041S, 466743-0043, 466743-5043, 466743-5043S, 466805-0001, 466805-5001, 466805-5001S, 466805-0005, 466805-5005, 466805-5005S, 466805-0006, 466805-5006, 466805-5006S, 466805-0007, 466805-5007, 466805-5007S, 466805-0014, 466805-5014, 466805-5014S, 466805-0016, 466805-5016, 466805-5016S, 466805-0017, 466805-5017, 466805-5017S, 466805-0018, 466805-5018, 466805-5018S, 466805-0026, 466805-5026, 466805-5026S, 466805-0027, 466805-5027, 466805-5027S, 466805-0028, 466805-5028, 466805-5028S, 466805-0029, 466805-5029, 466805-5029S, 751361-0005, 751361-5005, 751361-5005S
OEM Number: 1824790C91, 1824790C92, 1824791C91, 1824791C92, 1824999C91, 1824999C92, 1825400C91, 1825400C92, 1825457C91, 1825457C93, 1825457RX1, 1825476C01, 1825476C91, 1825476C92, 1826361C91, 1826361C92, 1826361C93, 1826363C92, 1826364C91, 1826364C92, 2506758C91, 2506759C91, 2506760C91, 2506761C91, 2506762C91, 2506771C91, 2506772C91, 2506774C91, 4307233R91
Turbo Model: GT3782BD
Manufacturer: Garrett

Year: 1994-
Engine: DT466E, I530E
Engine Manufacturer: Navistar
Displacement: 7.6L
Fuel: Diesel

CHRA: 449936-0009 (449936-5009S, 449936-0003)(1836495C1)

Turbo Model： GT3782, TP3782

Engine Manufacturer： Navistar

Angle α (compressor housing)： 220º

Angle β (turbine housing)： 270º

Bearing Housing： 448316-0001 (448316-0019, 448316-0021, 448316-0006)(Oil Cooled)(1900011249)

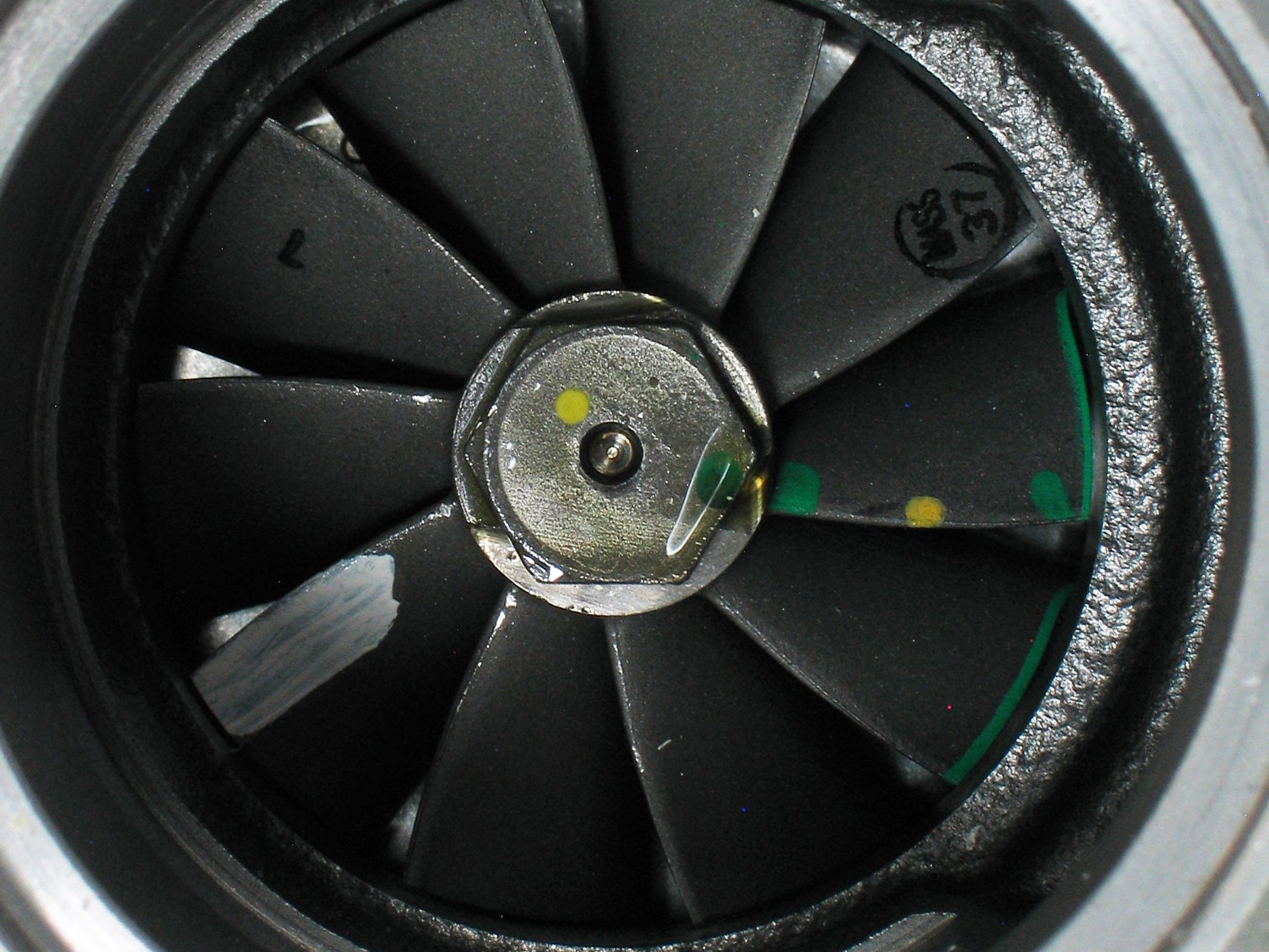

Turbine Wheel： 434461-0003 (Ind. 72.72 mm, Exd. 64.06 mm, Trm 11.68, 10 Blades)

Comp. Wheel： 448856-0013 (Ind. 60.35 mm, Exd. 81.99 mm, Trm 6.93, 6+6 Blades, Superback)

Back plate： 712810-0003 (751359-0001)

Heat shield Number： 448893-0001

Repair Kit： 472559-0001 (709152-0001)(1102040751)

Turbine Housing： 447685-0035

Compressor Cover： 449363-0035 (448377-0053)：

Actuator： 452603-0001

Settings Waste gate (pressure)： 2.068-2.131 bar

Settings Waste gate (lifting rod）： 0.38 mm：

Manufacturer： Honeywell-Garrett

Application:
1994-03 International Truck wirh Navistar DT466E, I530E Engine
1995- International 4700, 4900 Truck with Navistar DT466E Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
