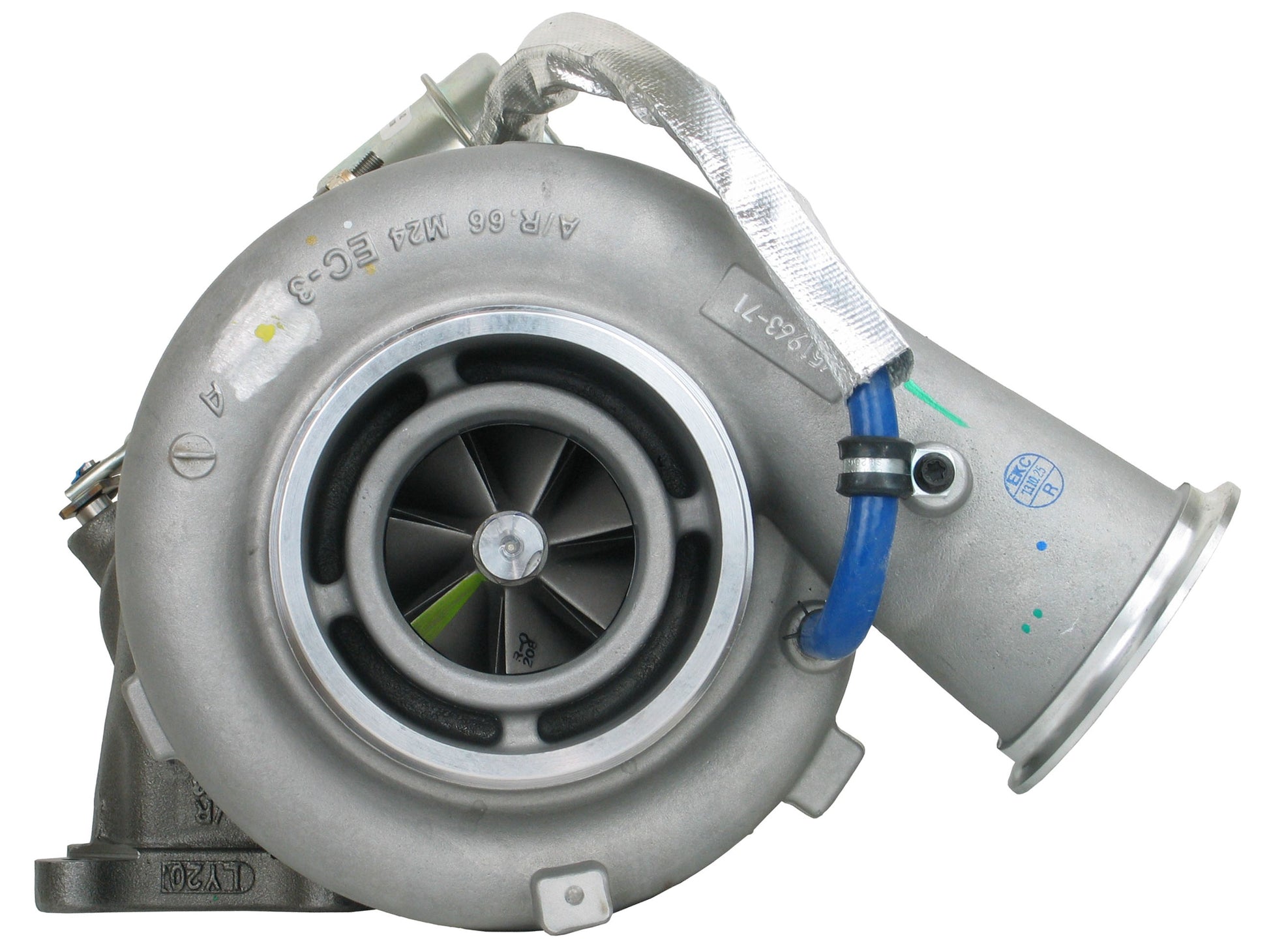

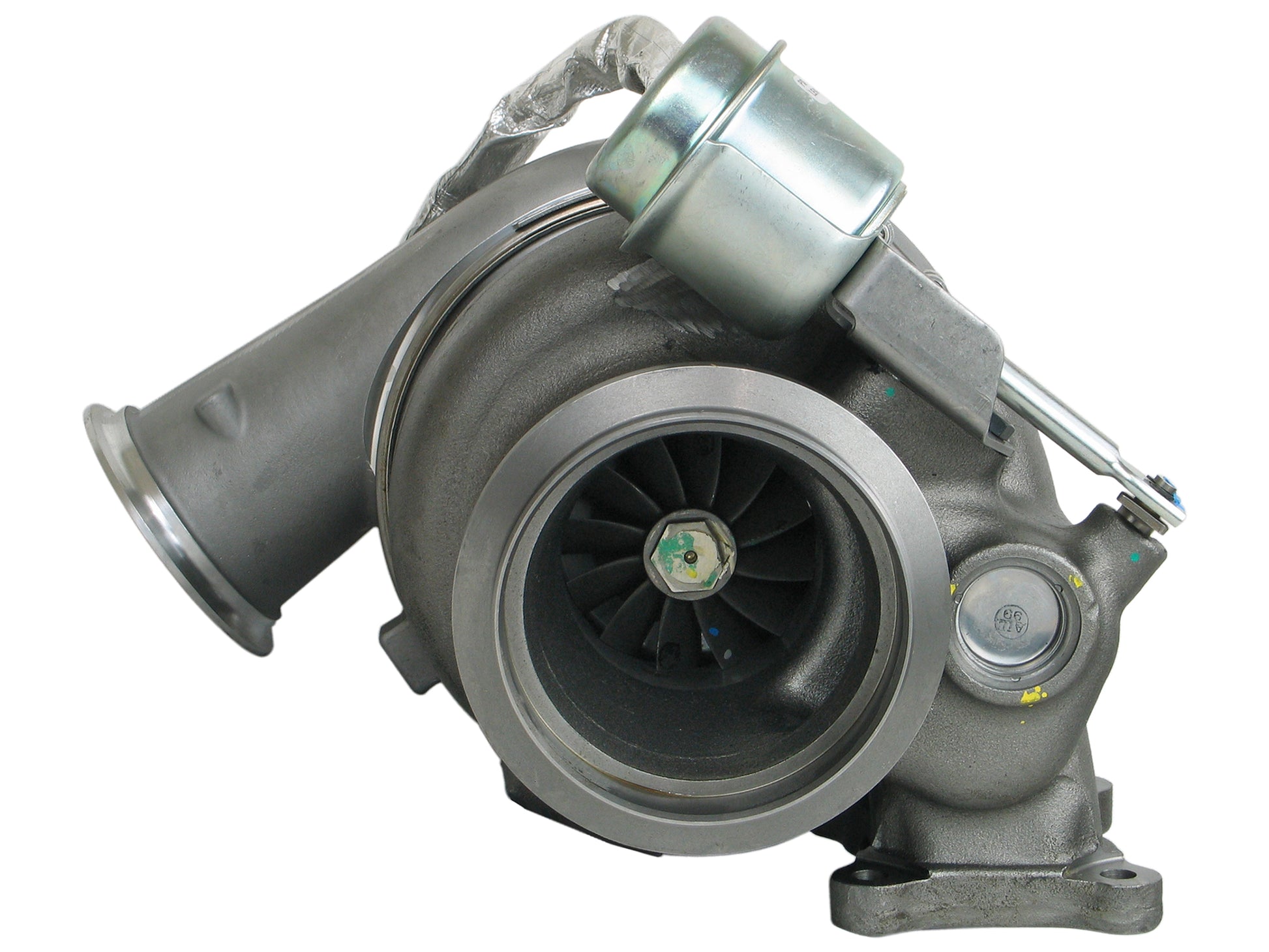

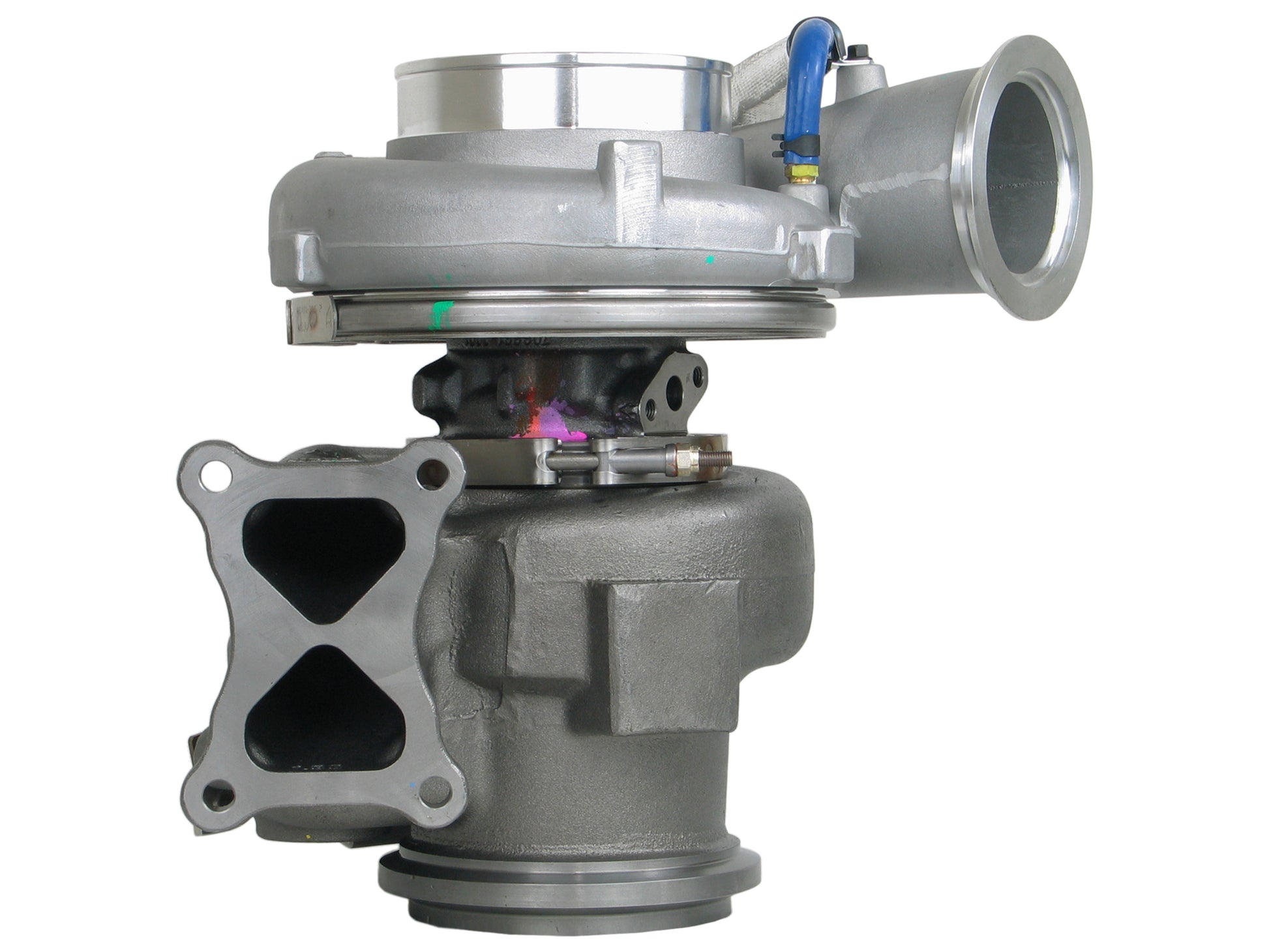

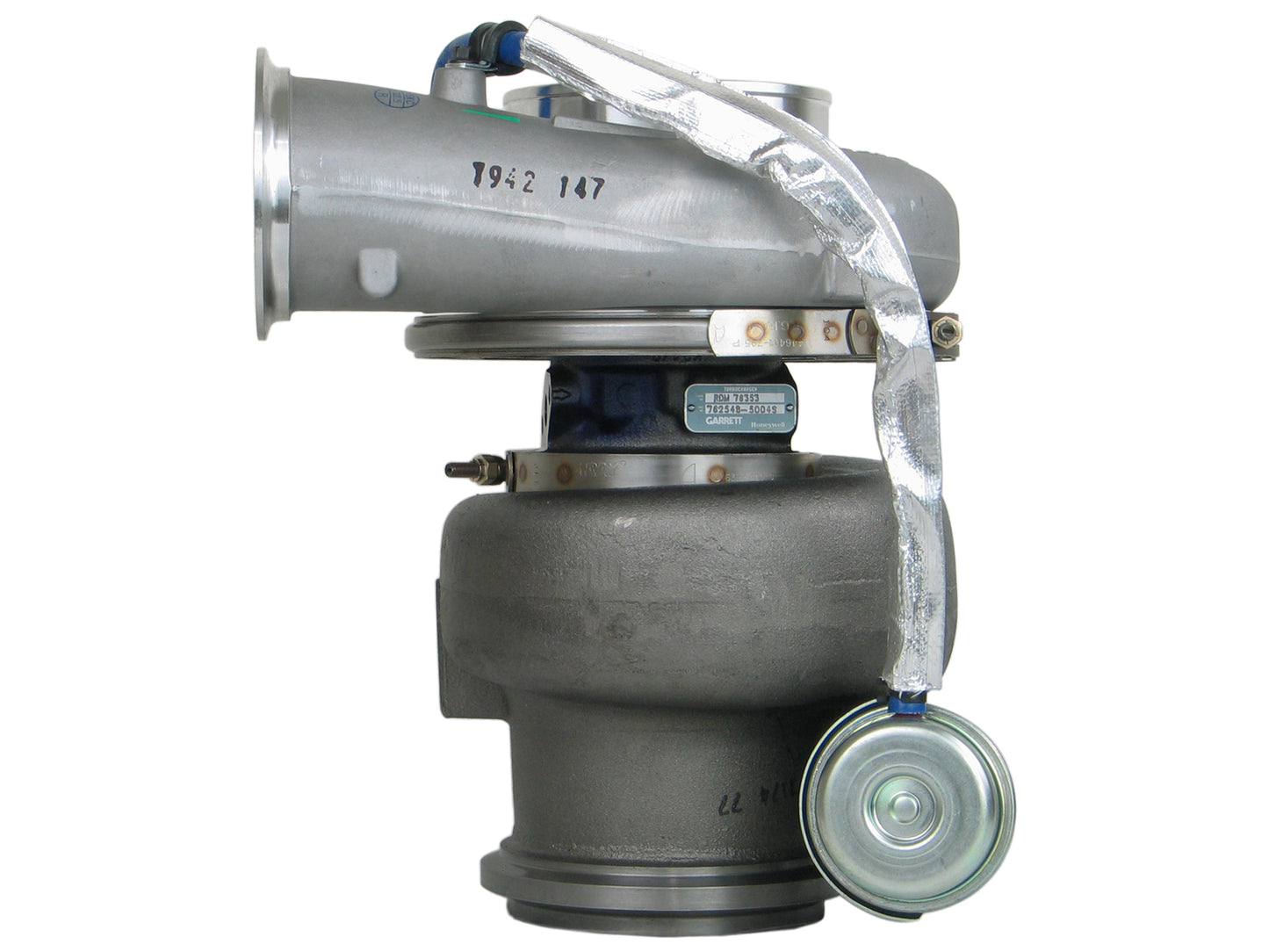

NEW OEM Garrett GTA4502S Turbocharger Caterpillar Truck C13 Engine 762548-5004SKU: 762548-5004
This is a BRAND NEW GENUINE GARRETT TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: 762548-5004S
Interchangeable Number: 762548-0004, 762548-5004, 762548-0008, 762548-5008, 762548-5008S
OEM Number: 10R7297, 10R-7297, 10R8970, 10R-8970, 20R2916, 20R-2916, 2472964, 247-2964, 2558862, 255-8862, 2751294, 275-1294, 3315888, 331-5888
Serial Number: LGK878-UP
Turbo Model: GTA4502S, GTA4502BS
Engine: C11, C13, 725, 730, 740, CX31-C13I, TH35-C13I, CX31-P600, TH35-E81
Engine Manufacturer: Caterpillar
Displacement: 12.5L, 12500 ccm, 6 Cylinders
Prefix: A5K, A5Z, EMF, EMS, LGK, RRA, GLS, HRA, DTX, PBY, PDN, LGK, RRA, B1L, WWA, B1M, B1W, WWB
Power: 441 HP
Speed: 2100 RPM
Back Plate: 712339-0001 (712339-0002)
Bearing Housing: 712342-0015
CHRA: 712402-0038 (712402-5038S)(274-7104, 2747104)
Compressor Housing: 452616-0042
Compressor Wheel: 735657-0011 (722356-0010)(Ind. 87.28 mm, Exd. 102.38 mm, Trim 20.83, 7+7 Blades)
Gasket (Oil Inlet): 129119 (210019, 201049, 9737, 1S6595, 210019-0000, 409266-0003, 3819900, 129120)(417378 Replaced By 420641)(1900000035)
Gasket (Oil Outlet): 210060 (311585, 148062, 2475013)(Paper)
Heat Shield: 410366-0007 (7C7058)(410366-0003, 410366-0004)

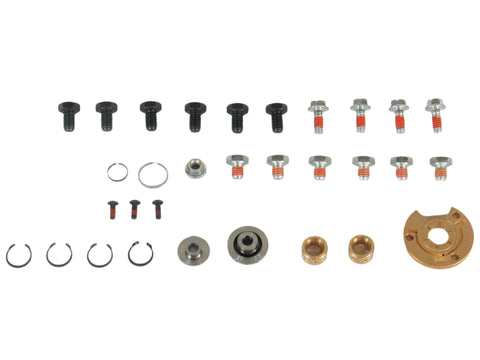

Repair Kit: 468262-0002 (23514027)(1102045750)
Turbine Housing A/R: 1.33
Turbine Housing: 753440-0004
Turbine Wheel: 729838-0002 (Ind. 70.87 mm, Exd. 80.9 mm, 14 Blades)
2005- AGCO TerraGator
2005- Caterpillar Petroleum Products with C13, CX31-C13I, TH35-C13I, CX31-P600, TH35-E81 Engine
2005- Caterpillar Truck, Industrial with C13 Engine
2005- CLAAS Lexion 570 Combine Harvester
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
