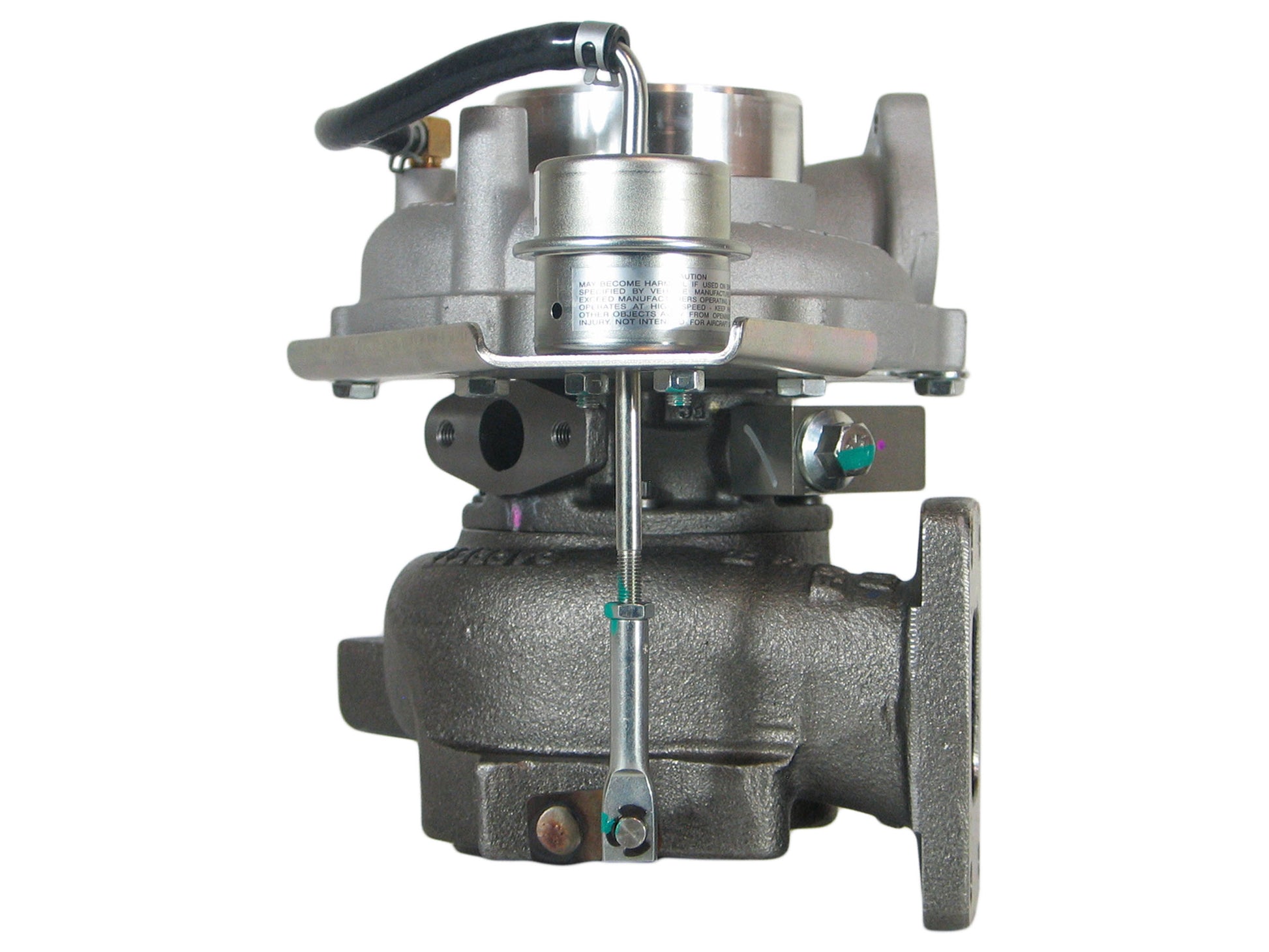

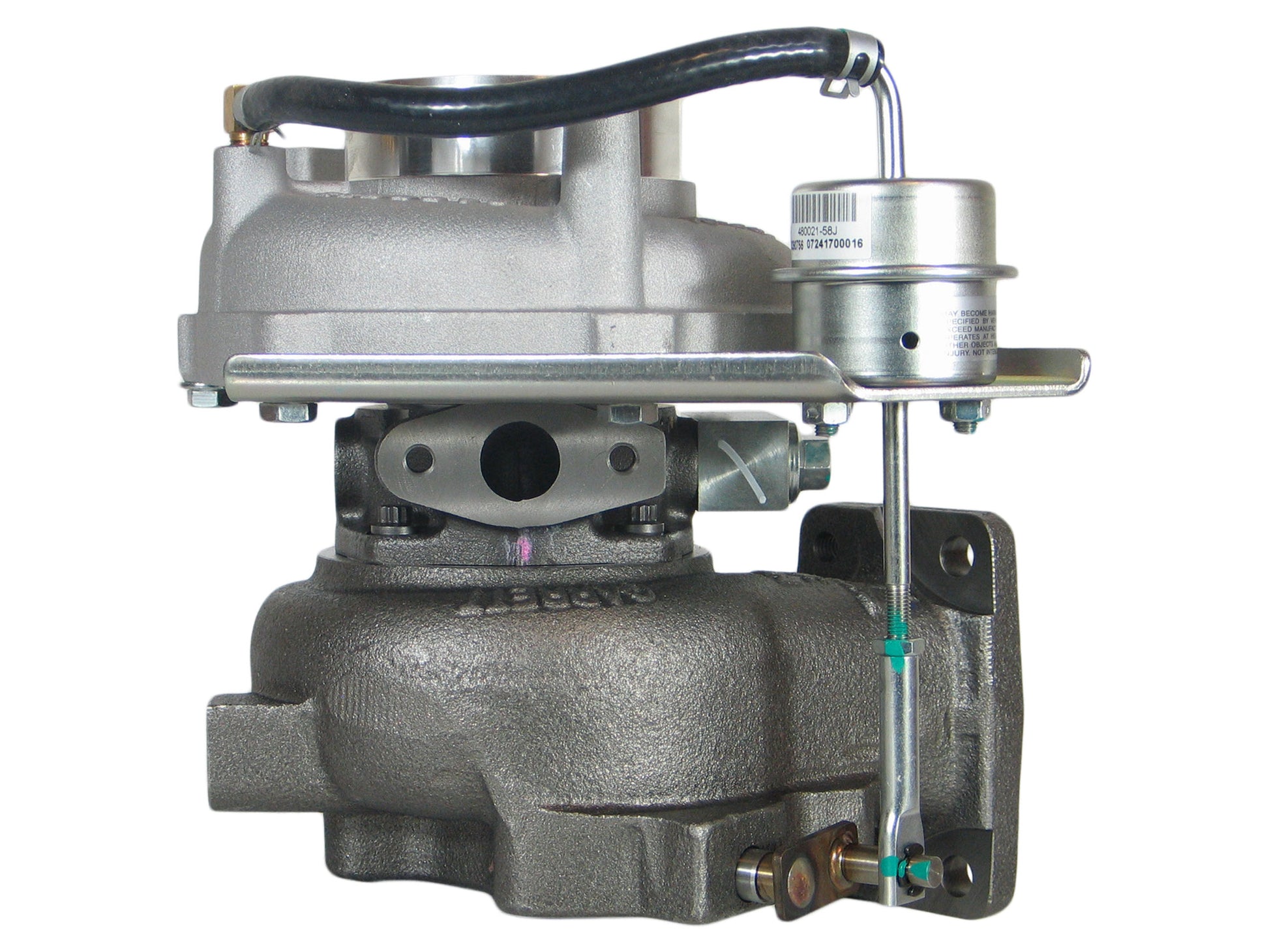

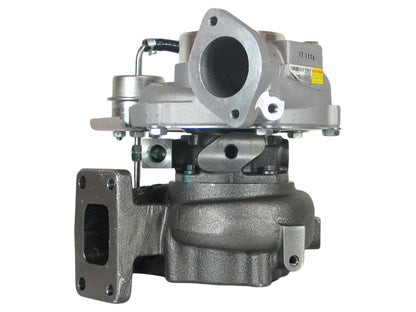

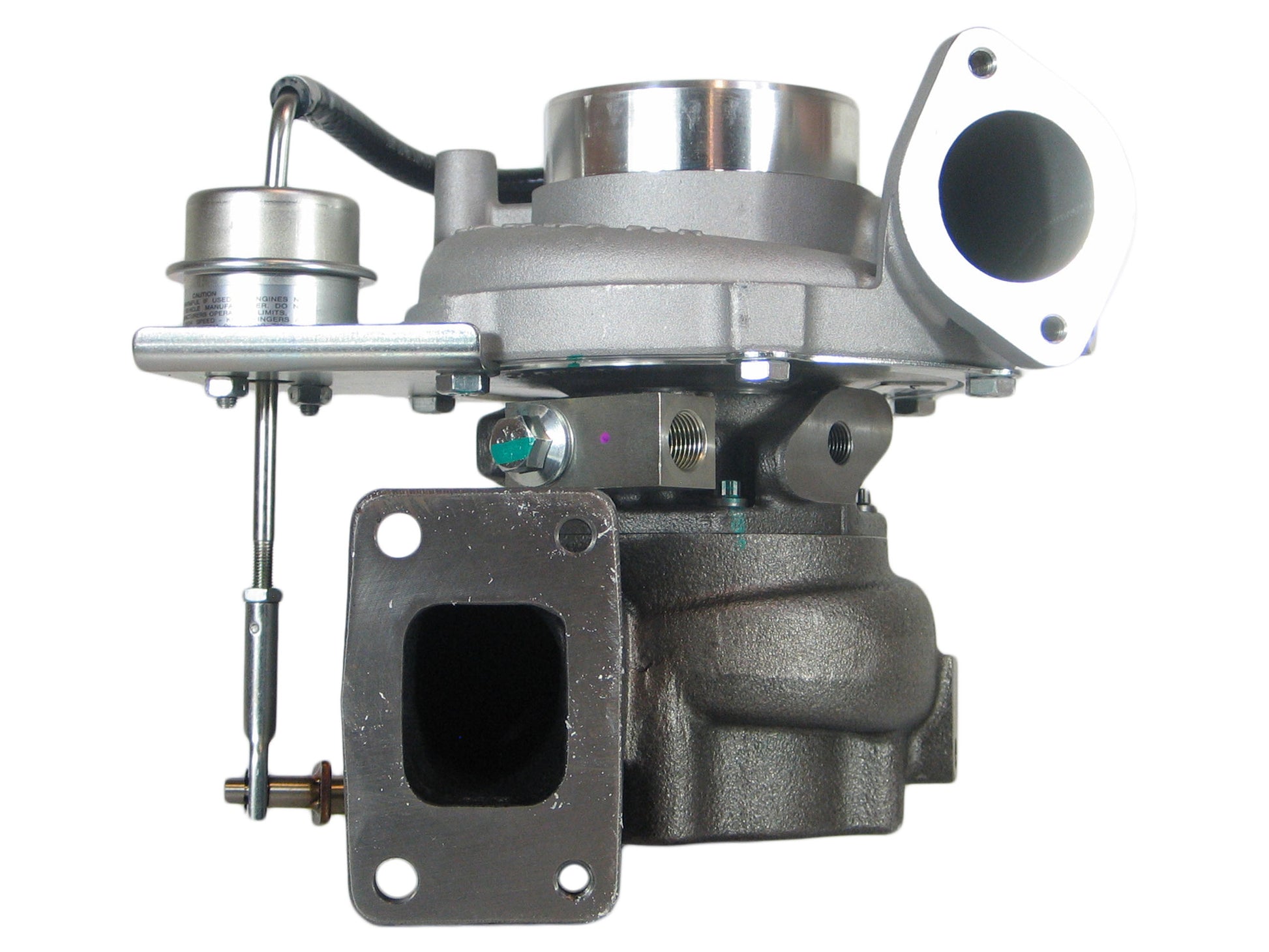

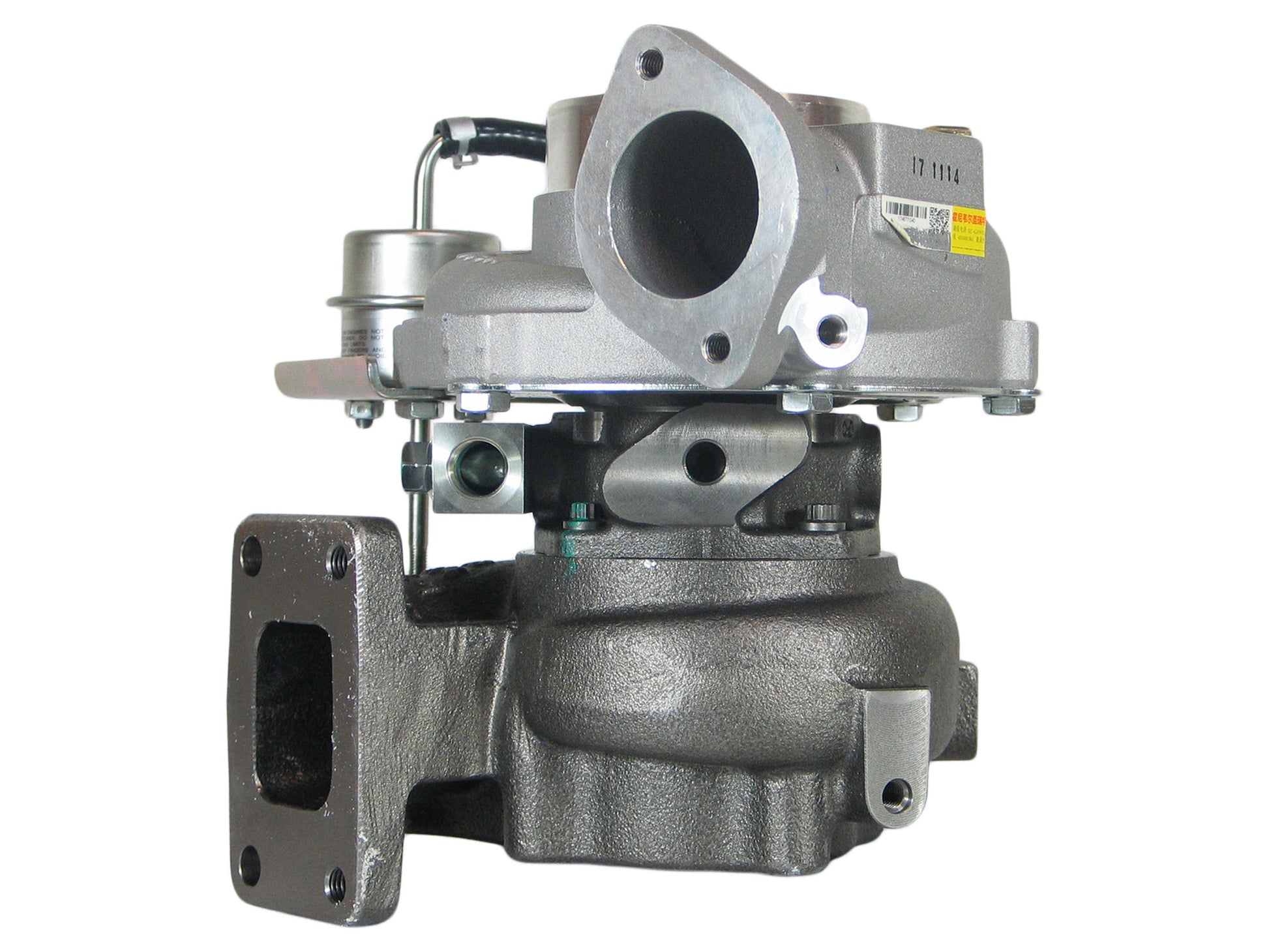

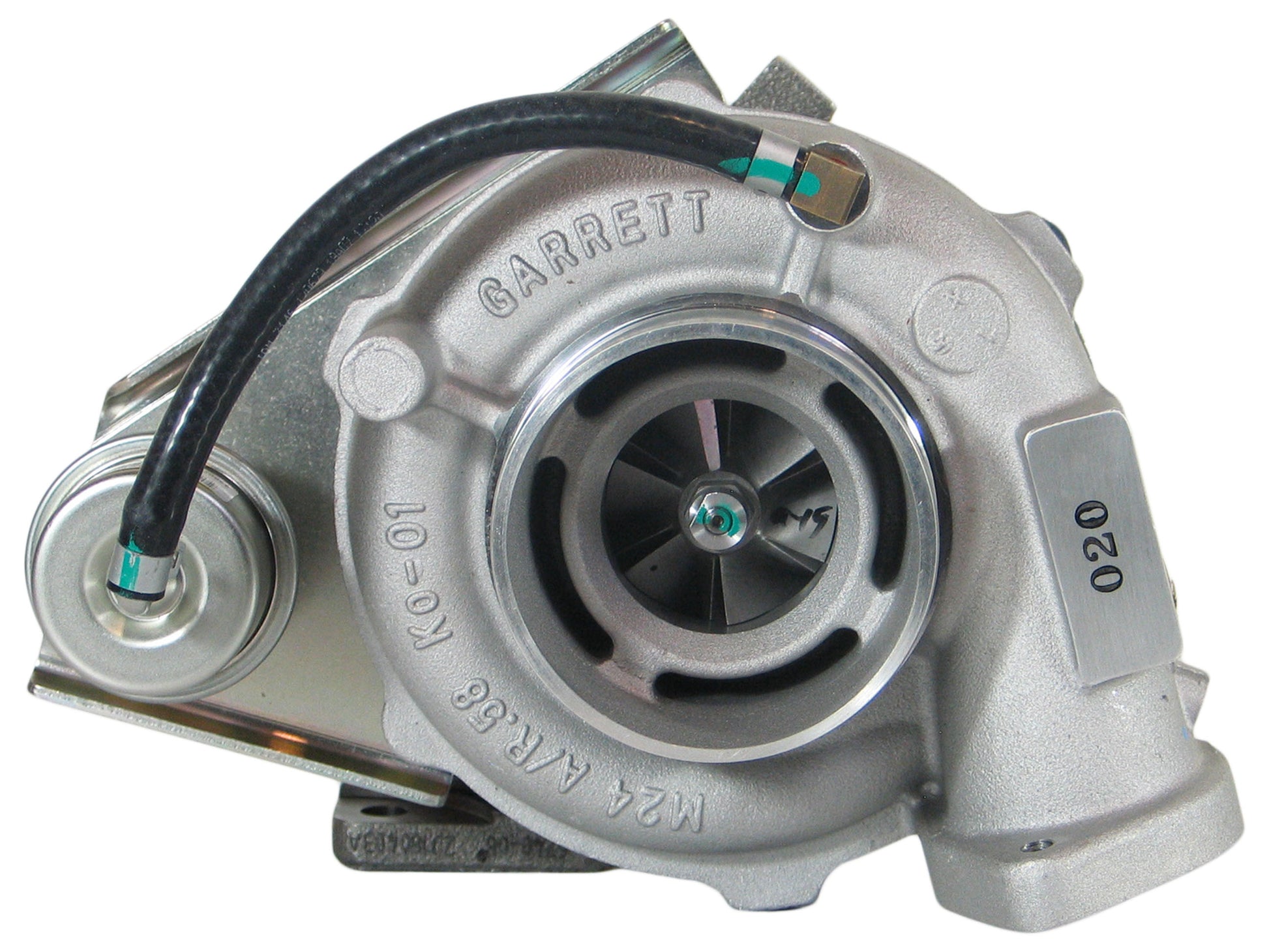

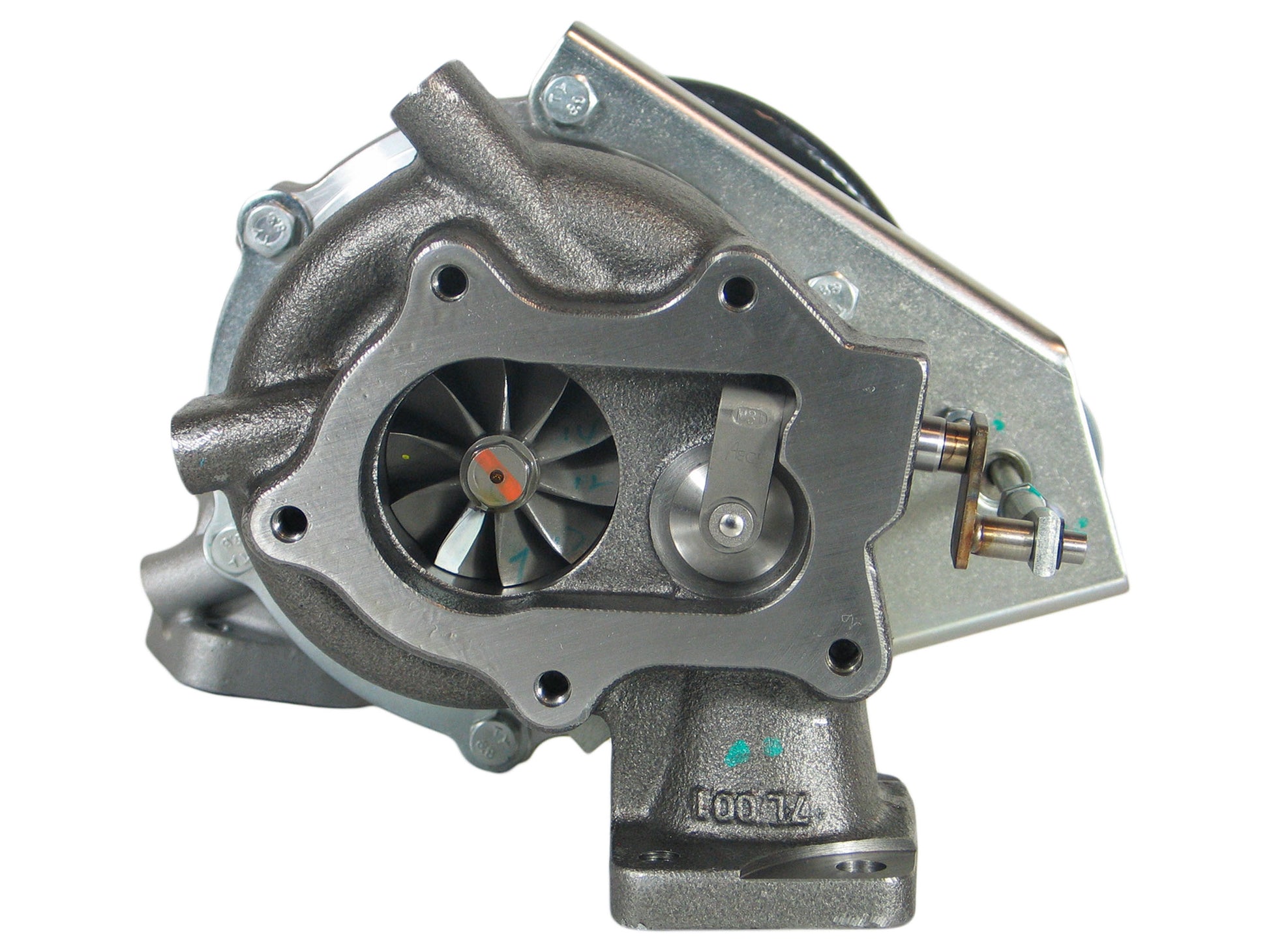

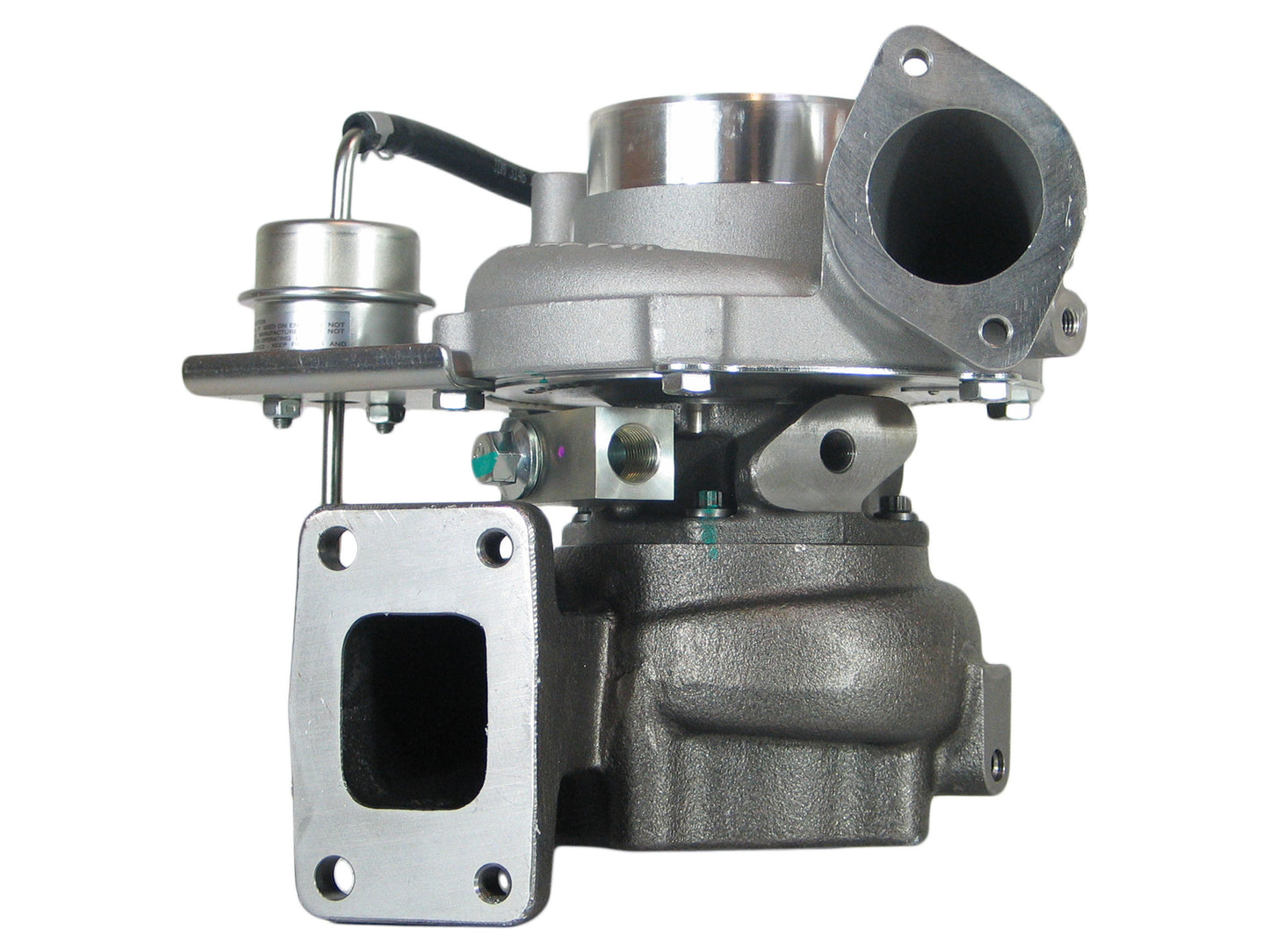

NEW Garrett GT3271LS Turbo Kobelco SK350 SK350-8 Excavator Hino J08E 764247-5001SKU: 764247-5001
This is a BRAND NEW GENUINE GARRETT TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: 764247-5001S
Interchangeable Number: 764247-0001, 764247-5001, 787846-0001, 787846-5001, 787846-5001S
OEM Number: 241004640A, 24100-4640A, S1760E0200, S1760-E0200, S1760EO200, S1760-EO200
Turbo Model: GT3271LS
Engine Manufacturer: Hino
Displacement: 7.7L, 7700 ccm, 6 Cylinders
Power: 177 HP
Speed: 2100 RPM
Angle α (Compressor Housing): 230°
Angle ß (Turbine Housing): 285°
Back Plate: 3530923 (1154351300)
Bearing Housing: 479822-0008
CHRA: 700267-0009 (700267-5009S)
Compressor Cover: 733916-0169
Compressor Wheel: 434244-0015 (Ind. 40.06 mm, Exd. 70.97 mm, Trim 32, 6+6 Blades, Super Back)
Heat Shield: 447553-0006
Repair Kit: 709147-0001 (1102032750)
Turbine Housing: 447685-0113
Turbine Wheel: 480231-0002 (Ind. 62 mm, Exd. 54.5 mm, 10 Blades)
Wastegate Settings (Lift Shaft): 0.38 mm
Wastegate Settings (Pressure): 1.767-1.883 bar
2005- Kobelco SK350LC-8, SK330-8 Hydraulic Excavator with J08E Engine
2005- Kobelco Construction Equipment with J08E Engine
UD Trucks with J08E Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
