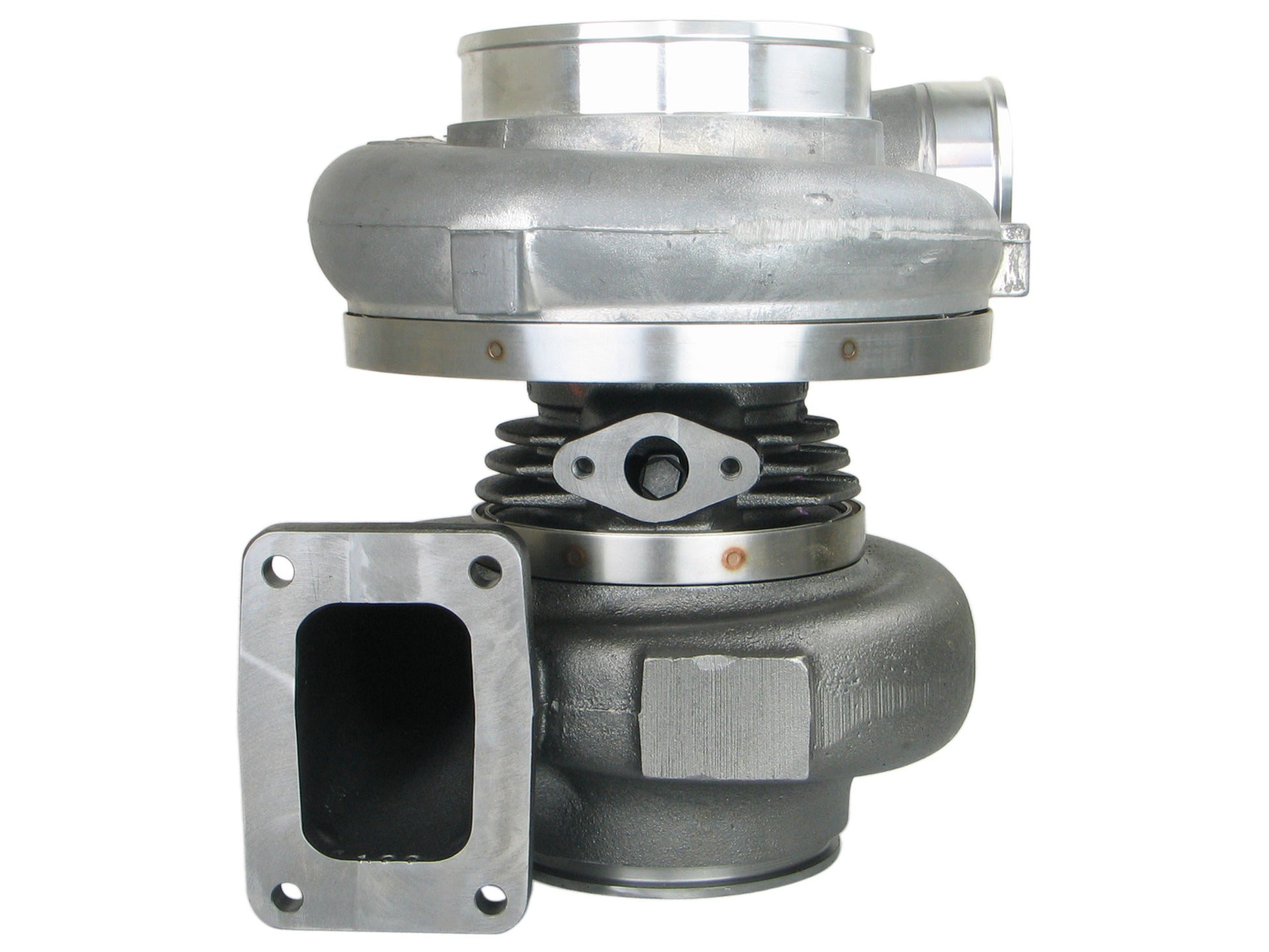

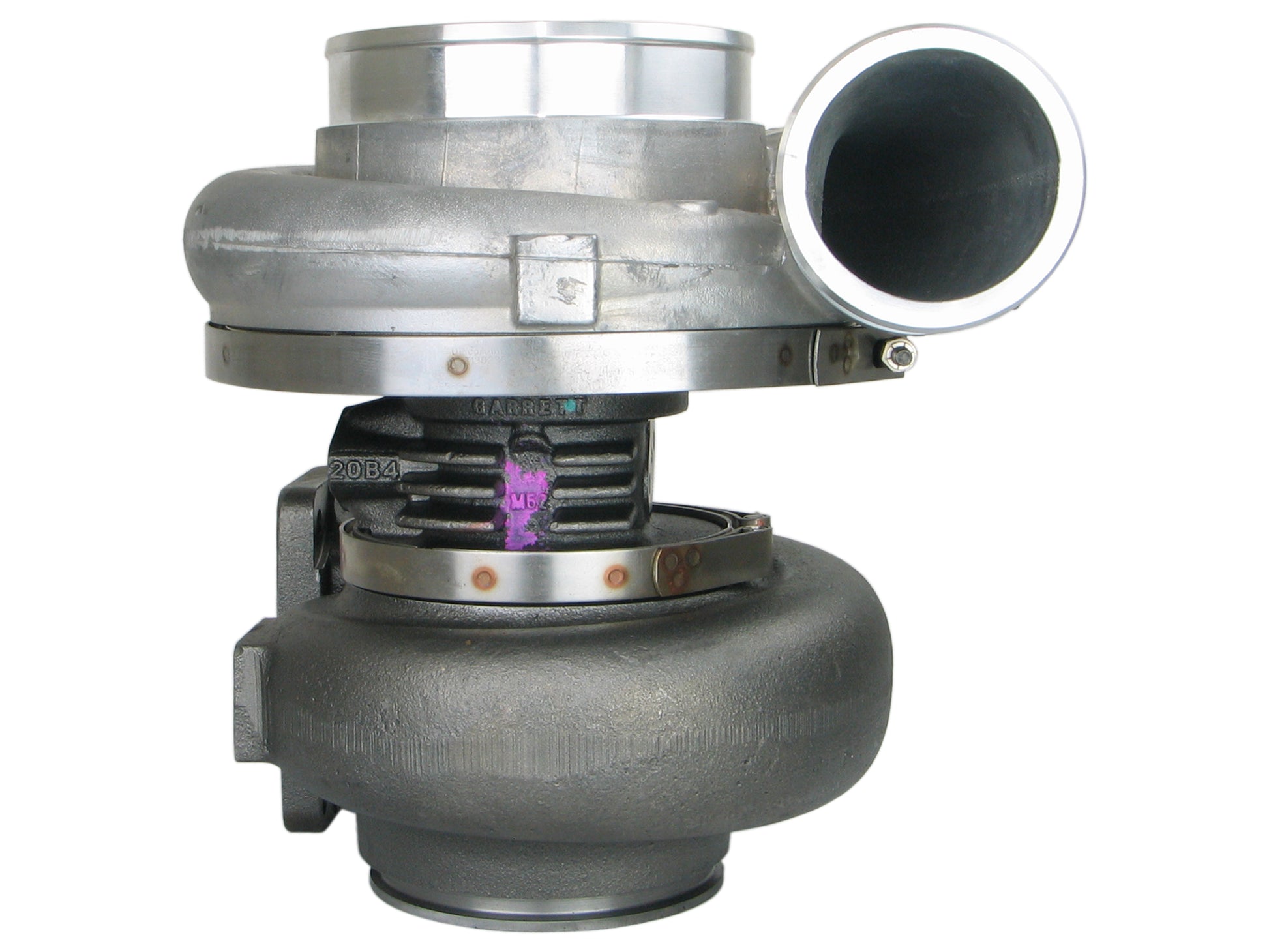

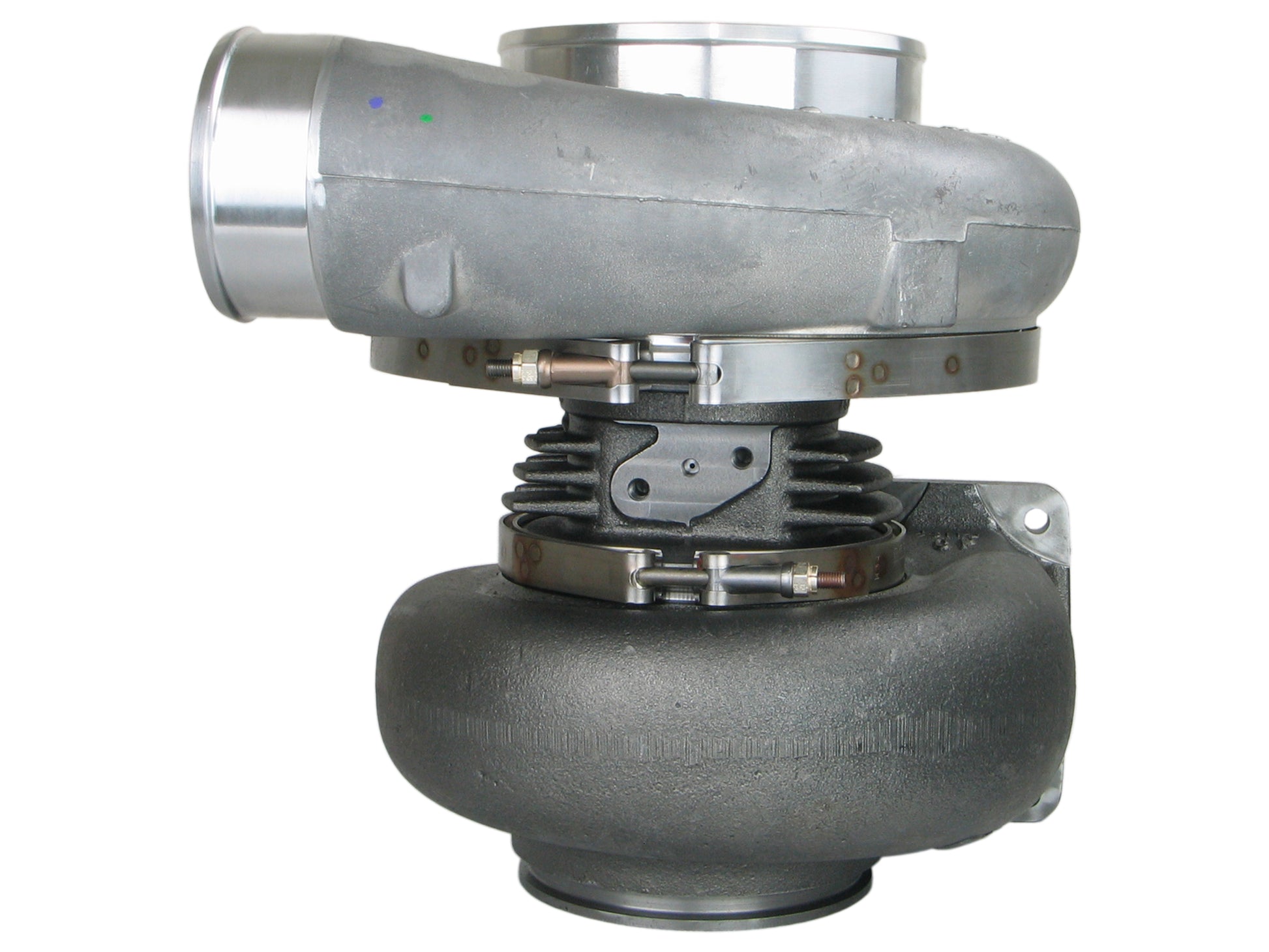

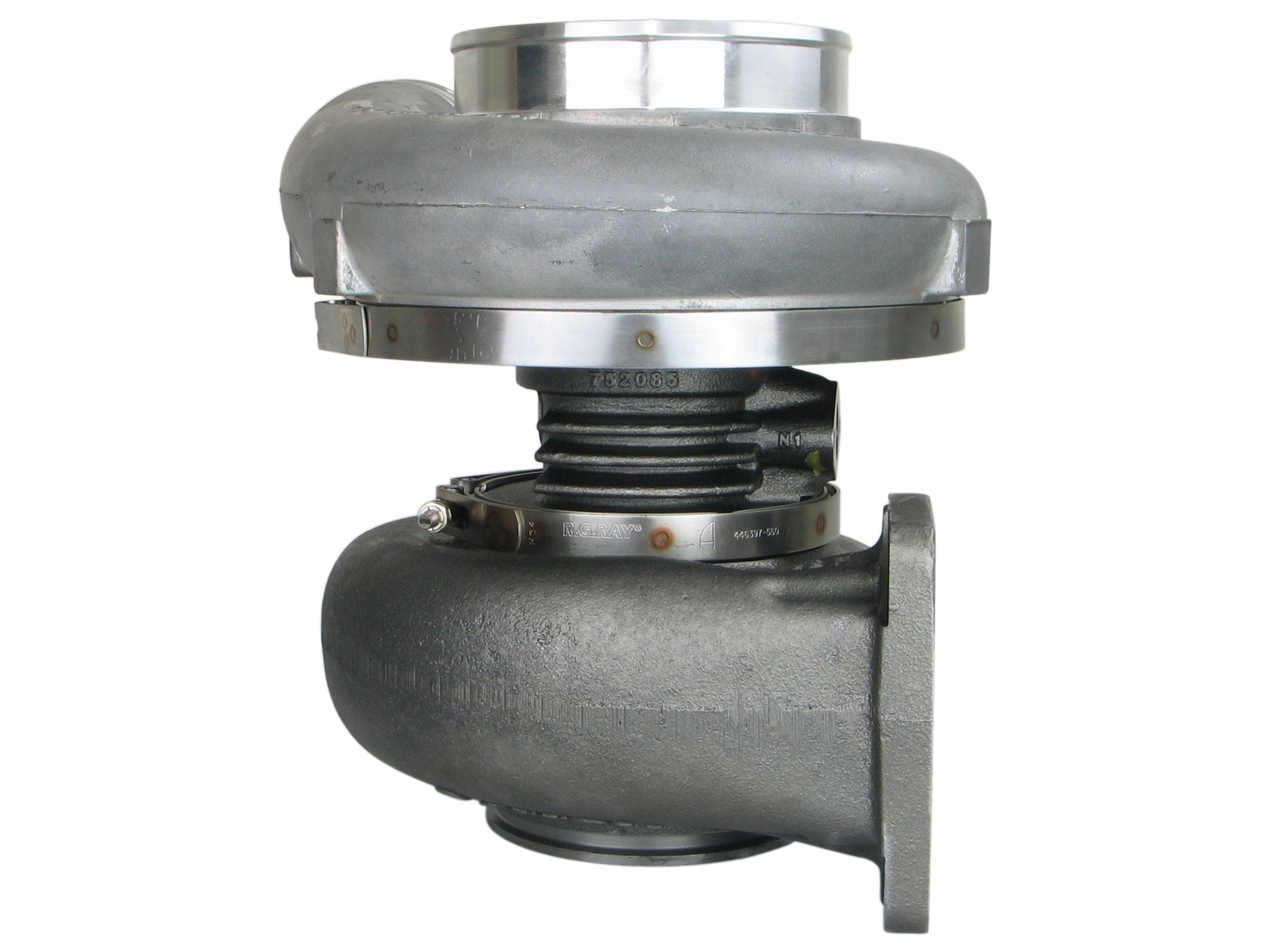

NEW OEM Garrett GT5533R Turbo Dual Ball Bearing Universal 3.0L-12.0L 769115-5002SKU: 769115-5002
This is a BRAND NEW GENUINE GARRETT TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: 769115-5002
Interchangeable Number: 769115-0002, 769115-5002S
Turbo Model: GT5533R
Power: 805-1550 HP

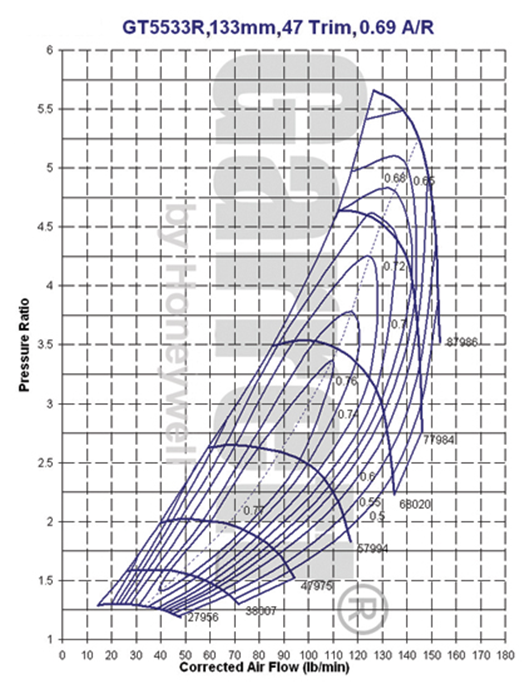

Compressor A/R: 0.69

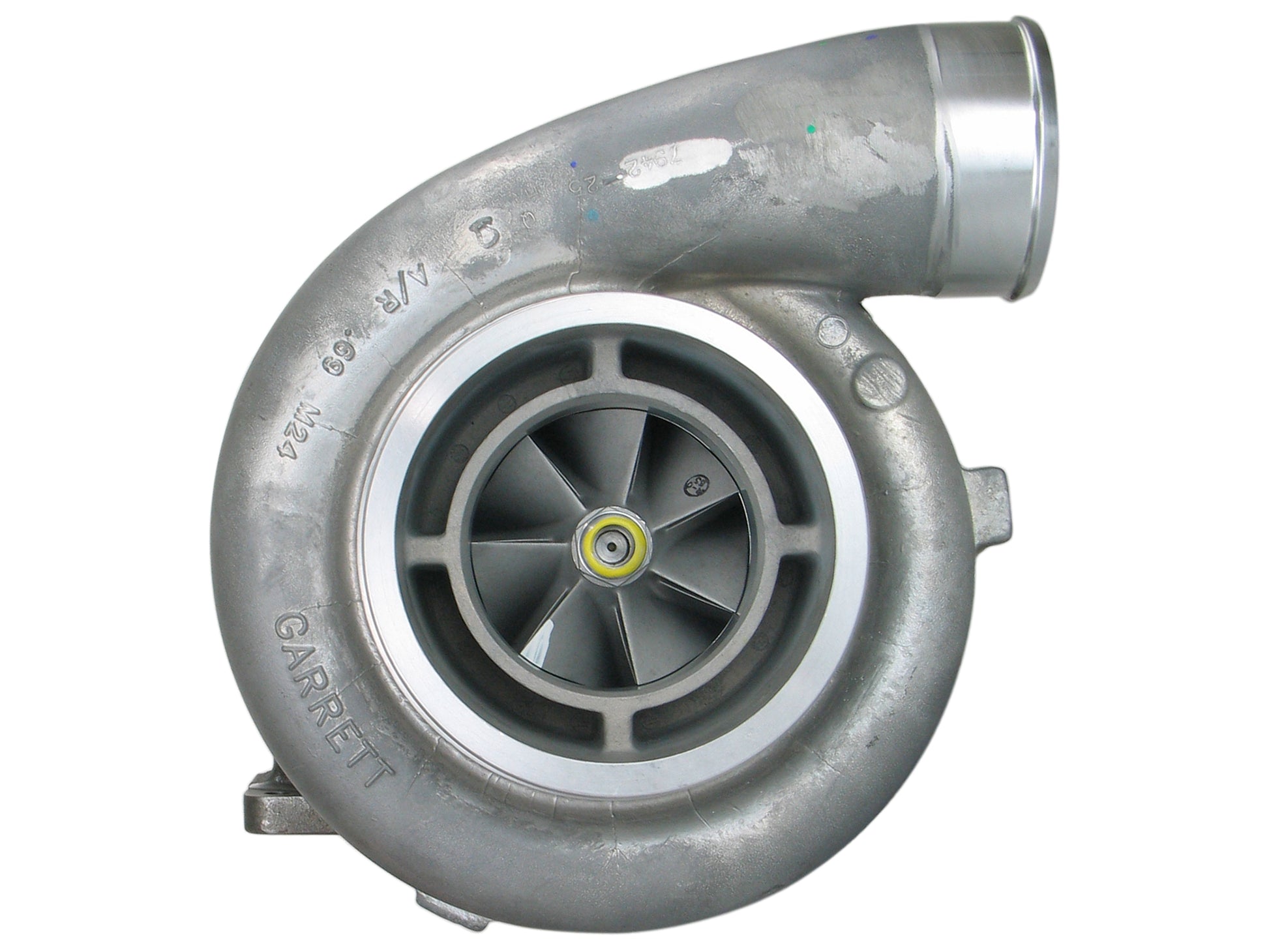

Compressor Wheel: (Ind. 91.2 mm, Exd. 133.3 mm, Trim 47)

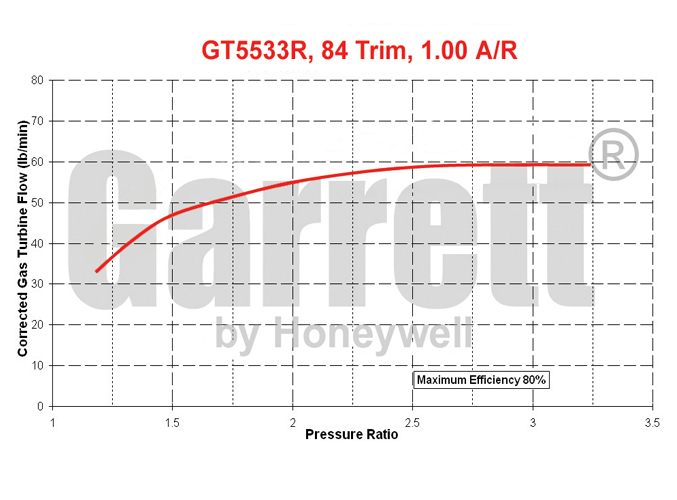

Turbine A/R: 1.0

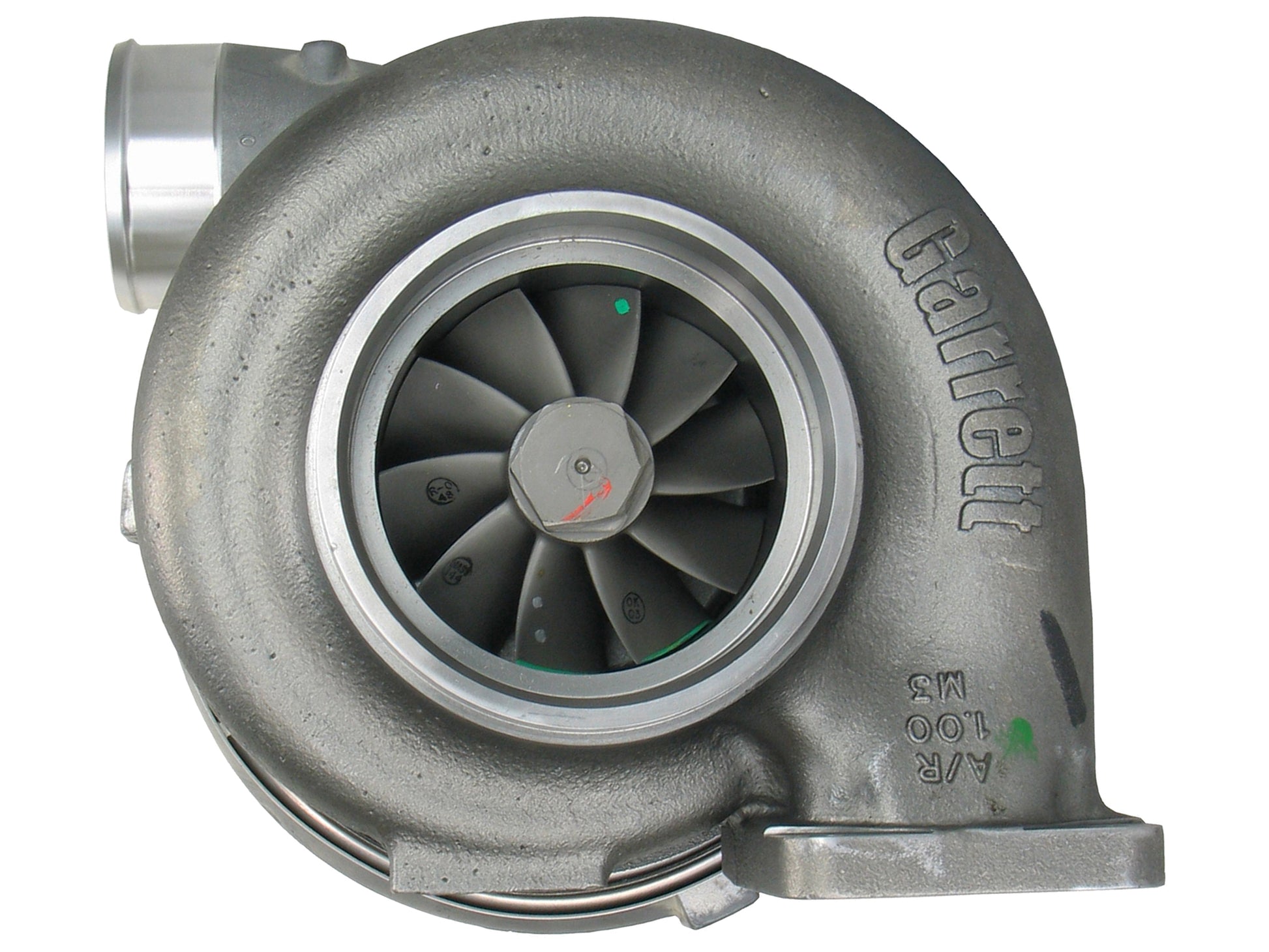

Turbine Wheel: (Dia: 111.5 mm, Trim 84)
Wastegated Housing: External

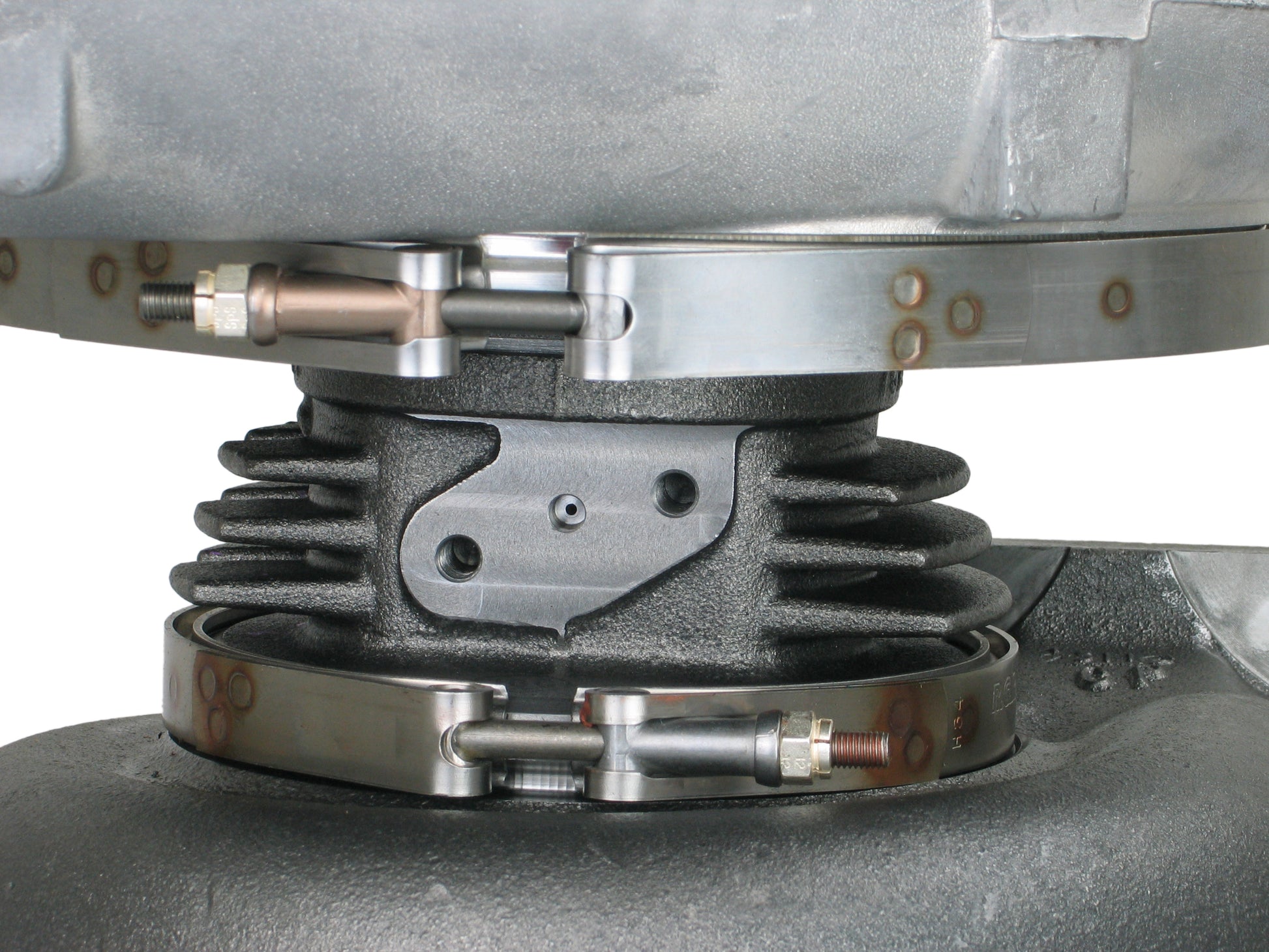

Dual ball bearing, oil cooled CHRA.
Free float, non-wastegated turbine housing.
Ported shroud compressor housing to increase surge resistance.
Universal with 3.0L-12.0L Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
