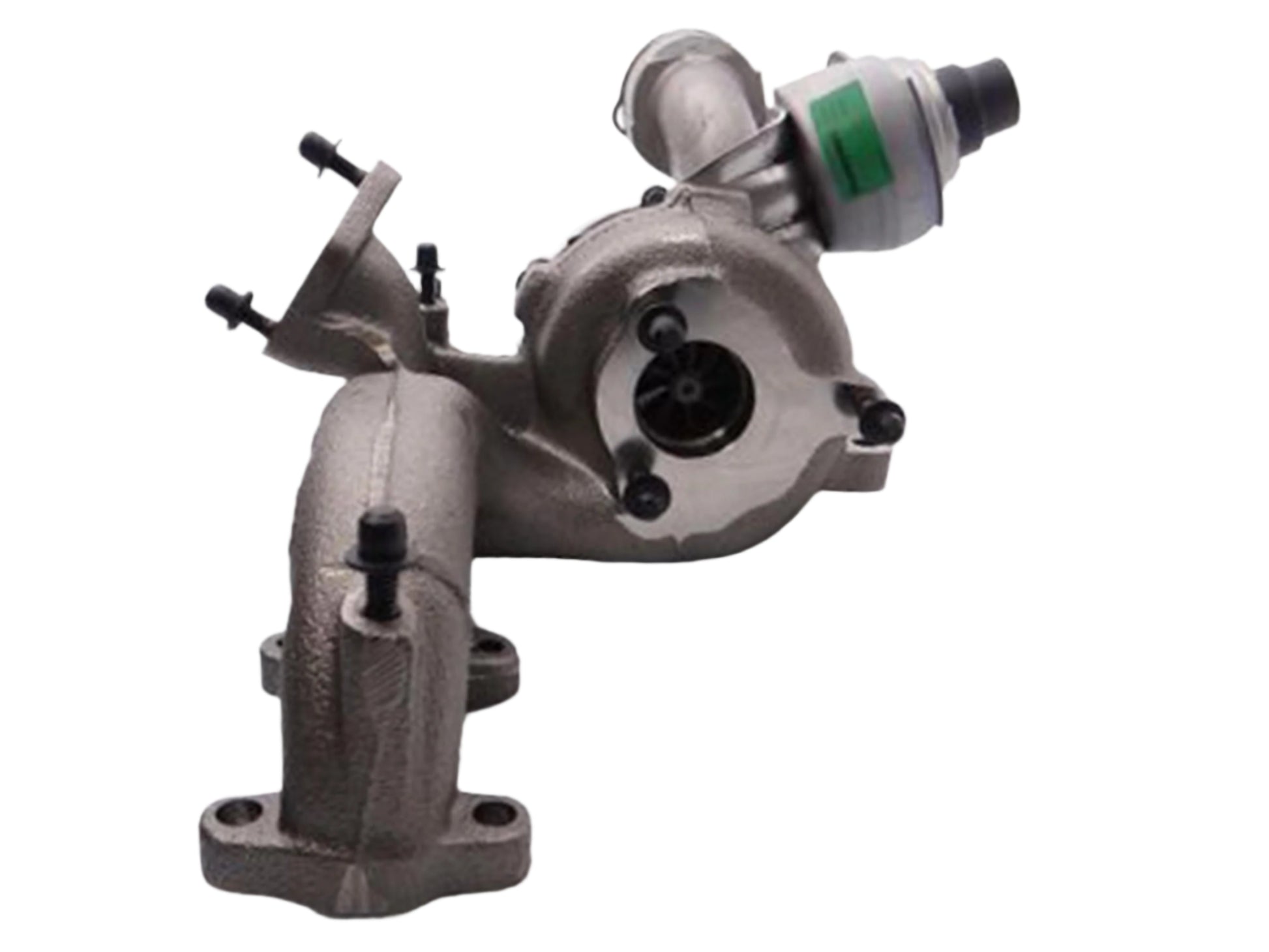

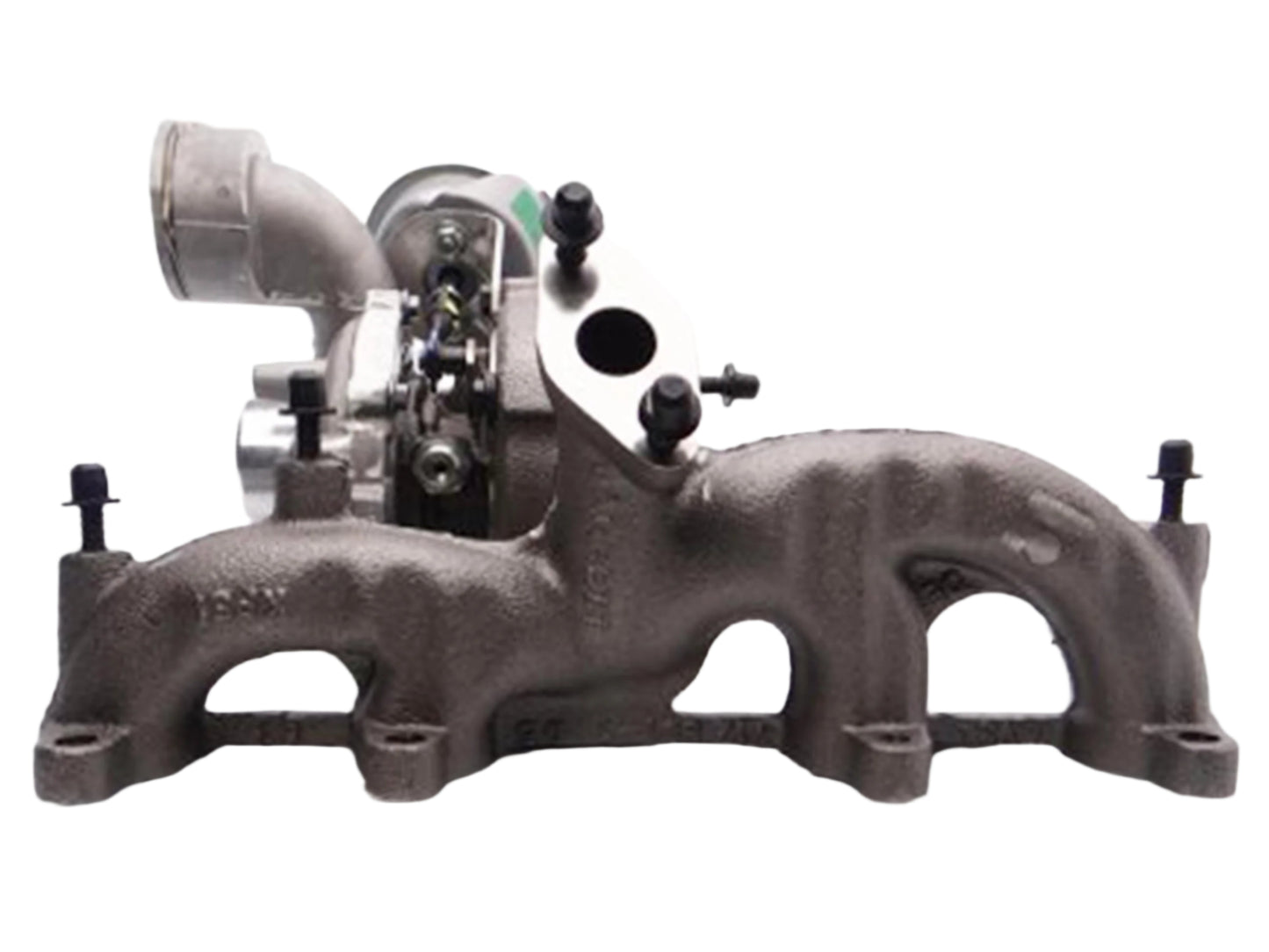

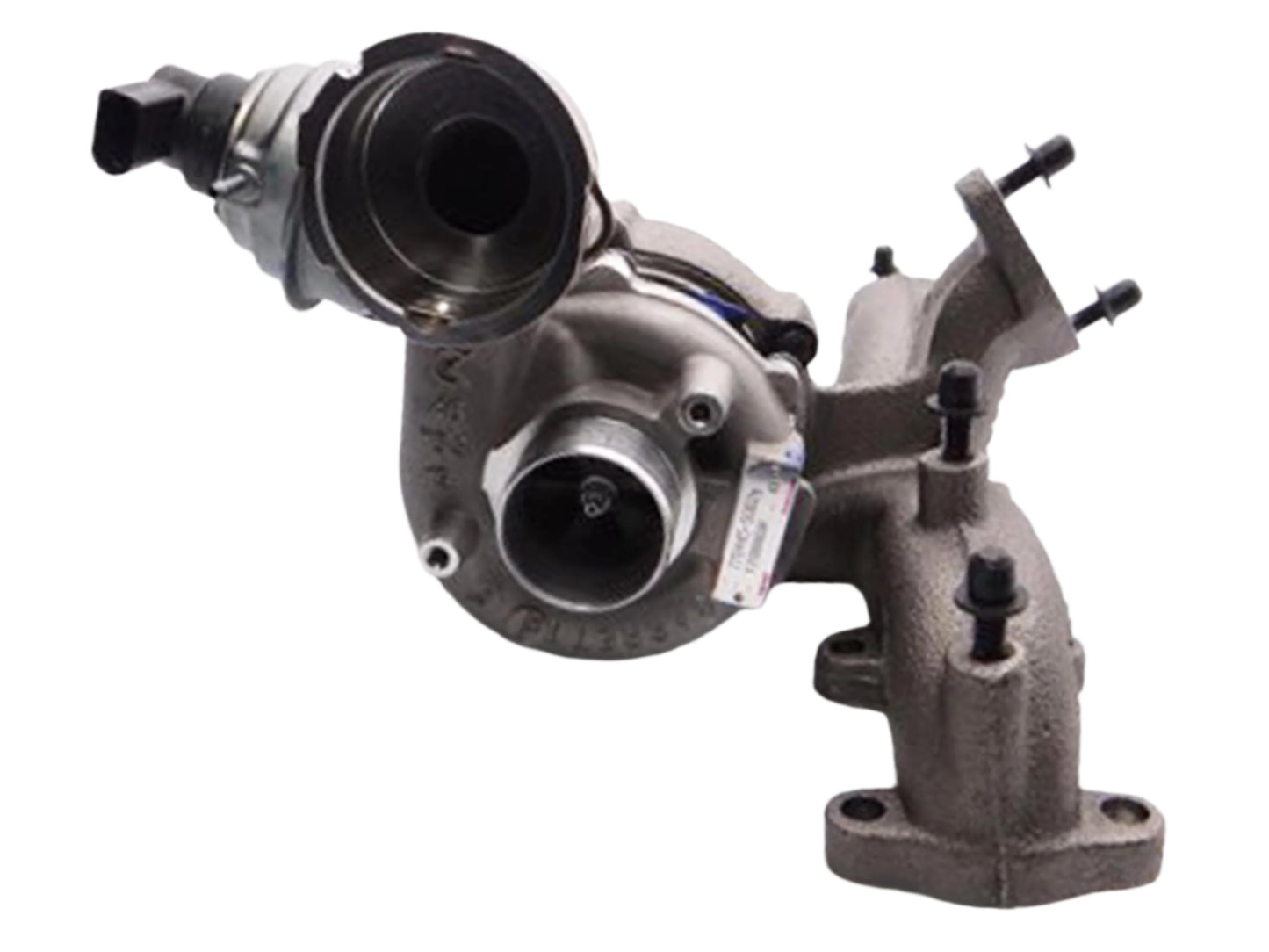

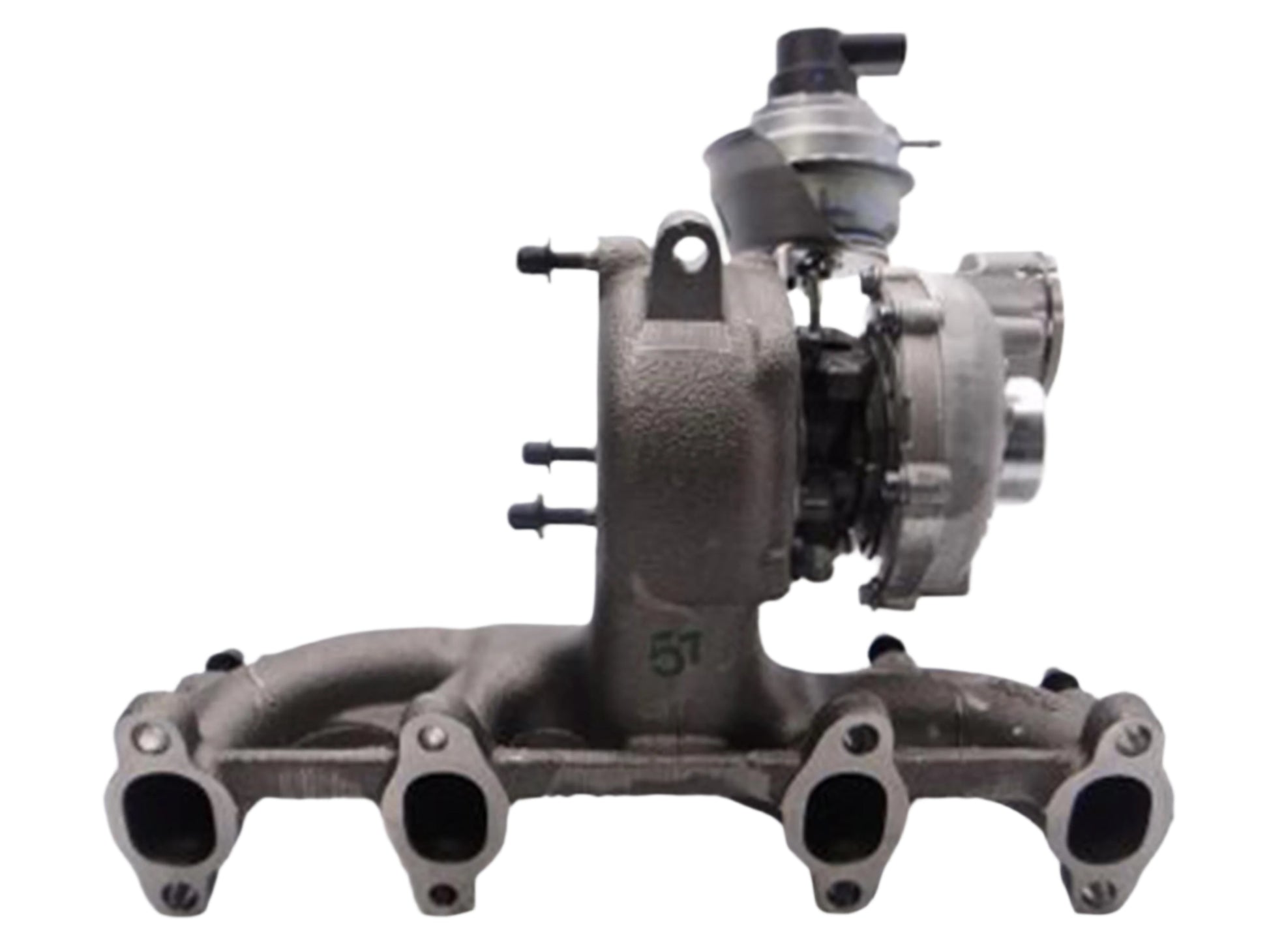

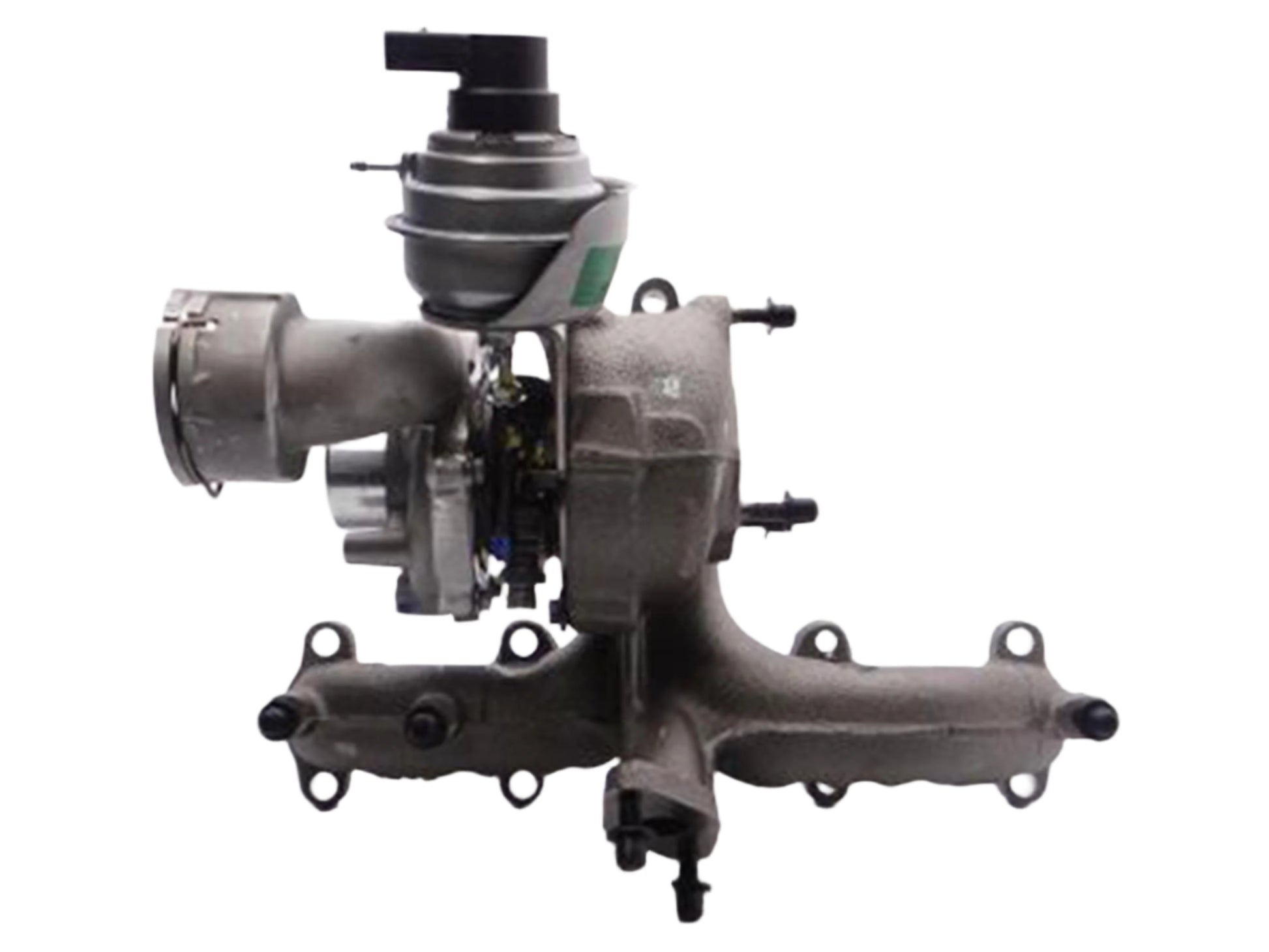

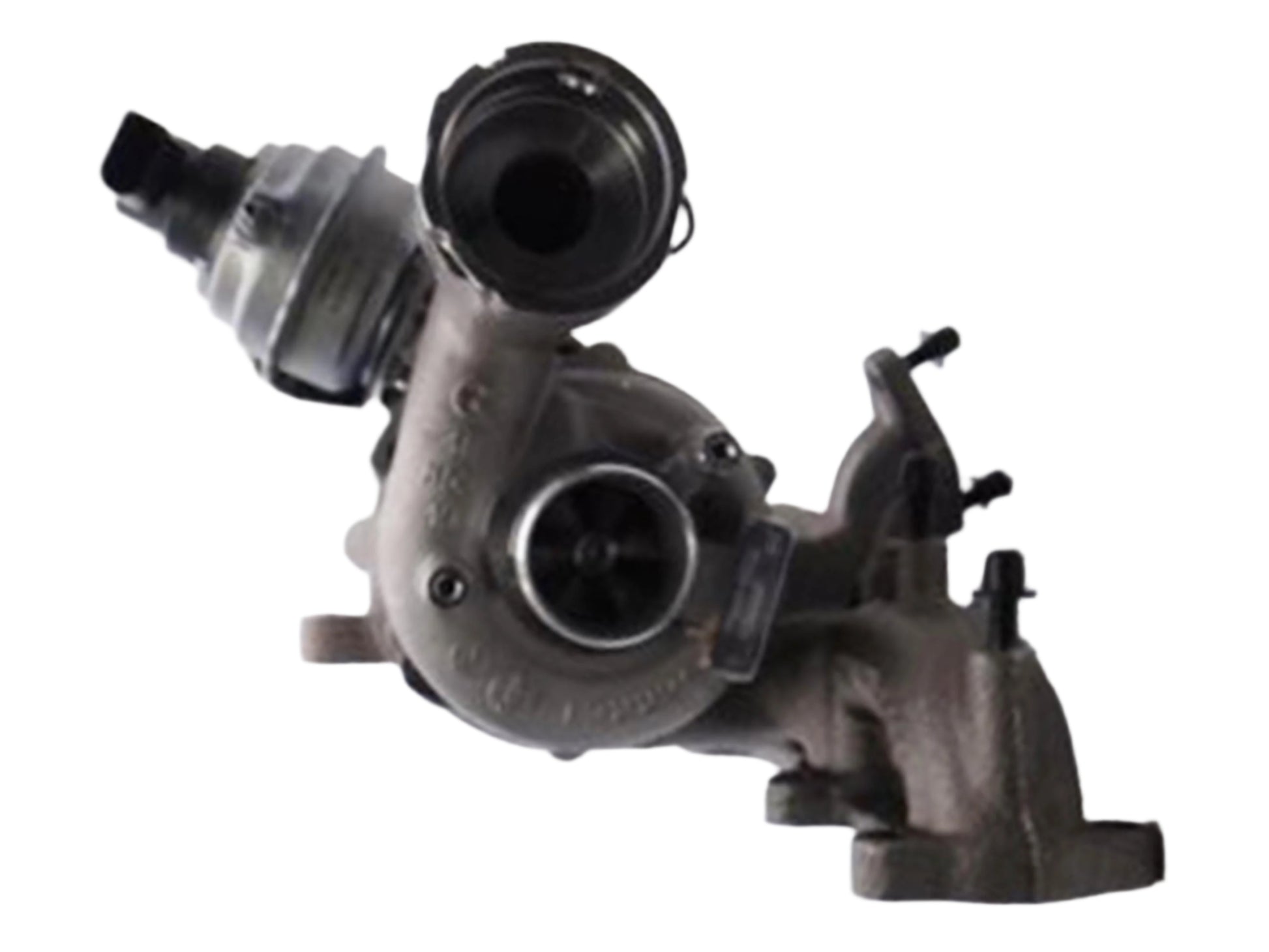

NEW OEM Garrett GT1749V Upgrade Turbo VW Golf Jetta Beetle 1.9L TDI 778445-5002

BRAND NEW GENUINE GARRETT TURBOCHARGER

This is a BRAND NEW GENUINE GARRETT TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

Fits the following:

Part Number: 778445-5002
Interchangeable Number: 778445-0002, 778445-5002S, 54399700024, 5439 970 0024, 5439-970-0024, 54399700026, 5439 970 0026, 5439-970-0026, 54399880024, 5439 988 0024, 5439-988-0024, 54399880026, 5439 988 0026, 5439-988-0026 778445-0001, 778445-5001, 778445-5001S
OEM Number: 038253014E, 038253016P, 038253019S
Turbo Model: GT1749V
Manufacturer: Garrett

Year: 2000-10
Engine: ATD, BEW
Displacement: 1.9L, 4 Cylinders
Emission Standard: Performance Upgrade
Fuel: Diesel
Power: 175 HP

Actuation: Vacuum + Position Sensor
Compressor A/R: 0.46
Compressor Wheel: (Ind. 36 mm, Exd. 49 mm, Trim 55)
Turbine A/R: 0.61
Turbine Wheel: (Ind. 43 mm, Exd. 38 mm, Trim 76)
Turbo Technology: VNT

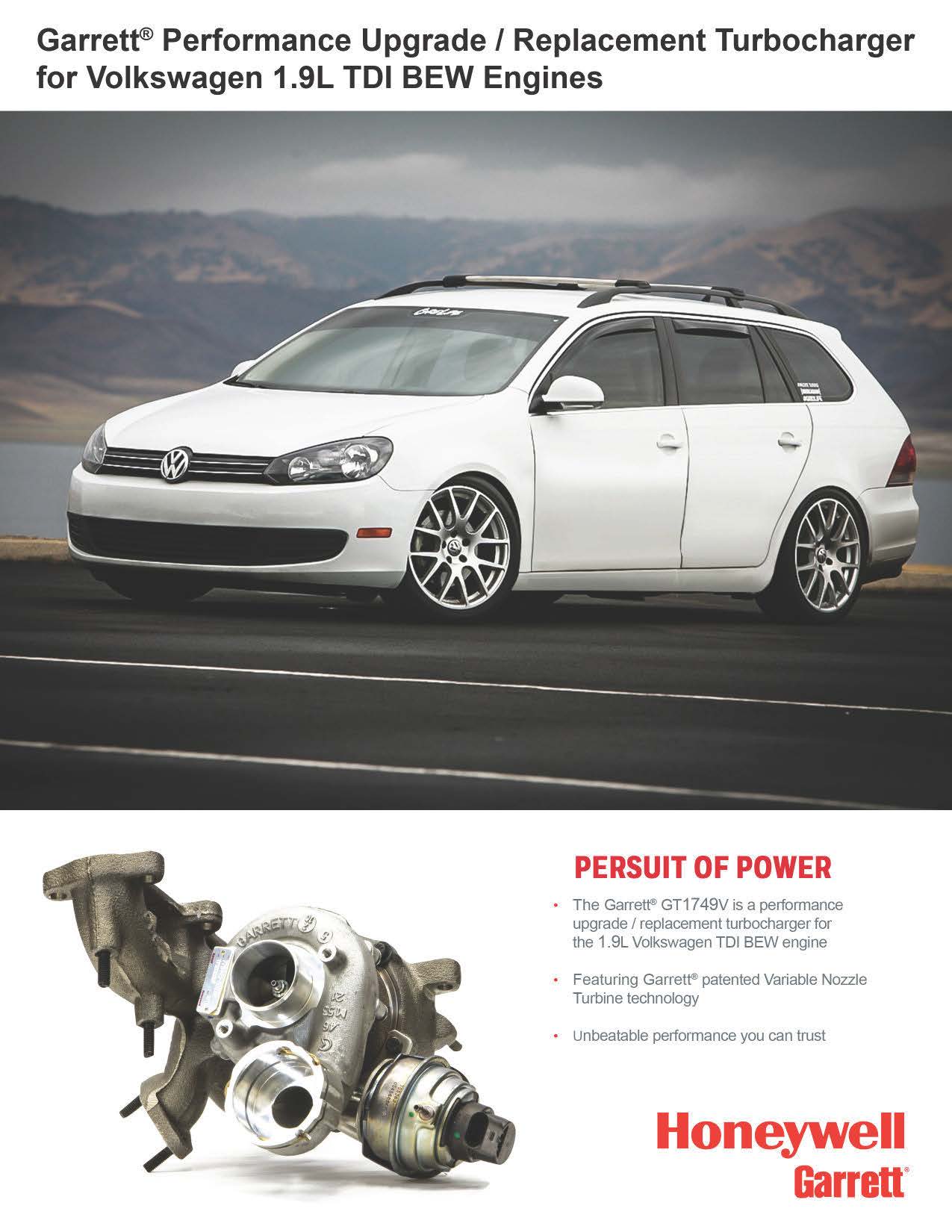

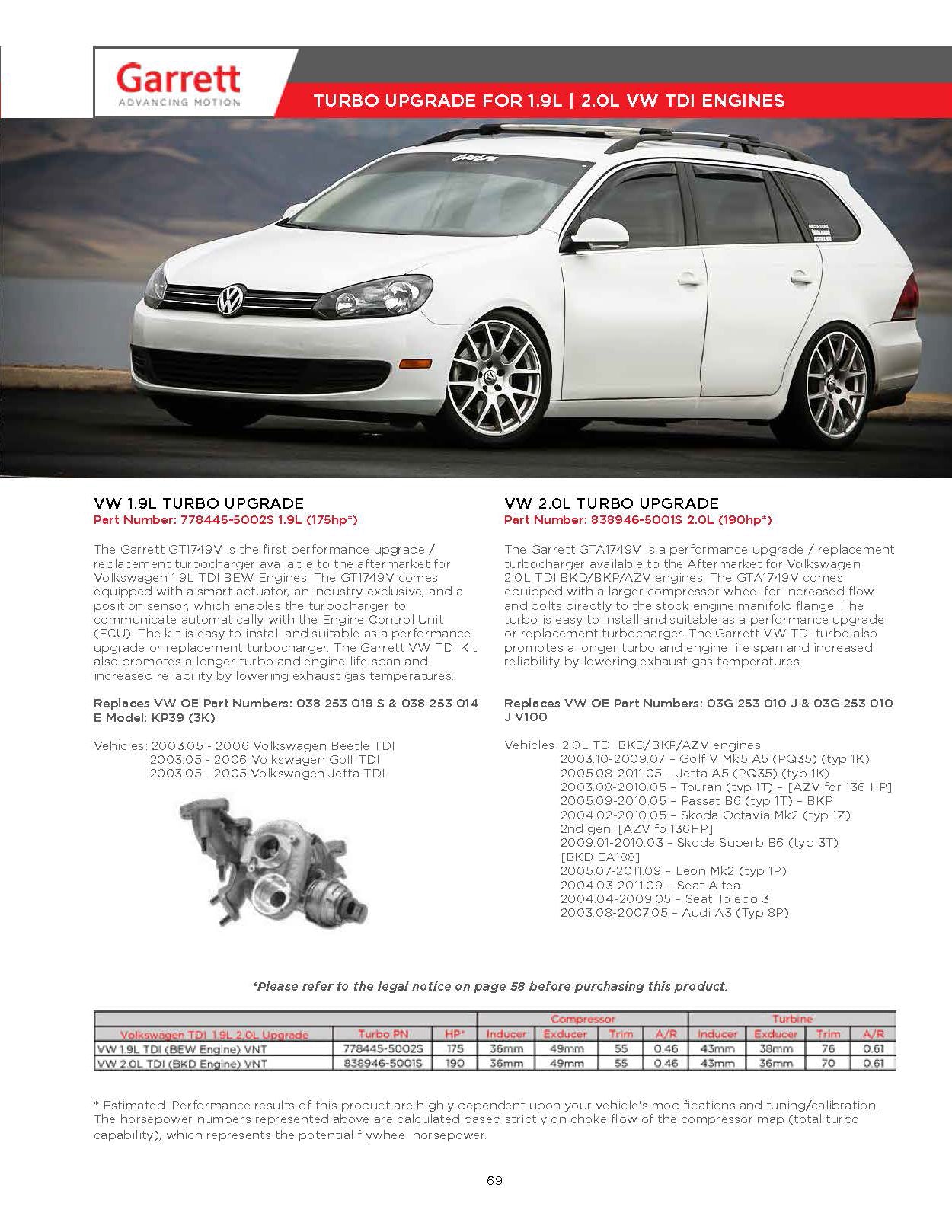

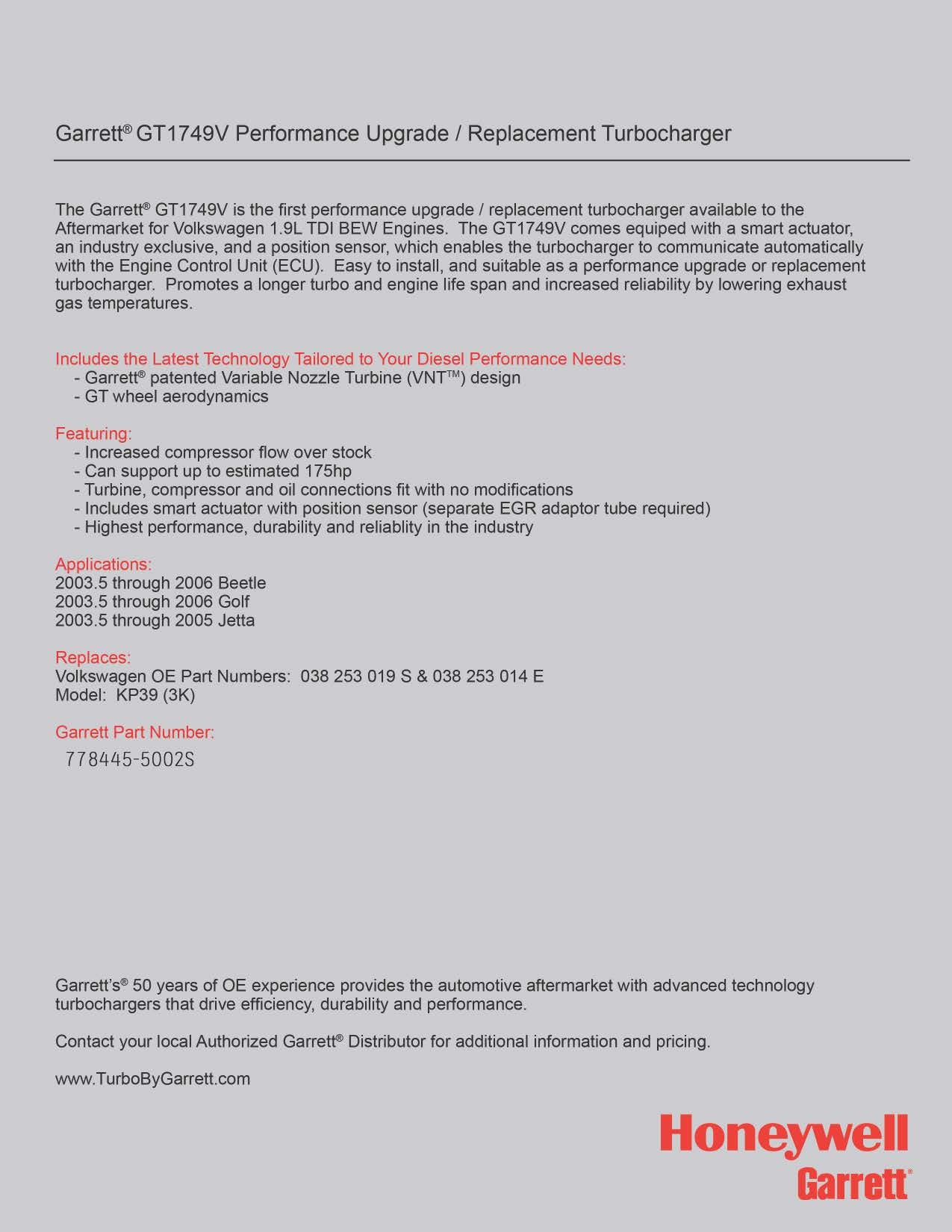

GARRETT GT1749V PERFORMANCE UPGRADE / REPLACEMENT TURBOCHARGER:

The Garrett GT1749V is the first performance upgrade / replacement turbocharger available to the Aftermarket for Volkswagen 1.9L TDI BEW Engines. The Garrett GT1749V comes equipped with a smart actuator, an industry exclusive, and a position sensor, which enables the turbocharger to communicate automatically with the Engine Control Unit (ECU). Easy to install, and suitable as a performance upgrade or a replacement turbocharger. Promotes a longer turbo and engine life span and increased reliability by lowering exhaust gas temperatures.

INCLUDES THE LATEST TECHNOLOGY TAILORED TO YOUR DIESEL PERFORMANCE NEEDS:

- Garrett patented Variable Nozzle Turbine (VNT) design.
- GT wheel aerodynamics.

FEATURING:

- Increased compressor flow over stock.
- Can support up to estimated 175hp.
- Turbine, compressor and oil connections fit perfectly with no modifications.
- Includes smart actuator with position sensor (separate EGR adapter tube required).
- Highest performance, Durability and reliability in the industry.

REPLACES:

BorgWarner's KP39 turbocharger: 54399880024, 54399880026.

NOTE:

- Requires Compressor Out Adapter depending on stock or upgraded intercooler.
- The EGR cooler port will either need to be blocked off (and the cooler removed), or the Garrett EGR tube kit will need to be used in conjunction with the turbocharger.

Application:
2000-10 Volkswagen New Beetle with TDI ATD Engine
2003.5-06 Volkswagen Golf with TDI BEW Engine
2003.5-06 Volkswagen Jetta with TDI 100 North America BEW Engine
2003.5-06 Volkswagen New Beetle with TDI 100 North America BEW Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
