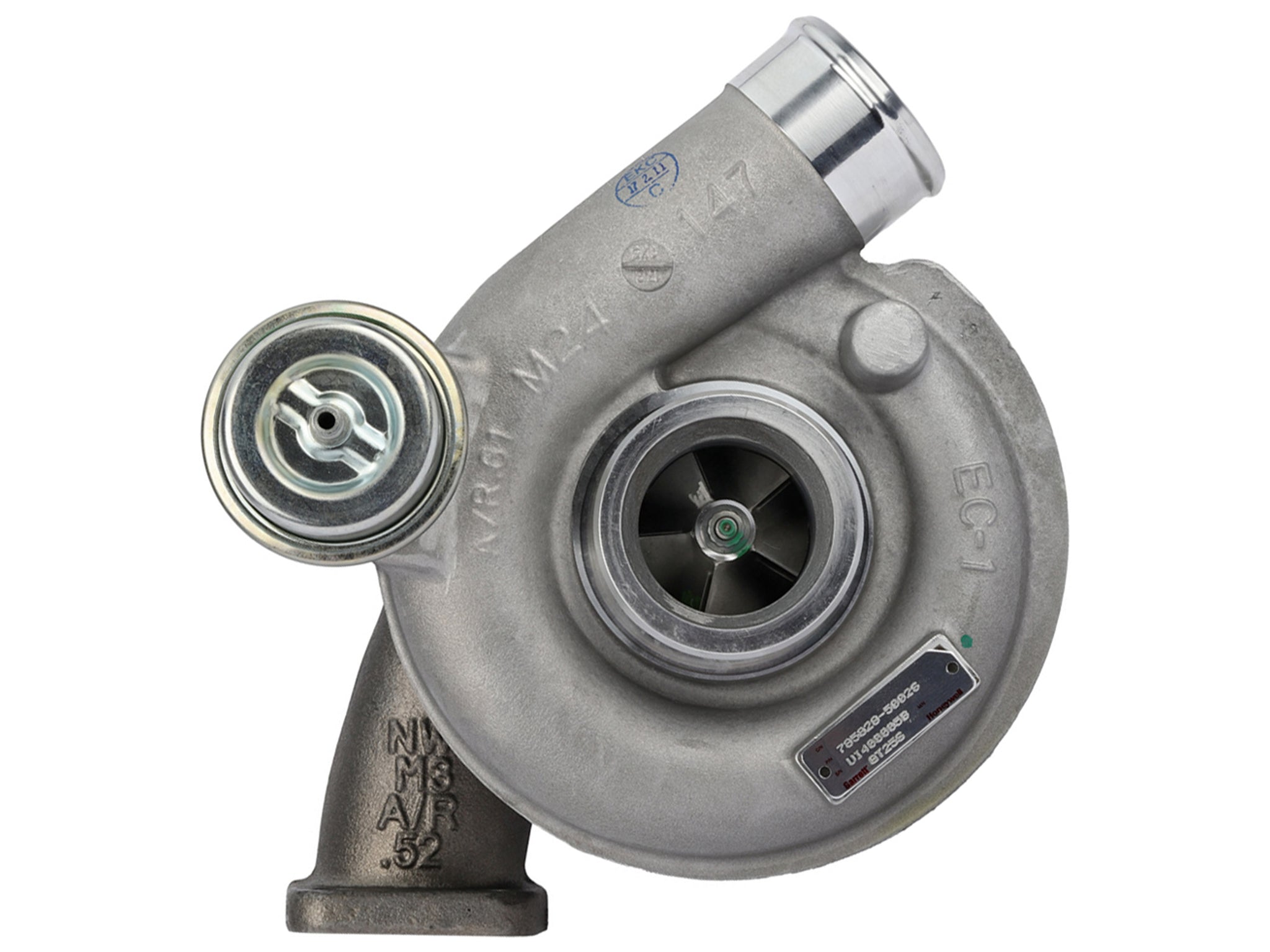

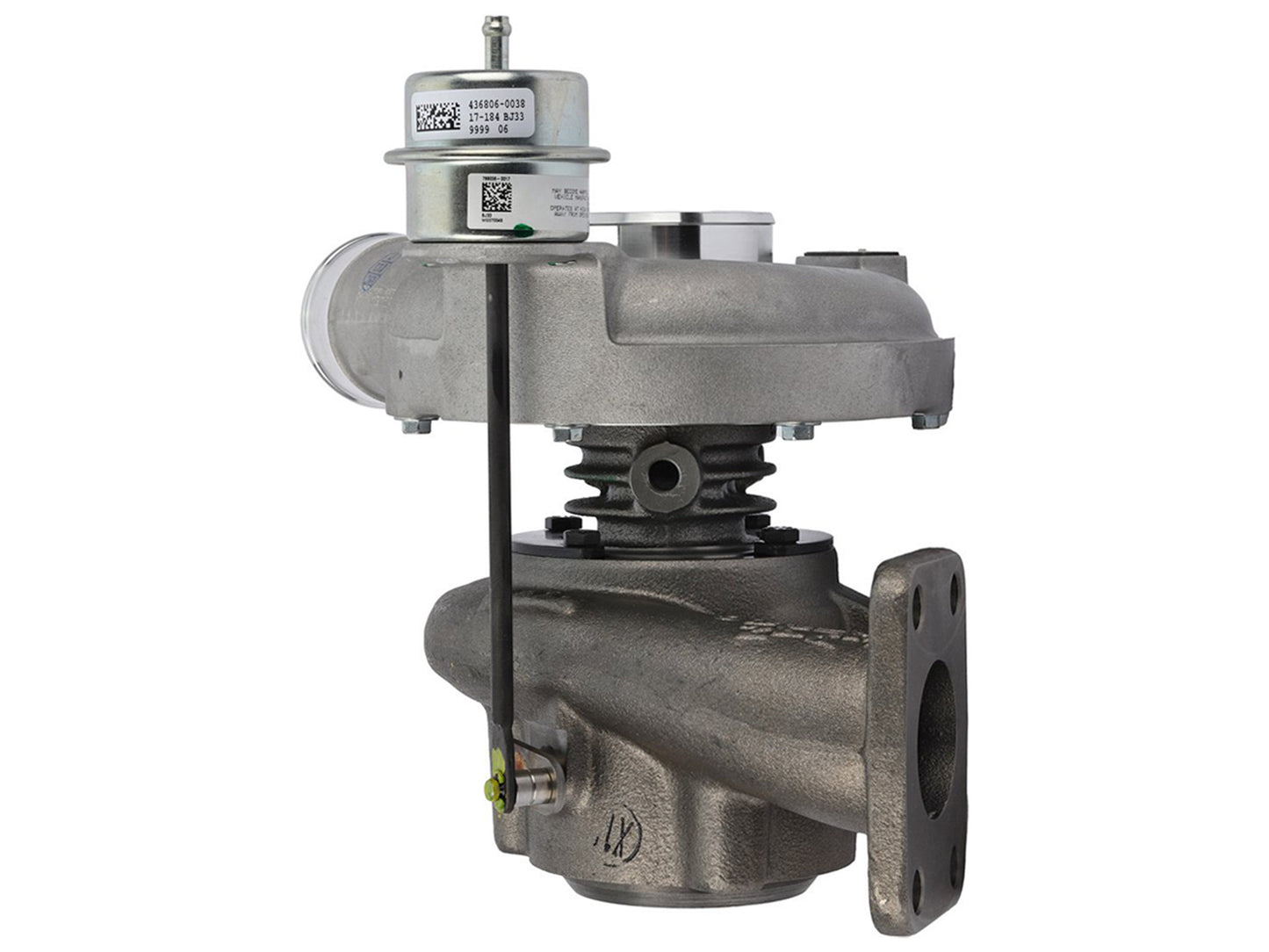

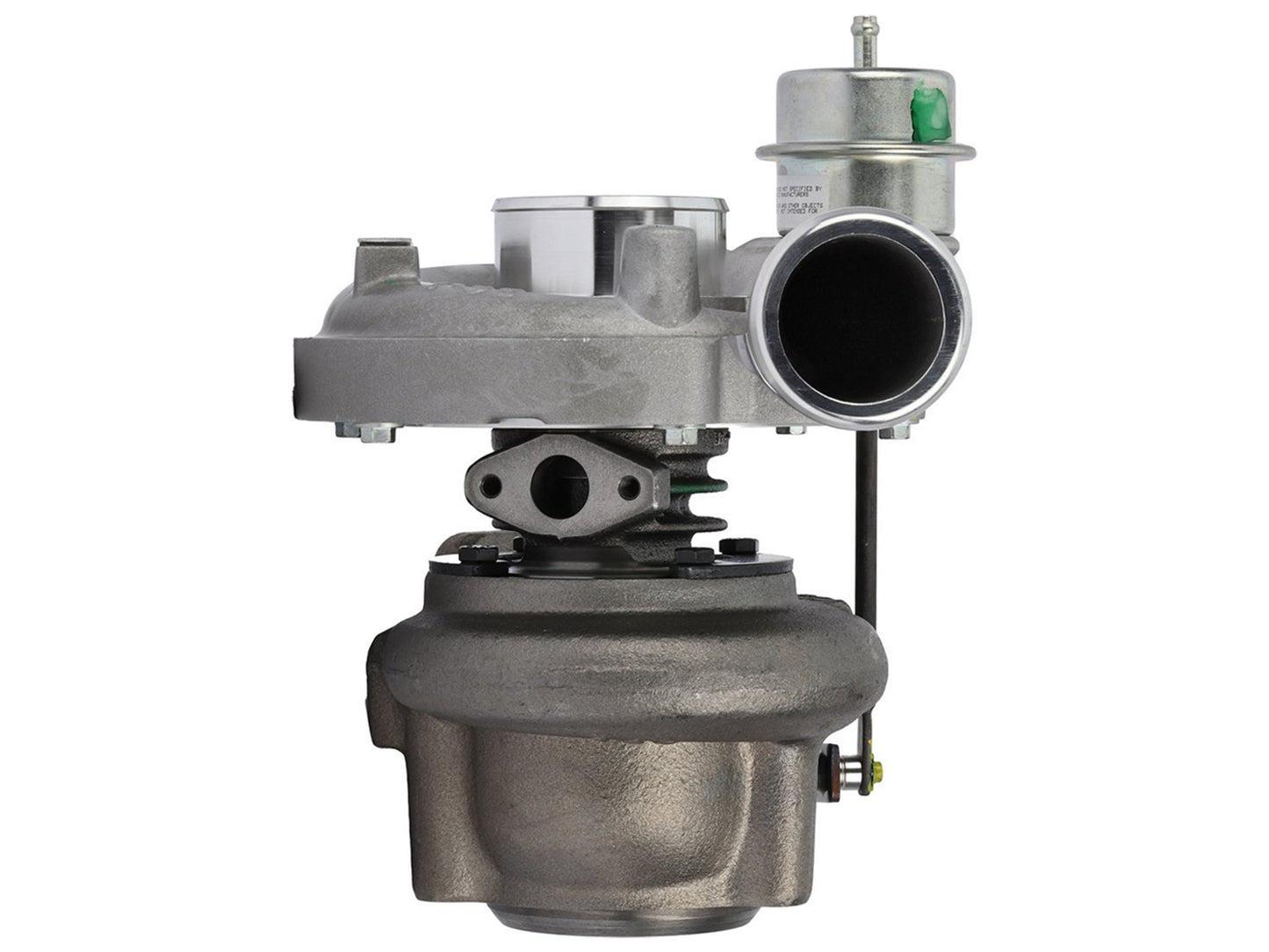

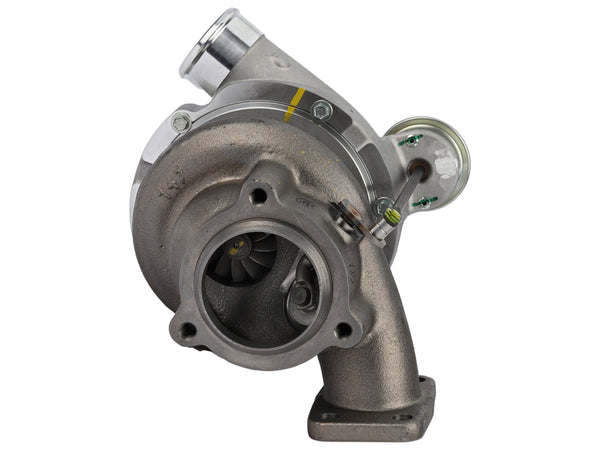

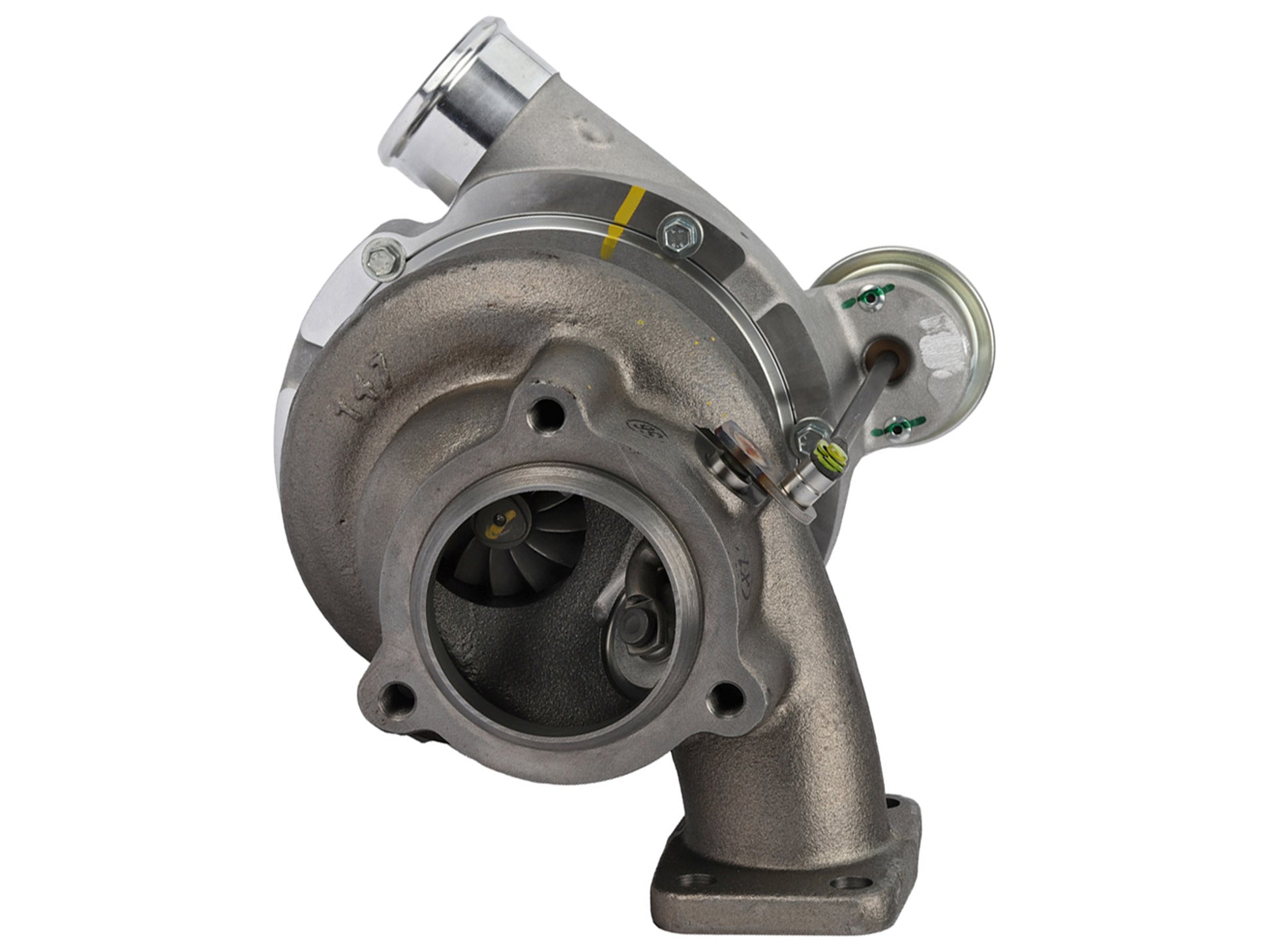

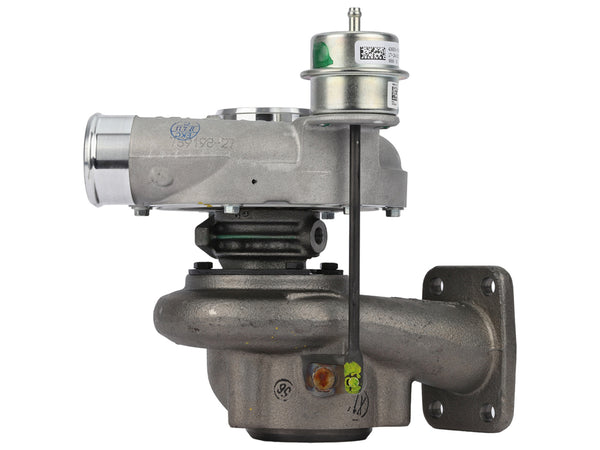

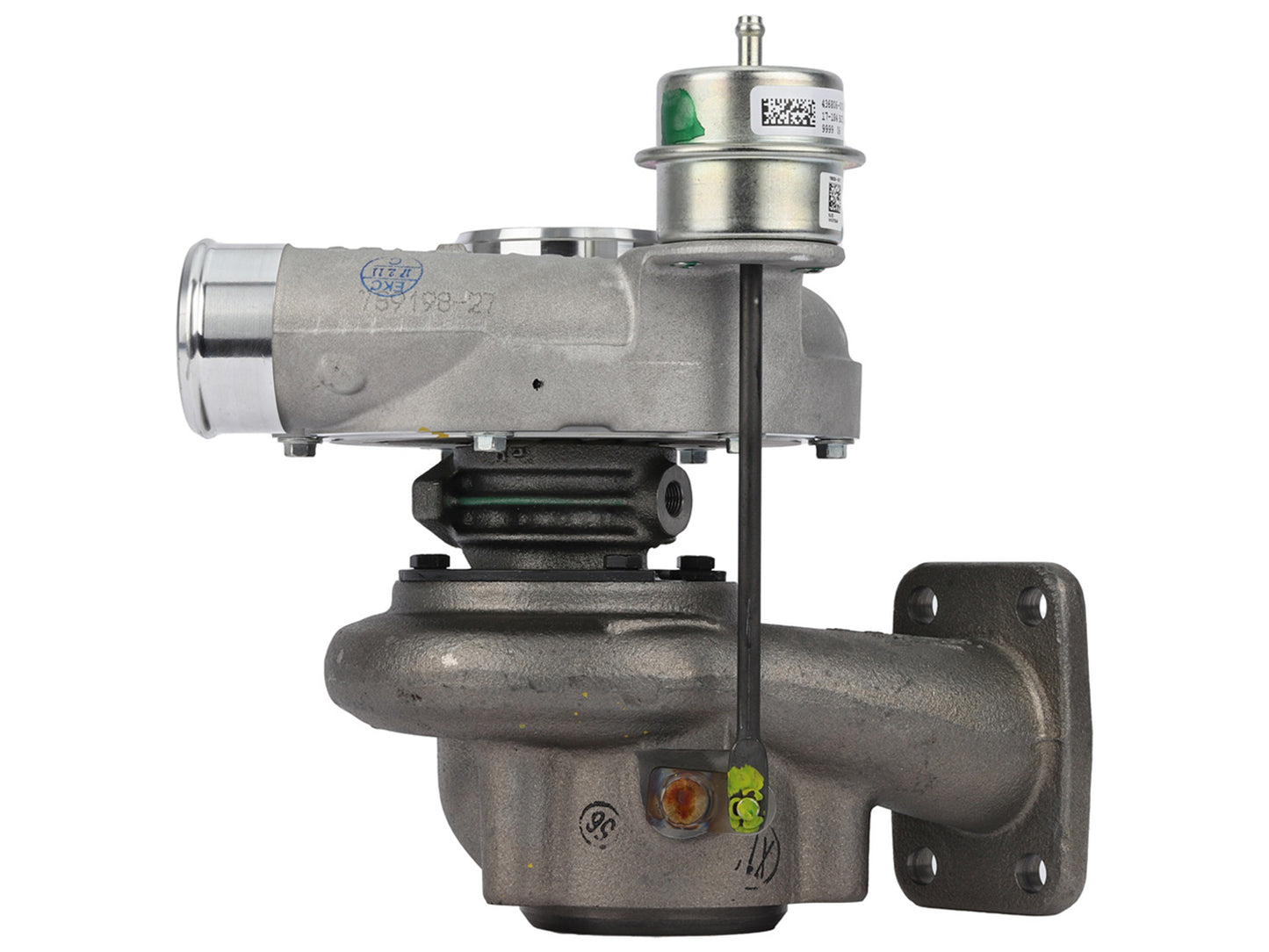

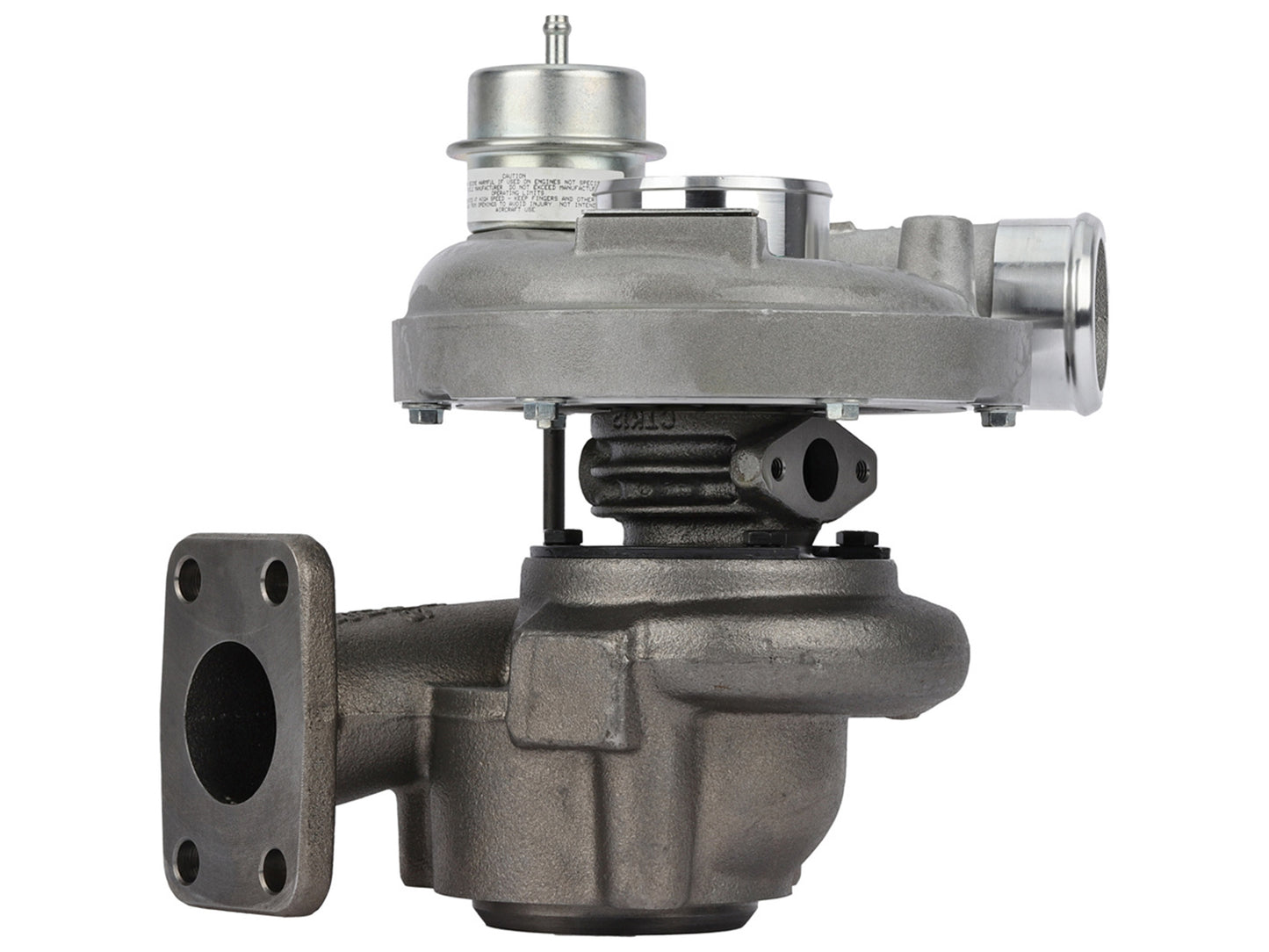

NEW Garrett GT2560S Turbo Perkins Tier 3 Electronic Fueling CAT C4.4 785828-5002SKU: 785828-5002
This is a BRAND NEW GENUINE GARRETT TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: 785828-5002
Interchangeable Number: 785828-0002, 785828-5002S, 768525-0007, 768525-5007, 768525-5007S
OEM Number: 2674A807, 316-0514, 3160514
Serial Number: QG603239B
Turbo Model: GT2560S
Engine: C4.4, EPA Tier 3 Electronic Fueling
Displacement: 4.0L, 4000 ccm, 4 Cylinders
Power: 141 HP
Speed: 2400 RPM
Angle α (Compressor Housing): 41°
Angle ß (Turbine Housing): 105°
Back Plate: 703682-0202
Bearing Housing: 713782-0010/433275-0002/713782-0002 (1102015450)(Oil Cooled)
CHRA: 433289-0426 (433289-5426S)
Compressor Cover: 769006-0017
Compressor Wheel: 720915-0006 (Ind. 42.2 mm, Exd. 60 mm, Trim 50, 5+5 Blades, Super Back)(1102122400)
Gasket (Oil Outlet): 210553 (Paper)
Gasket (Turbine Inlet): 210658 (Inox Steel)
Heat Shield: 434686-0001
Repair Kit: 732252-0001 (1102015756)
Turbine Housing: 711739-0001
Turbine Wheel: 434717-0049 (Exd. 45.82 mm, 12 Blades)
Wastegate Settings (Lift Rod): 1.00 mm
Wastegate Settings (Pressure): 1.09-1.15 bar
2006- Perkins Various, Construction with Tier 3 Engine
Caterpillar Construction with C4.4 Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
