Garrett
NEW OEM Garrett GT2560S Turbo Perkins EPA Tier 3 Electronic Fueling 785828-5003
NEW OEM Garrett GT2560S Turbo Perkins EPA Tier 3 Electronic Fueling 785828-5003
SKU:785828-5003
Regular price
$1,195.00
Regular price
$0.00
Sale price
$1,195.00
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Orders ship Monday-Friday, usually within 24 hours of purchase.
International shipping subject to VAT and/or other import tax calculated during checkout.

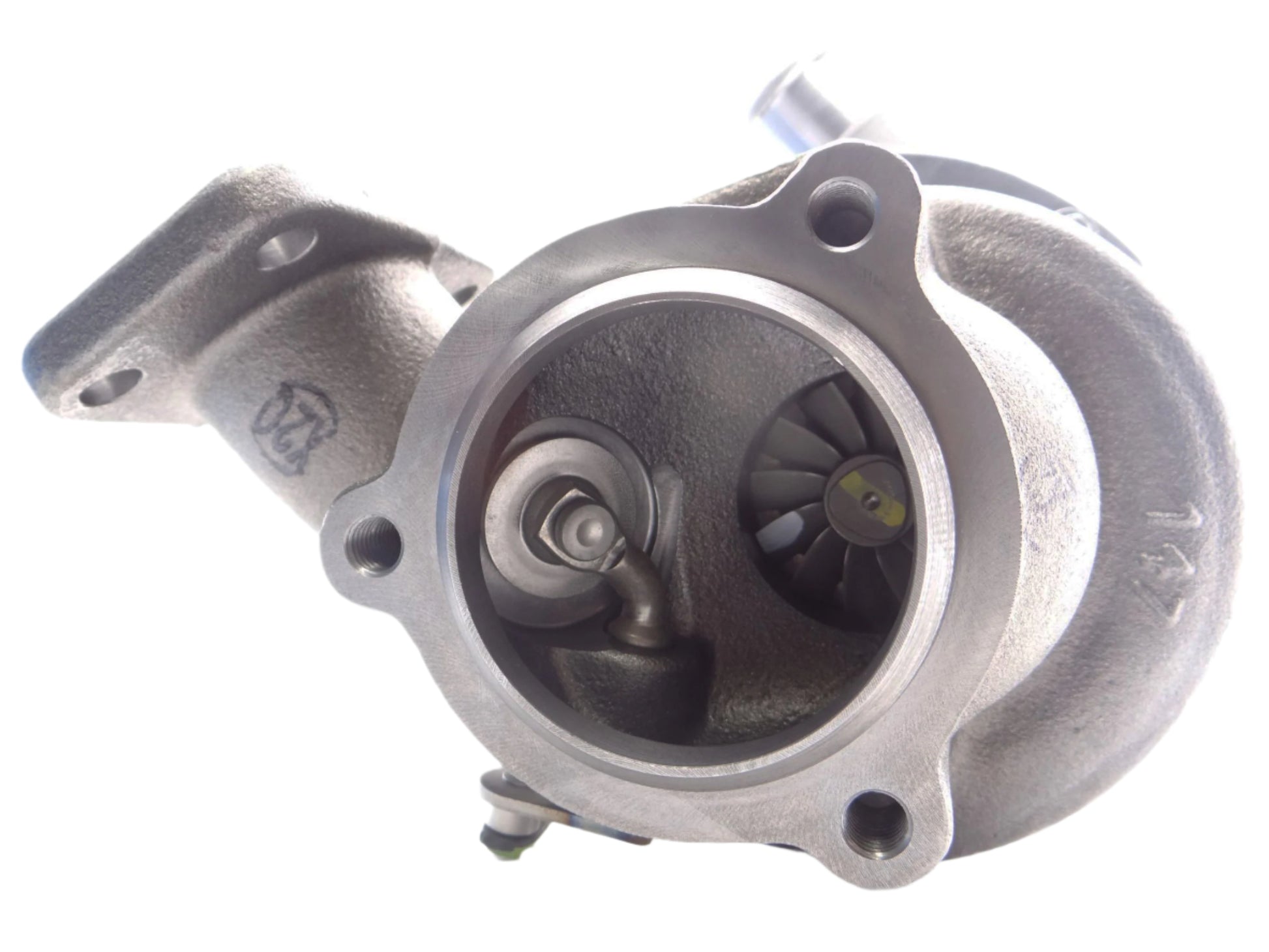

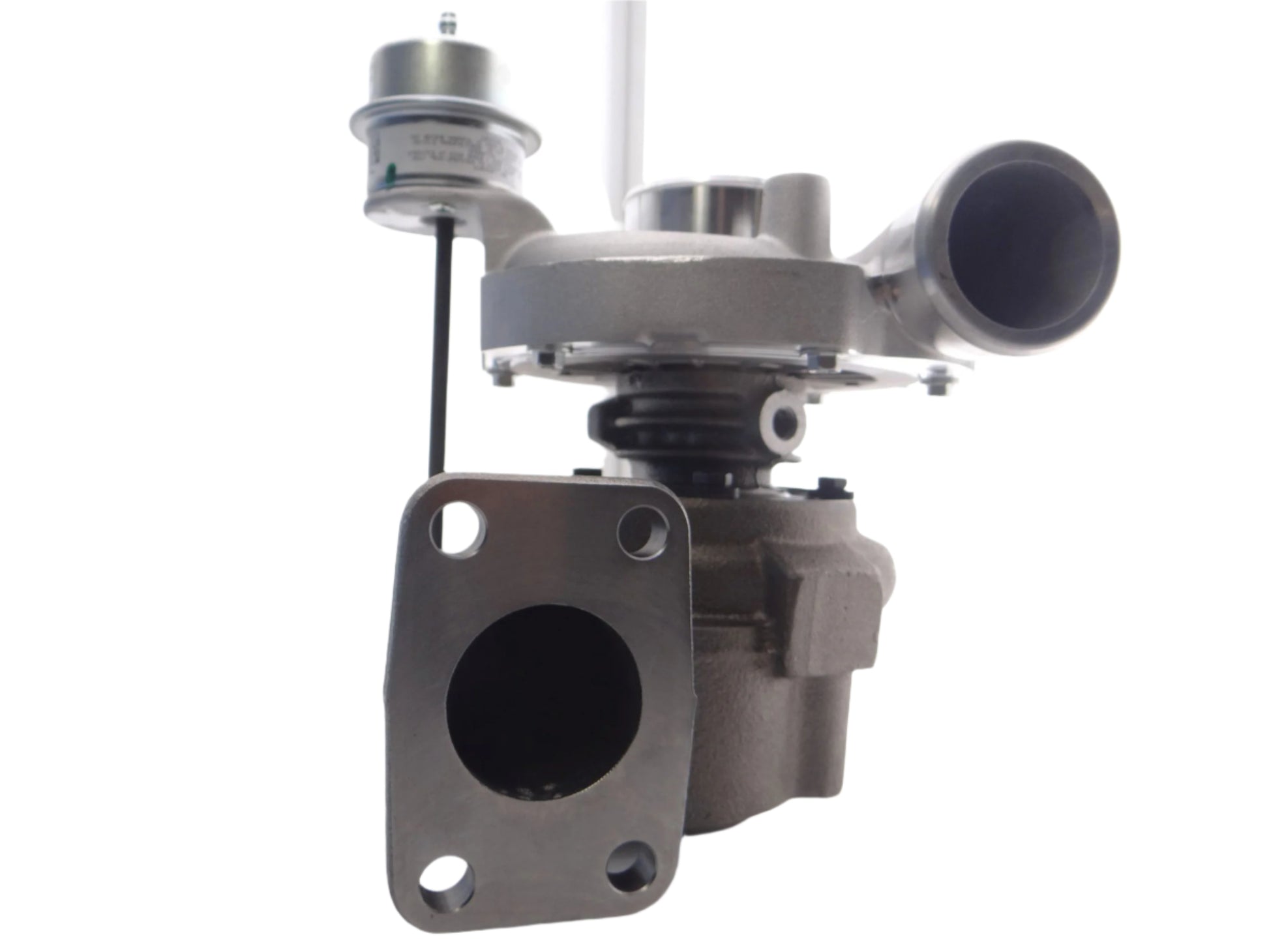

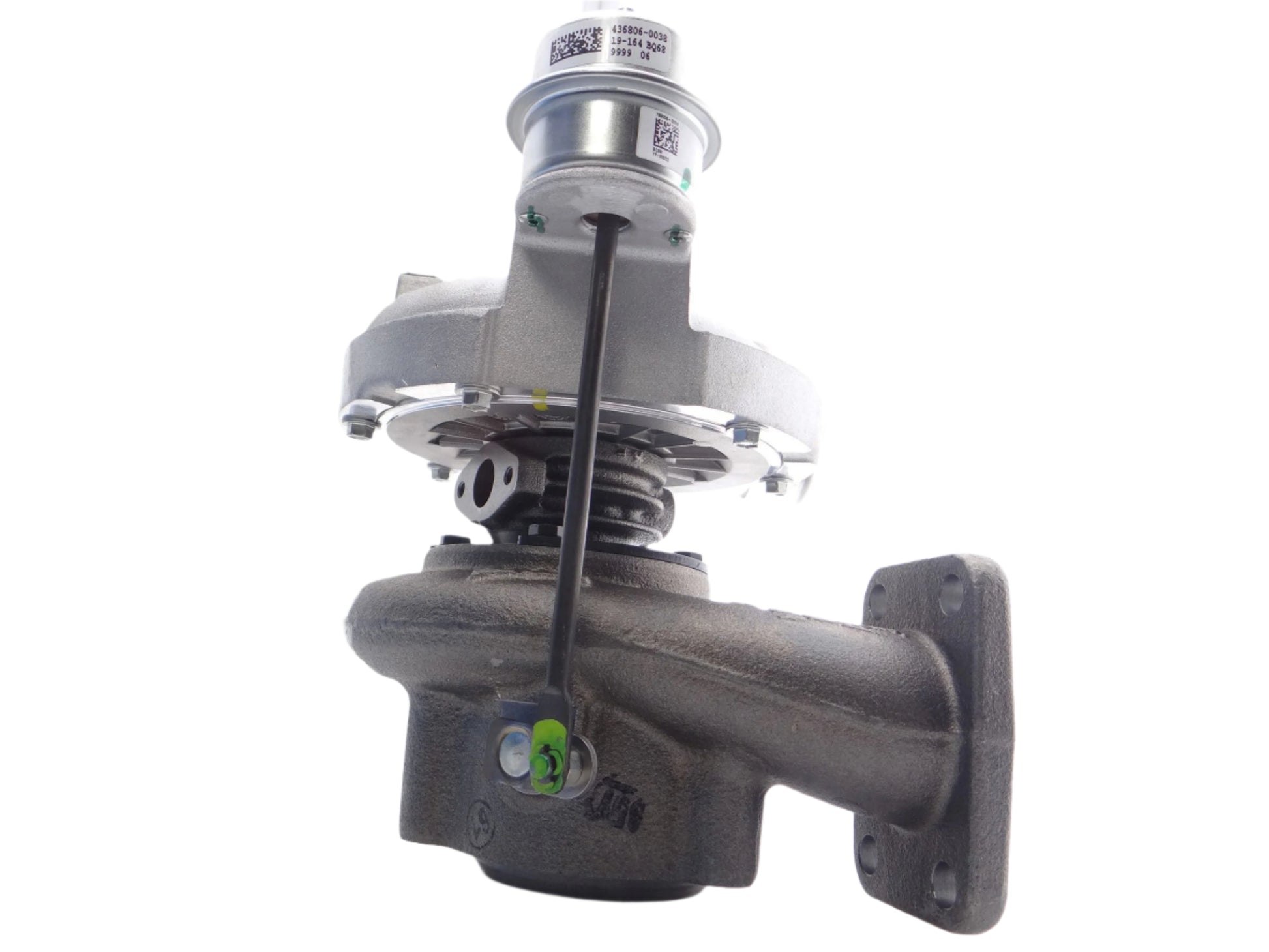

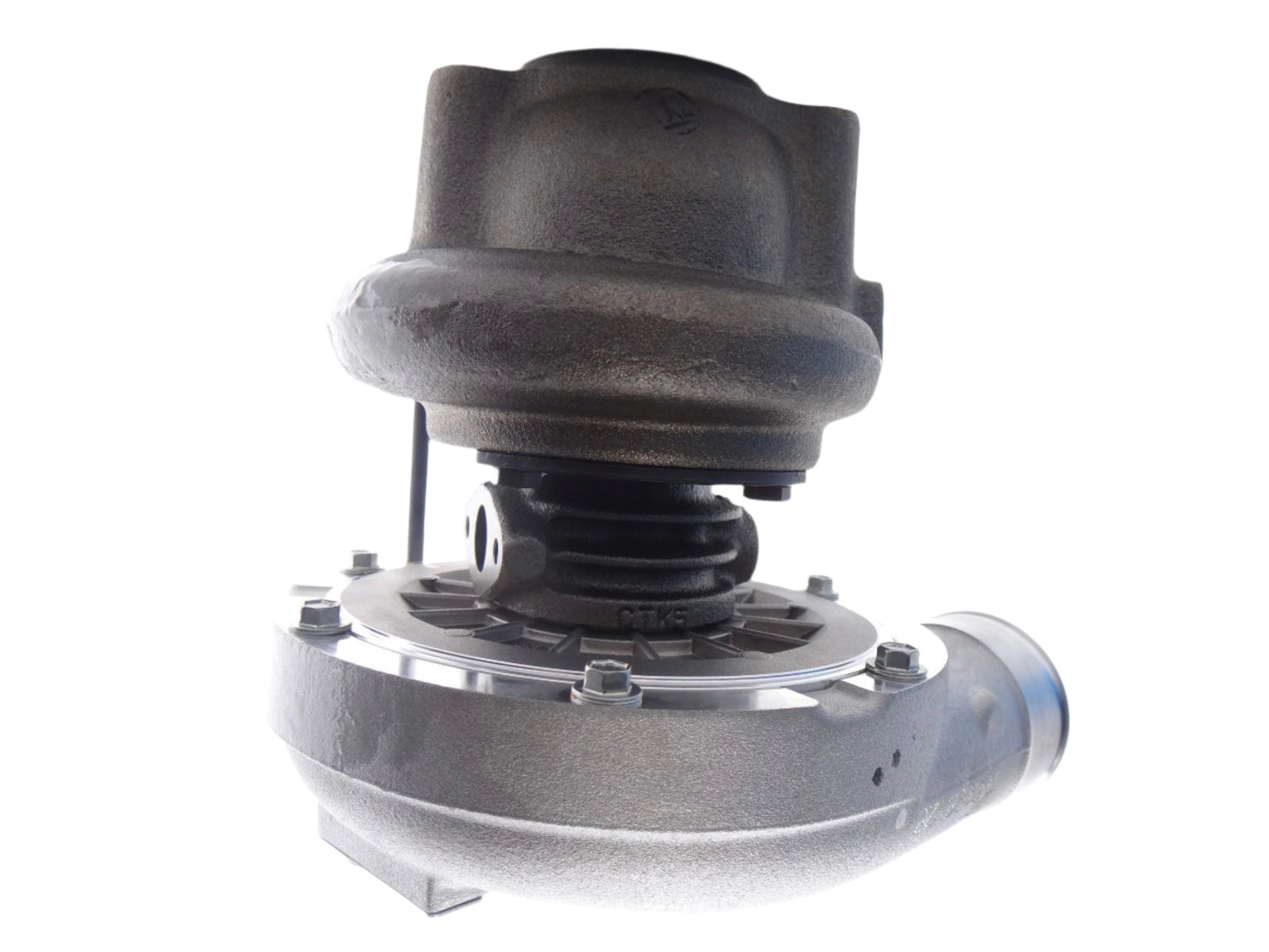

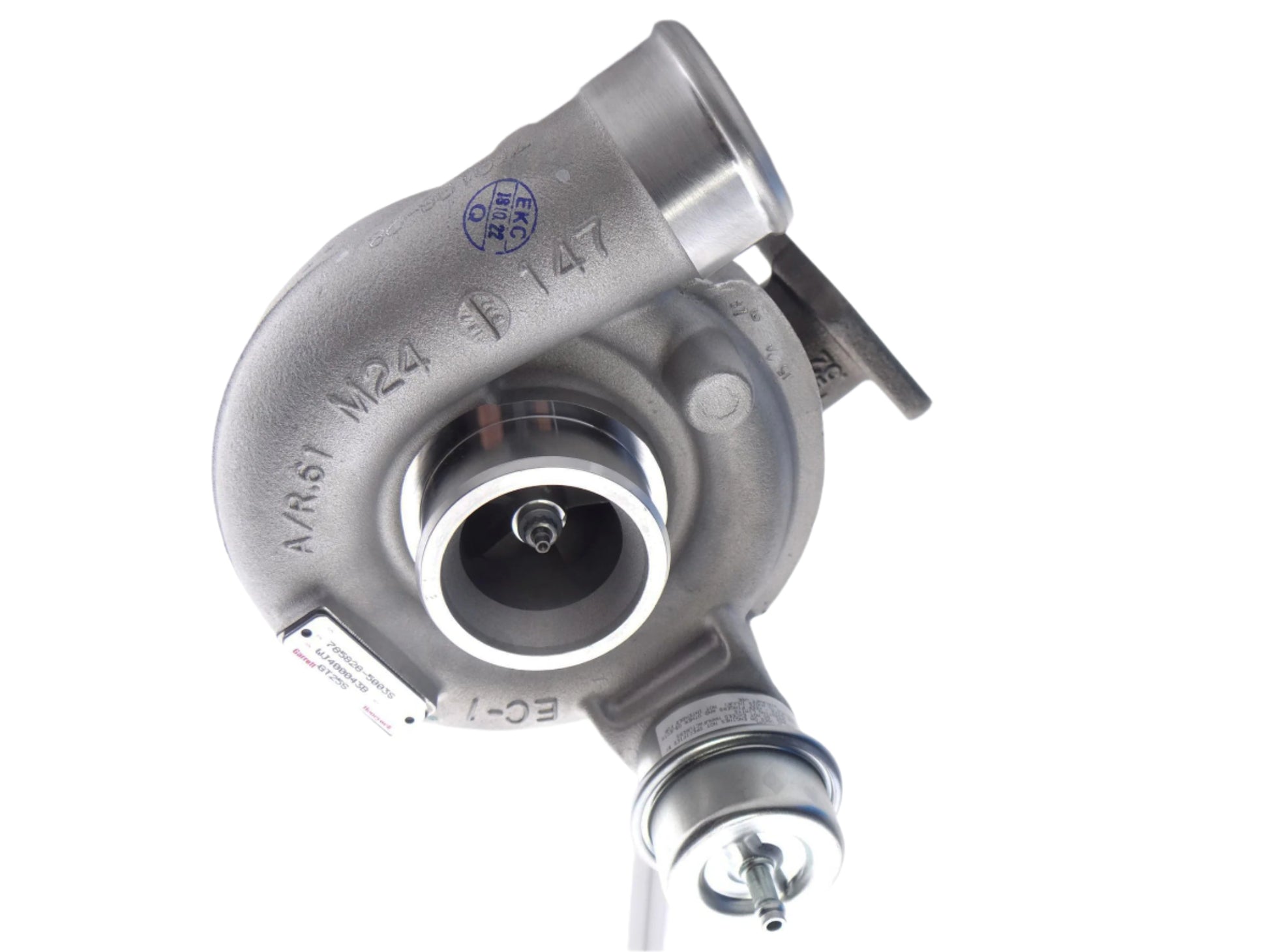

BRAND NEW GENUINE GARRETT TURBOCHARGER
This is a BRAND NEW GENUINE GARRETT TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: 785828-5003
Interchangeable Number: 785828-0003, 785828-5003S, 768525-0008, 768525-5008, 768525-5008S
OEM Number: 2674A805
Turbo Model: GT2560S
Manufacturer: Honeywell-Garrett
Year: 2006-
Engine: EPA Tier 3 Electronic Fueling
Displacement: 4.0L, 4000 ccm, 4 Cylinders
Fuel: Diesel
Power: 141 HP
Speed: 2400 RPM
Angle α (Compressor Housing): 185°
Angle β (Turbine Housing): 105°
Back Plate: 703682-0202
Bearing Housing: 713782-0010/433275-0002/713782-0002 (1102015450)(Oil Cooling Type)
CHRA: 433289-0426 (433289-5426S)
Compressor Wheel: 720915-0006 (Ind. 42.2 mm, Exd. 60 mm, Trim 50, 5+5 Blades, Super Back)(1102122400)
Gasket (Oil Outlet): 210553 (Paper)
Gasket (Turbine Inlet): 210658 (Inox Steel)
Heat Shield: 434686-0001
Repair Kit: 732252-0001 (1102015756)
Turbine Wheel: 434717-0049 (Exd. 45.82 mm, 12 Blades)
Wastegate Settings (Lift Rod): 1.00 mm
Wastegate Settings (Pressure): 1.09-1.15 bar
Application:
2006- Perkins Construction Equipment, Various with EPA Tier 3 Electronic Fueling
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
This is a BRAND NEW GENUINE GARRETT TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: 785828-5003
Interchangeable Number: 785828-0003, 785828-5003S, 768525-0008, 768525-5008, 768525-5008S
OEM Number: 2674A805
Turbo Model: GT2560S
Manufacturer: Honeywell-Garrett
Year: 2006-
Engine: EPA Tier 3 Electronic Fueling
Displacement: 4.0L, 4000 ccm, 4 Cylinders
Fuel: Diesel
Power: 141 HP
Speed: 2400 RPM
Angle α (Compressor Housing): 185°
Angle β (Turbine Housing): 105°
Back Plate: 703682-0202
Bearing Housing: 713782-0010/433275-0002/713782-0002 (1102015450)(Oil Cooling Type)
CHRA: 433289-0426 (433289-5426S)
Compressor Wheel: 720915-0006 (Ind. 42.2 mm, Exd. 60 mm, Trim 50, 5+5 Blades, Super Back)(1102122400)
Gasket (Oil Outlet): 210553 (Paper)
Gasket (Turbine Inlet): 210658 (Inox Steel)
Heat Shield: 434686-0001
Repair Kit: 732252-0001 (1102015756)
Turbine Wheel: 434717-0049 (Exd. 45.82 mm, 12 Blades)
Wastegate Settings (Lift Rod): 1.00 mm
Wastegate Settings (Pressure): 1.09-1.15 bar
Application:
2006- Perkins Construction Equipment, Various with EPA Tier 3 Electronic Fueling
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
