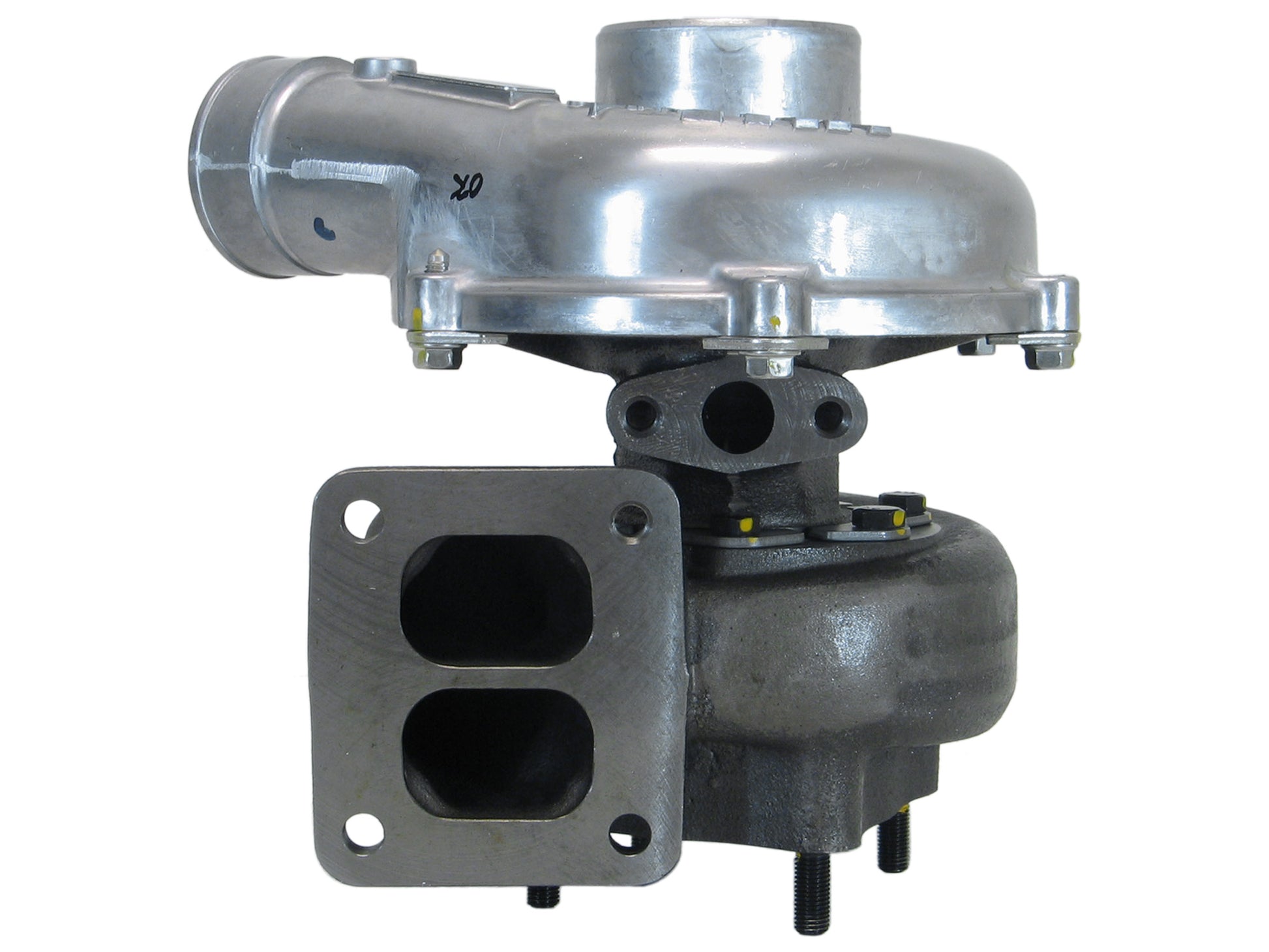

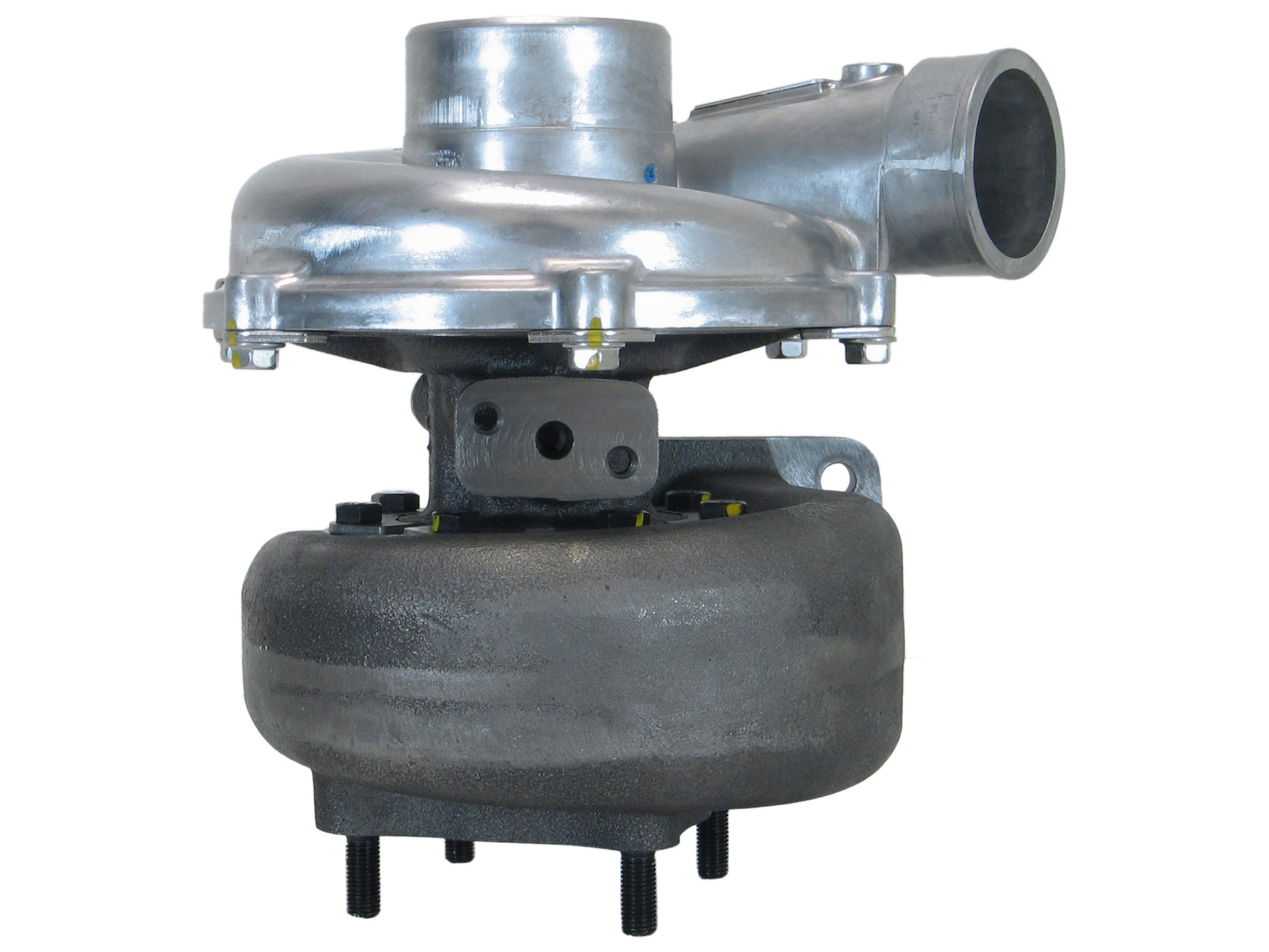

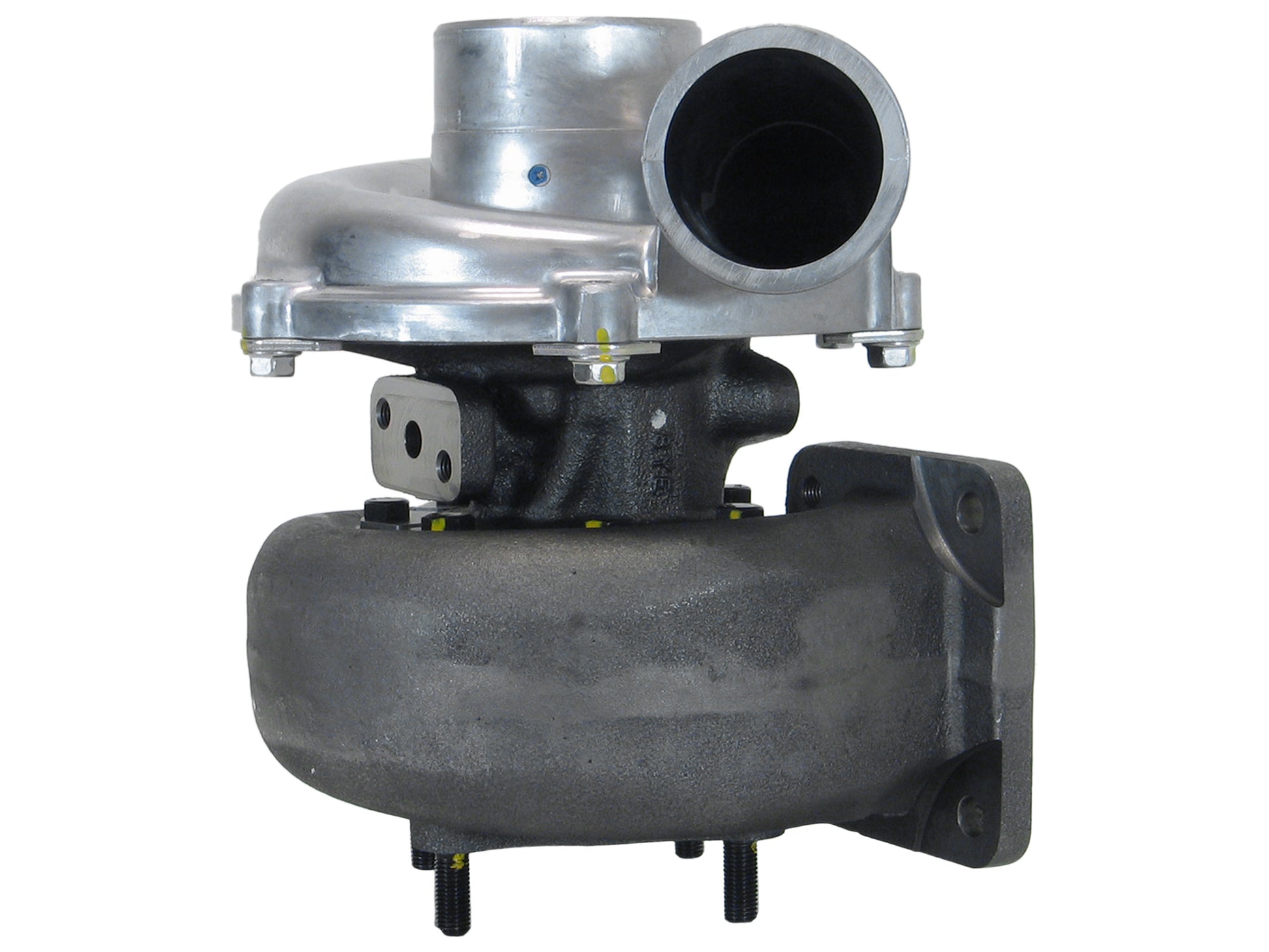

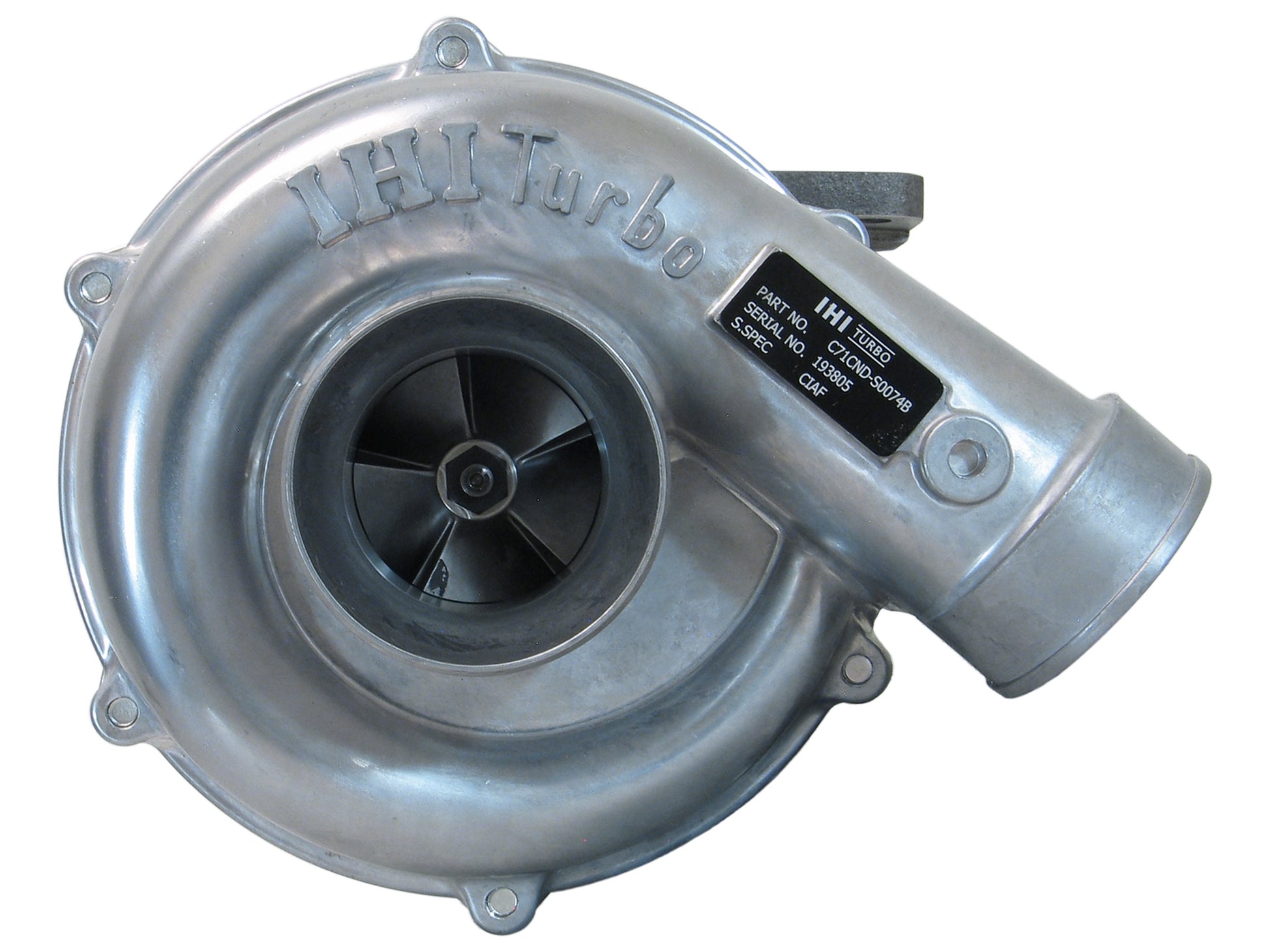

NEW OEM IHI RHC7 Turbo Link-Belt Sumitomo Isuzu 6BG1T 7T-545 VB250074 CIAFSKU: CIAF
This is a BRAND NEW GENUINE IHI TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: VB250074
Short Spec.: CIAF
Interchangeable Number: VA250074, VC250074, VD250074
OEM Number: 114400-2961, 1144002961, 7T-545, C71CND-S0074B, C71CND-S0074G
Turbo Model: RHC7, RHC7-13005HQ30NFBRL557A
Manufacturer: IHI Turbo - CloverTurbo
Engine: 6BG1T, 6BG1TPC-03
Displacement: 6 Cylinders
Angle α (Compressor Housing): 180°
Angle ß (Turbine Housing): 310°
Back Plate: NH172501
Bearing Housing: NH173375 (Oil Cooled)
CHRA: VA860035 (NZ853750)
Compressor Cover: NH174402

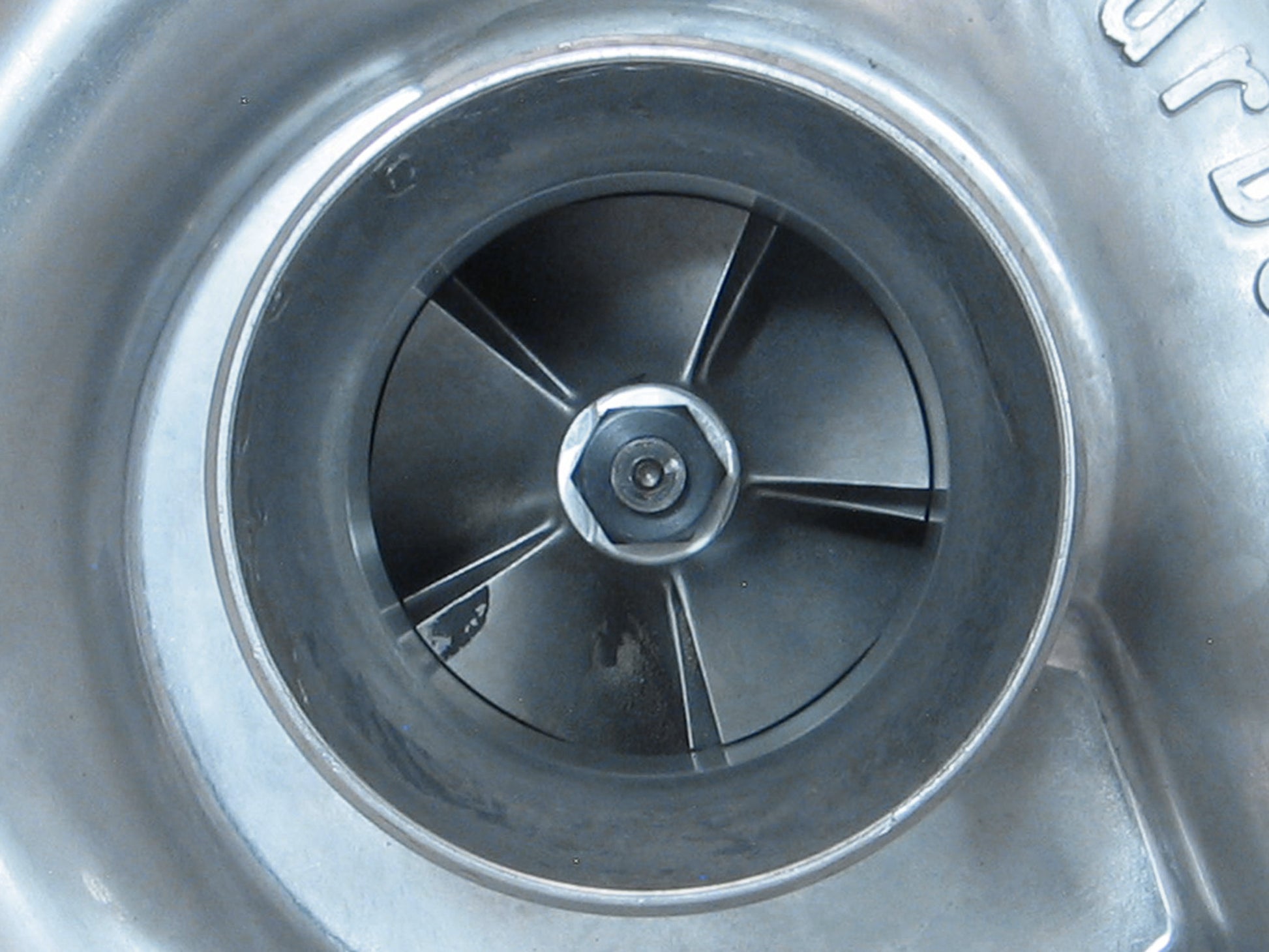

Compressor Wheel: NH175104 (Ind. 53.91 mm, Exd. 75.95 mm, Trim 2.86, 5+5 Blades, Super Back)
Heat Shield: NH178265
Repair Kit: NH179859
Turbine Housing A/R: 30
Turbine Housing: NH178299

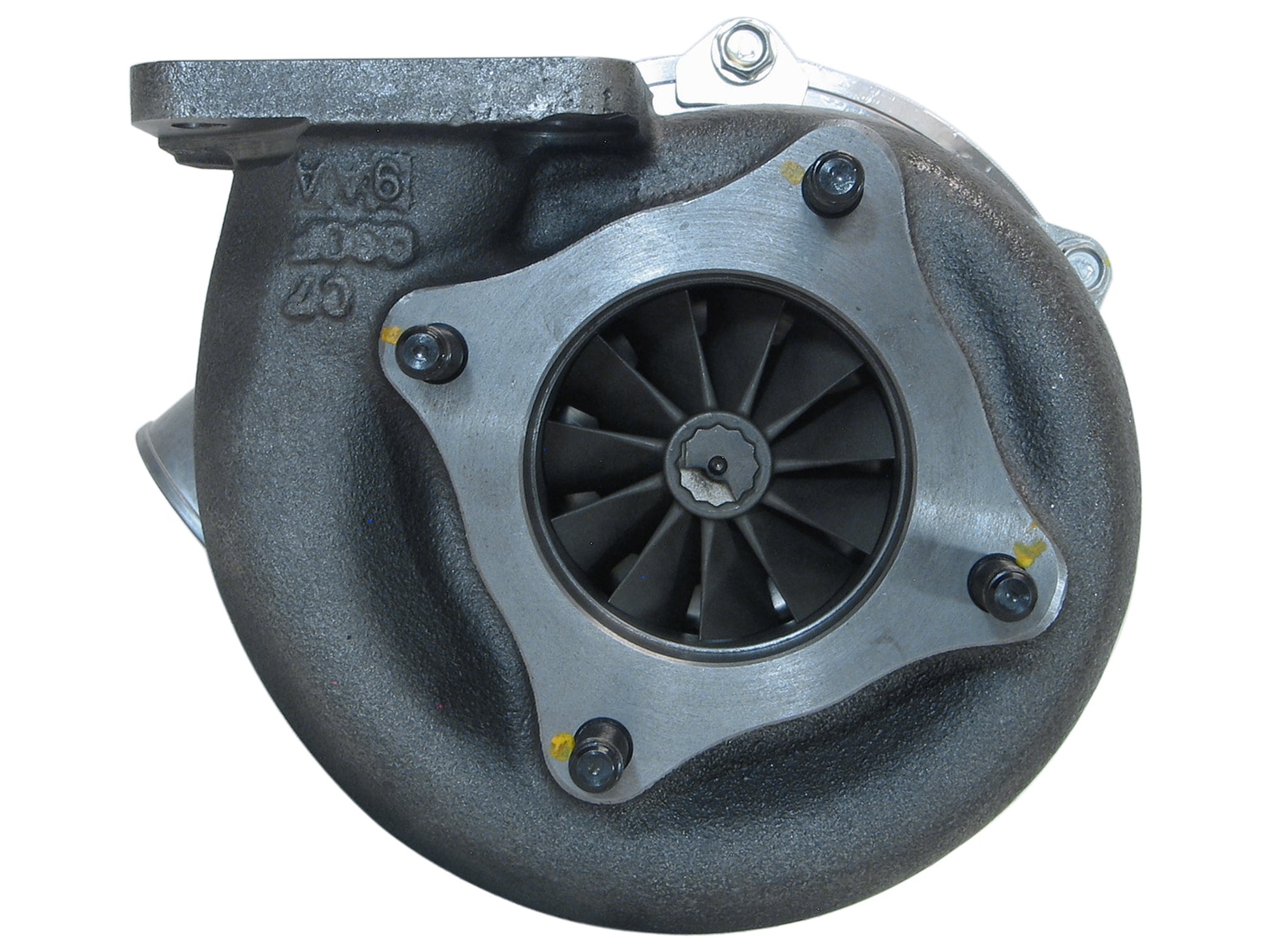

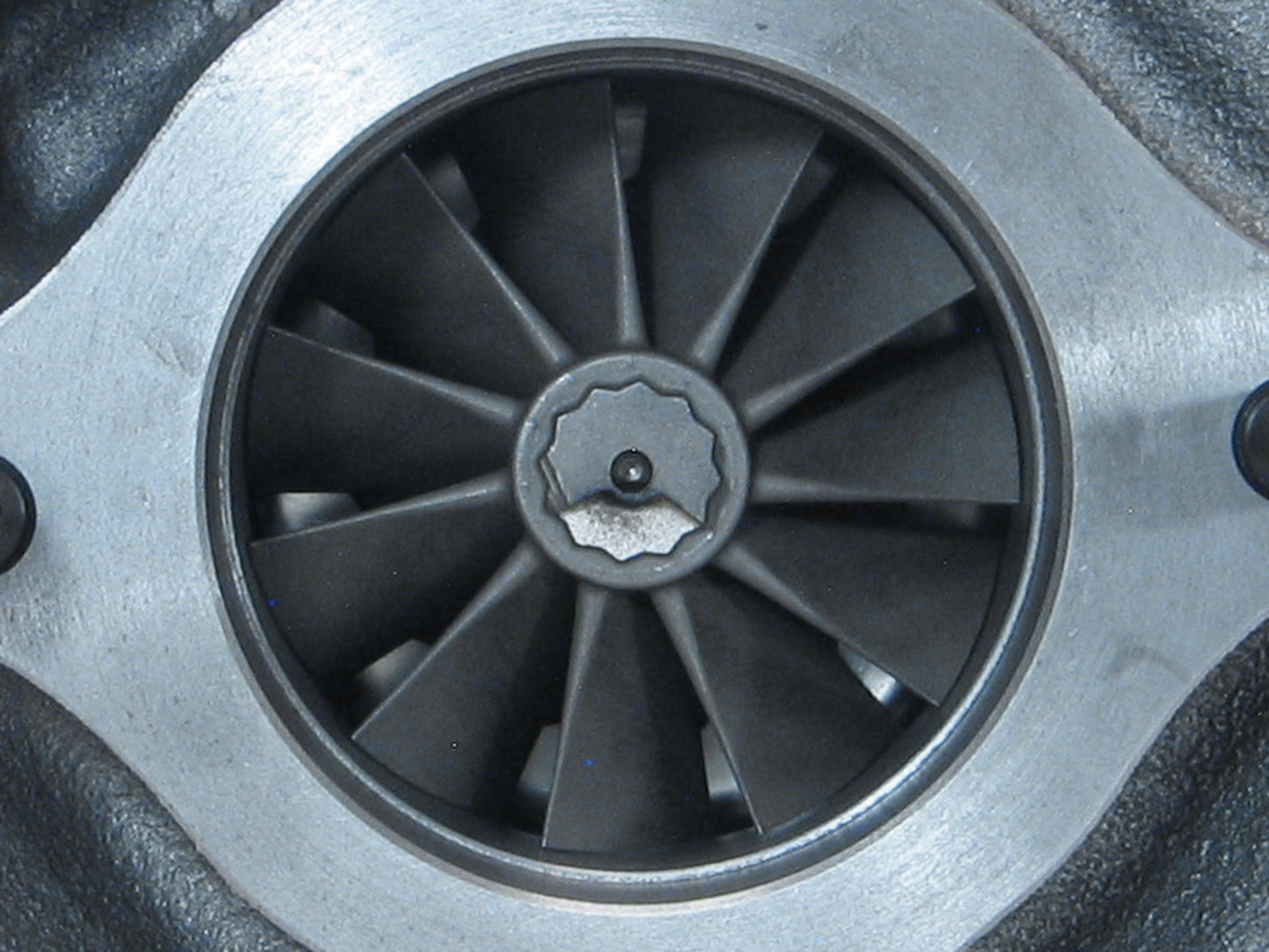

Turbine Wheel: NH171671
Isuzu Earth Moving, Truck with 6BG1TPC-03 Engine
Link-Belt Earth Moving
Sumitomo SH2200 with 6BG1T Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
