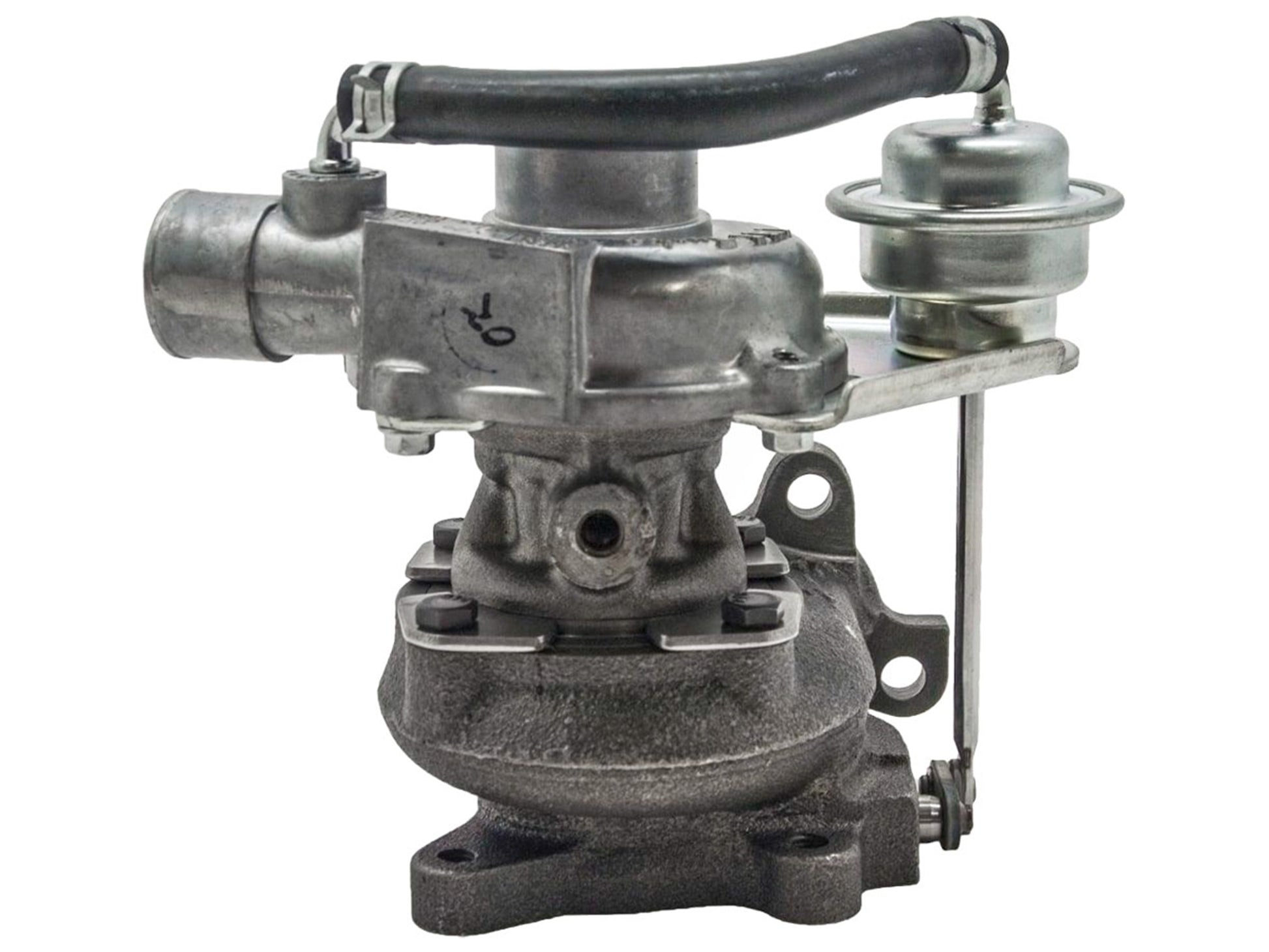

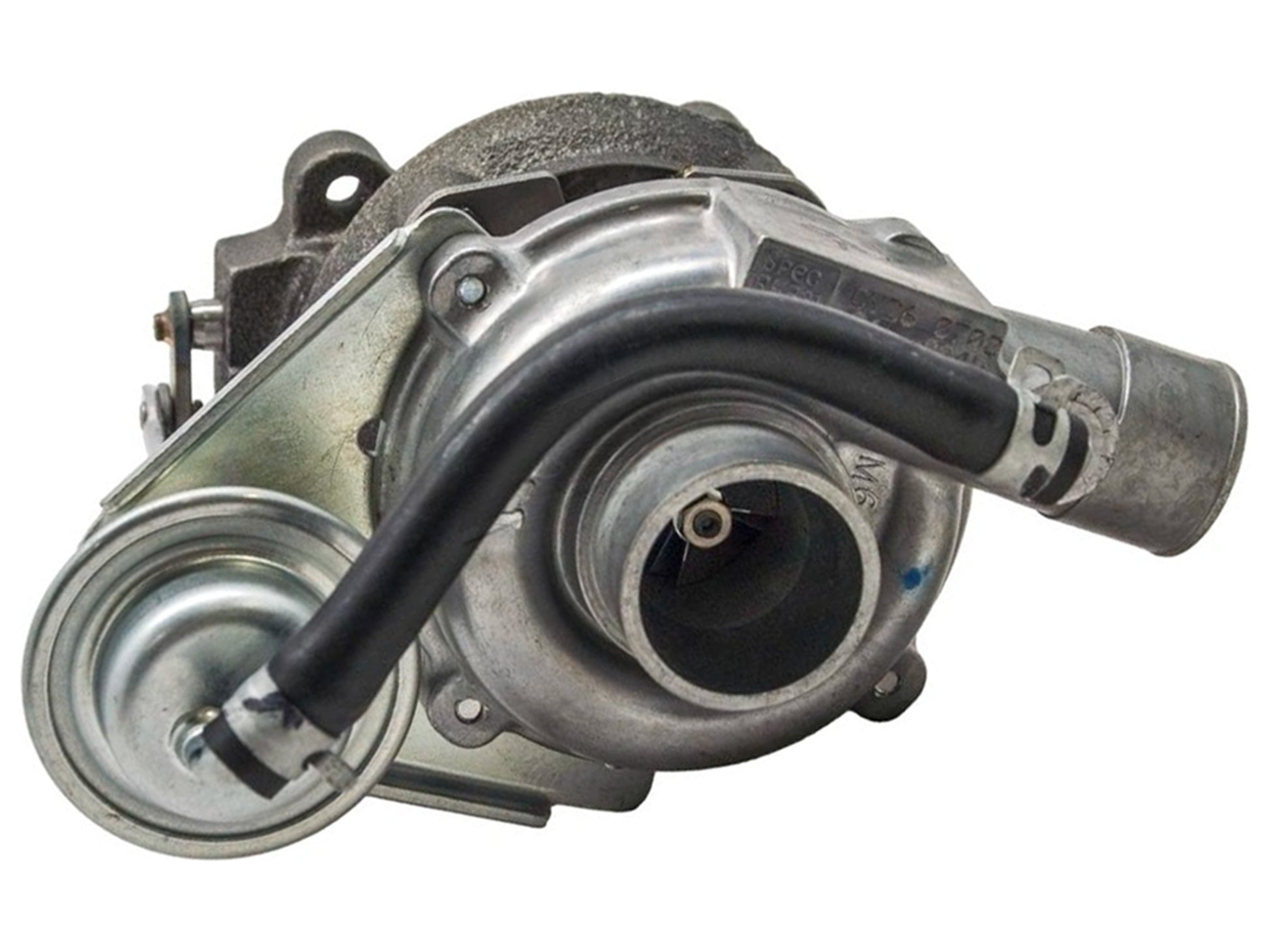

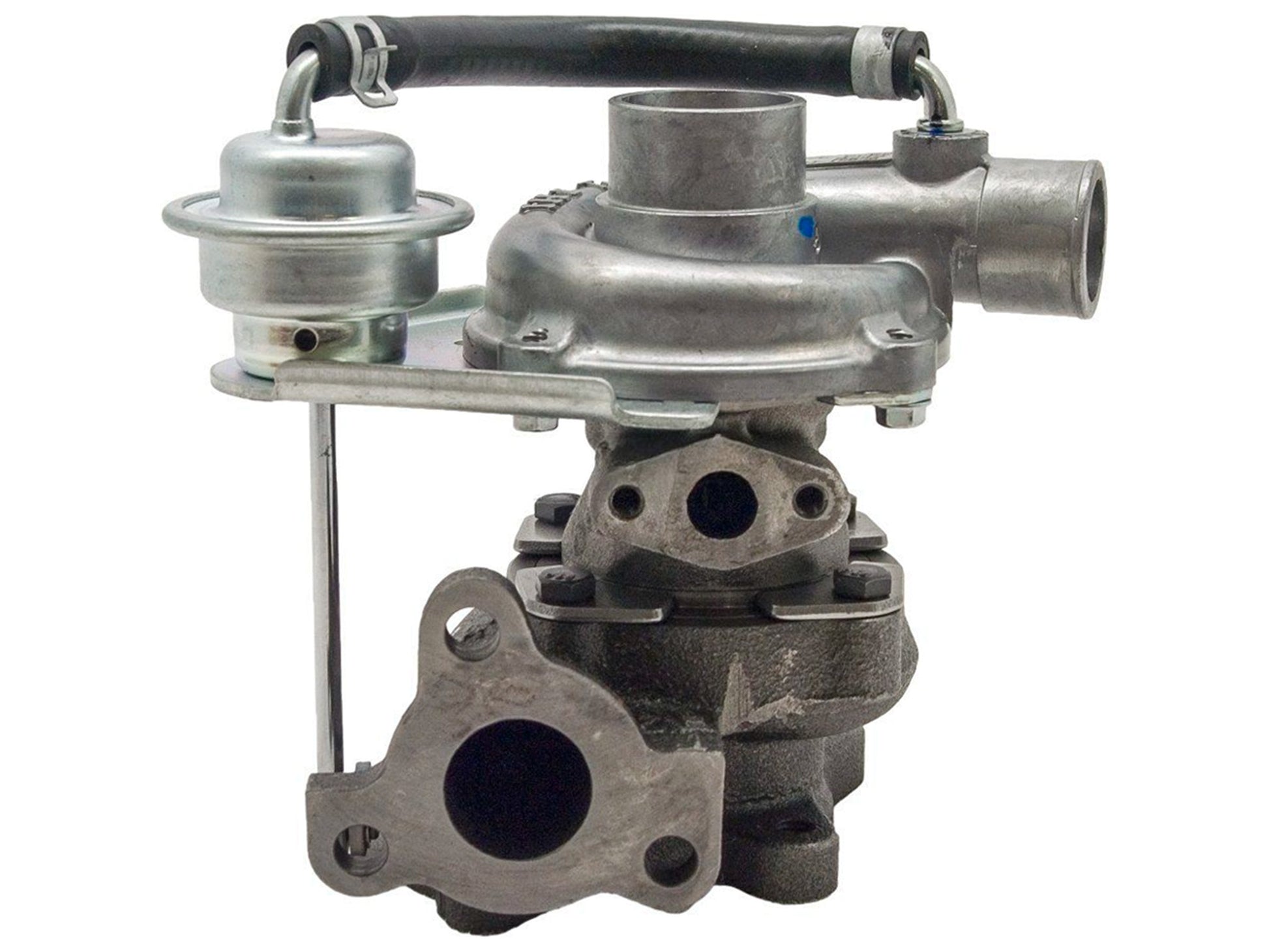

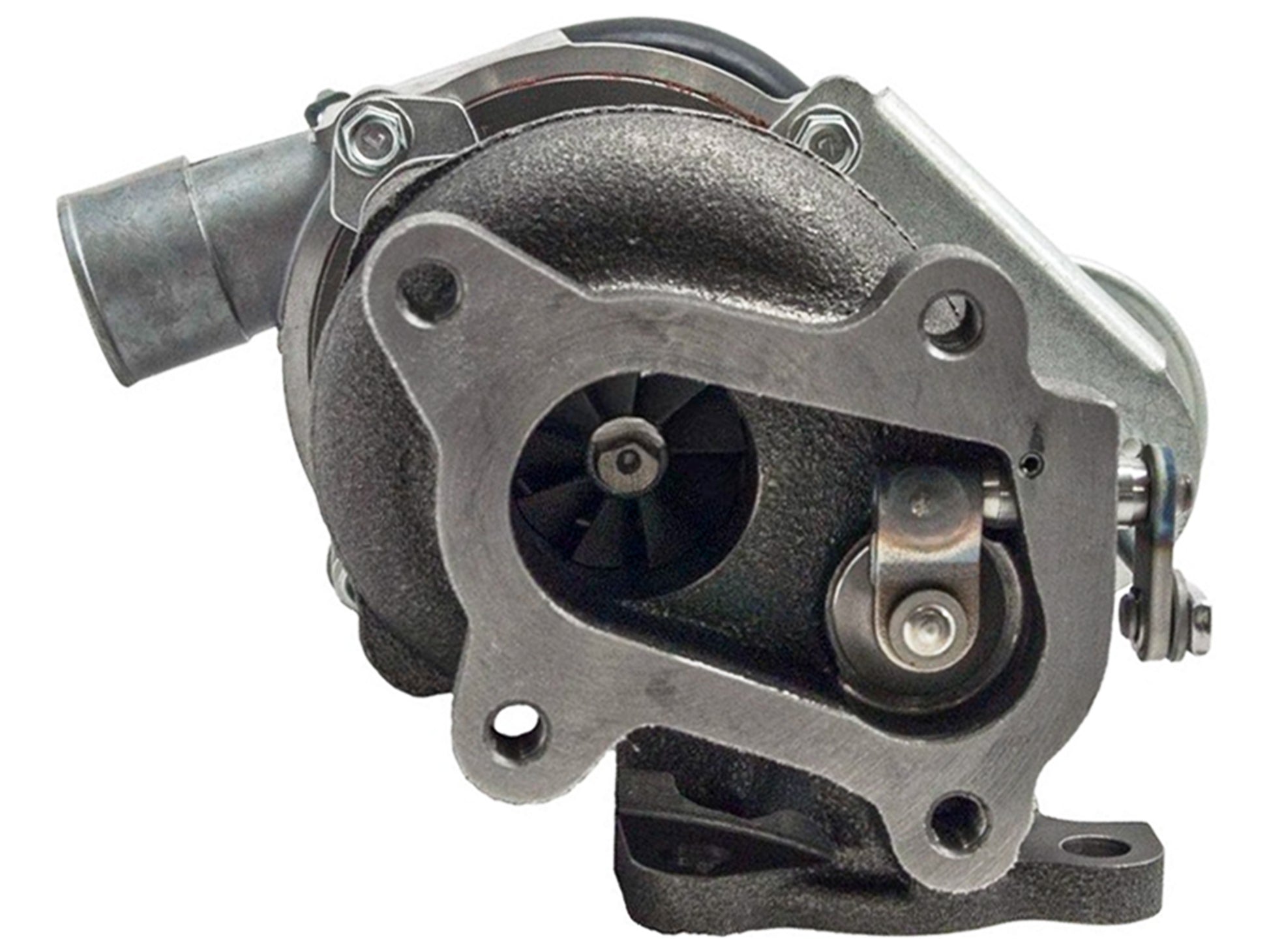

NEW IHI RHB31 Turbo Yanmar Marine 4TN78TL Excavator 3TN84 3T-508 VB110024 CY26SKU: CY26
This is a BRAND NEW GENUINE IHI TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: VB110024
Short Spec.: CY26
Interchangeable Number: B31CAD-S0024B, B31CAD-S0024BN, MY61, NB130015, VA110021, VA110024, VB110021, VC110021, VC110033
OEM Number: 129189-18010, 12918918010, 129403-18050, 12940318050, 3T-508
Turbo Model: RHB31, RHB31-50001P12NFBRS255AZ
Manufacturer: IHI Turbo - CloverTurbo
Engine: 3TN82TE, 3TN84, 3TN84TL-R2B, 4TN78TL, 4TNA78TL-DKA, 4TNA78TL-RFA
Angle α (Compressor Housing): 180°
Angle ß (Turbine Housing): 110°
Back Plate: NB133011 (2445104)
Bearing Housing: NB133339 (Oil Cooled)
CHRA: NZ852836 (NZ852215, NZ870544)
Compressor Cover: NB134608
Compressor Wheel: NB135102 (Ind. 24.8 mm, Exd. 35.5 mm, 5+5 Blades)
Gasket (Oil Inlet): (1203715, 1204055)(Paper)
Gasket (Oil Outlet): 210284 (2455001, 2445107)(Paper)
Gasket (Turbine Inlet): 210826 (2445288, 2445280, 129477-18100)(Inox Steel)
Gasket (Turbine Outlet): 210827 (2445274, 2445185,129322-18100)(Inox Steel)
Gasket Kit: 2505395
Heat Shield: NB137143
Repair Kit: NB139837 (NB139838, NB139922)(2445058, 2445147)
Rotor Assembly: (129403-18770)
Turbine Housing (Water Cooled): NB137343
Turbine Housing A/R: 12
Turbine Housing: NB139840
Turbine Wheel: NB131180
Wastegate Settings (Lift Shaft): 2.00 mm
Wastegate Settings (Pressure): 0.817 Bar
Yanmar Excavator with 3TN84, 3TN84TL-R2B Engine
Yanmar Industrial Motor, Marine with 4TNA78TL-DKA Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
