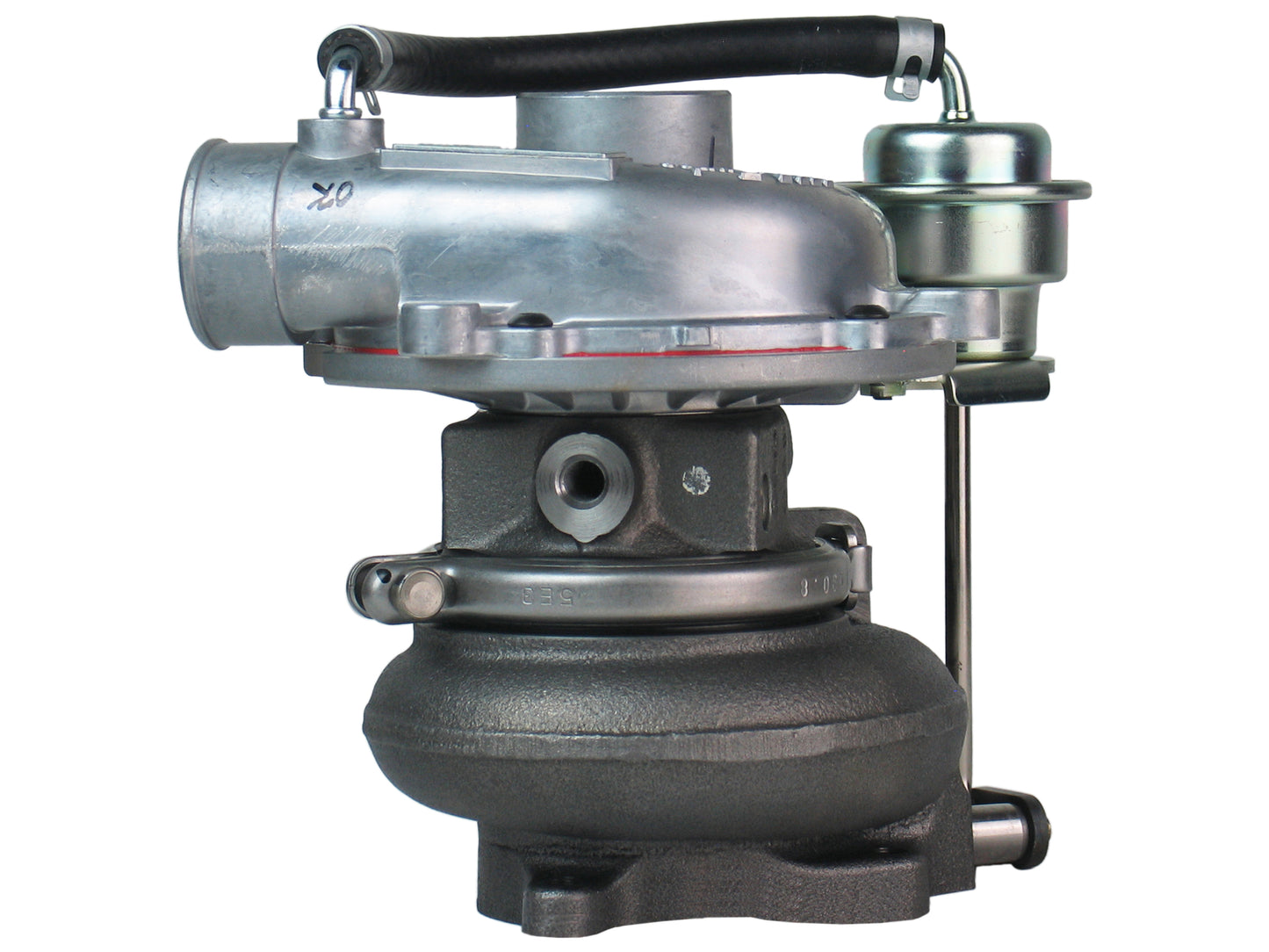

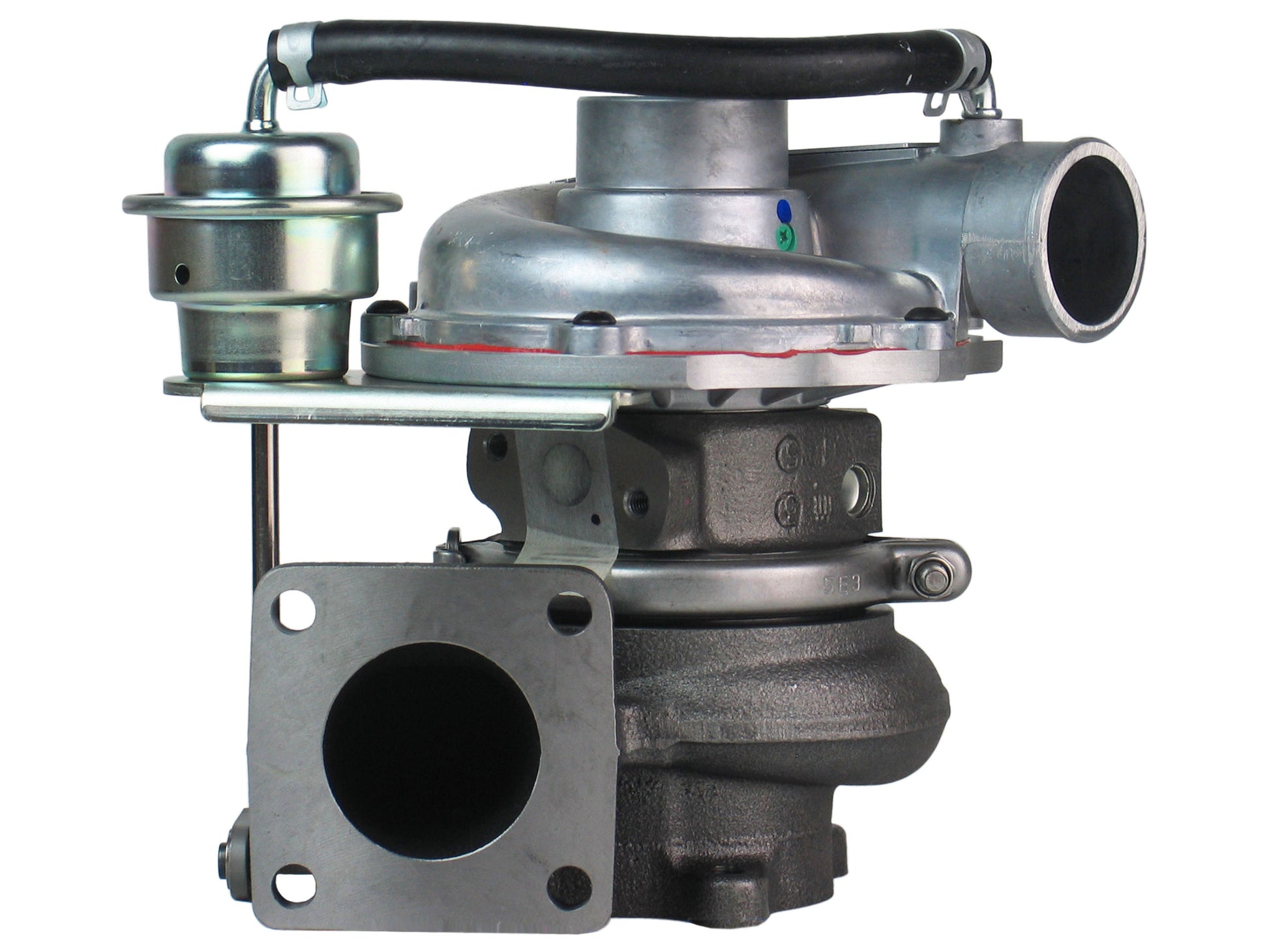

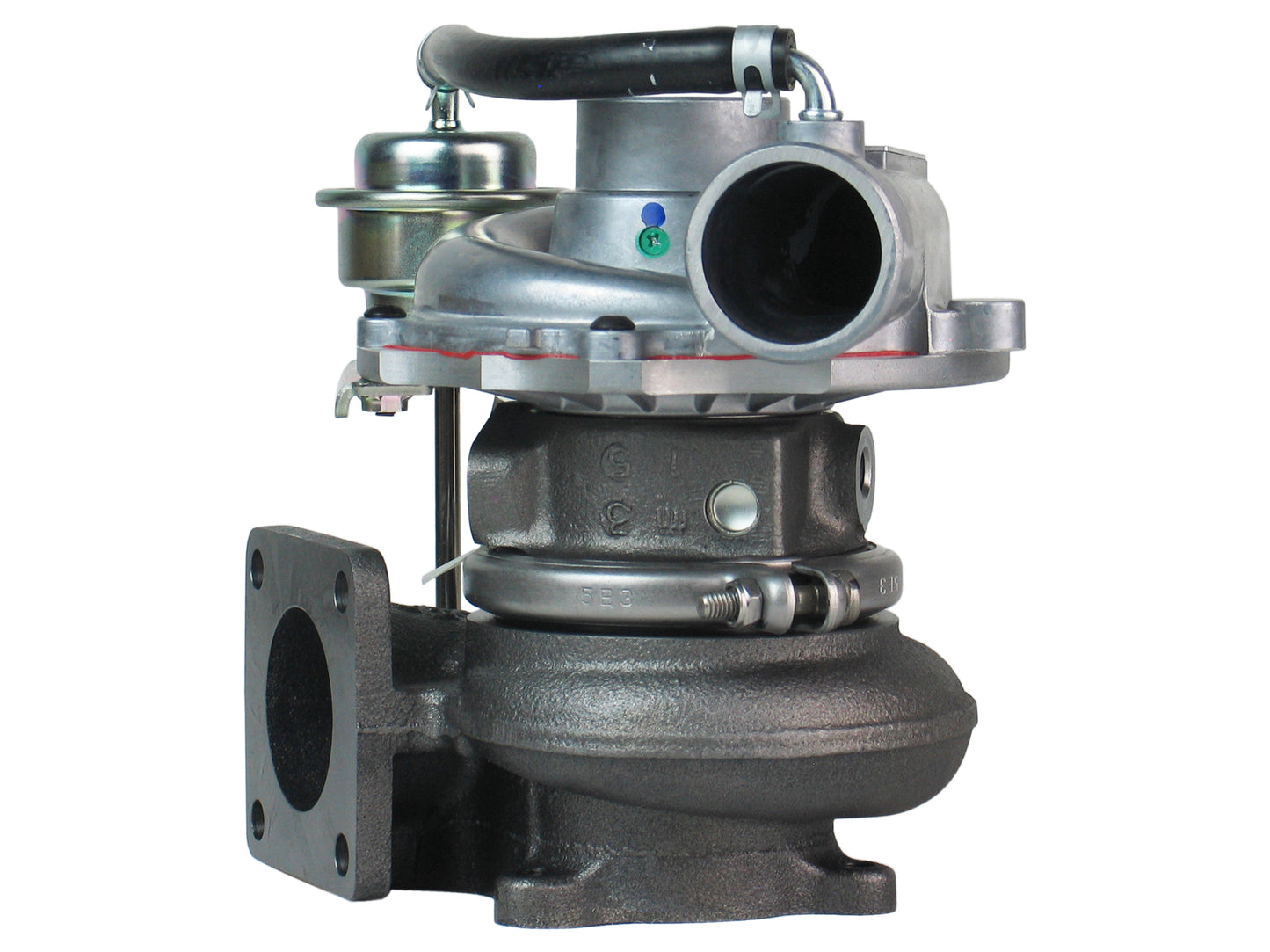

NEW OEM IHI RHF5 Turbo Yanmar Industrial Motor Marine 4TNV98T VD430095 CYEGSKU: CYEG
This is a BRAND NEW GENUINE IHI TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.
Fits the following:
Part Number: VD430095
Short Spec.: CYEG
Interchangeable Number: F51CAD-S0095B, F51CAD-S0095G, VC430095, VA430095, VB430095, VC430164, CYFB, CYFB 1206
OEM Number: 129935-18010, 12993518010, 16096-06781, 1609606781, 129928-18010, 12992818010, 5T-647
Turbo Model: RHF5, RHF5-70005P20NHBRL3511CEF
Manufacturer: IHI Turbo - CloverTurbo
Engine: 4TNV98T-GGE, 4TNV98T-N2FE
Engine Manufacturer: Yanmar
Displacement: 3.3L, 3319 ccm
Power: 84 HP
Angle α (Compressor Housing): 143°
Angle ß (Turbine Housing): 90°
Back Plate: 3530923 (1154351300)
CHRA: VAX50089 (1450050900)
Compressor Wheel: (Ind. 34.45 mm, Exd. 52.5 mm, 6+6 Blades, Super Back)
Gasket (Oil Outlet): 210636 (2445067)(Paper)
Gasket (Turbine Inlet): 210276 (2445051)(Stainless Steel)
Gasket (Turbine Outlet): 210578 (Inox Steel)
Heat Shield: (1450050340)
Repair Kit: NH459809
Turbine Housing A/R: 20
Yanmar Industrial Motor, Marine with 4TNV98T-GGE, 4TNV98T-N2FE Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
