R2S K16 K27.2 Turbo International Truck V126 Engine 10009880060

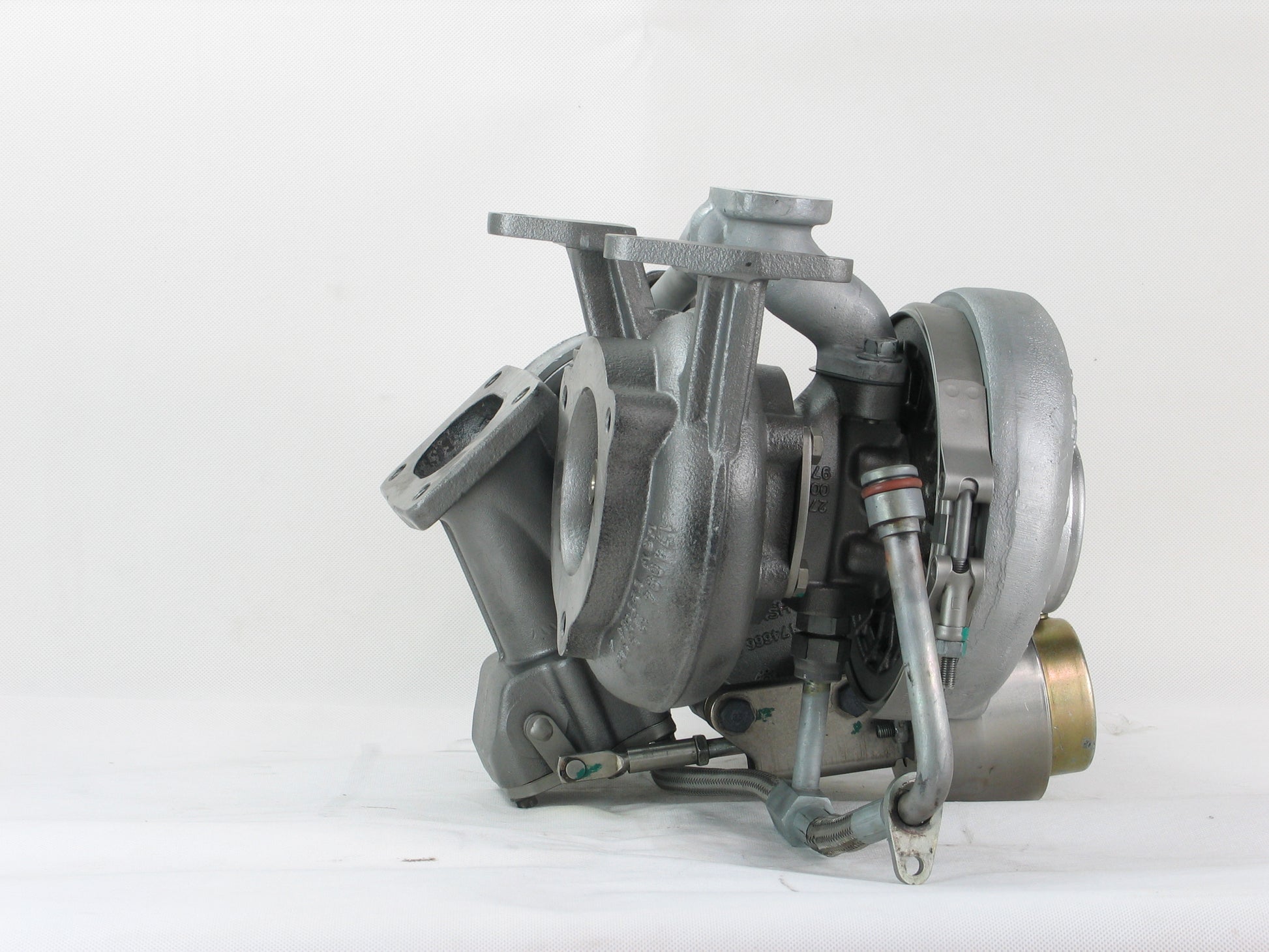

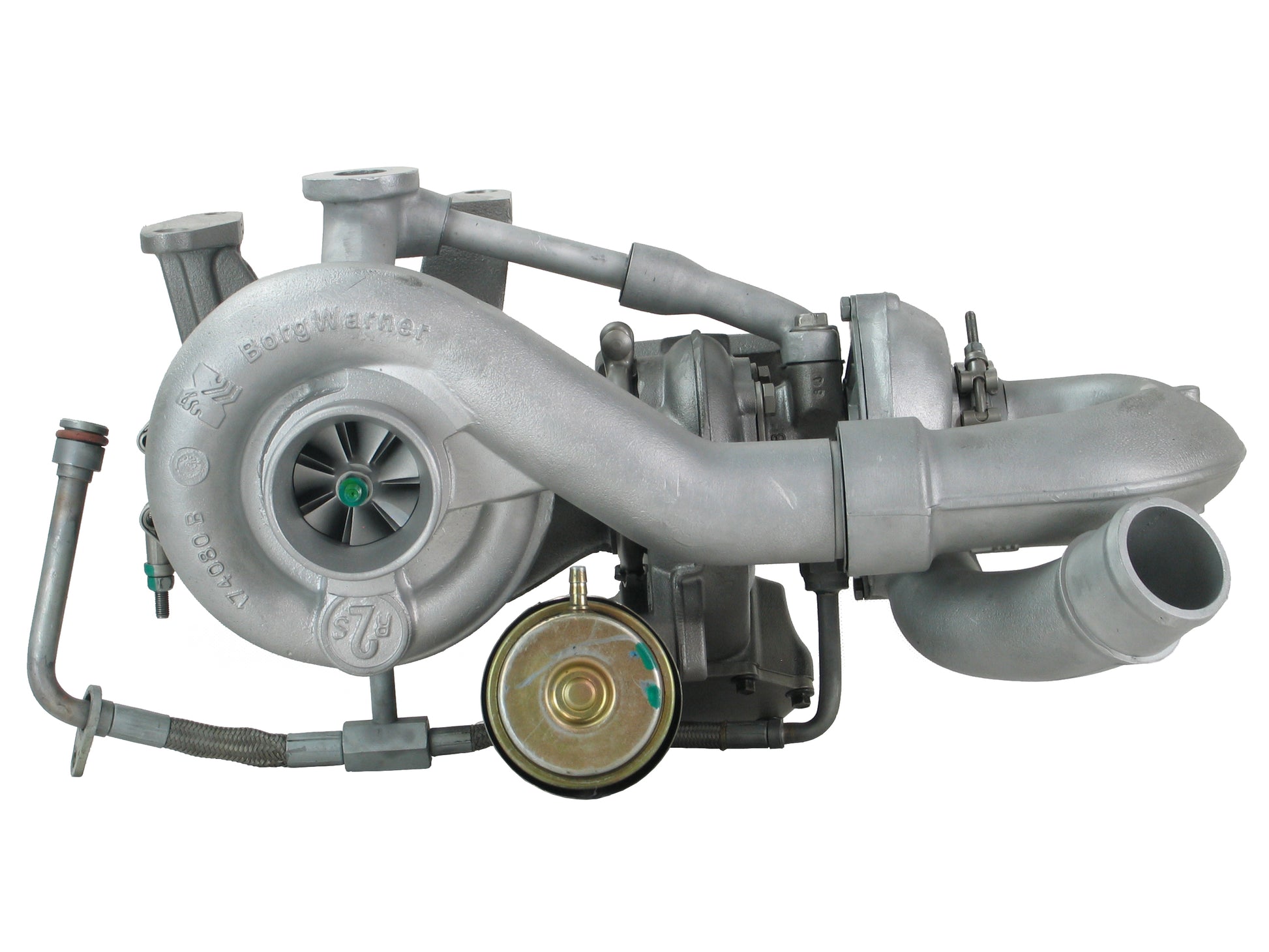

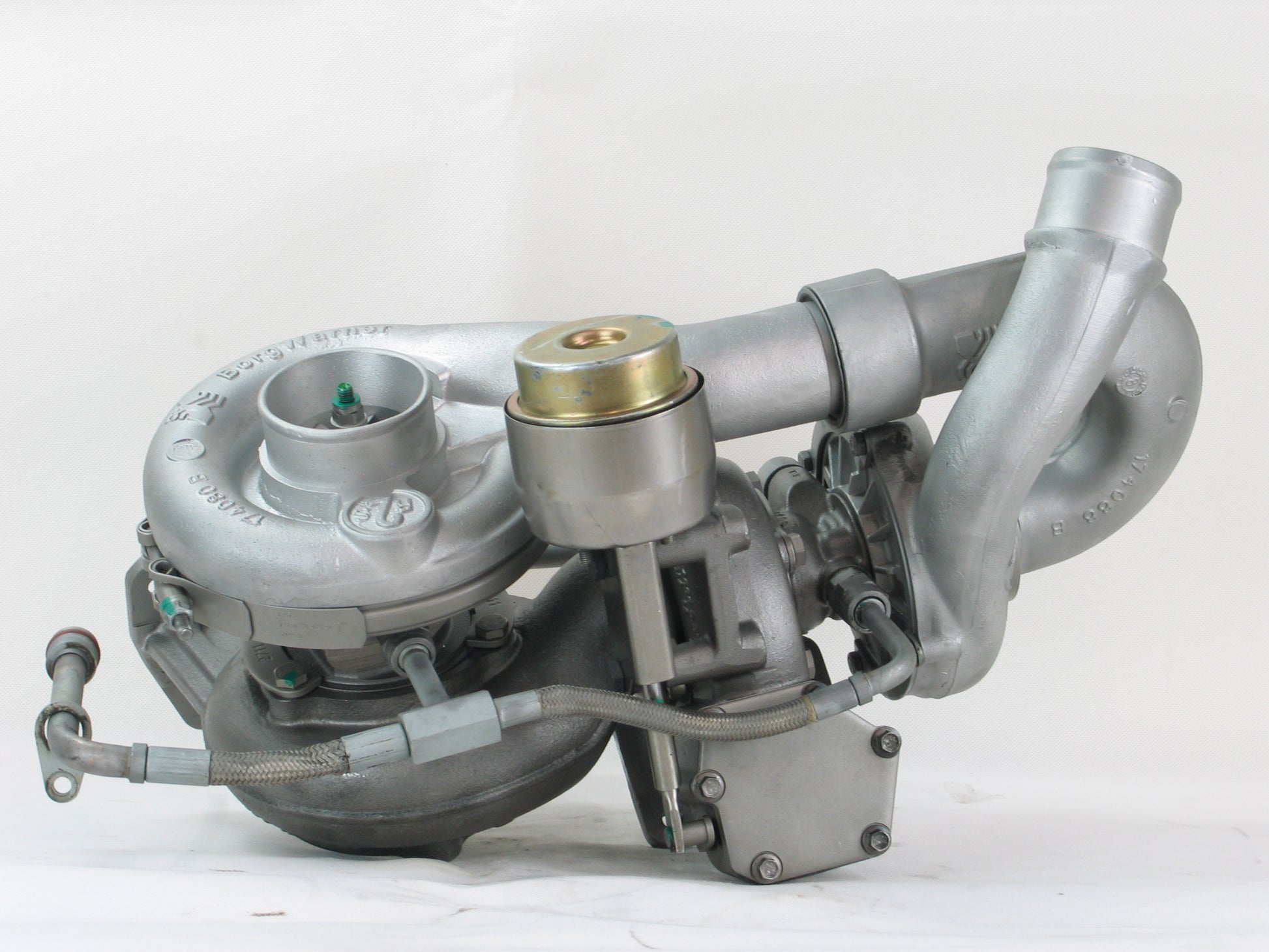

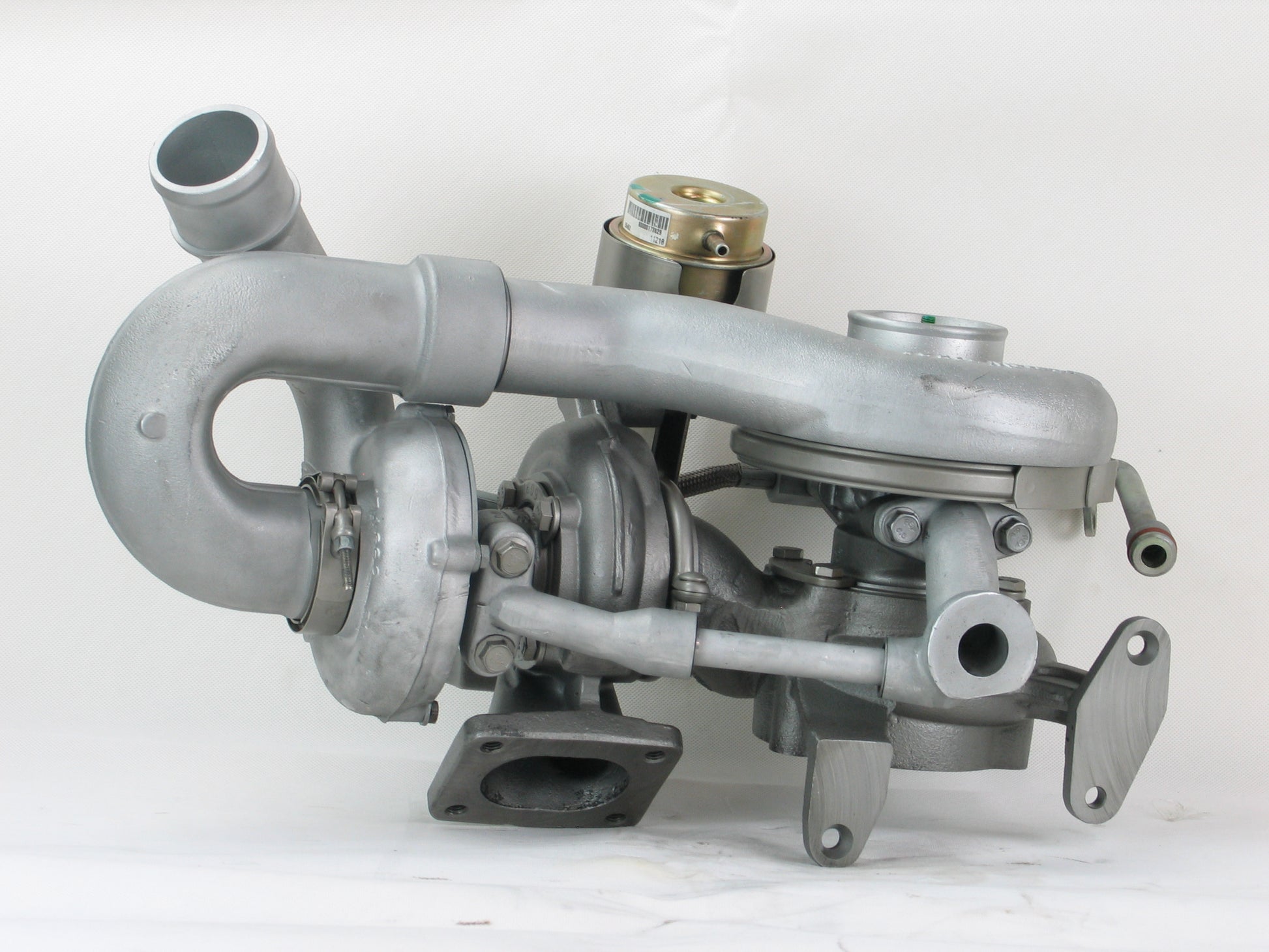

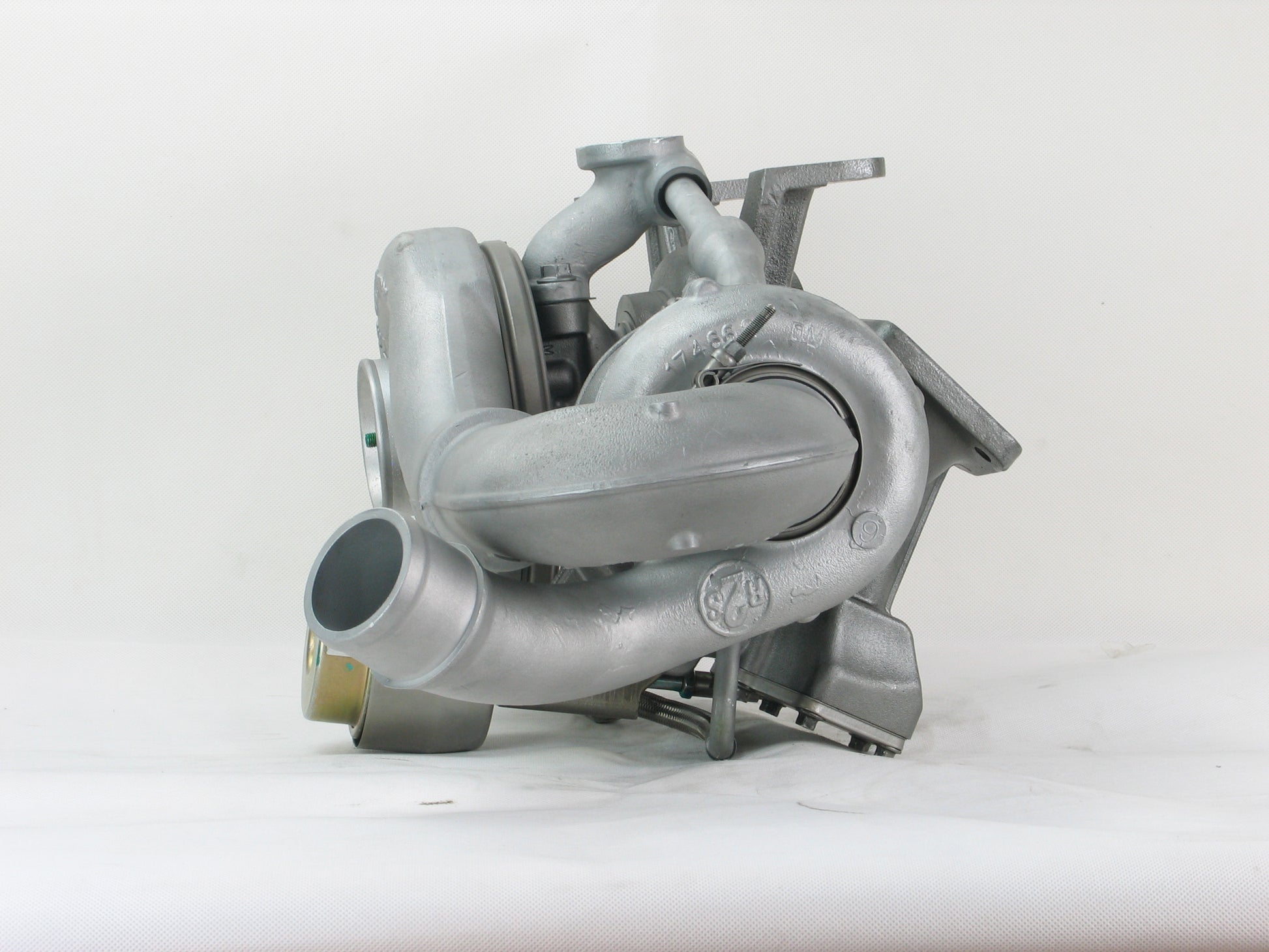

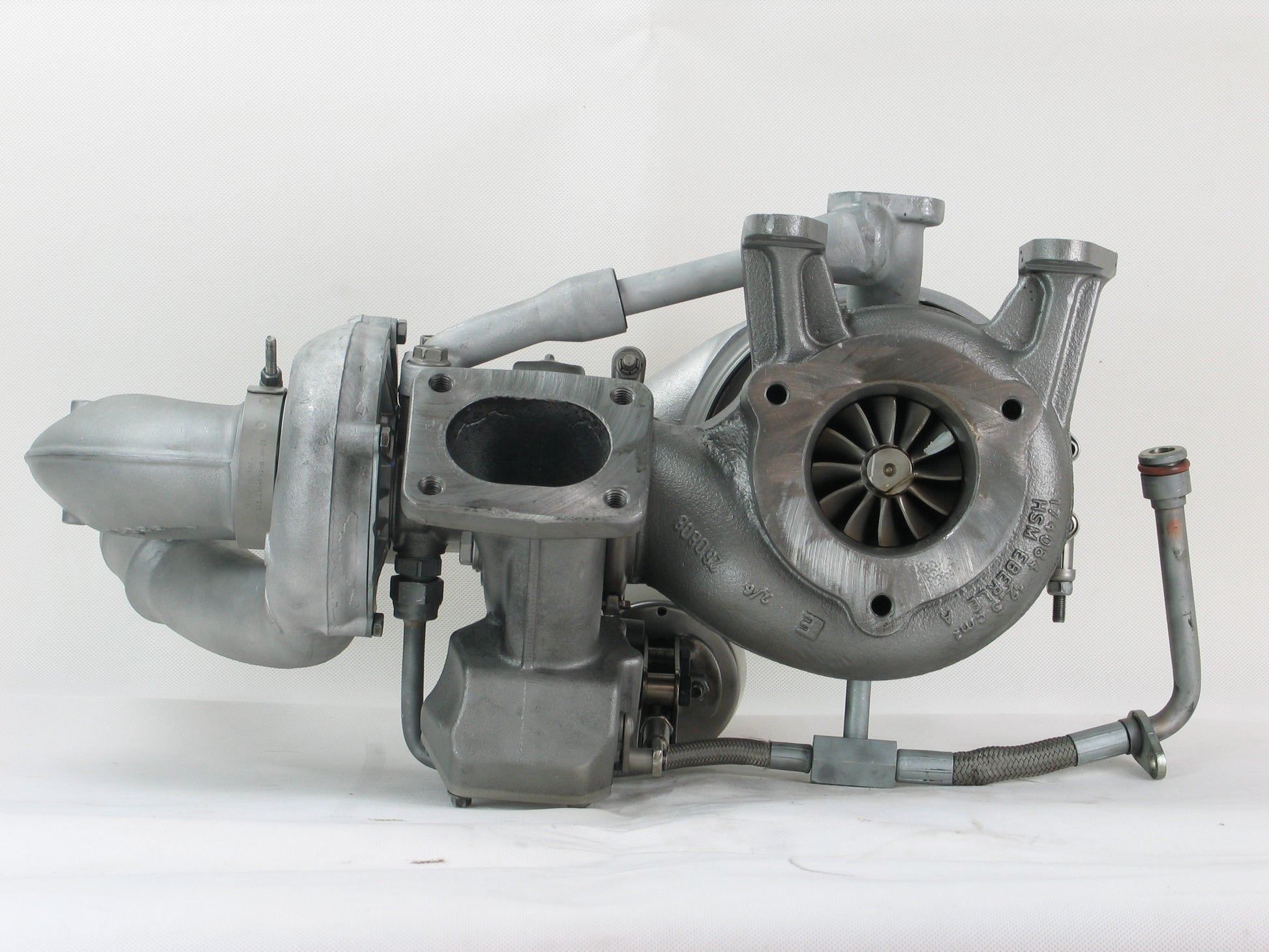

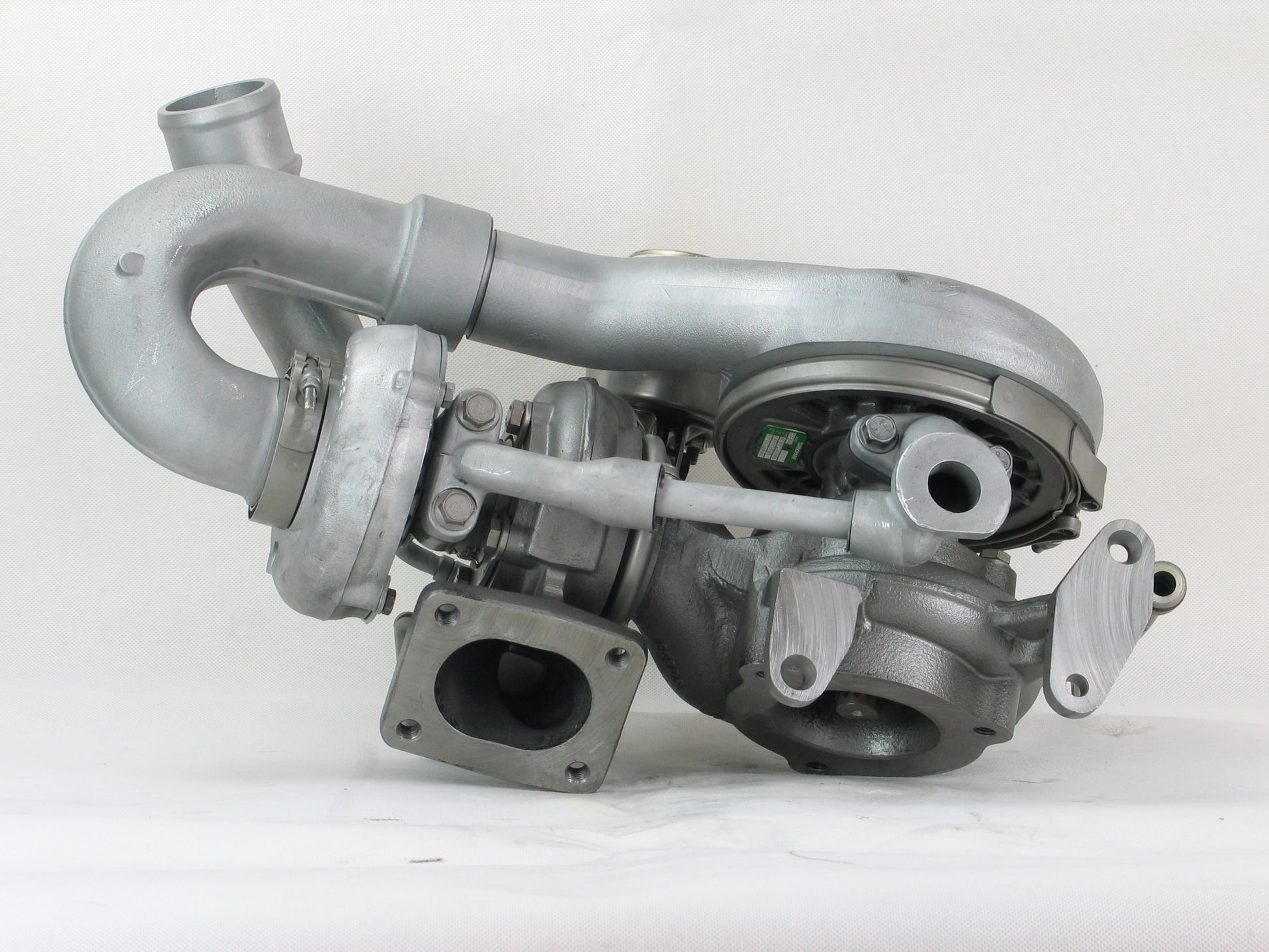

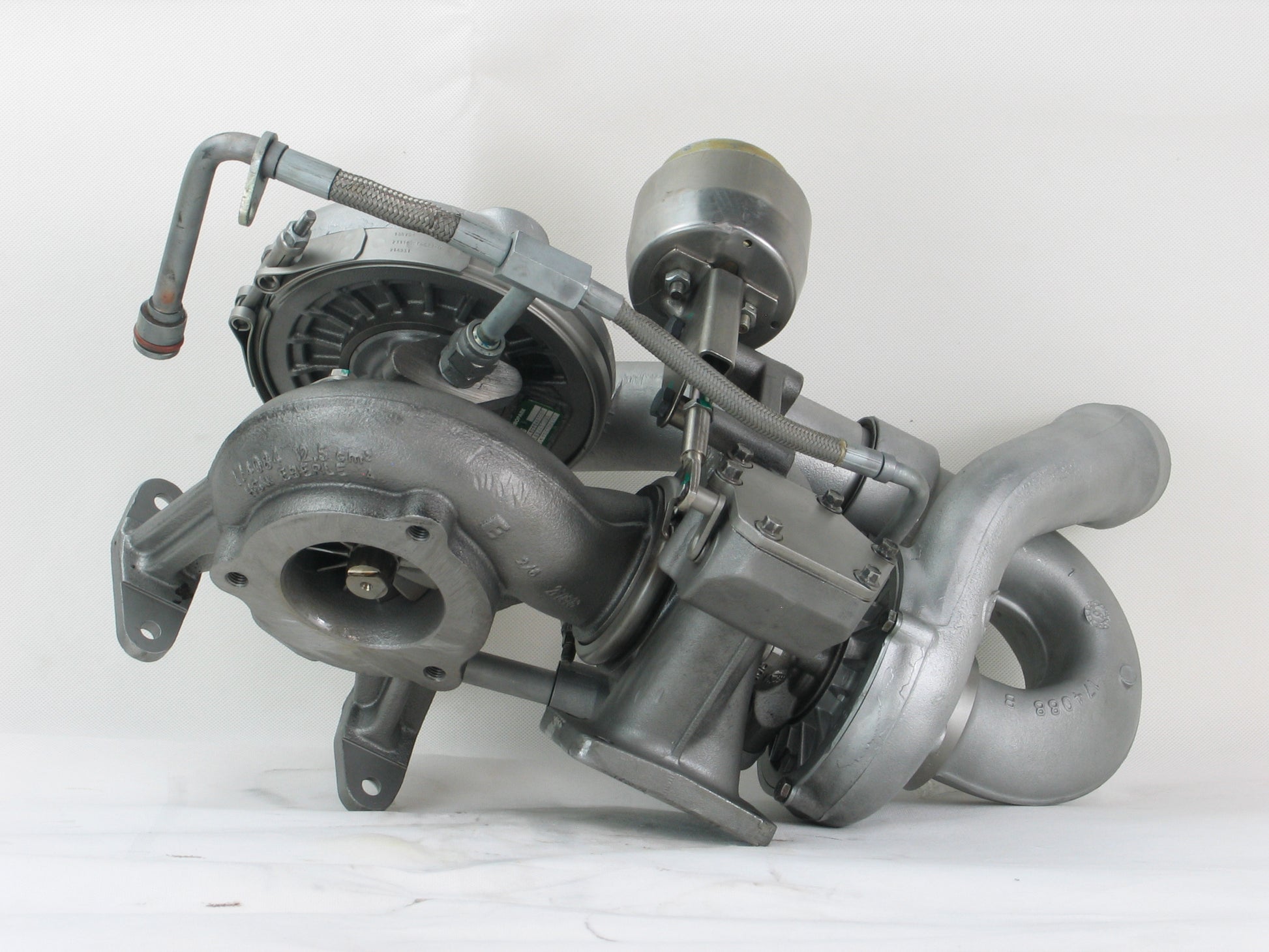

TURBOTURBOS REMANUFACTURED TURBOCHARGER

This is a TURBOTURBOS REMANUFACTURED TURBOCHARGER. This is an exact, direct fit replacement turbo.

Fits the following:

Part Number: 80000174667
Interchangeable Number: 10009700060, 1000-970-0060, 1000 970 0060, 10009880060, 1000-988-0060, 1000 988 0060, 70000174667, 80000174077, 80000174658
OEM Number: 1832398C91, 1832398C92, 1832398C93, 1832398C94, 1854407C91, 1854407C92, 1854407C93, 1854407C94, 1854407C95, 1872871C91, 5010137R94, 5010137R97, 5012711R91, 6E70-6K682-AC, 6E706K682AC, 6E7O-6K682-AC, 6E7O6K682AC, 6E7Z-6K682-A, 6E7Z6K682A, 6E7Z-6K682-AA, 6E7Z6K682AA, 6E7Z-6K682-AAR, 6E7Z6K682AAR, 6E7Z-6K682-AB, 6E7Z6K682AB, 6E7Z-6K682-ABR, 6E7Z6K682ABR
Turbo Model: R2S K16 + K27.2

Year: 2004-07
Engine: MaxxForce 5 V126
Engine Manufacturer: Navistar
Displacement: 4.5L, 4500 ccm
Fuel: Diesel
Power: 147 kW/200 HP

Actuator: (2061016277)
Back Plate: (1300016124)
Bearing Housing: (Oil Cooled)(1900011145B)
Bearing Housing: (Oil Cooled)(1900011223C)
CHRA (K16, High Pressure): 53167100537 (5316-710-0537, 80000174669)
CHRA (K27.2, Low Pressure): 53277100199 (5327-710-0199, 80000174078)(1000030179)
Compressor Wheel: (Ind. 50 mm, Exd. 73.92 mm, 7+7 Blades, Super Back)(1200016393)
Compressor Wheel: (Ind. 51.7 mm, Exd. 73.92 mm, Trim 7.05, (7+7) 6+6 Blades, Super Back)(1200016396)
Heat Shield: (2030016013)
Heat Shield: 53161652000 (1301016340)
Repair Kit: (1301016756, 5000040107)
Repair Kit: (5000040117B)
Turbine Wheel: (Ind. 62.87 mm, Exd. 69.94 mm, 12 Blades)(1100030038)
Turbine Wheel: 53161202113 (53161202115, 53161205000, 53161205019, 53161205023)(Ind. 62.57 mm, Exd. 63.94 mm, 12 Blades)(1301016436, 1100030036)

NOTE: R2S = Regulated 2-Stage.

Application:
2004-07 International Truck with Navistar MaxxForce 5 V126 Twin Turbo Engine
2006-07 Ford Truck LCF (Low Cab Forward) Truck with Navistar MaxxForce 5 V126 Twin Turbo Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
