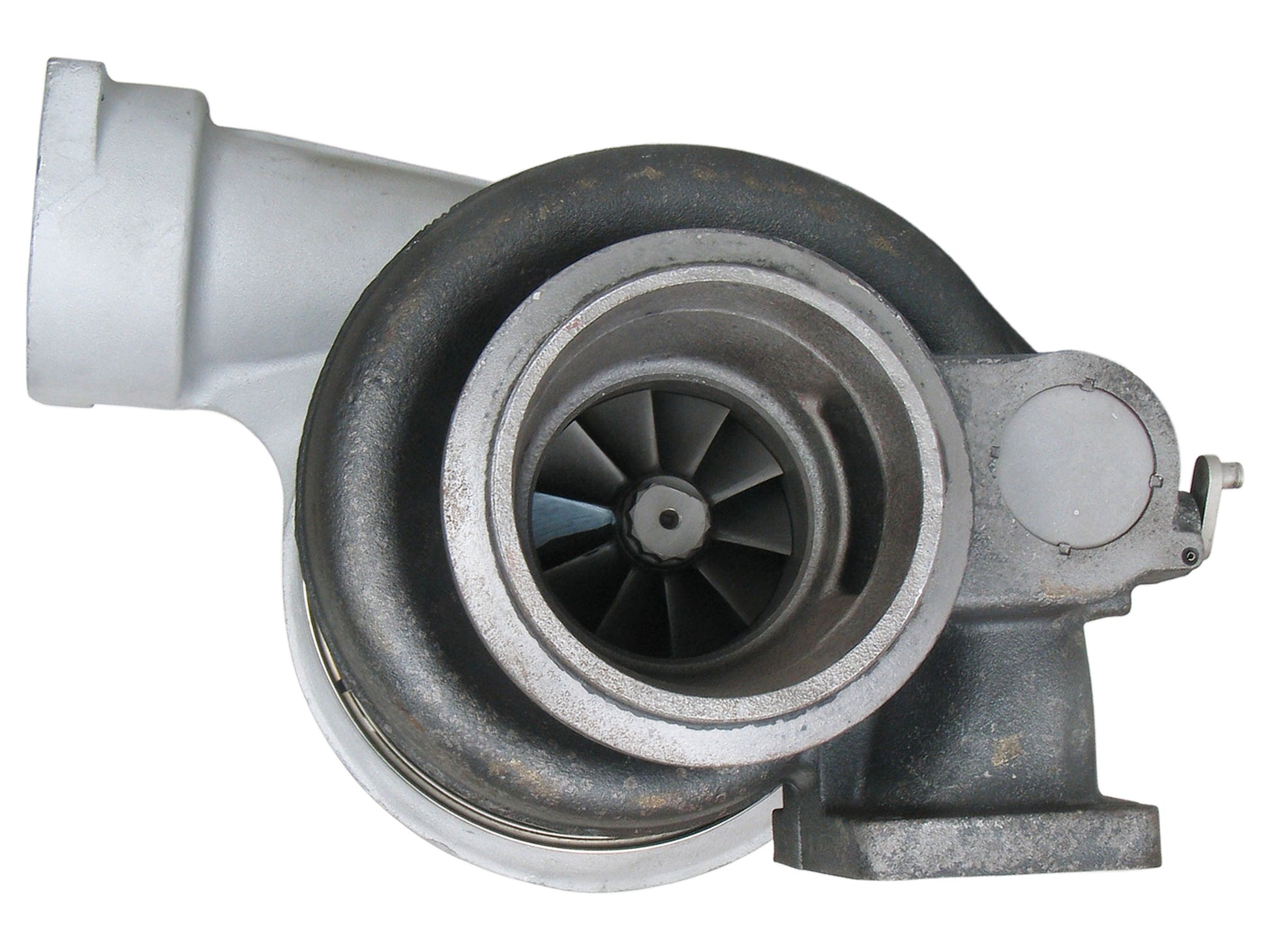

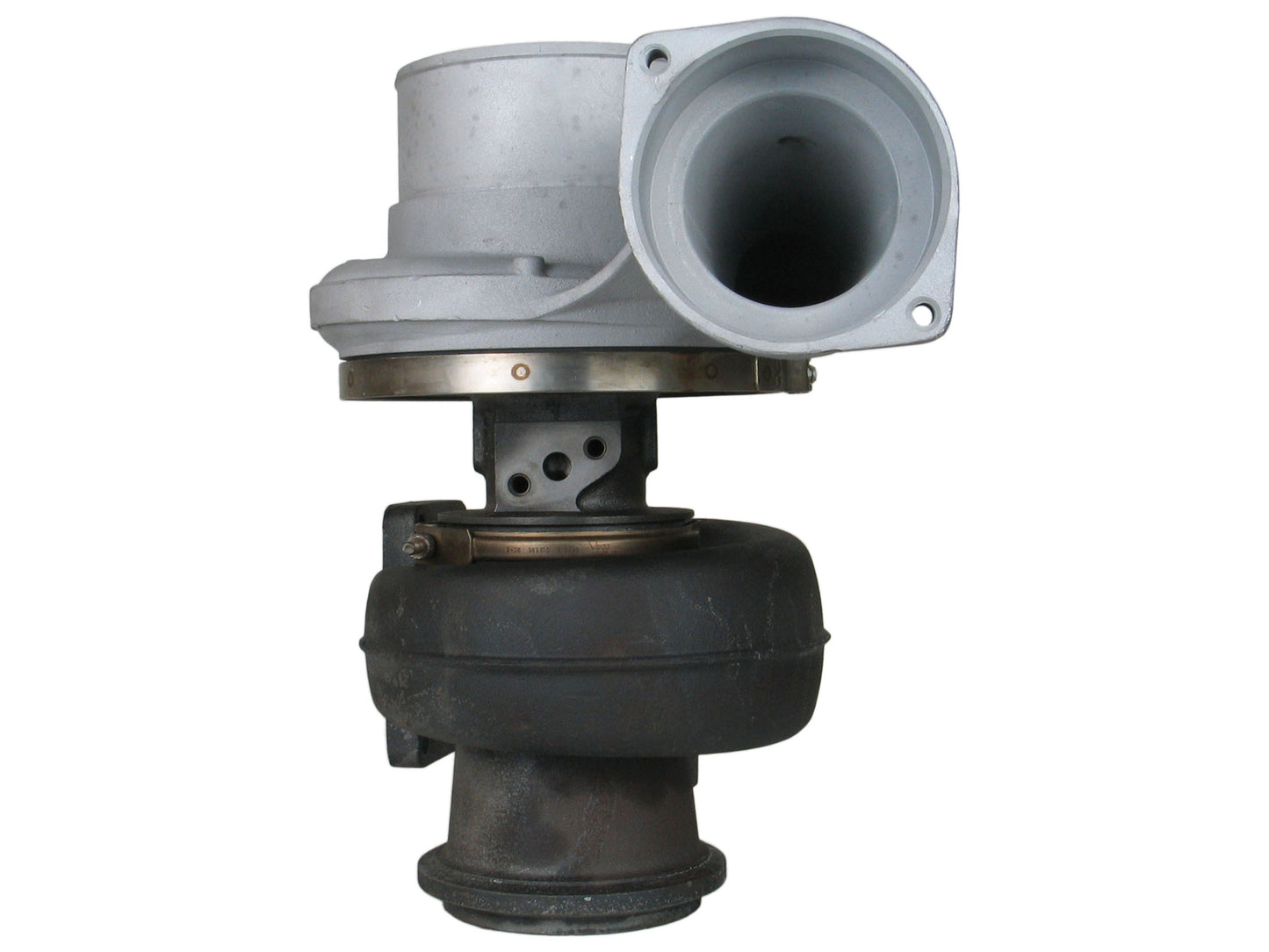

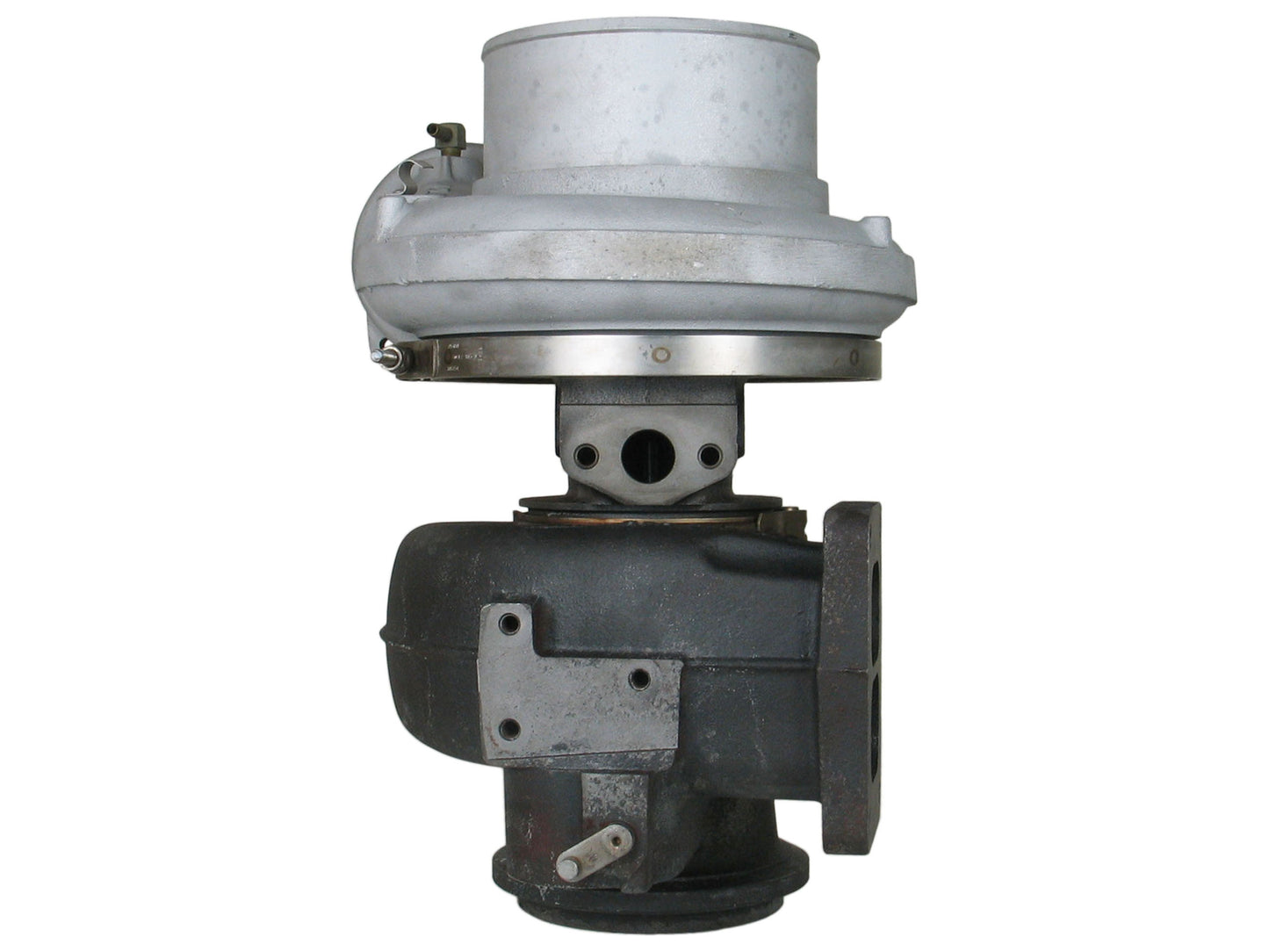

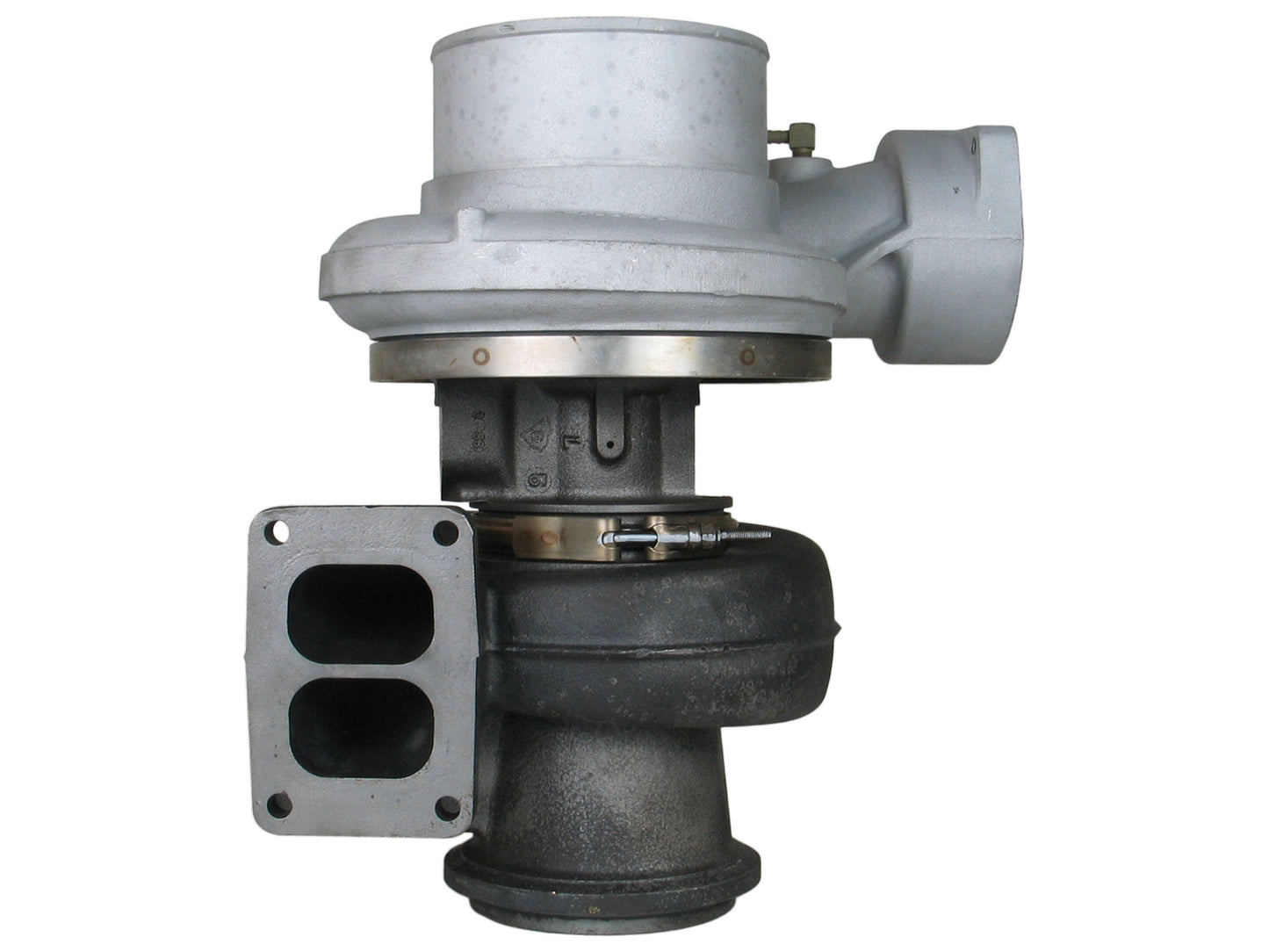

S410G Turbo Caterpillar Truck 3406C 3406E Engine 174260

TURBOTURBOS REMANUFACTURED TURBOCHARGER

This is a TURBOTURBOS REMANUFACTURED TURBOCHARGER. This is an exact, direct fit replacement turbo.

NOTE: This turbocharger is missing the actuator.

Fits the following:

Part Number: 174260
Interchangeable Number: 471120-0001, 471120-5001, 471120-5001S
OEM Number: 0R-6990, 0R6990 0R-7205, 0R7205, 124-3759, 1243759, 132-3649, 1323649
Turbo Model: S410G
Serial Number: 5EK99999-99999, 6TS681-99999

Year: 1994-01
Engine: 3406C, 3406E, 3456
Engine Manufacturer: Caterpillar
Displacement: 14.64L, 14640 ccm
Fuel: Diesel
Power: 372 kW/500 HP
Speed: 1800 RPM

CHRA: 174248 (712371-5007, 451686-9007, 451686-0001, 0R7088, 1312428, 1964153)
Compressor Cover: 1267966, 1963846
Turbine Housing: 1243762

NOTE:

174260 is upgrade from 174259. Use 177148 for 550 HP applications.

The 174260 and the 177148 are very similar turbos, the wheel measurements are exactly the same, the only difference is the exhaust housing. 174269 uses 1.10 A/R wastegated housing while 177148 uses a 1.32 A/R housing.

The overall horsepower different between the two and what they will support is 100 hp. The larger housing allows the engine to breathe a little better and will support 600 HP versus 500 HP for the smaller housing.

Application:
1994-01 Caterpillar Industrial with 3456 Engine
1994-01 Caterpillar Truck with 3406C, 3406E Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
