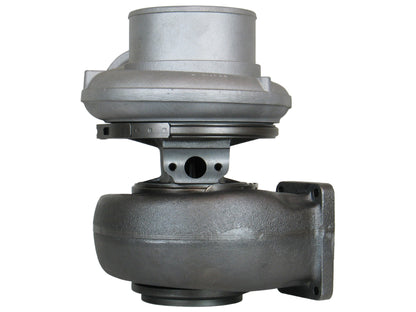

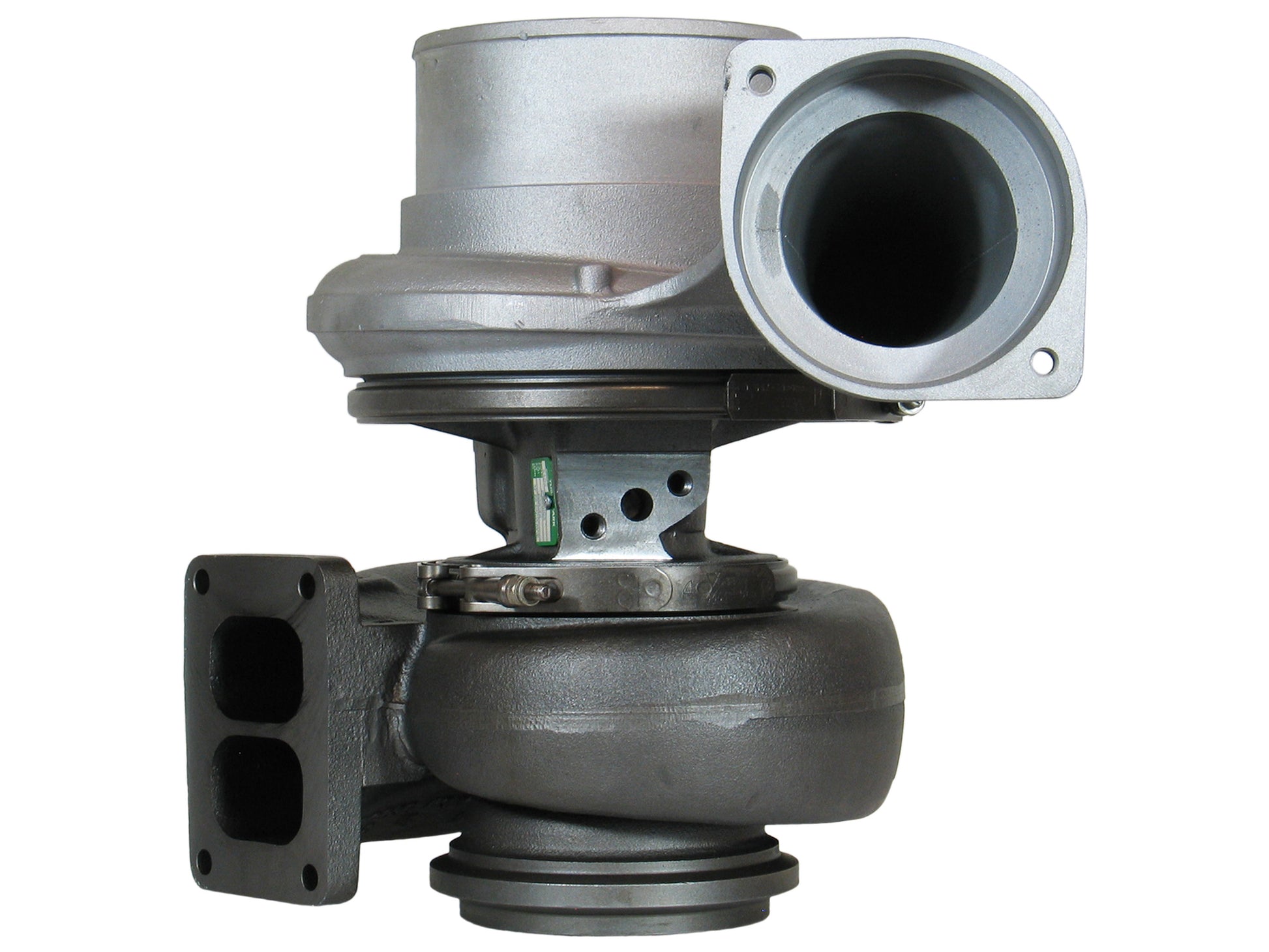

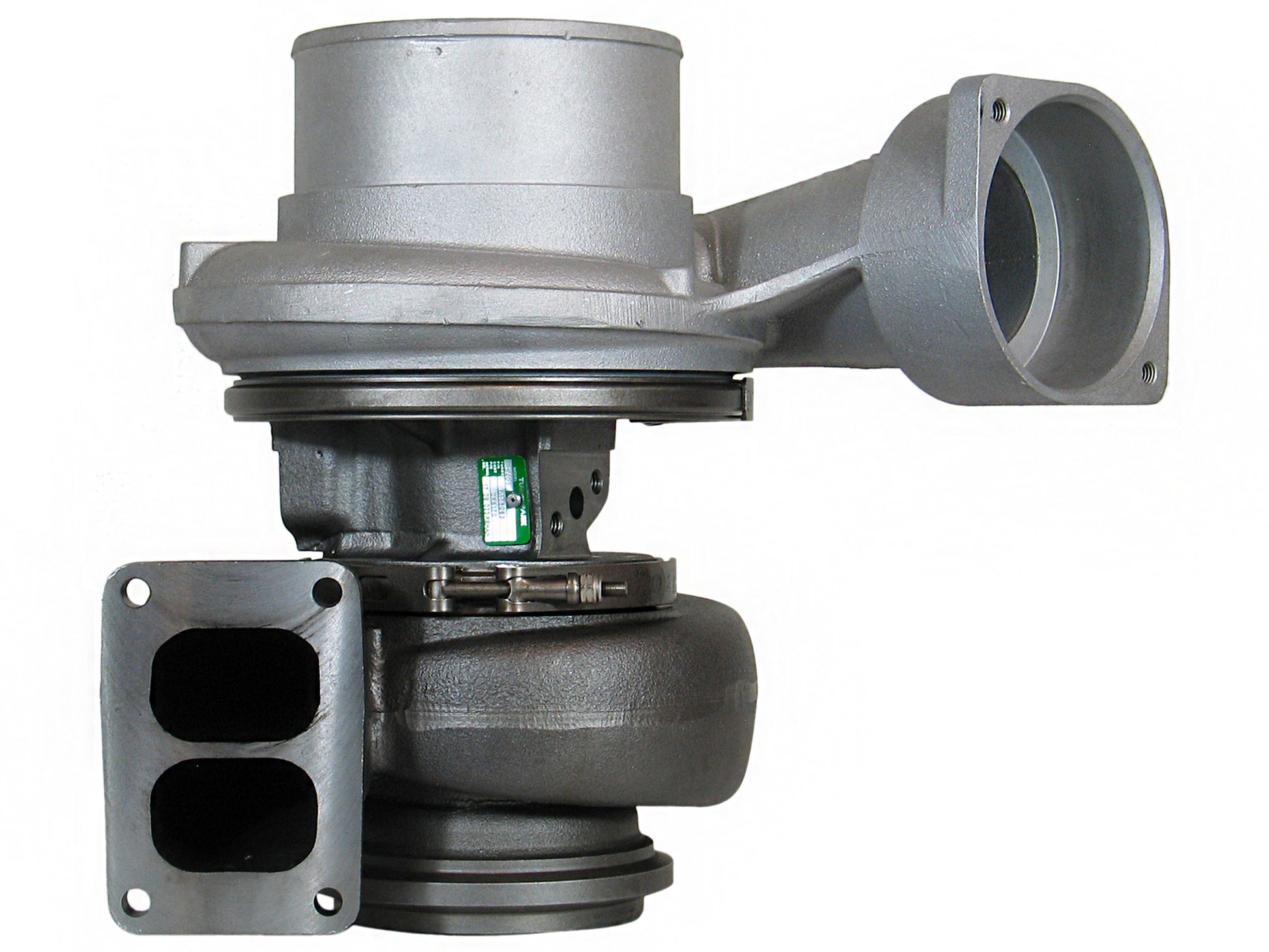

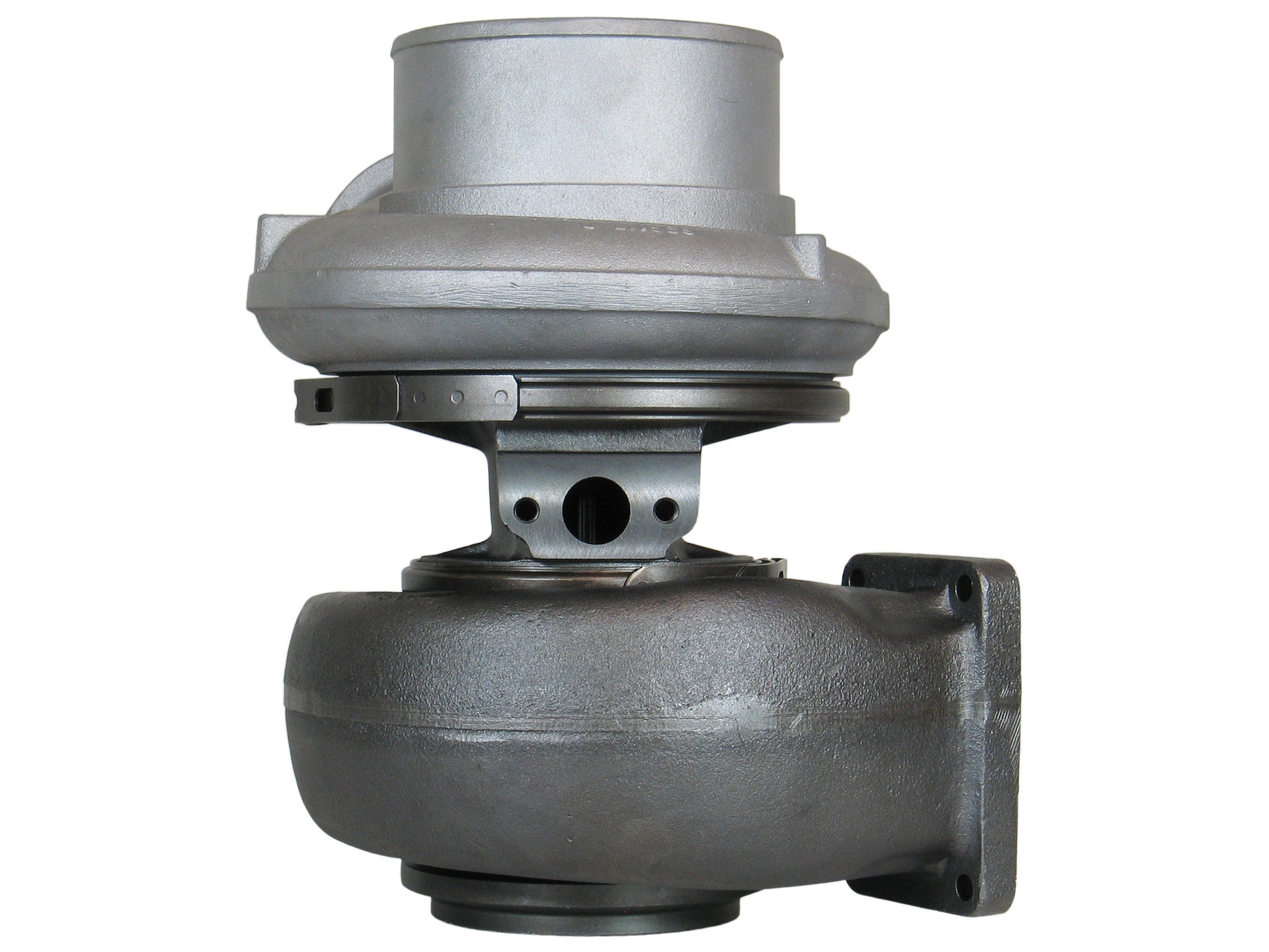

Caterpillar Truck 3406B Diesel 14.6L 199119 178063 S4DS025 TurboSKU: F178063
This is a TURBOTURBOS REMANUFACTURED TURBOCHARGER. This is an exact, direct fit replacement turbo.
Fits the following:
Part Number: 178063
Previous Version: 178120, 198123, 199114, 466372-9002, 466903-X001, 466041-0001, 466903-X001, 466903-0001, 466903-9001S, 466903-5001S , 466372-0002, 466372-5002, 466372-9002 OE Number: 0R6170, 4P2858, 4P2458, 0R5733, 7W9568, 0R6957, 0R6055, 0R6167, 0R6168, 0R6959, 4P2061, 0R6051, 0R6053, 0R6169, 0R6558, 0R6955, 0R6689, 0R6783, 0R6784, 0R6960, OR5733, OR6053, OR6169, OR6170, OR6558, OR6955, OR6957, OR6689, OR6783, OR6784, OR6956
Description: Commercial Truck
Applications: 1990-02 Caterpillar Commercial Truck with 3406B Engine
Manufacturer Part Number: 199119, 466372-X002, 466903-X001
CHRA: 169415 (0R7195, 1412023, 178171)
Turbo Model: S4DS025
Prefix: 2EK, 4CK
Displacement: 14.6L, 14600 ccm
RPM Max: 1800
Truck Engine: 3406B, 3406C
S/N: 2EK1-1930, 8TC1413-14492
Angle ? (compressor housing): 292°
Angle ? (turbine housing): 82°
Bearing Housing: 199143 (199144, 4P3627)
Turbine Wheel: 189553 (7W3842)
Comp. Wheel: 169413 (4P3624, 1412010)(Ind. 75.15 mm, Exd. 98.99 mm, Trm 10.34, 6+6 Blades)
Back plate: 197651 (51135, 5S4556, 142066, 49162-22500, 52321523000, 52321523001, 143044-0000)(1250403300)
Heat shield Number: 187517 (4W7355)
Repair Kit: 318406 (318408)(311144)(1252419755)

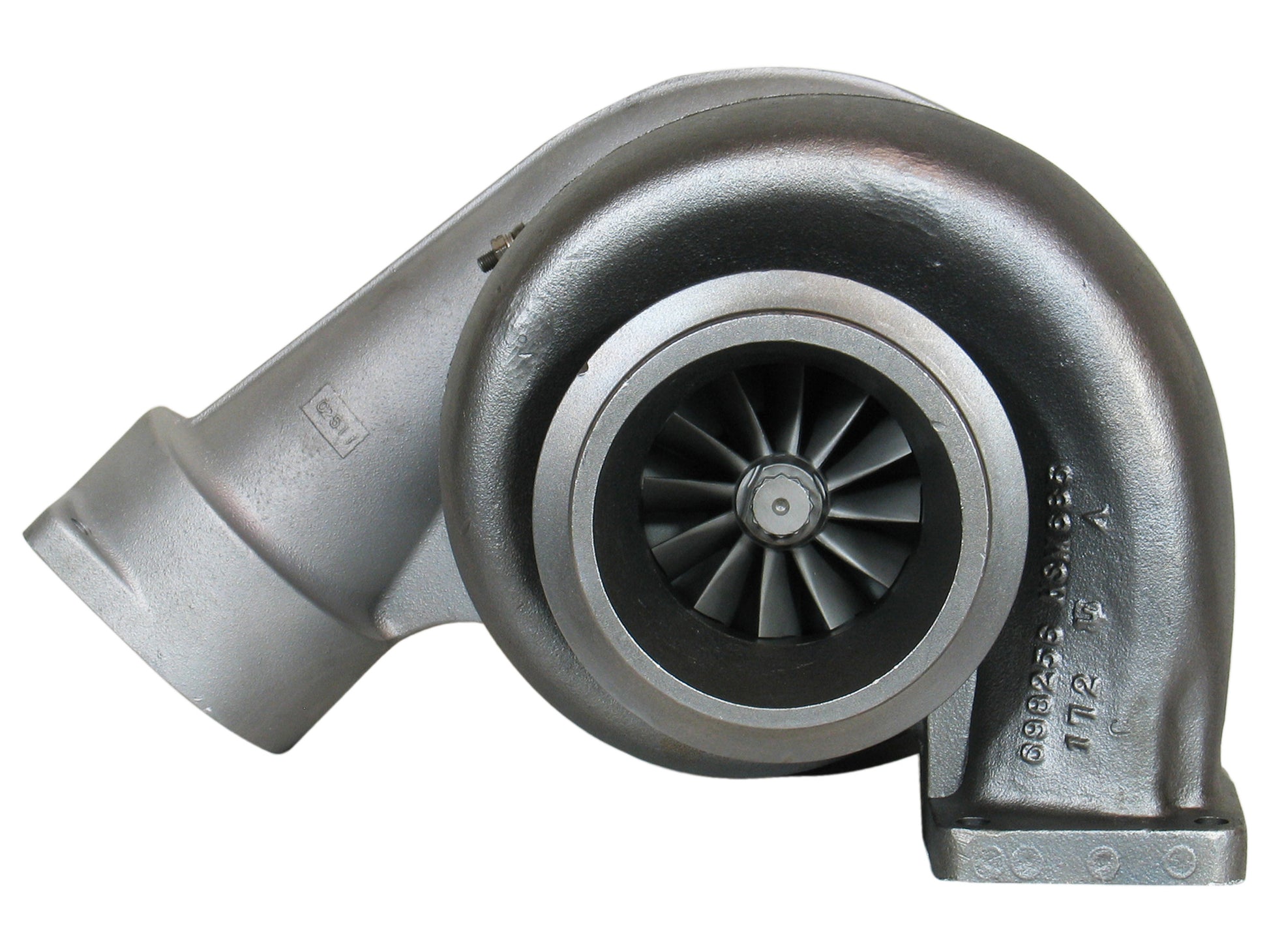

Turbine Housing: 198236 (7E2907)

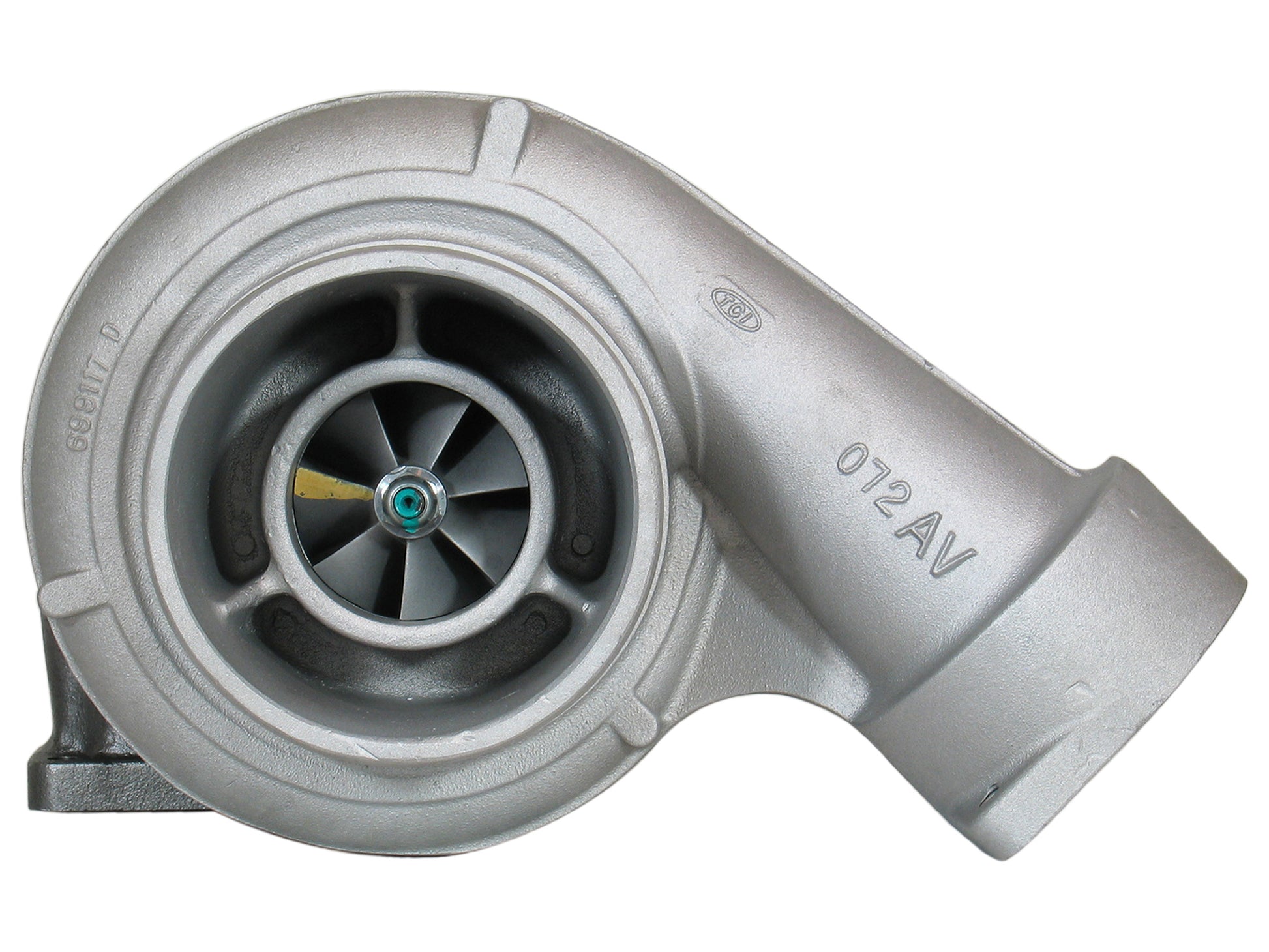

Compressor Cover: 199117 (4P3625)
Turbine Housing AR: 1.72
Gasket (turbine inlet): 409038-0000 (132040, 52231083002)
Gasket oil inlet: 129119 (210019, 201049, 9737, 1S6595, 210019-0000, 409266-0003, 3819900, 129120)(417378 Replaced by 420641)(1900000035)
Gasket (oil outlet): 210018 (210018-0000, 129120, 409267-0002, 201048, 157602, 3037537, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763)(1900000025)
NOTE: Upgrade Turbo for CAT 3406B and 3406C.
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
