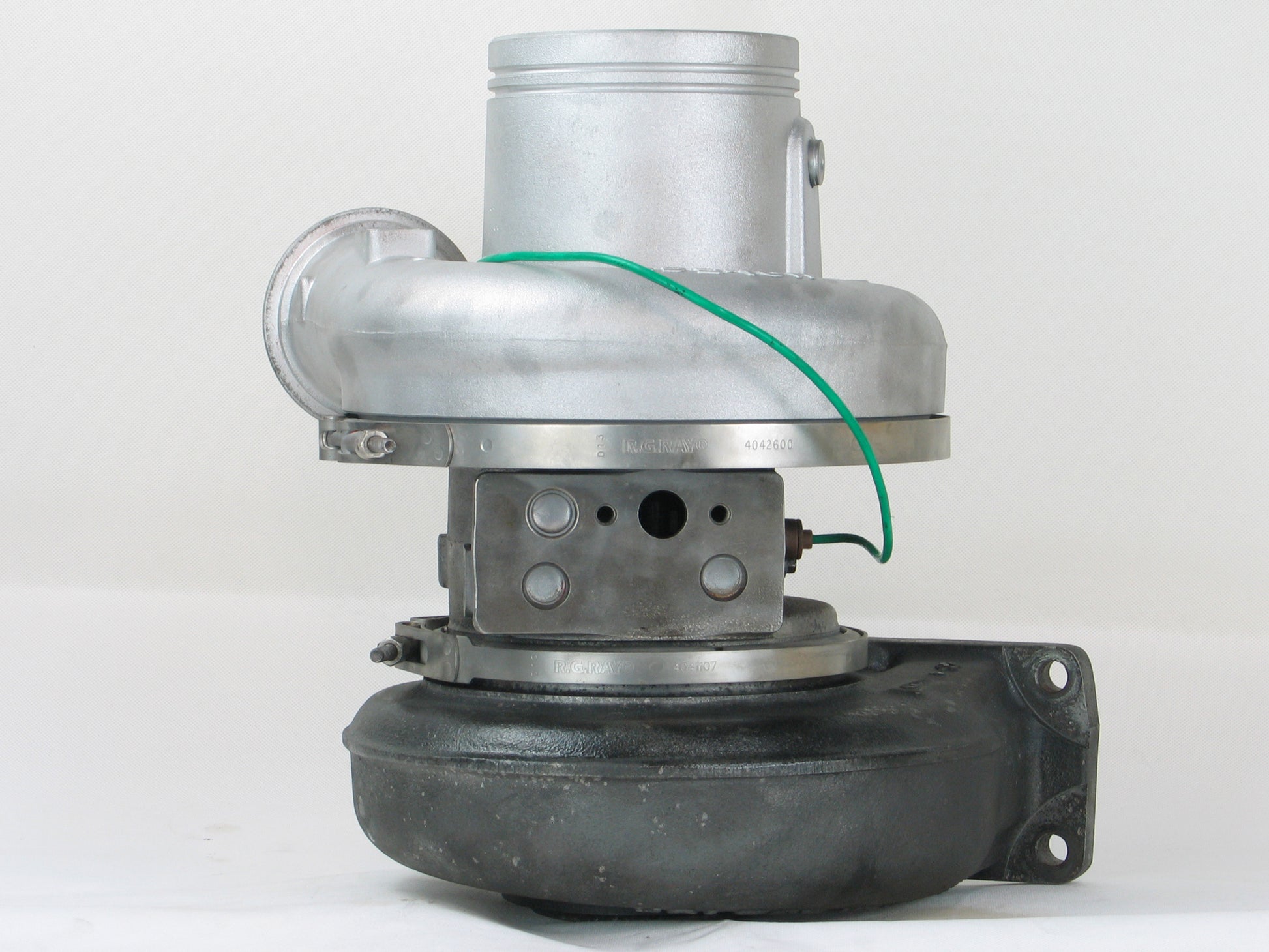

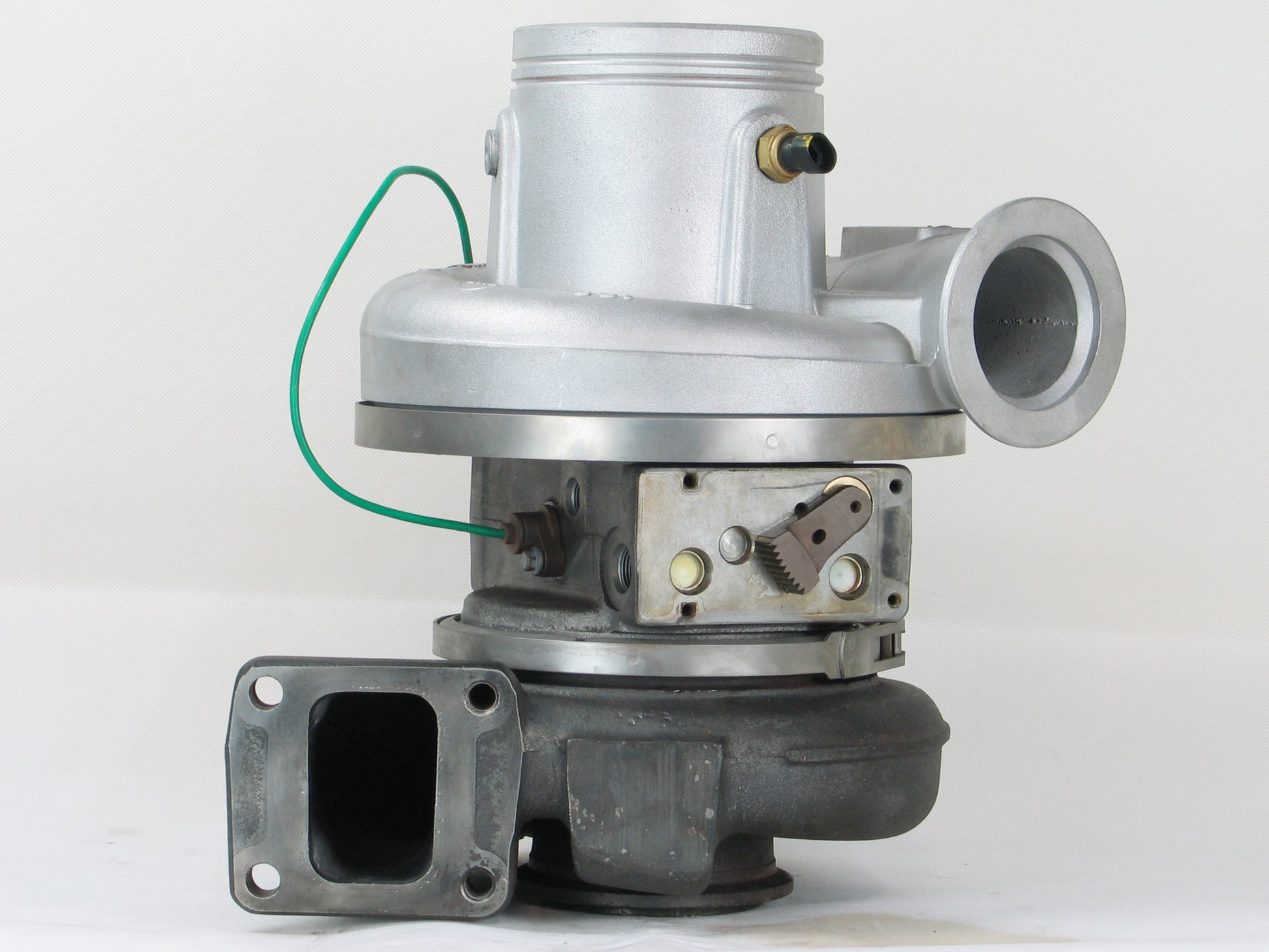

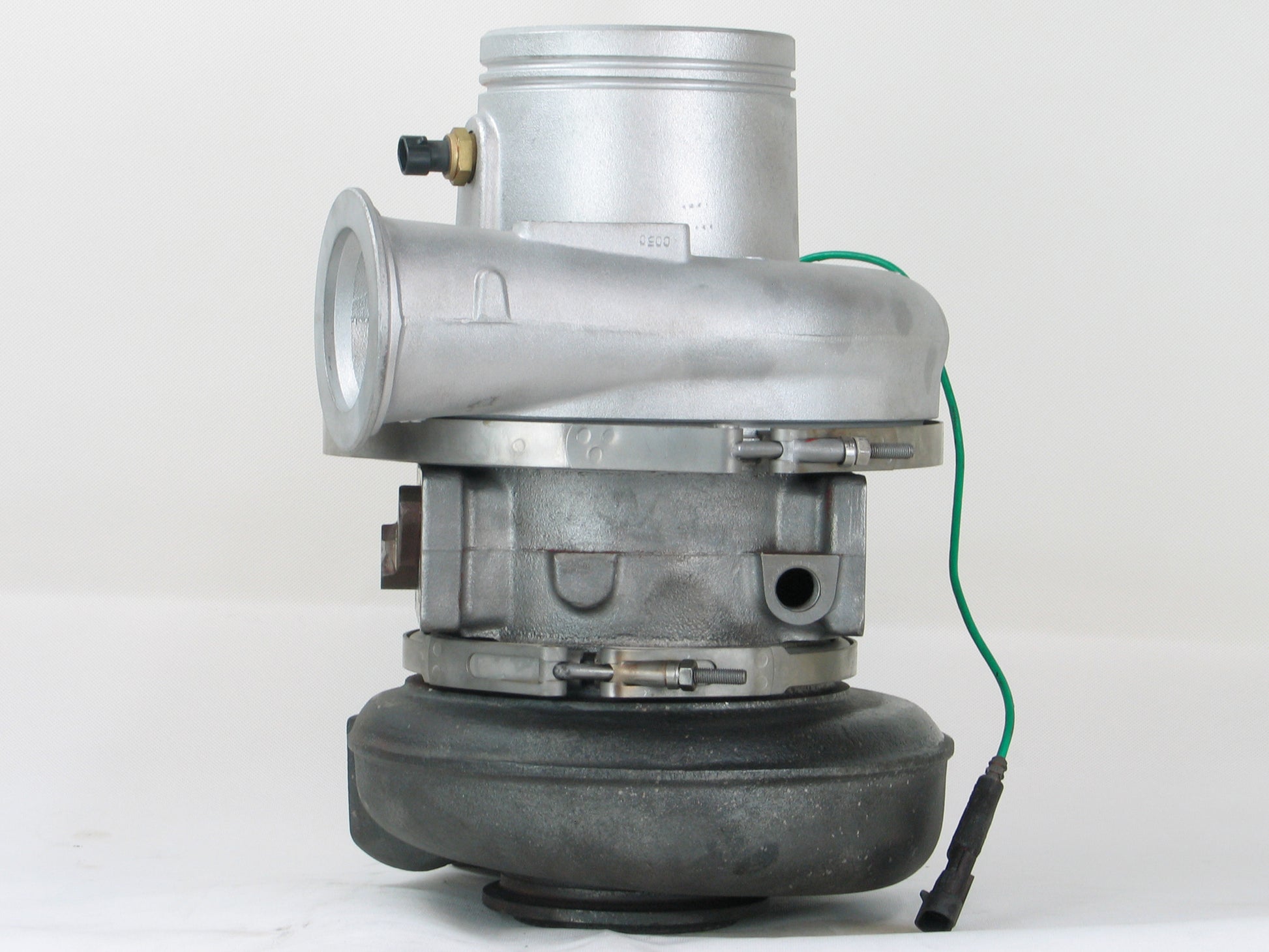

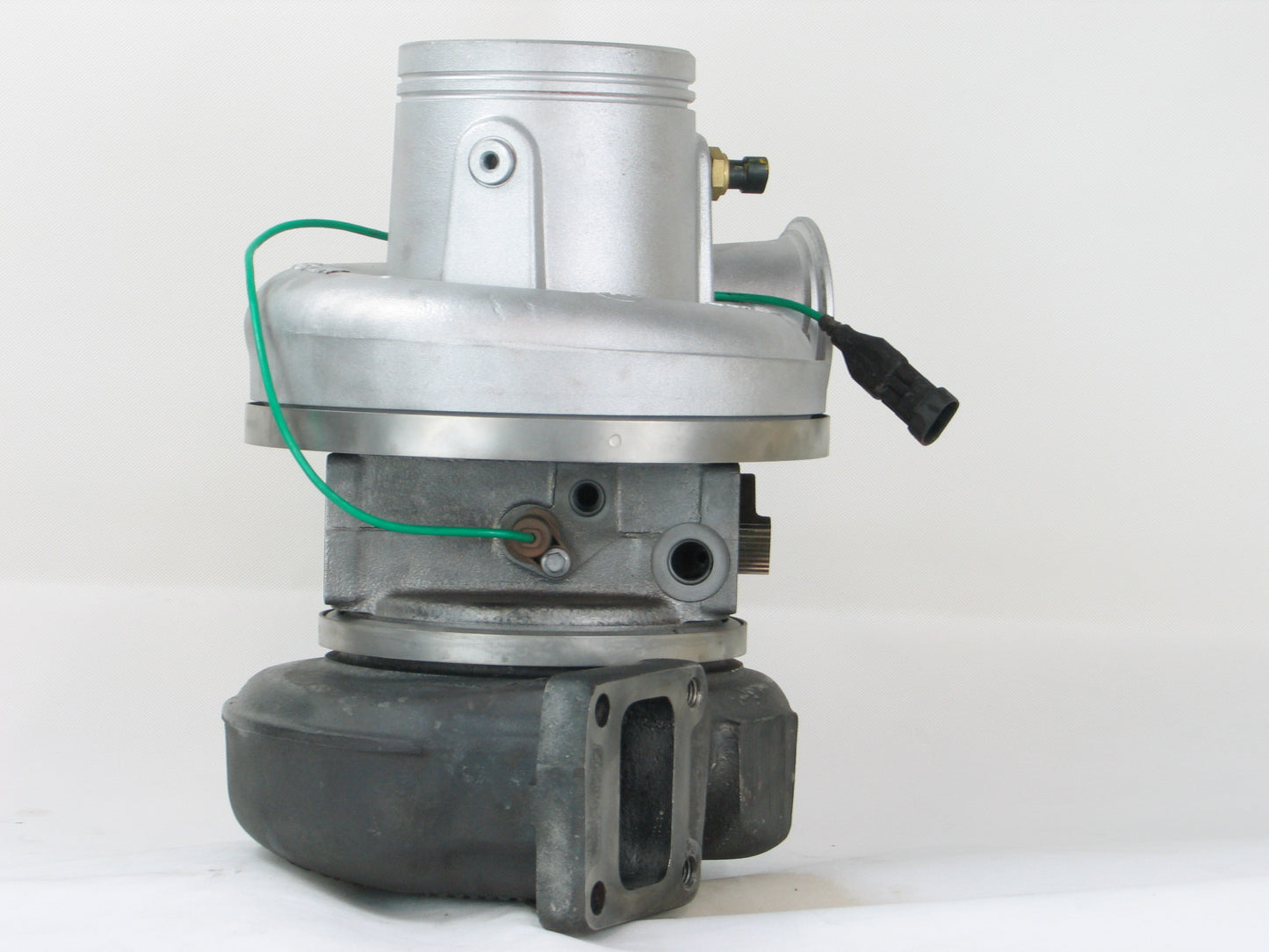

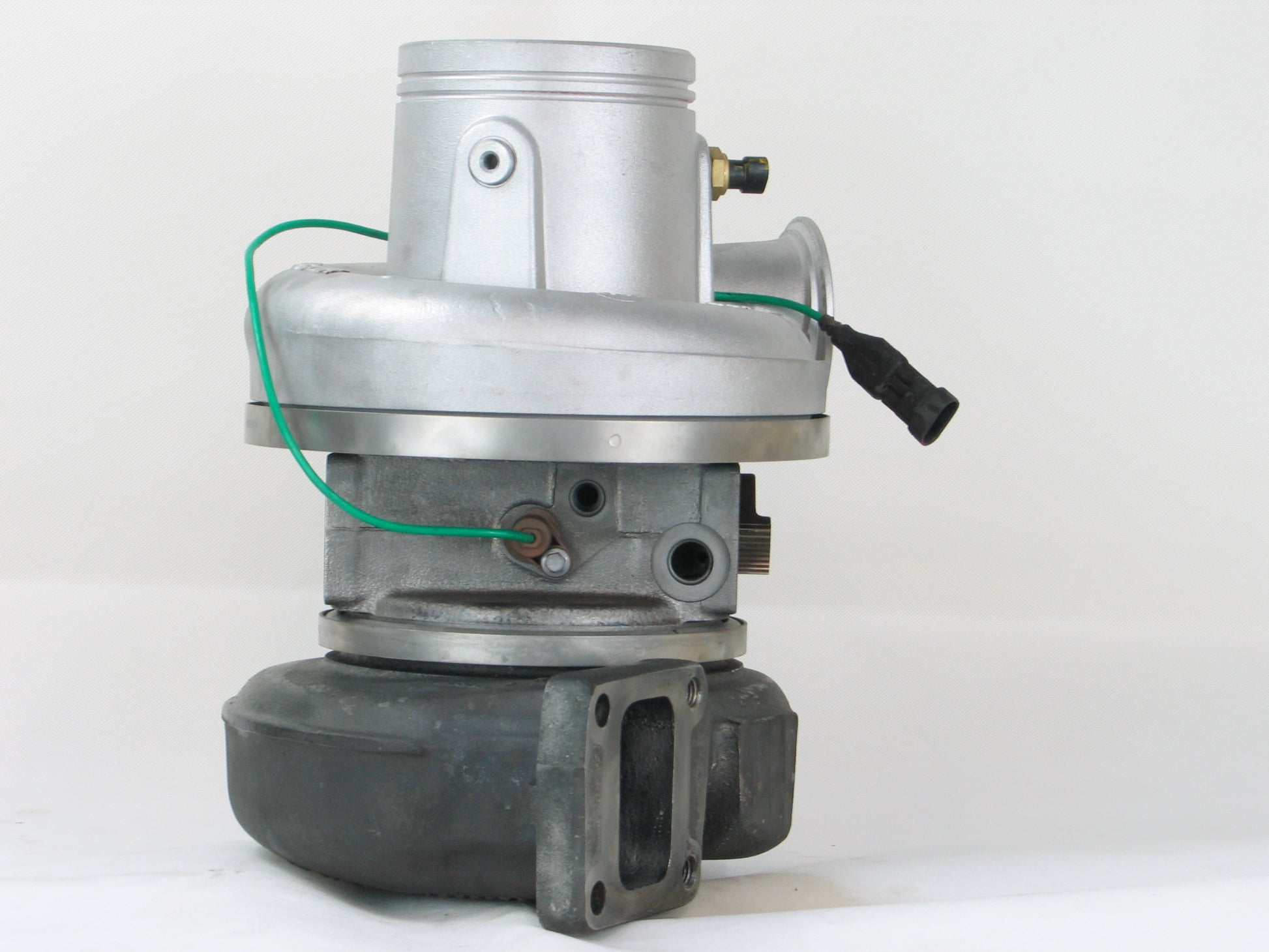

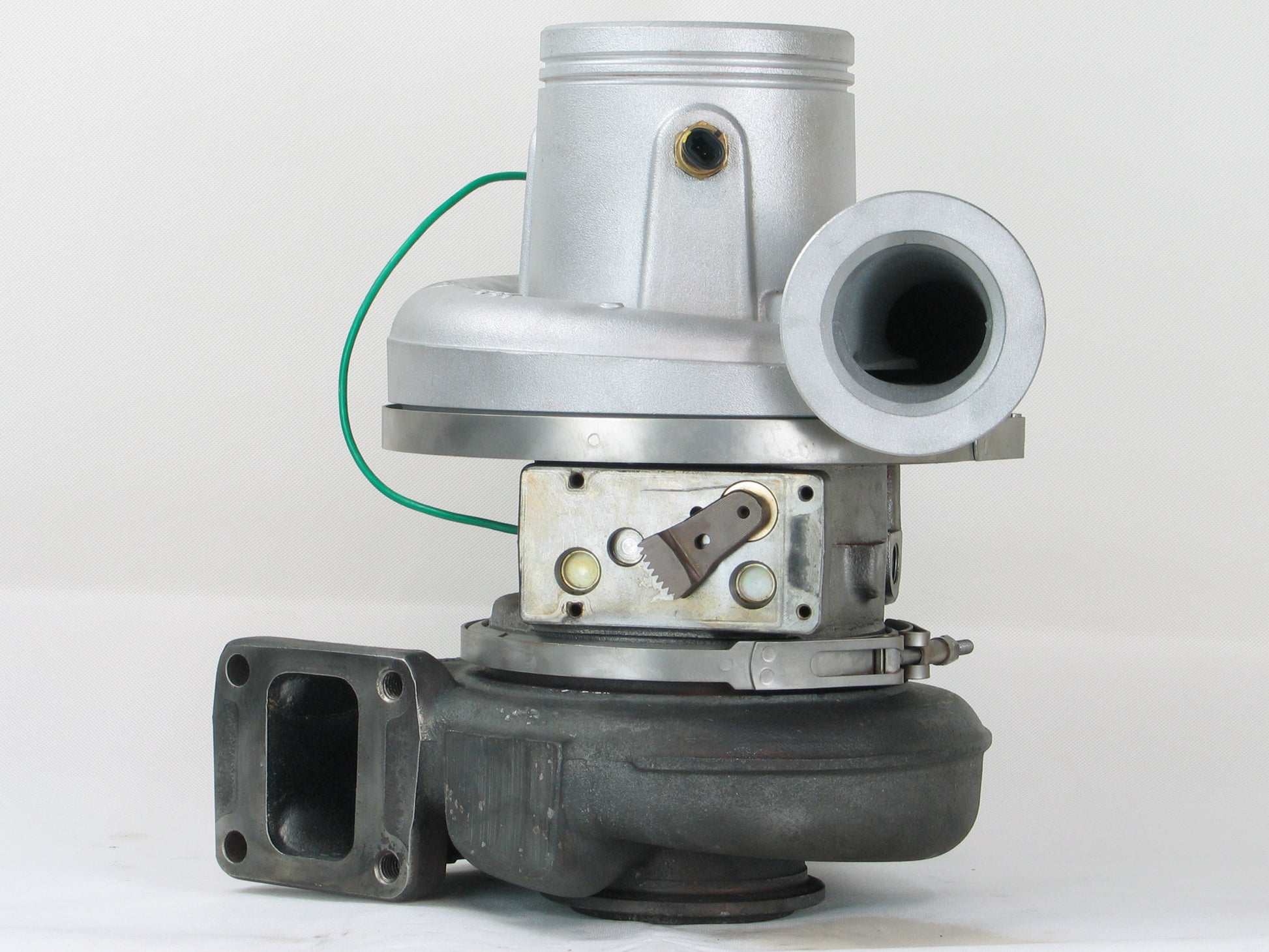

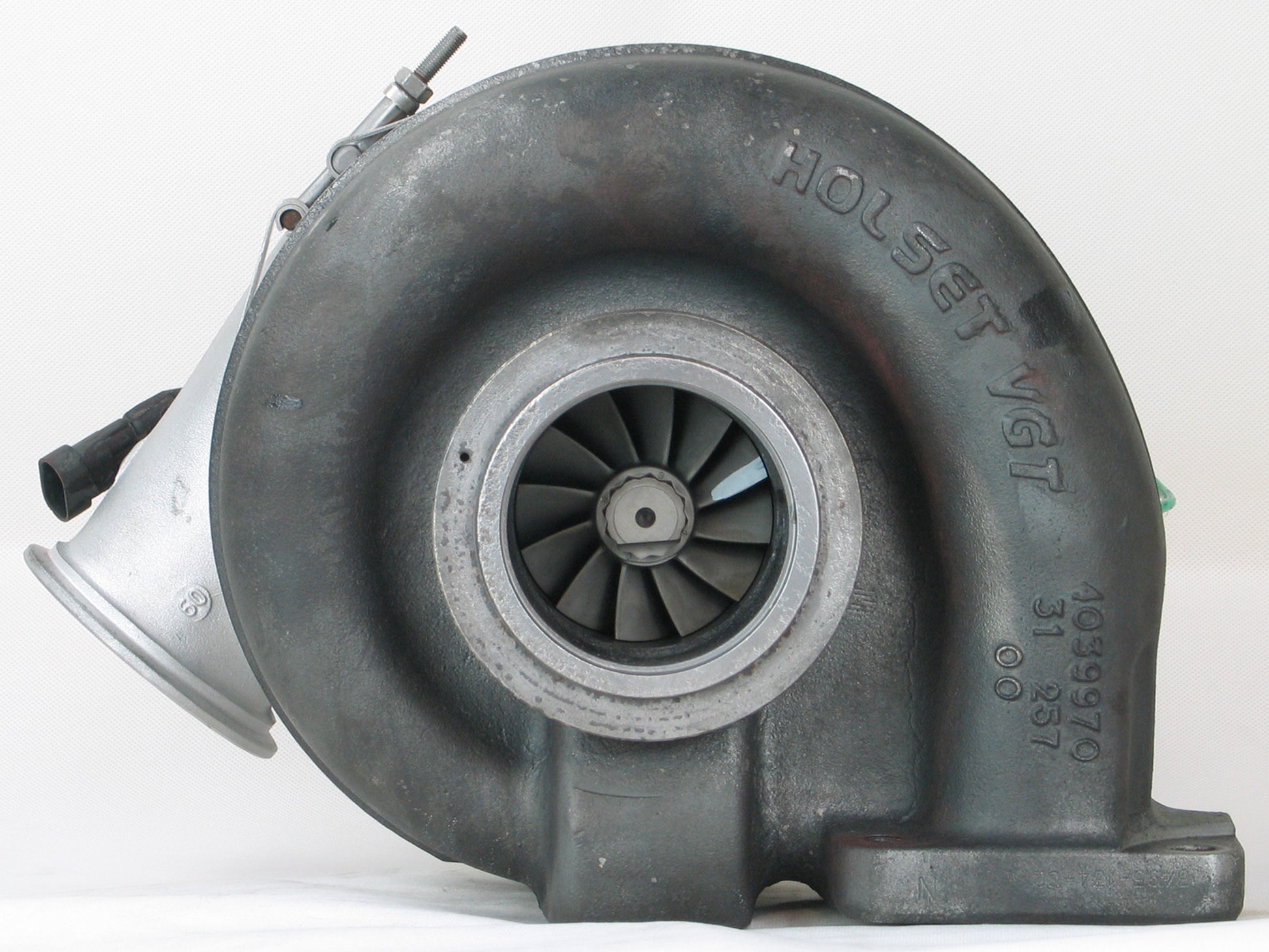

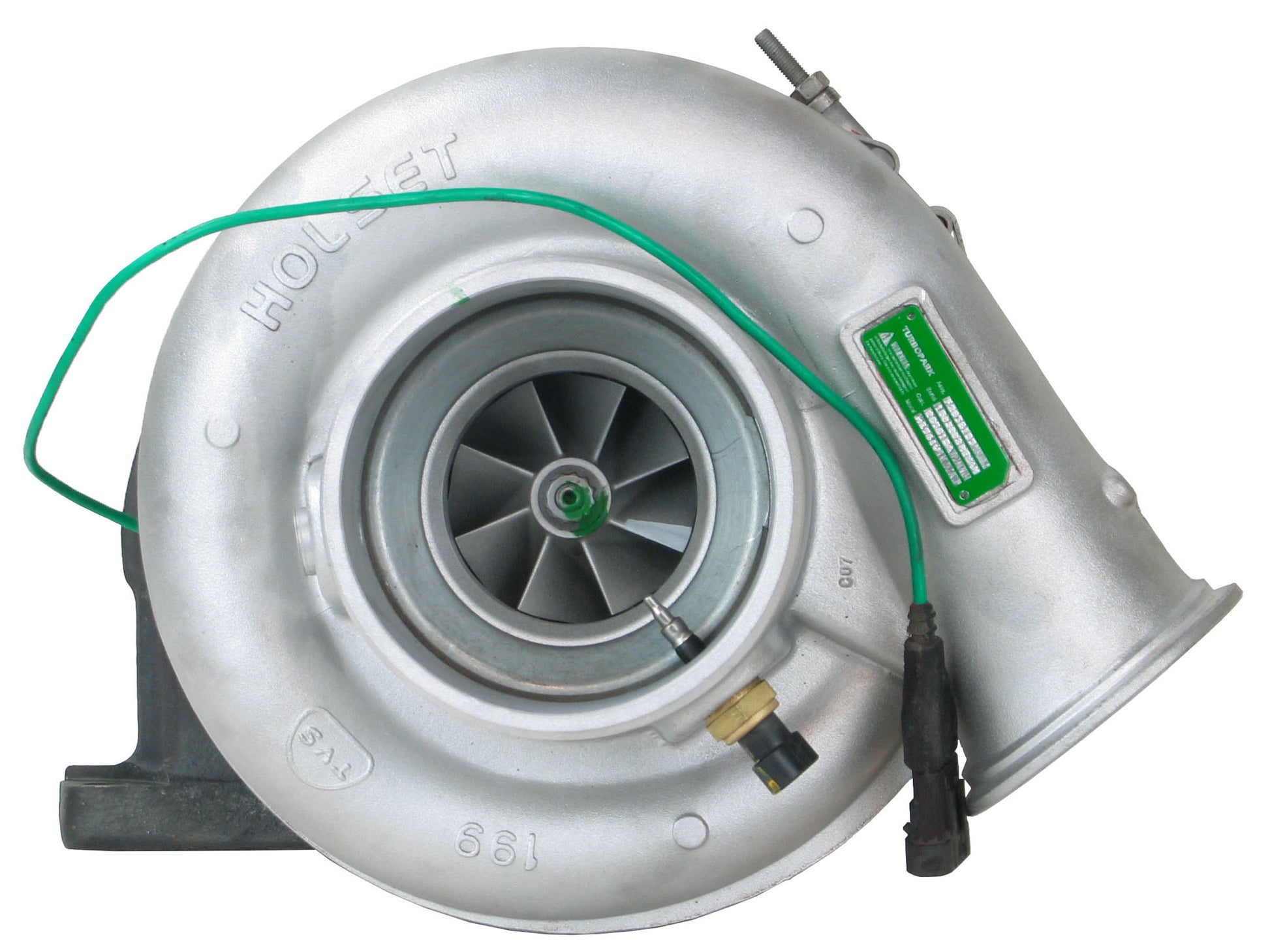

HE561VE Turbo Cummins ISX ISX15 15.0L Diesel Engine 2838153

TURBOTURBOS REMANUFACTURED SHORT TURBOCHARGER

This is a TURBOTURBOS REMANUFACTURED TURBOCHARGER. This is an exact, direct fit replacement turbo.

NOTE: This turbocharger does not come with the actuator. There is a core charge of $1000 which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase and will be fully refunded once your old re-build able core is received.

Cores must be returned within 60 days of the purchase date. Please allow up to 3 business days for us to process your refund.

Fits the following:

Part Number: 2838153
Interchangeable Number: 2836356, 2840519, 2840521, 2881785, 2881785NX, 2881785RX, 2881997NX, 2881997RX, 3767615, 3767630, 3771377, 3774601, 3774612, 3774619, 3774640, 3780526, 3792776, 3795162, 4045018, 4045031, 430907600, 430907600HX, 4309076HX, 4309076NX, 4309076RX, 4620744, 4955425, 4955425NX, 4955425RX, 4956010, 4956010NX, 4956010RX, 5350611, 535064100, 535089300H, 5350893H, 5350893HX, 5355182, 535519600, 535519600HX, 5355196H, 5355196HX, 5359785, 5359785NX, 5359785RX, 545673800H, 5456738H, 545681500H, 545681500HX, 5456815H, 5456815HX, 5457297, 5457297NX, 5457297RX, 5550525, 5550526, 6493383
OEM Number: 2836357, 2838154, 2840520, 2881997, 3767622, 3771381, 3774626, 3792786, 4042413, 4045034, 4309076, 5350641, 5350893, 5355194, 5355196, 5456738, 5456815
Turbo Model: HE561VE

Engine: ISX, ISX15
Engine Manufacturer: Cummins
Displacement: 15.0L
Fuel: Diesel

Angle α (Compressor Housing): 132°
Angle β (Turbine Housing): 155°

Application:
2008-11 Various with Cummins ISX, ISX15 Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
