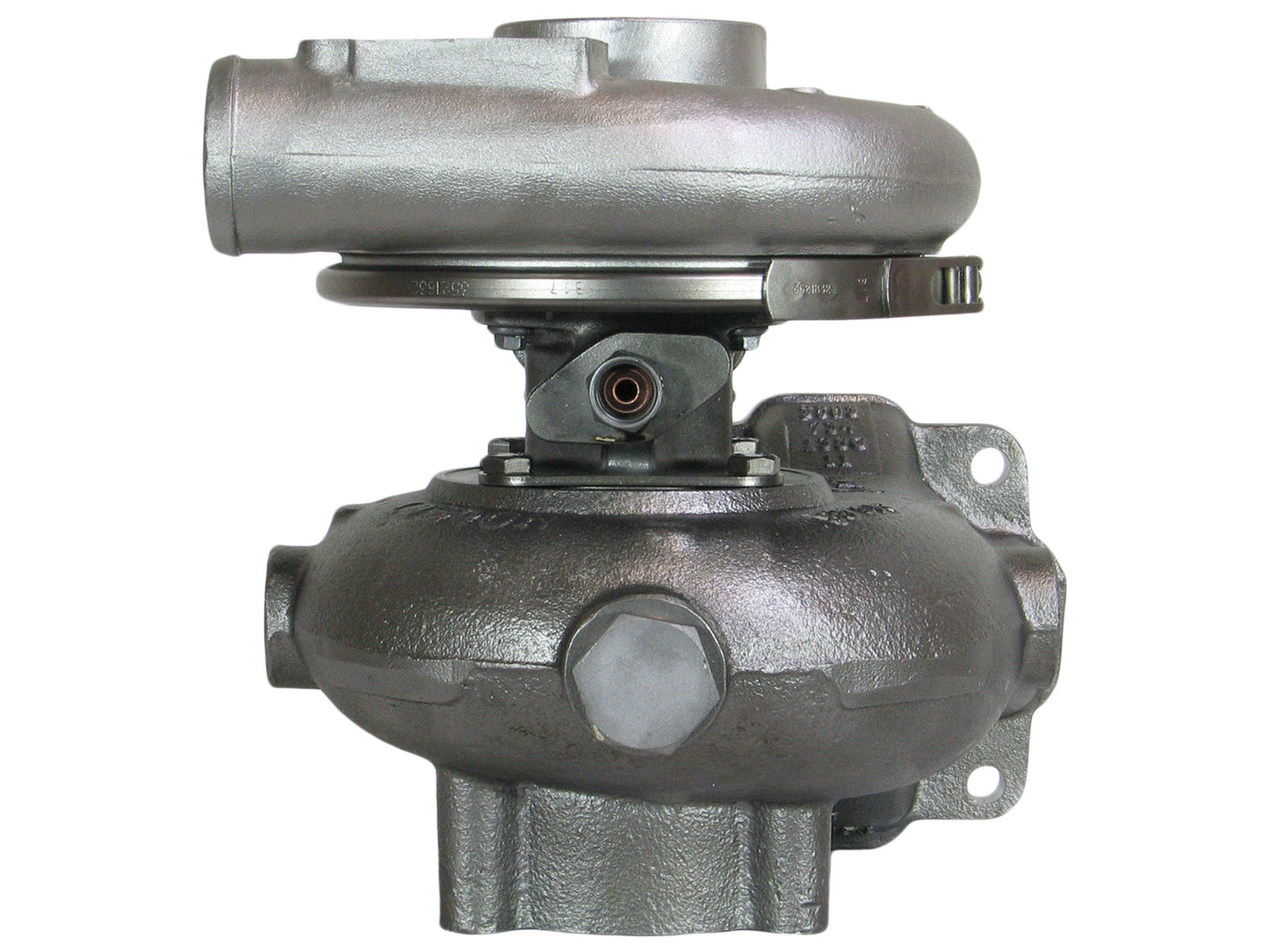

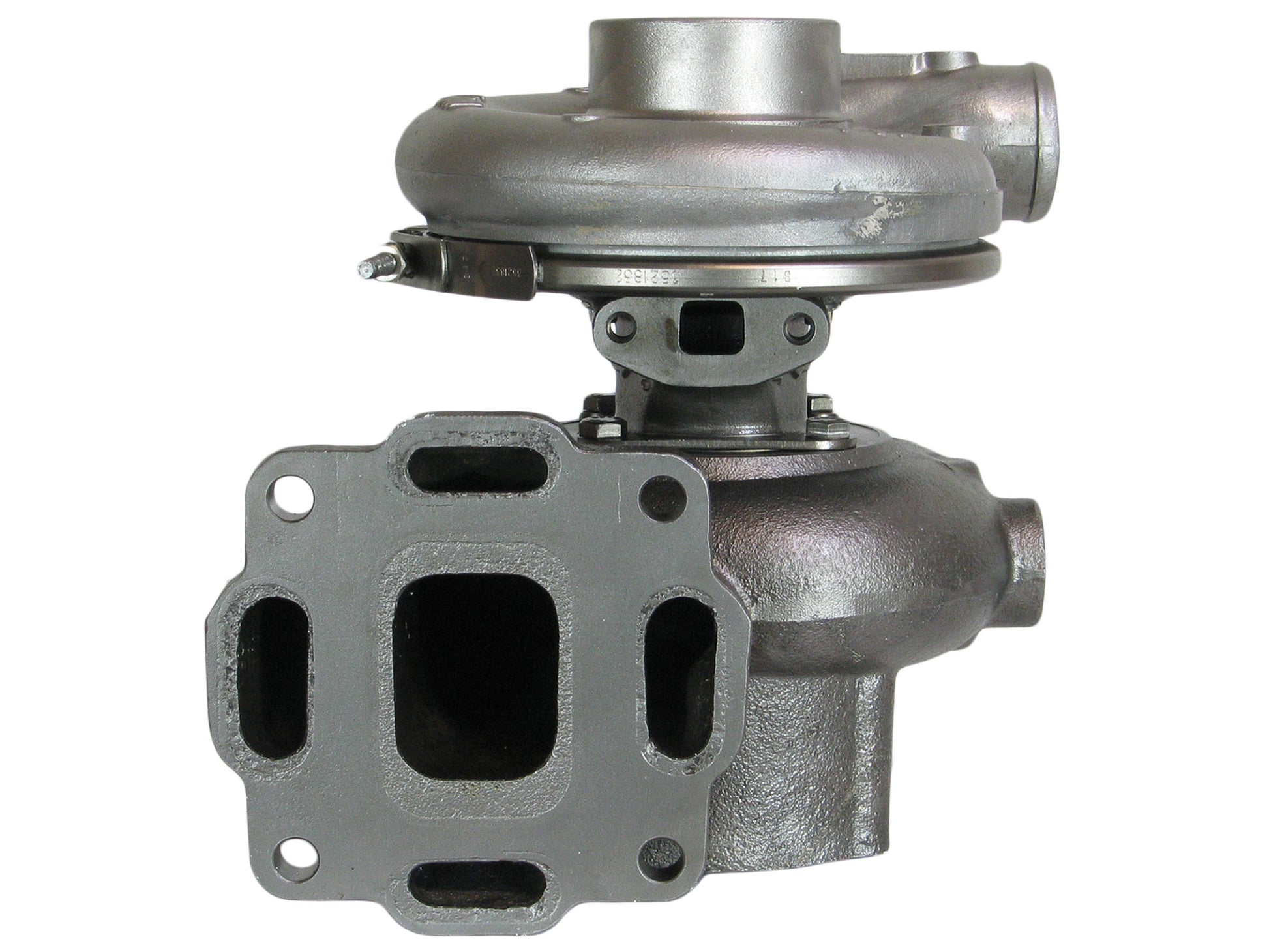

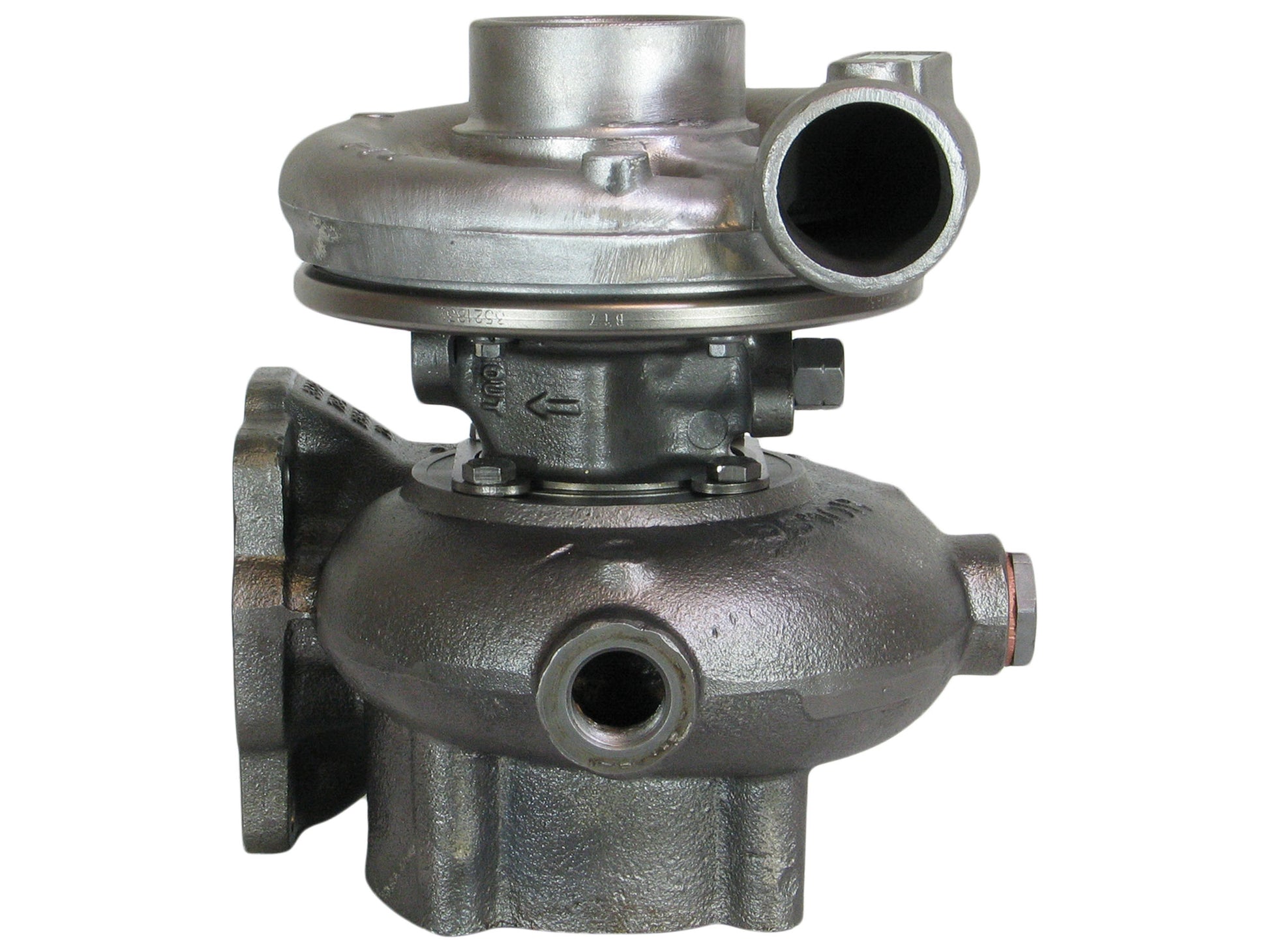

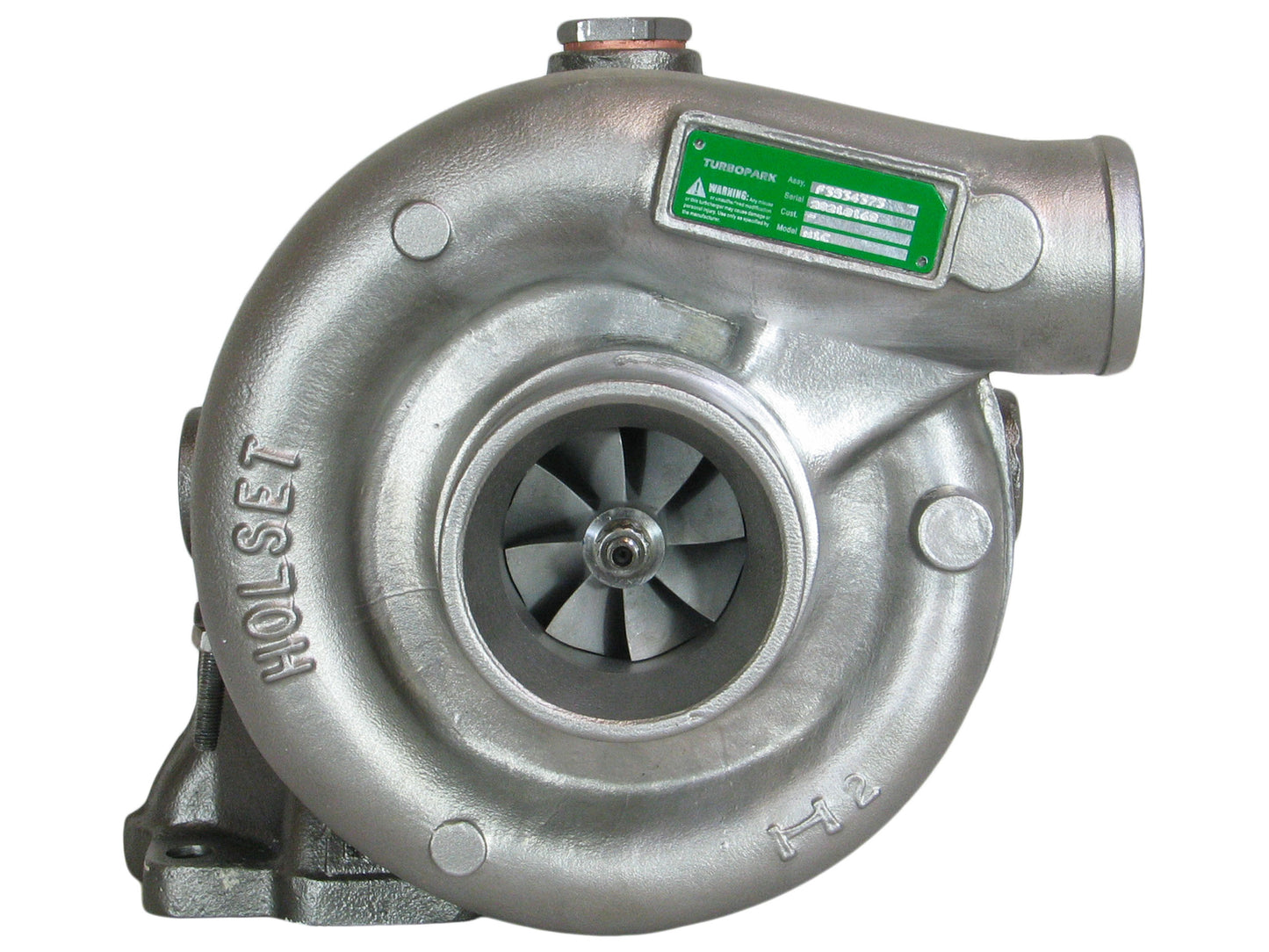

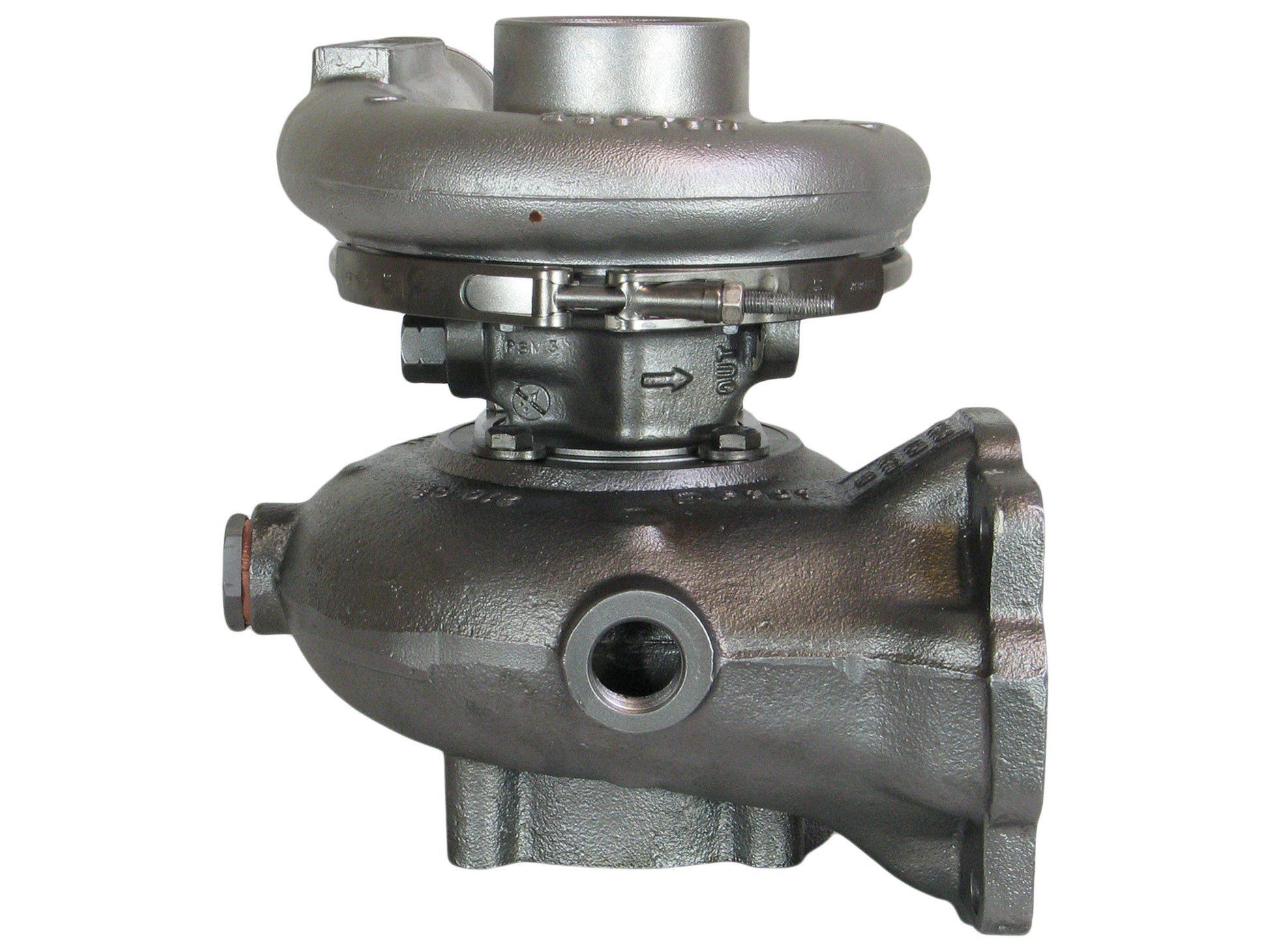

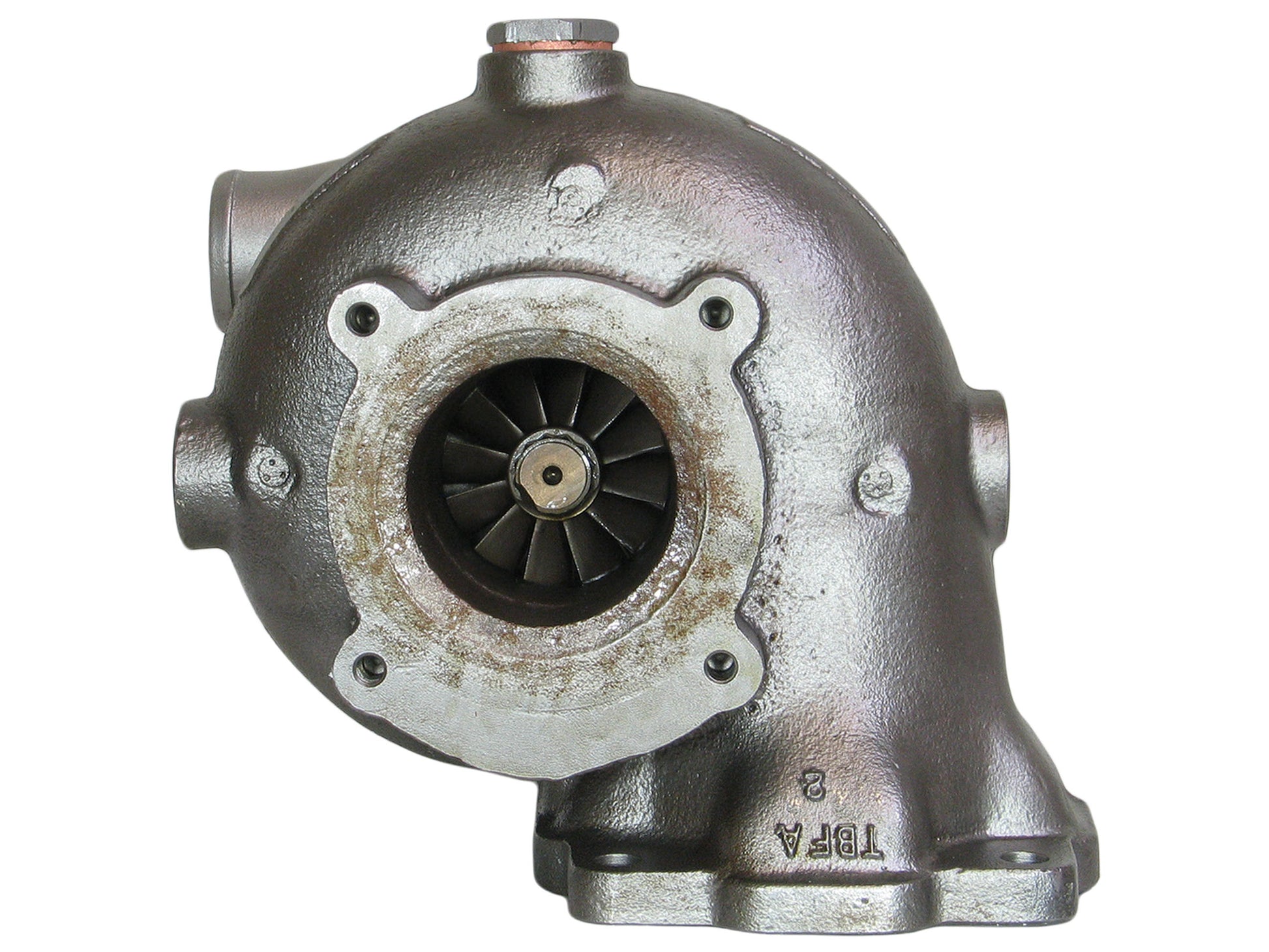

H1C Turbo Marine Cummins 6BT Diesel Engine 5.9L 3802589 3534374H 3534373SKU: F3534373
This is a TURBOTURBOS REMANUFACTURED TURBOCHARGER. This is an exact, direct fit replacement turbo.
Fits the following:
Part Number: 3534373
Interchangeable Number: 3533732, 3533733, 3533734, 3534374, 3534374H
OEM Number: 3802589
Turbo Model: H1C, H1C-8253AF/J13S11
Engine Manufacturer: Cummins
Displacement: 5.9L, 5900 ccm, 6 Cylinders
Angle α (Compressor Housing): 301/360°
Angle β (Turbine Housing): 200/241°
Bearing Housing: 3530591/3530592 (1152301450)
Compressor Back Plate: 3522801
Compressor Wheel: 3599638/3537155 (Ind. 83 mm, Exd. 52 mm, 8+8 Blades)(1152301400)
Gasket (Oil Inlet): 210850 (392196100)(Inox Steel)
Gasket (Oil Outlet): 210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027)
Gasket (Turbine Inlet): 210849 (3921926, 3916300, 3905033)(Stainless Steel)(Marine)
Heat Shield: 3519302
Repair Kit: 3545652/4027309 (3802148)(1152301750)
Turbine Housing: Water Cooled
Turbine Wheel: 3519336 (Ind. 70 mm, Exd. 59.9 mm, 12 Blades)(1152301435)
1993- Marine with Cummins 6BT Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
