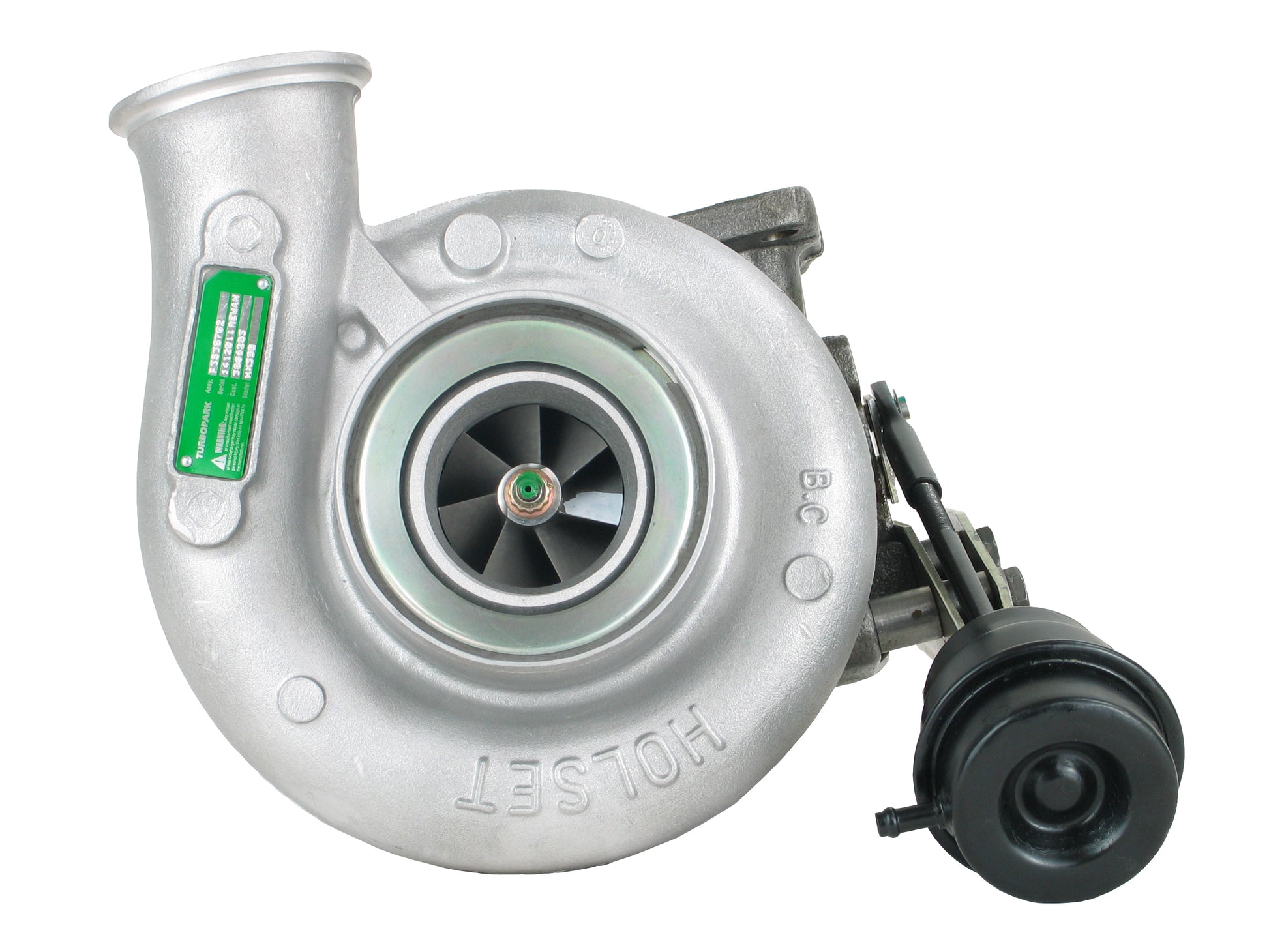

HX35G-D7735L Turbocharger Industrial Cummins 6BTAA Engine 3538702 TurboSKU: F3538702
This is a TURBOTURBOS REMANUFACTURED TURBOCHARGER. This is an exact, direct fit replacement turbo.
Fits the following:
Part Number: 3538702
Interchangeable Number: 3538703, 3538703H, 3597419, 4025413
OEM Number: 3806253
Turbo Model: HX35G-D7735L/E12PB11, HX35G
Engine: 6B5.9, 6BTAA
Engine Manufacturer: Cummins
Displacement: 5.9L, 5900 ccm
Power: 230 HP
Angle α (Compressor Housing): 285°
Angle ß (Turbine Housing): 165°
Back Plate: 3530923 (1154351300)
Bearing Housing: 3534487 (Water Cooled)
Compressor Wheel: 3599651 (Ind. 50 mm, Exd. 78 mm, 7+7 Blades)
Heat Shield: 3519302 (3519304)(1152301340)
Repair Kit: 3575169 (1153035750)
Turbine Wheel: 3519336/3595832 (Ind. 70 mm, Exd. 60 mm, 11 Blades)(1152301435)
1997-02 Industrial with Cummins 6BTAA Engine
Bus, Coach with Cummins 6B5.9 Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
