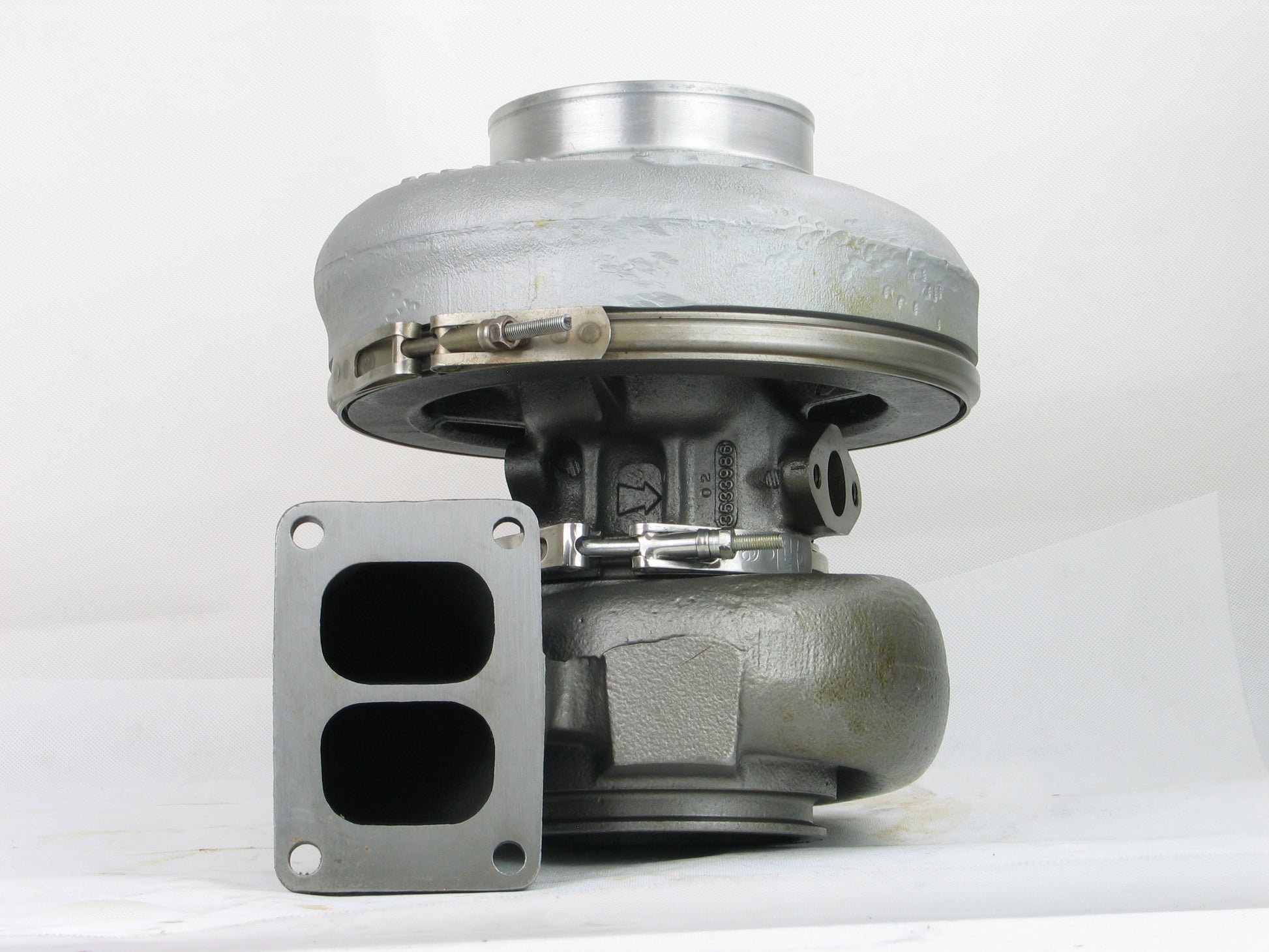

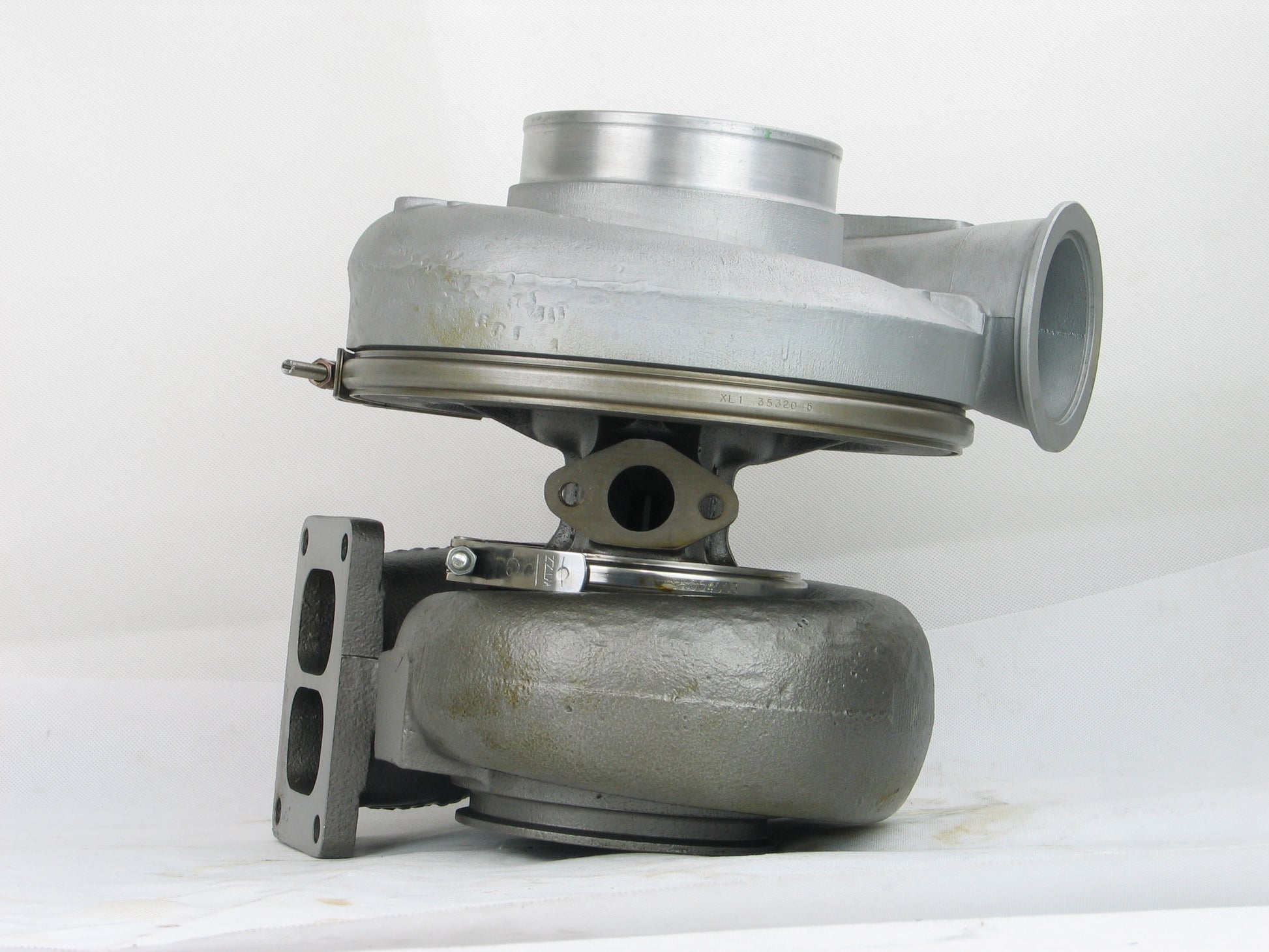

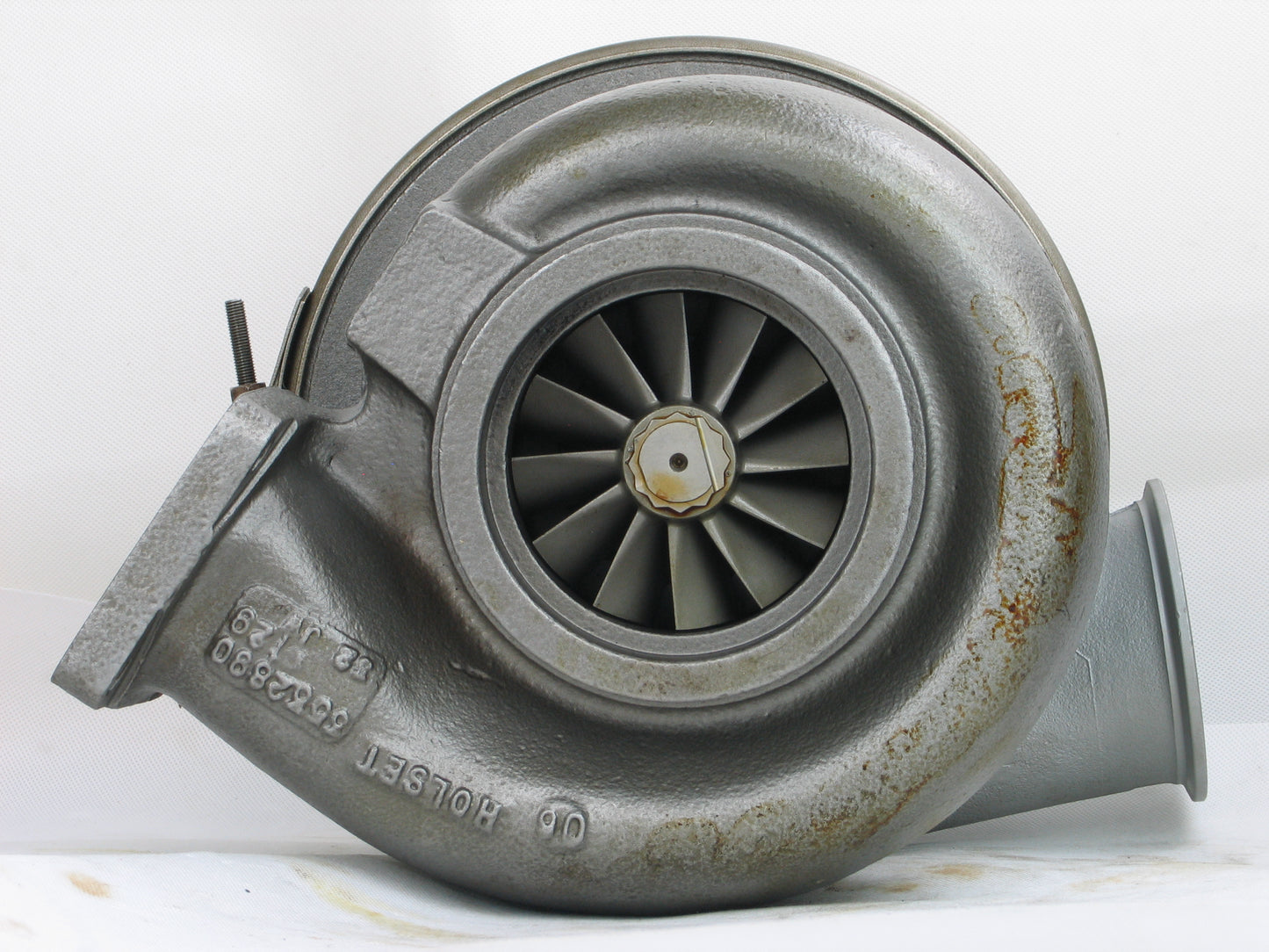

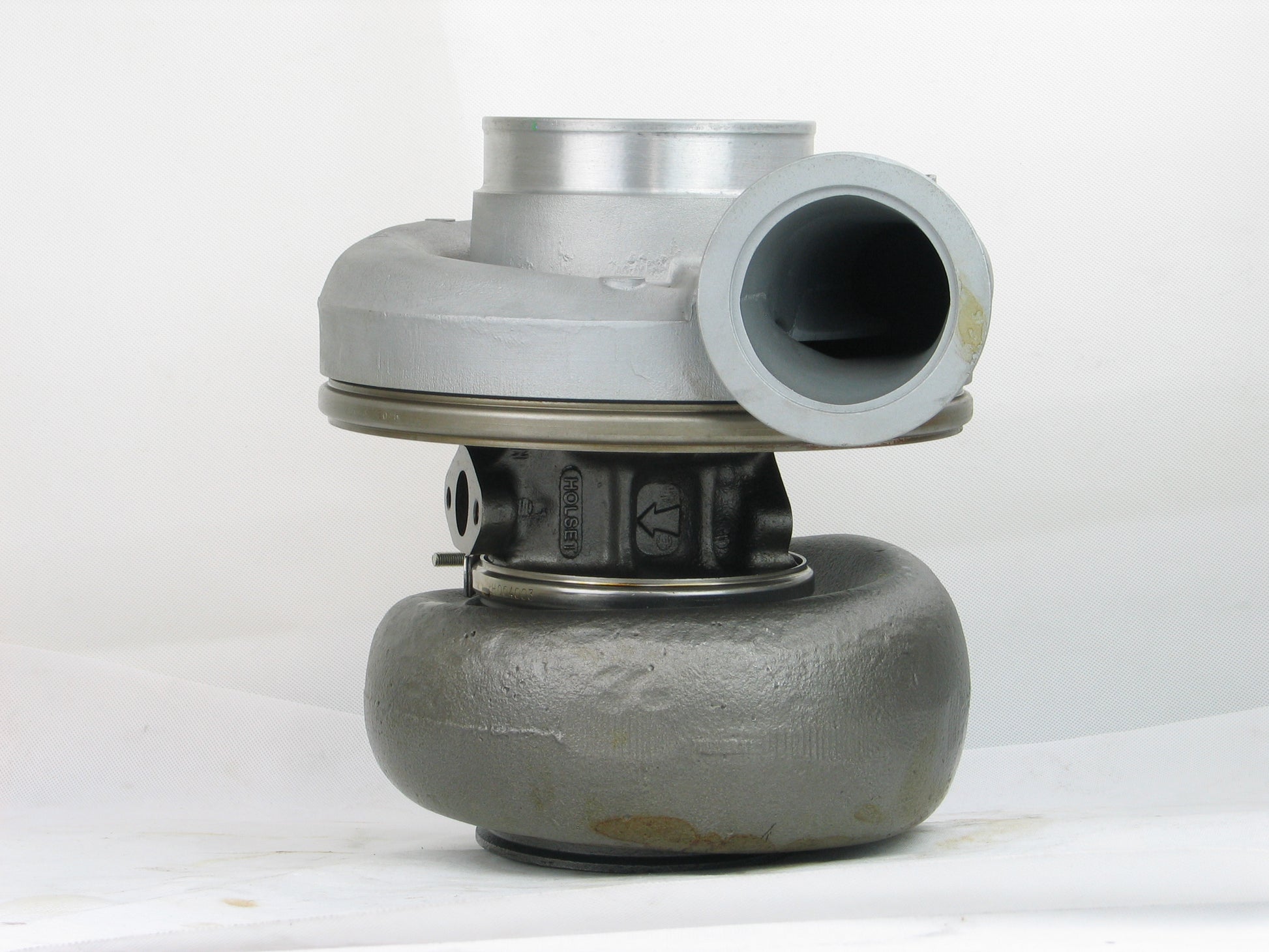

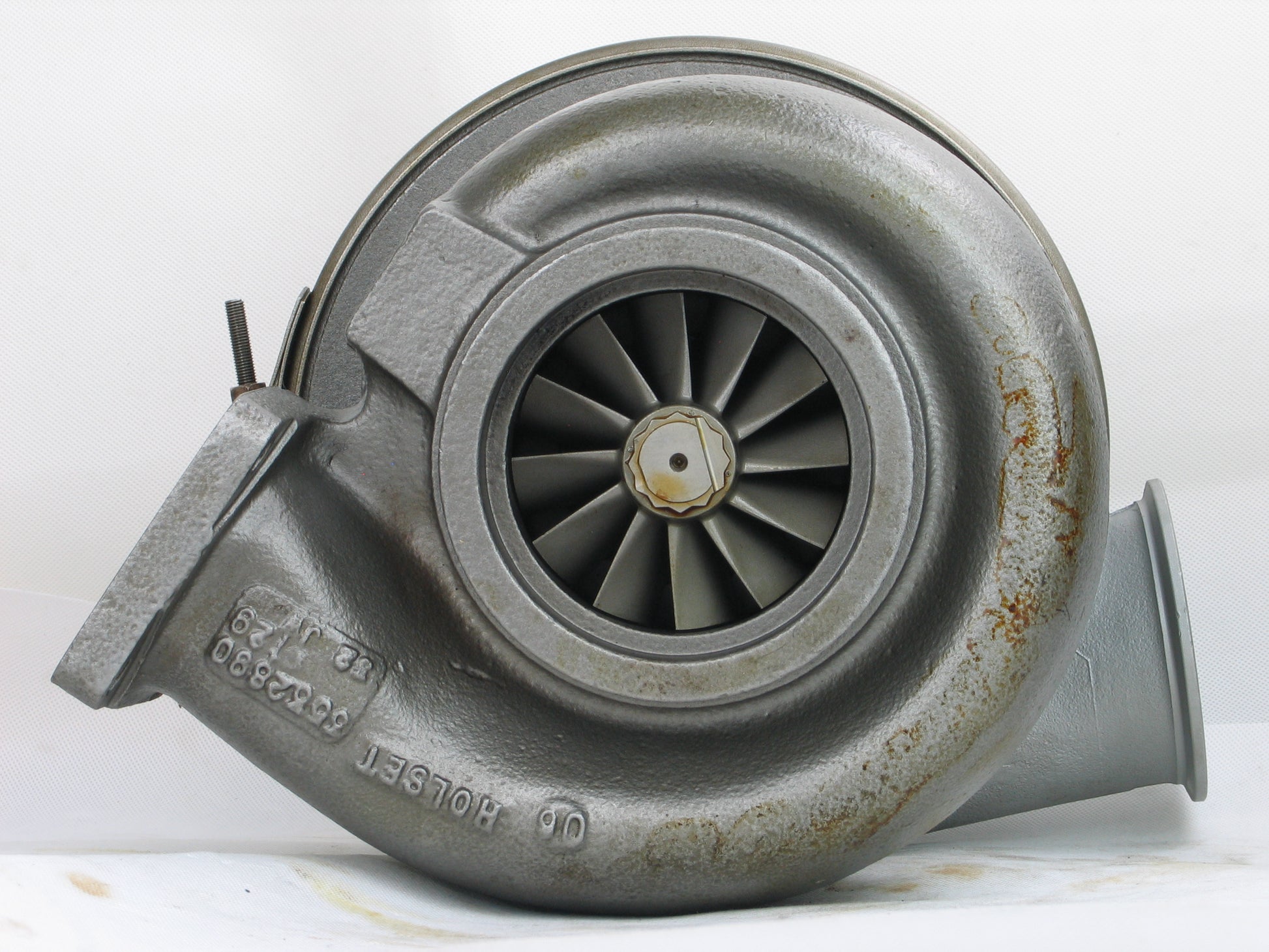

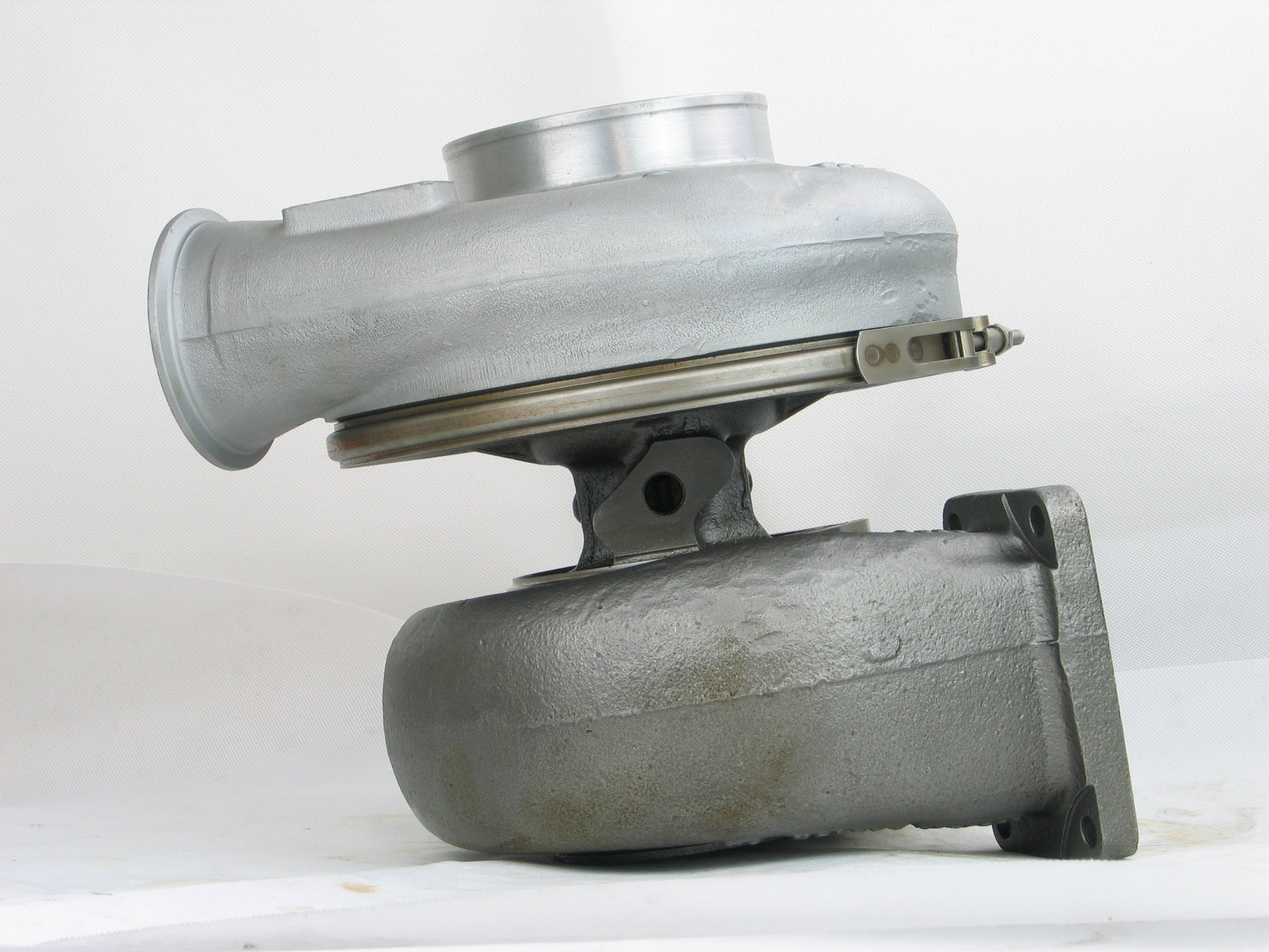

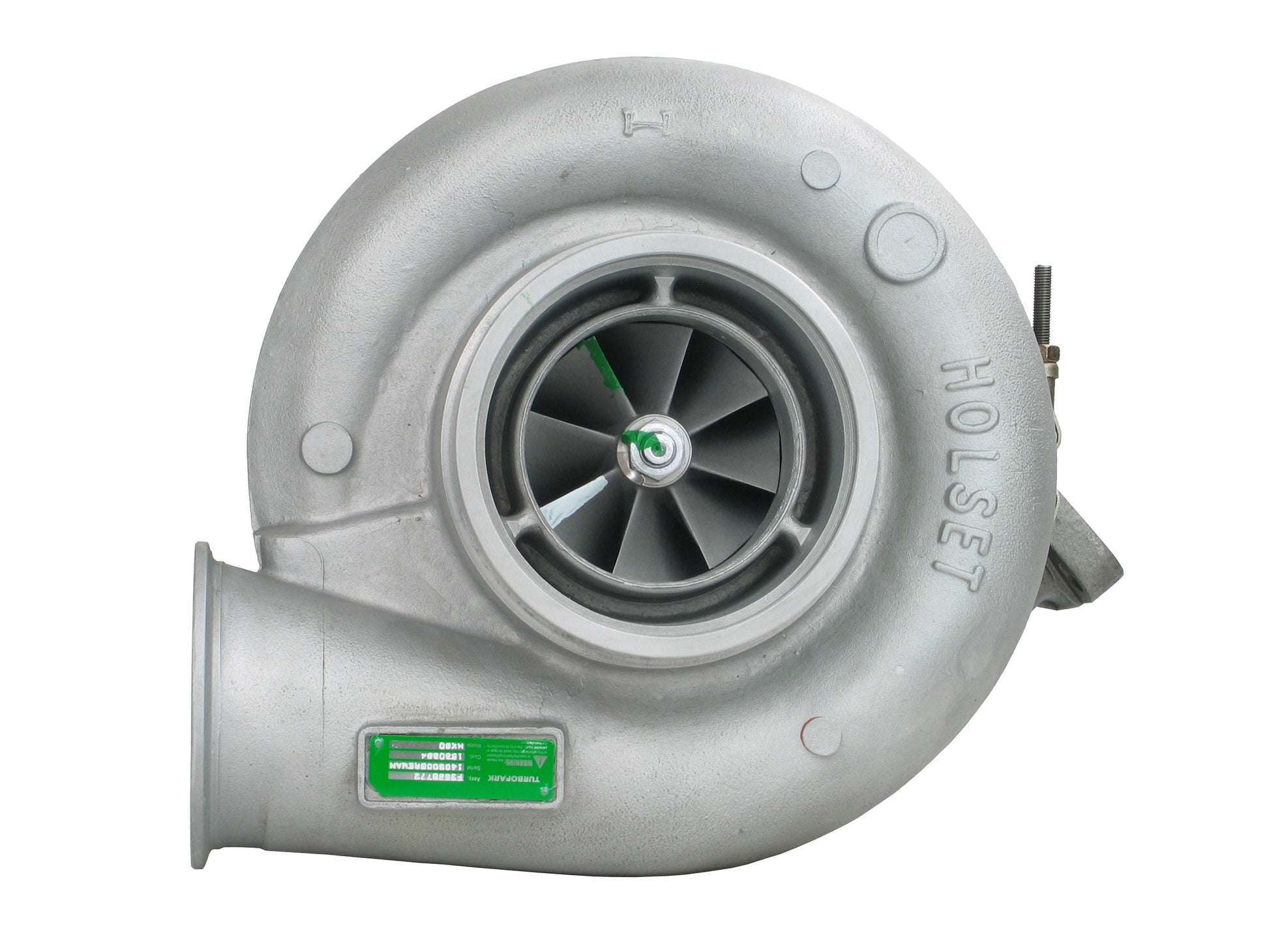

HX60 Turbo Scania Truck Cummins DC16 DSI14A/M Engine 4033069H 3538772SKU: F3538772
This is a TURBOTURBOS REMANUFACTURED TURBOCHARGER. This is an exact, direct fit replacement turbo.
Fits the following:
Part Number: 3538772
Interchangeable Number: 3538785, 4033069, 4033069H, 4036358, 4036359, 4043763
OEM Number: 1386377, 1530393, 1530394, 1778426
Turbo Model: HX60-A1292C/B32NA0A, HX60
Engine: DC16 (43A), DC16 A, DSI14A/M
Engine Manufacturer: Cummins
Power: 750 HP
Angle α (Compressor Housing): 159/189/194/346°
Angle ß (Turbine Housing): 67/345°
Back Plate: 3531917 (59618)(1250403300)
Bearing Housing: 3533983
Compressor Cover: 3590224
Compressor Wheel: 3534650 (353465000)(Ind. 80 mm, Exd. 113 mm, 8+8 Blades, Super Back)
Gasket Kit: 3545577
Heat Shield: 3519155 (3758538)
Repair Kit: 3545345 (4027880, 3580568)(1153060750)
Turbine Housing: 3538771
Turbine Wheel: 3532197 (Ind. 97 mm, Exd. 92 mm, 12 Blades)
1996-11 Scania Truck with DC16, DSI14A/M Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
