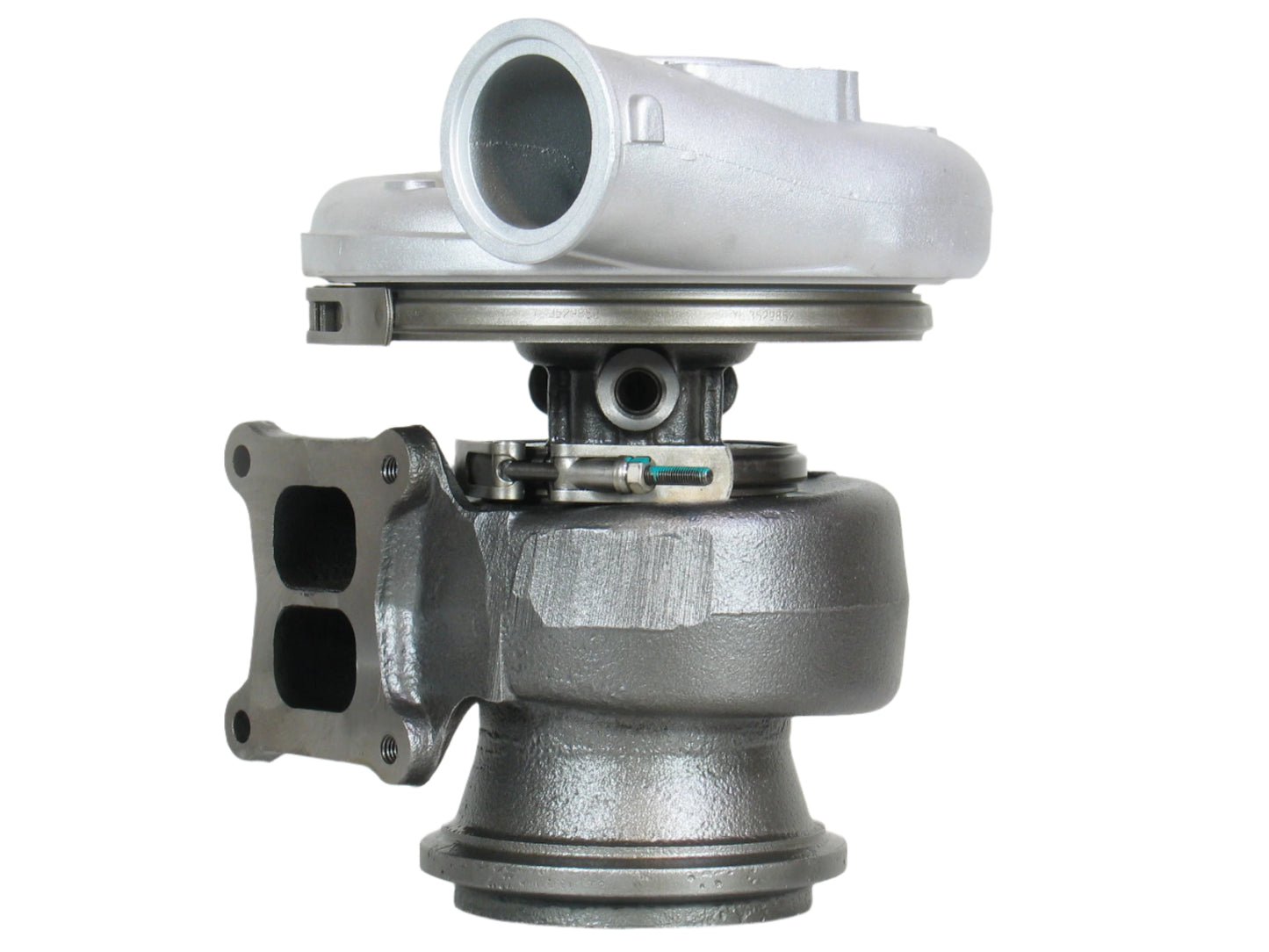

HX55 Turbo International Truck Bus Cummins ISM ISME M11 11.0L Diesel 3590044SKU: F3590044
This is a TURBOTURBOS REMANUFACTURED TURBOCHARGER. This is an exact, direct fit replacement turbo.
Fits the following:
Part Number: 3590044
Interchangeable Number: 2834419, 3536995, 3536996, 3590045, 3593606, 3593607, 3599045, 3780171, 3788312, 4033813, 4033813H, 4039173, 4046031
OEM Number: 3800471, 3800471RX, 3803938
Turbo Model: HX55-E9861L/H22E11D, HX55
Engine: B5.9-C, ISM, ISME380 20, ISME Euro 2, ISME Euro 3, ISME, M11
Engine Manufacturer: Cummins
Displacement: 11.0L, 1100 ccm
Angle α (Compressor Housing): 8/153/264/330°
Angle ß (Turbine Housing): 90/92/130°
Back Plate: 3528096 (1153055300)
Bearing Housing: 3535704
CHRA: 3580726 (1153055900)
Compressor Cover (Noise Baffle): 3595516
Compressor Cover (Ring): 3531238
Compressor Cover: 3594775
Compressor Wheel: 3534329/4041666 (Ind. 65.1 mm, Exd. 99.06 mm, 12 Blades)
Gasket (Oil Outlet): 129119 (1900000035)(201049, 9737, 1S6595, 210019-0000, 409266-0003, 3819900)
Gasket (Oil Outlet): 210060 (311585, 148062, 2475013)(Paper)
Gasket (Turbine Inlet): 409123-0002 (310694)(Inox Steel)
Heat Shield: 3529846/3533038 (1153055340)
Repair Kit: 3580762/3575181 (1153055750)
Turbine Housing: 3536942
Turbine Wheel: 3535983 (Ind. 85.8 mm, Exd. 76.95 mm, 12 Blades)(1153055436)
1996-99 Truck, Bus with Cummins ISM, ISME, M11 Engine
1999-09 Truck, Bus with Cummins M11 Engine
2007-12 Truck, Bus with Cummins ISM, ISME, ISME Euro 2, ISM Euro 3, M11 Engine
International with Cummins ISM, ISME, M11 Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
