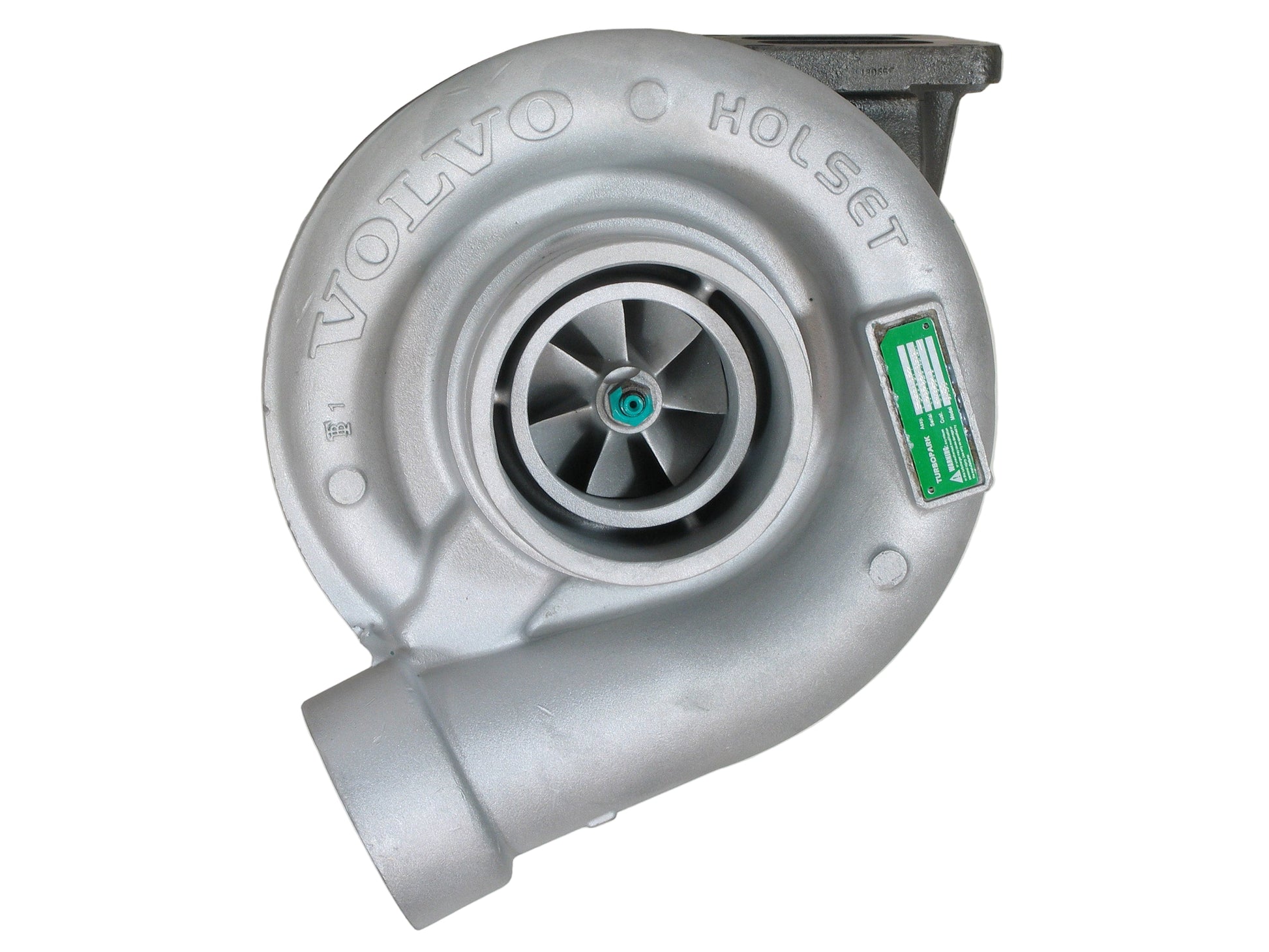

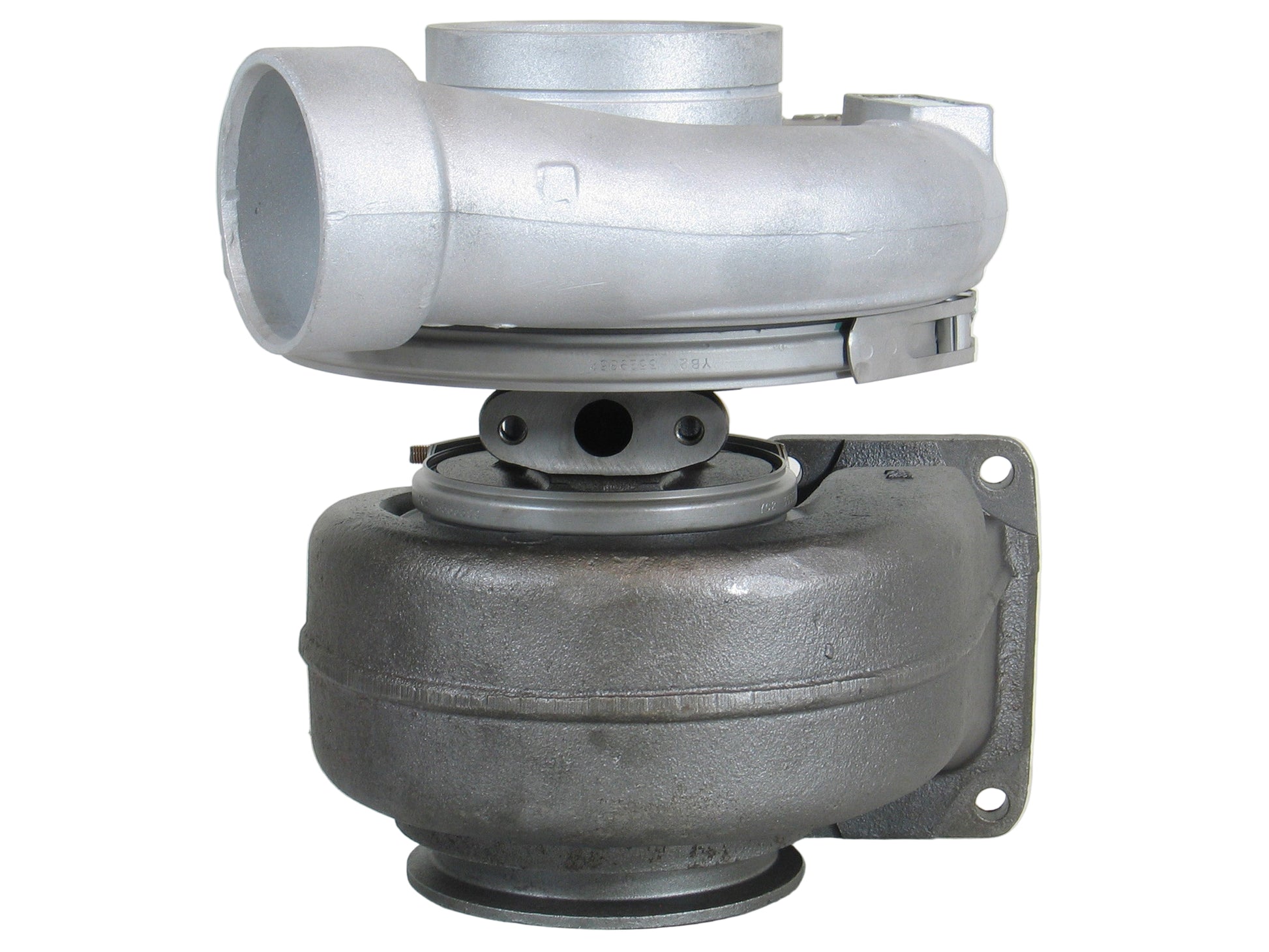

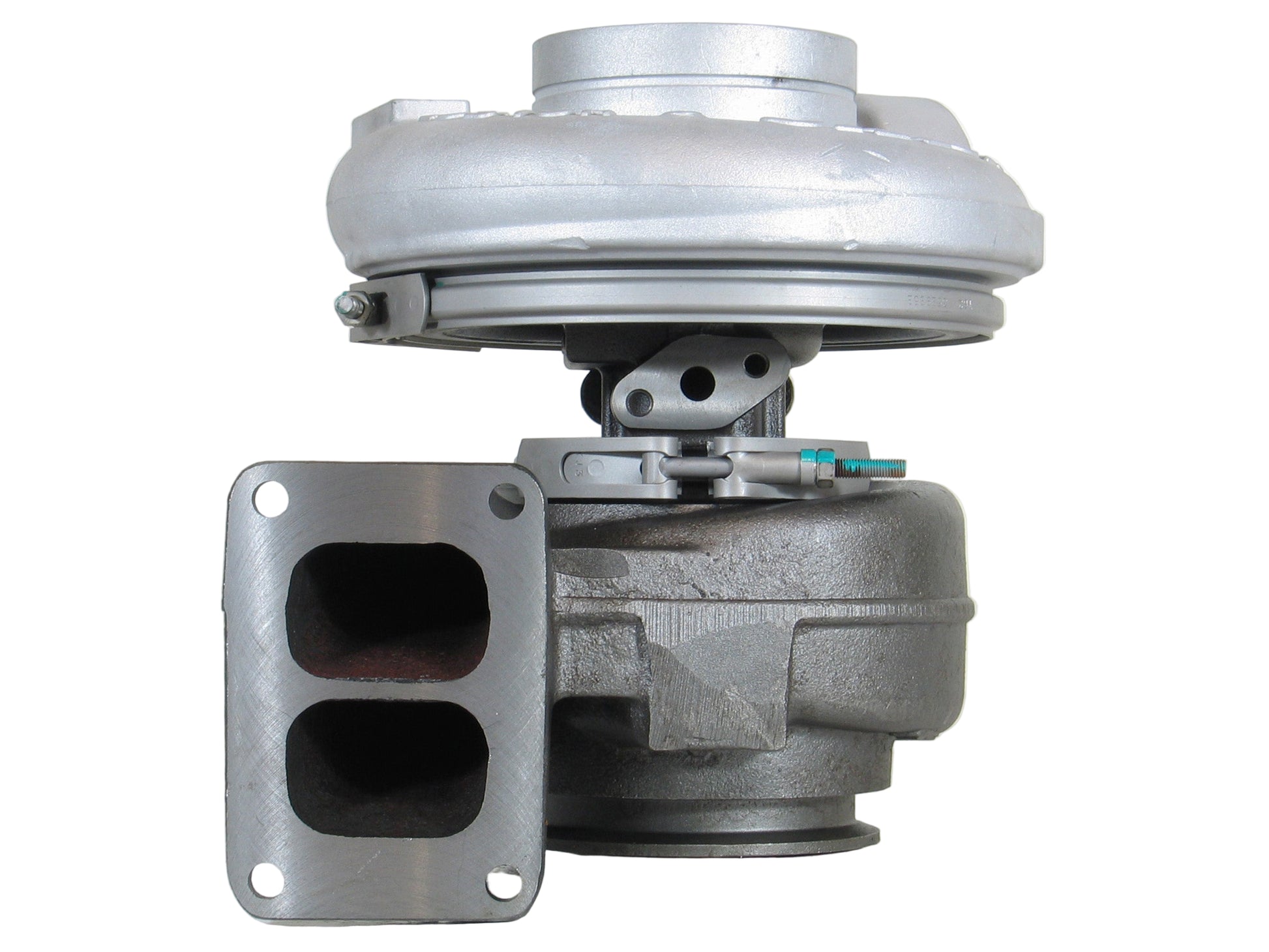

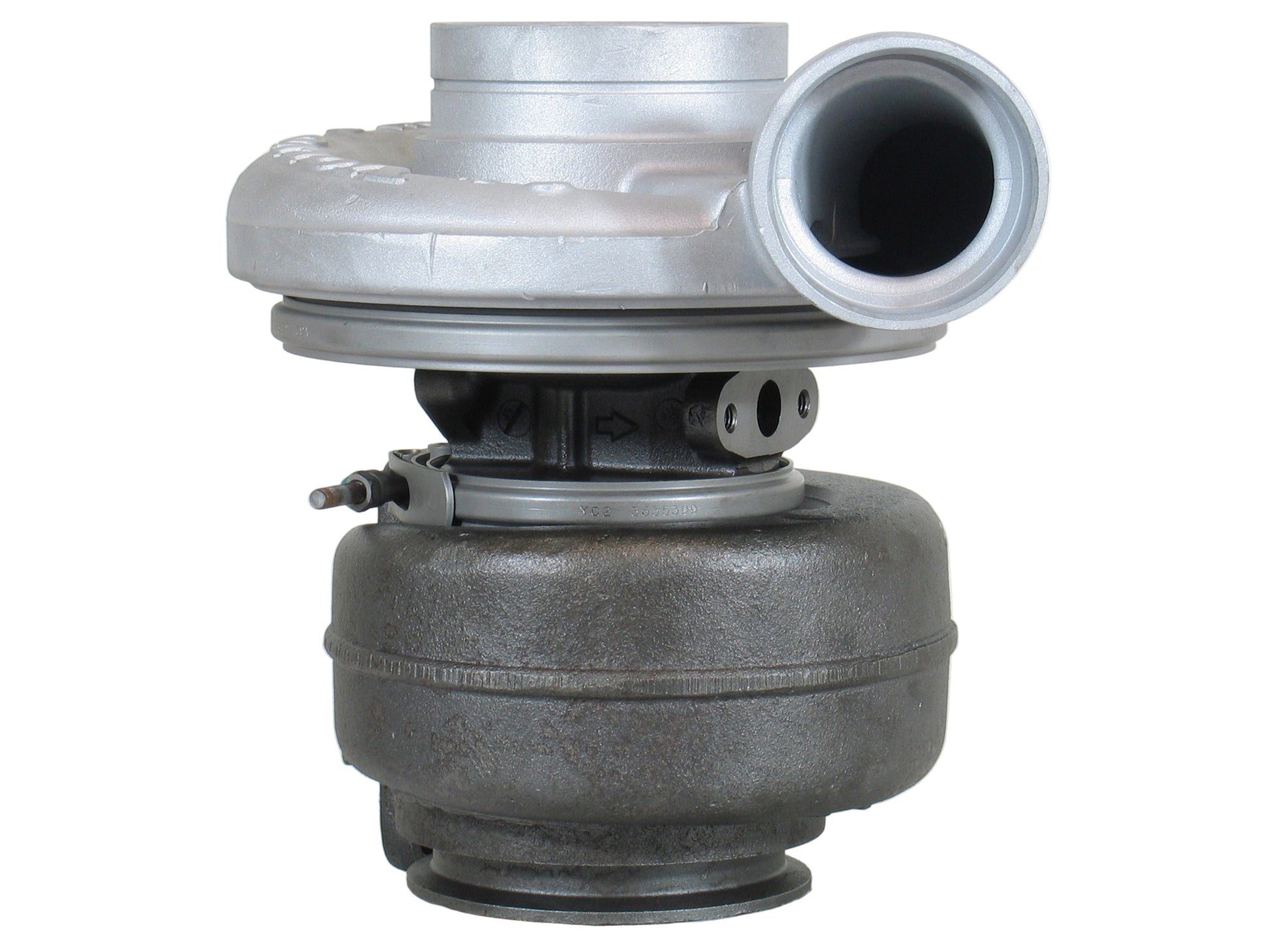

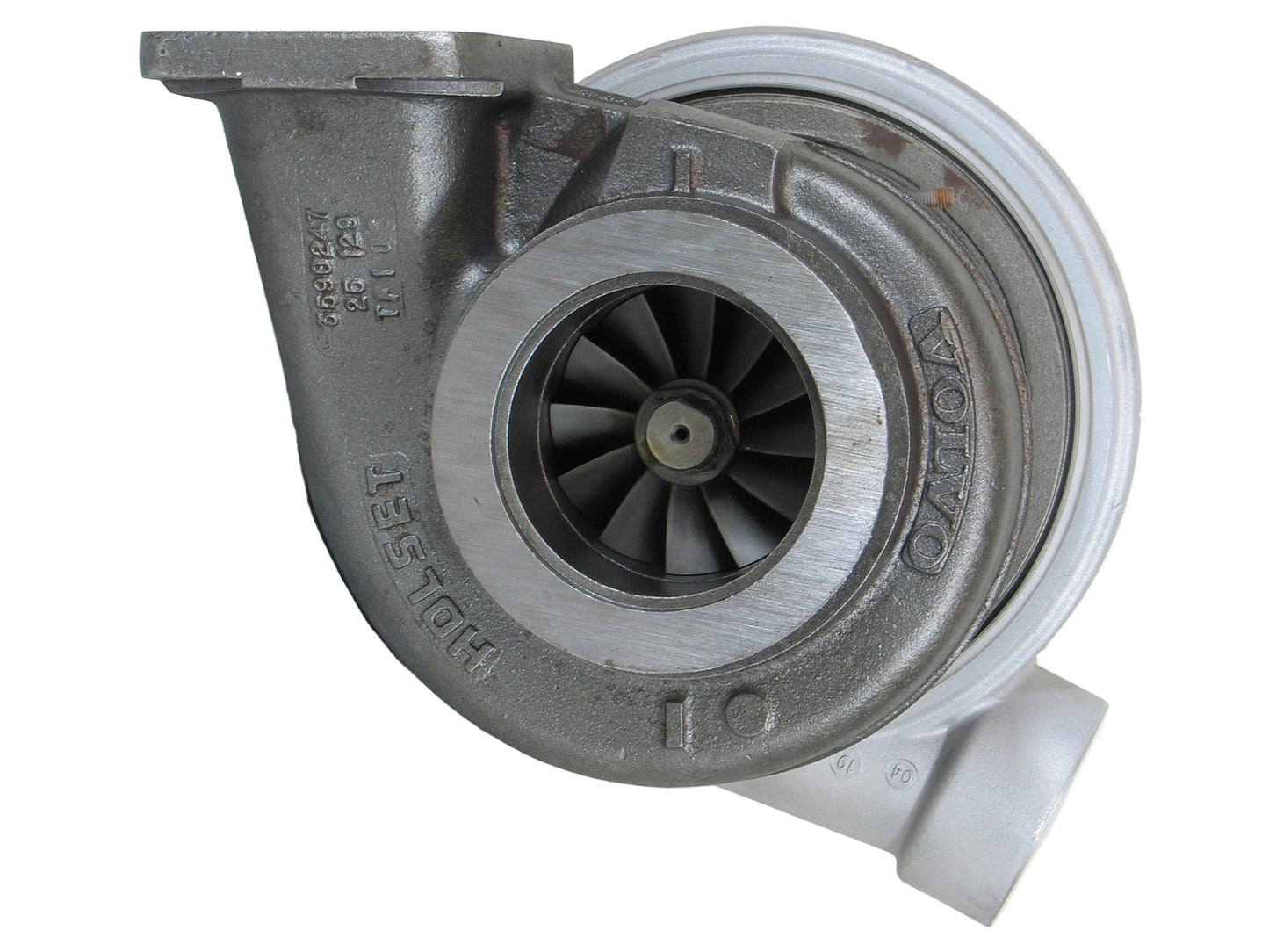

HX55 Turbocharger Volvo Truck FH12 FM12 D12 D12C D380 Engine 4049337 3591077SKU: F3591077
This is a TURBOTURBOS REMANUFACTURED TURBOCHARGER. This is an exact, direct fit replacement turbo.

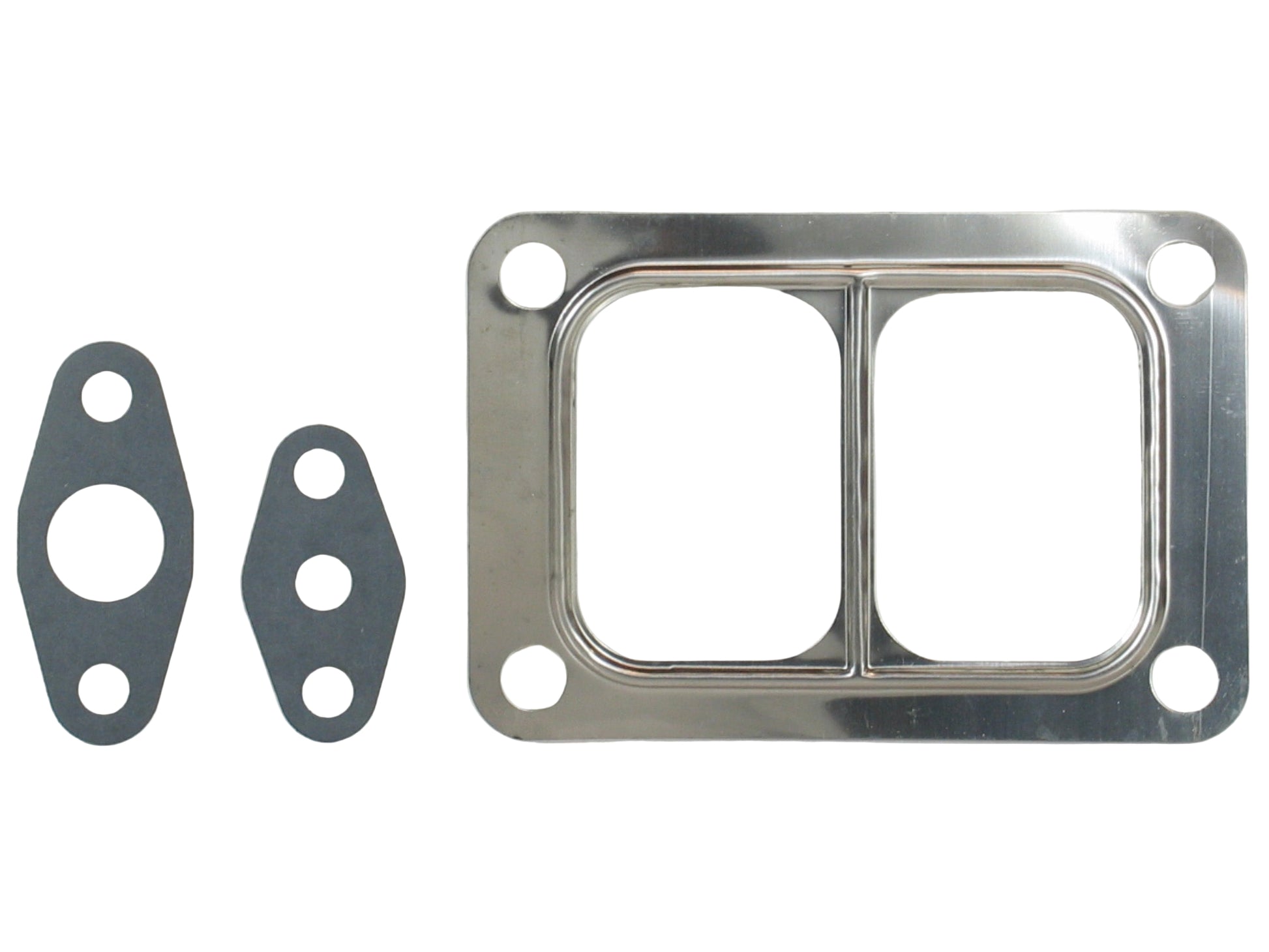

NOTE: This turbocharger package also comes with the gaskets.
Fits the following:
Part Number: 3591077
Previous Versions: 3591077D, 3591077-D, 3591078, 3533544, 3165219, 3533544, 3532692, 452164-0001, 712922-0002
OE Number: 1677098, 1677726, 1677725, 1676089, 3165219, 425720
Description: TRUCK FH12, FM12
Applications: 1998-01 Volvo TRUCK FH12, FM12 With D12C Engine
Manufacturer Part Number: 3533545, 3533546, 3531858, 3532692, 3591078, 3537913, 3591949
CHRA: 4027027 (1153055902)
Turbo Model: HX55-E9861E/T25VB15A, HX55
Engine: D12, D12C, D380 Euro 3
Engine Manufacturer: 3591078
Customer No: 3165219
Displacement: 12.14L, 11950 ccm, 6 Cylinders
Power: 450/460 HP
Angle α (compressor housing): 130°
Angle β (turbine housing): 180°
Bearing Housing: 3590231/4039258
Turbine Wheel: 3533543/4038182 (Ind. 86. mm, Exd. 80. mm, 12 Blades)(1153055435)
Comp. Wheel: 4041666 (Ind. 65. mm, Exd. 99. mm, 7+7 Blades)
Back plate: 3528096 (1153055300)
Heat shield Number: 3529846/3533038 (1153055340)
Repair Kit: 3580762/3575181 (1153055750)
Turbine Housing: 4039644
Compressor Cover: 3591065
Gasket (turbine inlet): 409038-0000 (132040, 52231083002)
Gasket (oil inlet): 147837 (210023)
Gasket (oil outlet): 210060 (2475013)
Replaced By: 4049337
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
Any questions or concerns, please feel free to email or call us.
