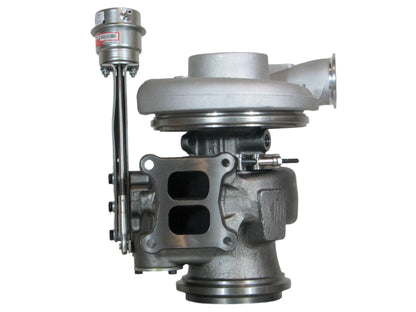

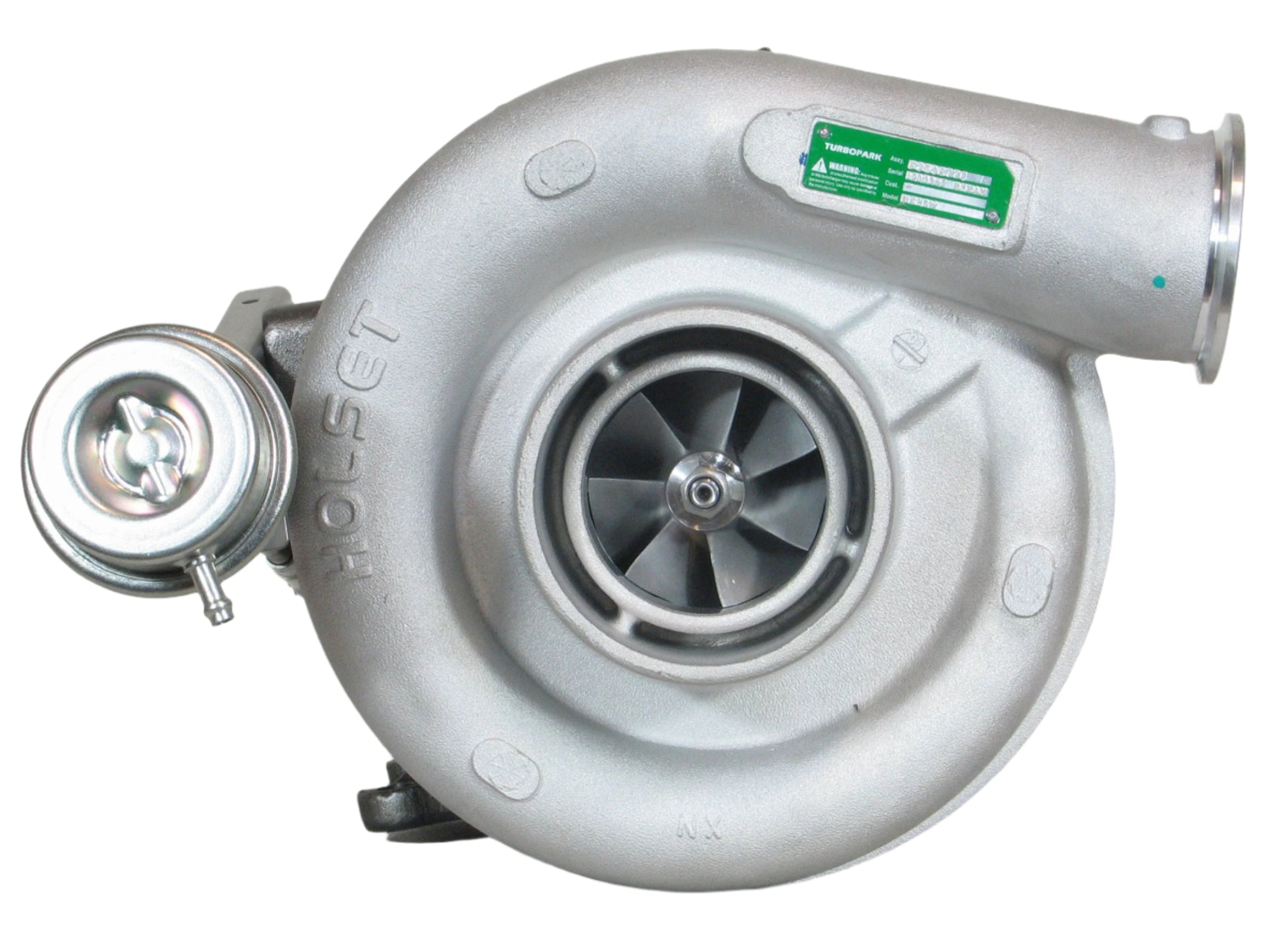

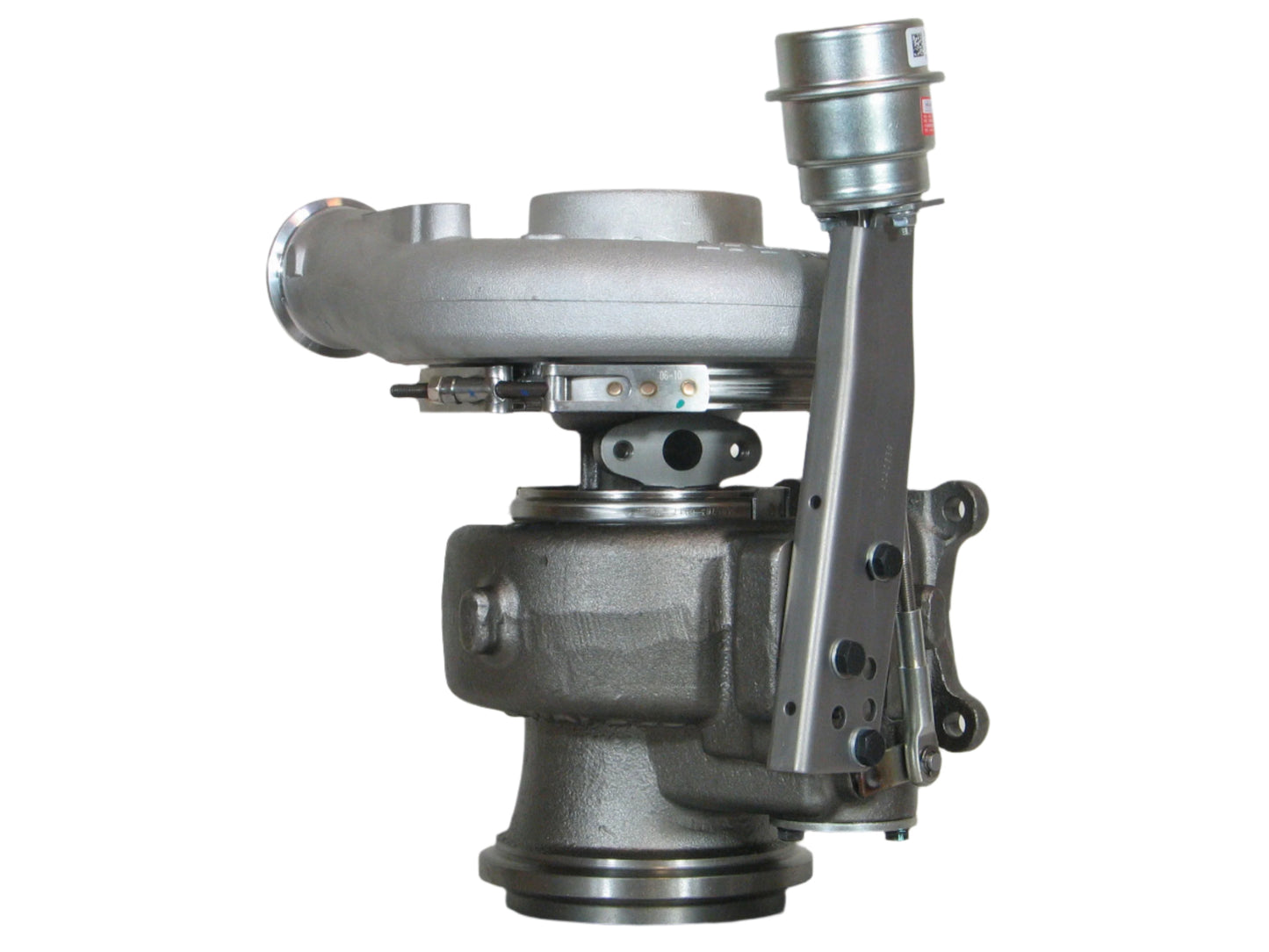

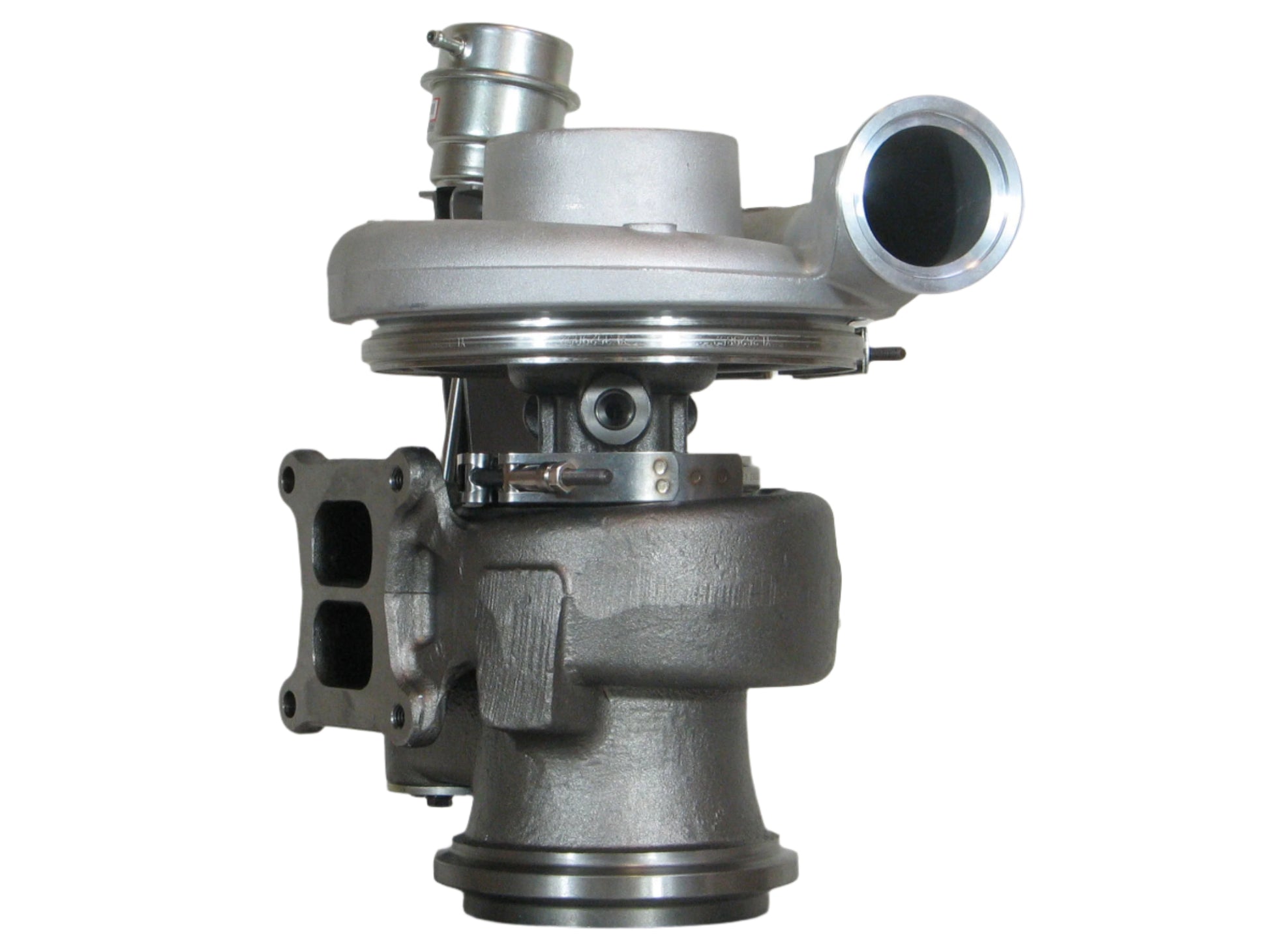

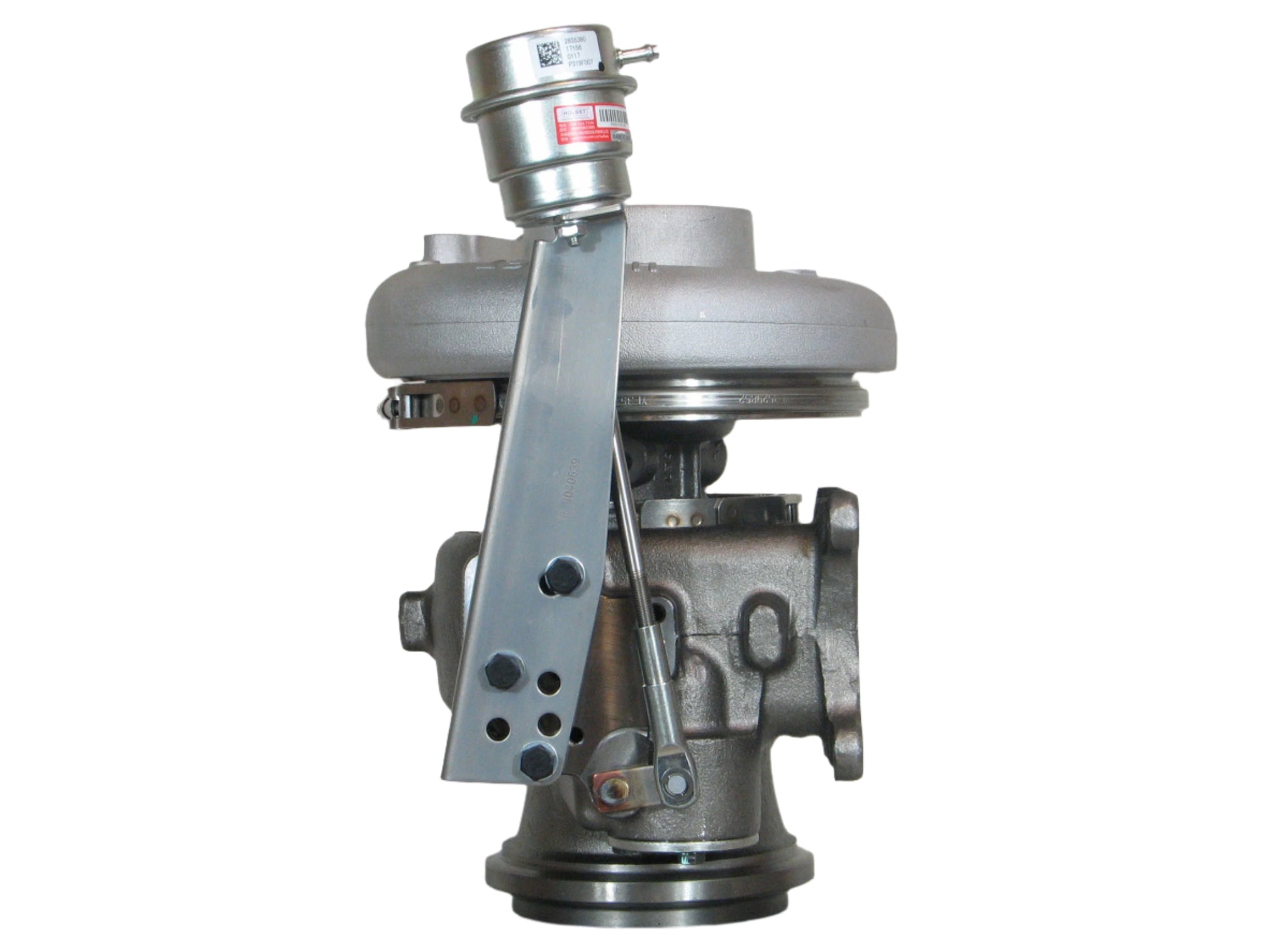

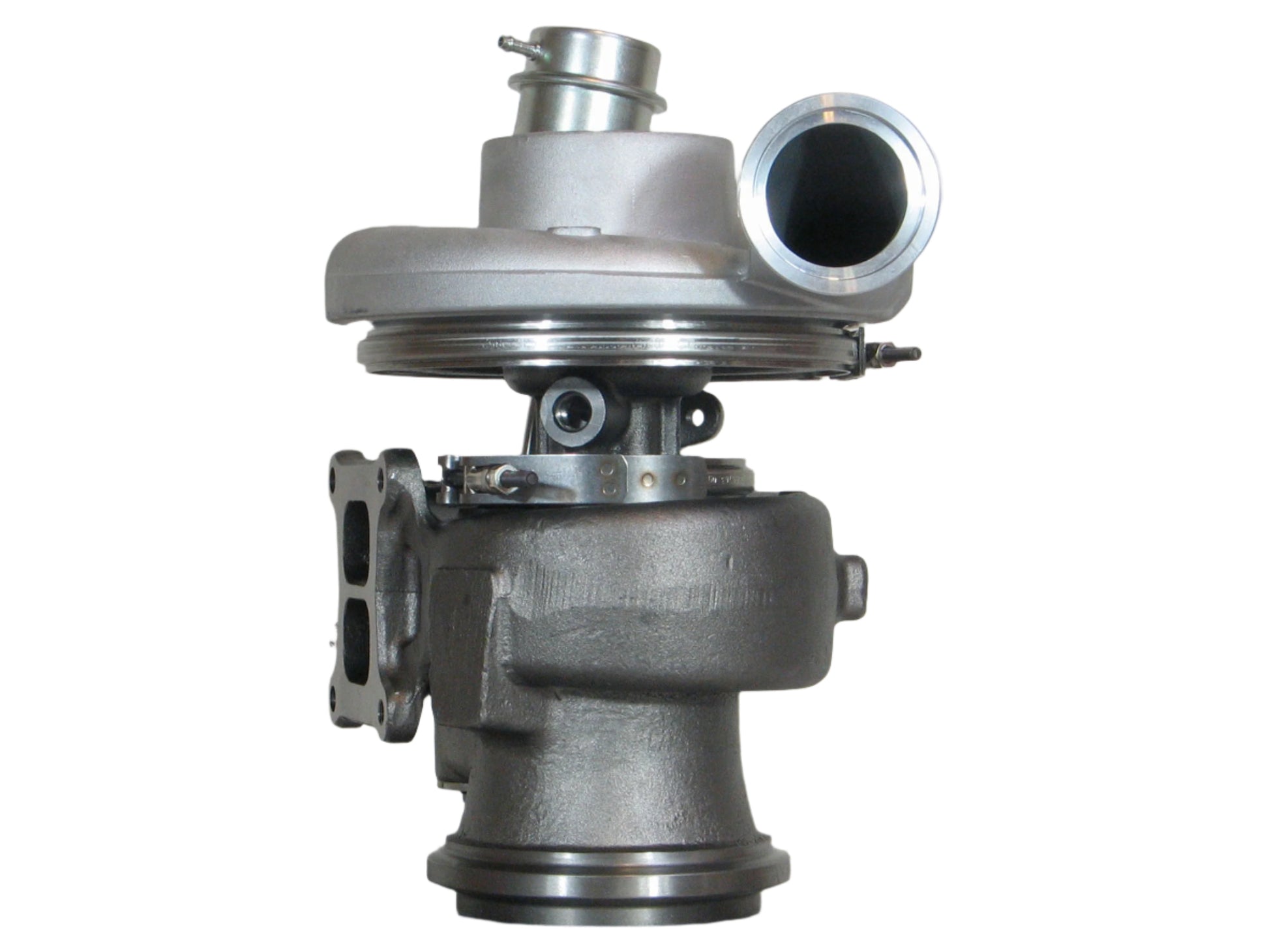

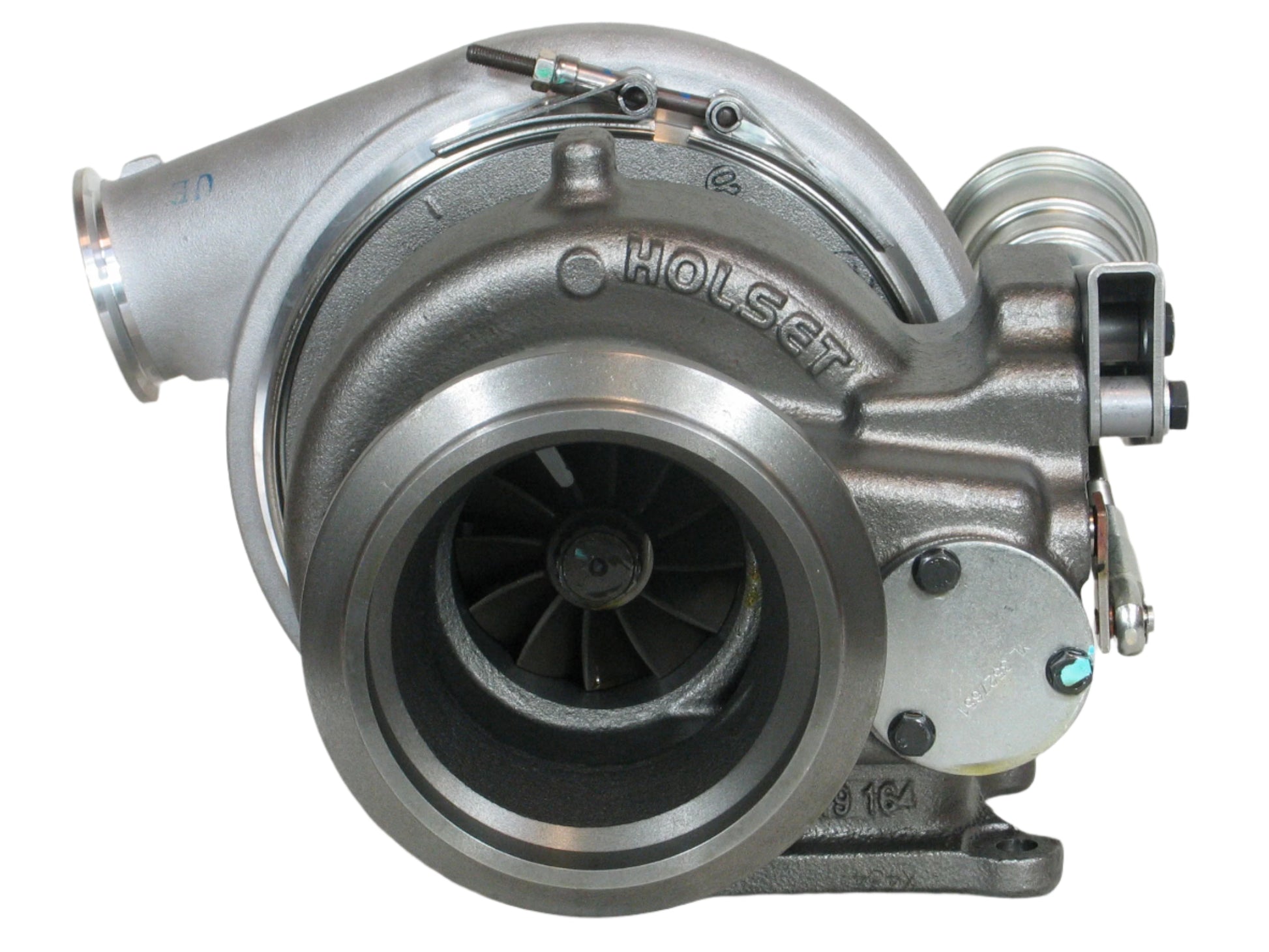

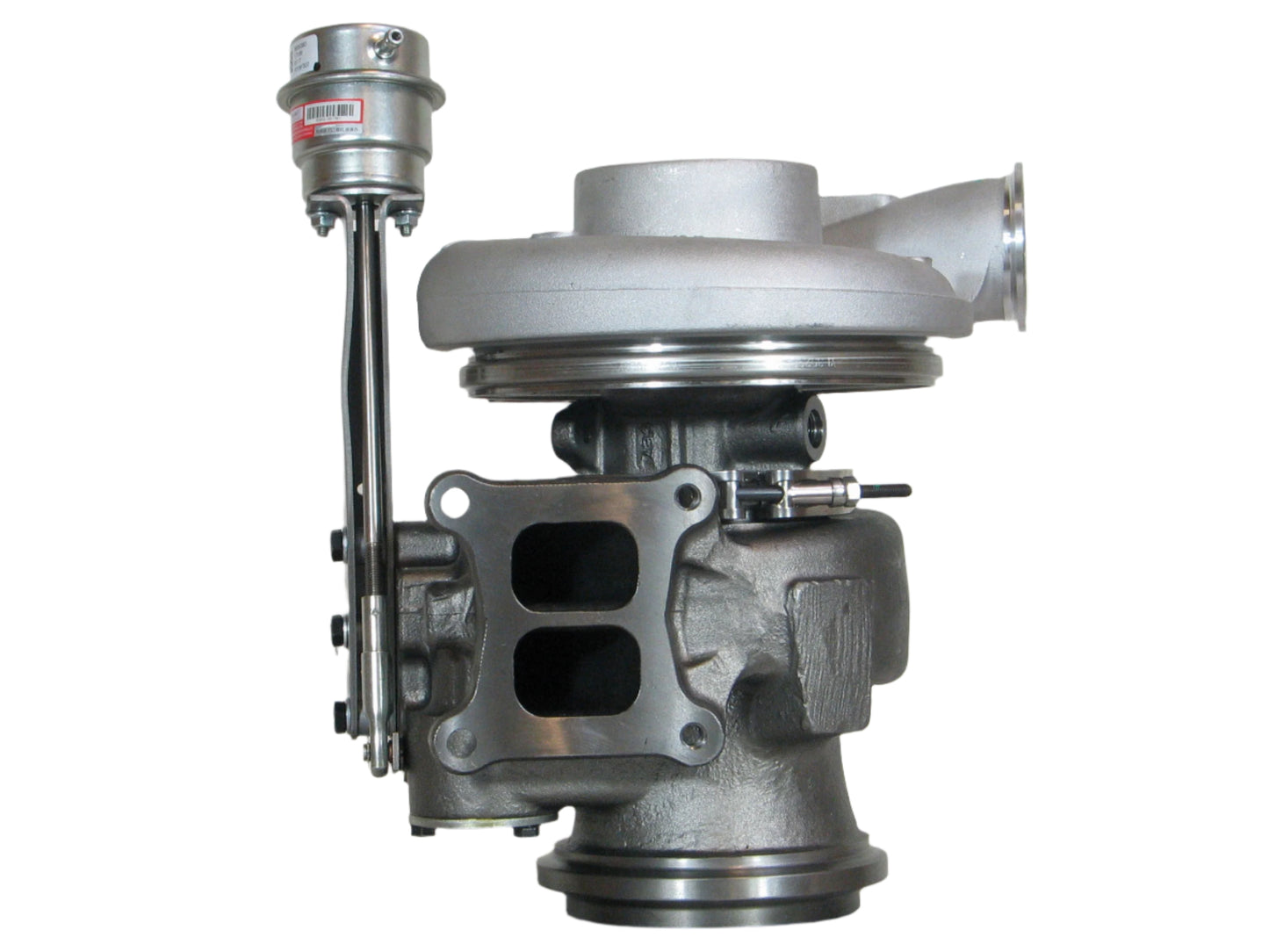

HX55W Turbocharger Bus Industrial Cummins ISM 3850 30 ISME Diesel Engine 3592778

TURBOTURBOS REMANUFACTURED TURBOCHARGER

This is a TURBOTURBOS REMANUFACTURED TURBOCHARGER. This is an exact, direct fit replacement turbo.

Fits the following:

Part Number: 3592778
Interchangeable Number: 4033817, 4033817H, 4046030, 57869902104, 5786 990 2104, 5786-990-2104
OEM Number: 3592779, 3800856, 4046030
Turbo Model: HX55W-E9861M/H19J11D, HX55W

Year: 1998-12
Engine: ISM, ISME, ISME 380 30, M11
Engine Manufacturer: Cummins
Displacement: 10.8L
Fuel: Diesel

Angle α (Compressor Housing): 8/264°
Angle β (Turbine Housing): 92/130°
Back Plate: 3528096 (352809600)(1153055300)
Bearing Housing: 3535704 (353557500, 3535575)(1153055450)
CHRA: 3580726 (1153055900)
Compressor Wheel: 3534329 (4040739, 4040740, 4041666)(Ind. 65.1 mm, Exd. 99.06 mm, 12 Blades)
Gasket (Oil Outlet): 210060 (311585, 148062, 409267-0003, 409267-0002, 210060-0000, 51914)(Paper)
Gasket (Turbine Inlet): 210847 (Inox Steel)
Heat Shield: 3529846 (3533038)(353303800, 352984600)(1153055340)
Repair Kit: 3580762 (3575181)(358076200, 357518100)(1153055750)

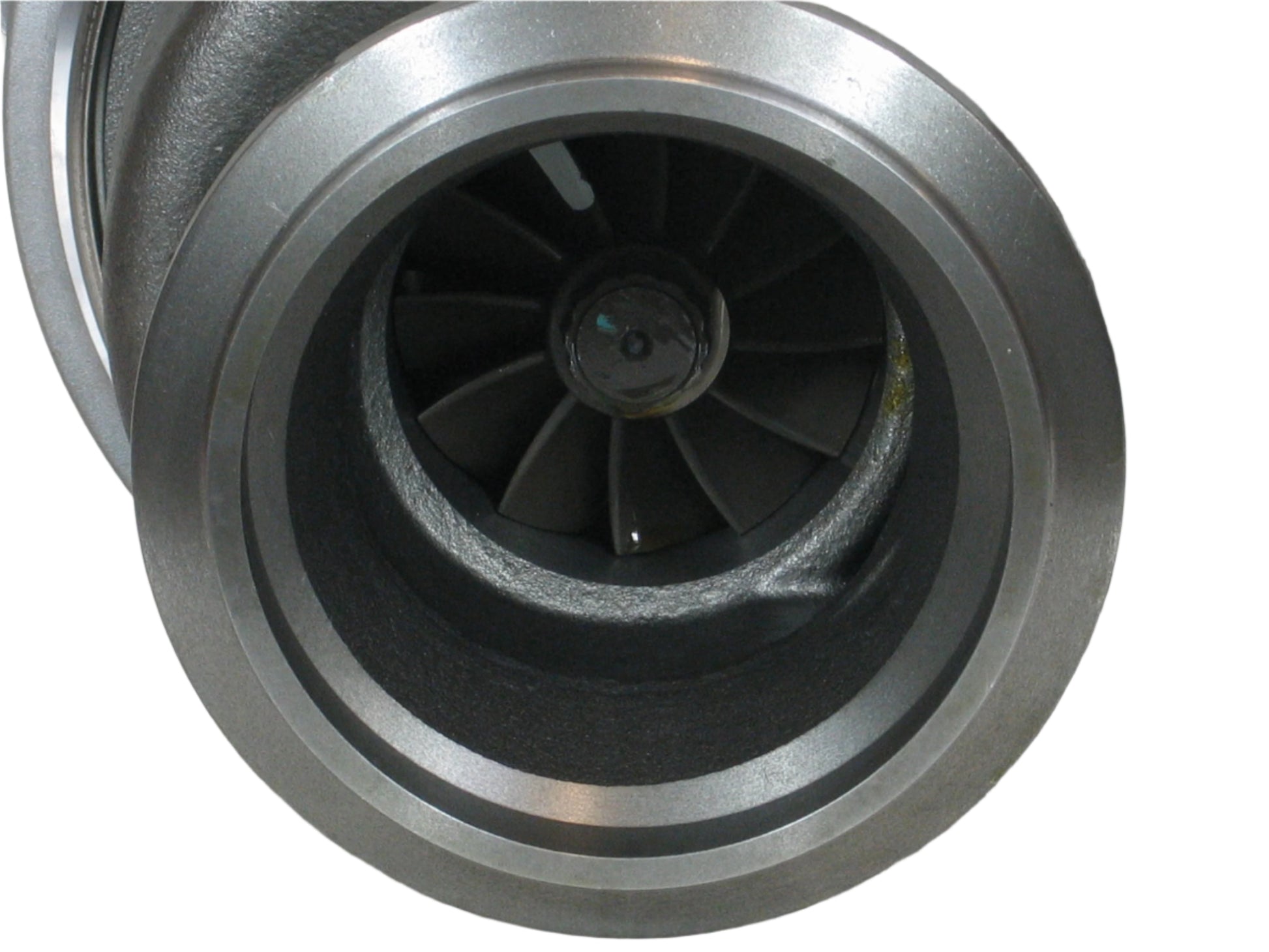

Turbine Wheel: 3535983 (353598300)(Ind. 85.8 mm, Exd. 76.95 mm, 12 Blades)(1153055436)

Application:
1998-12 Bus, Industrial, Various with Cummins ISM, ISME, ISME 380 30 Engine
Various with Cummins ISM, ISME 380 30, M11 Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
