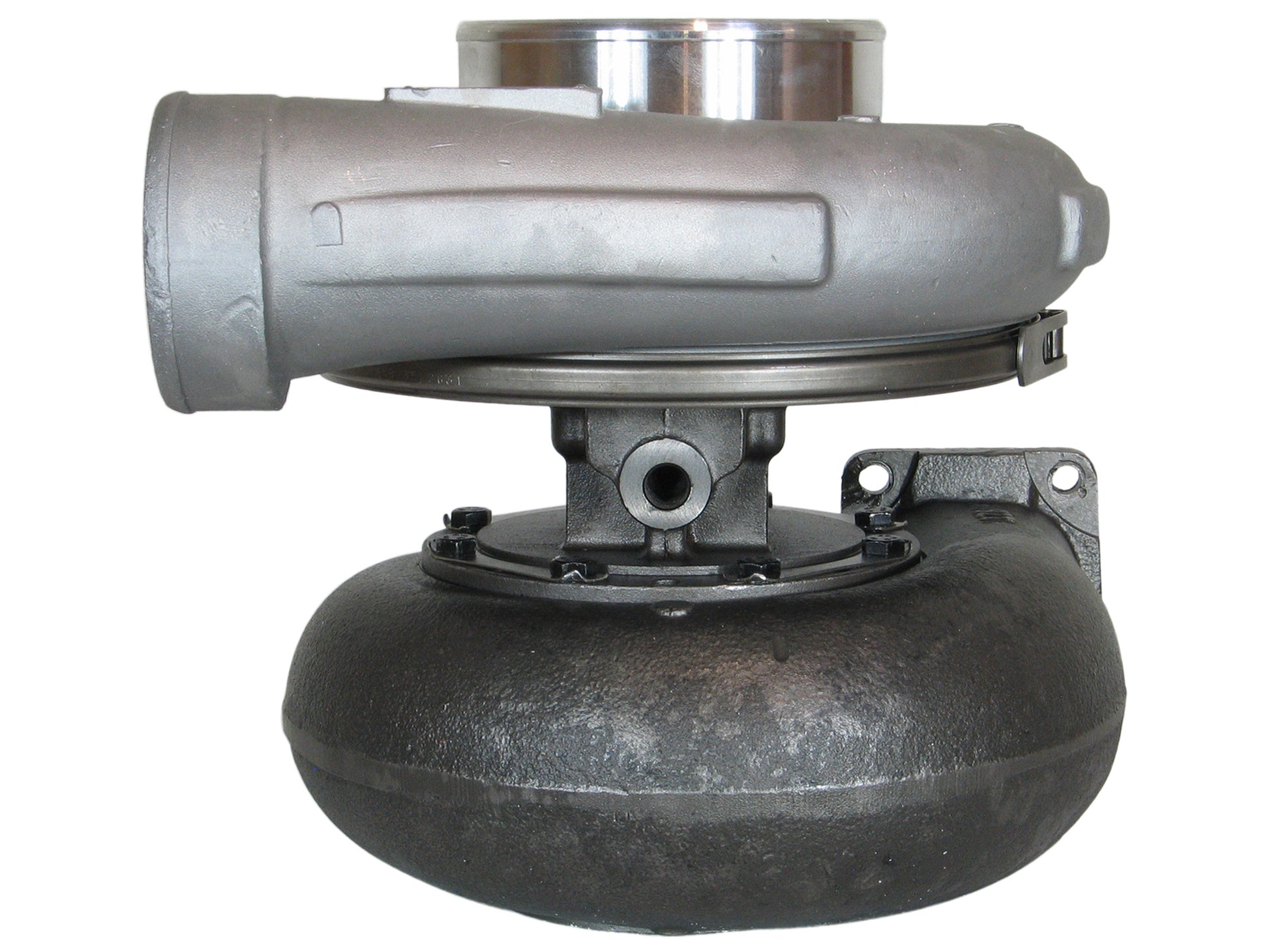

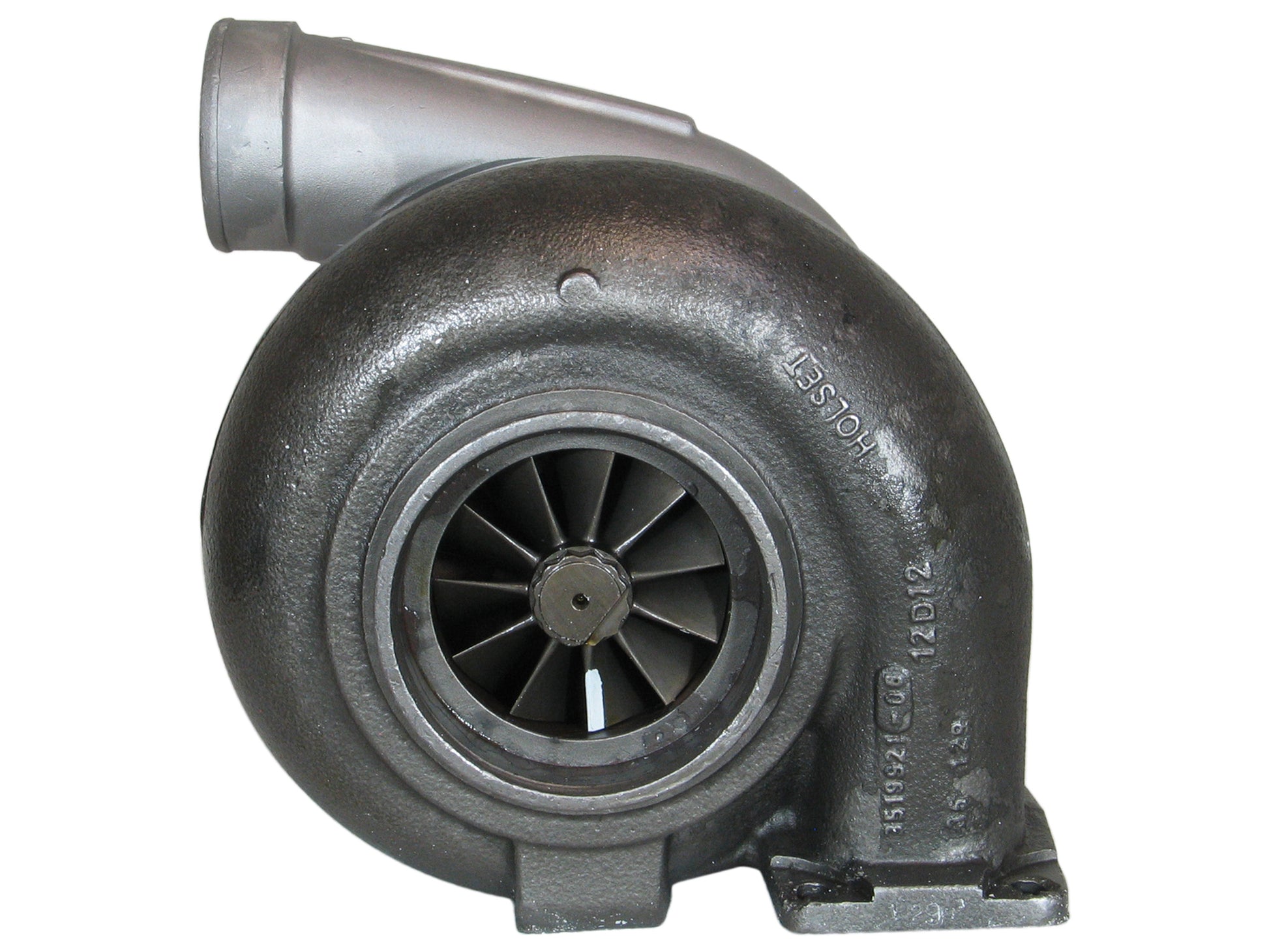

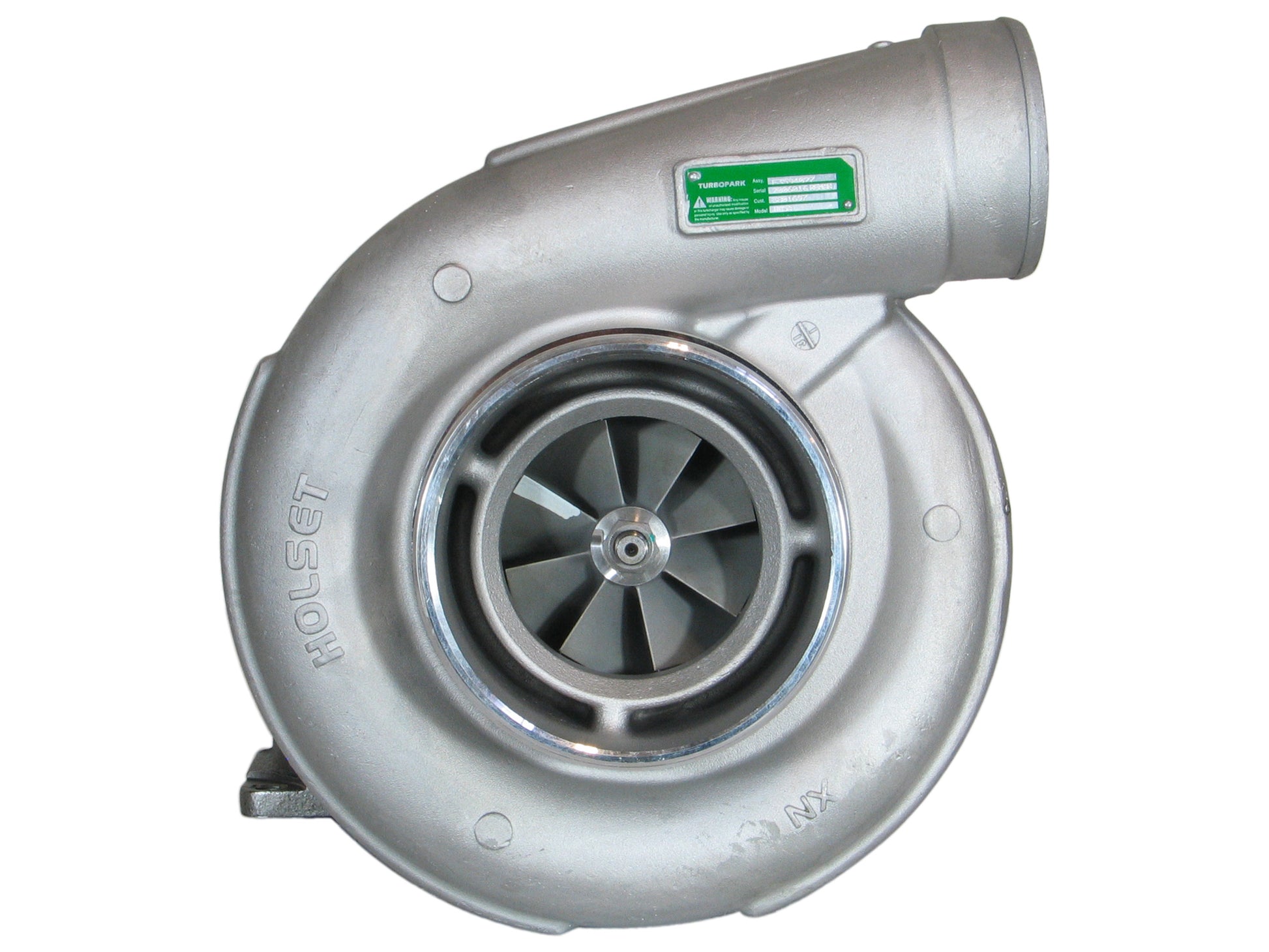

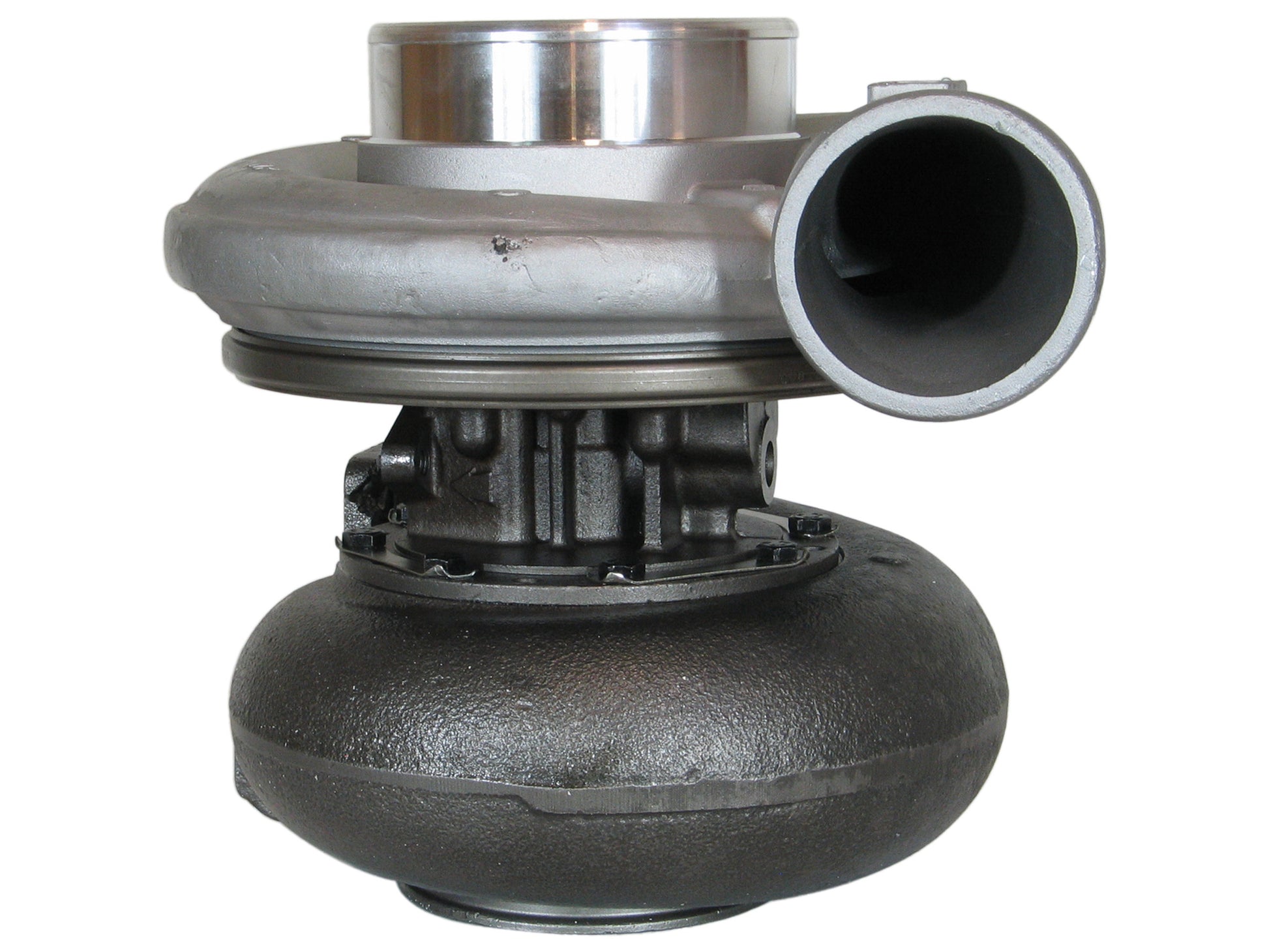

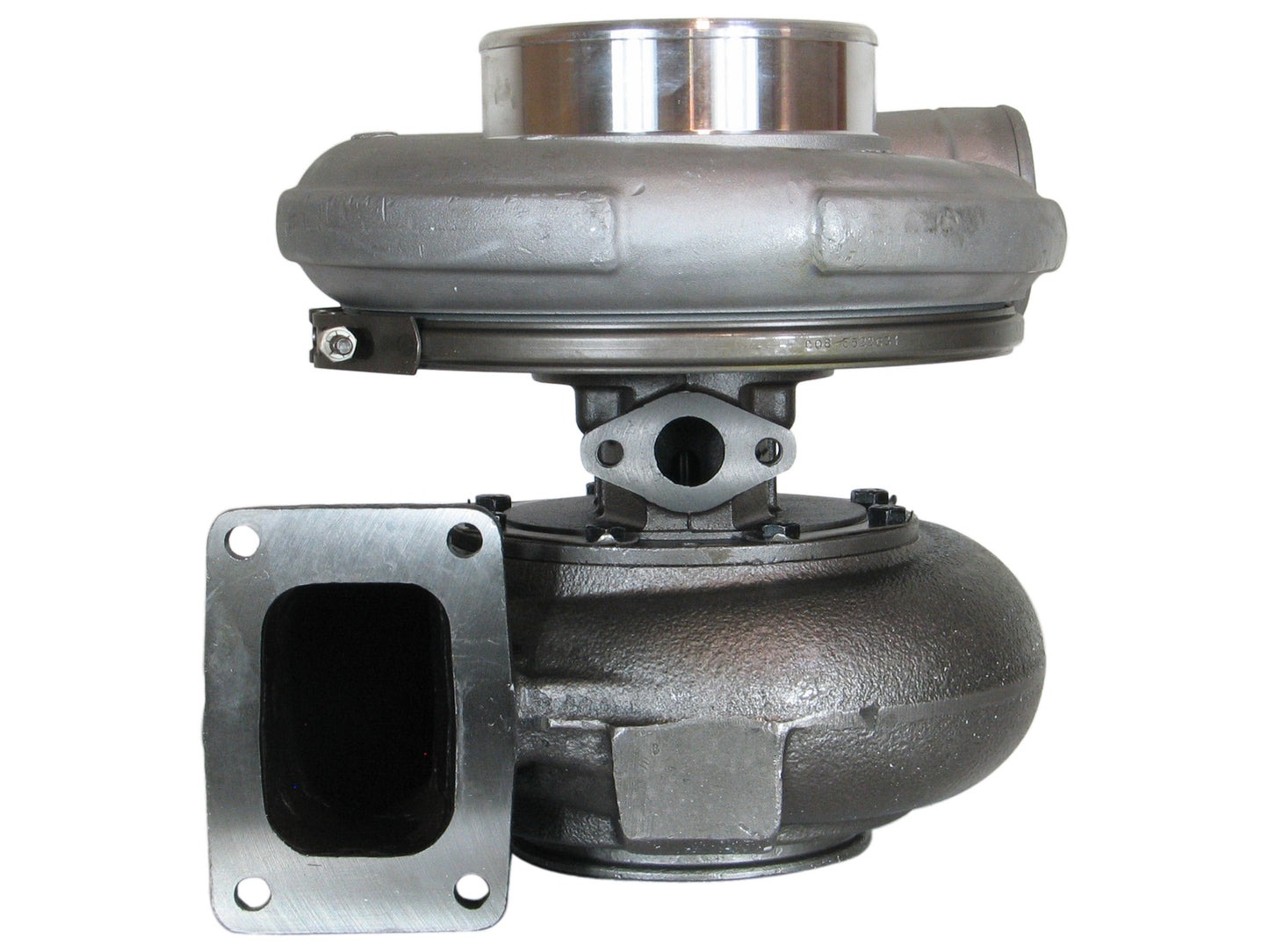

HC5A Turbocharger Industrial Cummins KTA19 KTA38 Engine 2801697 3594027SKU: F3594027
This is a TURBOTURBOS REMANUFACTURED TURBOCHARGER. This is an exact, direct fit replacement turbo.
Fits the following:
Part Number: 3594027
Interchangeable Number: 3523850, 3523851, 3525218, 3525219, 3594028, 3594029, 3594030, 465126-0004, 465126-5004, 465126-5004S, 466166-0002, 466166-5002, 466166-5002S
OEM Number: 3801697, 3801722
Turbo Model: HC5A, HC5A-2741U/B40D3
Engine: KT-1150-C, KT-1150-C/L/P/GS/GC, KT-19, KT-19/KT-450, KTA1150-GC/S, KTA19-525, KTA38
Engine Manufacturer: Cummins
Power: 450/525 HP
Angle α (Compressor Housing): 180/270/360°
Angle β (Turbine Housing): 337.5/360°
Back Plate: 3524862 (352486200)
Bearing Housing: 3523429 (352342900)
CHRA: 4027084 (402708400)
Compressor Wheel: 3521918 (Ind. 86.89 mm, Exd. 127 mm, Trim 47, 8+8 Blades)(352191800)
Gasket (Oil Outlet): 129120 (210018-0000, 409267-0002, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763)(1900000025)
Gasket (Turbine Inlet): 409038-0000 (132040, 52231083002, 1900000004)
Heat Shield: 3519783 (351978300)
Repair Kit: 3545647 (1152105750)
Turbine Wheel: 3521033 (Ind. 129 mm, Exd. 95.4 mm, 11 Blades)(1152105435)
1986-05 Industrial with Cummins KTA38 Engine
Various with Cummins KT-1150-C, KT-1150-C/L/P/GS/GC, KT-19, KT-19/KT-450, KTA1150-GC/S, KTA19-525, KTA38 Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
