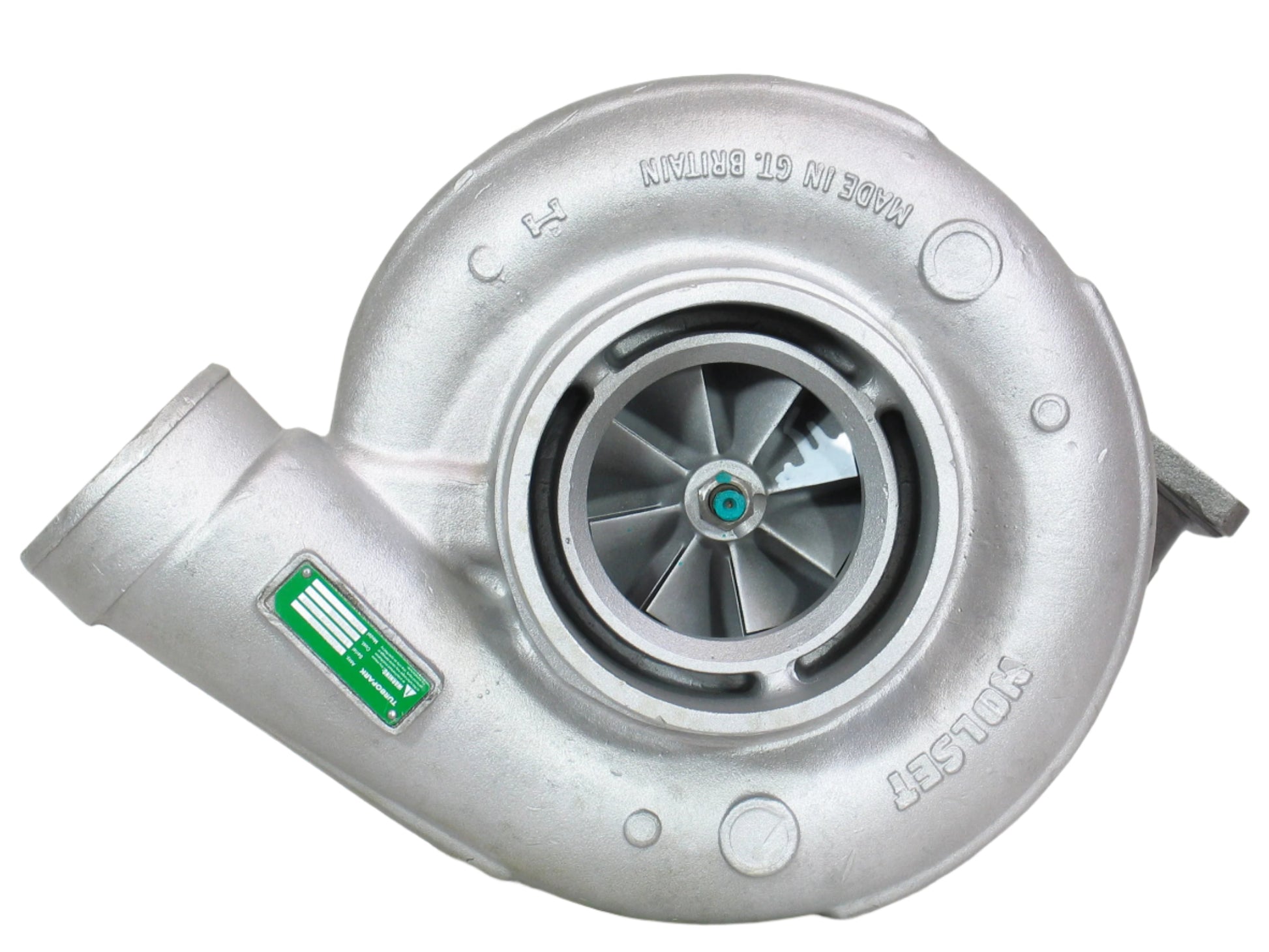

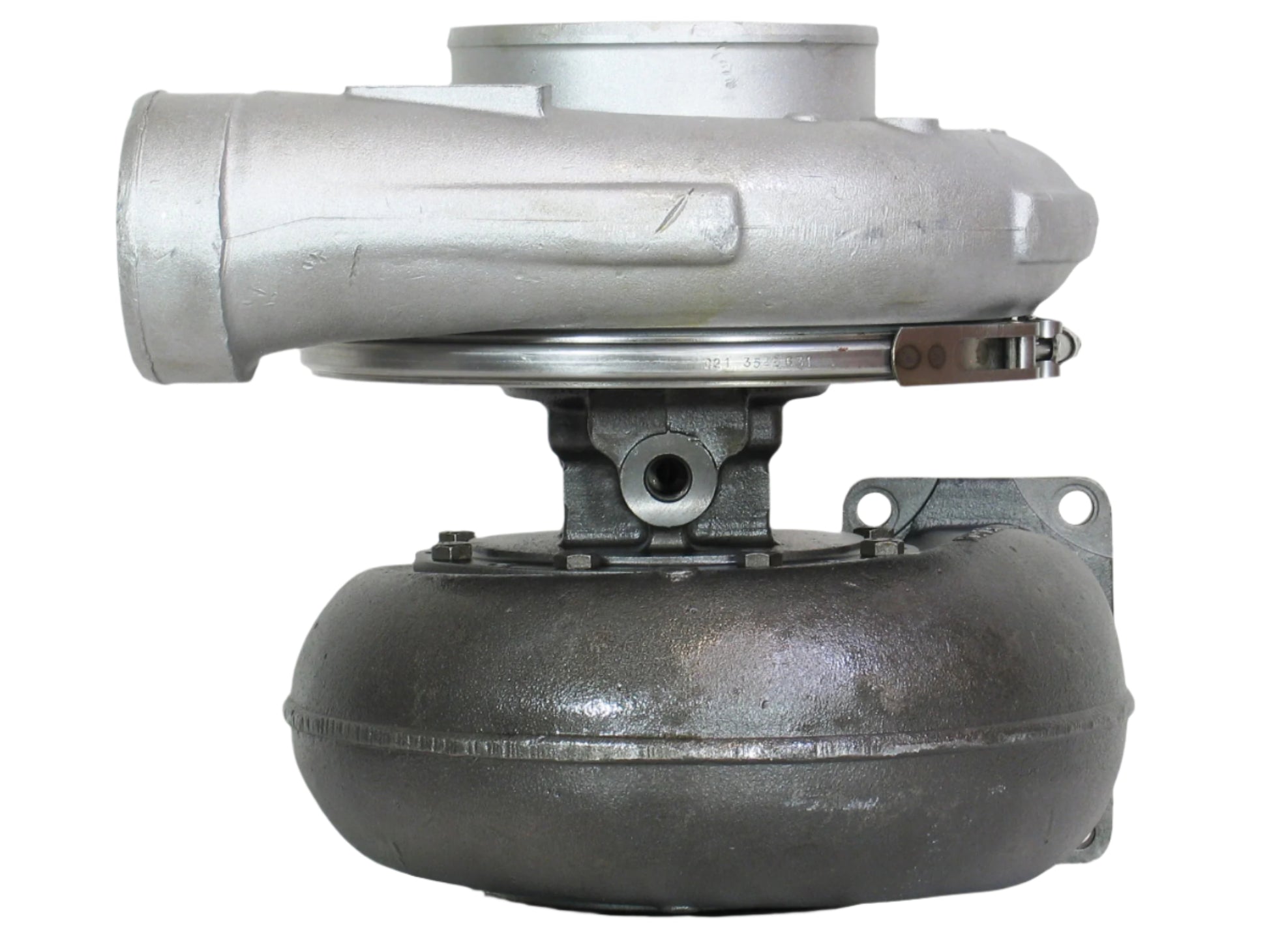

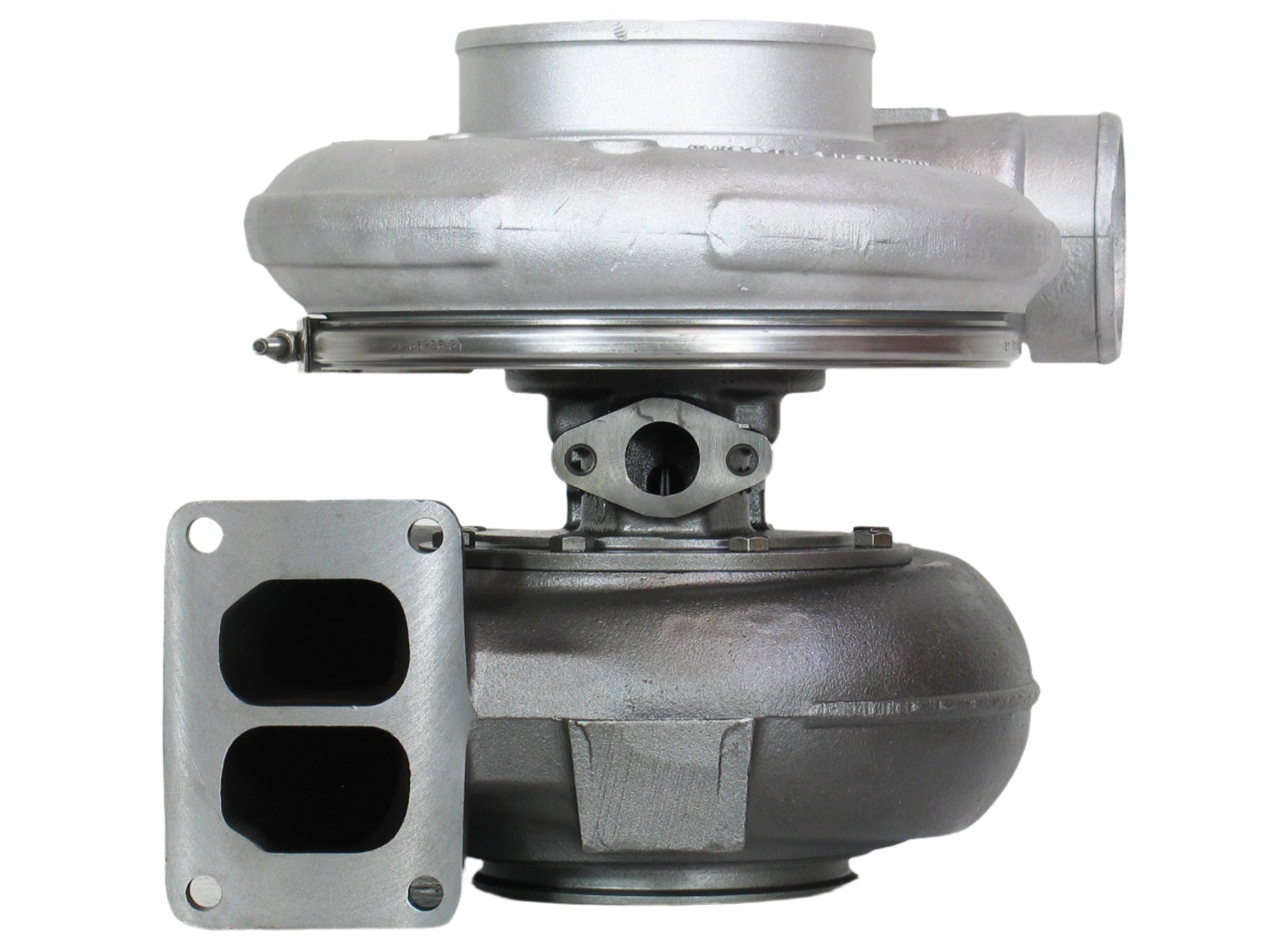

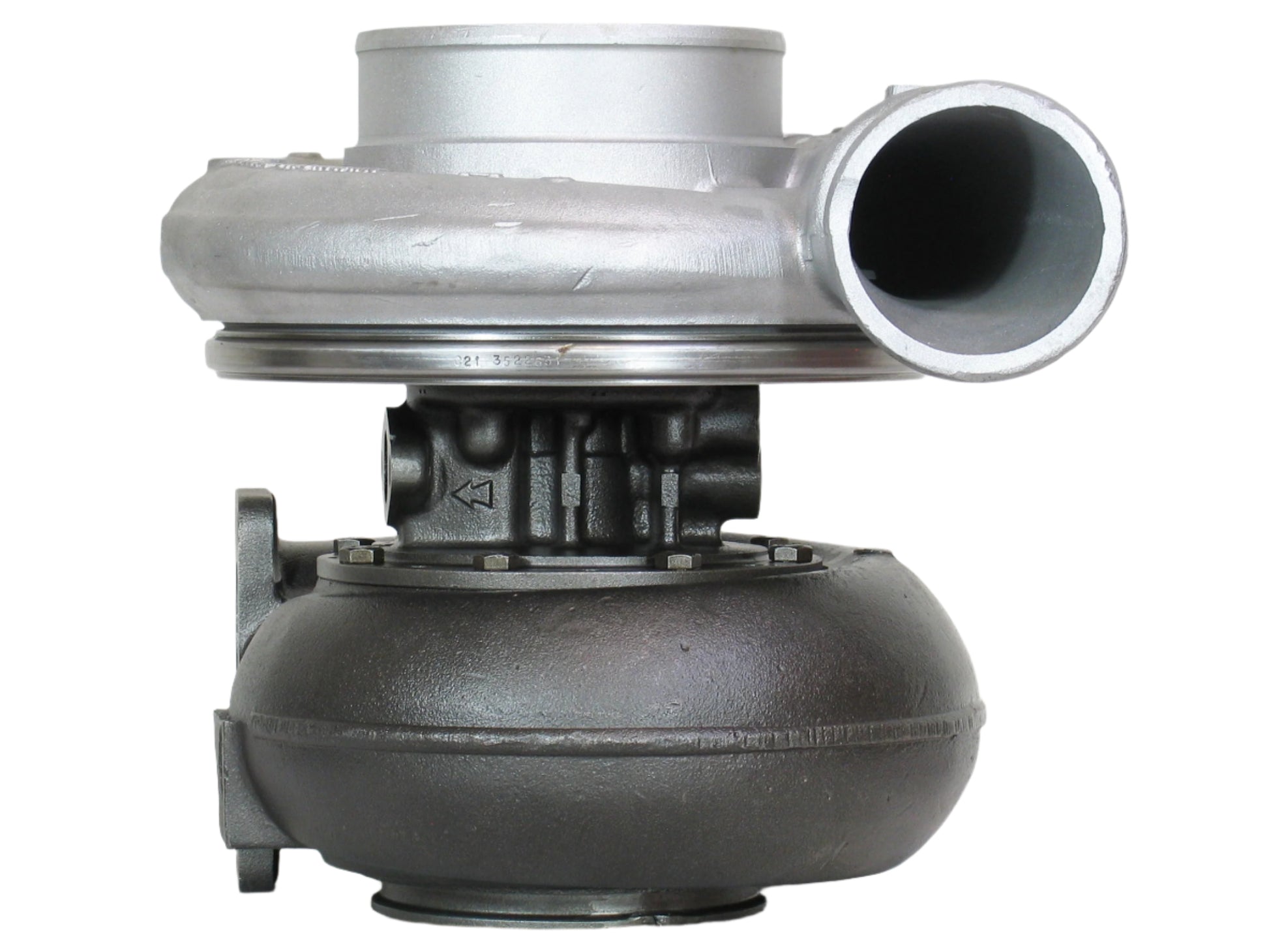

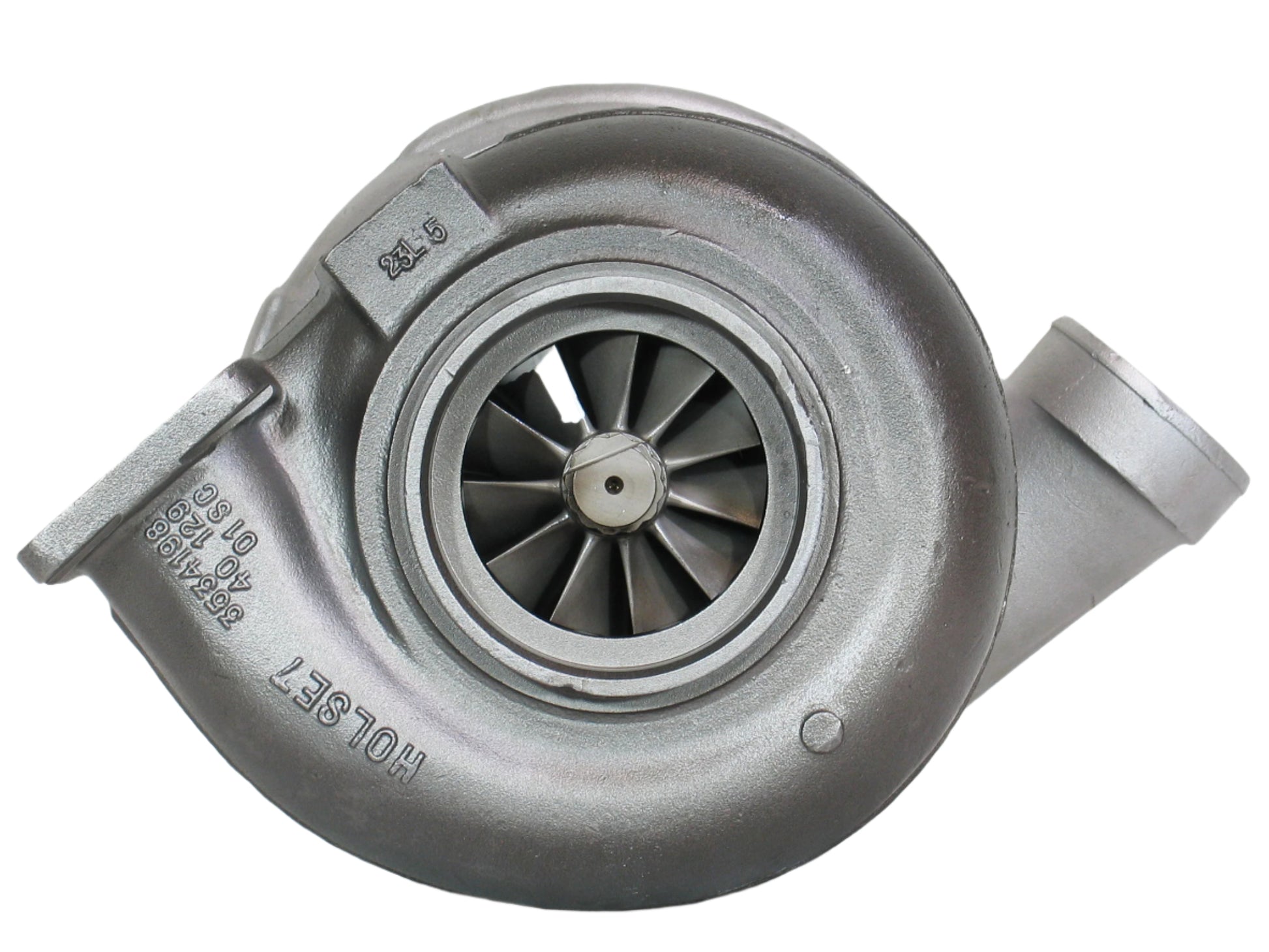

HC5A Turbocharger Cummins KTA38 Diesel Engine 3801884 3594039 3594038 TurboSKU: F3594038
This is a TURBOTURBOS REMANUFACTURED TURBOCHARGER. This is an exact, direct fit replacement turbo.
Fits the following:
Part Number: 3594038
Previous Version: 3524450, 3524459, 3594039
OE Number: 3801884
Applications: 1985-00 Various with Cummins KTA38 Engine
Manufacturer Part Number: 3594039
CHRA: 3545702 (402708400)
Turbo Model: HC5A-2741U/F41D3, HC5A
Engine Manufacturer: Cummins
Angle α (compressor housing): 8º
Angle β (turbine housing): 360º
Bearing housing: 3523429 (352342900)
Turbine Wheel: 3521033 (Ind. 129. mm, Exd. 95.4 mm, 11 Blades)(1152105435)
Comp. Wheel: 3521918 (Ind. 86.89 mm, Exd. 127. mm, Trm 47, 8+8 Blades)(352191800)
Back plate: 3524862 (352486200)
Heat Shield: 3519783 (351978300)
Repair Kit: 3545647 (1152105750)
Gasket (turbine inlet): 409038-0000 (132040, 52231083002, 1900000004)
Gasket (oil outlet): 129120 (210018-0000, 409267-0002, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763)(1900000025)
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
