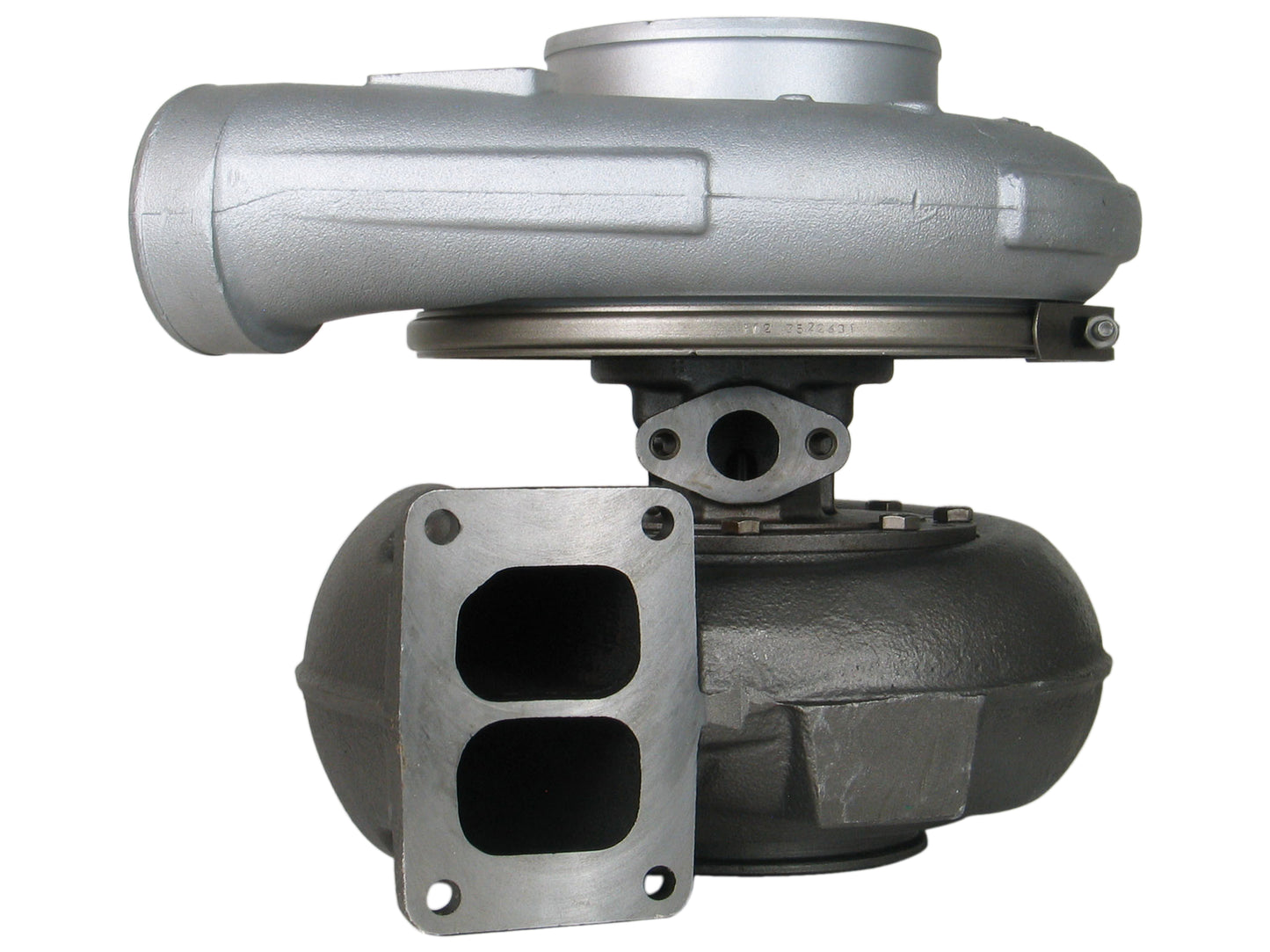

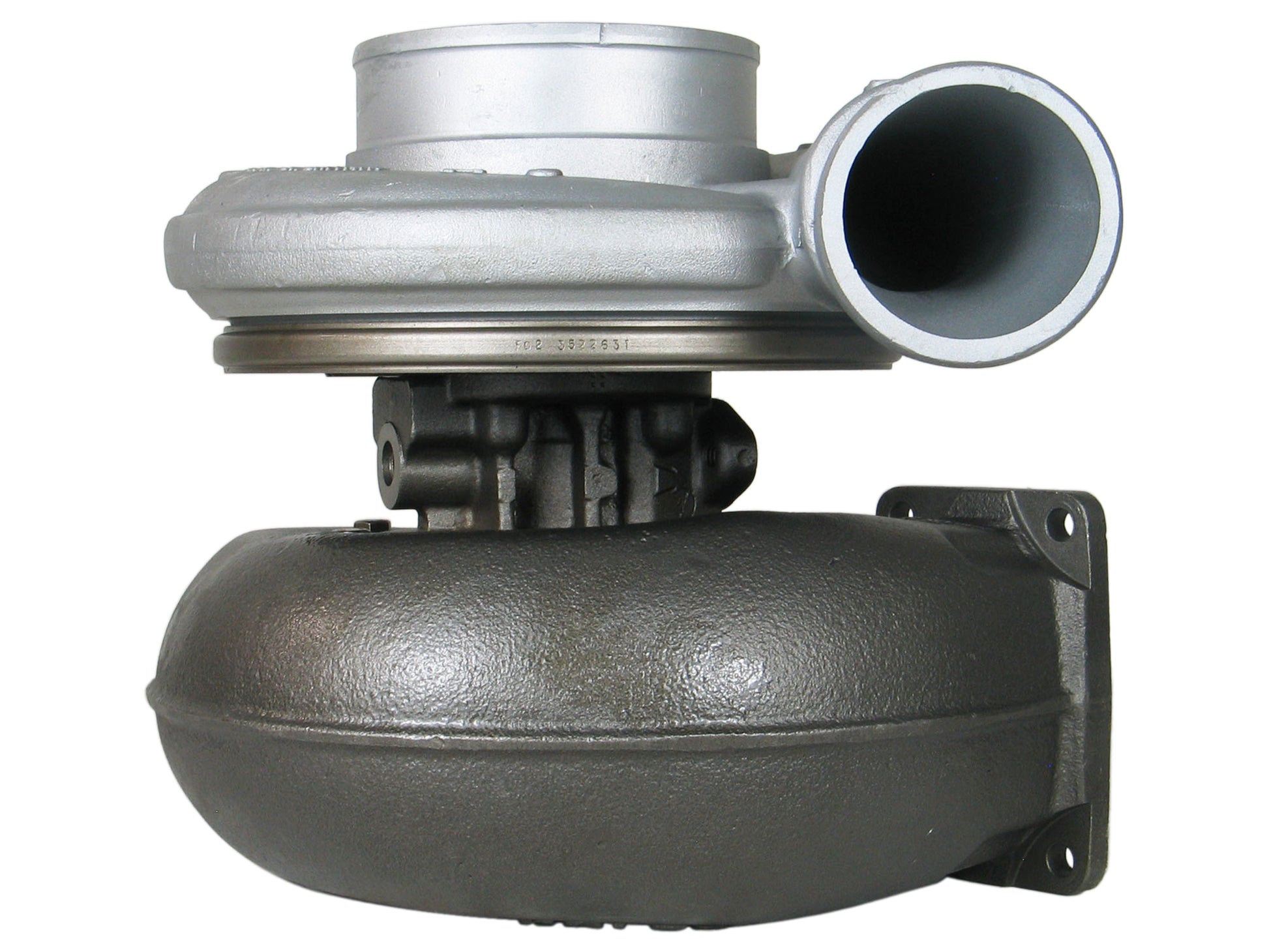

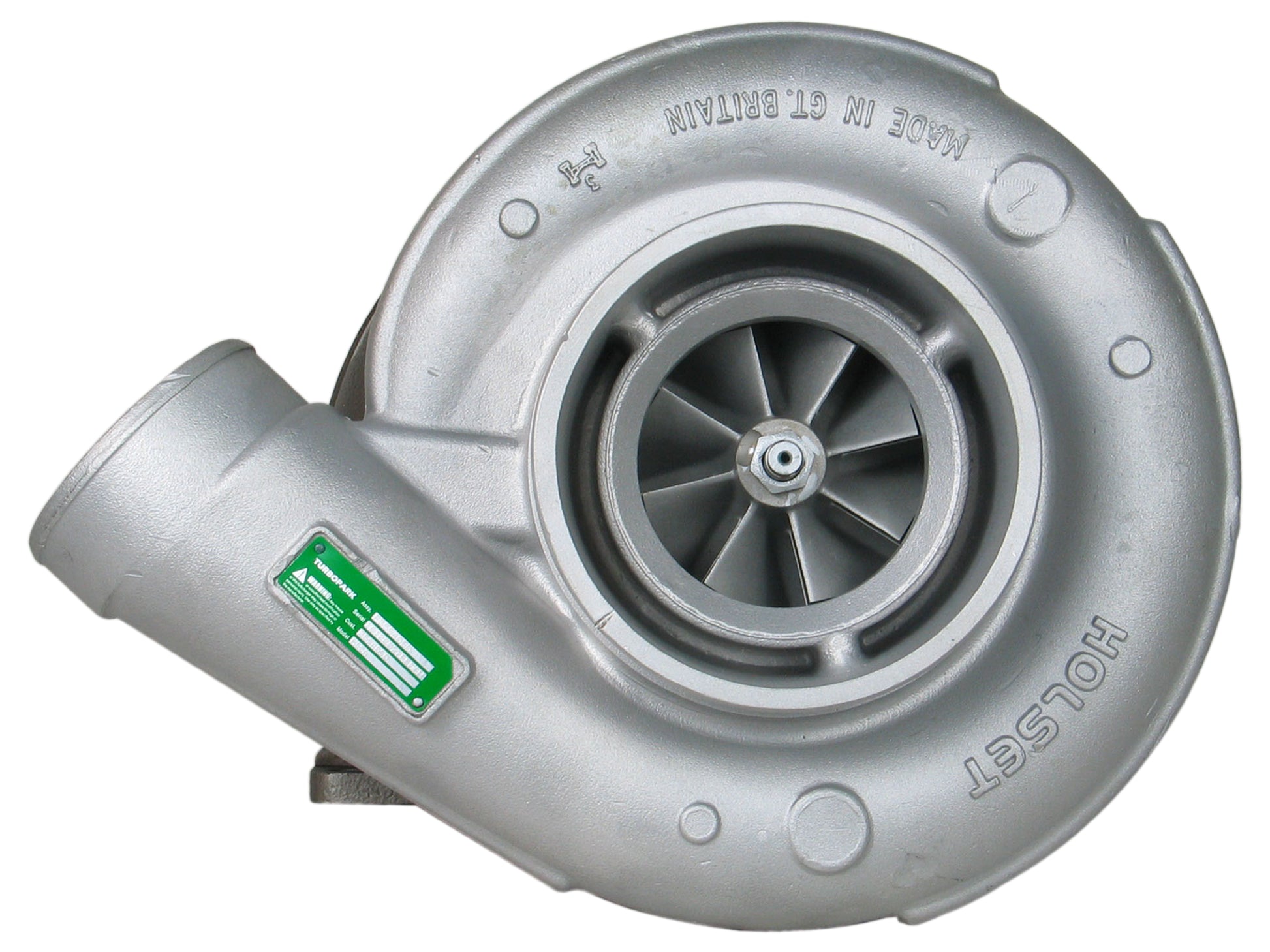

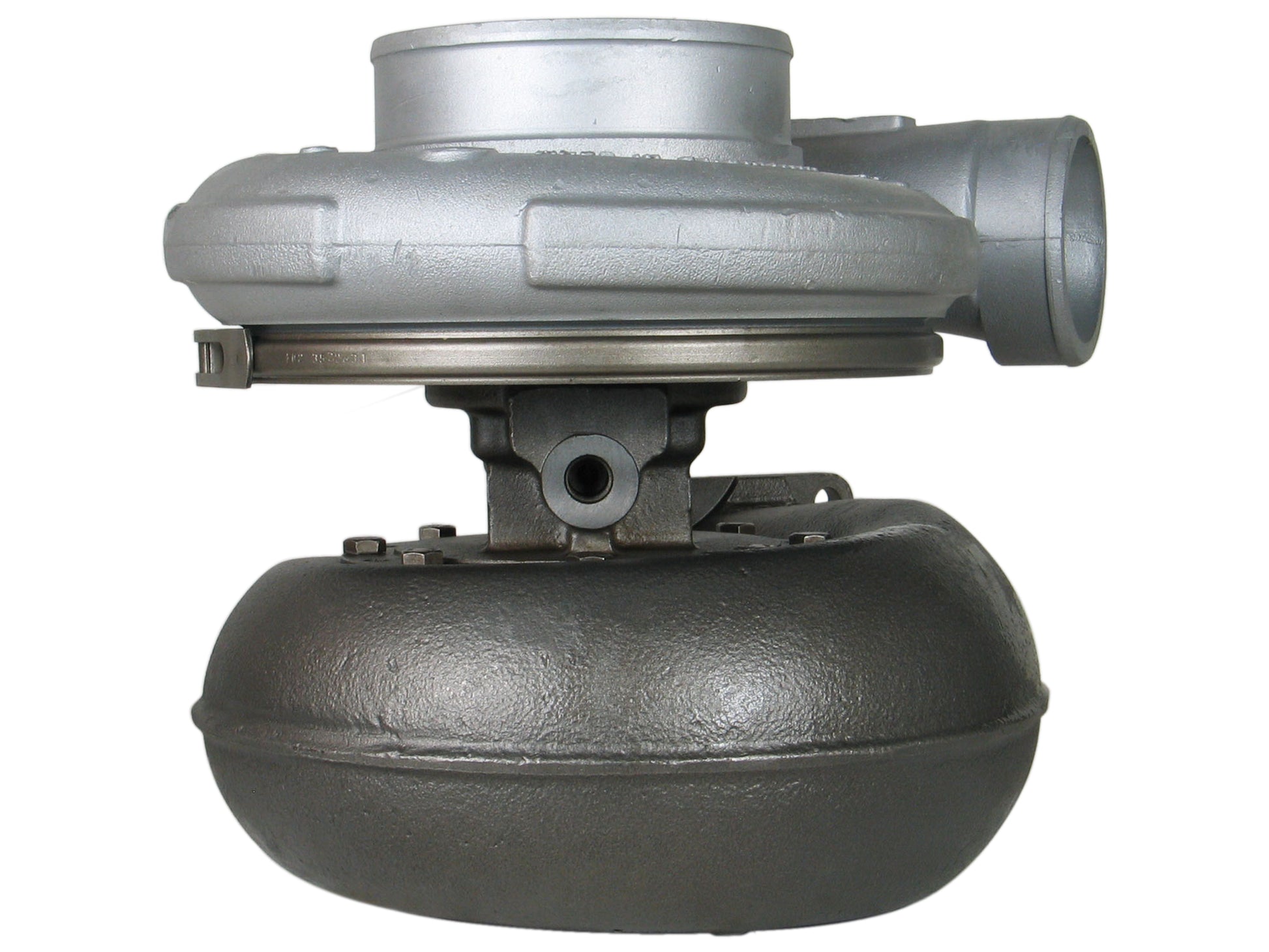

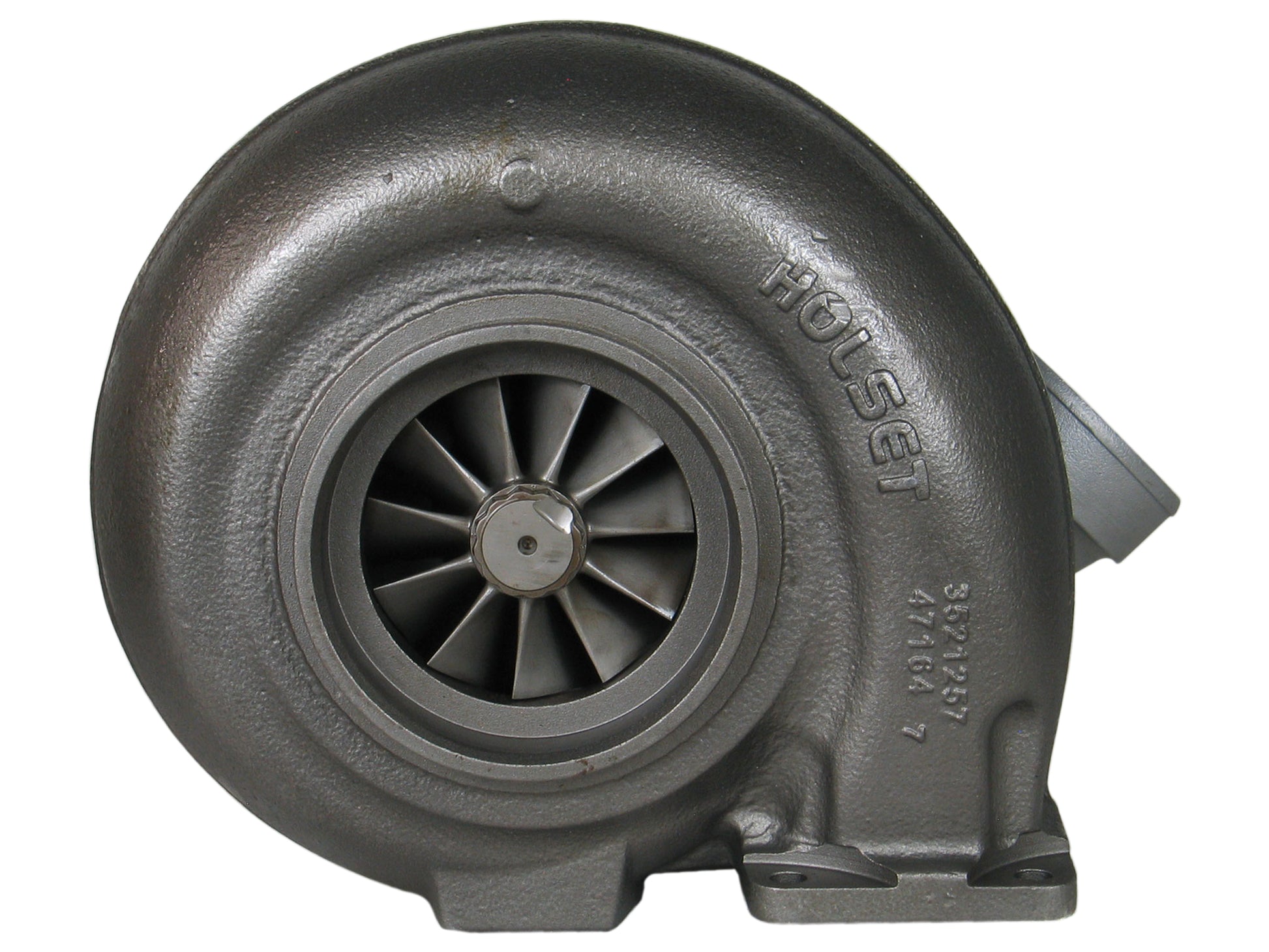

HC5A Turbocharger KCL Cummins KTA19 KTA38 Diesel Engine 3803013 3594090 TurboSKU: F3594090
This is a TURBOTURBOS REMANUFACTURED TURBOCHARGER. This is an exact, direct fit replacement turbo.
Fits the following:
Part Number: 3594090
Interchangeable Number: 3525505, 3525506, 3525507, 3525508, 3525509, 3525510, 3592523, 3594086, 3594087, 3594088, 3594089, 3594091, 3594092, 3594093
OEM Number: 3803013
Turbo Model: HC5A-2731U/B47D3, HC5A
Engine: KTA19, KTA38
Engine Manufacturer: Cummins
Displacement: 38.0L, 3800 ccm
Power: 600-1200 HP
Angle α (Compressor Housing): 19/201/247°
Angle β (Turbine Housing): 22.5/360°
Back Plate: 3524862 (352486200)
Bearing Housing: 3595036
Compressor Wheel: 3523553 (352355300)
Gasket (Turbine Inlet): 311698 (Inox Steel)
Gasket Kit: 4032509
Heat Shield: 3536588 (1153080340)
Repair Kit: 3545647 (3575236)(1152105750)
Turbine Wheel: 3521033 (Ind. 129 mm, Exd. 95.4 mm, 11 Blades)(1152105435)
2000- Various with Cummins KTA19, KTA38 Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
