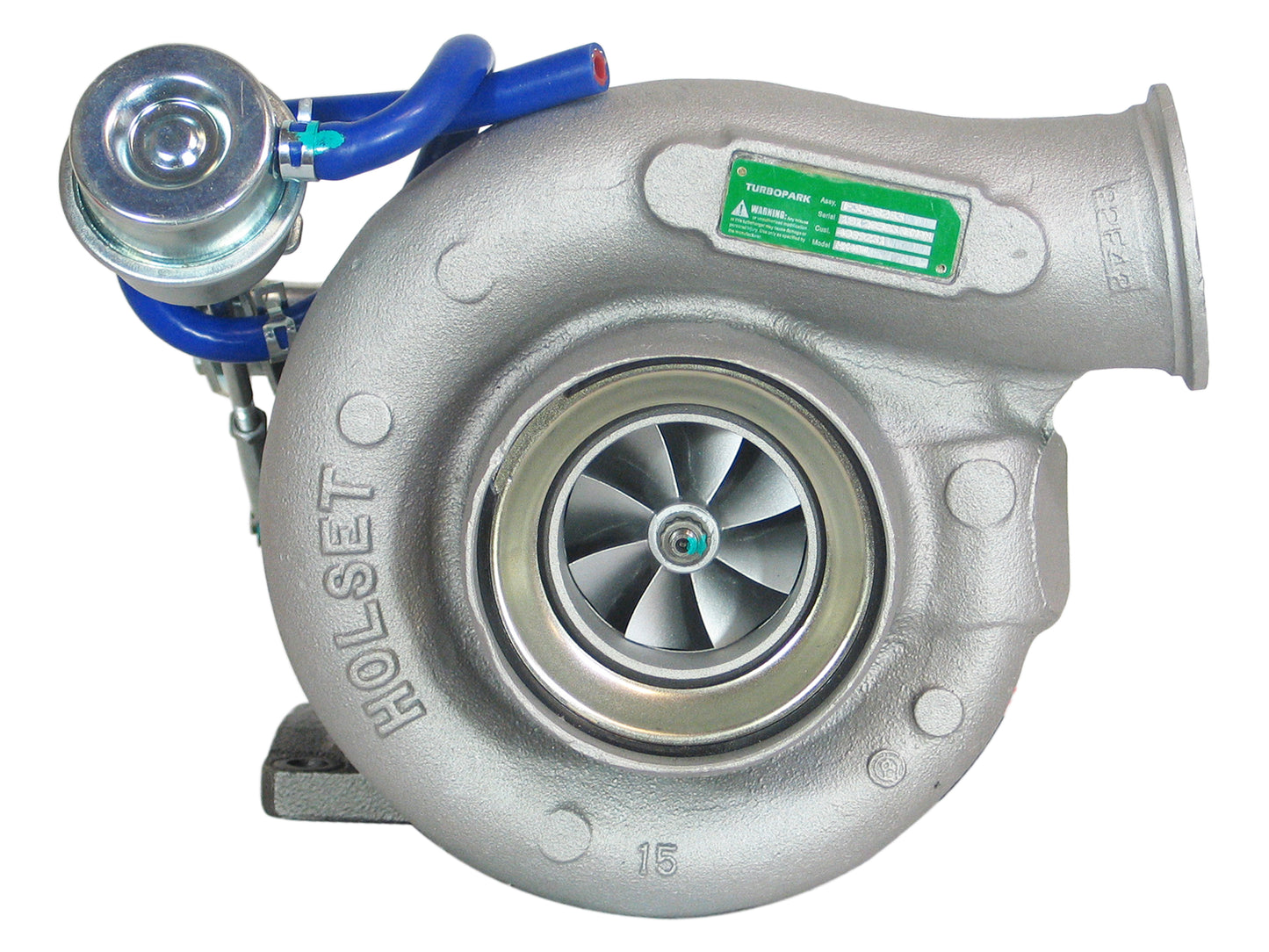

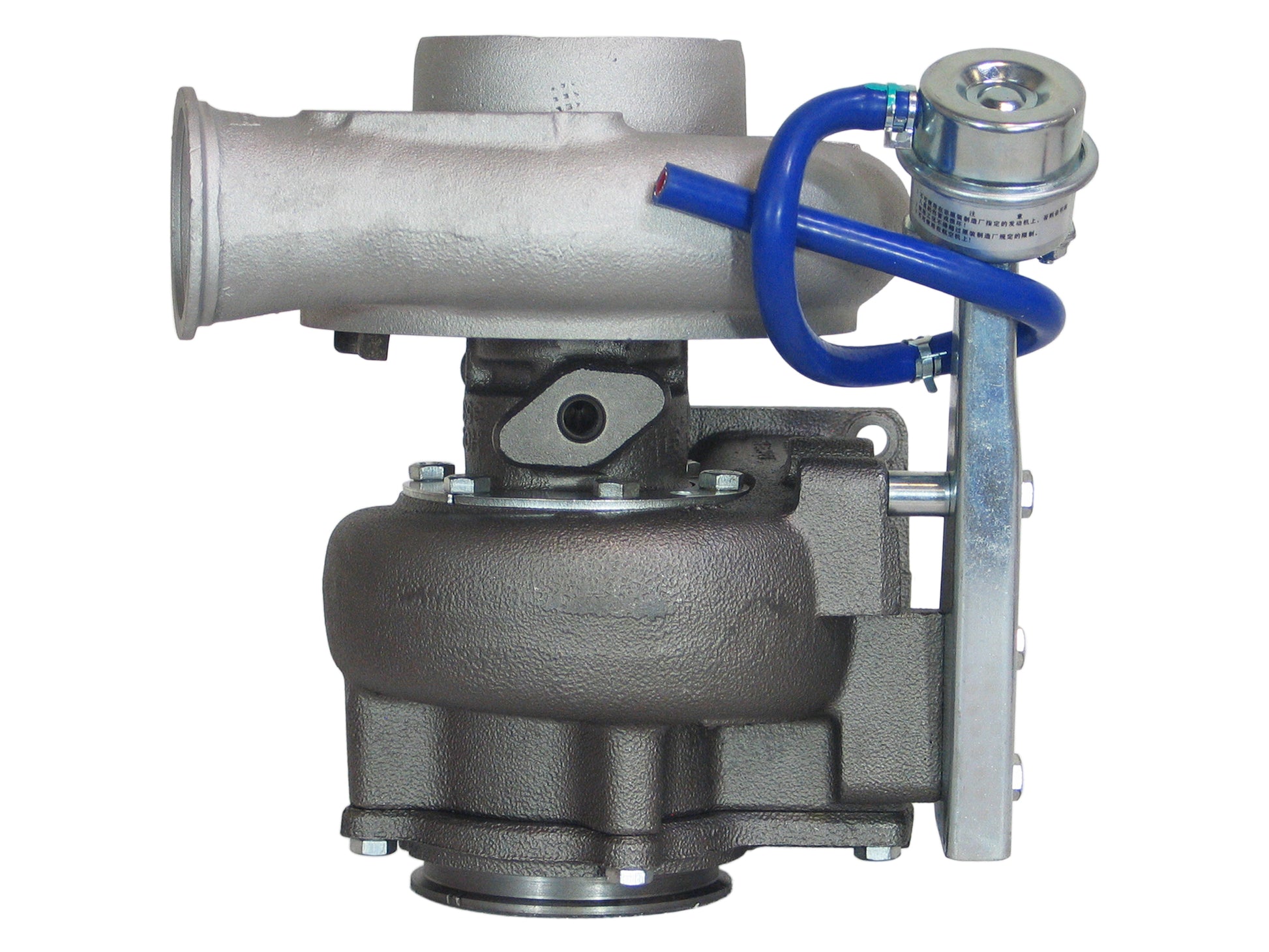

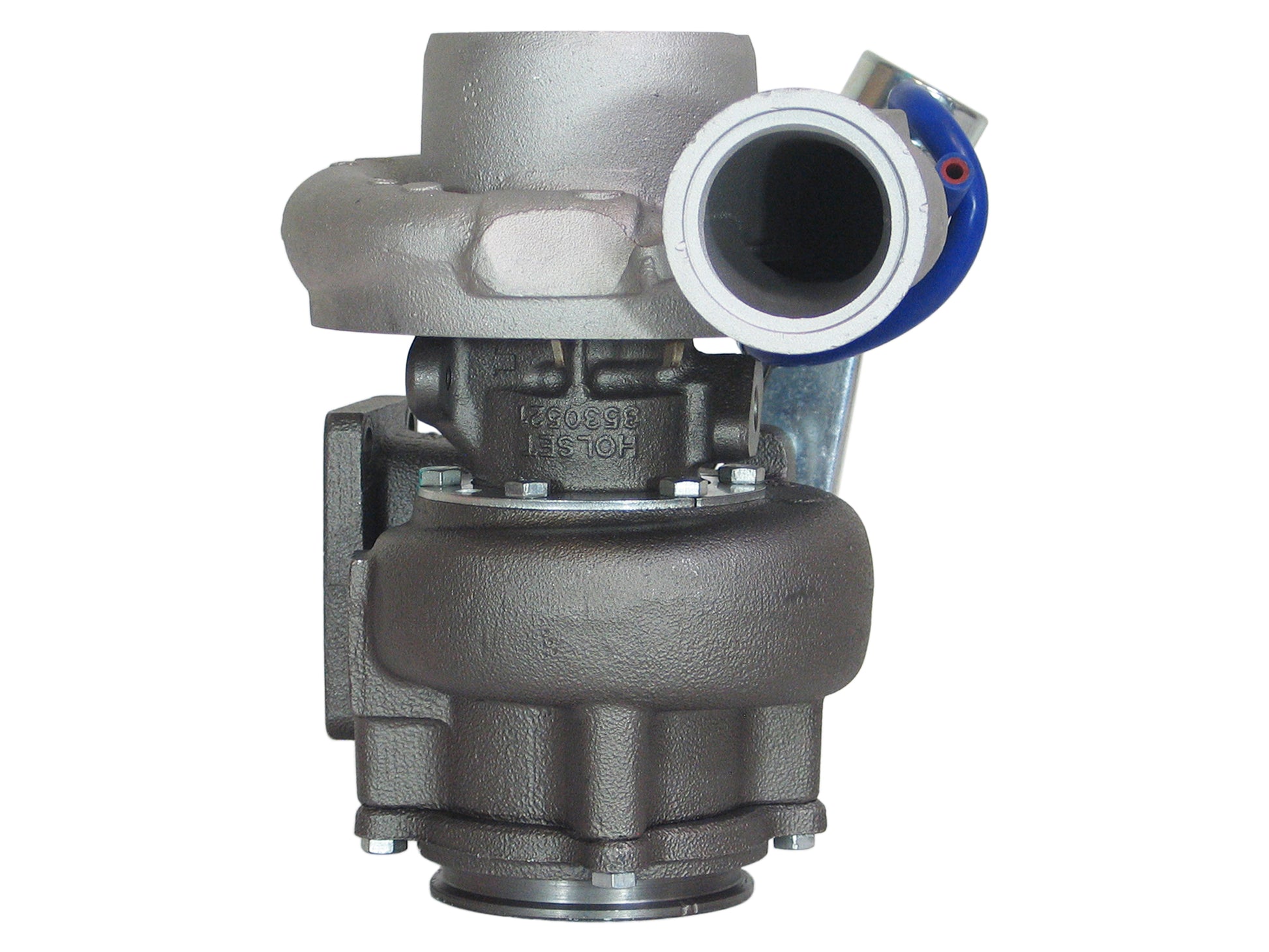

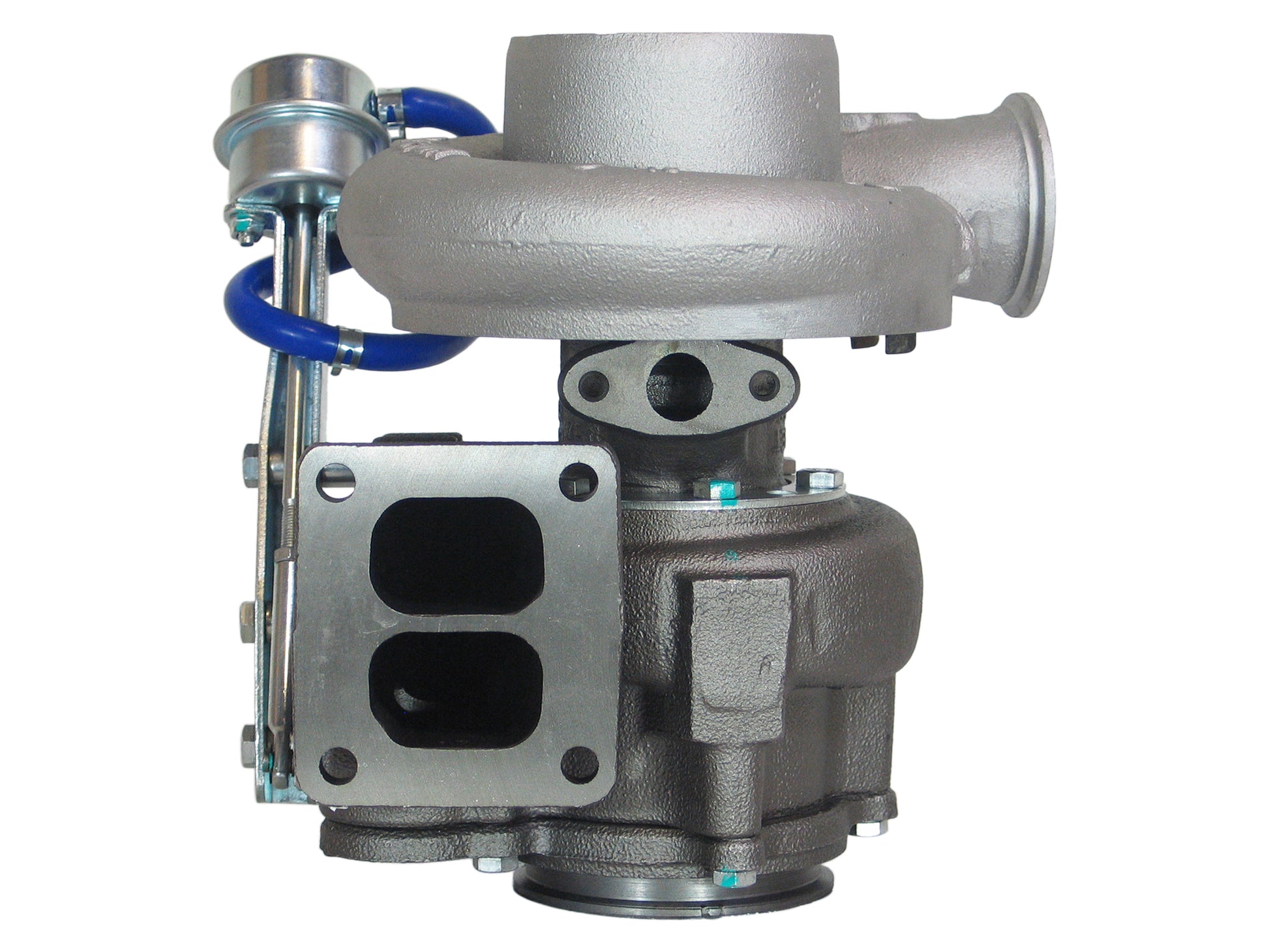

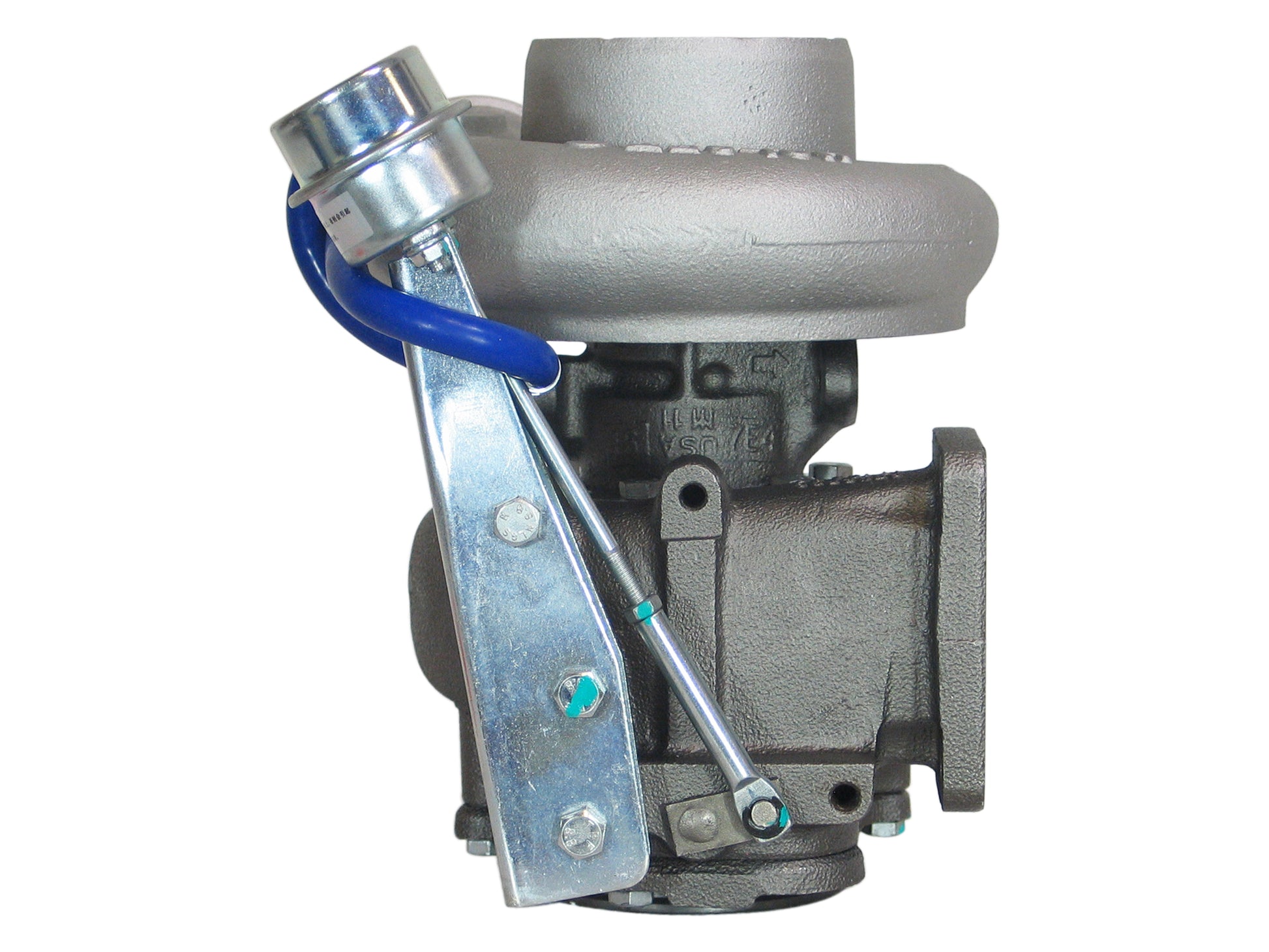

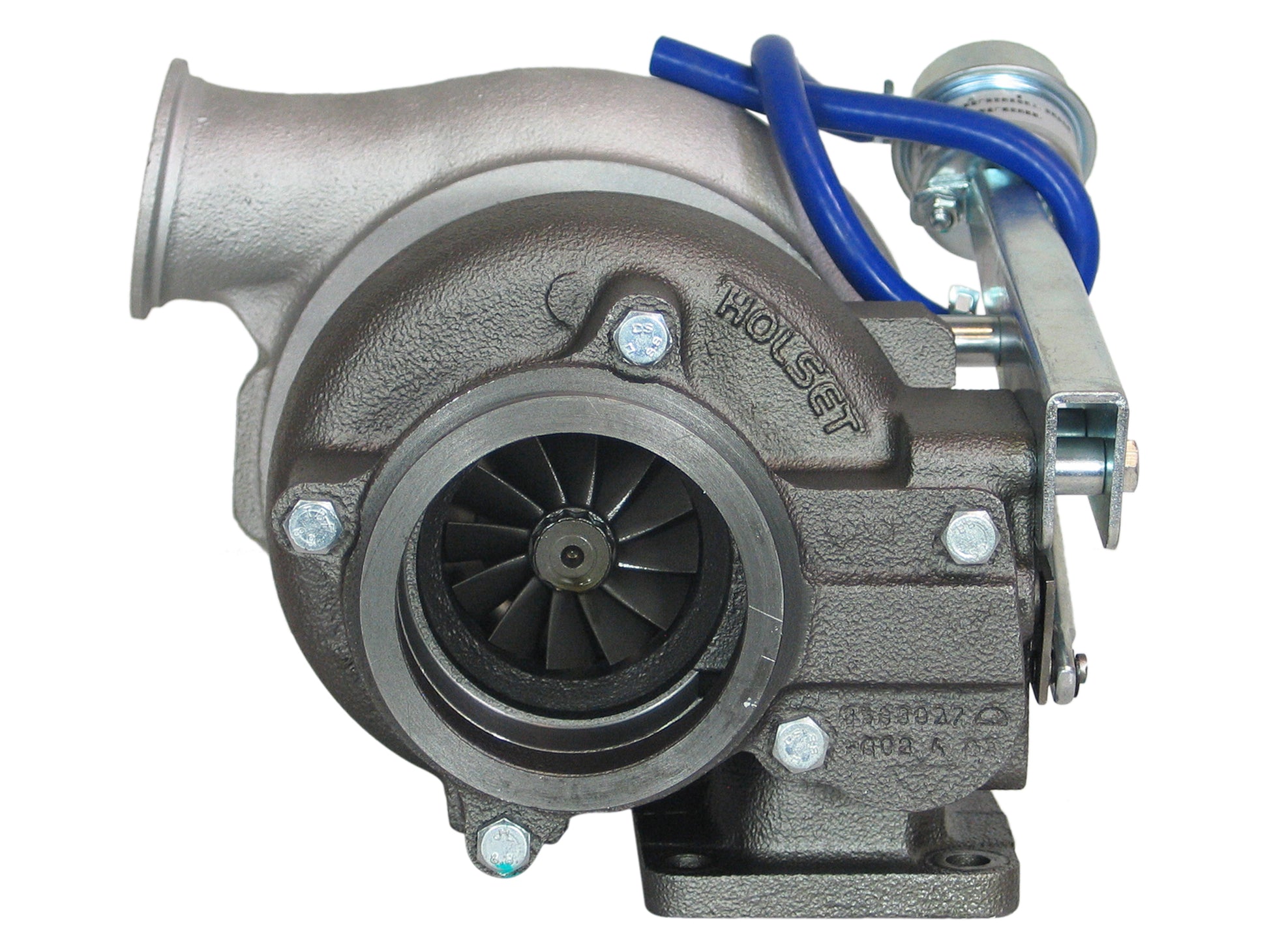

HX40W Turbo Industrial Ottawa Truck Cummins 8.3CTAA 6CTAA Engine 3598715 3598263SKU: F3598263
This is a TURBOTURBOS REMANUFACTURED TURBOCHARGER. This is an exact, direct fit replacement turbo.
Fits the following:
Part Number: 3598263
Interchangeable Number: 3598715H
OEM Number: 3598715, 3599108, 3795600, 4036628, 4089321
Turbo Model: HX40W, HX40W-L8284L/FA17JD8
Engine: 4ISBE, 6B, 6CTAA, 8.3CTAA Tier 2, L PHASE
Engine Manufacturer: Cummins
Power: 205 HP
Angle α (Compressor Housing): 324°
Angle ß (Turbine Housing): 136°
Back Plate: 3530923 (1154351300)
Bearing Housing: 3532632 (4027872, 4027869)
CHRA: 4027612 (4027849, 3535324)
Compressor Cover: 3597784
Compressor Wheel: 3599592 (3599591)(3537168)(6743818050)(Ind. 58 mm, Exd. 81.3 mm, 8+8 Blades)
Gasket (Oil Outlet): 210060 (2475013)(409267-0003, 409267-0002, 210060-0000, 51914, 148062, 311585)
Gasket (Turbine Inlet): 407294-0001 (310694)
Heat Shield: 3519302 (194149) (1152301340)
Repair Kit: 3575169 (1153035750)
Turbine Housing: 4030712/4038085
Turbine Wheel: 3522879 (3535359)(Ind. 76 mm, Exd. 64 mm, 12 Blades)(1152301436)
Wastegate Settings (Lift Shaft): 0.38 mm
Wastegate Settings (Pressure): 1.600 bar
2002- Industrial with Cummins 8.3CTAA Tier 2, 6CTAA Engine
2002- JCB with 6B Cummins Engine
2002- Ottawa Truck with Cummins 6CTAA Engine
Bus with Cummins 4ISBE Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
