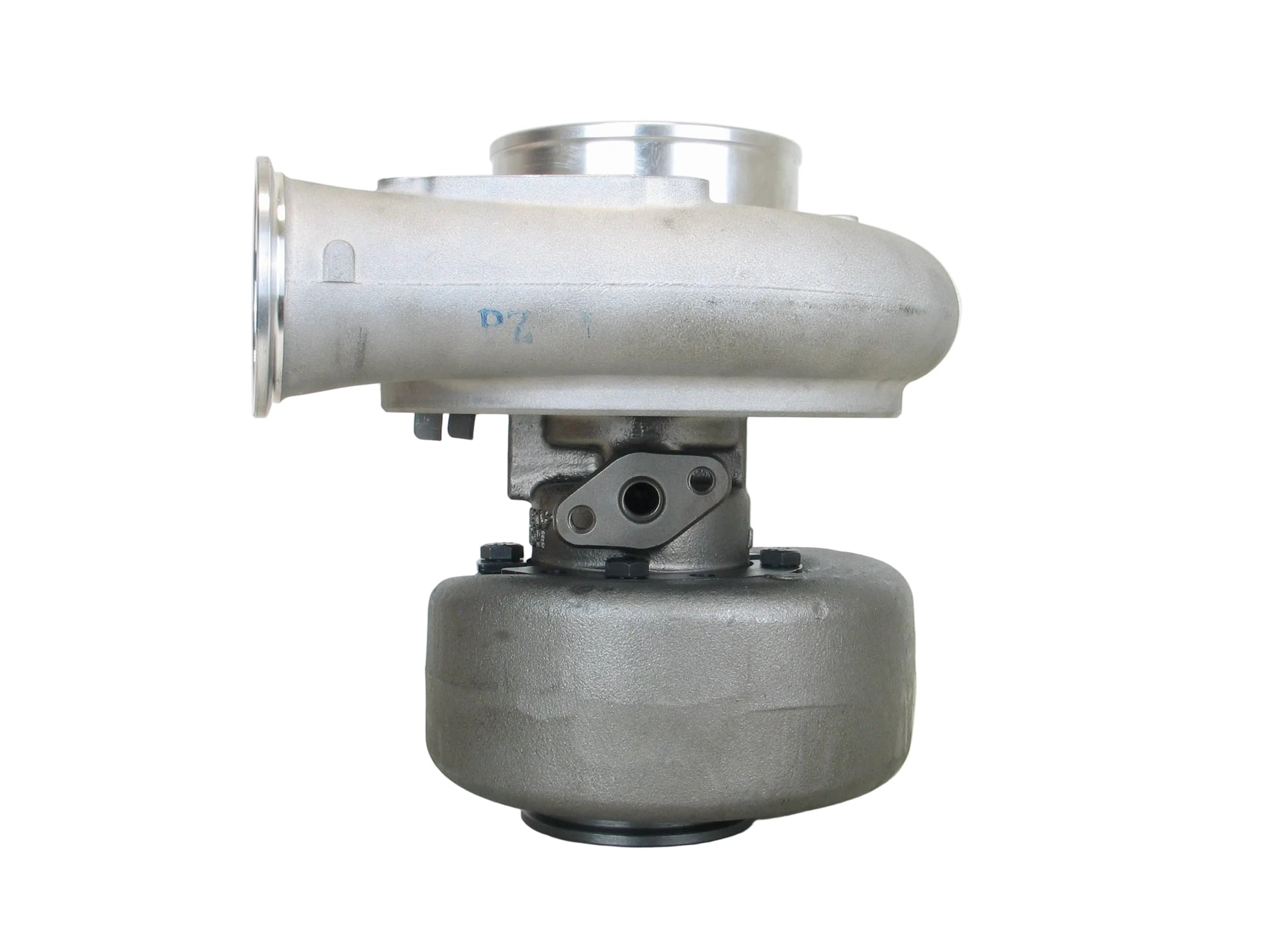

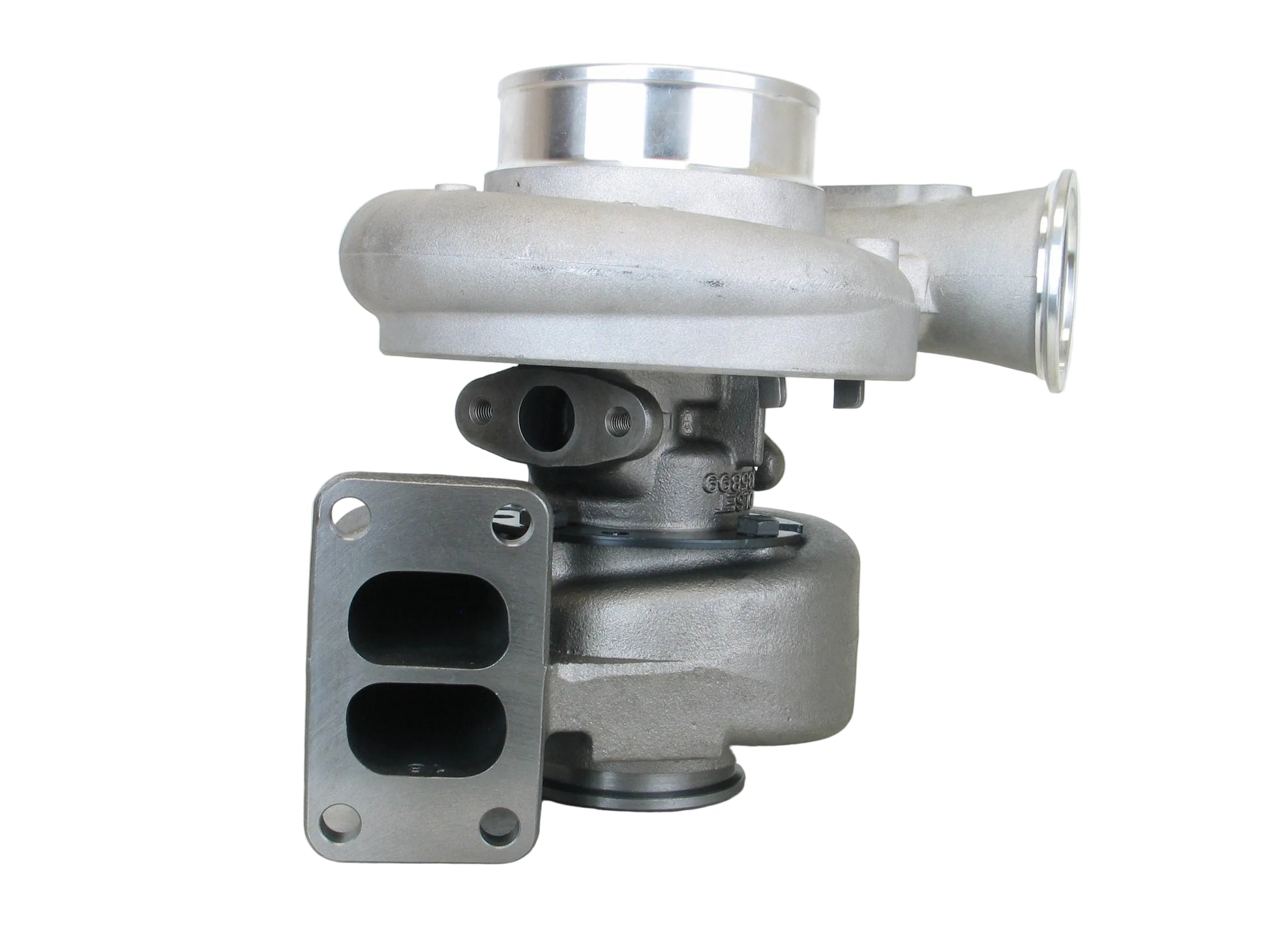

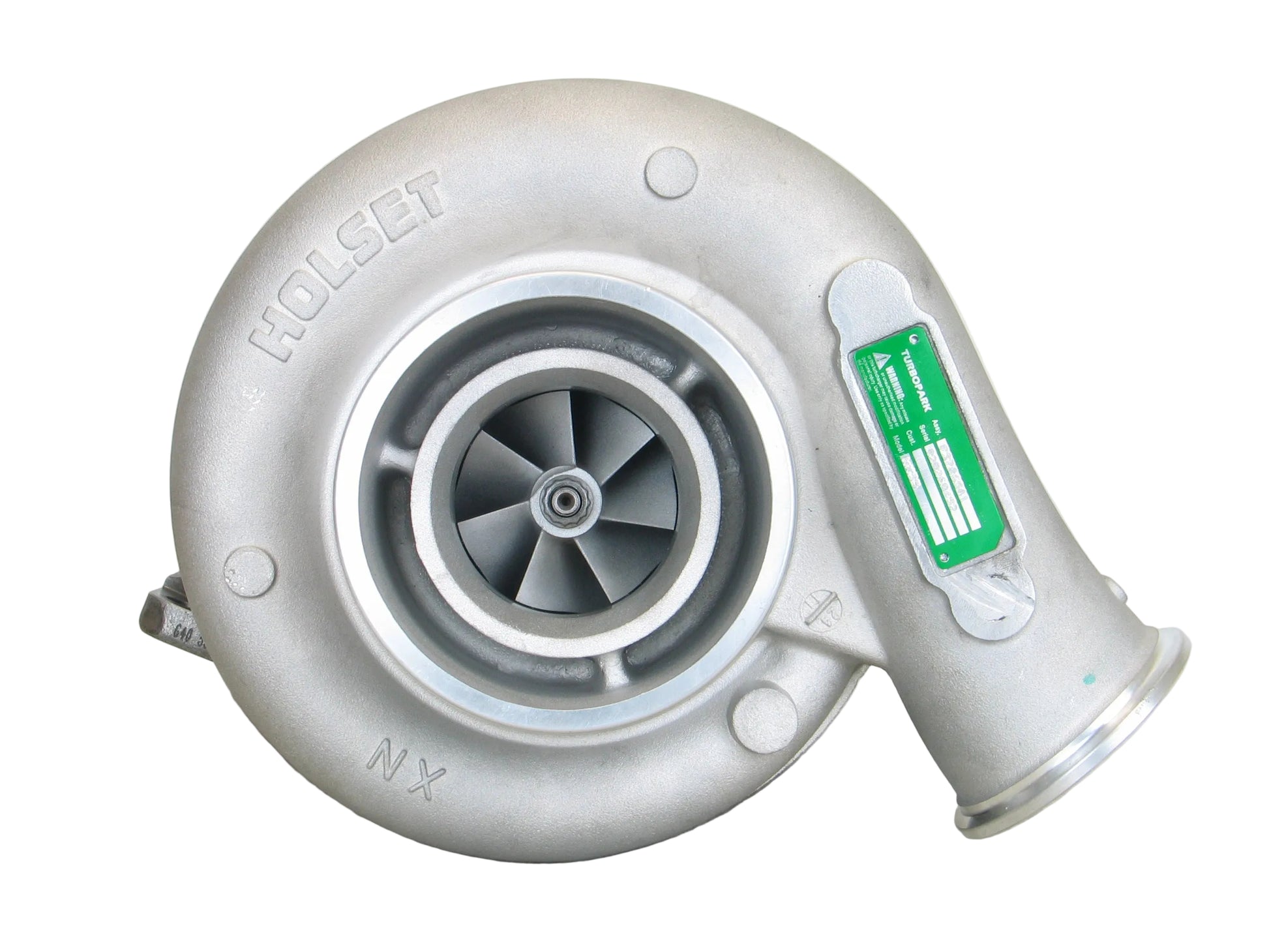

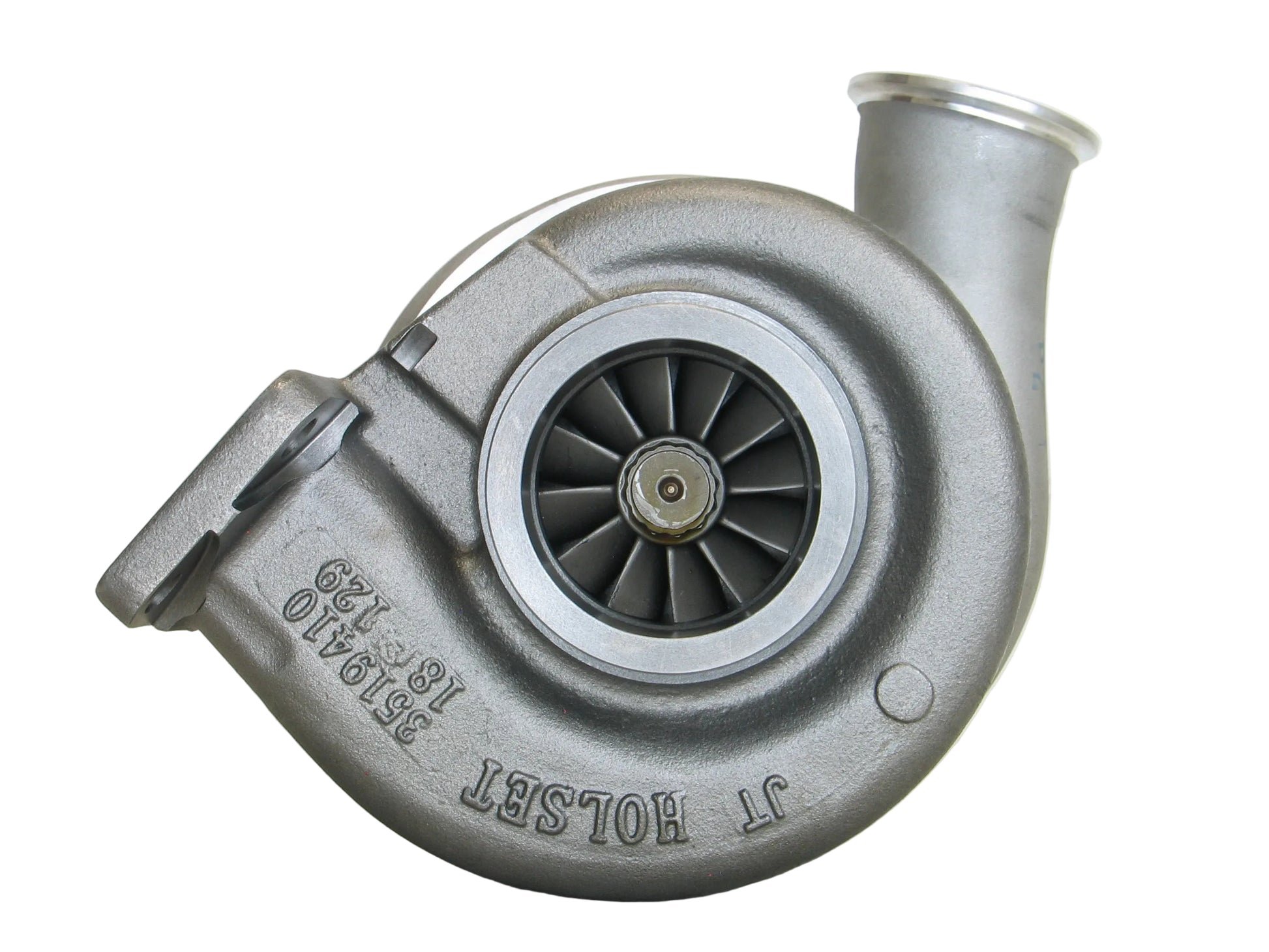

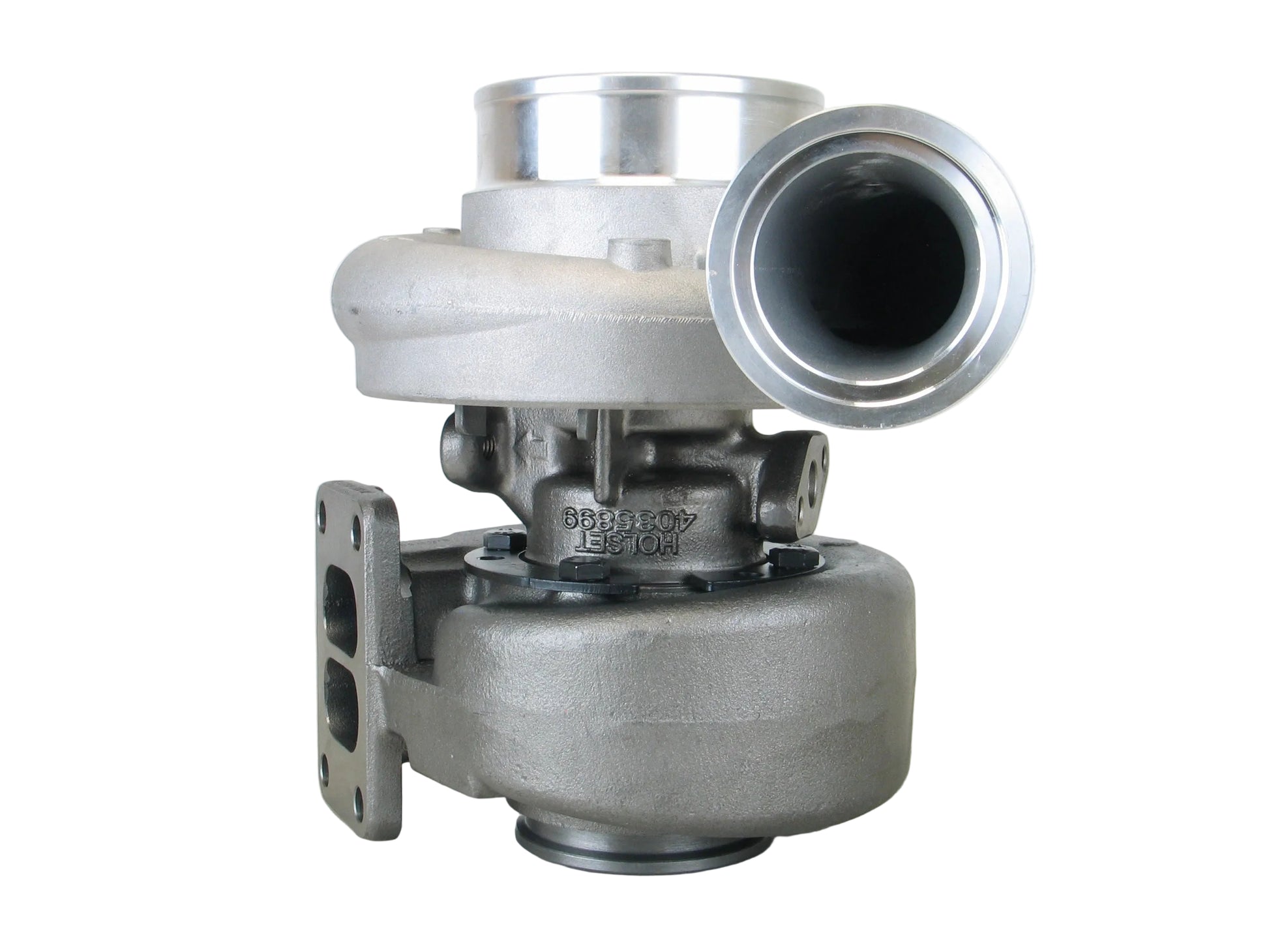

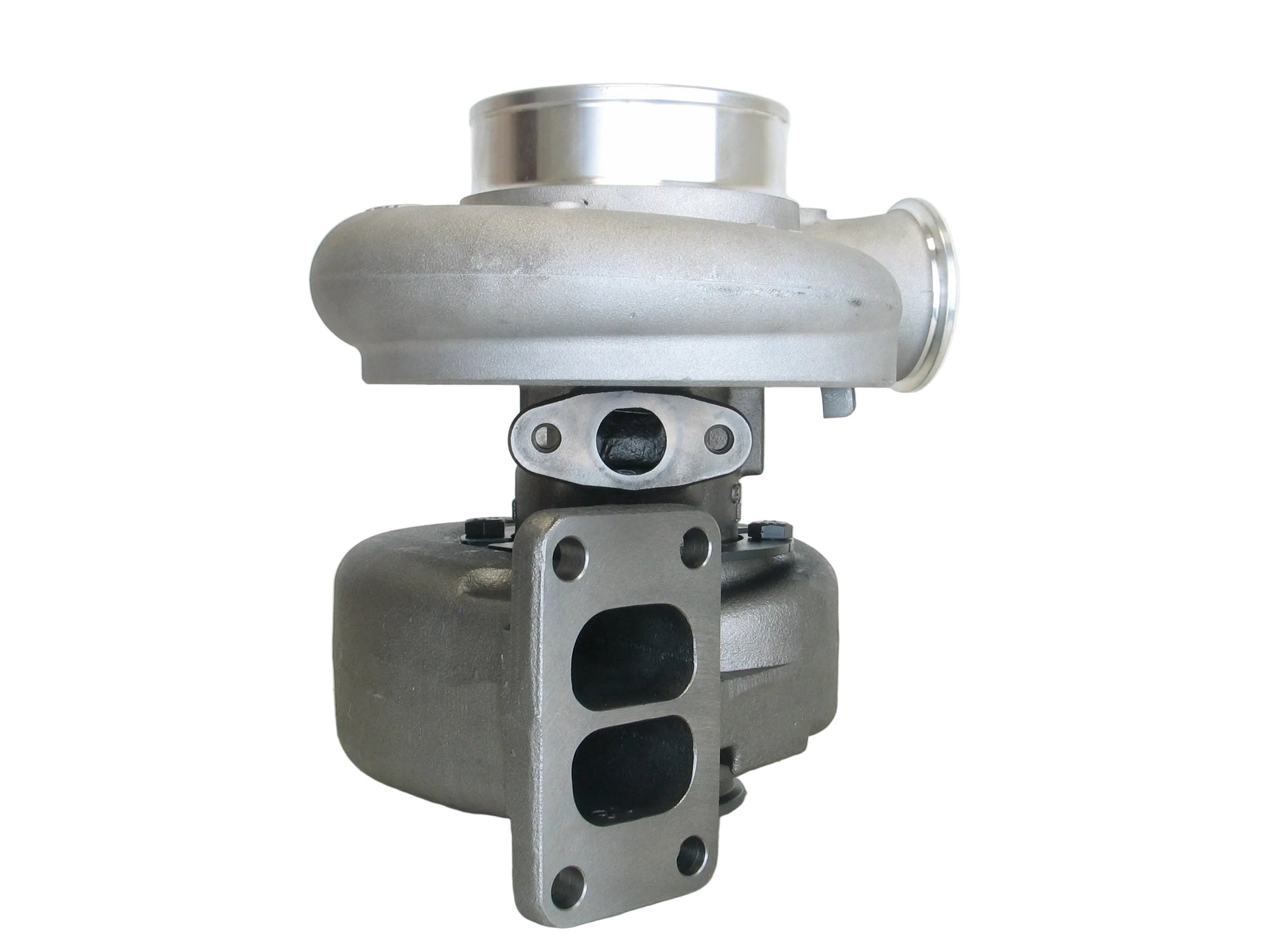

HX35 Turbo Iveco Harvester Excavator Tractor NEF6 3786541 2838633

REMANUFACTURED TURBOTURBOS TURBOCHARGER

This is a REMANUFACTURED TURBOTURBOS TURBOCHARGER.  This is an exact, direct fit turbo.

NOTE: There is a core charge of $150.00 which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase and will be fully refunded once your old re-build able core is received.

Cores must be returned within 60 days of the purchase date. Please allow up to 3 business days for us to process your refund.

Fits the following:

Part Number: 3786541
Interchangeable Number: 2838633, 2838631, 2838639, 378654100, 378654100H, 3786541H, 5353732
OEM Number: 2838632, 2838634, 2838635, 2838638, 2838640, 2843695, 3772839, 3786541, 3786773, 4033943, 4033943, 504369121, 504369122, 504369290, 504369290, 504380015, 504380016, 504380916, 504382770, 5354318, 5802025488, 84342159, 84342159R
Turbo Model: HX35

Year: 2009-
Engine: NEF6, NEF6 Tier 4A
Engine Manufacturer: Iveco
Displacement: 6 Cylinders, 14V
Fuel: Diesel

Angle α (Compressor Housing): 251/345/350°
Angle β (Turbine Housing): 15/30°
Back Plate: 3596448 (1154351300, 1800016009)
Bearing Housing: 4032032 (3599514, 4027443, 4032032, 4032218)(Oil Cooled)(1900011016G)
CHRA: 4027331 (4027446)(1000020185)
Compressor Wheel: 3599649 (3532310, 4035699)(Ind. 53.91 mm, Exd. 78 mm, Trim 39, 7+7 Blades, Super Back)(1153035401, 1200016303)

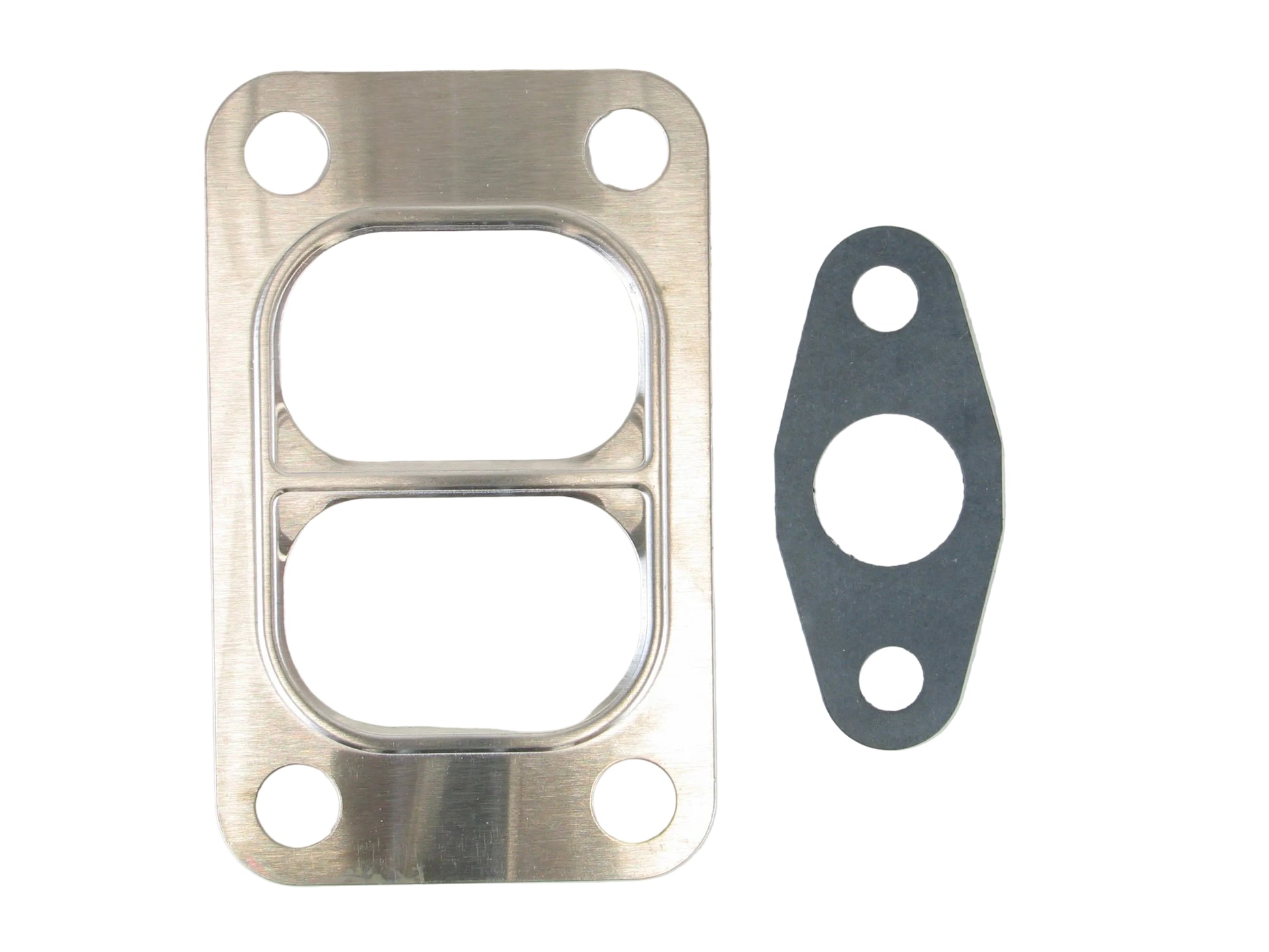

Gasket (Oil Outlet): 210060 (311585, 148062, 2475013)(Paper)
Gasket (Turbine Inlet): 409039-0000 (409039-0001, 210019, 312617, 2405022, 7C7431)(1900000006)(Inox Steel)
Gasket (Turbine Outlet): 3535001 (3922789)(Inox Steel)
Gasket Kit: (2090505474)
Heat Shield: 33519302 (1152301340, 2030016031)
Repair Kit: 4027448 (1153035751, 5000020021)(Minor)
Turbine Wheel: 3519336 (3595832)(Ind. 70 mm, Exd. 60 mm, Trim 10.82, 12 Blades)(1152301435, 1100016442)

Application:
2009- CCM Tractor, Combine Harvester with NEF6 Tier 4A Engine
2009- Iveco Truck with NEF6 Tier 4A Engine
Iveco Combine Harvester, Crawler Excavator, Tractor with NEF6 Engine
New Holland D180C Crawler Dozer

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
