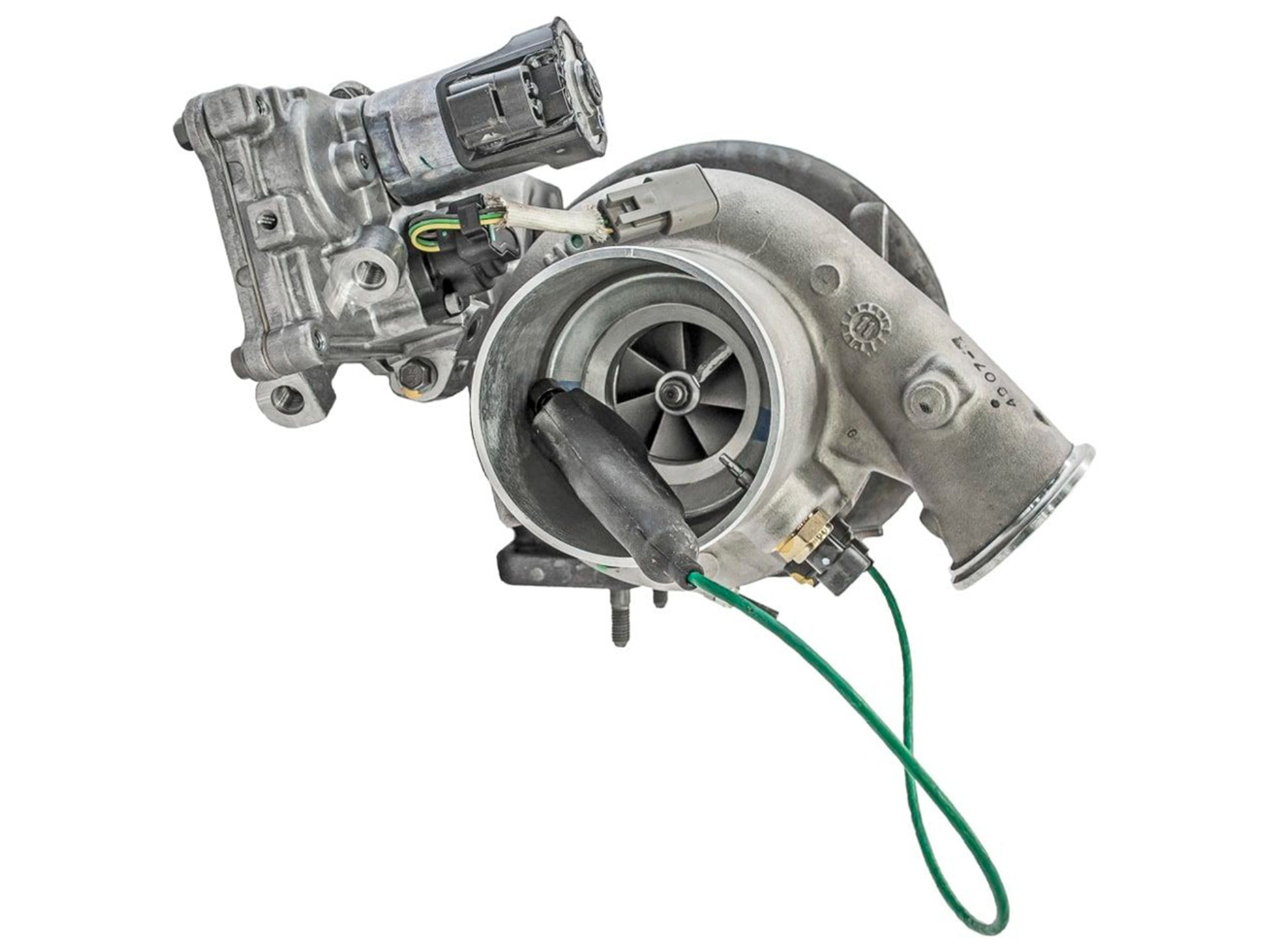

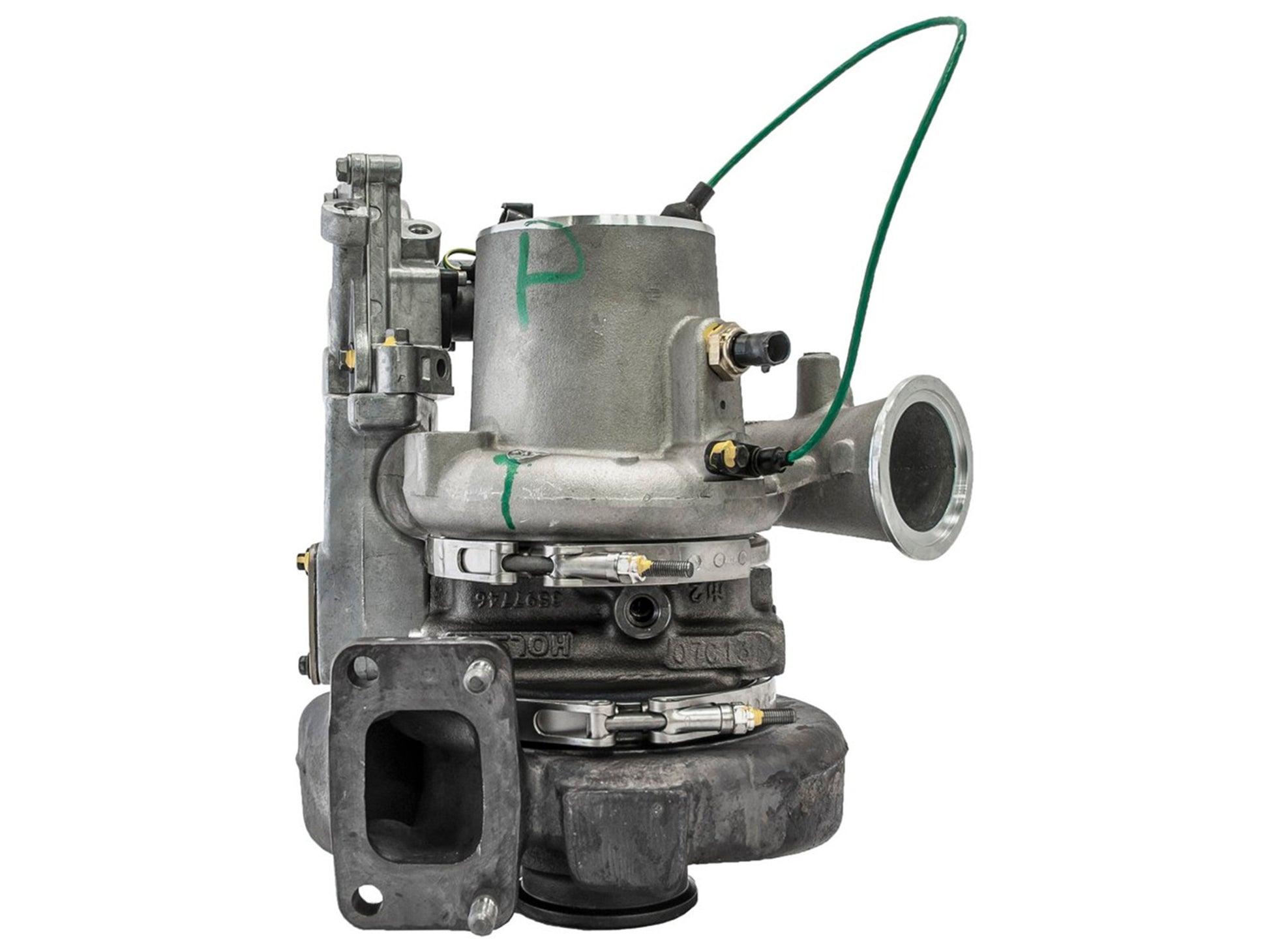

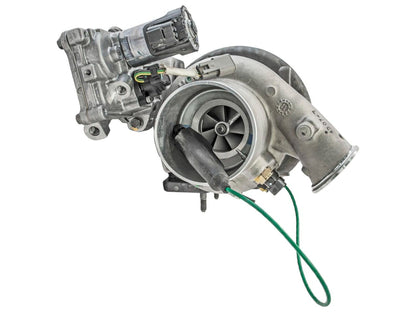

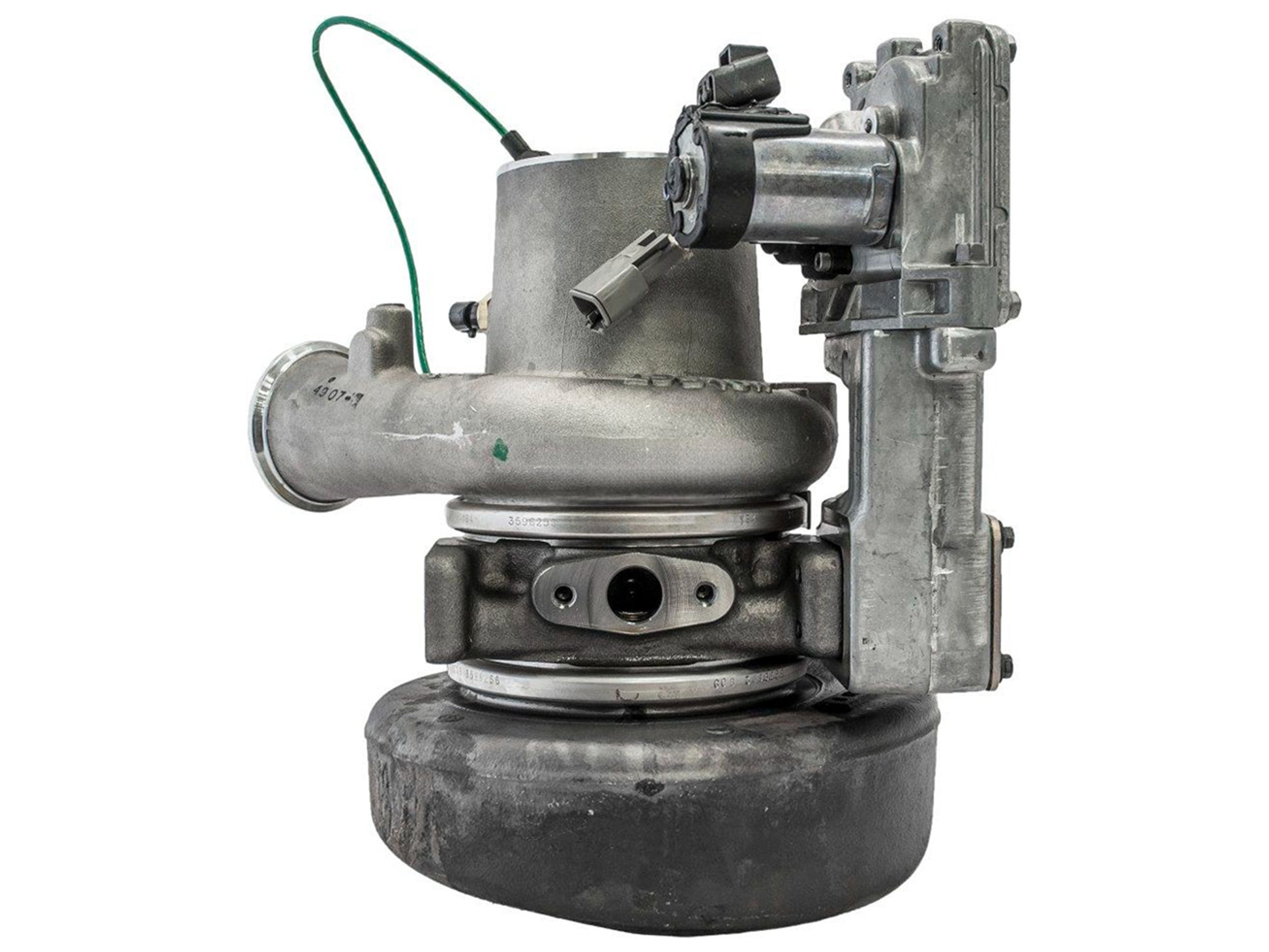

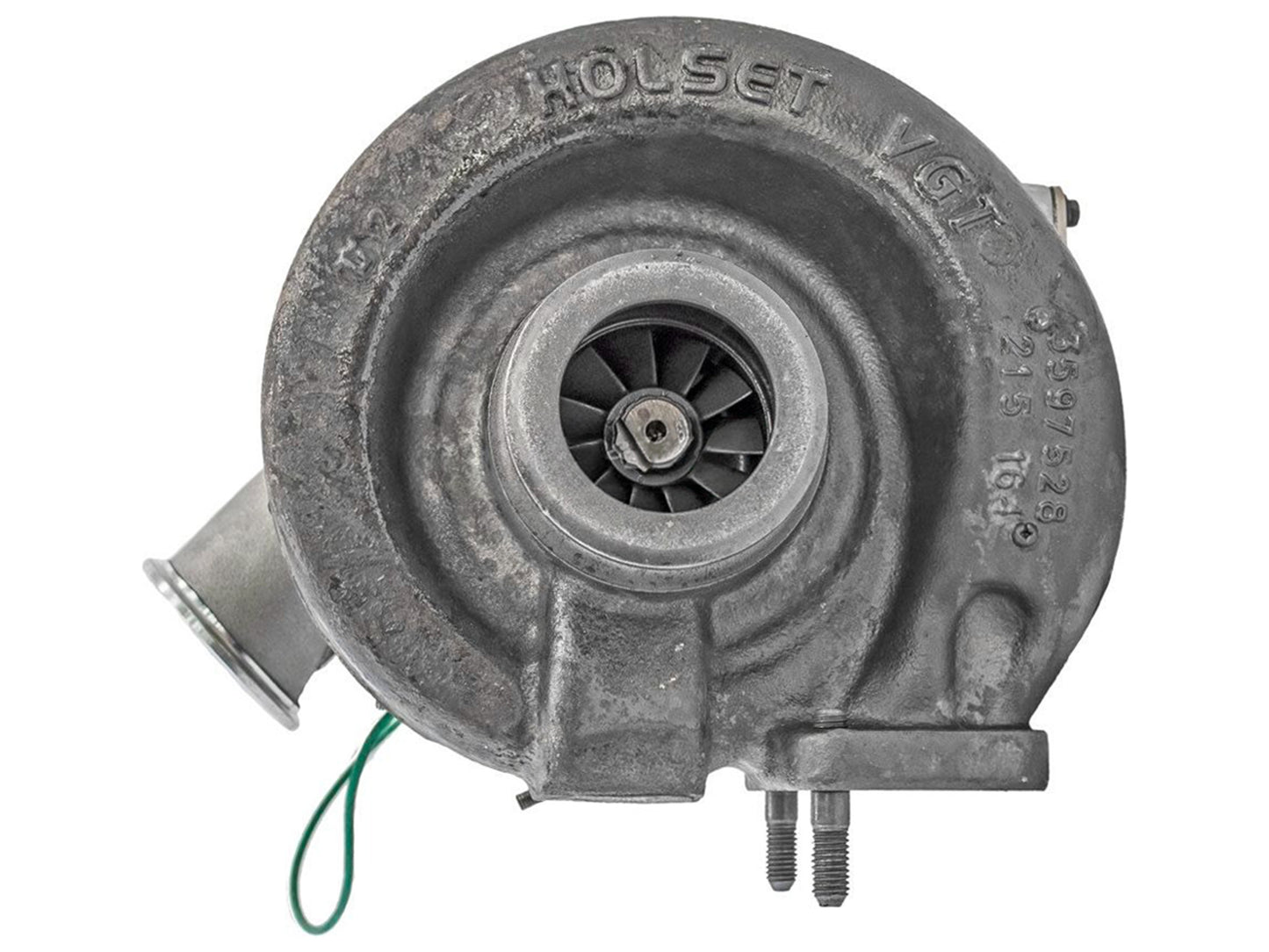

HE341VE Turbo Truck Bus Cummins ISB Diesel Engine 3795961
HE341VE Turbo Truck Bus Cummins ISB Diesel Engine 3795961
SKU:F3795961
Regular price
$3,250.00
Regular price
$0.00
Sale price
$3,250.00
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Orders ship Monday-Friday, usually within 24 hours of purchase.
International shipping subject to VAT and/or other import tax calculated during checkout.
TURBOTURBOS REMANUFACTURED TURBOCHARGER
This is a TURBOTURBOS REMANUFACTURED TURBOCHARGER. This is an exact, direct fit replacement turbo.
NOTE: There is a core charge of $500 which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase and will be fully refunded once your old re-build able core is received.
Cores must be returned within 60 days of the purchase date. Please allow up to 3 business days for us to process your refund.
Fits the following:
Part Number: 3795961
Interchangeable Number: 3598489, 3599142, 3599515, 3599516, 3795958, 3795960, 3795961H, 3795961HX, 3795965H, 4036432, 4036433, 4037273, 4037274, 4039799, 4039802, 4039804, 4039807, 4039809, 4040622, 4041619, 4041621, 4041623, 4041624, 4041625, 4089312, 4089312NX, 4089312RX, 4089373, 4089373NX, 4089373RX, 4089698, 4089698NX, 4089698RX, 408994500, 408994500HX, 4089945H, 4089945HX, 4089945NX, 4089945RX, 4089947NX, 4089947RX, 4955165NX, 4955165RX, 4955166, 4955166NX, 4955166RX, 4955167NX, 4955167RX
OEM Number: 3599395, 3599397, 3599398, 3599399, 3599400, 3795961, 3795962, 3795964, 3795965, 4035155, 4036446, 4036448, 4036449, 4036450, 4036451, 4036453, 4037276, 4037278, 4037279, 4037280, 4037281, 4037283, 4039805, 4039806, 4041620, 4041622, 4089945, 4089947, 4955165, 4955167
Turbo Model: HE300VG, HE341VE
Year: 2004-09
Engine: B Series, ISB, ISB02, ISL, QSB, QSL
Engine Manufacturer: Cummins
Displacement: 5.9/6.7L
Fuel: Diesel
Angle α (Compressor Housing): 230/330°
Angle β (Turbine Housing): 180°
Back Plate: 3595189
Bearing Housing: (Water Cooled)
Compressor Wheel: 3599648 (3599648H)(Ind. 53.7 mm, Exd. 77.98 mm, 7+7 Blades, Super Back)
Electronic Actuator: 4031337 (3598564, 403133700, 403133700H, 403133700HX, 4031337H, 4031337HX, 4031337NX, 4037832, 4039360, 4039360H)
Gasket Kit: 3545575 (1900100057)
Repair Kit: 4027309 (1152301750)
Turbine Housing A/R: VGT
Turbine Wheel: (Ind. 59.15 mm, Exd. 66.5 mm, 11 Blades)
Application:
2004-09 Truck with Cummins ISB Engine
Bus with Cummins ISB Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
This is a TURBOTURBOS REMANUFACTURED TURBOCHARGER. This is an exact, direct fit replacement turbo.
NOTE: There is a core charge of $500 which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase and will be fully refunded once your old re-build able core is received.
Cores must be returned within 60 days of the purchase date. Please allow up to 3 business days for us to process your refund.
Fits the following:
Part Number: 3795961
Interchangeable Number: 3598489, 3599142, 3599515, 3599516, 3795958, 3795960, 3795961H, 3795961HX, 3795965H, 4036432, 4036433, 4037273, 4037274, 4039799, 4039802, 4039804, 4039807, 4039809, 4040622, 4041619, 4041621, 4041623, 4041624, 4041625, 4089312, 4089312NX, 4089312RX, 4089373, 4089373NX, 4089373RX, 4089698, 4089698NX, 4089698RX, 408994500, 408994500HX, 4089945H, 4089945HX, 4089945NX, 4089945RX, 4089947NX, 4089947RX, 4955165NX, 4955165RX, 4955166, 4955166NX, 4955166RX, 4955167NX, 4955167RX
OEM Number: 3599395, 3599397, 3599398, 3599399, 3599400, 3795961, 3795962, 3795964, 3795965, 4035155, 4036446, 4036448, 4036449, 4036450, 4036451, 4036453, 4037276, 4037278, 4037279, 4037280, 4037281, 4037283, 4039805, 4039806, 4041620, 4041622, 4089945, 4089947, 4955165, 4955167
Turbo Model: HE300VG, HE341VE
Year: 2004-09
Engine: B Series, ISB, ISB02, ISL, QSB, QSL
Engine Manufacturer: Cummins
Displacement: 5.9/6.7L
Fuel: Diesel
Angle α (Compressor Housing): 230/330°
Angle β (Turbine Housing): 180°
Back Plate: 3595189
Bearing Housing: (Water Cooled)
Compressor Wheel: 3599648 (3599648H)(Ind. 53.7 mm, Exd. 77.98 mm, 7+7 Blades, Super Back)
Electronic Actuator: 4031337 (3598564, 403133700, 403133700H, 403133700HX, 4031337H, 4031337HX, 4031337NX, 4037832, 4039360, 4039360H)
Gasket Kit: 3545575 (1900100057)
Repair Kit: 4027309 (1152301750)
Turbine Housing A/R: VGT
Turbine Wheel: (Ind. 59.15 mm, Exd. 66.5 mm, 11 Blades)
Application:
2004-09 Truck with Cummins ISB Engine
Bus with Cummins ISB Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
