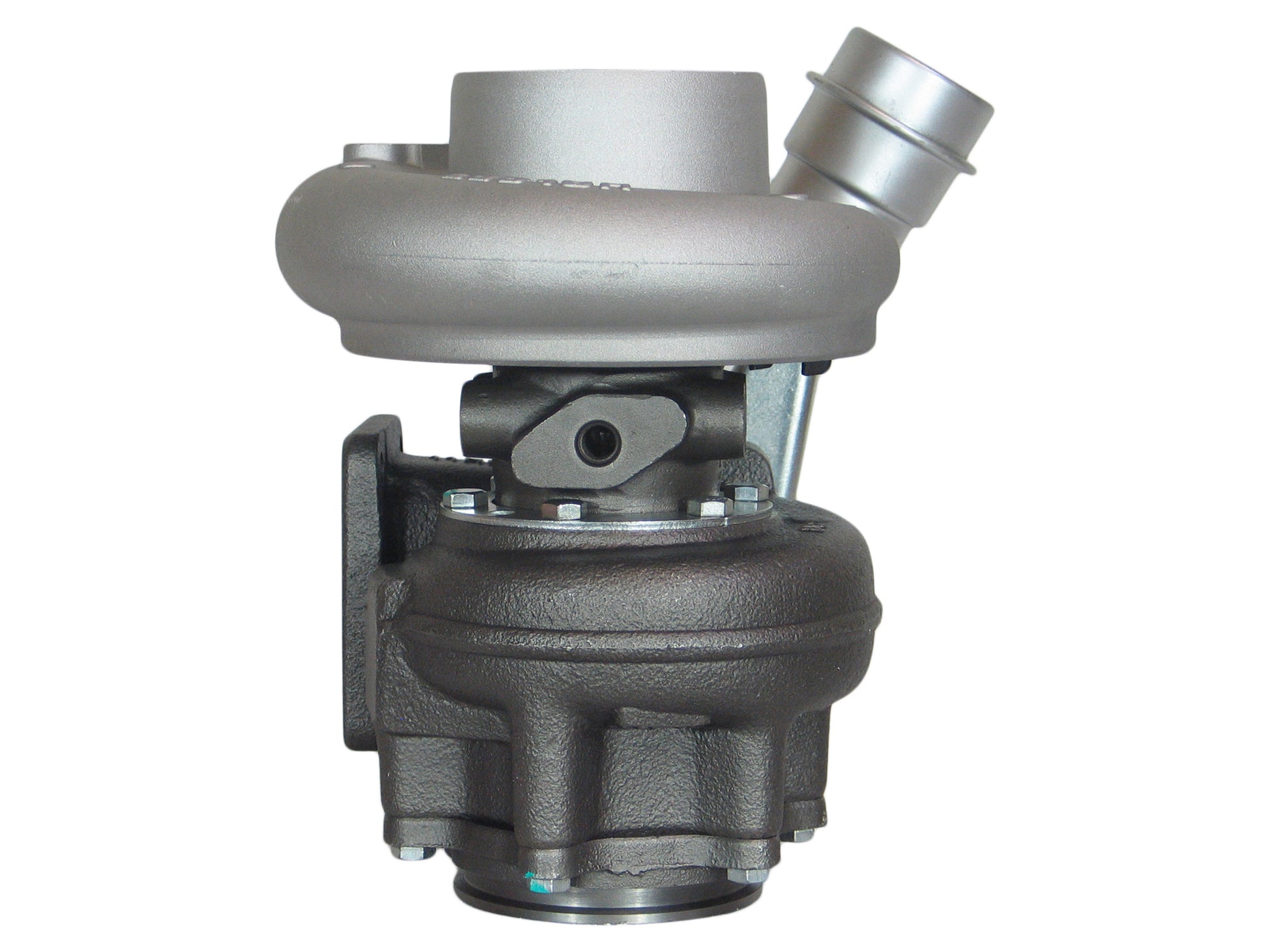

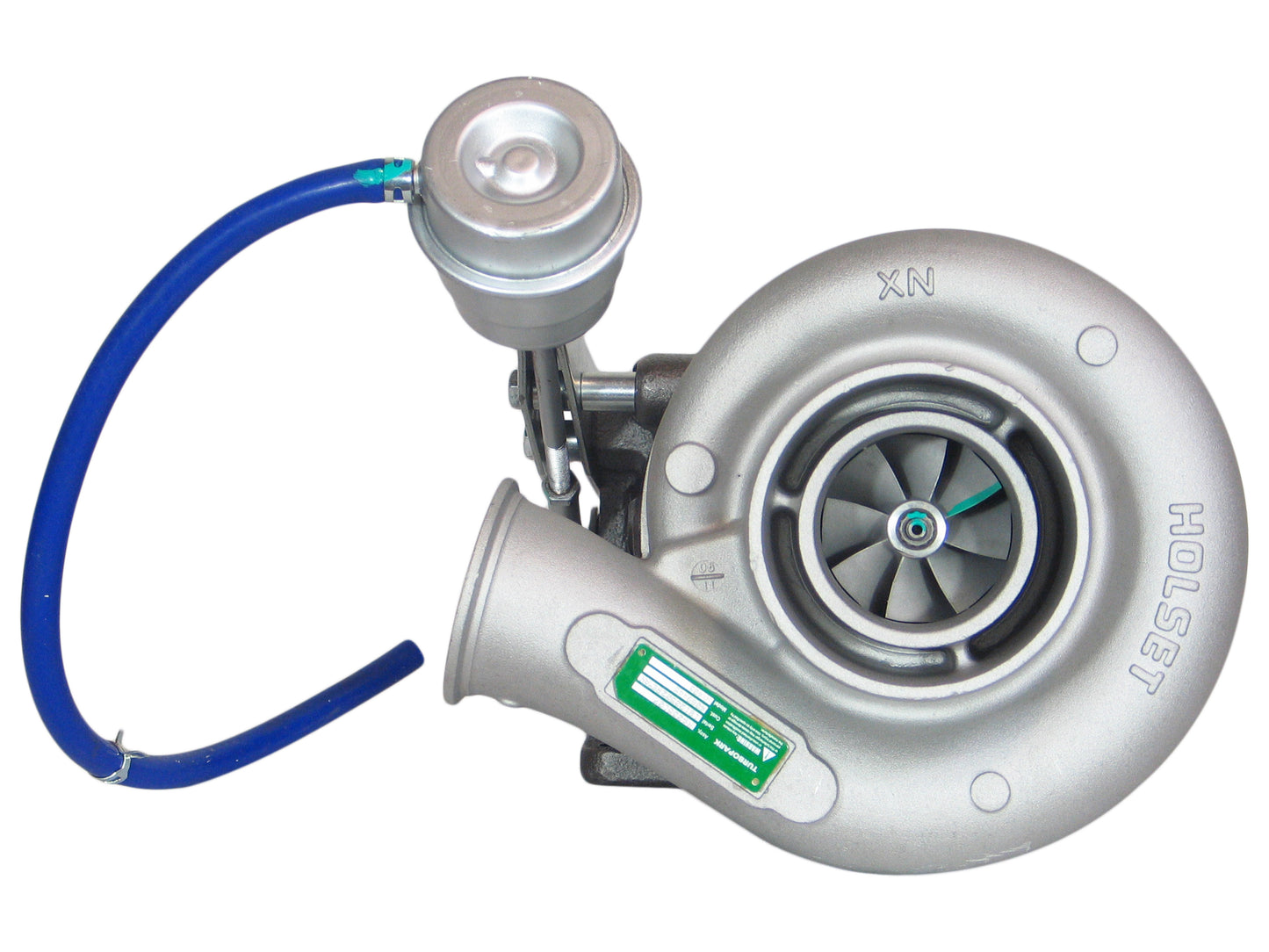

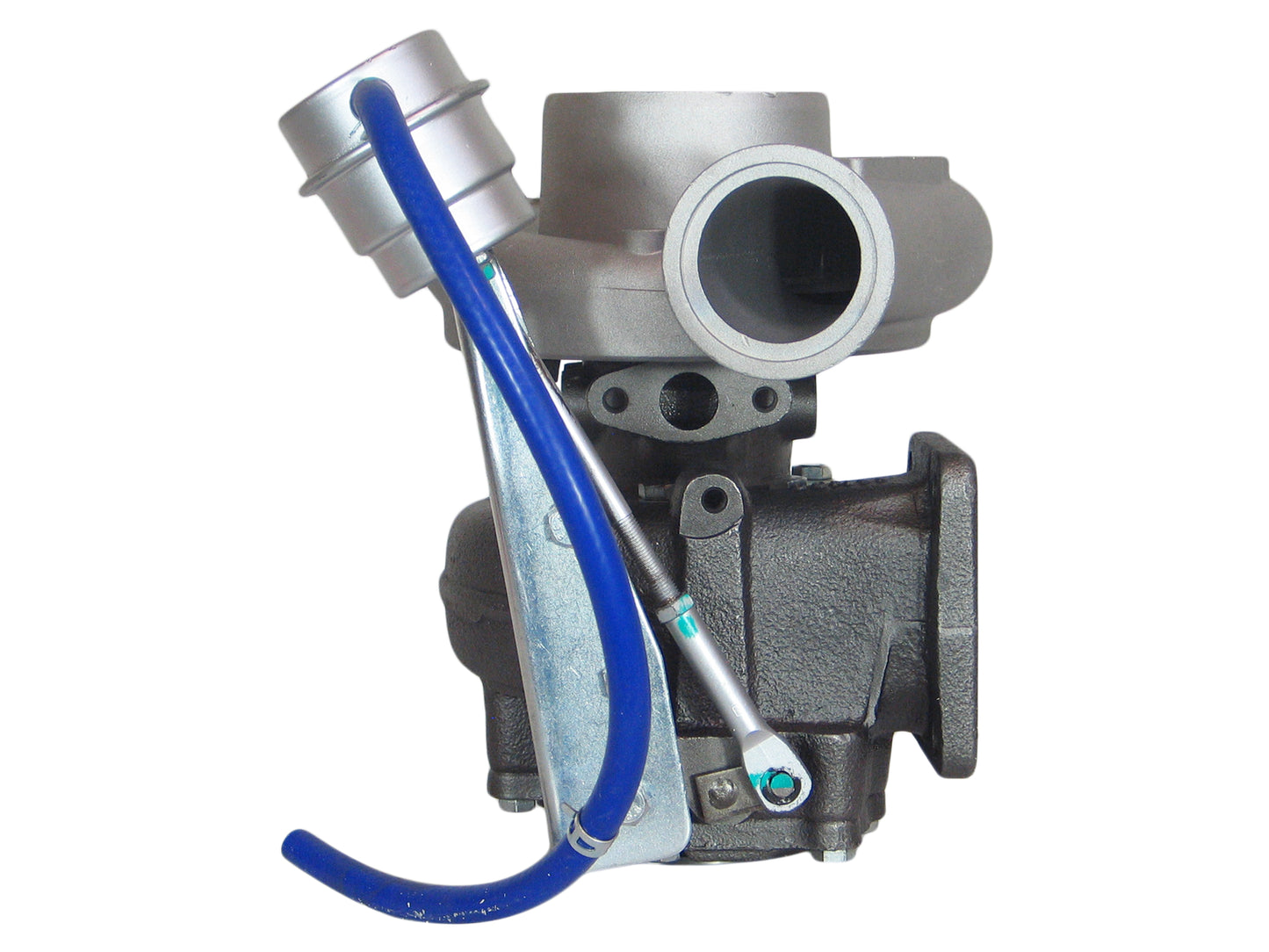

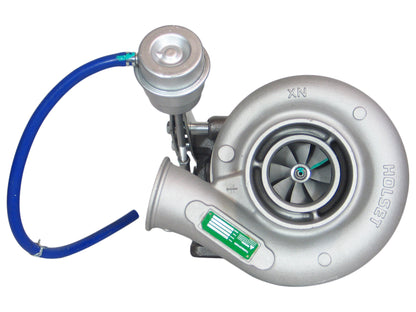

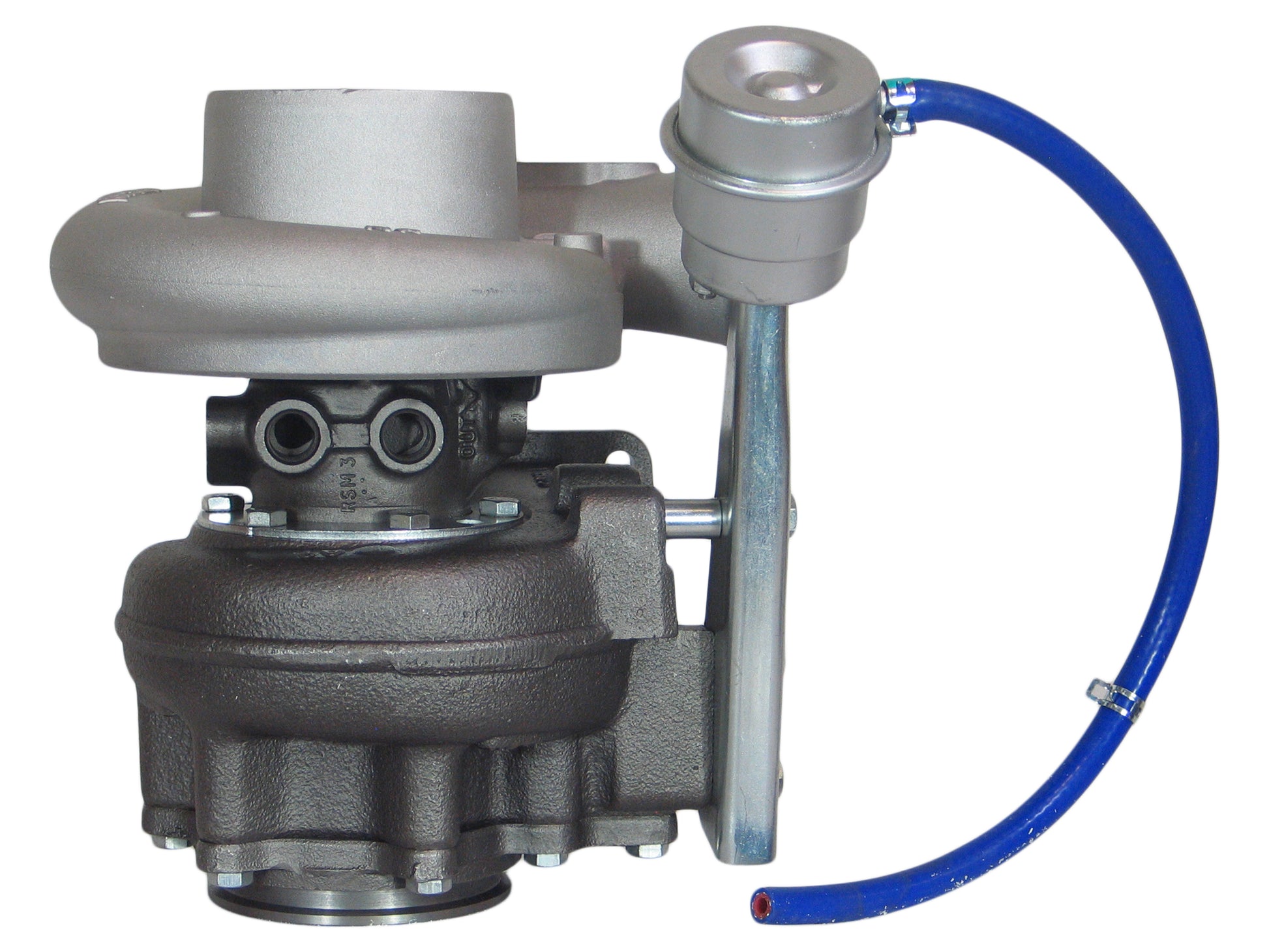

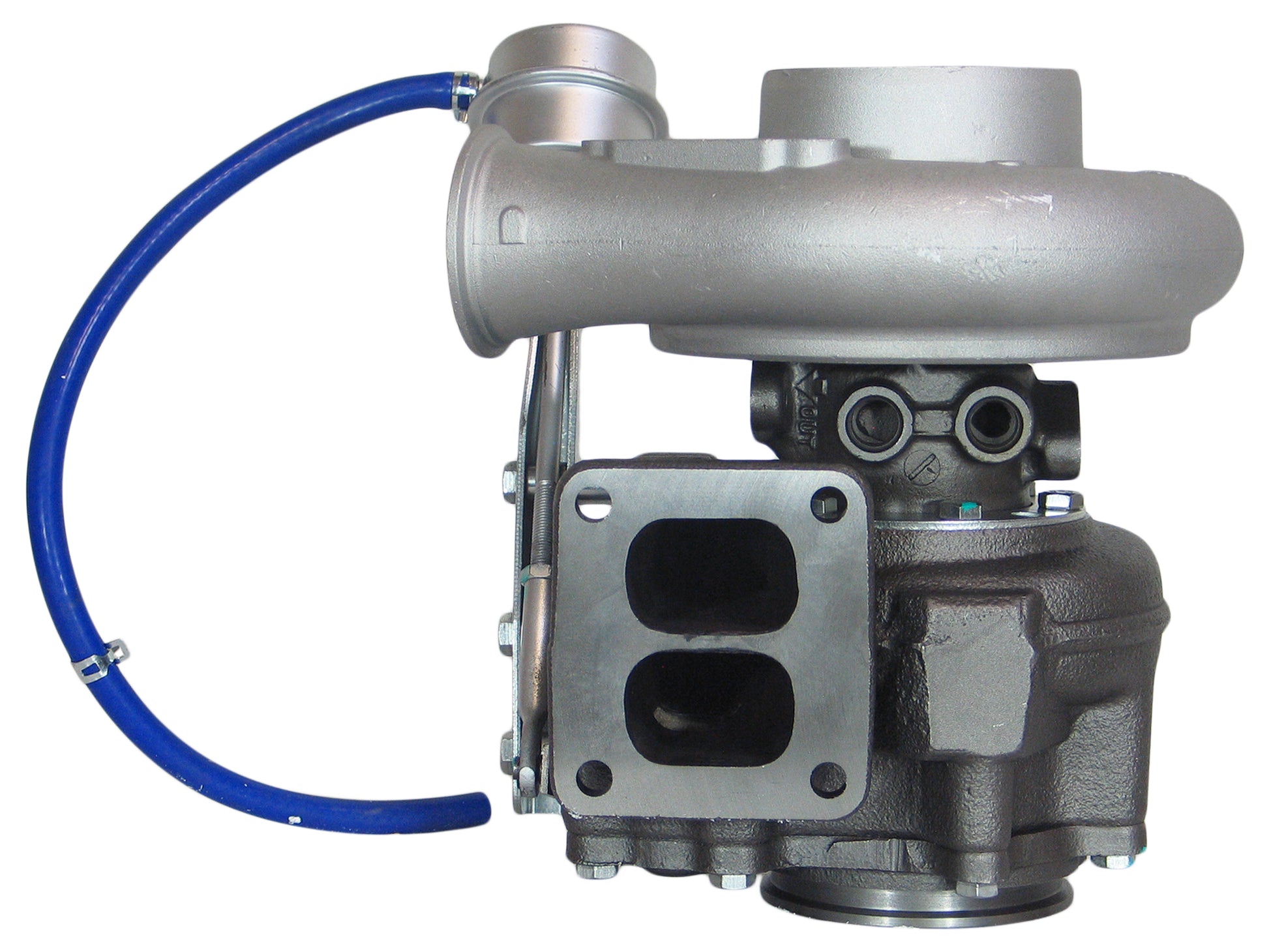

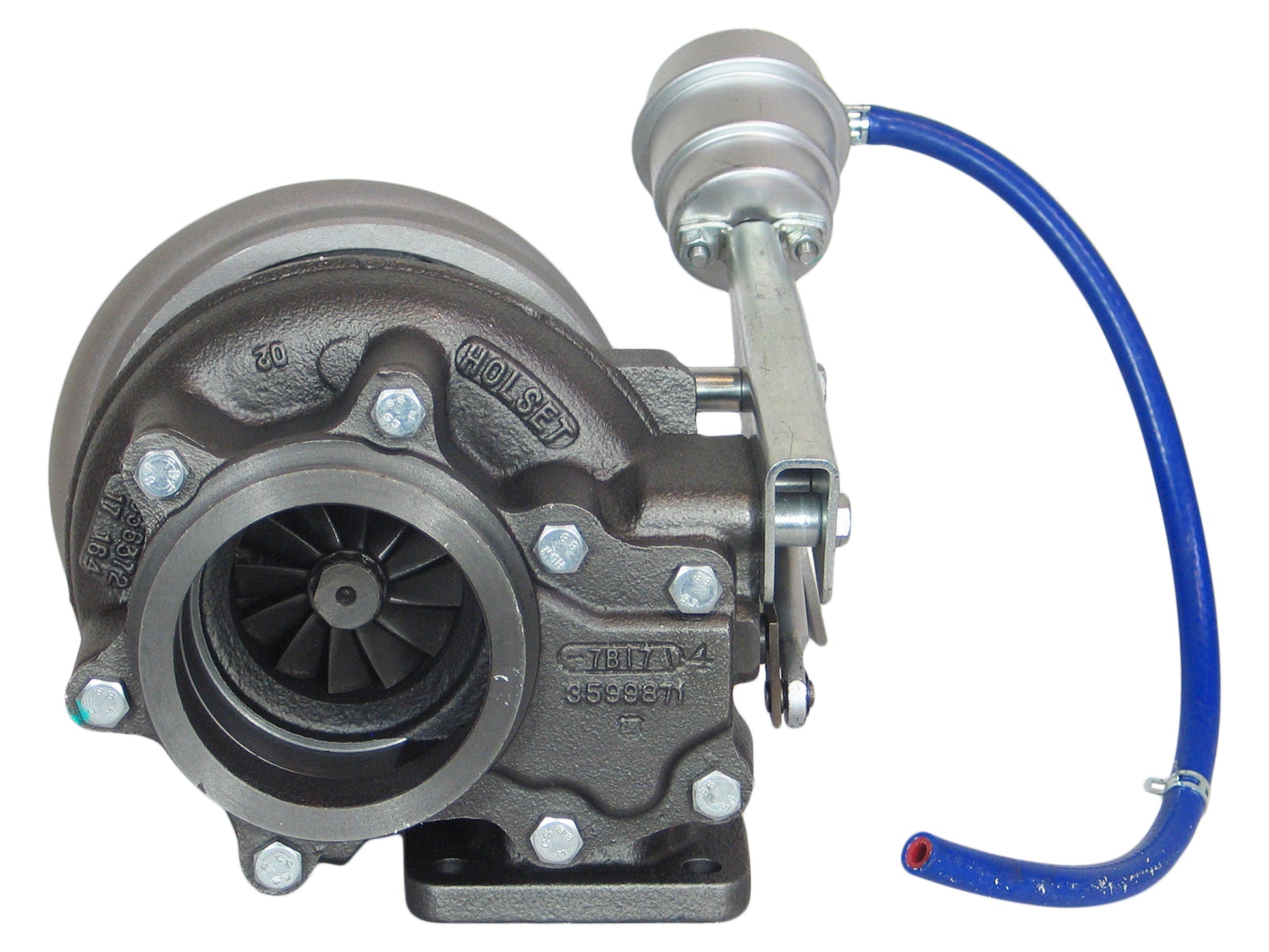

HX40G Turbocharger For Cummins 6CT NG Engine 4035108 4035109 4089445 4035107SKU: F4035107
This is a TURBOTURBOS REMANUFACTURED TURBOCHARGER. This is an exact, direct fit replacement turbo.
Fits the following:
Part Number: 4035107
Interchangeable Number: 3536350, 3537511, 3590285, 3597403, 3597404, 3597405, 3802787, 4025407, 4035108H, 4035109
OEM Number: 4035108, 4035109, 4089445, 408944500, 4089445RX
Turbo Model: HX40G, HX40G-L8284L/FA17XC8
Engine Manufacturer: Cummins
Displacement: 6 Cylinders
Angle α (Compressor Housing): 15°
Angle ß (Turbine Housing): 345°
Back Plate: 3530923 (1154351300)
Bearing Housing: 3536452 (3536452H)(Water Cooled)
CHRA: 3580584 (4027225)
Compressor Wheel: 3599592 (Ind. 58.01 mm, Exd. 82.04 mm, Trim 6.8, 8+8 Blades, Super Back)
Heat Shield: 3519302 (1152301340)
Repair Kit: 3575169 (1153035750)
Turbine Wheel: 3522879 (3519892, 3535359)(1152301436)(Ind. 76 mm, Exd. 64 mm, Trim 10.4, 12 Blades)
2002- Various with Cummins 6CT Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
Any questions or concerns, please feel free to email or call us.
