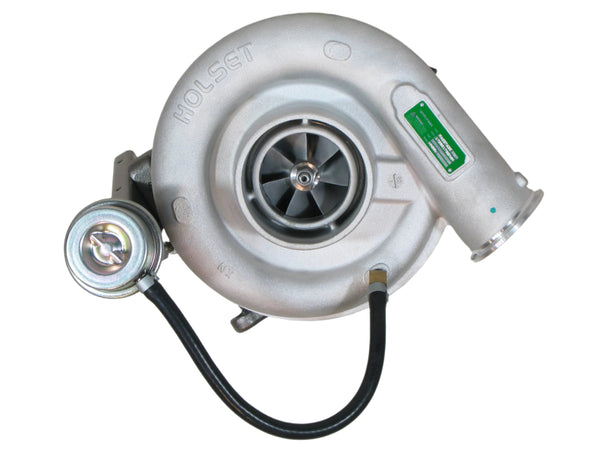

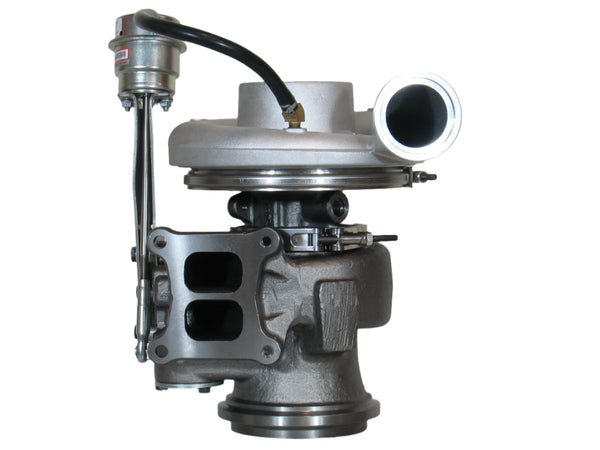

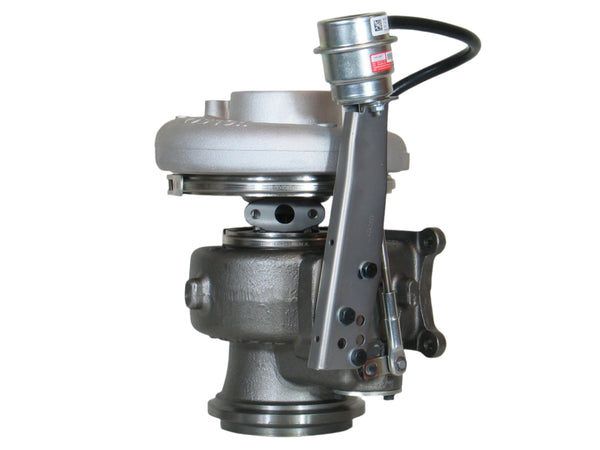

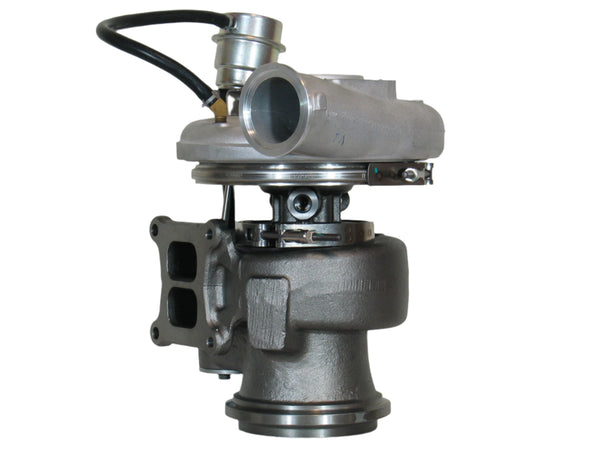

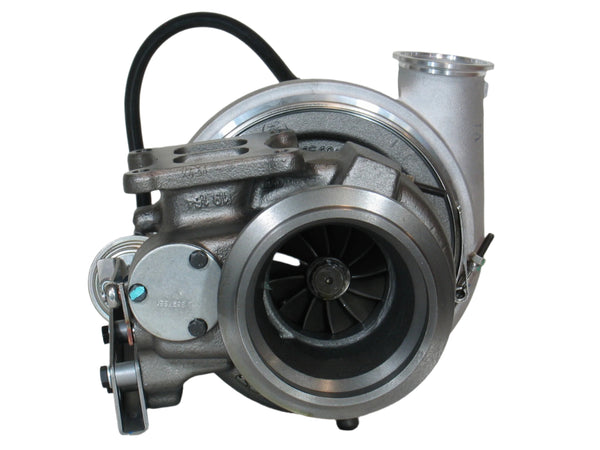

HX55W Turbo Truck Front End Loader Cummins QSM4 Tier 3 Diesel 4089863 4037635

TURBOTURBOS REMANUFACTURED TURBOCHARGER

This is a TURBOTURBOS REMANUFACTURED TURBOCHARGER. This is an exact, direct fit replacement turbo.

Fits the following:

Part Number: 4037635
Interchangeable Number: 4037631, 4037636, 4037636H
OEM Number: 4089863
Turbo Model: HX55W

Year: 2005-
Engine: QSM, QSM4 Tier 3, QSM11-C
Engine Manufacturer: Cummins
Fuel: Diesel

Angle α (Compressor Housing): 330°
Angle β (Turbine Housing): 270°
Actuator (Cover Plate): 3527651
Actuator: 4030836
Back Plate: 3528096 (352809600)(1153055300)
Bearing Housing: 3593343
CHRA: 4032308 (4032834)
Compressor Cover: 4036914
Compressor Wheel: 4035887 (4036317)(Ind. 71 mm, Exd. 99.01 mm, Trim 51, 7+7 Blades)
Gasket (Oil Outlet): 210060 (311585, 148062)
Gasket (Turbine Inlet): 210847 (Inox Steel)
Gasket Kit: 3800279
Heat Shield: 3533038 (3529846, 353303800, 352984600)(1153055340)
Repair Kit: 3580762 (3575181, 358076200, 357518100)(1153055750)
Turbine Housing: 3592774
Turbine Wheel: 3535983 (353598300)(Ind. 85.8 mm, Exd. 76.95 mm, 12 Blades)(1153055436)

Application:
2005- Front End Loader with Cummins QSM, QSM4 Tier 3 Engine
2005- Hyundai HL780-9 Wheel Loader with Cummins QSM11-C Engine
2005- Truck with Cummins QSM, QSM4 Tier 3 Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
