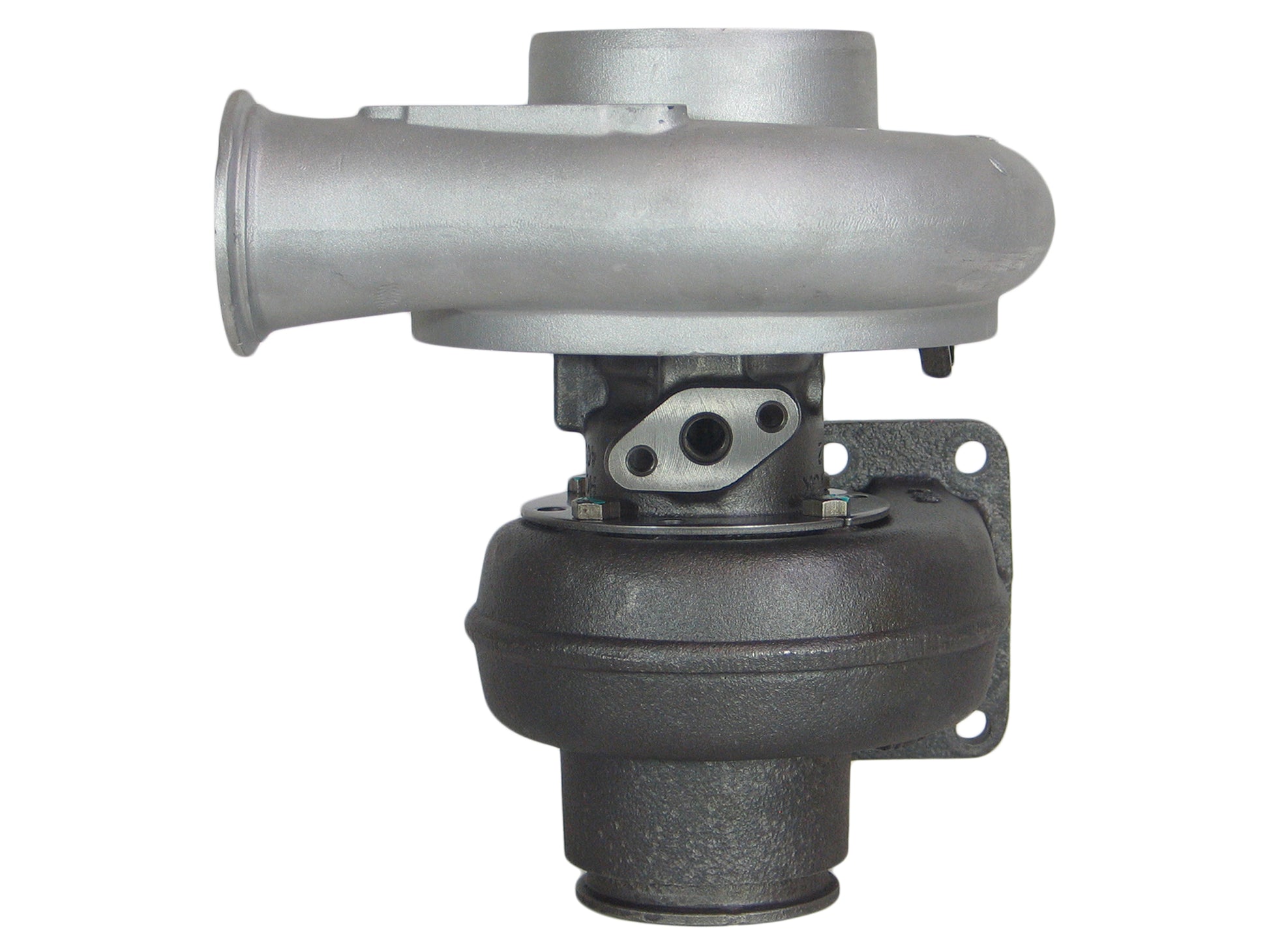

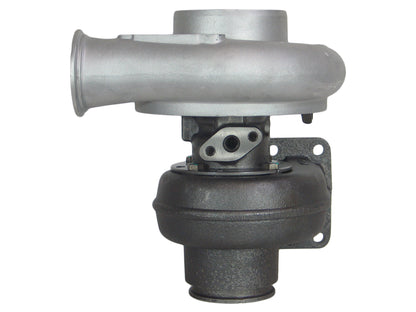

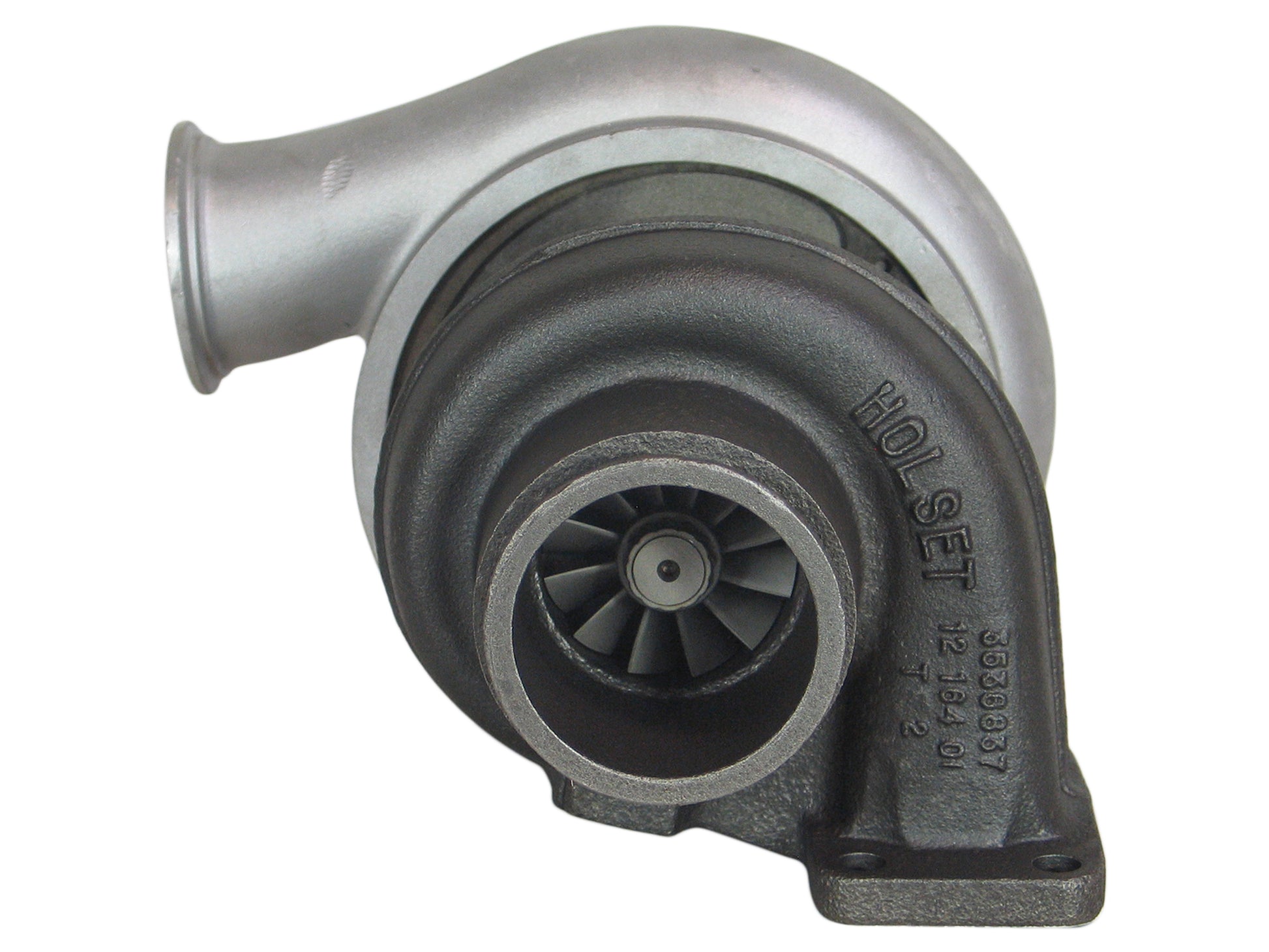

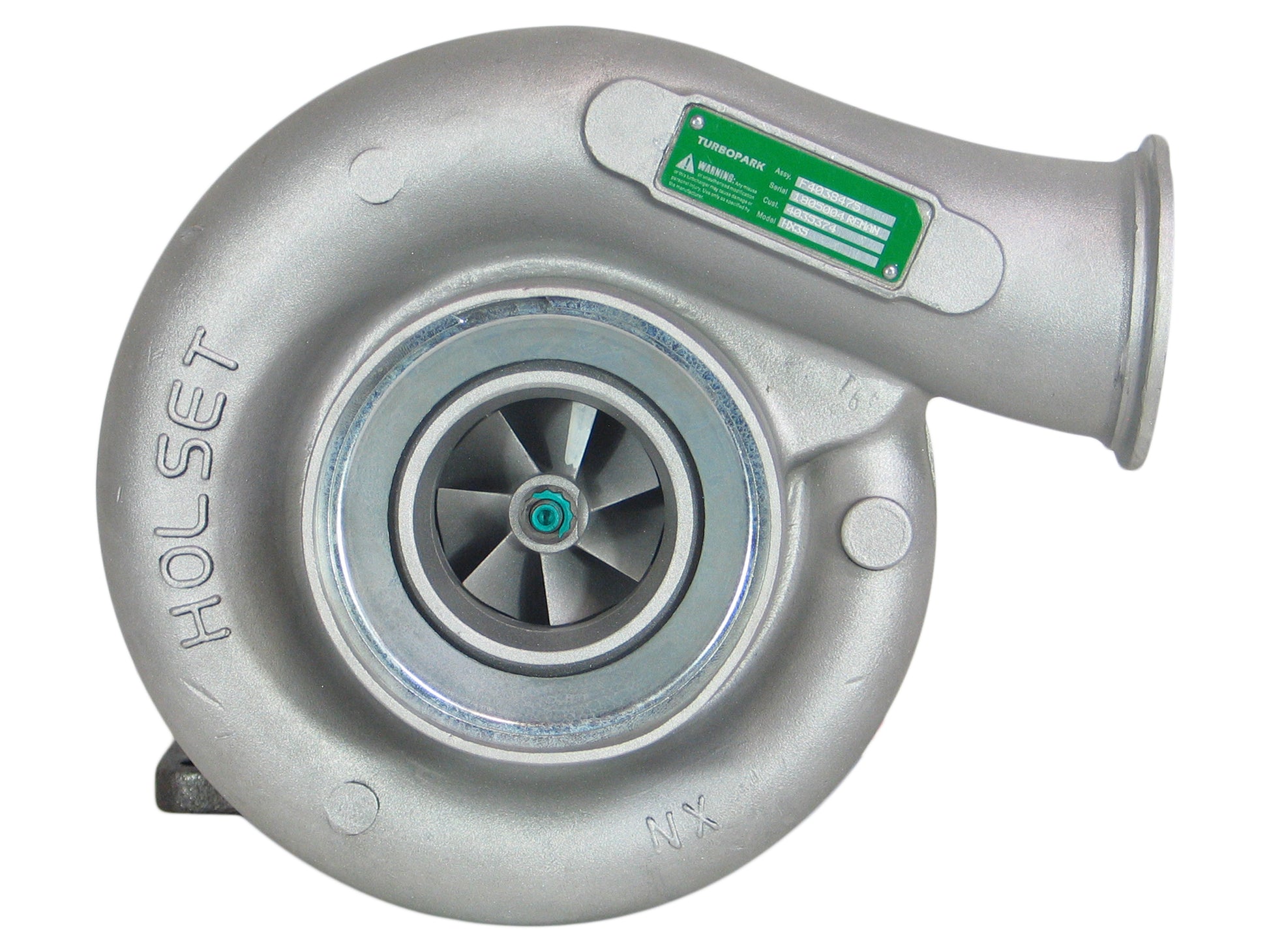

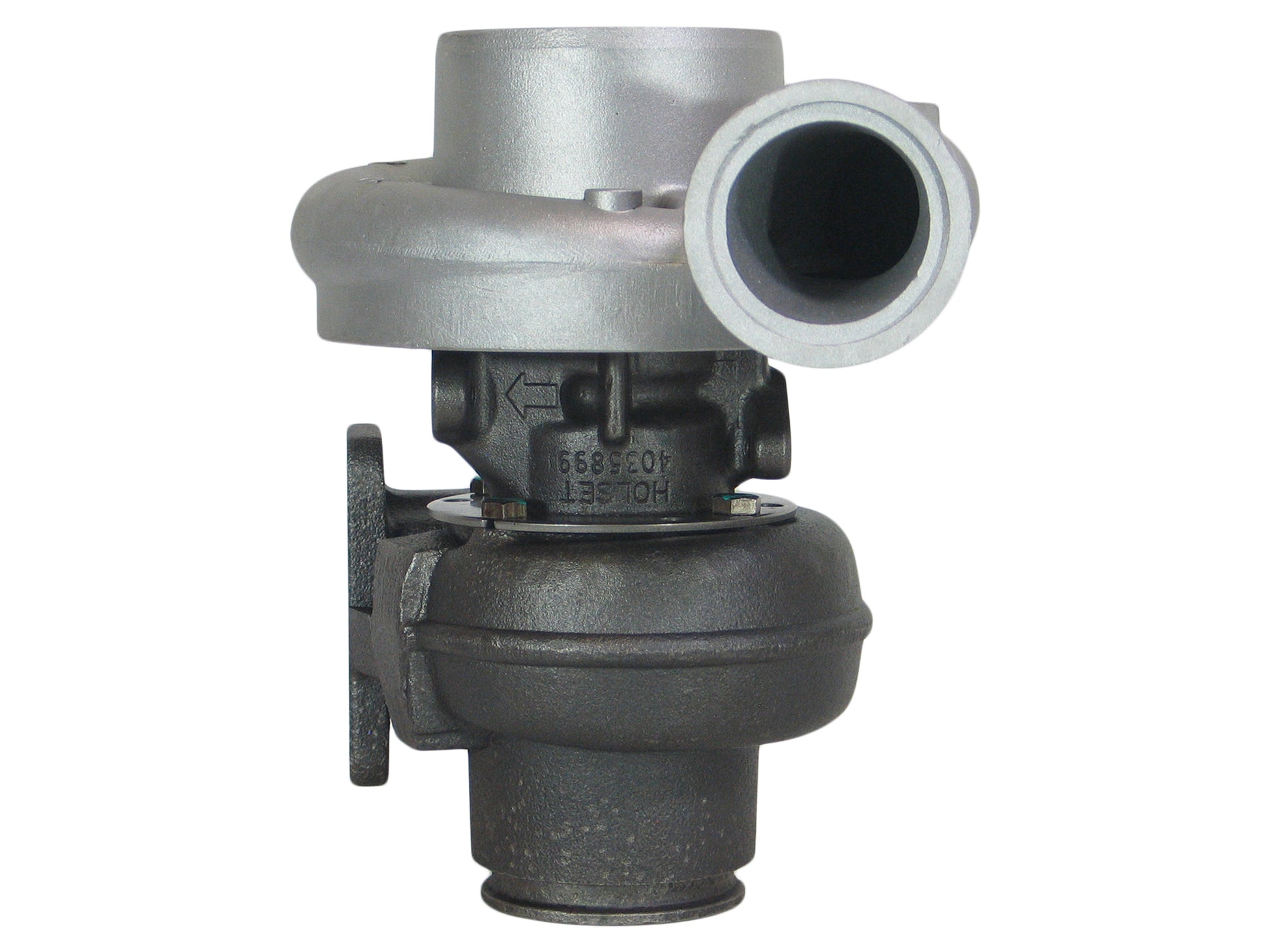

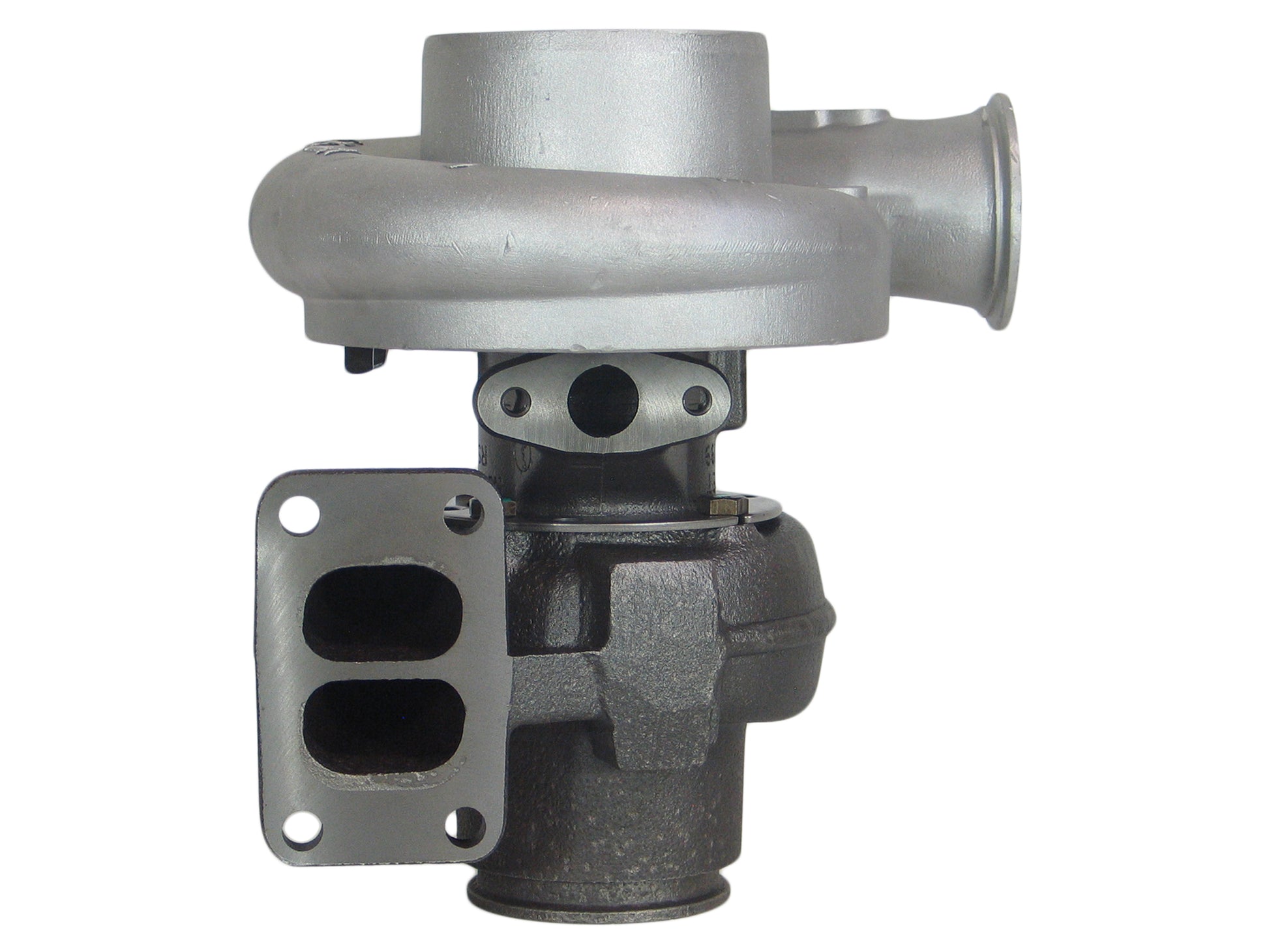

HX35 Turbo Komatsu Wheel Loader Excavator Cummins 6BTAA KCEC 5.9L Diesel 4038475SKU: F4038475
This is a TURBOTURBOS REMANUFACTURED TURBOCHARGER. This is an exact, direct fit replacement turbo.
Fits the following:
Part Number: 4038475
Interchangeable Number: 3595157, 3595158, 3596668, 3598702, 3599109, 3786885H, 4035373, 4035374, 4036172, 4038480, 4038481, 4039243, 5459059, 5496201
OEM Number: 4087911, 4089711, 6738-82-8220, 6738828220
Turbo Model: HX35, HX35-A77J65GM/A70Q86FE12DD
Engine: 6BTAA, KCEC (Komatsu Cummins Engine Co.), S6D102E
Engine Manufacturer: Cummins
Displacement: 5.9L, 5900 ccm
Angle α (Compressor Housing): 45/160/235/360°
Angle ß (Turbine Housing): 5/20°
Bearing Housing: 3532632/4027869
Turbine Wheel: 3519336 (Ind. 70.0 mm, Exd. 59.9 mm, 12 Blades)(1152301435)
Compressor Wheel: 3599639 (Ind. 50. mm, Exd. 83. mm, 8+8 Blades)
Seal Plate: 3530923 (1154351300)
Heat Shield: 3519304 (3519302)(1152301340)
Repair Kit: 3575169 (1153035750)
Gasket (Turbine Inlet): 409039-0000 (Inox Steel)(409039-0001, 210019, 2405022, 312617, 2405022, 7C7431)(1900000006)
Gasket (Oil Outlet): 210060 (Paper)(311585, 148062)
CHRA: 4027883 (4089711, 4027883H)(1000020186)
2001-04 Komatsu GD405, GD555 Grader with Cummins 6BTAA, KCEC Engine
2001-04 Komatsu Generator with Cummins 6BTAA, KCEC Engine
2001-04 Komatsu Industrial Ratings with Cummins 6BTAA, KCEC Engine
2001-04 Komatsu Machine Moving TERRA with Cummins 6BTAA, KCEC Engine
2001-04 Komatsu PC200, PC200-6 Excavator with Cummins 6BTAA, KCEC Engine
2001-04 Komatsu WA200-250, WA380 Wheeled Loader with Cummins 6BTAA, KCEC Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
