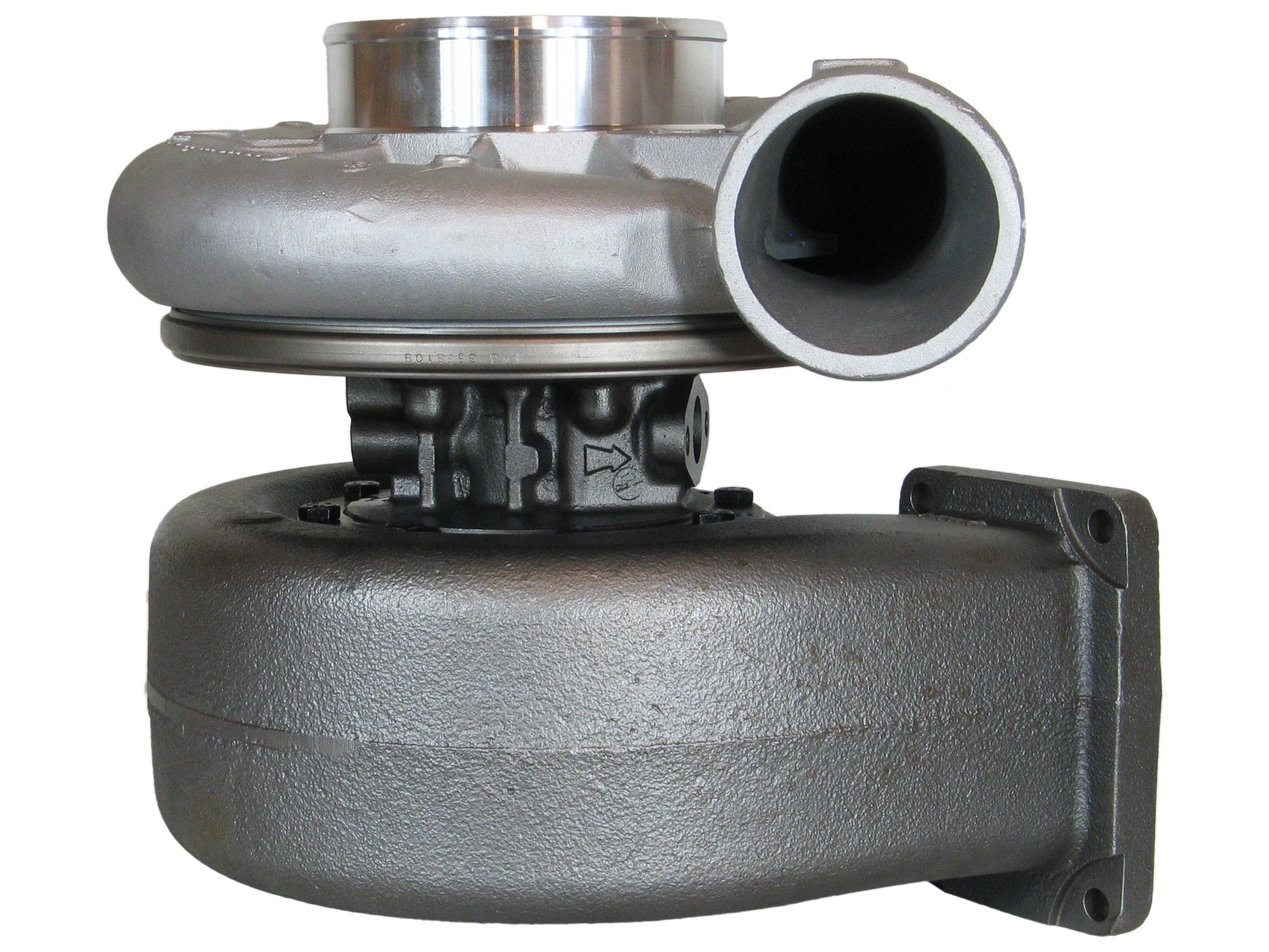

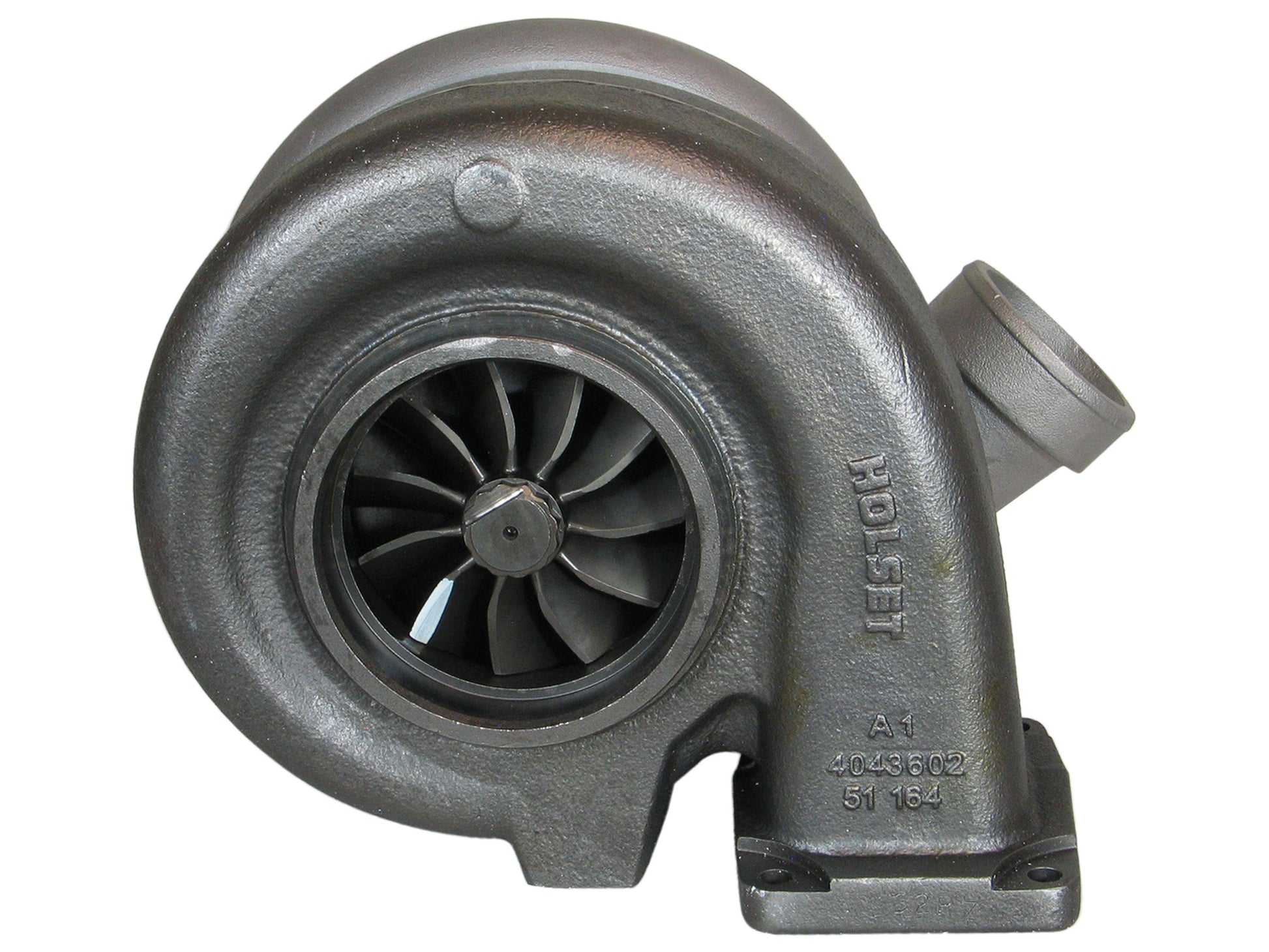

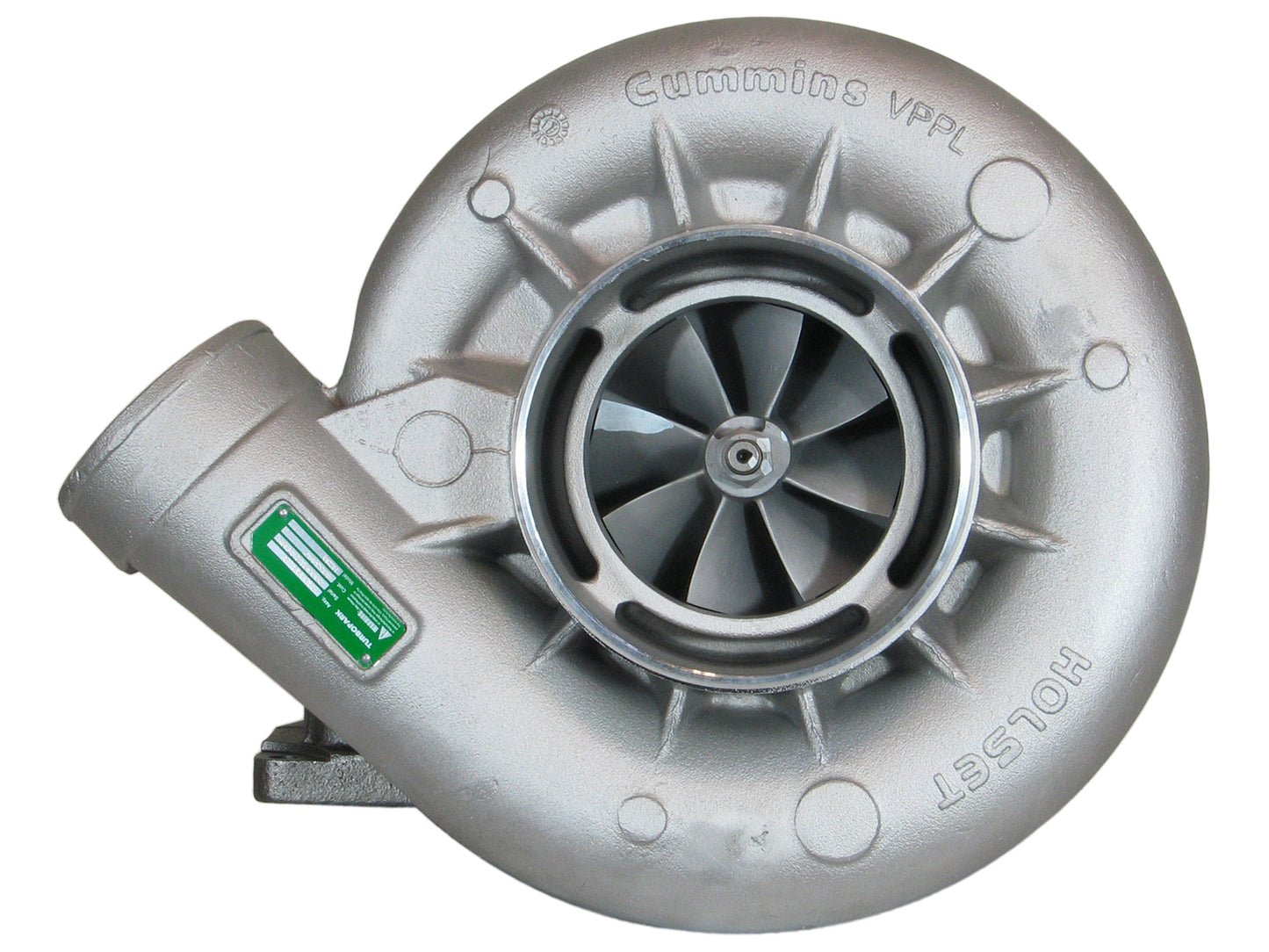

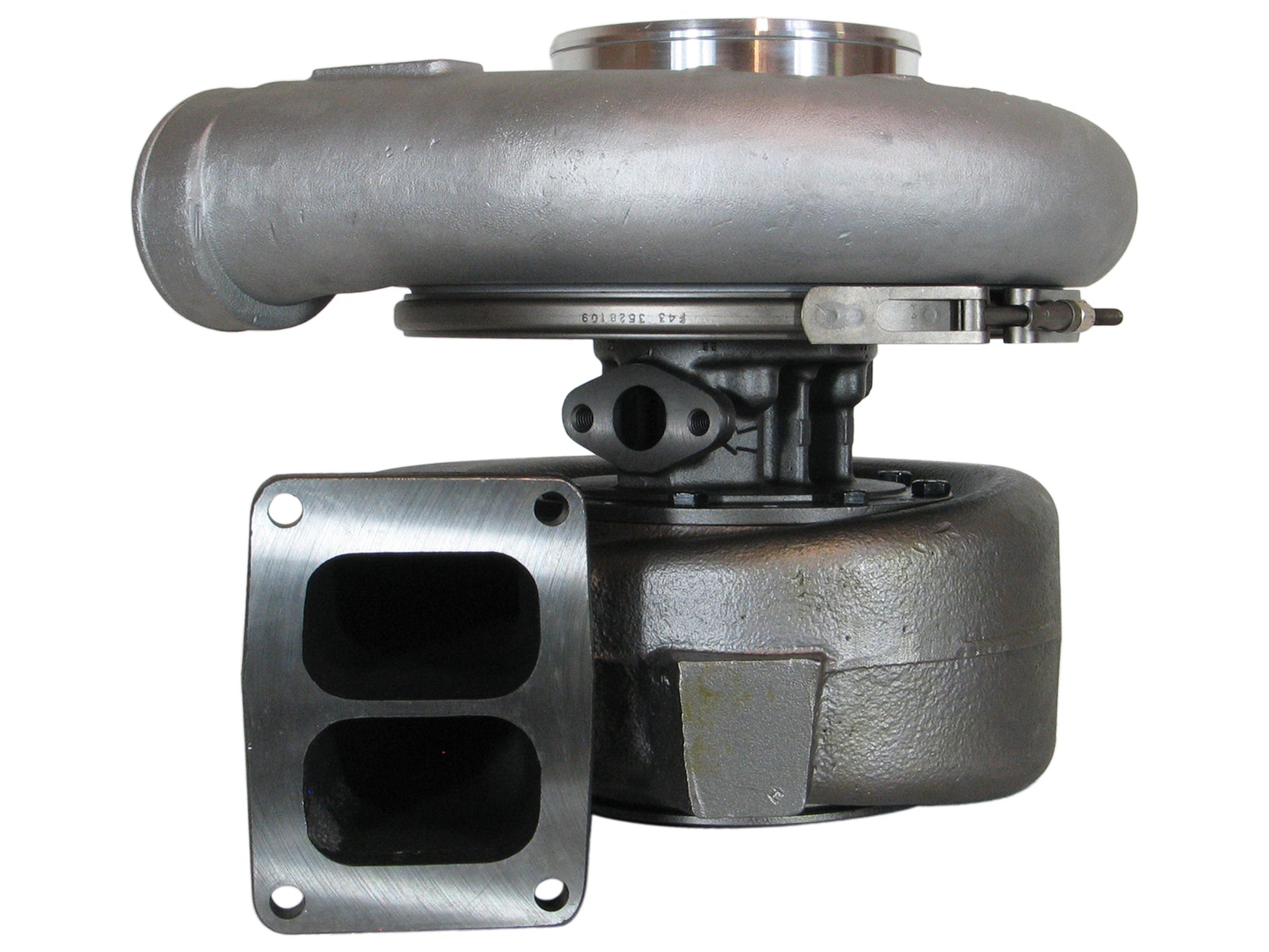

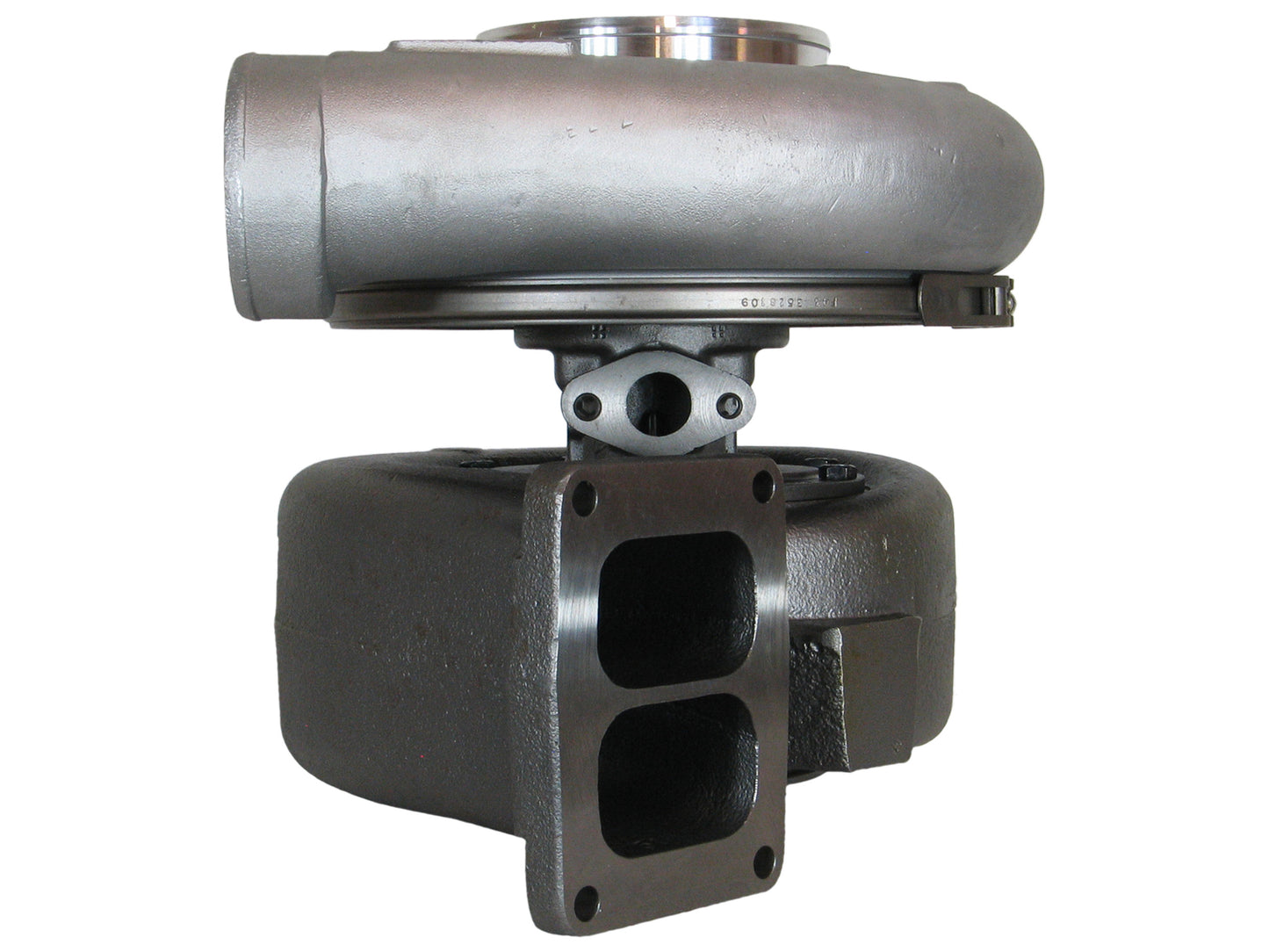

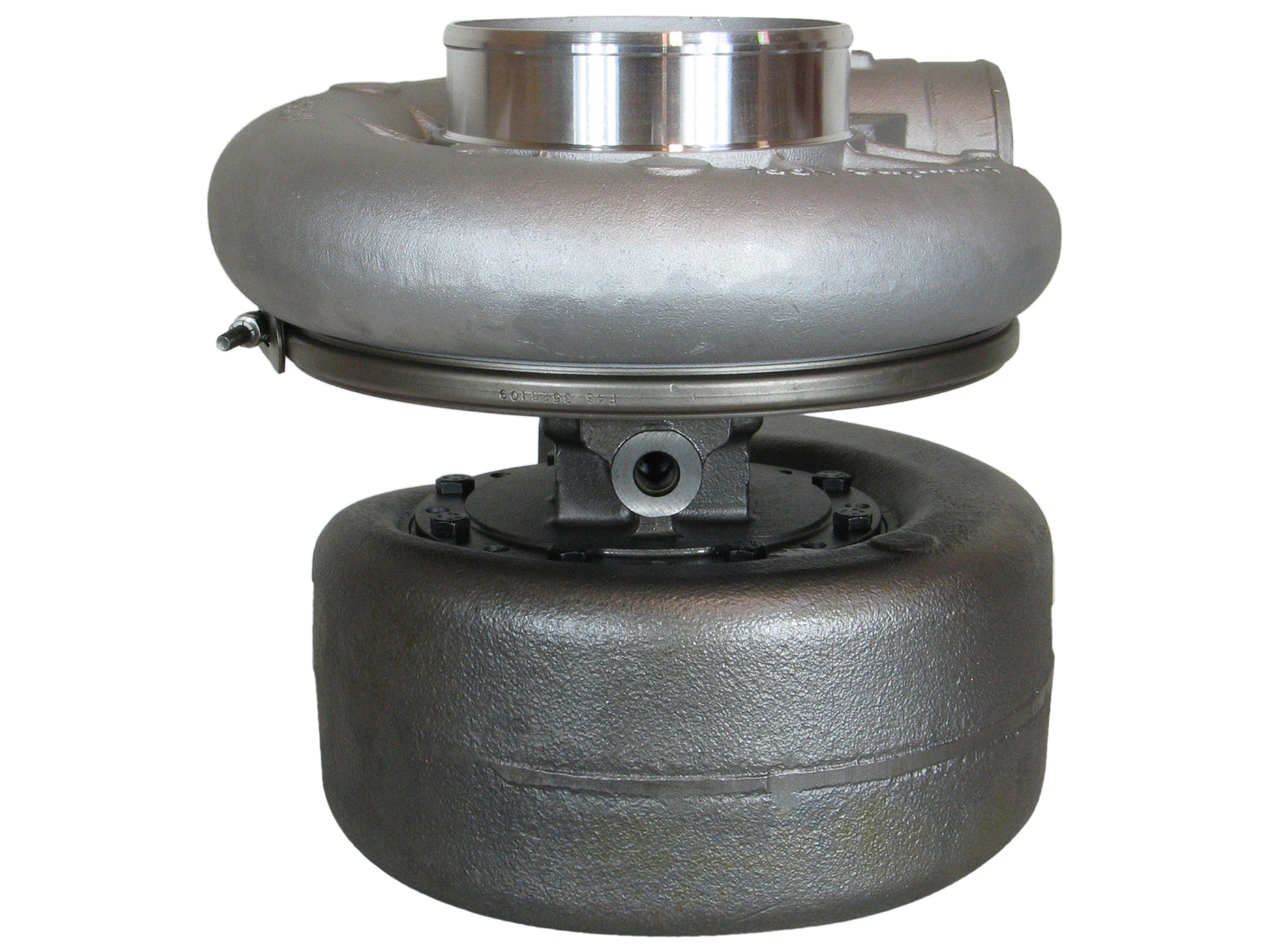

HC5A Turbo Gen Set Cummins KTA50 Diesel Engine 3594105 3594106 4955505 4044418

TURBOTURBOS REMANUFACTURED TURBOCHARGER

This is a TURBOTURBOS REMANUFACTURED TURBOCHARGER. This is an exact, direct fit replacement turbo.

Fits the following:

Part Number: 4044418
Interchangeable Number: 3524349, 3524479, 3525217, 3526271, 3526272, 3526273, 3528455, 3528456, 3528457, 3594104, 3594105, 3594106, 3803338, 4033447
OEM Number: 3801850, 3801850NX, 3801850RX, 3803338NX, 3803338RX, 4044418NX, 4044418RX, 4955505, 4955505NX, 4955505RX
Turbo Model: HC5A, HC5A-3075R/M51P4

Year: 2006-
Engine: KTA50
Engine Manufacturer: Cummins
Fuel: Diesel

Angle α (Compressor Housing): 180°
Angle β (Turbine Housing): 45°
Back Plate: 3524421 (352442100)
Bearing Housing: 3595036 (3523429)(359503600)(Oil Cooled)
CHRA: 3594207 (359420700, 3545507)
Compressor Wheel: 3523420 (352342000)(Ind. 99 mm, Exd. 131 mm, Trim 12.2, 8+8 Blades, Super Back)
Gasket (Oil Outlet): 129120 (210018-0000, 409267-0002, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763)(1900000025)
Gasket (Turbine Inlet): 409038-0001 (1215736, 210835-0000, 9749, 7M7273)
Heat Shield: 3536588 (3519783, 353658800)(1153080340)
Repair Kit: 3545647 (3575236) (1152105750)
Turbine Wheel: 3521034 (352103400)(Ind. 129 mm, Exd. 111 mm, Trim 19, 11 Blades)(1152105436)

Application:
2006- Gen Set, Various with Cummins KTA50 Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
