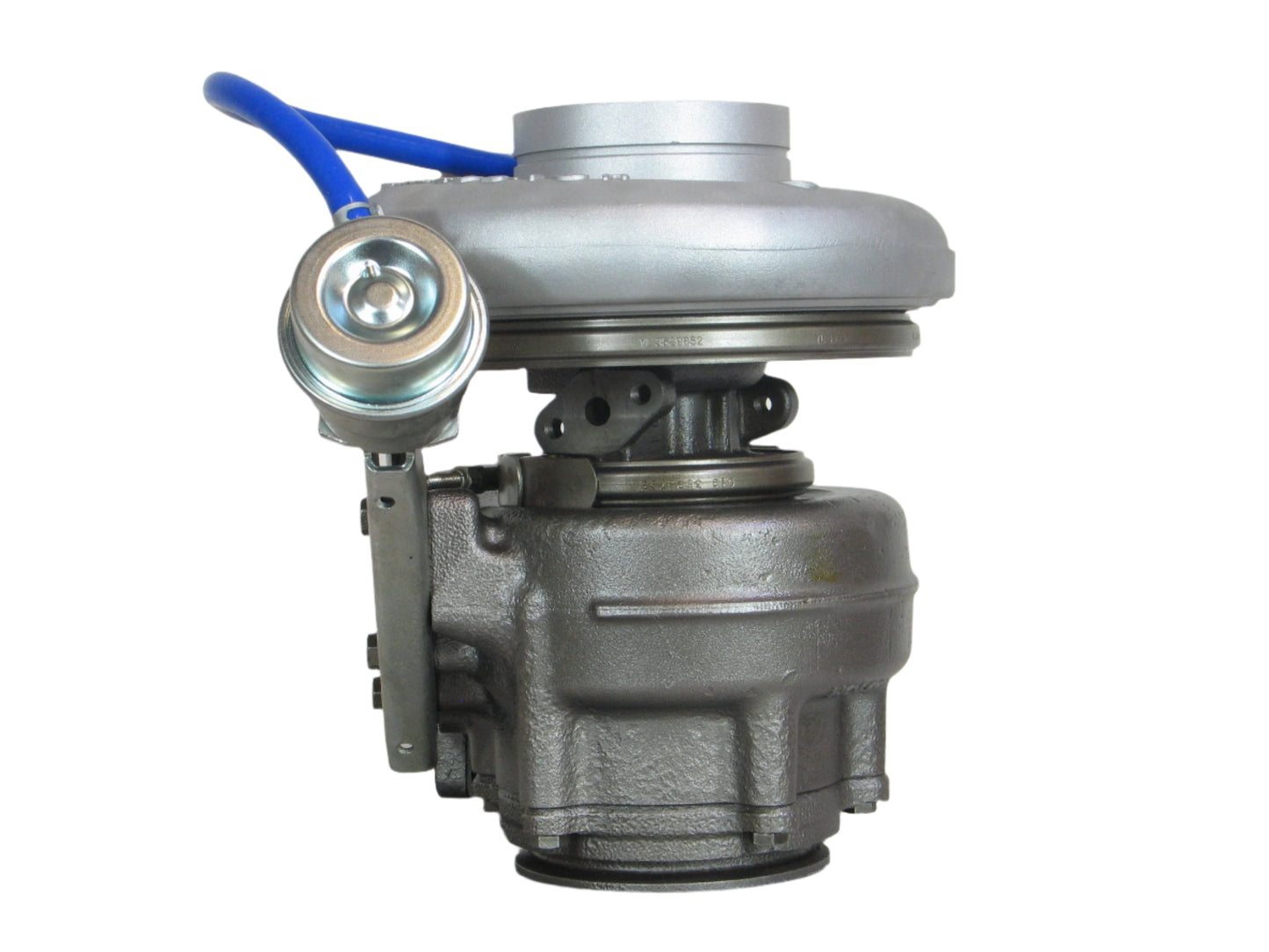

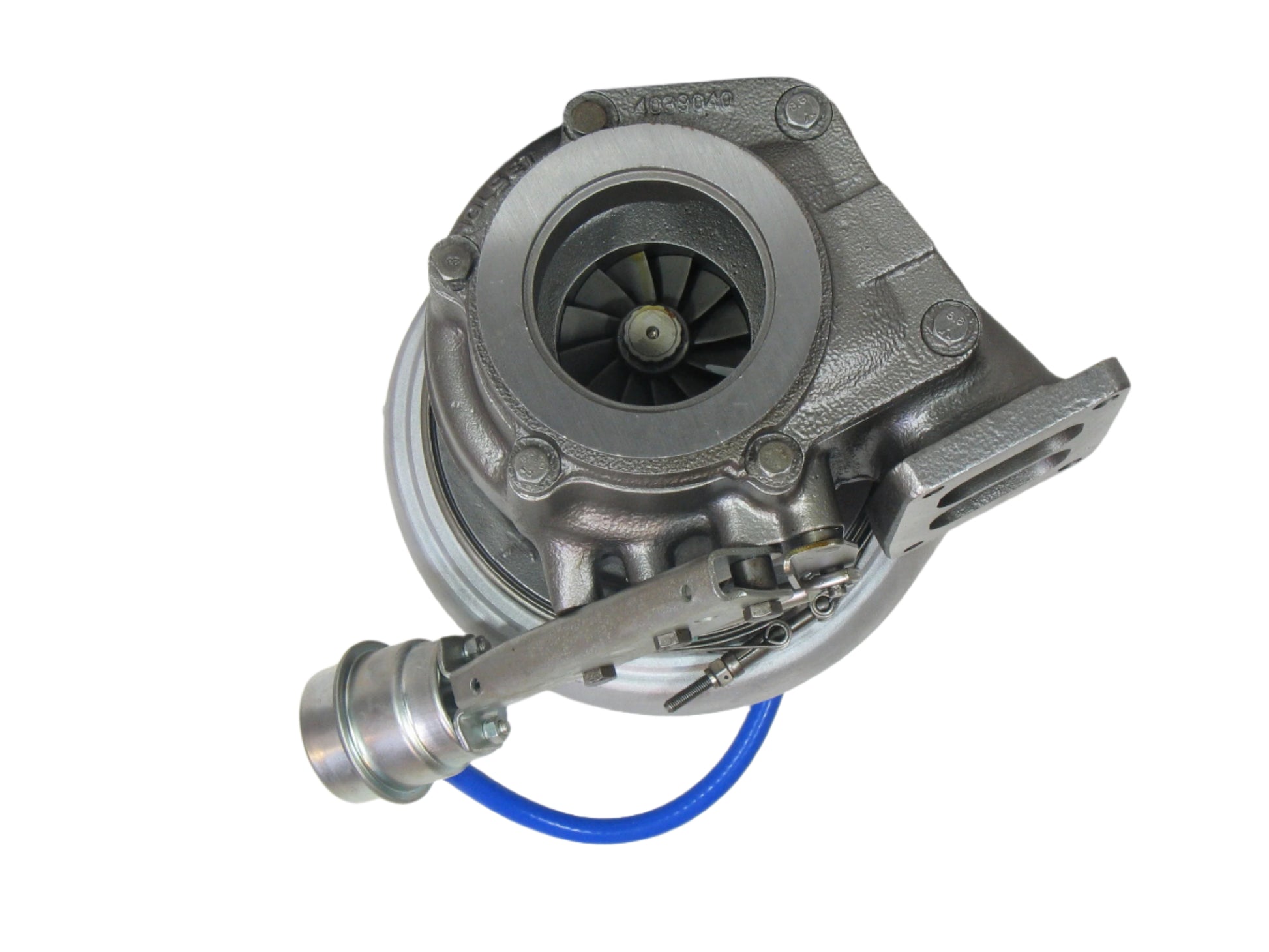

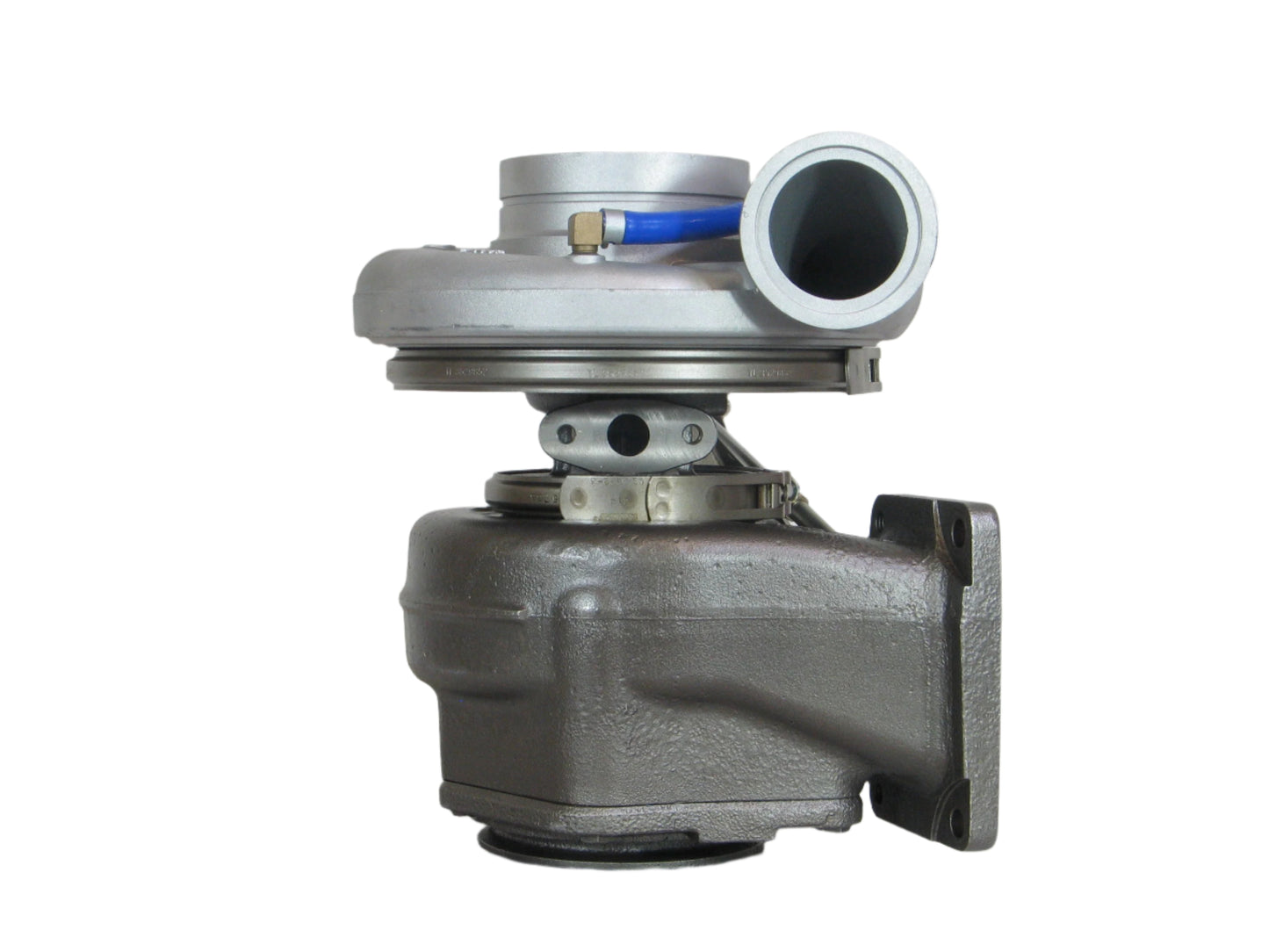

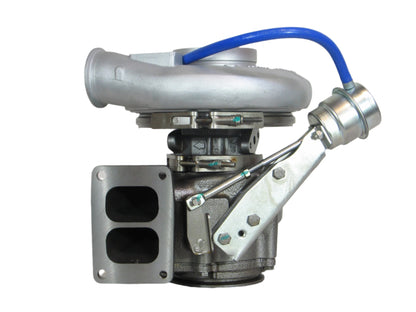

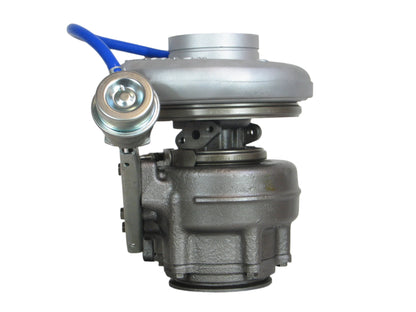

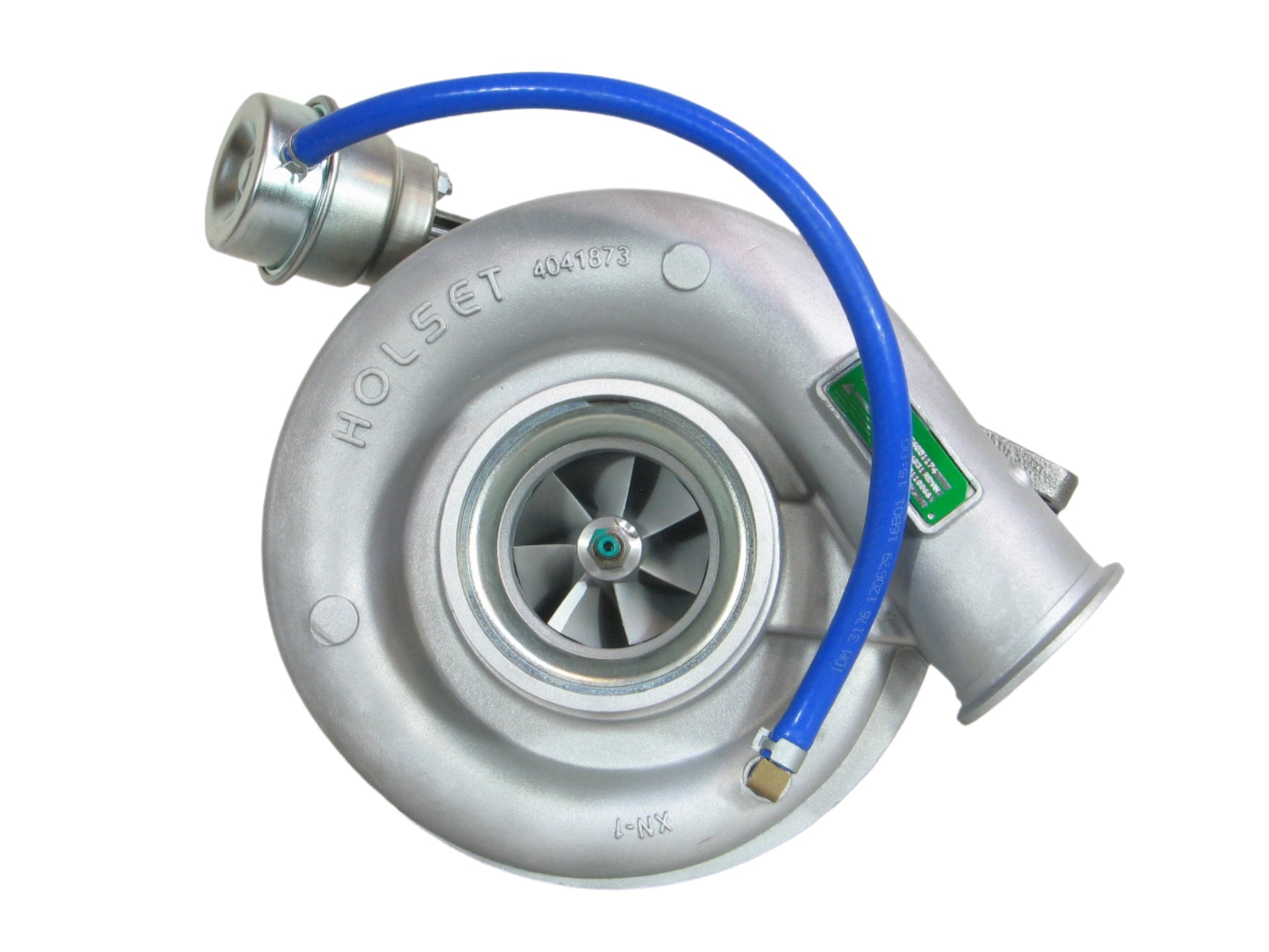

HX55W Turbo for Steyr Truck WD615 WD615.57 Universal T6 VG1540110066 4051174

TURBOTURBOS REMANUFACTURED TURBOCHARGER

This is a TURBOTURBOS REMANUFACTURED TURBOCHARGER. This is an exact, direct fit replacement turbo.

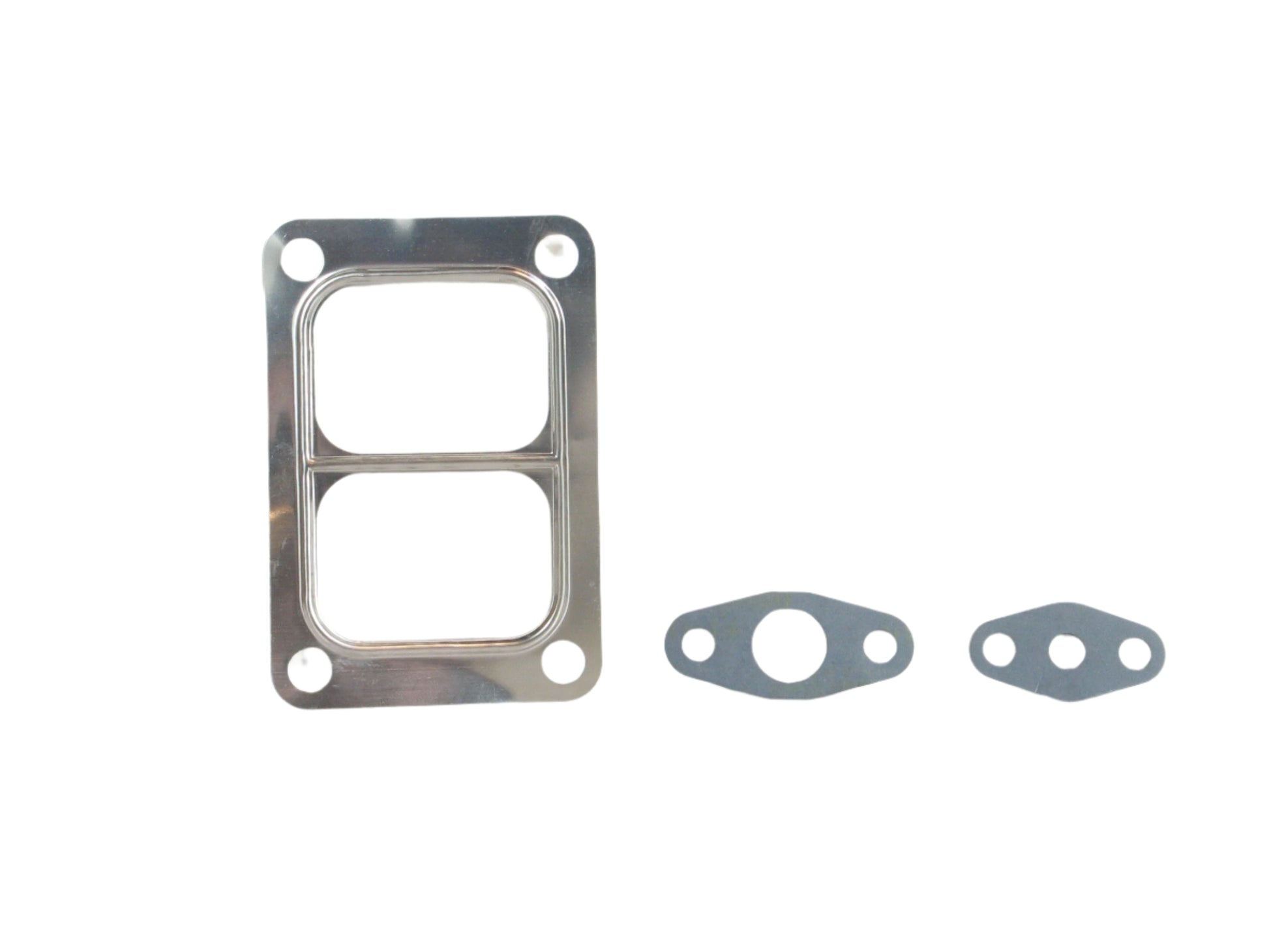

NOTE: This turbocharger package also comes with the gaskets.

Fits the following:

Part Number: 4051174
OEM Number: VG1540110066
Turbo Model: HX55W

Engine: WD615/WD615.57
Displacement: 4-7L (Gasoline Engine), 8-11L (Diesel Engine)
Fuel: Gasoline, Diesel
Power: 500-800 HP (Gasoline Engine), 350-450 HP (Diesel Engine)

Bearing: Journal
Compressor Housing B/H Connection: 197 mm V-Band

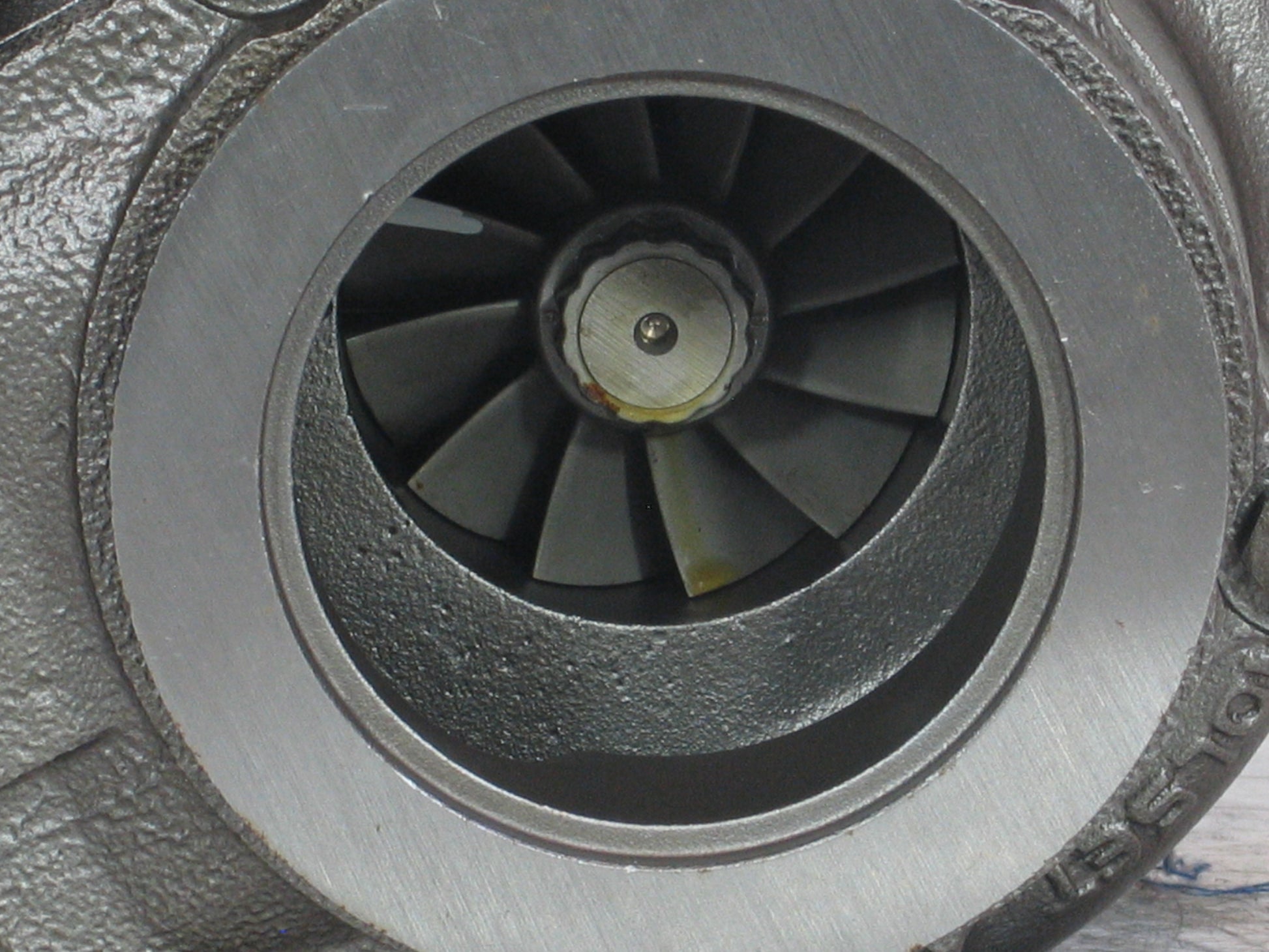

Compressor Housing Inducer Dia.: 66.0 mm
Compressor Housing Outlet Connection: 73.85 mm V-Band
Compressor Wheel: (Ind. 65 mm, Exd. 98 mm)
Cooling: Oil
Flange: T6
Turbine Housing A/R: 2.51 cm sq/cm
Turbine Housing B/H Connection: 112 mm V-Band
Turbine Housing Critical Area: 20.37 cm sq
Turbine Housing Exducer Dia.: 73 mm
Turbine Housing Mtg Flg Bolt Holes: 4 Holes 70 (X) x 112.8 (Y)
Turbine Housing Outlet Connection: 6 Hole Bolted
Turbine Wheel: (Outside Dia. 86 mm, Exd. 72 mm)
Wastegate (Checking Lift): 2.72-3.67 mm
Wastegate ELB: 60.0
Wastegate Settings (Lift): 2.90-3.44 mm
Wastegate Settings (Pressure): 1.8
Wastegate Spig: 165.0

NOTE: Wastegated. Has a 5 inch exhaust connection with V-Band.

Application:
Steyr Truck with WD615/WD615.57 Engine
Universal for 4-7L Gasoline Engine, 8-11L Diesel Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
