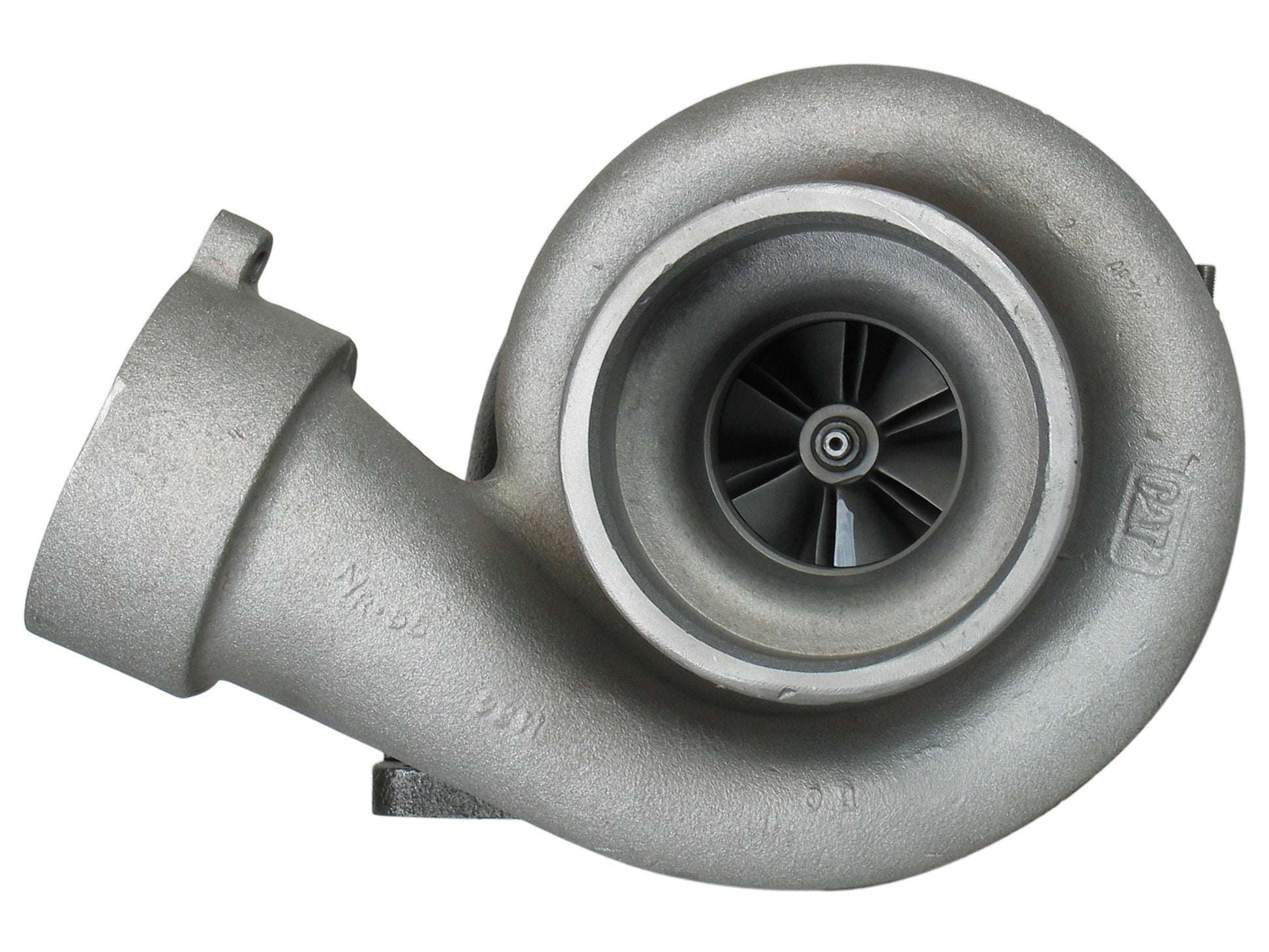

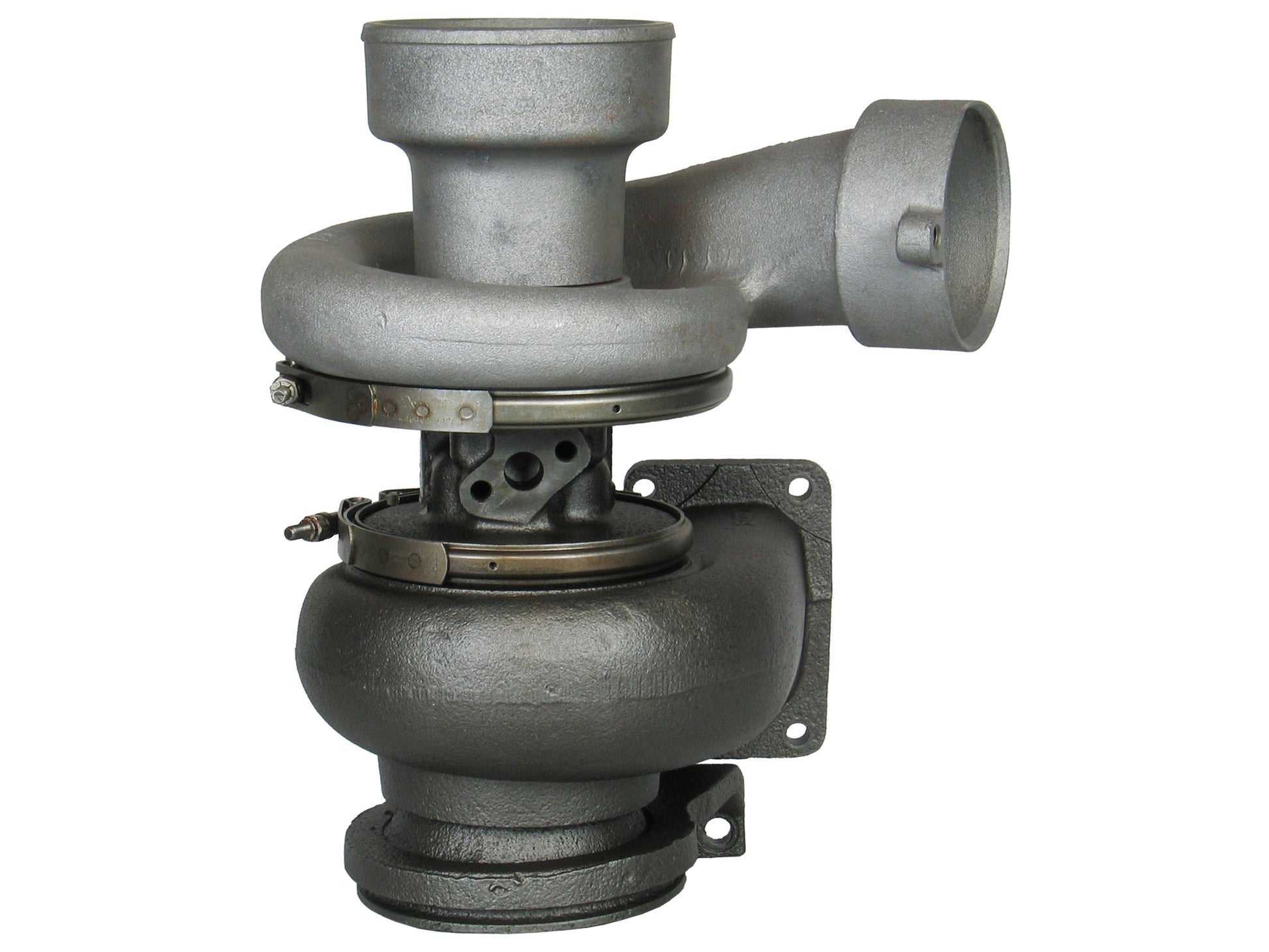

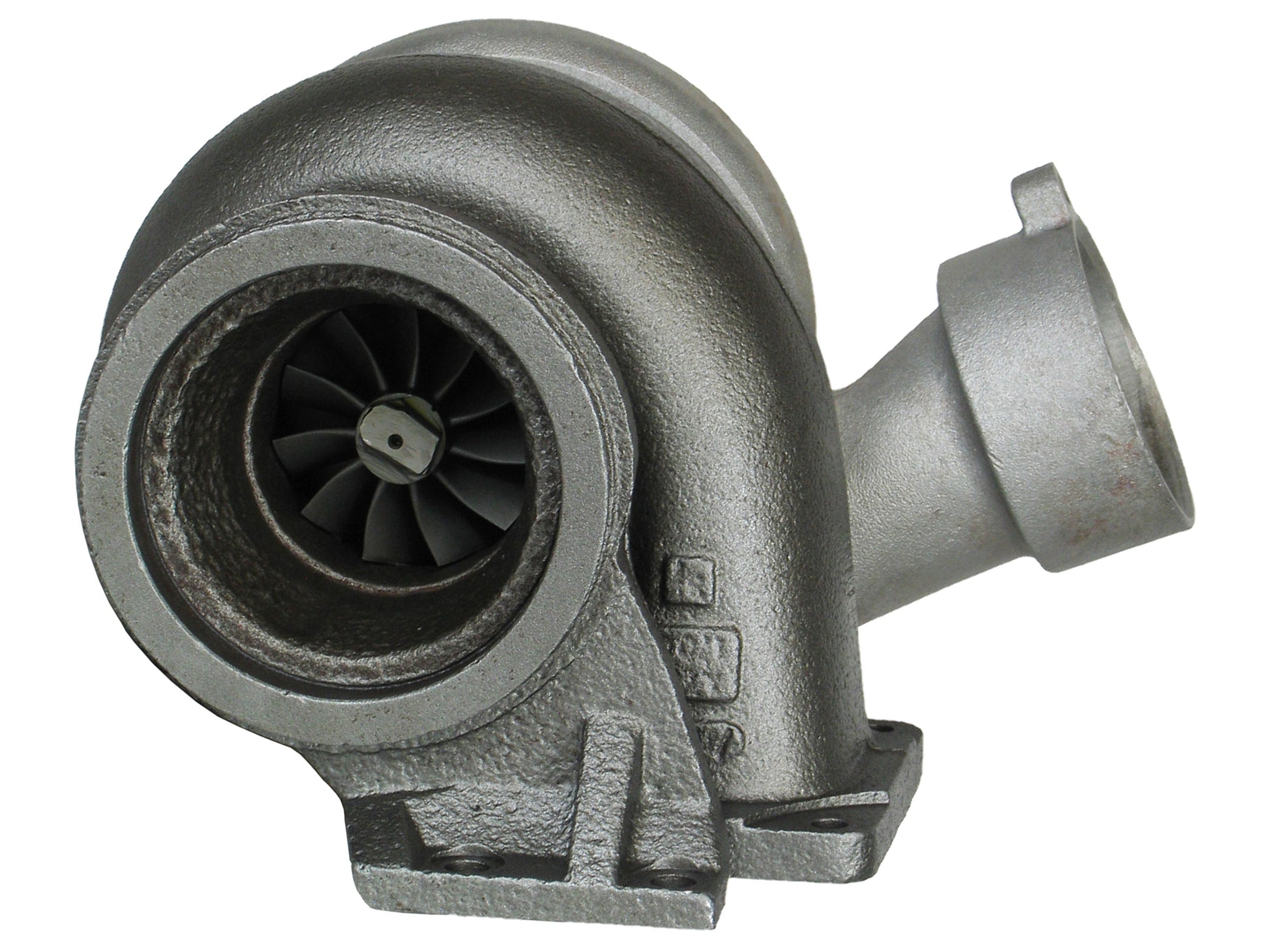

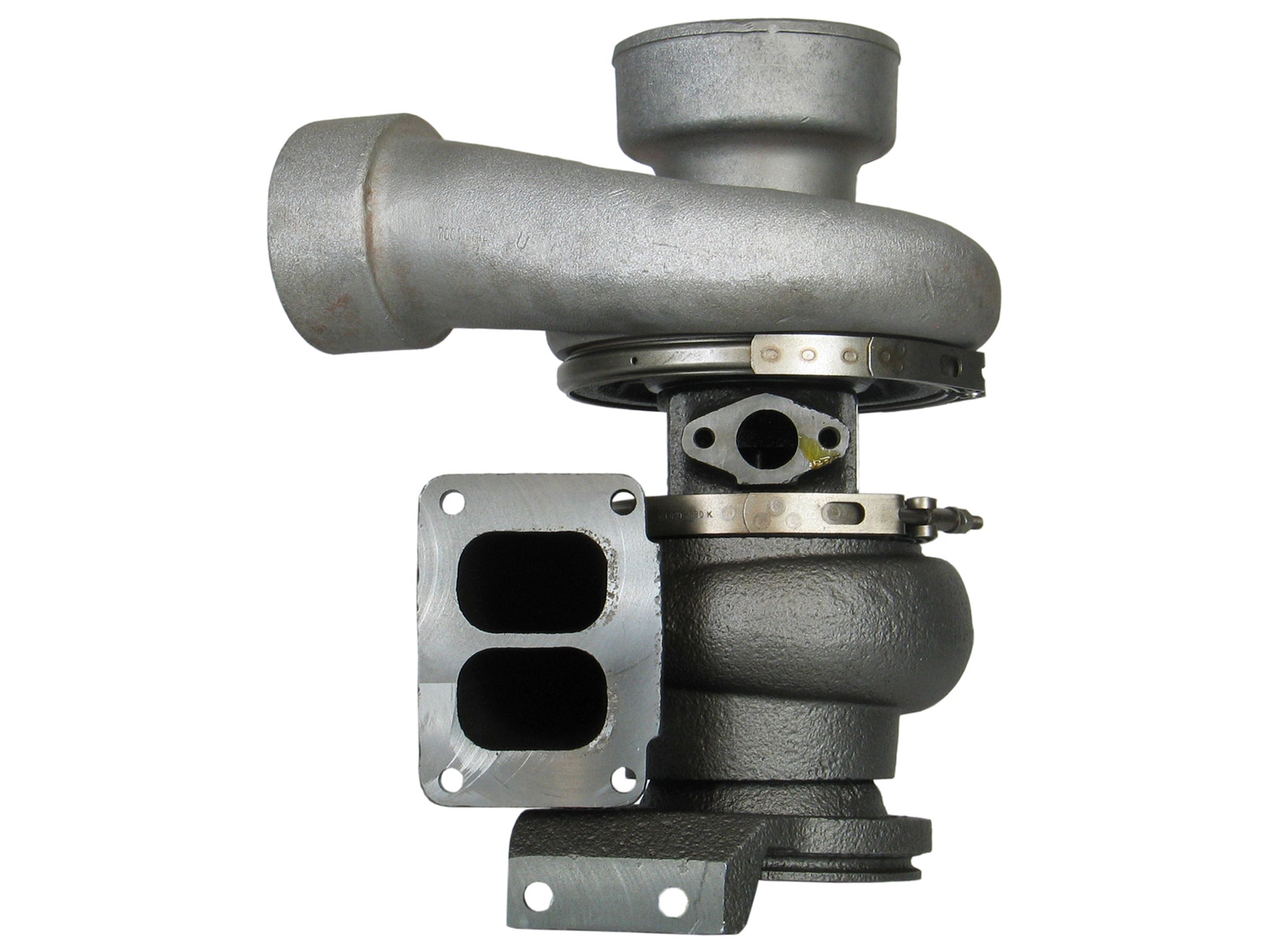

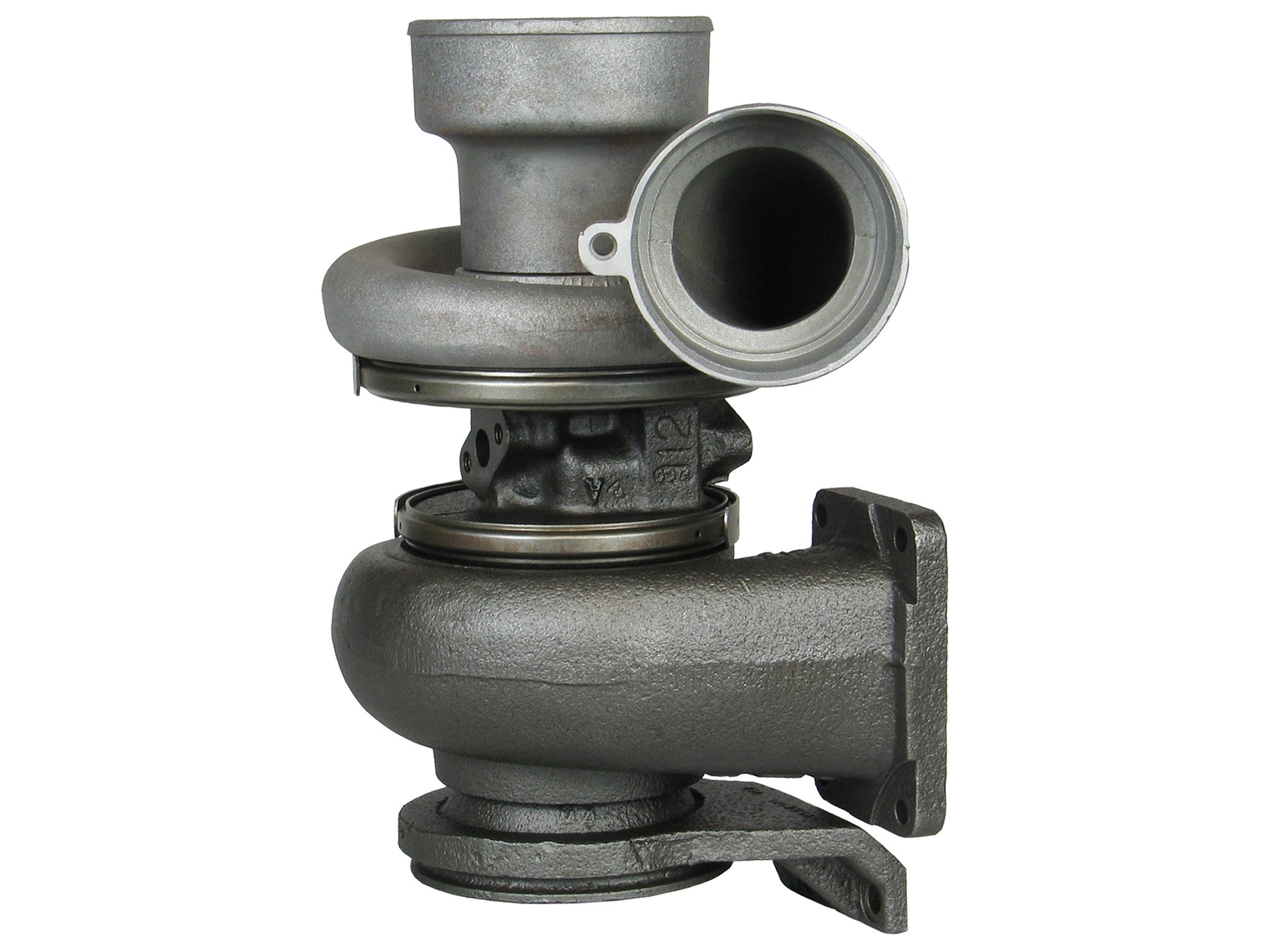

TV6142 Turbo Caterpillar Earth Moving 3306 Engine 2W-7277 465774-5012SSKU: F465774-5012
This is a TURBOTURBOS REMANUFACTURED TURBOCHARGER. This is an exact, direct fit replacement turbo.
Fits the following:
Part Number: 465774-5012S
Interchangeable Number: 465774-0012, 465774-5012
OEM Number: 2W7277, 2W-7277
Serial Number: 5JC1-UP, 64Z1848-UP, 7JB1210-UP, 85Z1-3763, 85Z3764-UP
Turbo Model: TV6142
Engine: 3306, 3306 DIT GS, 3306B, SR4
Displacement: 10.5L, 10500 ccm, 6 Cylinders
Prefix: 36A, 46A, 61A, 76V, 77V, 78V, 99Z, MGC
Back Plate: 408487-0021 (408487-0017)(8N0819, 331640848721)
Bearing Housing: 408495-0028 (408495-0010, 160025-0000)(9N2035)(1101672450)
CHRA: 441140-0001 (441140-5001S, 0R5866, 1W1604)
Compressor Cover: 409603-0003
Compressor Wheel: 410913-0001 (1W1603)(Ind. 65.2 mm, Exd. 94 mm, Trim 48, 6+6 Blades, Billet)
Gasket (Oil Inlet): 129119 (201049, 9737, 1S6595, 210019-0000, 409266-0003, 3819900)(1900000035)
Gasket (Oil Outlet): 210018 (129120, 210018-0000, 409267-0002, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763)(1900000025)
Gasket (Turbine Inlet): 409038-0000 (9749, 1S4295, 202873, 205396, 3500683, 132040, 210017-0000)(1900000003)
Heat Shield: 409368-0000 (3S4490, 9S9327, 7N3760, 4062621, 407574-0002, 407778-0001, 112121-0000)(1100120340)
Repair Kit: 468109-0000 (3545839, 2W0719, 6N7239, 468177-0000, 468108-0000, 409282-0000, 112098-0000, 188402-0000, 188411-0000)(1100120753)
Turbine Housing A/R: 1.00
Turbine Housing: 408142-0024 (1W3559)
Turbine Wheel: 408493-0016 (408493-0007)(Ind. 89 mm, Exd. 78 mm, 11 Blades)
Caterpillar Articulated Dump Truck D250B with 3306 Engine
Caterpillar Earth Moving with 3306 Engine
Caterpillar Generator Set with 3306, 3306B Engine
Caterpillar Generator with SR4 Engine
Caterpillar Industrial with SR4, 3306, 3306B Engine
Caterpillar Machine with 3306 Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
