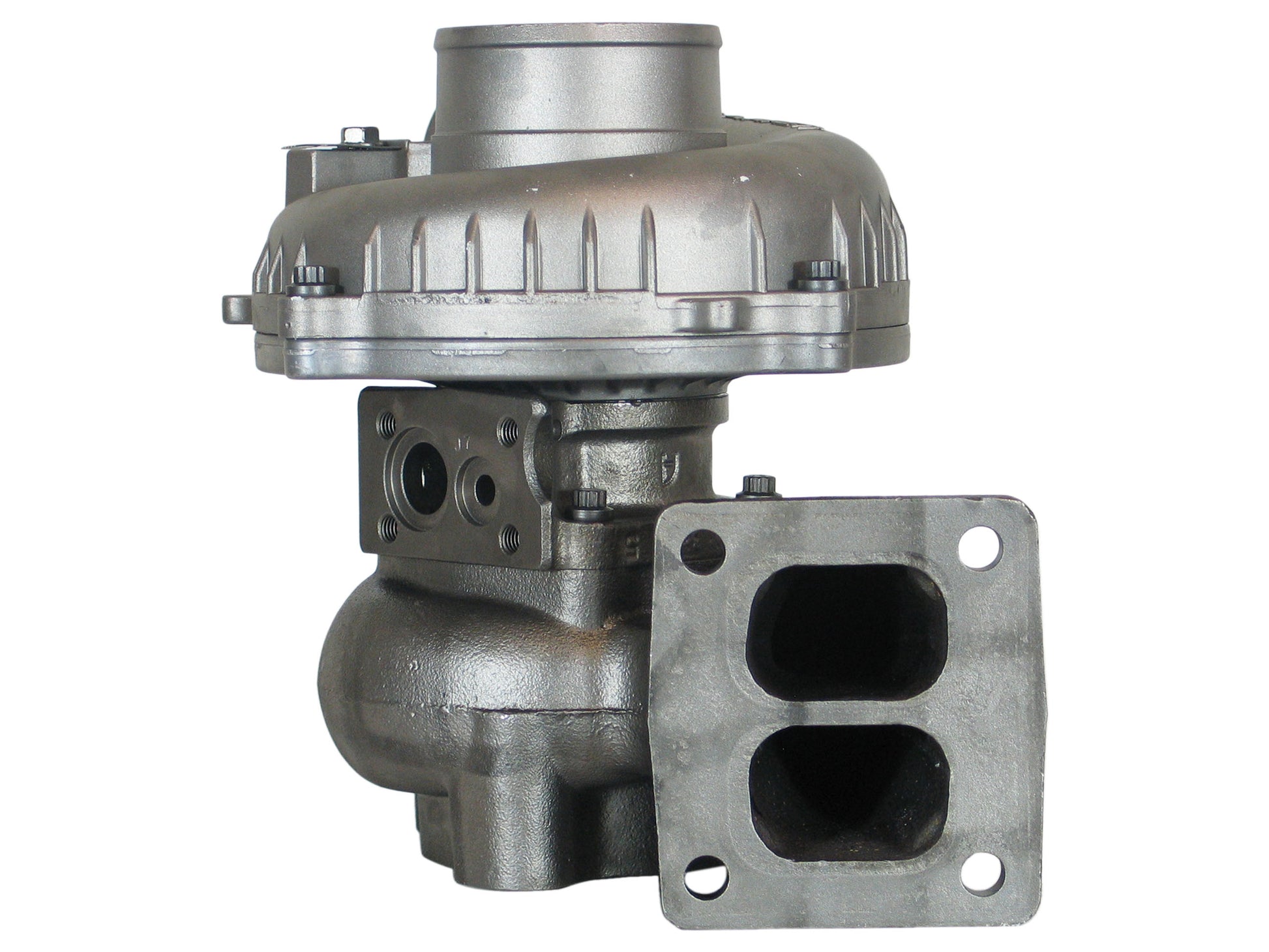

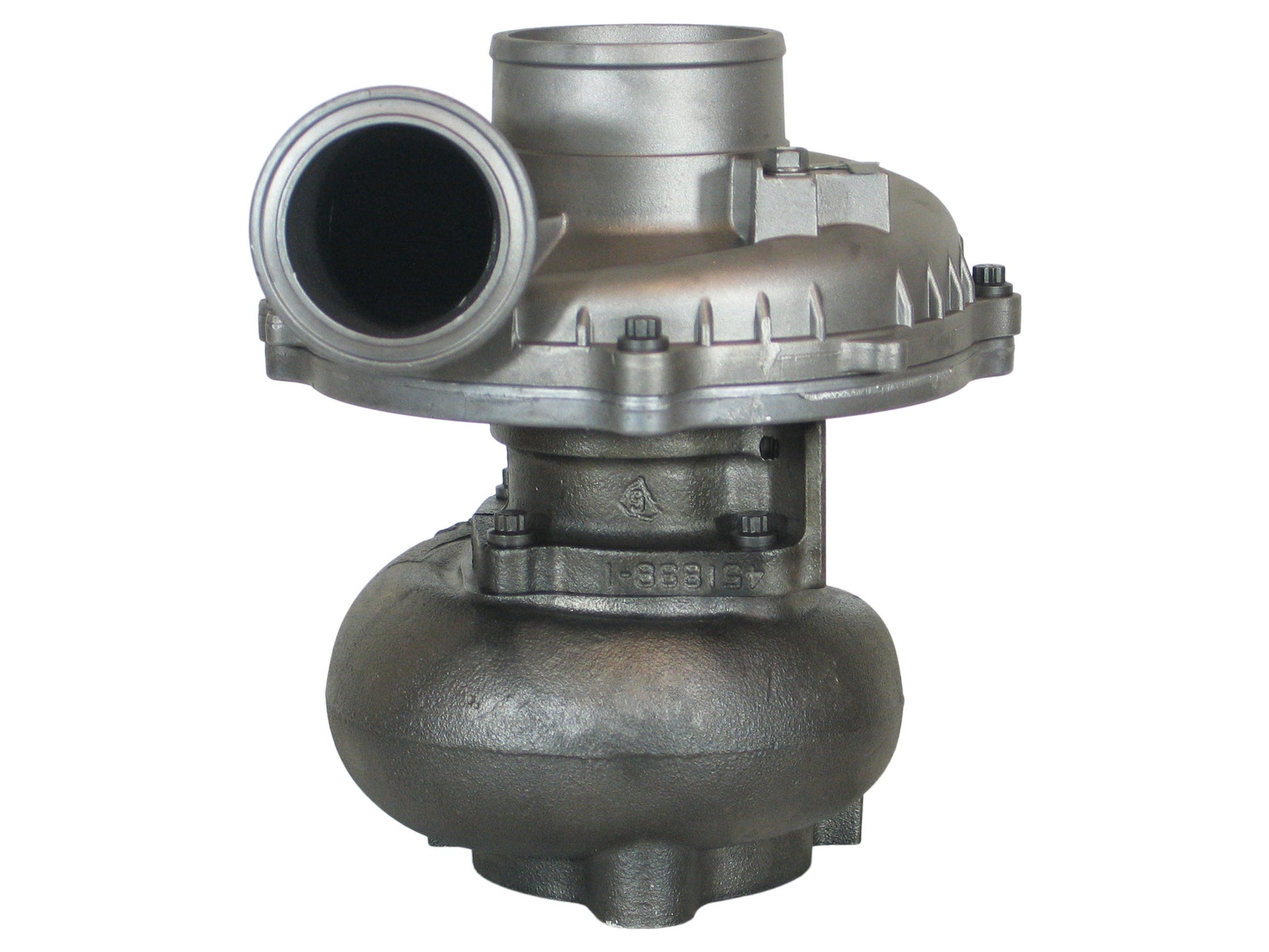

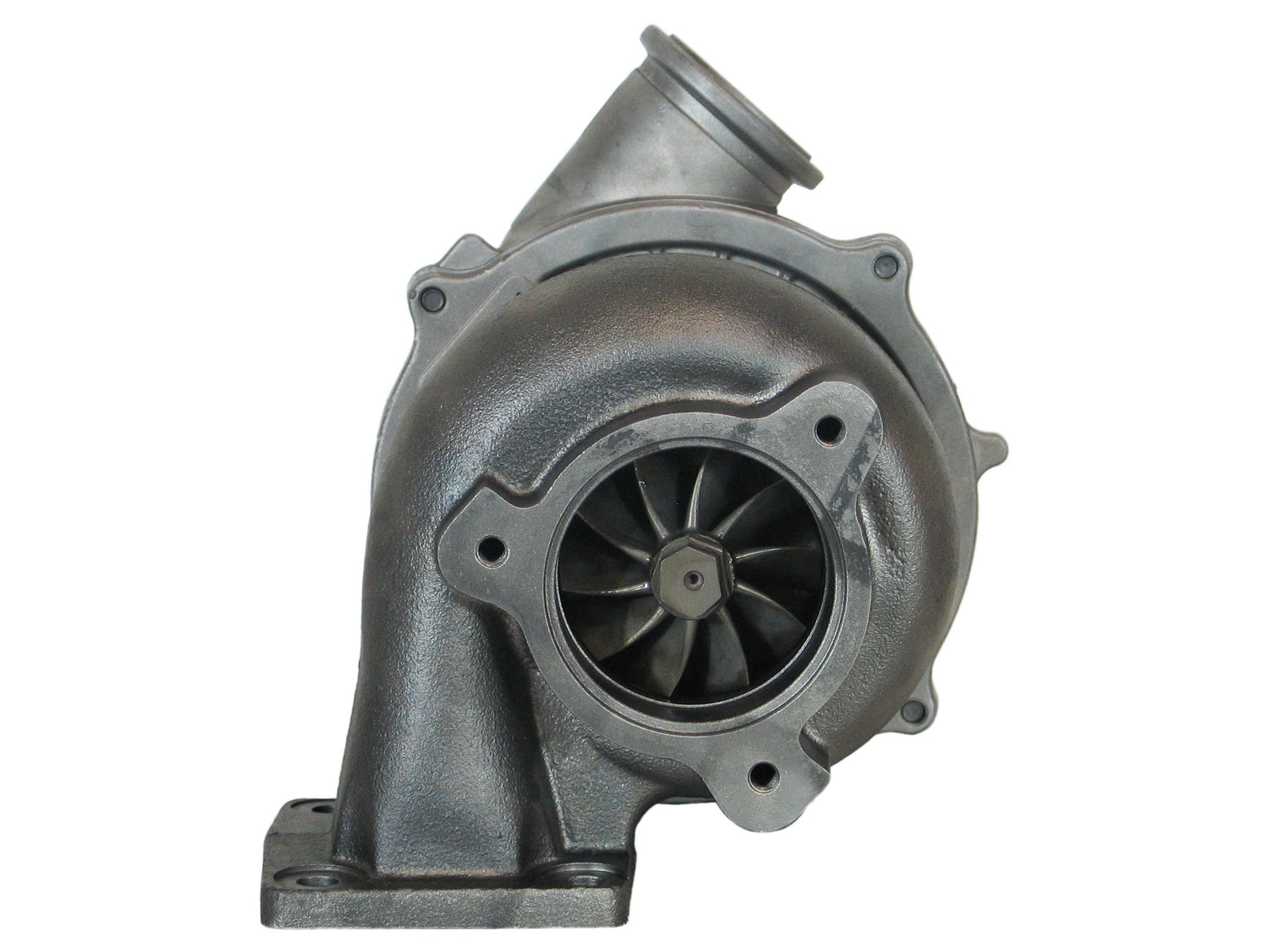

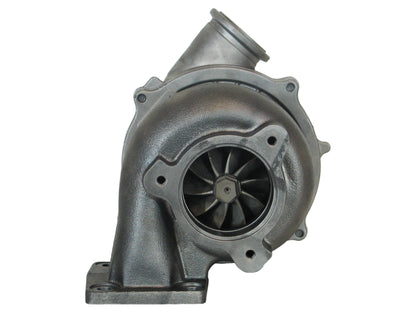

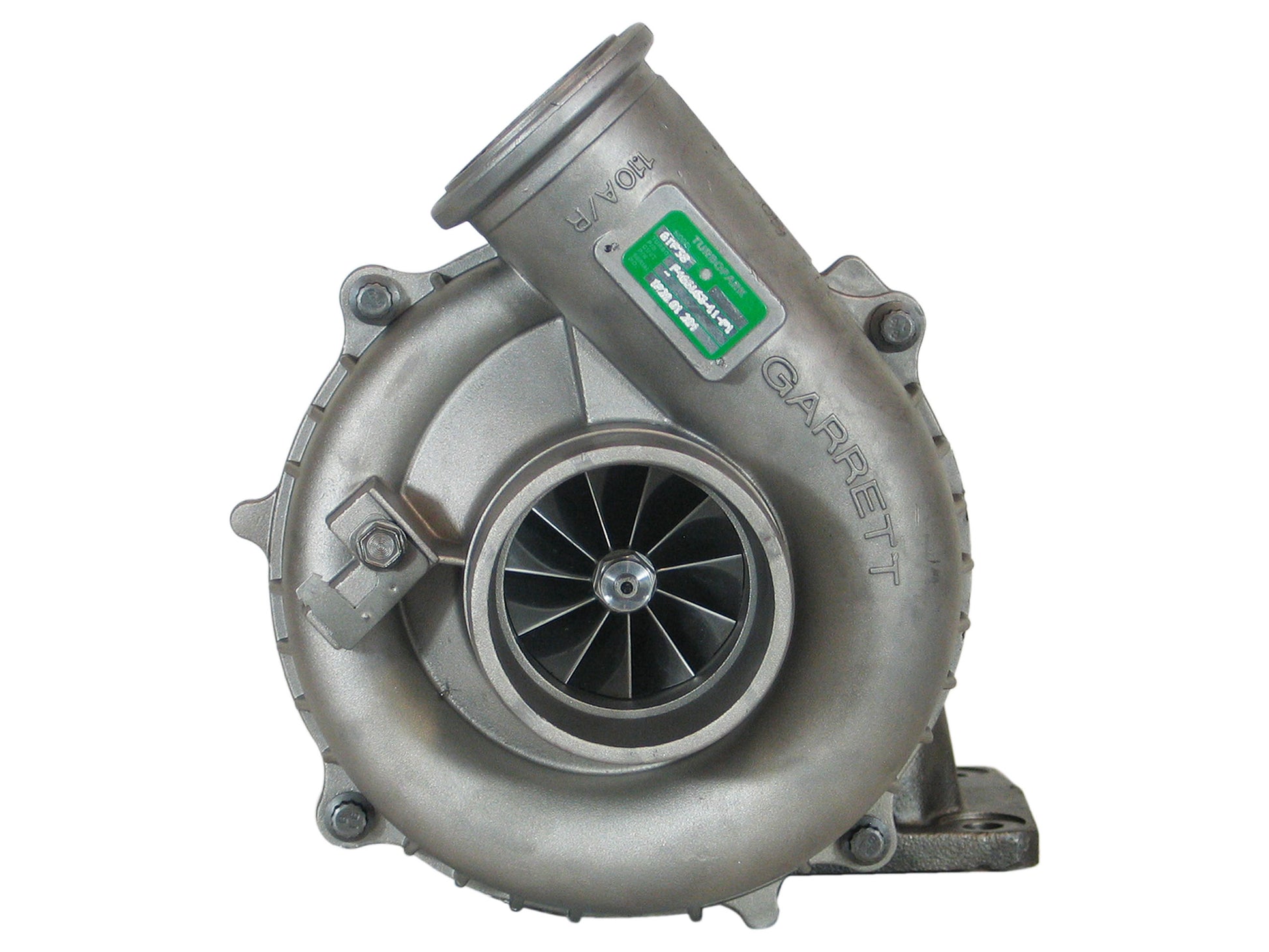

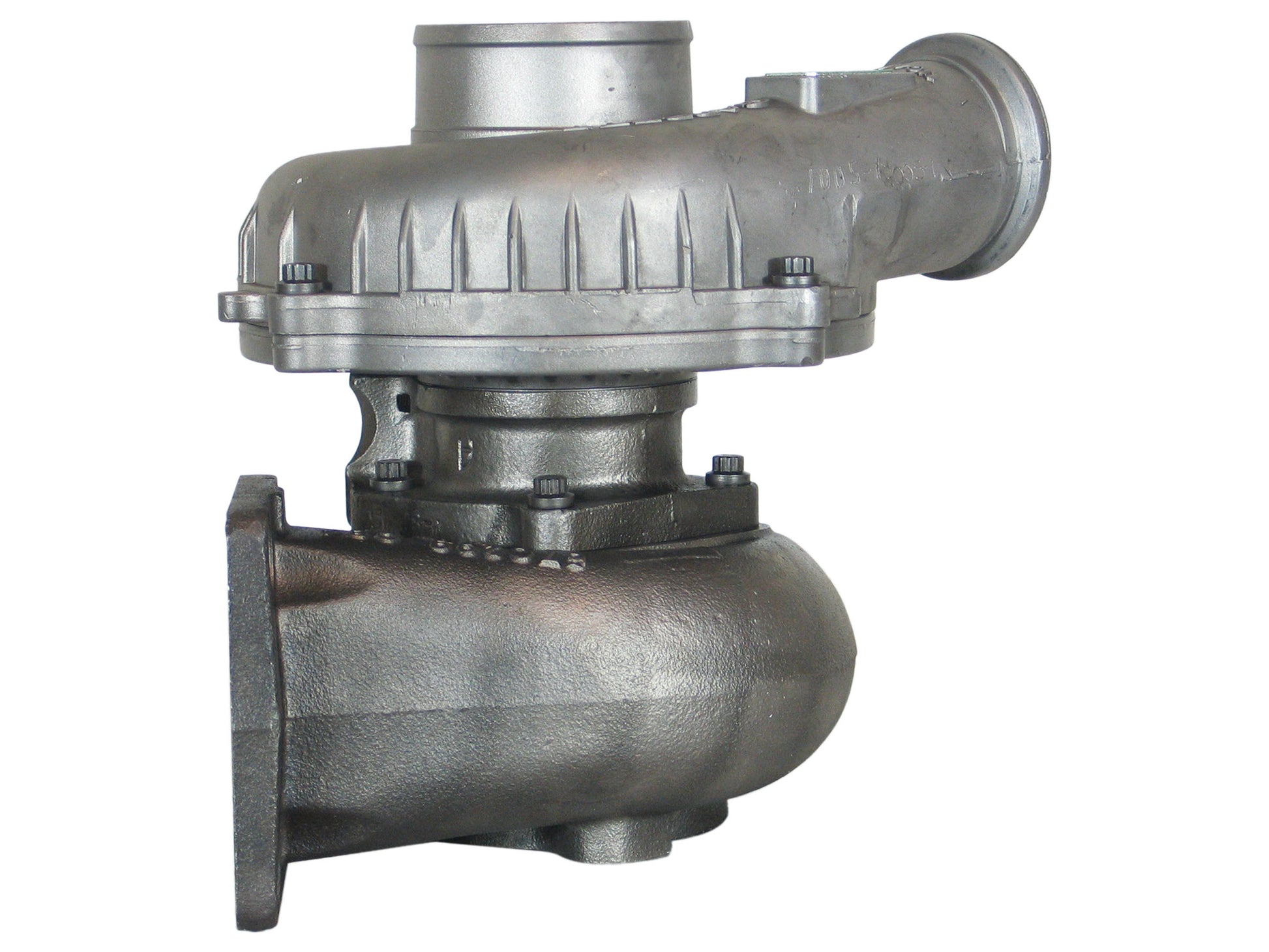

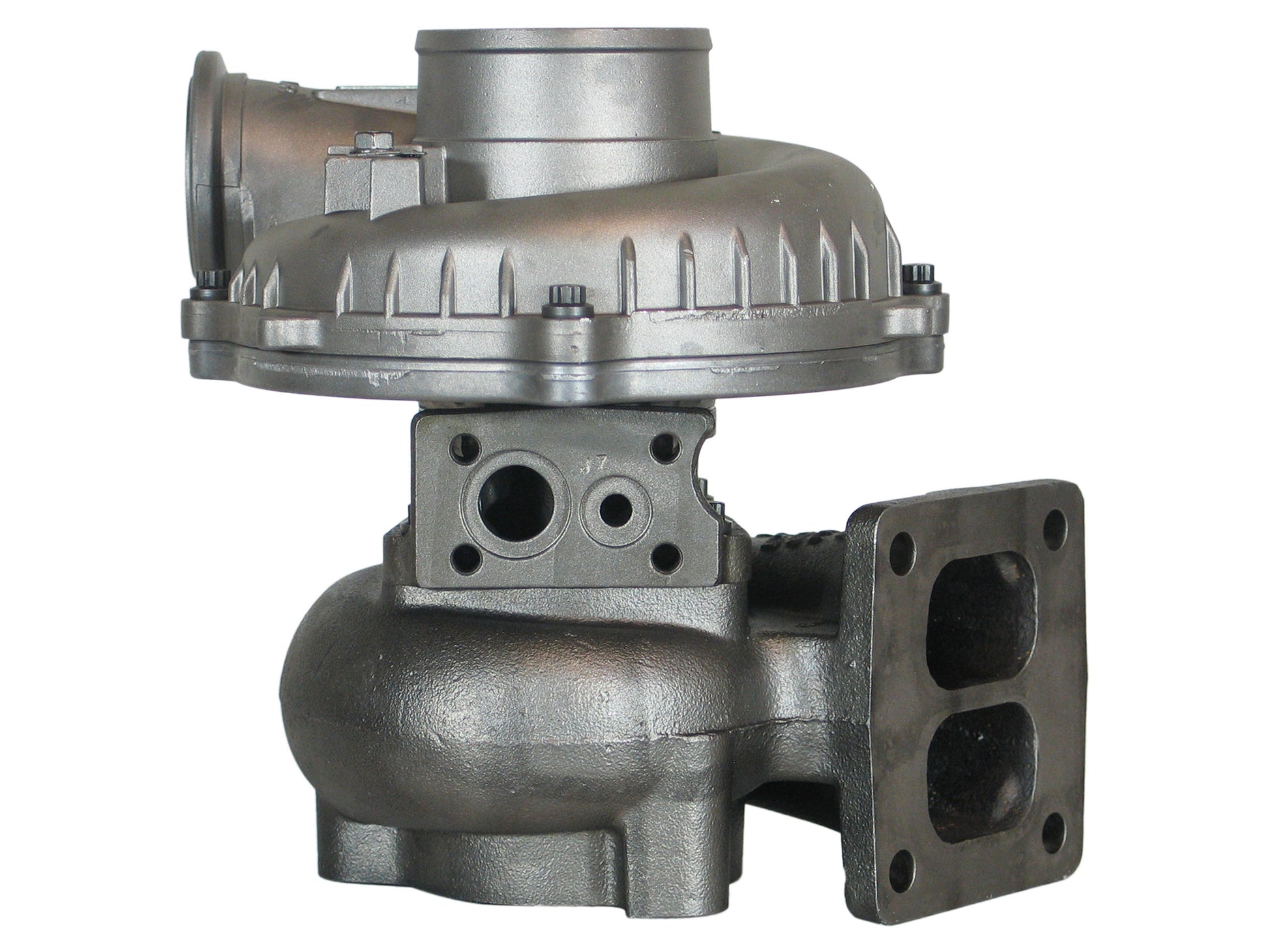

TP3801 Turbo Ford F-Series Truck Navistar Power Stroke 7.3L Diesel 466163-5011SKU: F466163-5011-P1
This is a TURBOTURBOS REMANUFACTURED TURBOCHARGER. This is an exact, direct fit replacement turbo.
Fits the following:
Part Number: 466163-5011S
Interchangeable Number: 466163-0011, 466163-5011, 468485-0004, 468485-5004, 468485-5004S, 170308
OEM Number: 6TZ6K682ARM, F4TZ6VK682CARM
Replacement Number: 466163-0014, 466163-5014, 466163-5014S, 170308
Turbo Model: TP3801
Engine: Power Stroke
Engine Manufacturer: Navistar
Displacement: 7.3L, 7300 ccm
Angle α (Compressor Housing): 230°
Angle β (Turbine Housing): 310°
Back Plate: 446467-0001
Bearing Housing: 451899-0001 (Oil Cooled)
CHRA: 449677-0003 (449677-5003S, 1822778C92, 991714C92)
Compressor Cover: 447005-0001

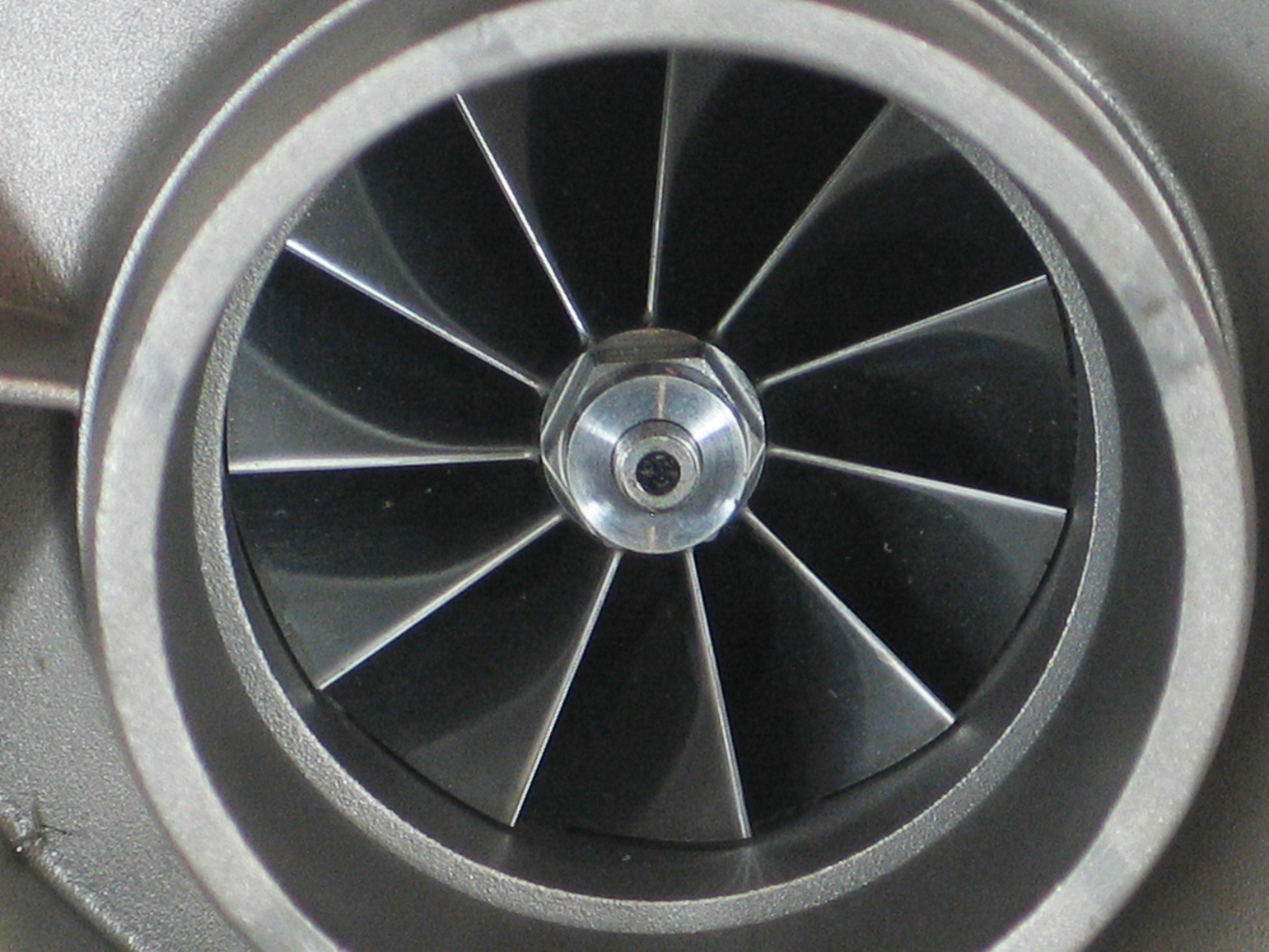

Compressor Wheel: 446579-0001 (170293, 703697-0001, 726567-0001)(Ind. 59.89 mm, Exd. 79.98 mm, 5+5 Blades, Super Back)
Gasket (Turbine Inlet): 449763-0002 (Inox Steel)
Heat Shield: 445608-0001
Repair Kit: 472617-0000
Turbine Housing A/R: 1.10/1.15
Turbine Housing: 448443-0006
Turbine Wheel: 445604-0010 (Ind. 76.5 mm, Exd. 69.78 mm, 10 Blades)
Turbo + Pedestal (EBPD): 466163-0011
Valve Assembly EBPV: 448180-0001
A-1 Cardone Part Number: F4TZ6V682CARM, F4TZ6VK682CARM without Mounting Pedestal
Mahle Part Number: 144TC24008000 (A/R Rating 1.15)
Mahle Part Number: 144TC24010000 (A/R Rating 0.84)
Rotomaster Part Number: 8380101
NOTE: Turbo + cover plate + pedestal. To prelude turbo, unplug crank sensor and crank engine until oil pressure builds.
1994-96 Ford F-350 Eddie Bauer, F-350 Special with Navistar Power Stroke Engine
1994-97 Ford E-350 Econoline Base, E-350 Econoline Club Wagon Chateau, E-350 Econoline Club Wagon Chateau HD, E-350 Econoline Club Wagon Custom with Navistar Power Stroke Engine
1994-97 Ford F Super Duty XL with Navistar Power Stroke Engine
1994-97 Ford F-250 Special, F-250 Eddie Bauer, F-250 XL, F-250 XLT with Navistar Power Stroke Engine
1994-97 Ford F-350 XL, F-350 XLT with Navistar Power Stroke Engine
Ford F-Series with Navistar Power Stroke Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
