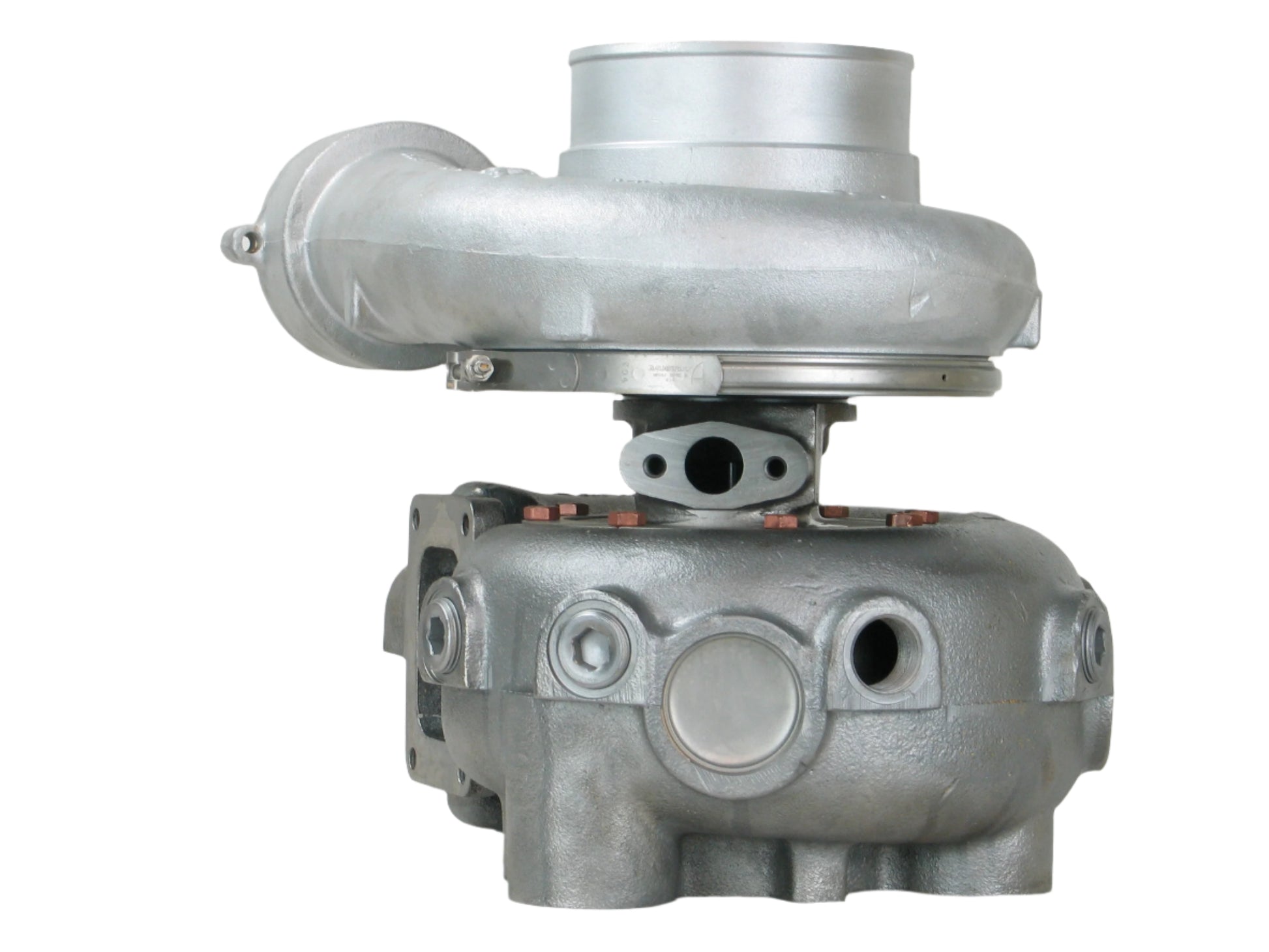

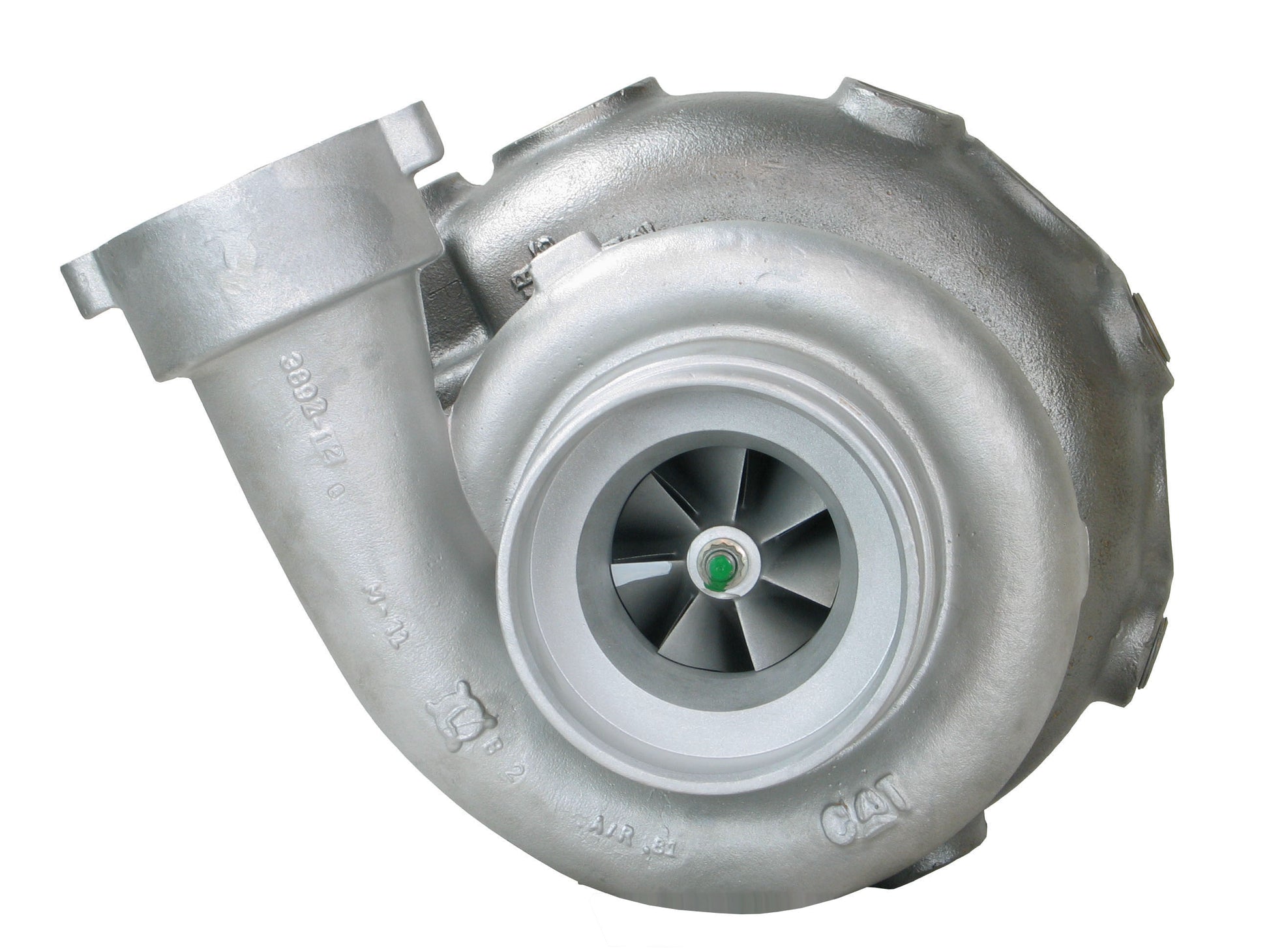

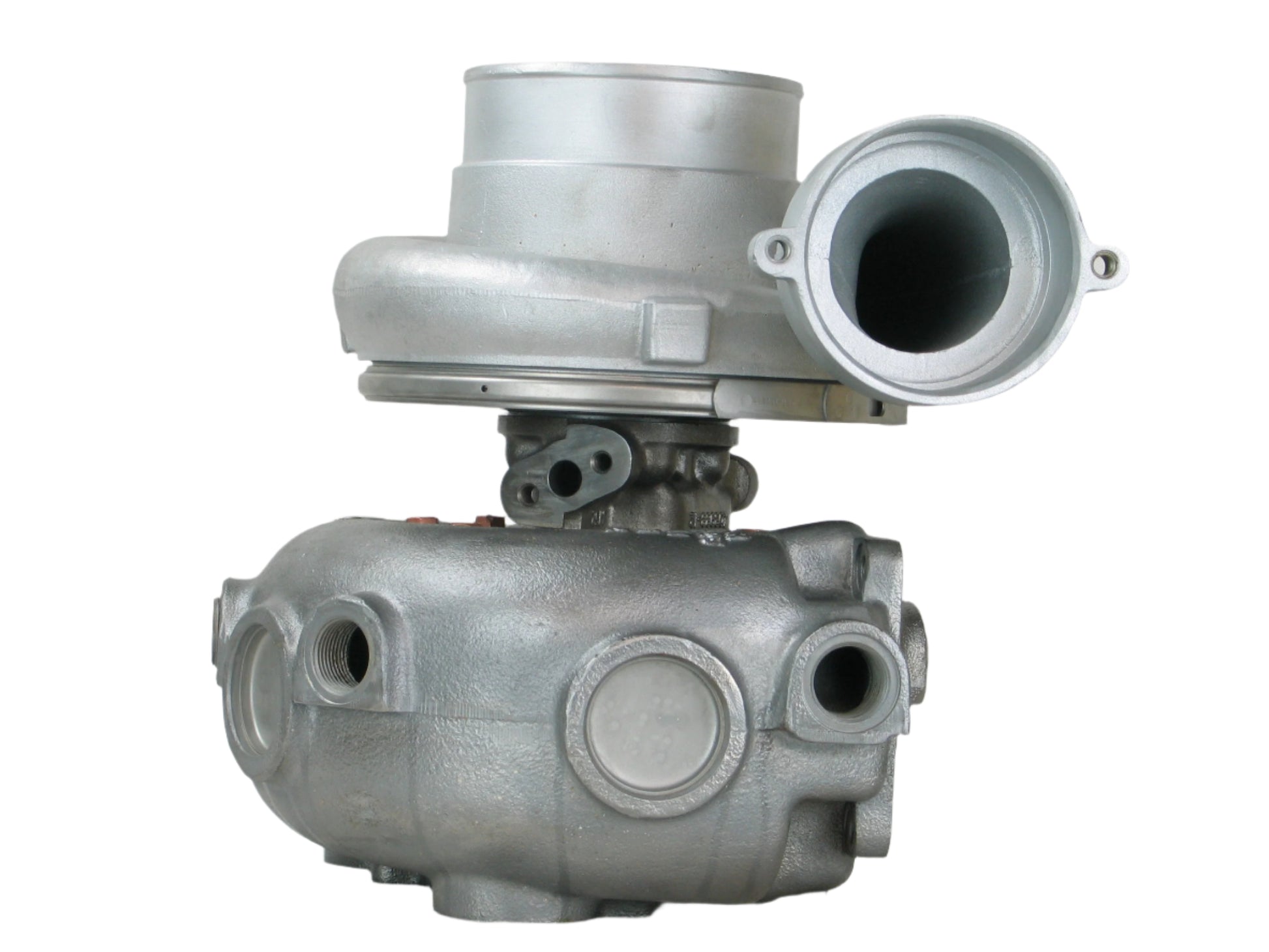

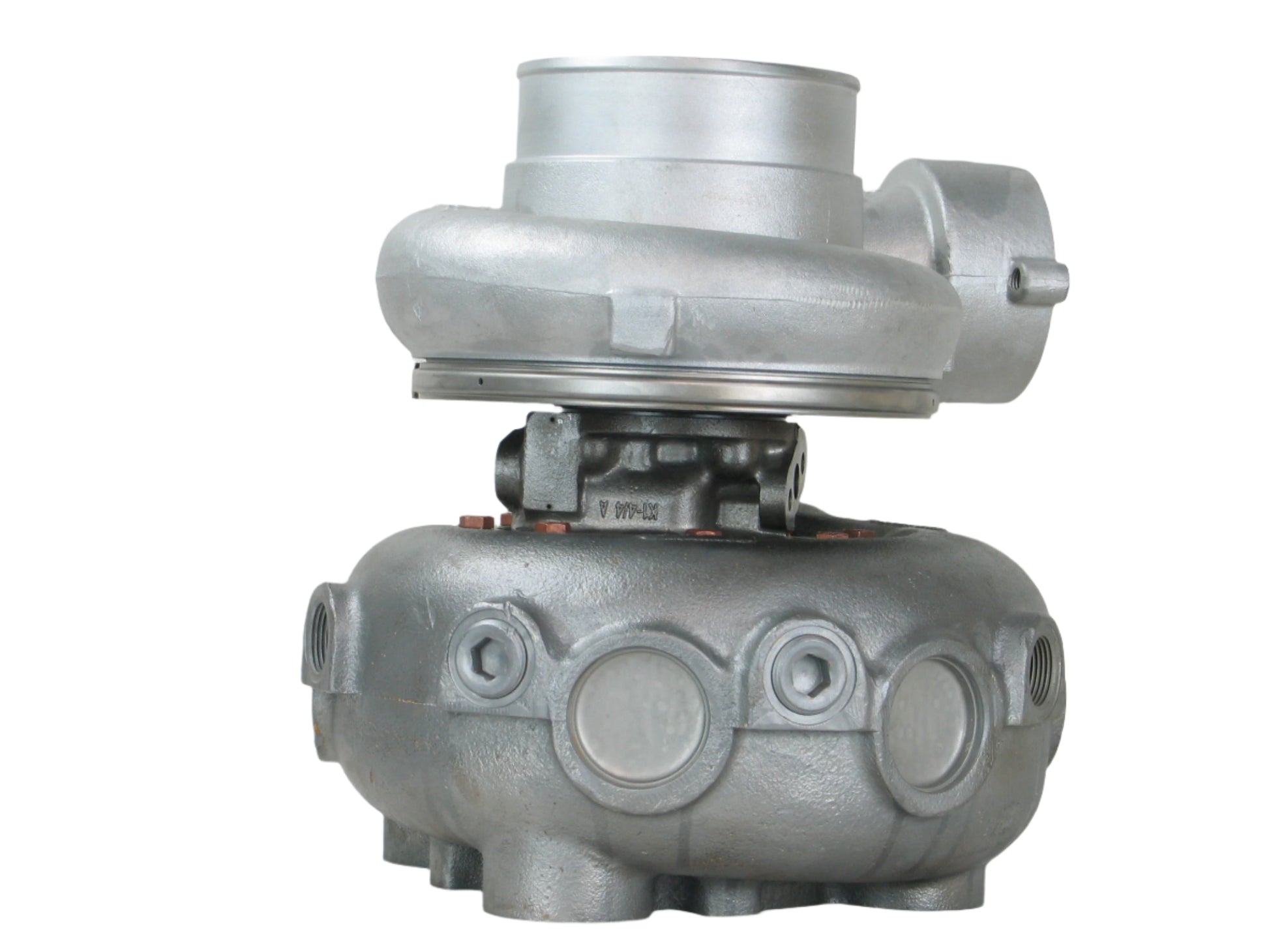

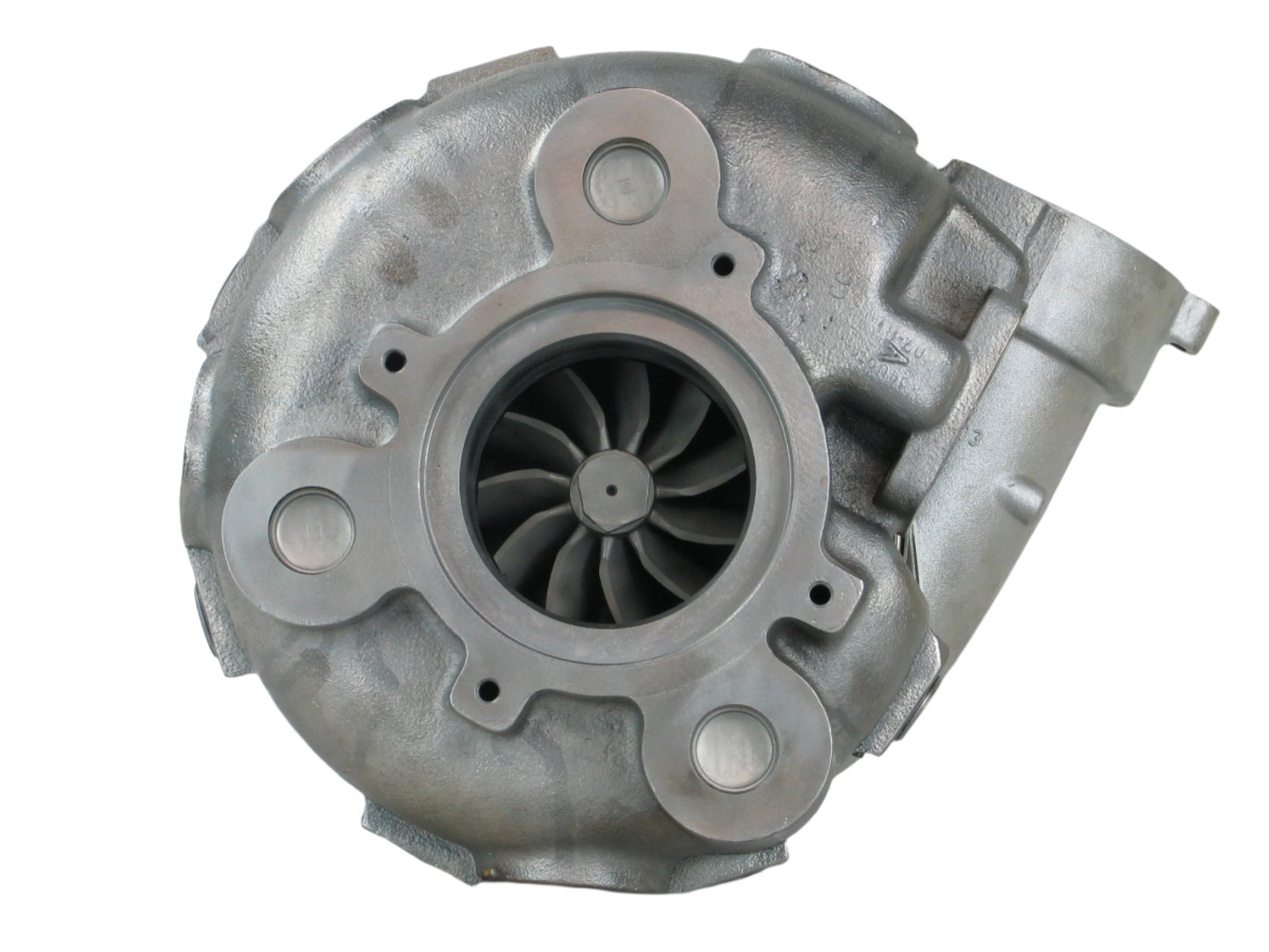

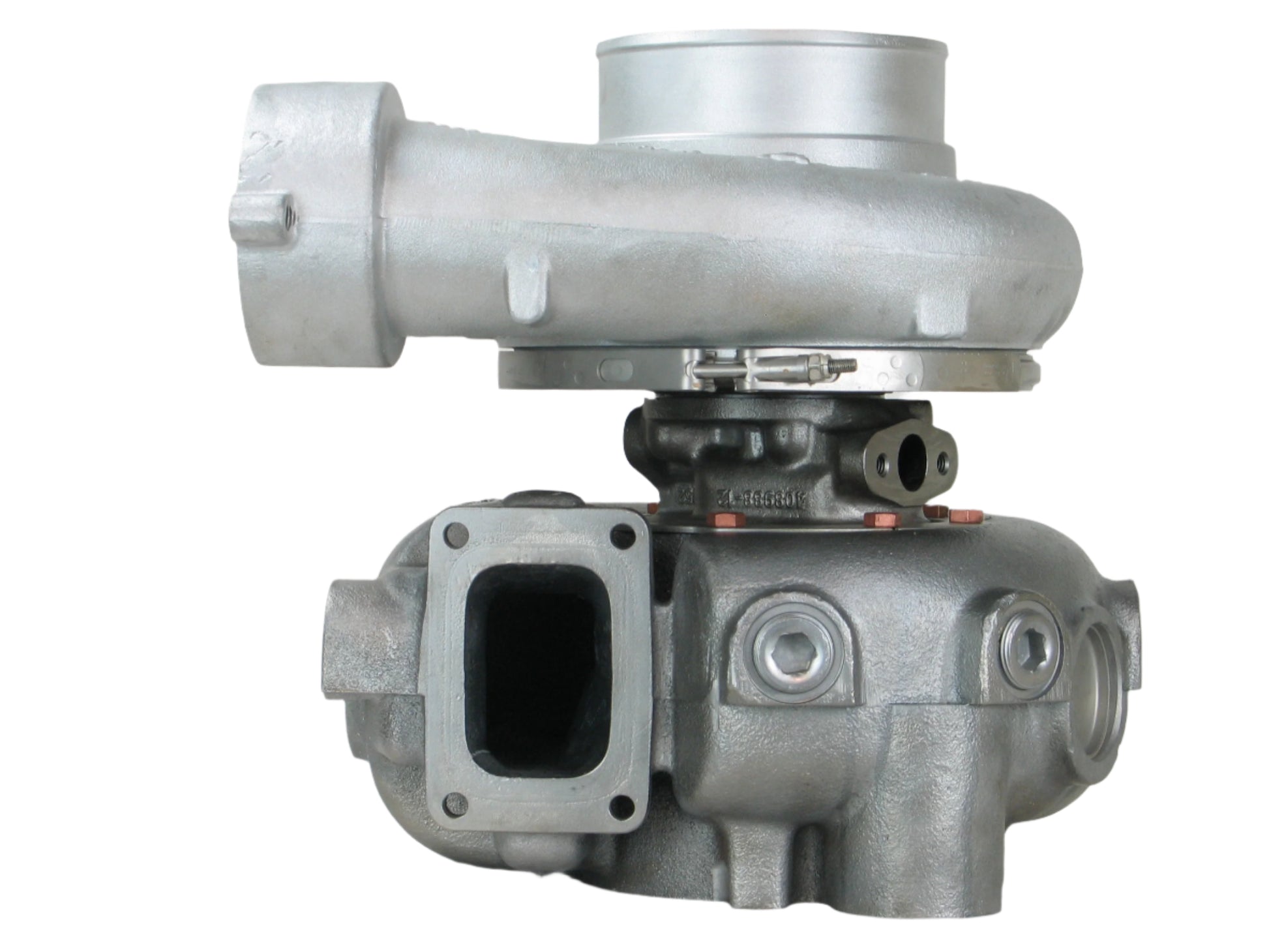

TW9214 Turbo Caterpillar Marine Generator 3512B G3516 SR4 Diesel 466249-5003SKU: F466249-5003
This is a TURBOTURBOS REMANUFACTURED TURBOCHARGER. This is an exact, direct fit replacement turbo.
Fits the following:
Part Number: 466249-5003S
Previous Versions: 466249-0003, 466249-0004, 466249-4, 466249-3
OE Number: 102-0279, 1020279, 1020278, 102-0278, 4P-4606, 4P4606, 2572206, 257-2206
Description: Marine Engine, Engines and Power Units
CHRA: 410349-0032 (105-4588, 0R6788, 1054588, 0R7154)
Interchange CHRA: 700147-0001 (700147-9001, 700147-5001, 1078702, 0R7154)
Turbo Model: TW9214
Engine: 3516 SITASCAC GS
Displacement: 69000 ccm, V16 Cylinder
Marine Engine: 3512B
Industrial Engine: G3516B, G3516, SR4
Generator Set Engine: G3516B, SR4, G3516
Generator: SR4, SR4B
S/N: 3RC860-UP, 4EK72-UP, 4EK2412-2499, 7EZ261-276, CTL1-UP, ZBA1-UP, 3RC860-UP, 3RC00001-UP, 4EK00001-UP, CSZ00001-UP
Bearing Housing: 443245-0001/410310-0002 (4W1224, 23504279)

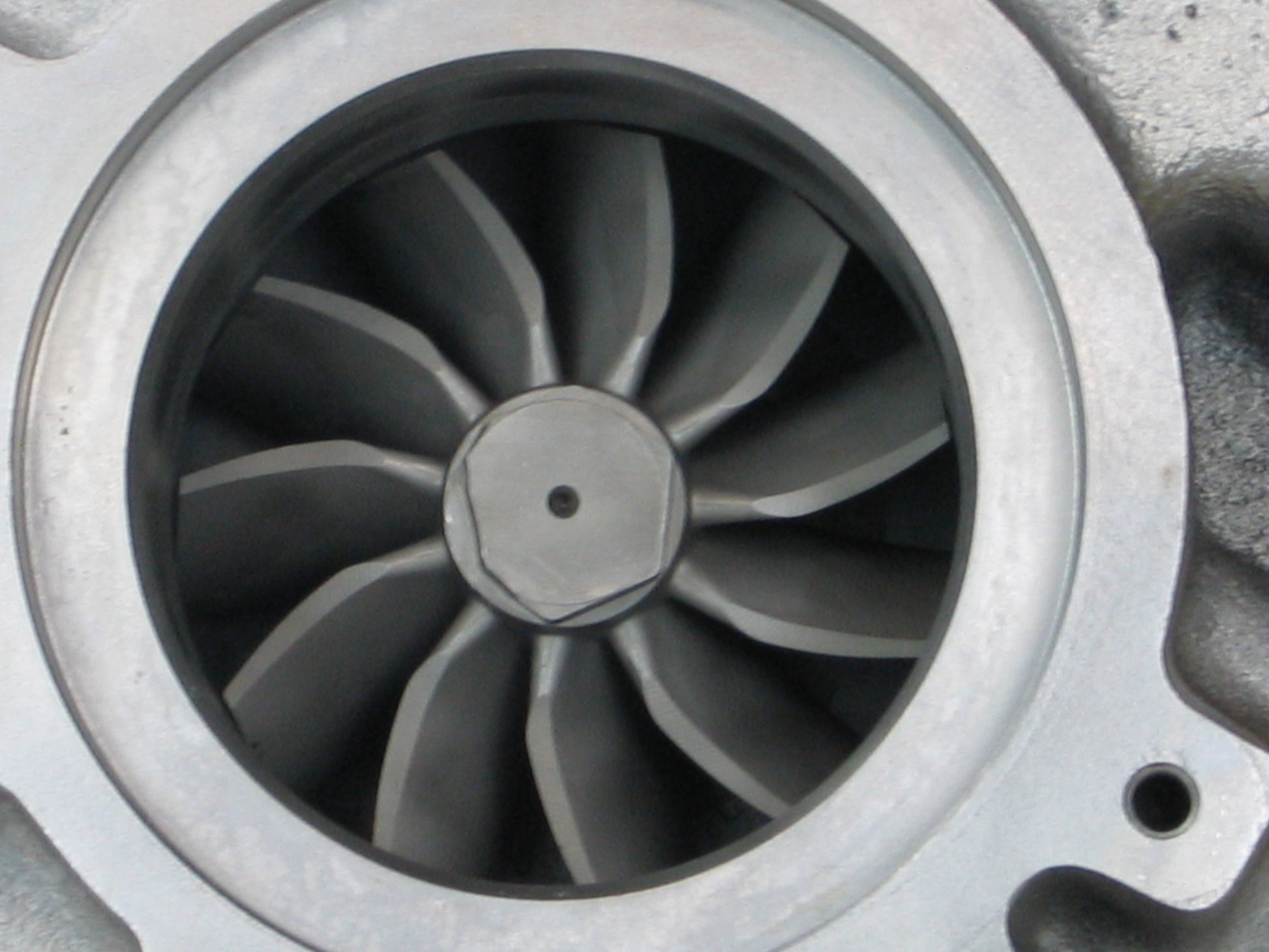

Turbine Wheel: 442208-0001 (4W1223)

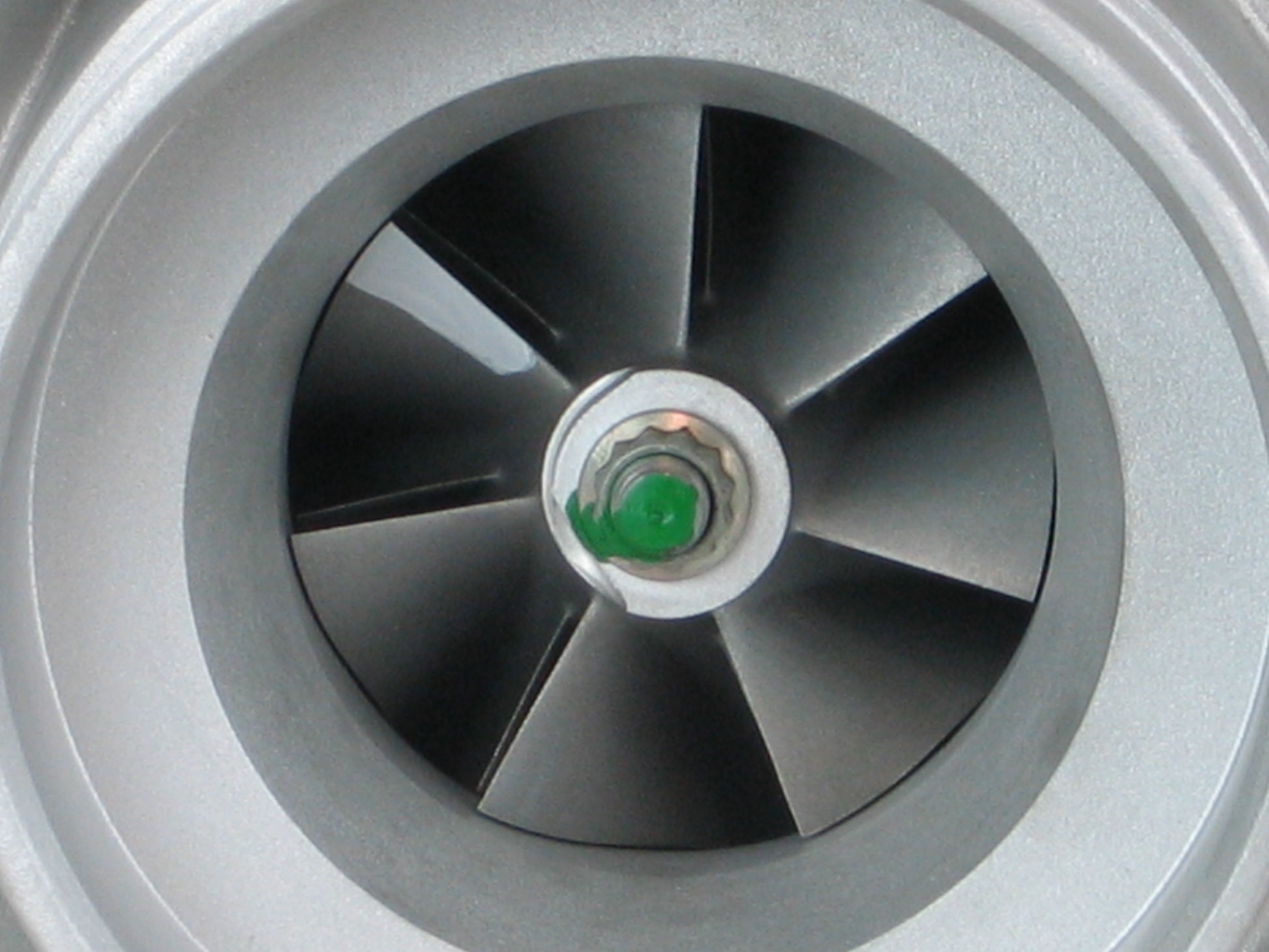

Comp. Wheel: 441813-0008/445035-0004/441813-0002 (9Y1493, 6I2104, 7W2298)
Back plate: 408487-0042 (1093481, 4W4609)
Heat shield Number: 410370-0005 (1900388, 4W1329)
Repair Kit: 707899-0001/468416-0000 (1101090750, 1101090755)(1N3593, 1089342)
Turbine Housing (Water Cooled): 448406-0001 (4P4605)
Compressor Cover: 443892-0012 (7C2862)
Turbine Housing AR: 1.05/1.25
Plug-Cup (Standard): 4N0932
Plug-Cup (Standard): 3B0645
Plug-Cup (Optional): 3P1896
Gasket (turbine inlet): 409038-0001 (132040, 1215736, 7M7273)
Gasket (turbine outlet): 210255 (4W2359)
Gasket (oil outlet): 129120 (210018-0000, 409267-0002, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763)(1900000025)
Gasket (oil inlet): 129119 (1900000035)(201049, 9737, 1S6595, 210019-0000, 409266-0003, 3819900)
Caterpillar Marine Engine with 3512B, 3512B Engine
Caterpillar Industrial Engine with G3516B Engine
Caterpillar Generator Set Engine with G3516B Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
