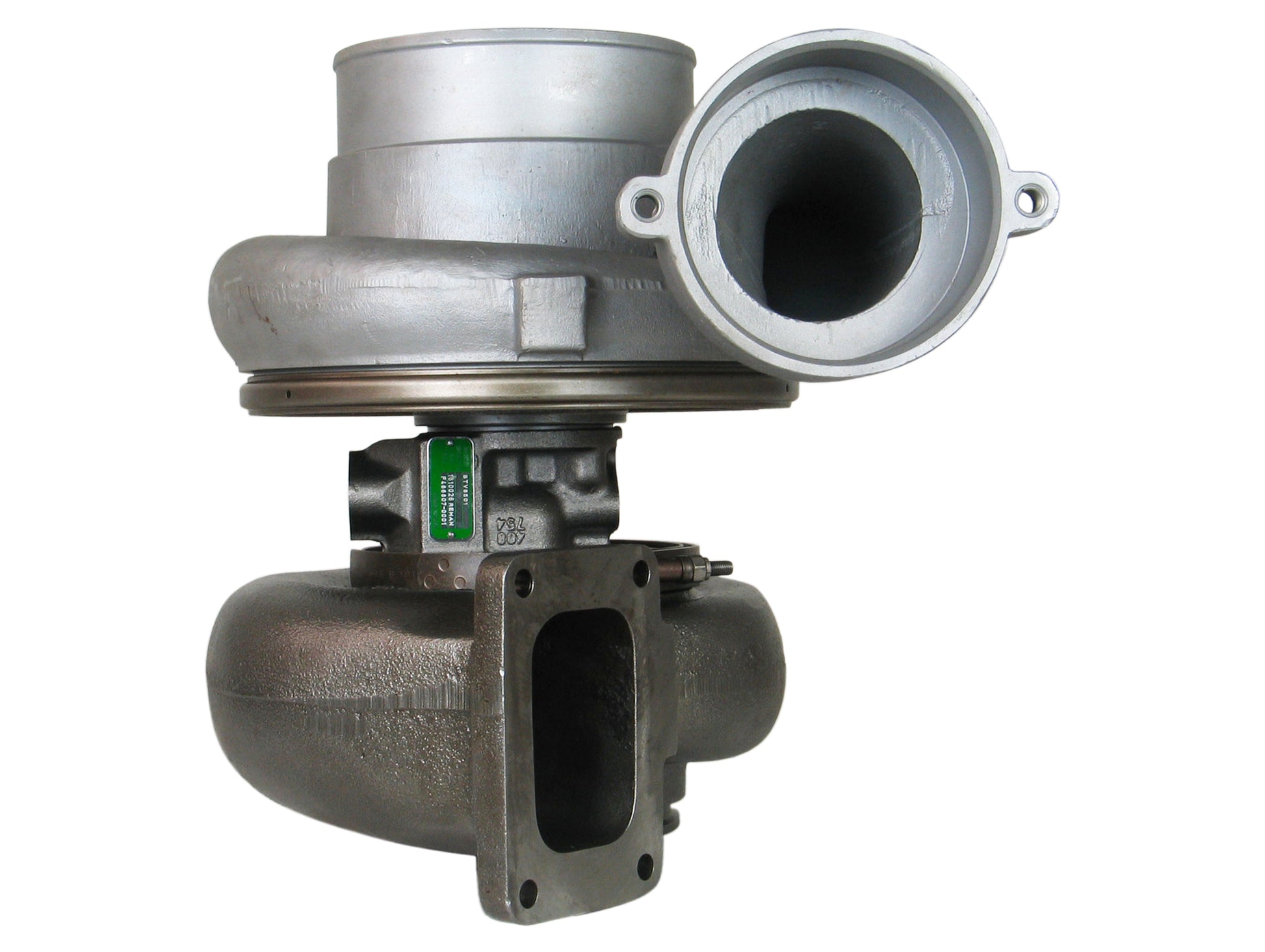

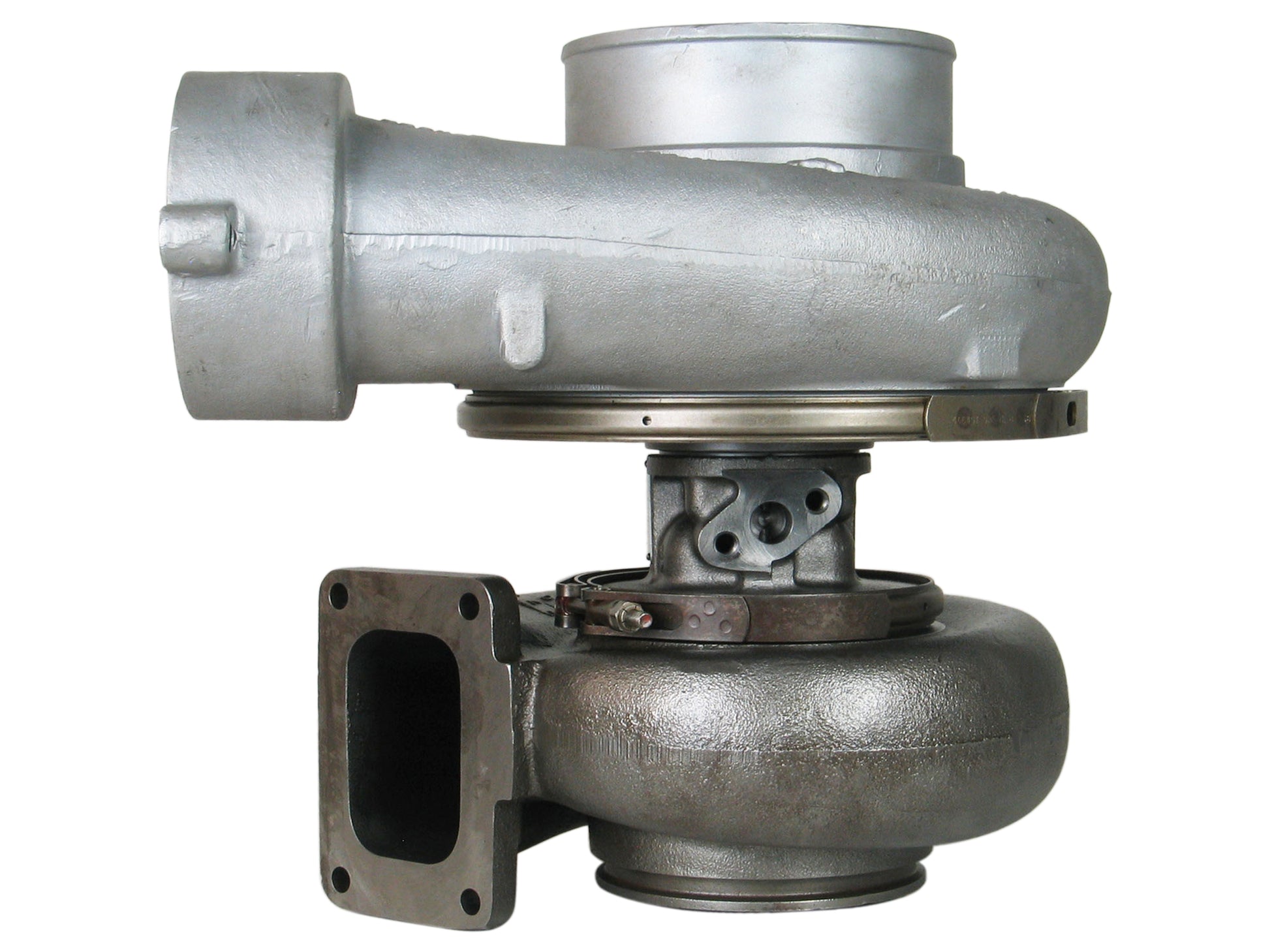

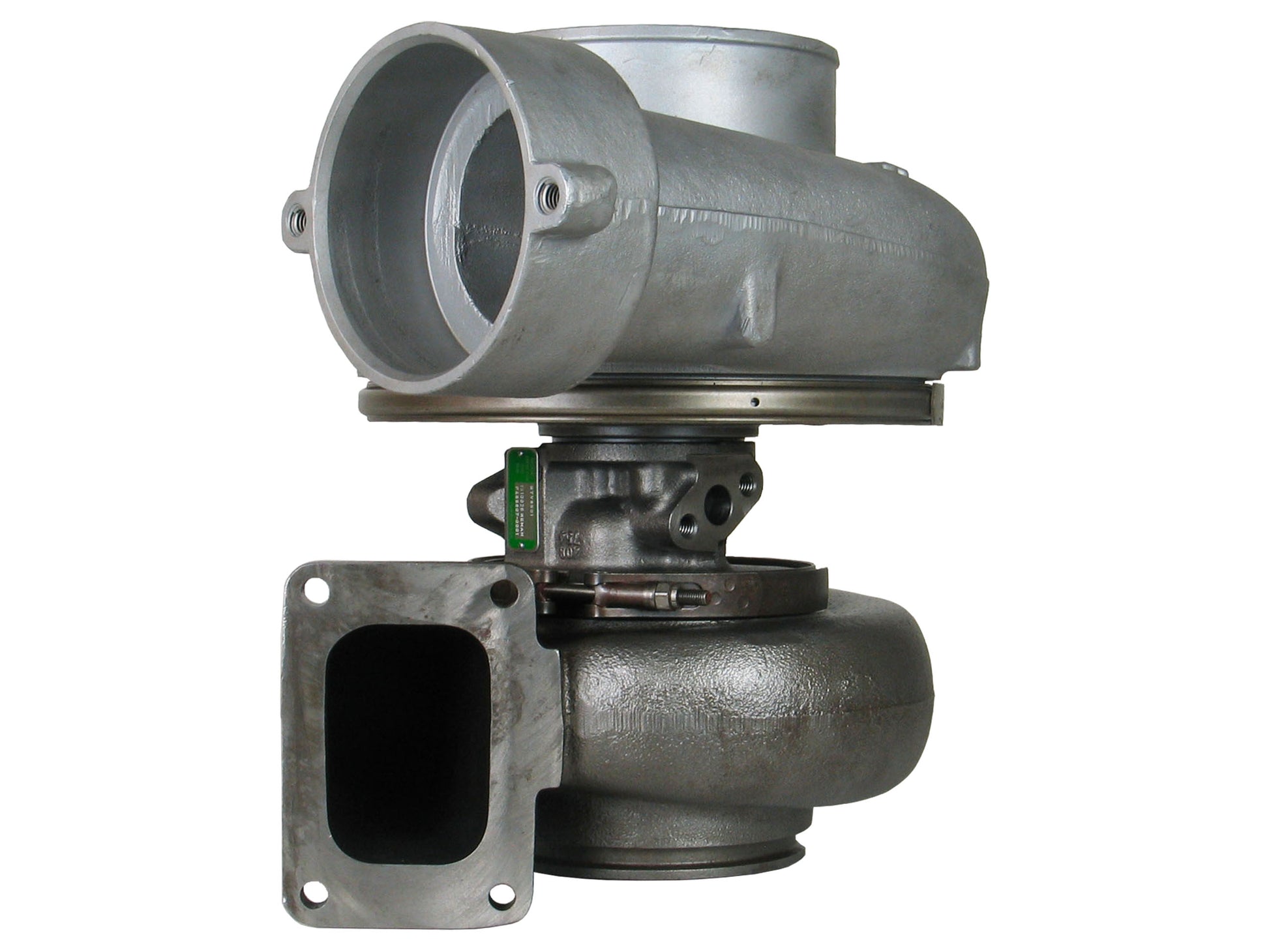

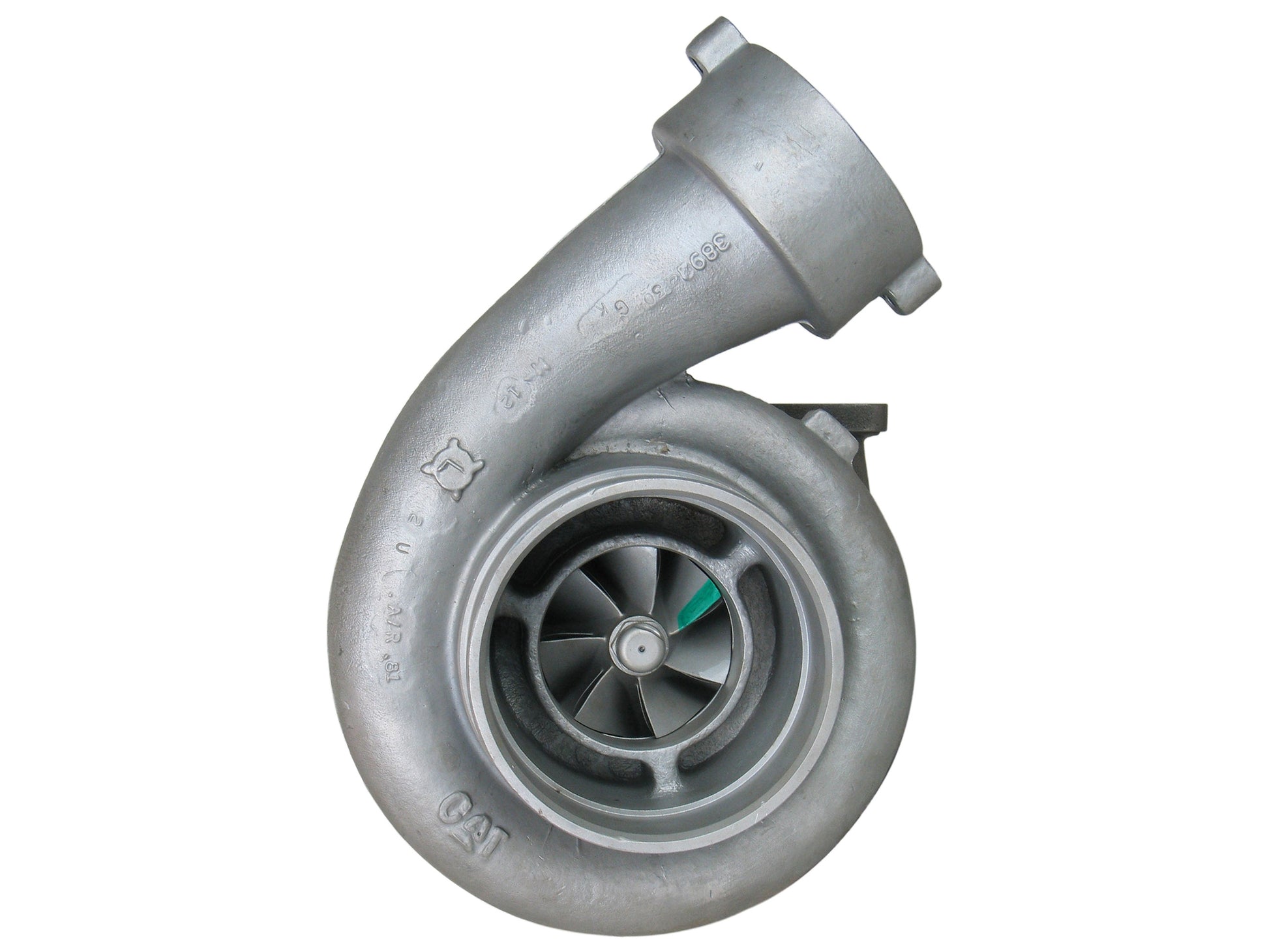

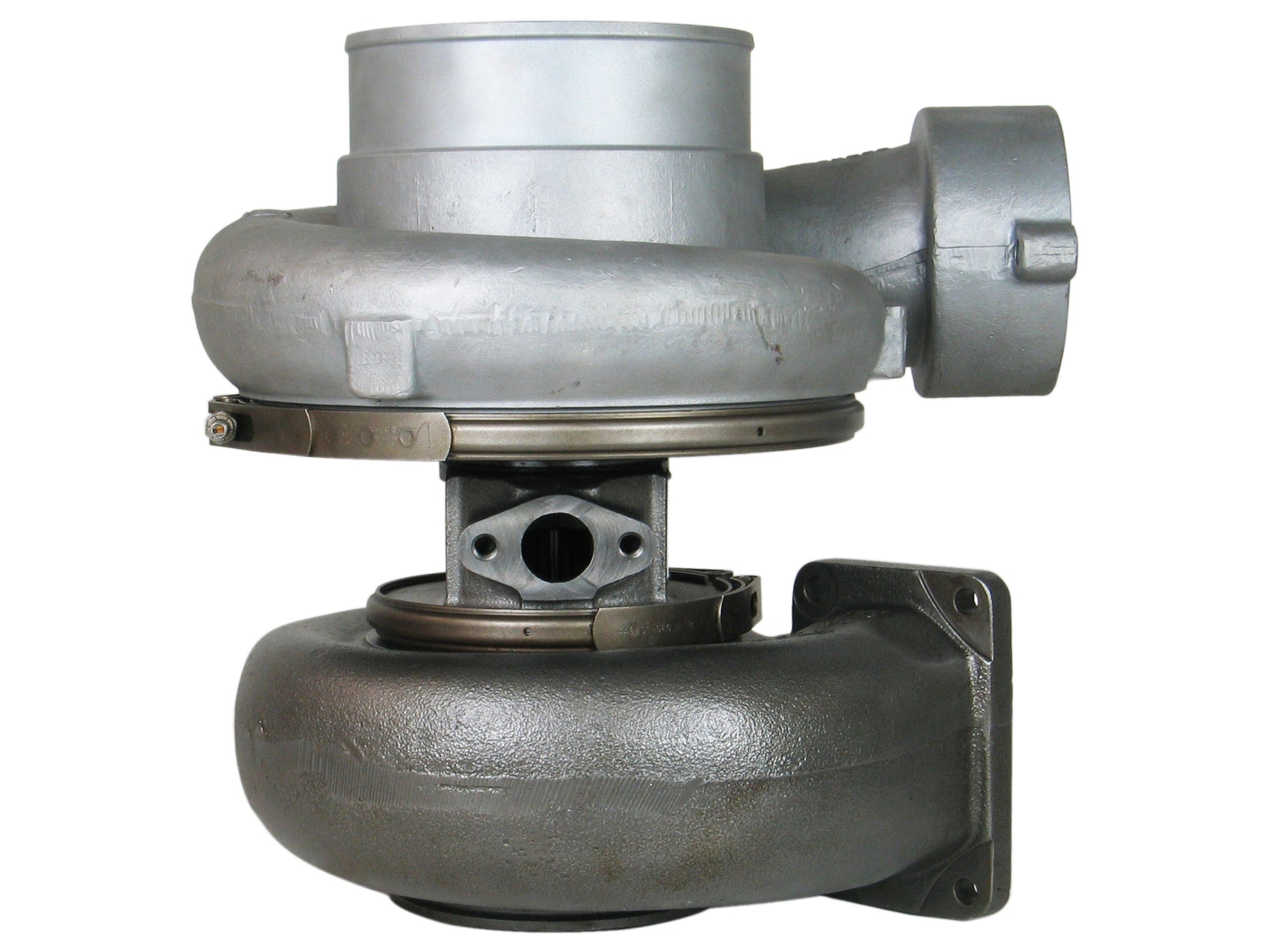

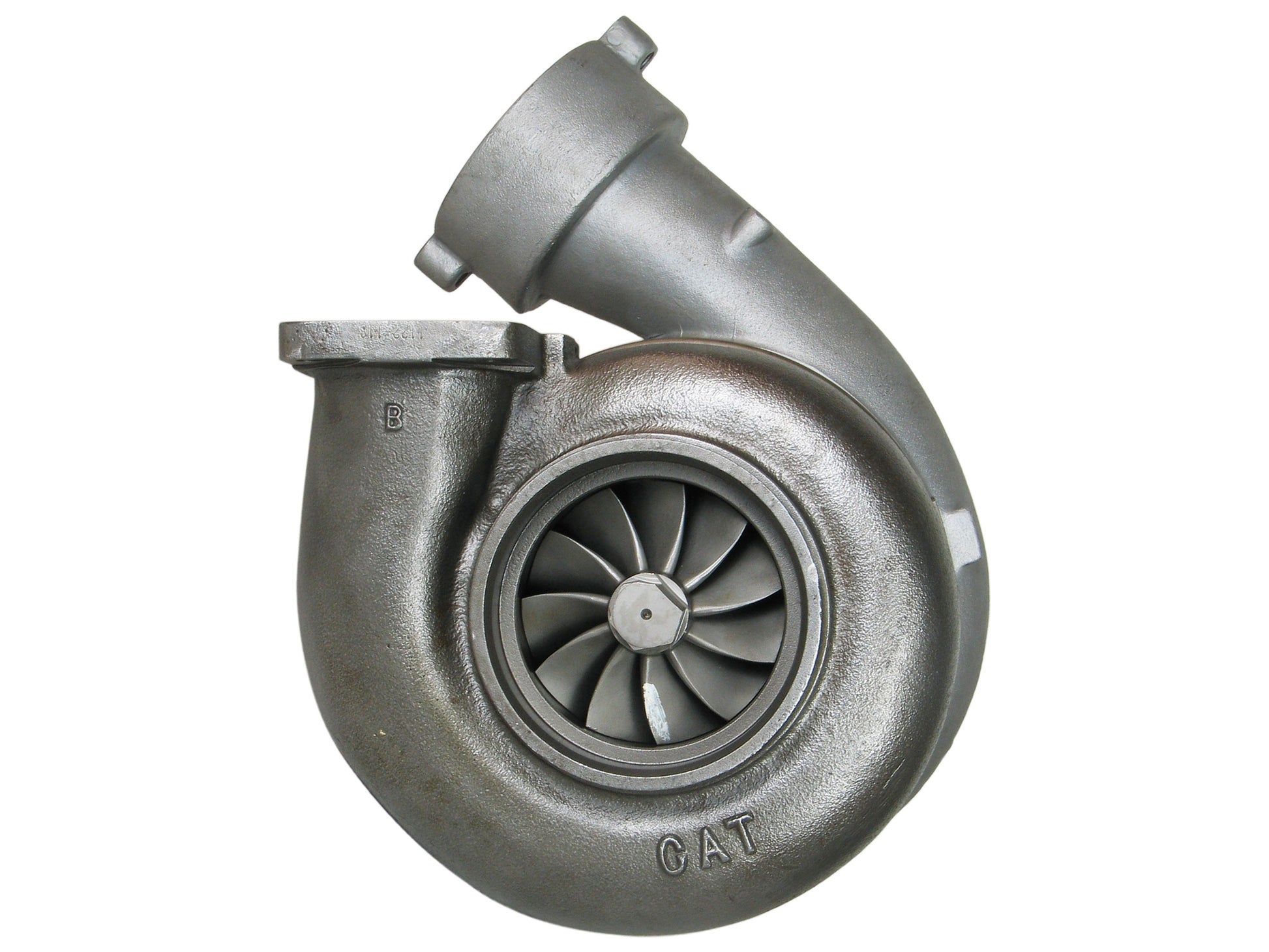

BTV8501 Turbo Caterpillar Generator Set 3508B 3516B Diesel Engine 466807-5001SKU: F466807-5001
This is a TURBOTURBOS REMANUFACTURED TURBOCHARGER. This is an exact, direct fit replacement turbo.
Fits the following:
Part Number: 466807-5001S
Interchangeable Number: 466807-0001, 466807-5001, 466807-0003, 466807-5003, 466807-5003S, 466807-0004, 466807-5004, 466807-5004S, 466807-0005, 466807-5005, 466807-5005S
Replacement Number: 466807-0006, 466807-5006, 466807-5006Se
OEM Number: 10R0435, 10R-0435, 1180398, 118-0398, 1989914, 198-9914, 2071351, 207-1351
Serial Number: 1FZ1-585, 1FZ1-UP, 1HZ1-155, 1HZ1-255, 1NW00001-UP, 1NW1-133, 2JW00001-UP, 2JW1-235, 4GM00001-UP, 4GM303-640, 5KW00001-UP, 6HN00001-UP, 6HN303-1253, 6PN00001-UP, 6PN446-698, 7RN00001-UP, 7RN198-1576, 8NW00001-UP, BLM00001-UP, BPD00001-UP
Turbo Model: BTV8501, BTVA8501
Engine: 3508 DITAJWAC GS, 3516B DITASCAC GS
Engine Manufacturer: Caterpillar
Displacement: 34.5L, 34500 ccm, 8V Cylinders
Back Plate: 448797-0011 (Carbon Seal)
Bearing Housing: 449072-0001
CHRA: 449073-0019 (449073-5019S, 712371-0028, 1488171, 10R0434, 2032155)
Compressor Cover: 443892-0030 (709557-0009, 1260911, 2465826, 1933279)
Compressor Wheel: 449207-0002
Gasket (Oil Inlet): 129119 (1900000035)(201049, 9737, 1S6595, 210019-0000, 409266-0003, 3819900)
Gasket (Oil Outlet): 129120 (210018-0000, 409267-0002, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763) (1900000025)
Gasket (Turbine Inlet): 409038-0001 (1215736, 7M7273)
Heat Shield: 407657-0009
Repair Kit: 468267-0007
Turbine Housing A/R: 1.23
Turbine Housing: 441122-0118 (1052898)
Turbine Wheel: 449236-0001
NOTE: Partially restricted. Boreless.
2001- Caterpillar Generator, Gen Set, Industrial, Power Unit with 3508B, 3516B Engine
2001- Caterpillar Oil Field, Land Rig with 3508B, 3516B Engine
2001- Caterpillar Power Module PM3508, PM3516 with 3508B, 3516B Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
