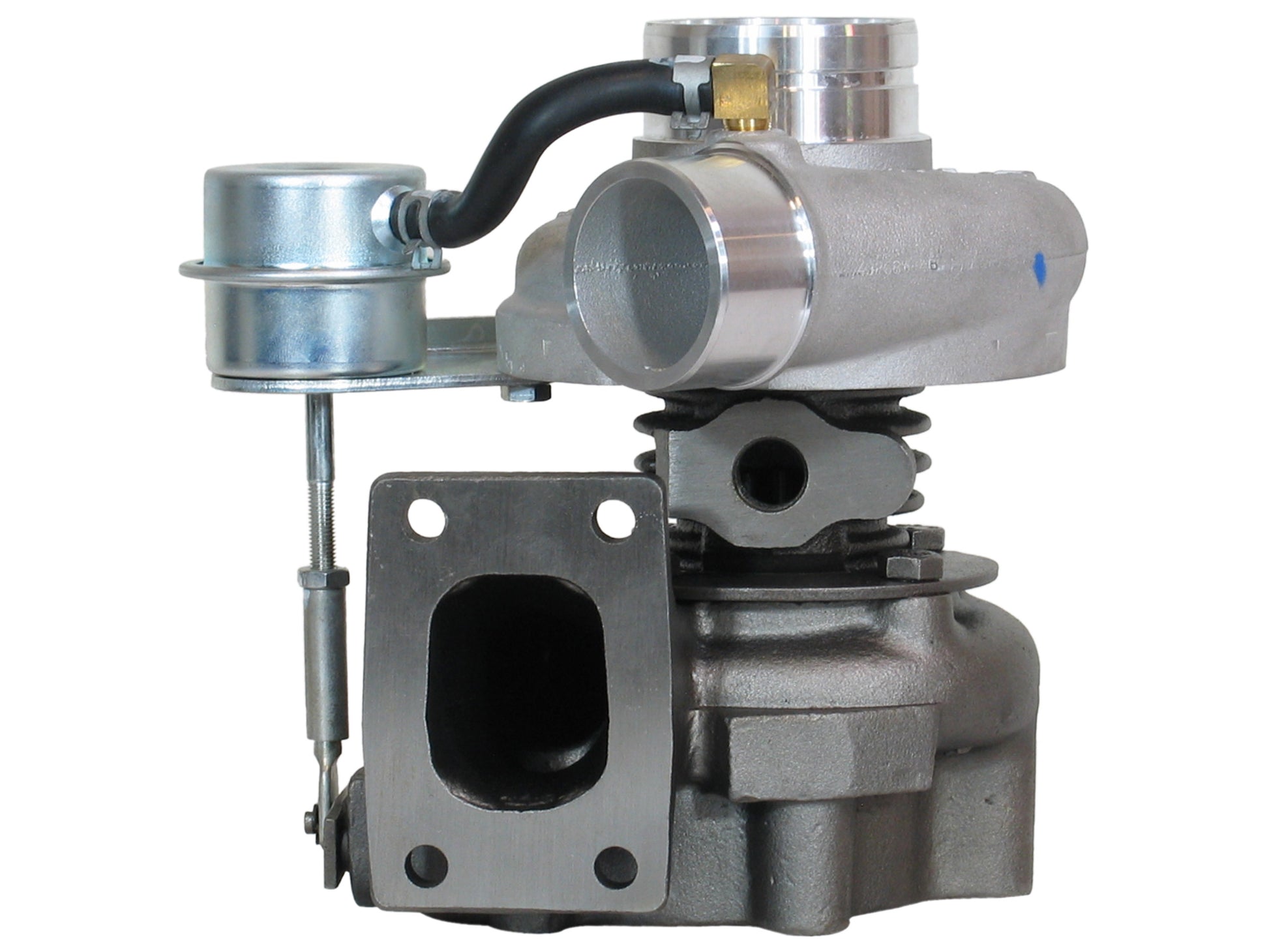

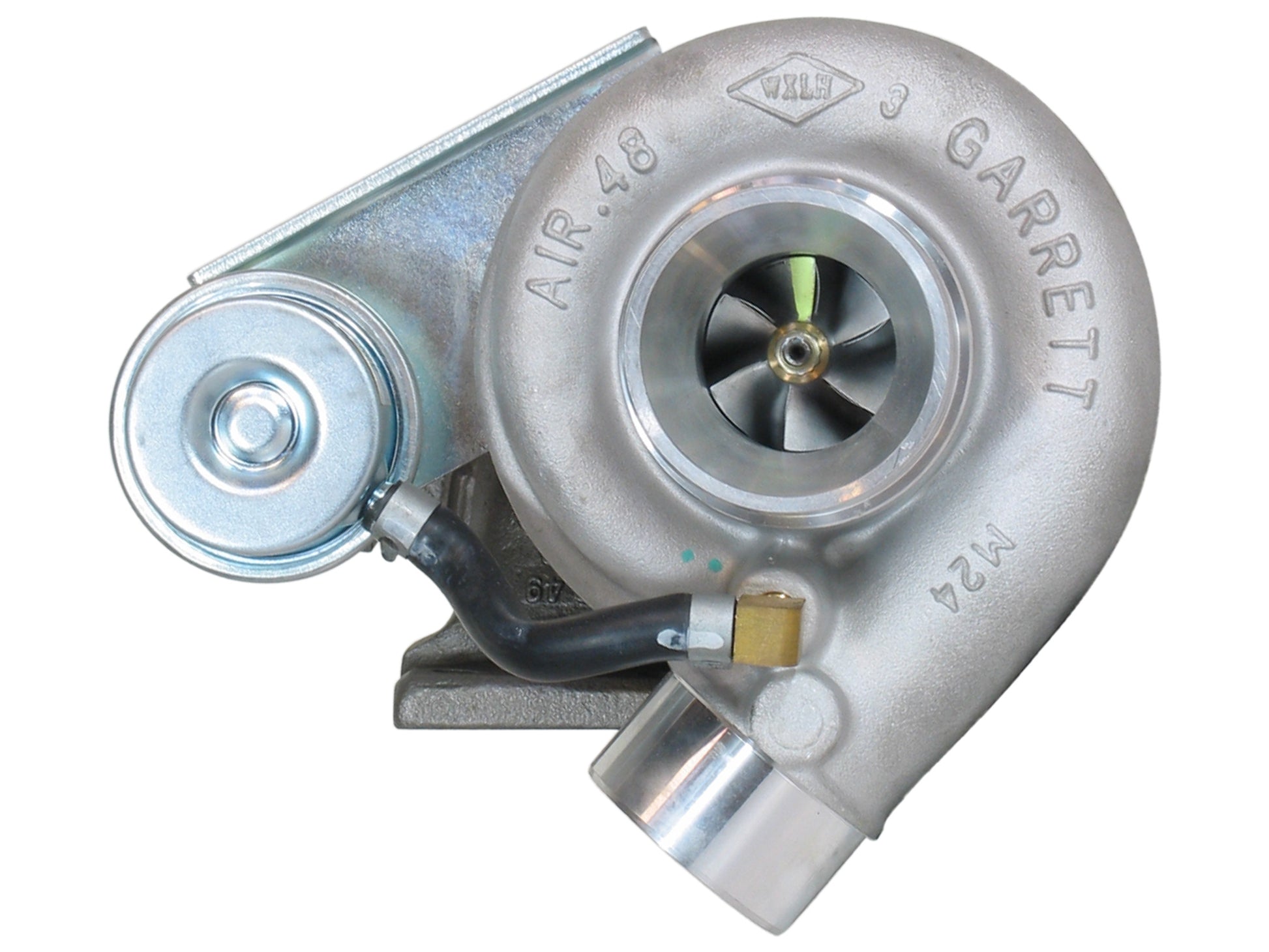

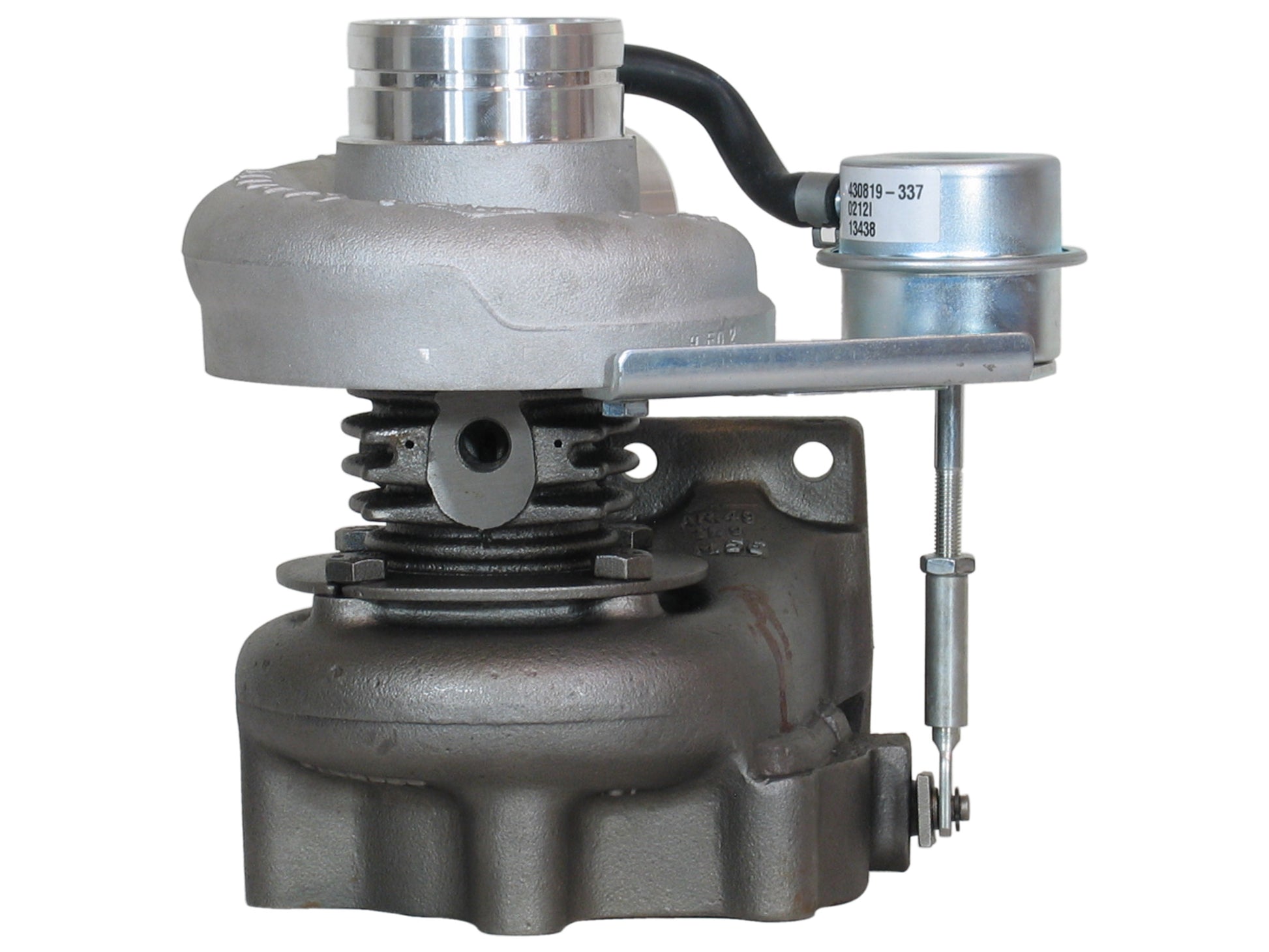

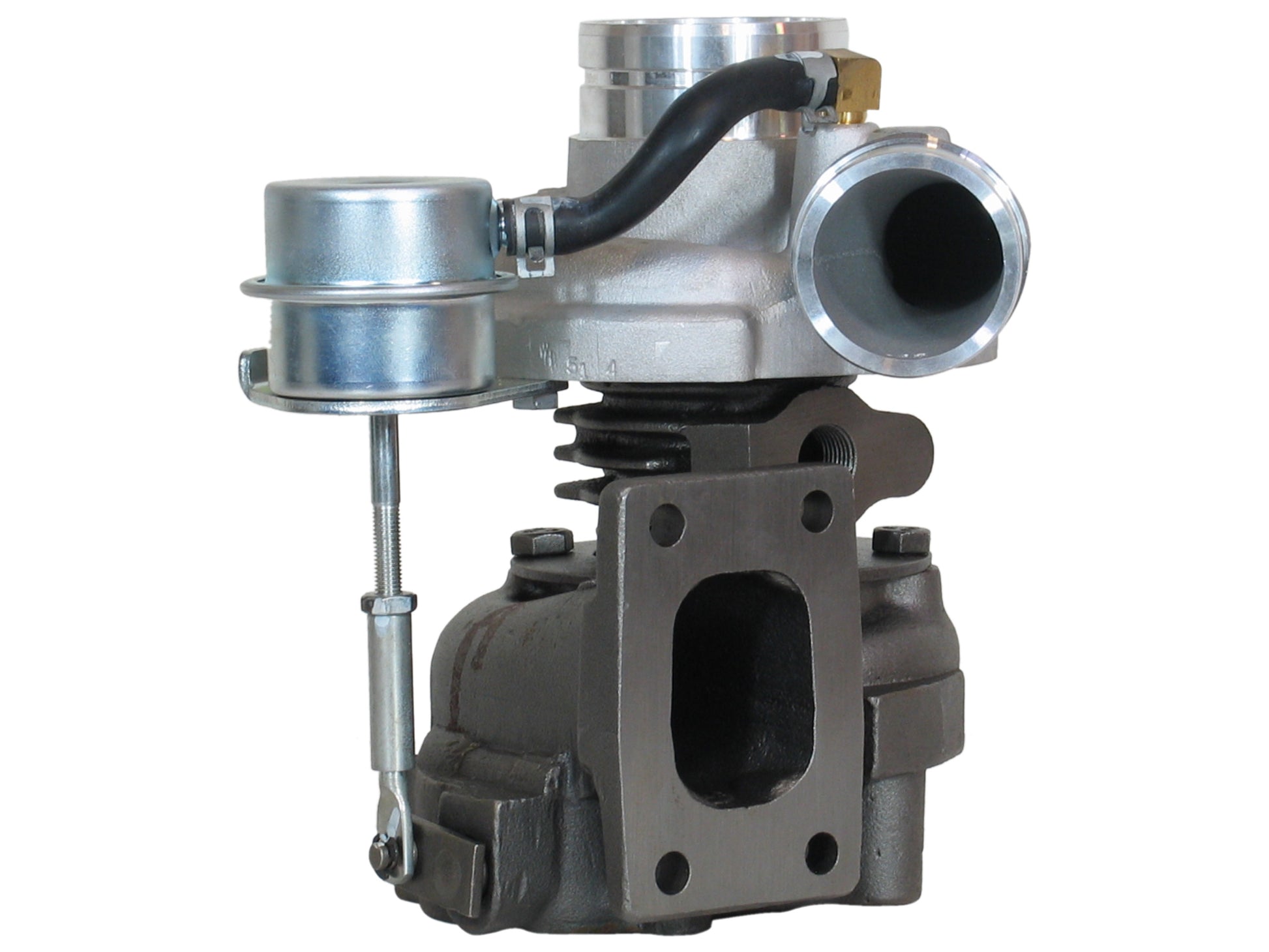

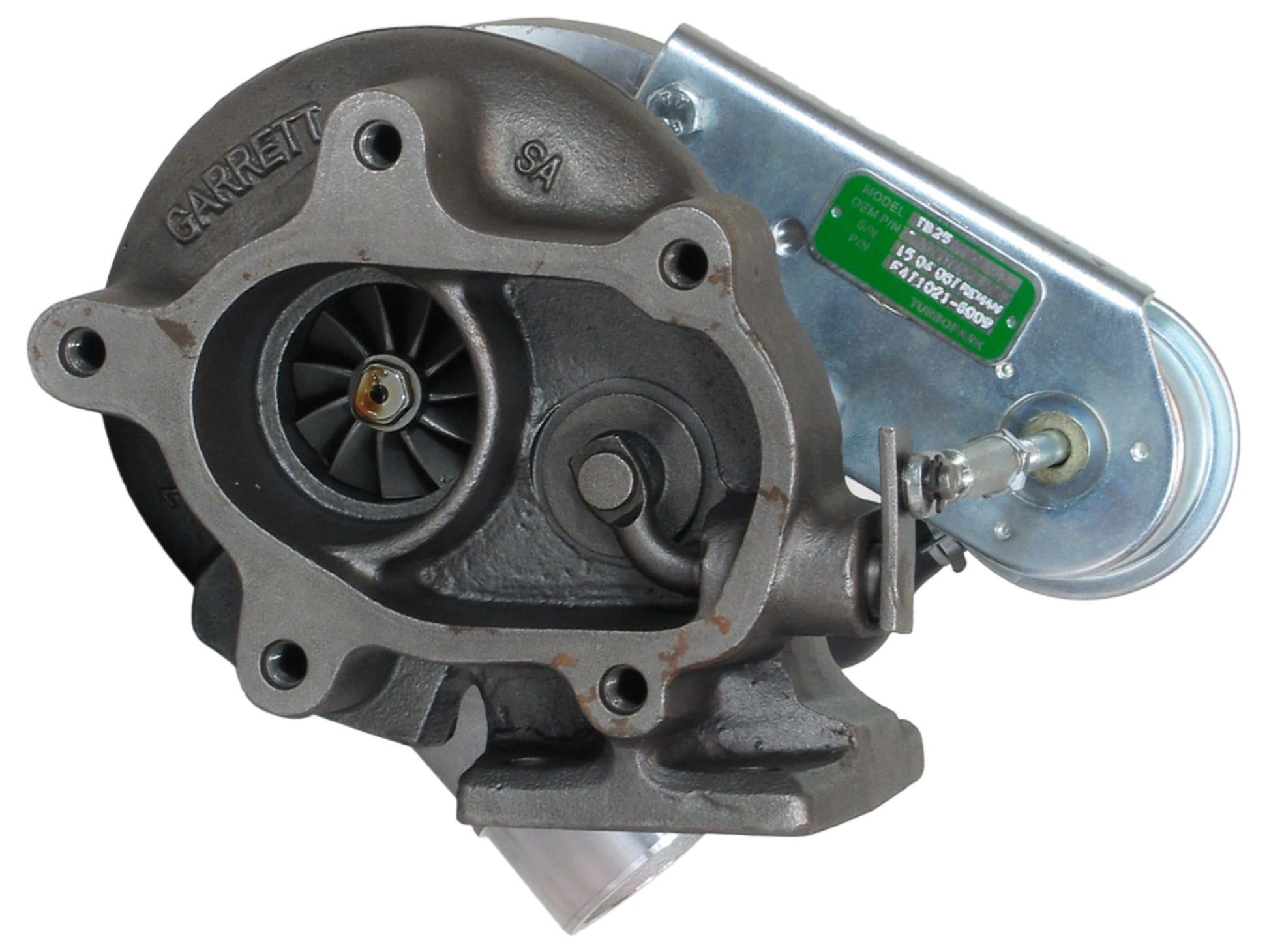

TB2573 Turbo Iveco Daily 2.5D Naveco Sofim 40-10 Fan Motor 471021-5009SKU: F471021-5009
This is a TURBOTURBOS REMANUFACTURED TURBOCHARGER. This is an exact, direct fit replacement turbo.
Fits the following:
Part Number: 471021-5009S
Interchangeable Number: 471021-0009, 471021-5009, 471021-0001, 471021-5001, 471021-5001S, 471021-0003, 471021-5003, 471021-5003S, 471021-0007, 471021-5007, 471021-5007S, 53149707004, 5314 970 7004, 5314-970-7004, 53149887004, 5314 988 7004, 5314-988-7004, 53169706732, 5316 970 6732, 5316-970-6732, 53169886732, 5316 988 6732, 5316-988-6732
OEM Number: 99431083, 97210008e
Turbo Model: TB2573
Engine: 814027, 8140.27
Engine Manufacturer: Iveco
Power: 75/103/114 HP
Speed: 2000 RPM
Angle α (Compressor Housing): 228°
Angle ß (Turbine Housing): 3°
Back Plate: 432280-0001
Bearing Housing: 700141-0004
Compressor Cover: 409589-0481
Compressor Wheel: 436132-0008
Heat Shield: 432280-0001
Repair Kit: 709143-0001
Turbine Housing A/R: 0.49
Turbine Housing: 430609-0322
Turbine Wheel: 445009-0017
Wastegate Settings (Lift Rod): 1.00 mm
Wastegate Settings (Pressure): 1.012-1.078 bar
1989-96 Iveco Daily 35.10 with 2.5L 814027, 8140.27 Engine
1989-96 Iveco Daily 49.10 with 2.5L 814027, 8140.27 Engine
1989-98 Iveco Daily 35.10 with 2.5L 814027, 8140.27 Engine
1990-96 Iveco Daily 30.10 with 2.5L 814027, 8140.27 Engine
1990-96 Iveco Daily 40.10 with 2.5L 814027, 8140.27 Engine
1990-96 Iveco Daily 45.10 with 2.5L 814027, 8140.27 Engine
1990-96 Iveco Daily A40.10 with 2.5L 814027, 8140.27 Engine
1990-96 Iveco Daily A40.8 with 2.5L 814027, 8140.27 Enginee
1990-96 Iveco Daily A45.10 with 2.5L 814027, 8140.27 Engine
1990-96 Iveco Daily A49.10 with 2.5L 814027, 8140.27 Engine
1990-99 Iveco Daily 35.10 with 2.5L 814027, 8140.27 Engine
Iveco Sofim with 2.5L 814027, 8140.27 Engine
Naveco Daily with 2.5L 814027, 8140.27 Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
