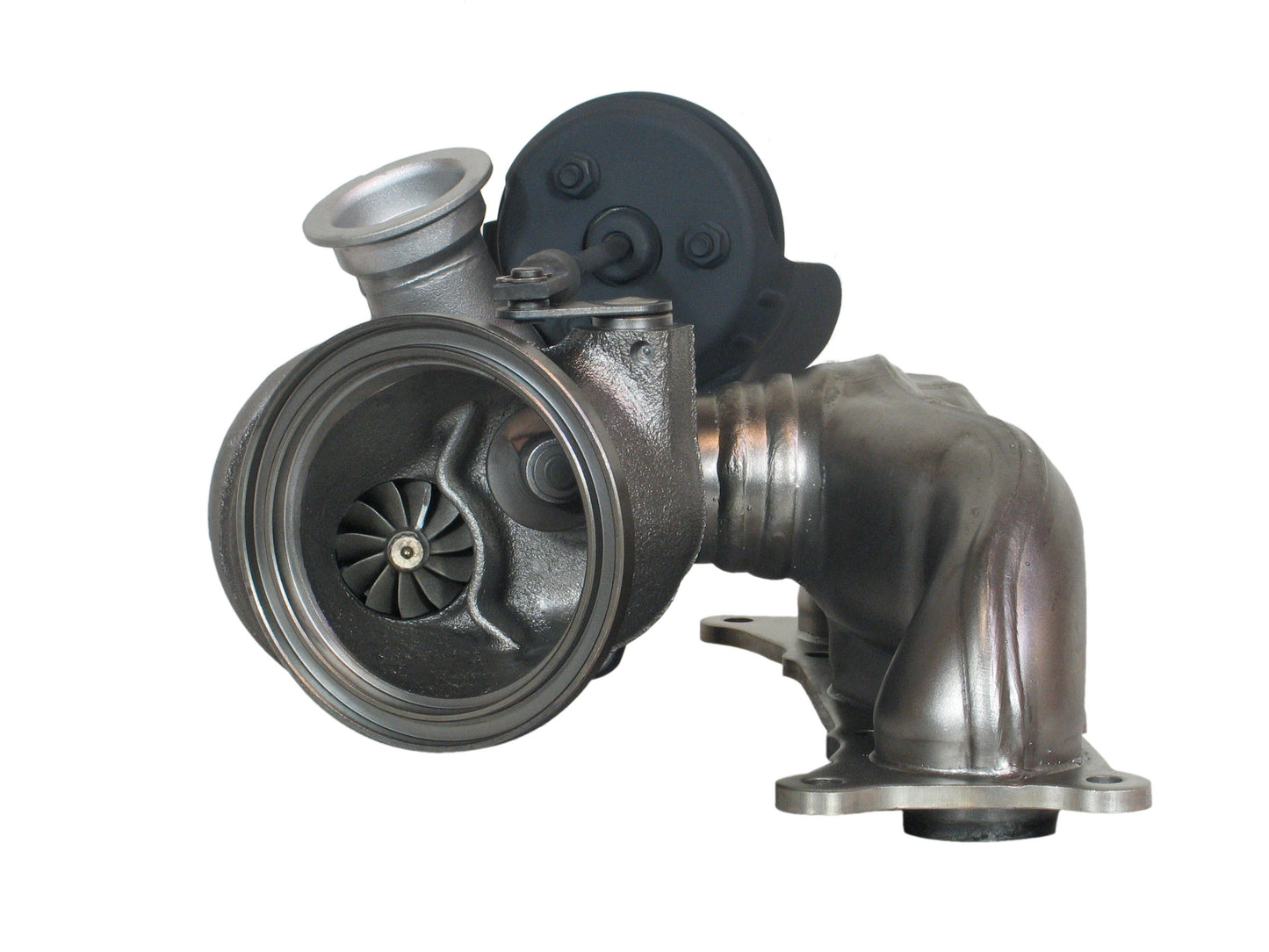

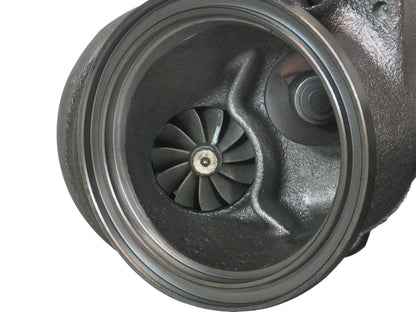

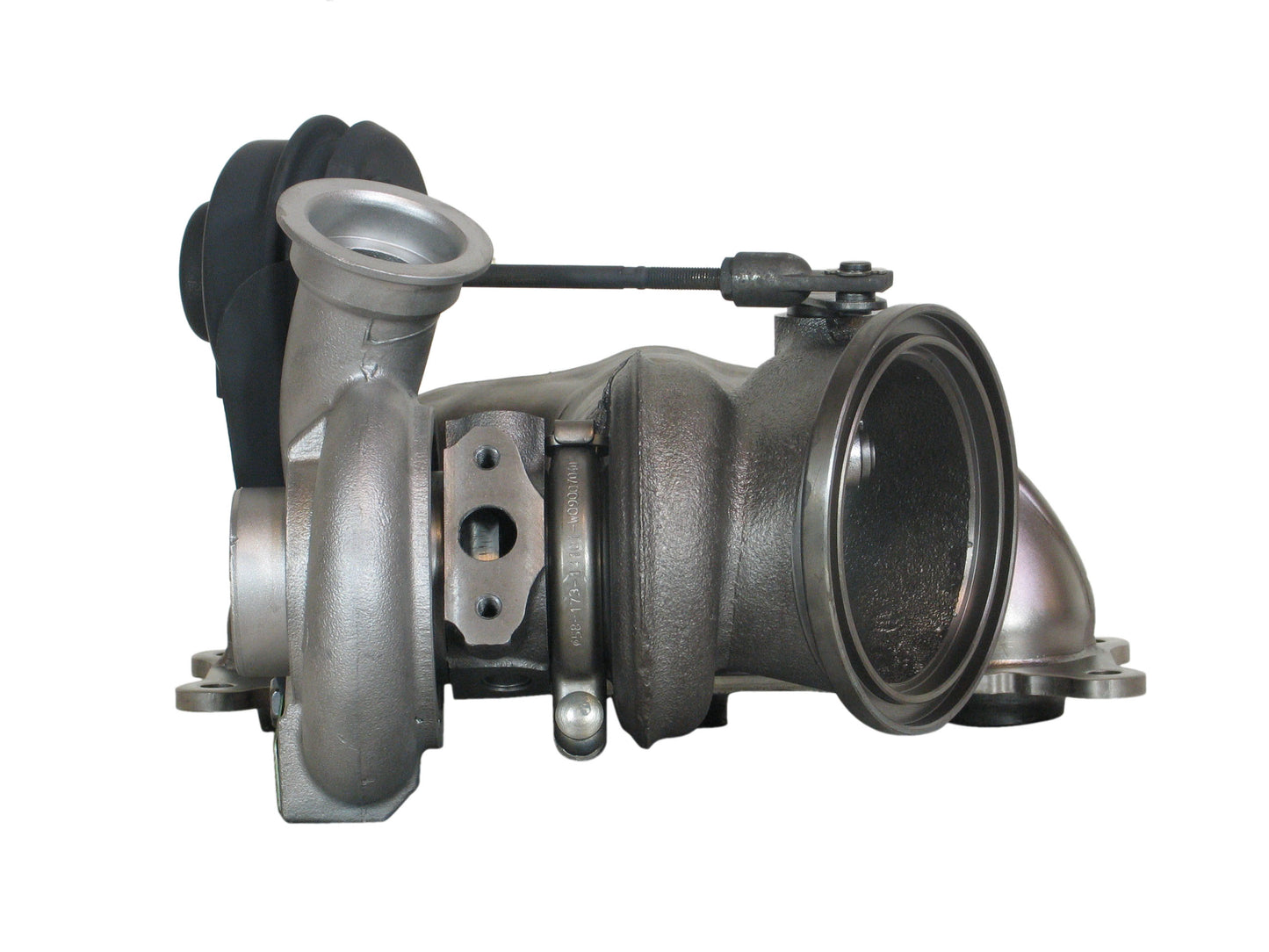

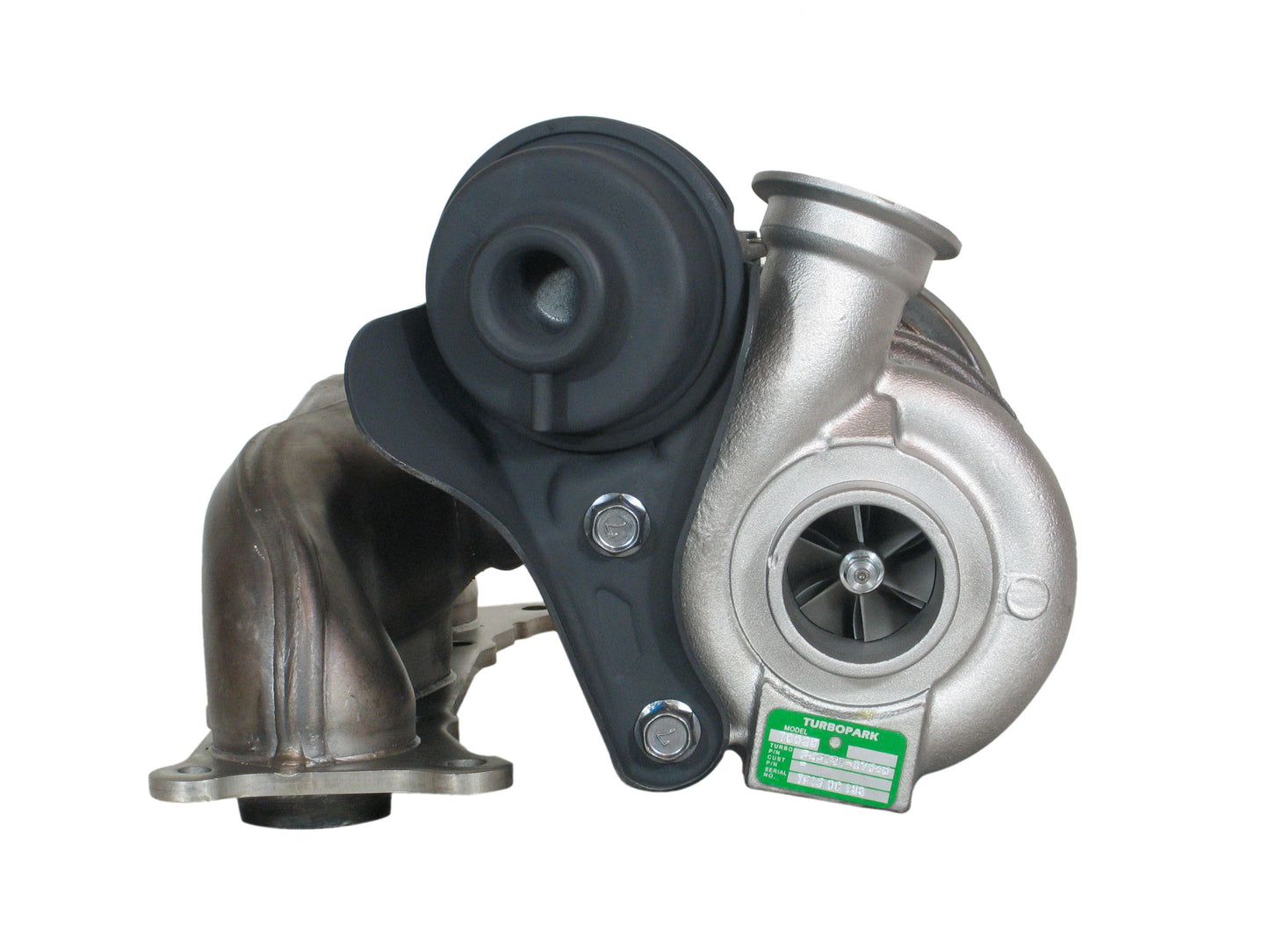

TD03L4 Turbo BMW 135i E82 E88 335i E90 E91 E92 E93 N54 3.0L Engine 49131-07040SKU: F49131-07040
This is a TURBOTURBOS REMANUFACTURED TURBOCHARGER. This is an exact, direct fit replacement turbo.
NOTE: This turbocharger package also comes with the gasket.
Fits the following:
Part Number: 49131-07040
Interchangeable Number: 4913107040, 49131-07001, 4913107001, 49131-07005, 4913107005, 49131-07006, 4913107006, 49131-07007, 4913107007, 49131-07008, 4913107008, 49131-07009, 4913107009, 49131-07010, 4913107010, 49131-07011, 4913107011, 49131-07015, 4913107015, 49131-07016, 4913107016, 49131-07017, 4913107017, 49131-07018, 4913107018, 49131-07019, 4913107019, 49131-07030, 4913107030, 49131-07031, 4913107031, 49131-07041, 4913107041, 49131-07077, 4913107077, 49131-07170, 4913107170, 49131-07171, 4913107171, 49131-07180, 4913107180
OEM Number: 11654555419, 11654564710, 11654564711, 11654564714, 11657563685, 11657563686, 11657563693, 11657583863, 11657583864, 11657583888, 11657593015, 11657593016, 11657593017, 11657593019, 11657649290, 1654547431, 4547431, 45474311, 4564711, 7350950, 7563686, 756368603, 7563686D04, 7563686D05, 7583864, 758386401, 7583888, 759301503, 759301504, 7593016, 759301601, 759301602, 759301603, 759301604, 7593016A01, 7593016B02, 7593016B03, 7593017, 759301701, 759301702, 759301703, 7649290
Turbo Model: TD03L4-10TK3-4.9, TD03L4
Engine: N54, N54B30A, N54B30B, N54B30T, N55B30A
Displacement: 3.0L, 2979 ccm, 6 Cylinders
Power: 222/225 kW, 306 HP
Actuator Pressure (P1): -16.8 +/- 1.0 kPa, -126 +/- 7.5 mmHg, -2.44 +/- 0.15 PSI
Actuator Pressure (P2): -12.0 +/- 2.0 kPa, -90 +/- 15 mmHg, -1.74 +/- 0.29 PSI
Bearing Housing: 49131-08700/49131-20650
CHRA: 49131-08911/49131-08901 (1401403902)
Compressor Housing: 49131-59016/49131-59015
Gasket (Oil Outlet): 210243
Repair Kit: 49131-80310
Ring Escape (Turbine Inlet): 211013
Turbine Housing: 49131-17511/49131-17528
NOTE: Wastegated. Cylinders 4-6, BiTurbo, right side.
2006-10 BMW 335i, 335ci (Coupe) (E90, E91, E92, E93) with N54B30 Engine
2006-11 BMW 135i (E82, E88) with N54B30 Engine
BMW 1 Coupe (E82) with N54 Engine
BMW 3 (E90), 3 Cabriolet (E93), 3 Coupe (E92), 3 Touring (E91) with N54 Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
Any questions or concerns, please feel free to email or call us.
