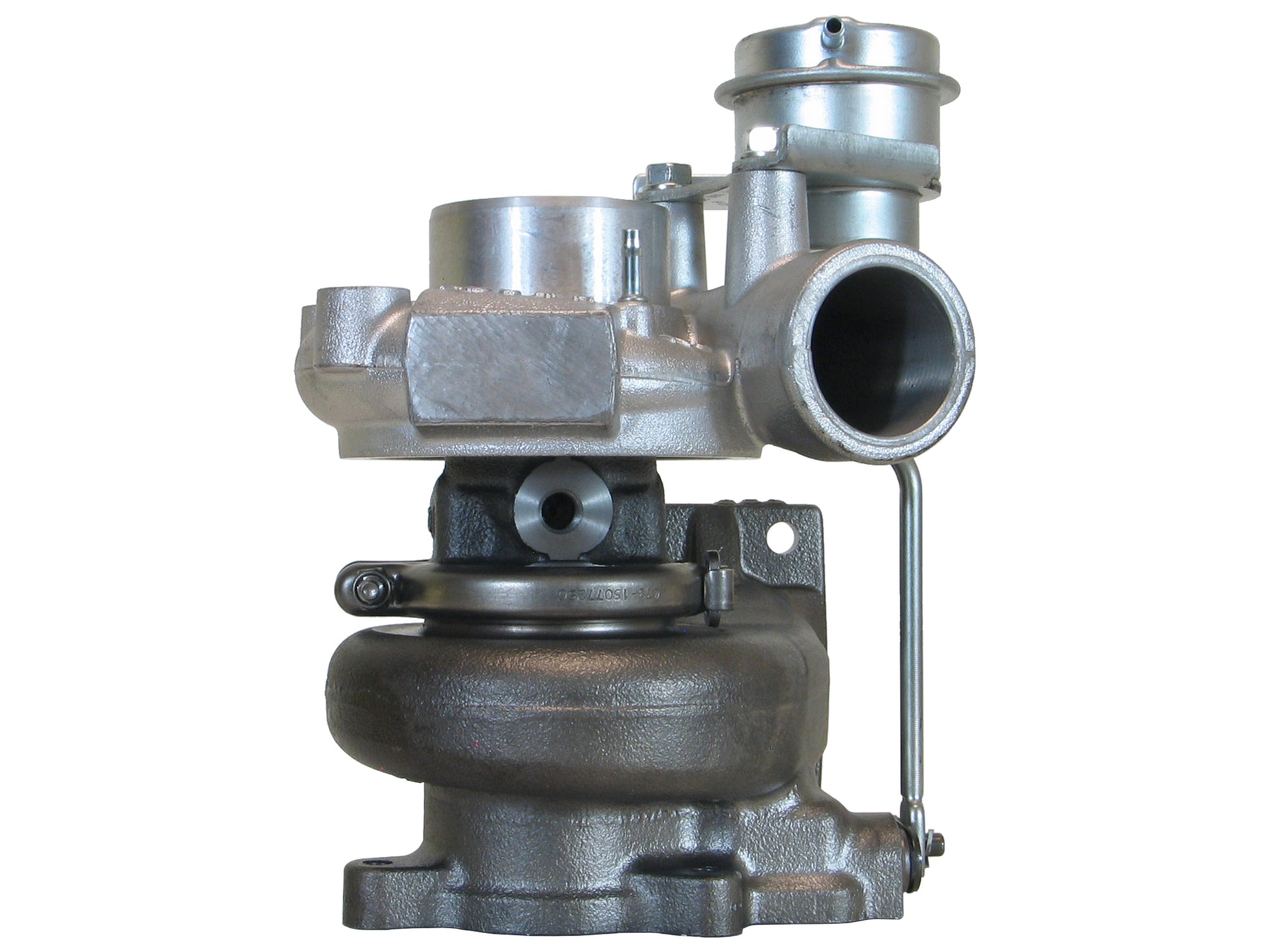

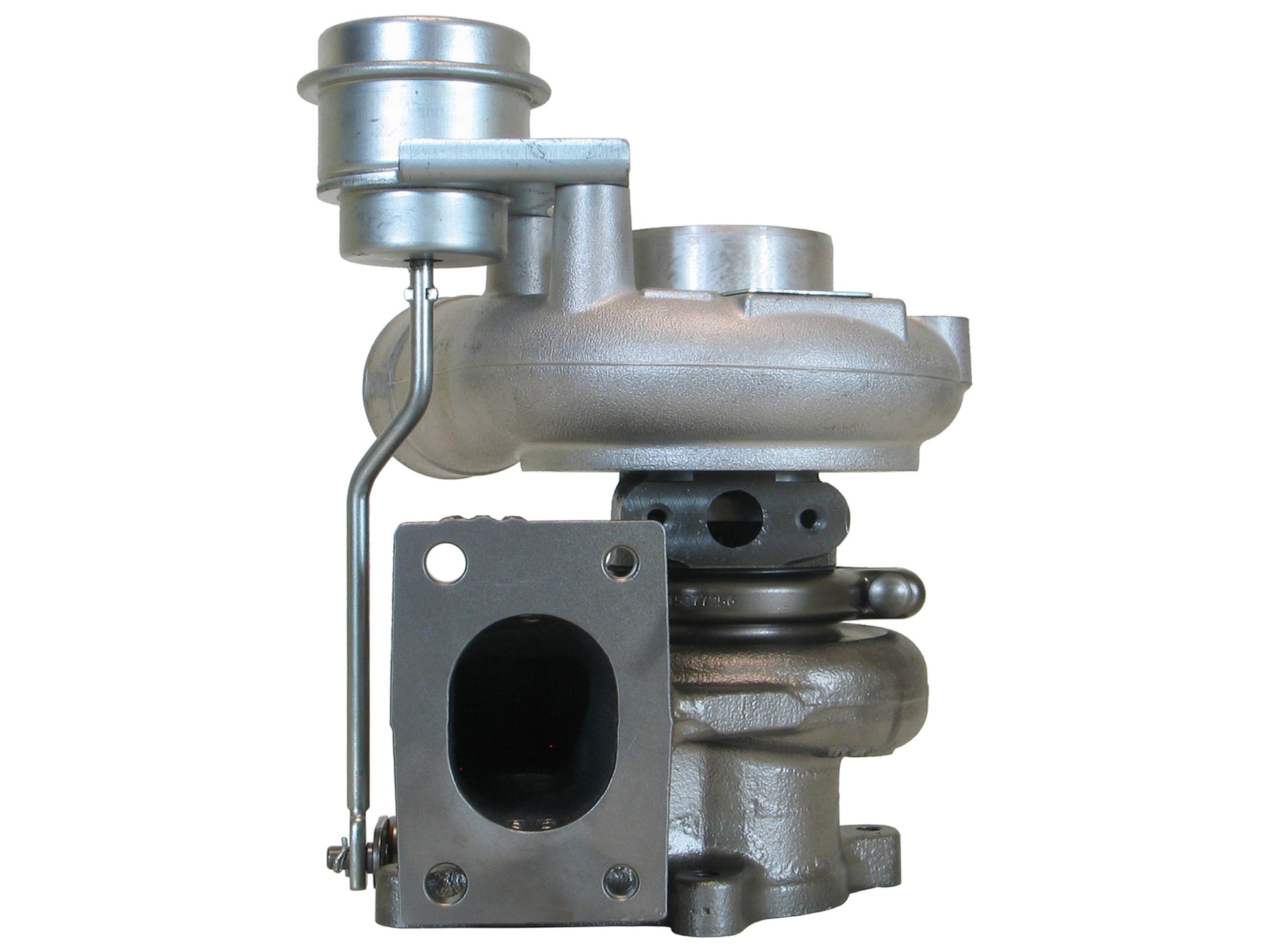

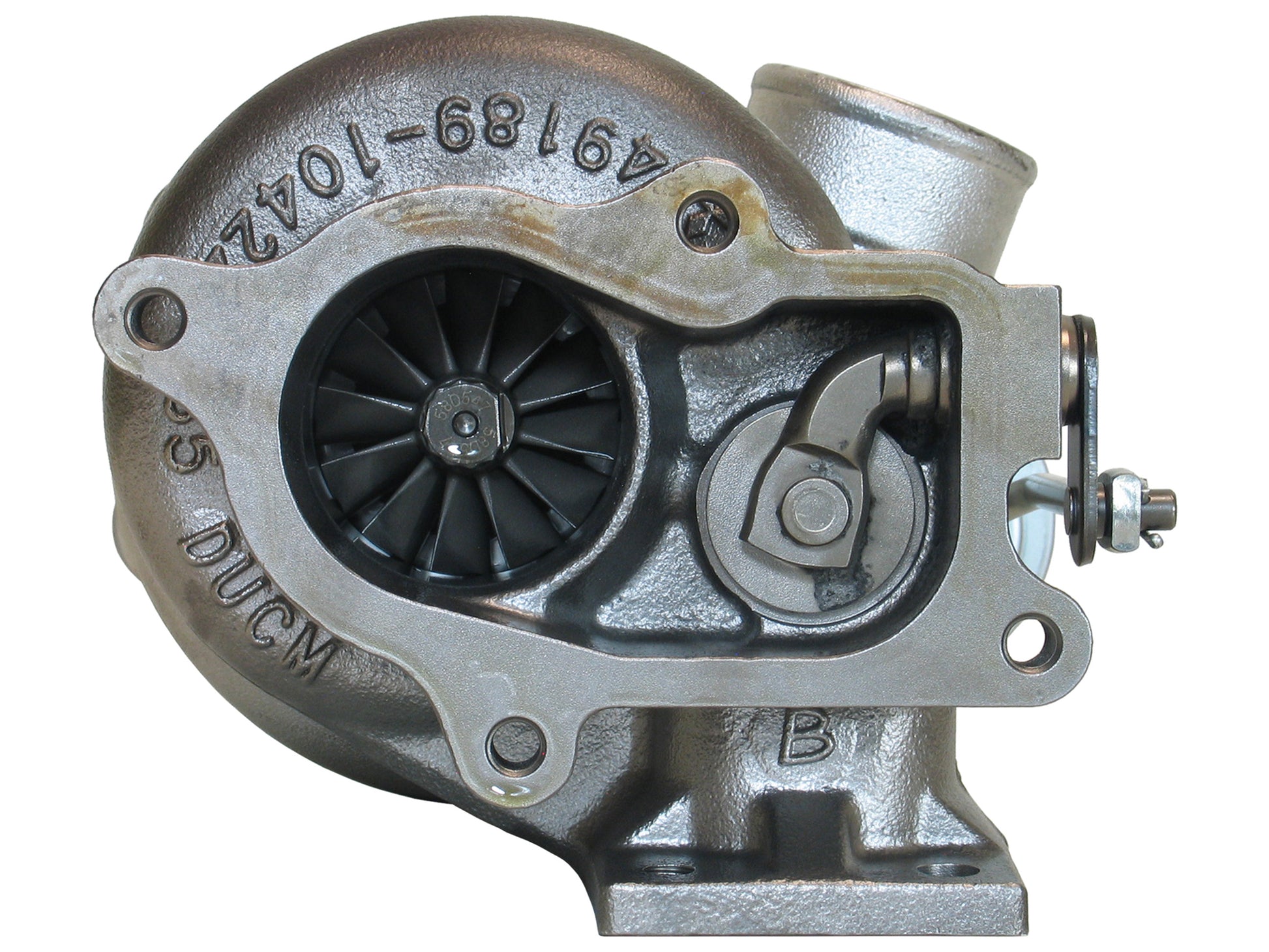

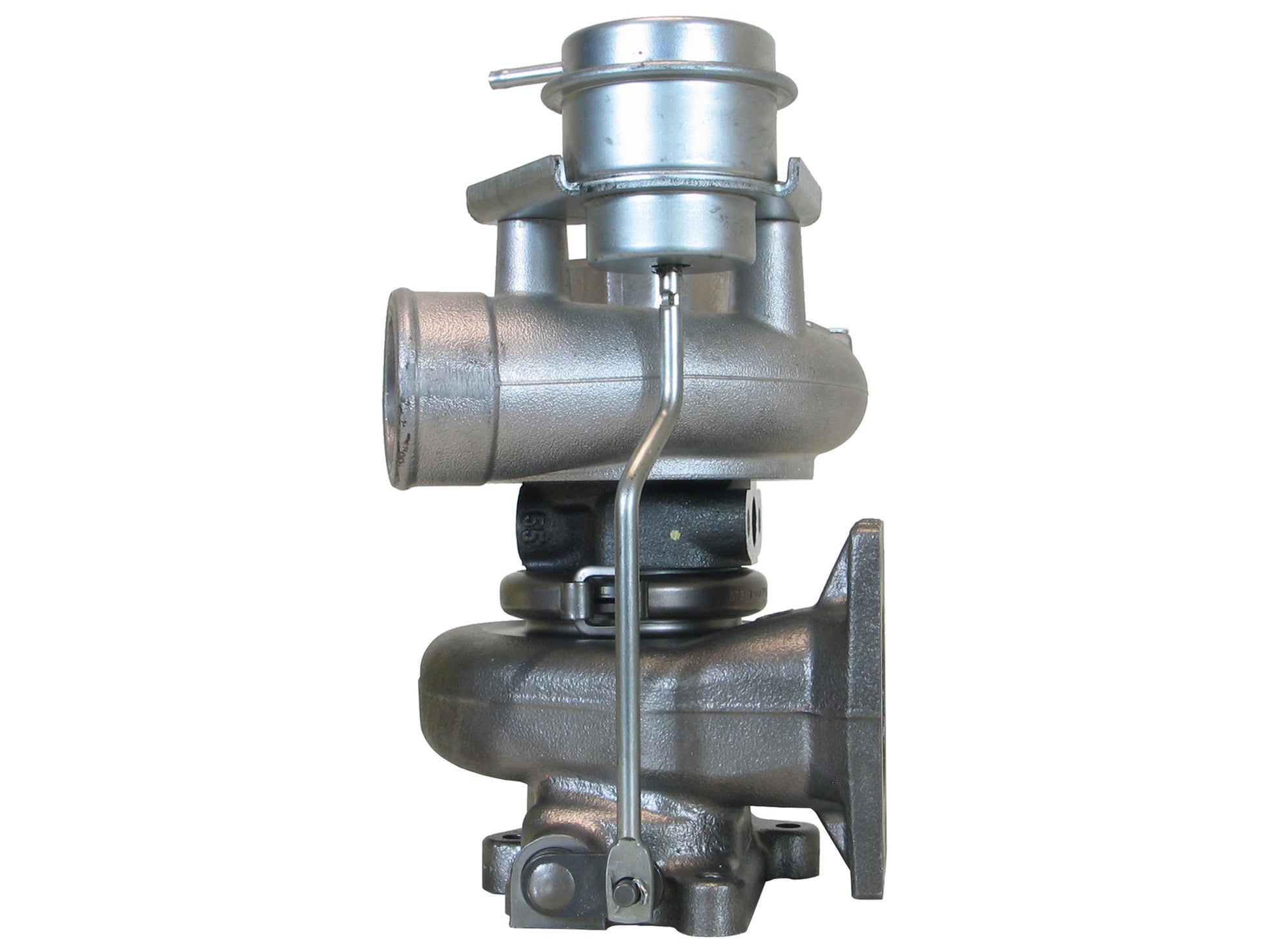

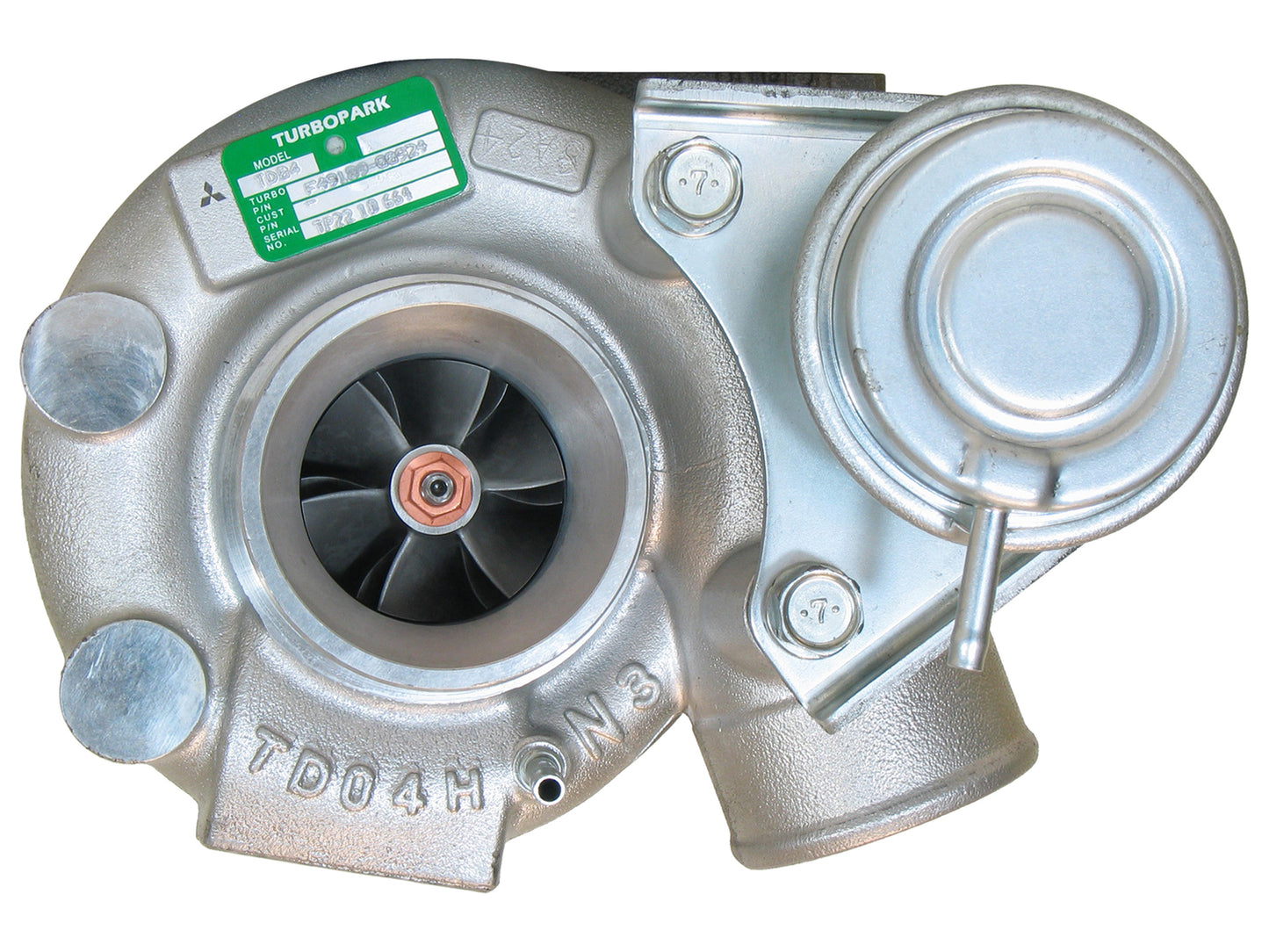

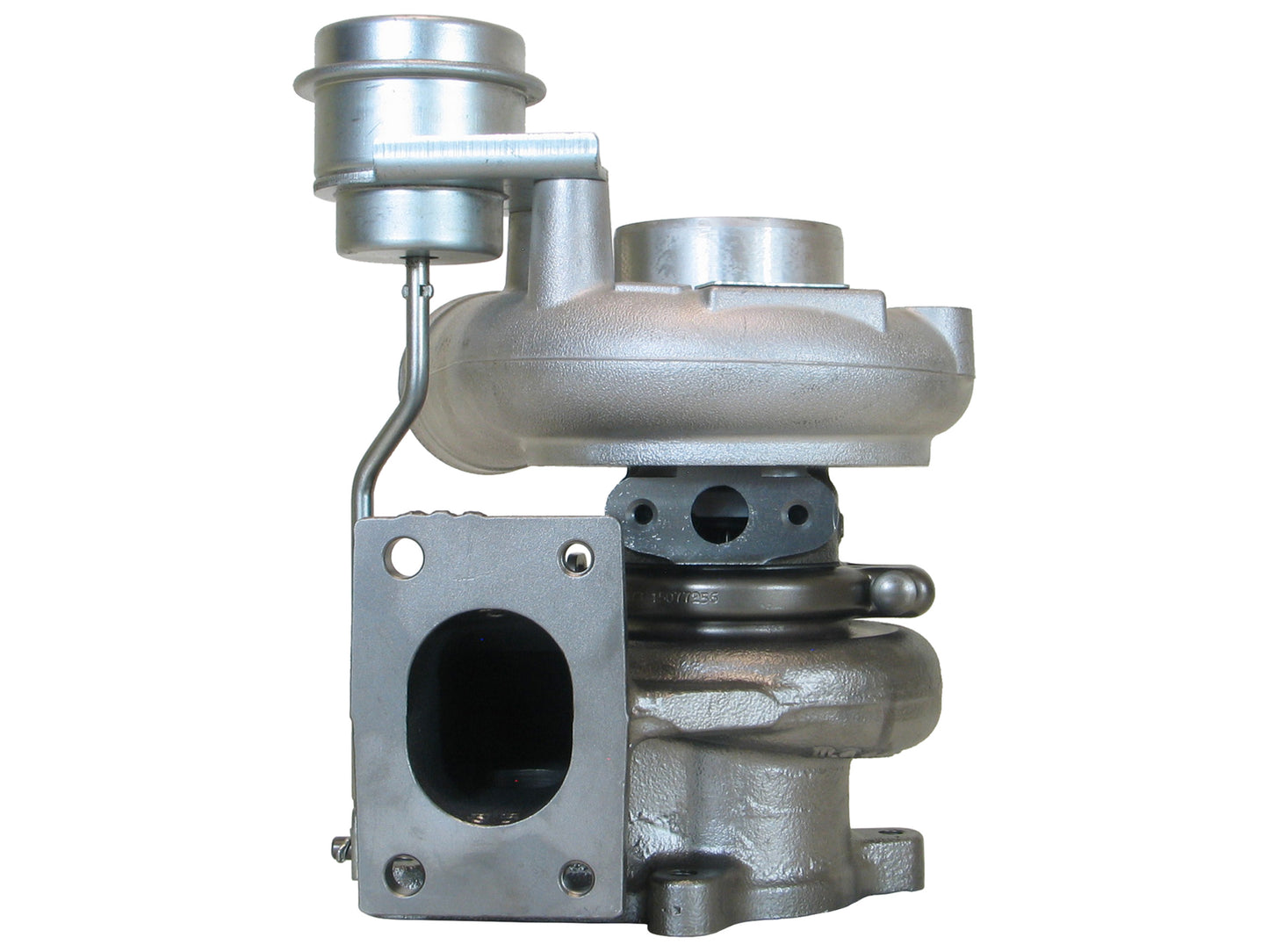

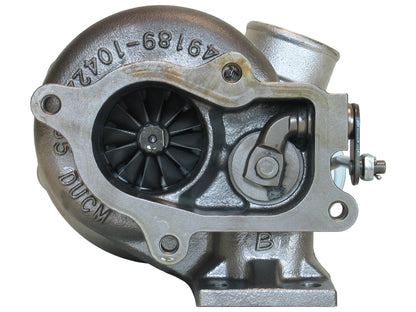

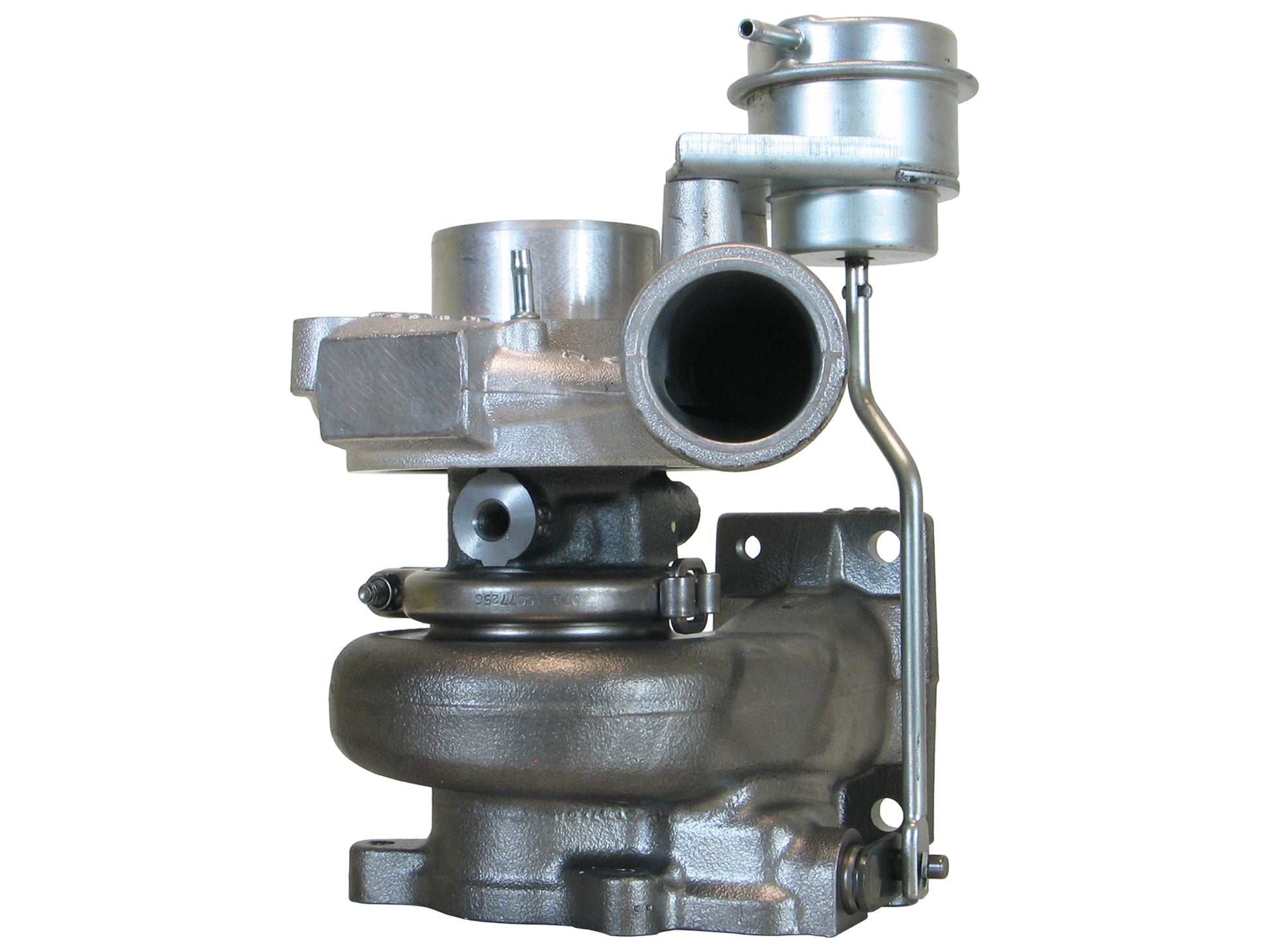

TD04HL Turbo Kubota Industrial V3800DI-TIE 3.8L Diesel Engine 49189-00924

TURBOTURBOS REMANUFACTURED TURBOCHARGER

This is a TURBOTURBOS REMANUFACTURED TURBOCHARGER. This is an exact, direct fit replacement turbo.

Fits the following:

Part Number: 49189-00924
Interchangeable Number: 4918900924, 49189-00910, 4918900910, 49189-00911, 4918900911, 49189-00912, 4918900912, 49189-00913, 4918900913, 49189-00920, 4918900920, 49189-00921, 4918900921, 49189-00923, 4918900923, 49S89-00920, 49S8900920
OEM Number: 1G544-17010, 1G54417010, 1G544-17012, 1G54417012, 1G544-17013, 1G54417013, 1G544-17014, 1G54417014, 1G544-17015, 1G54417015, 1G544-17016, 1G54417016, 1G574-17010, 1G57417010, 1G574-17012, 1G57417012, 1G574-17013, 1G57417013, 1G574-17014, 1G57417014, 1G574-17015, 1G57417015, 1G574-17016, 1G57417016, 482-8480, 4828480
Turbo Model: TD04HL, TD04HL-13GK-8.5

Engine: V3800DI-TE, V3800DI-TIE
Displacement: 3.8L, 4 Cylinders
Fuel: Diesel

Actuator Pressure (P1): 66.7 +/- 2 kPa, 500 +/- 15 mmHg, 9.67 +/- 0.29 PSI
Actuator Pressure (P2): 82.6 kPa, 620 mmHg, 11.98 PSI
Actuator: 49389-18361
Bearing Housing: 49189-20110
CHRA: 49189-08053
Compressor Housing: 49489-57190/49489-57100
Cooling: Air
Repair Kit: 49189-80000
Turbine Housing: 49189-14992/49189-14902

NOTE: Wastegated.

Application:
Kubota Industrial with V3800DI-TIE Engine
Kubota Loader with V3800DI-TE Engine
Kubota M105 Tractor
Kubota M8540 Utility Tractor
Kubota M95 Tractor
Kubota SCL90 Multi Terrain Loader

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
