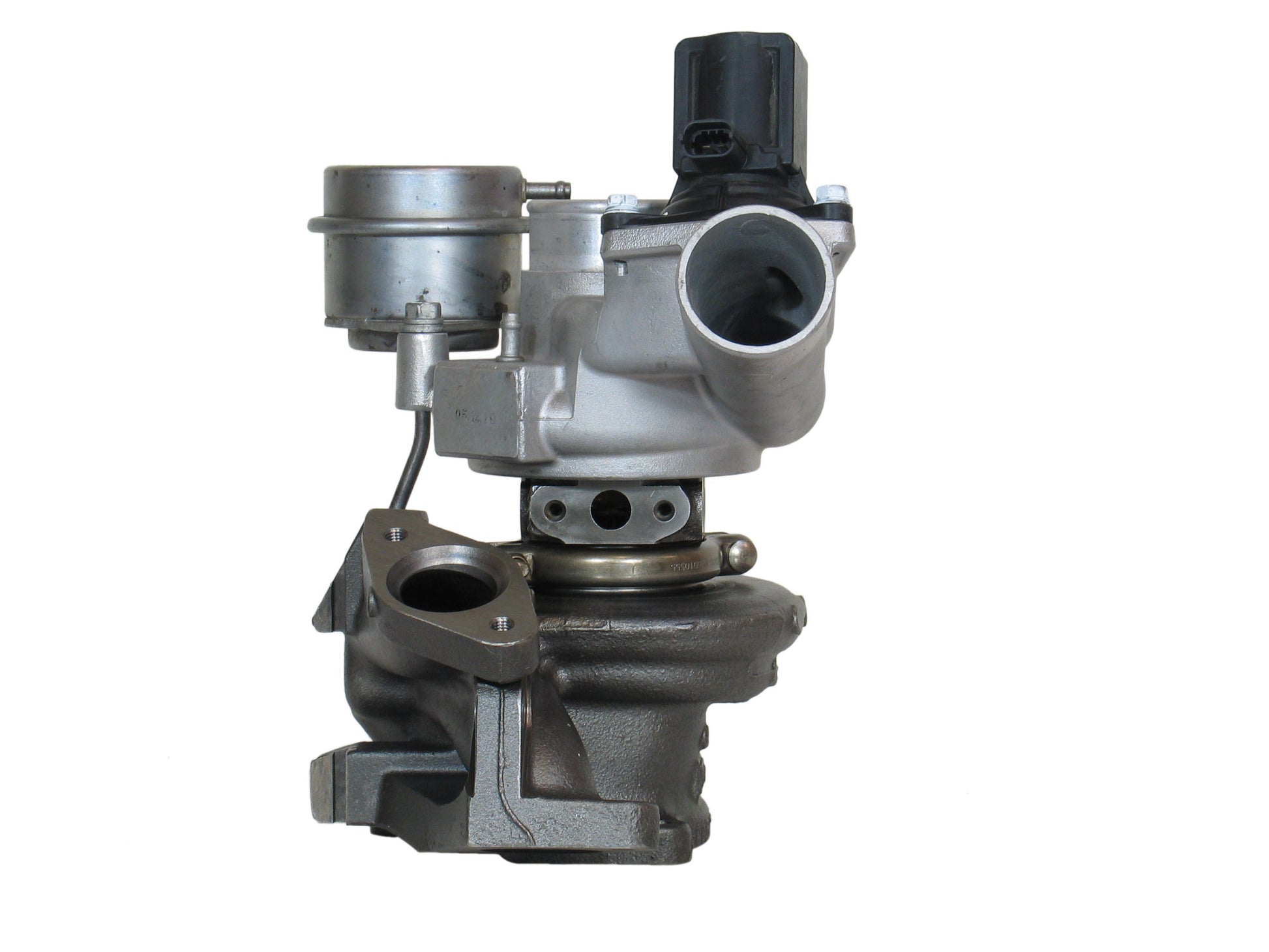

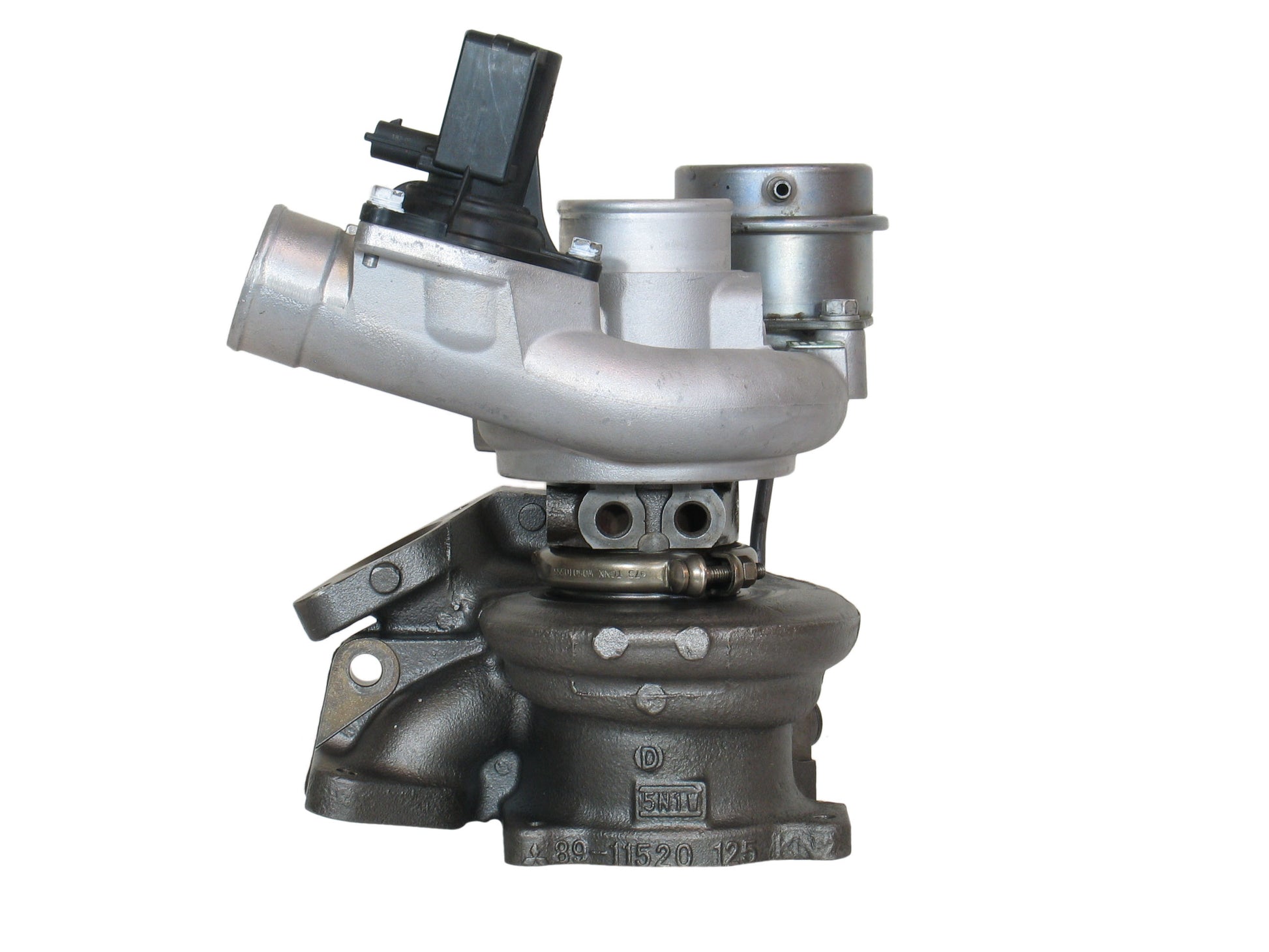

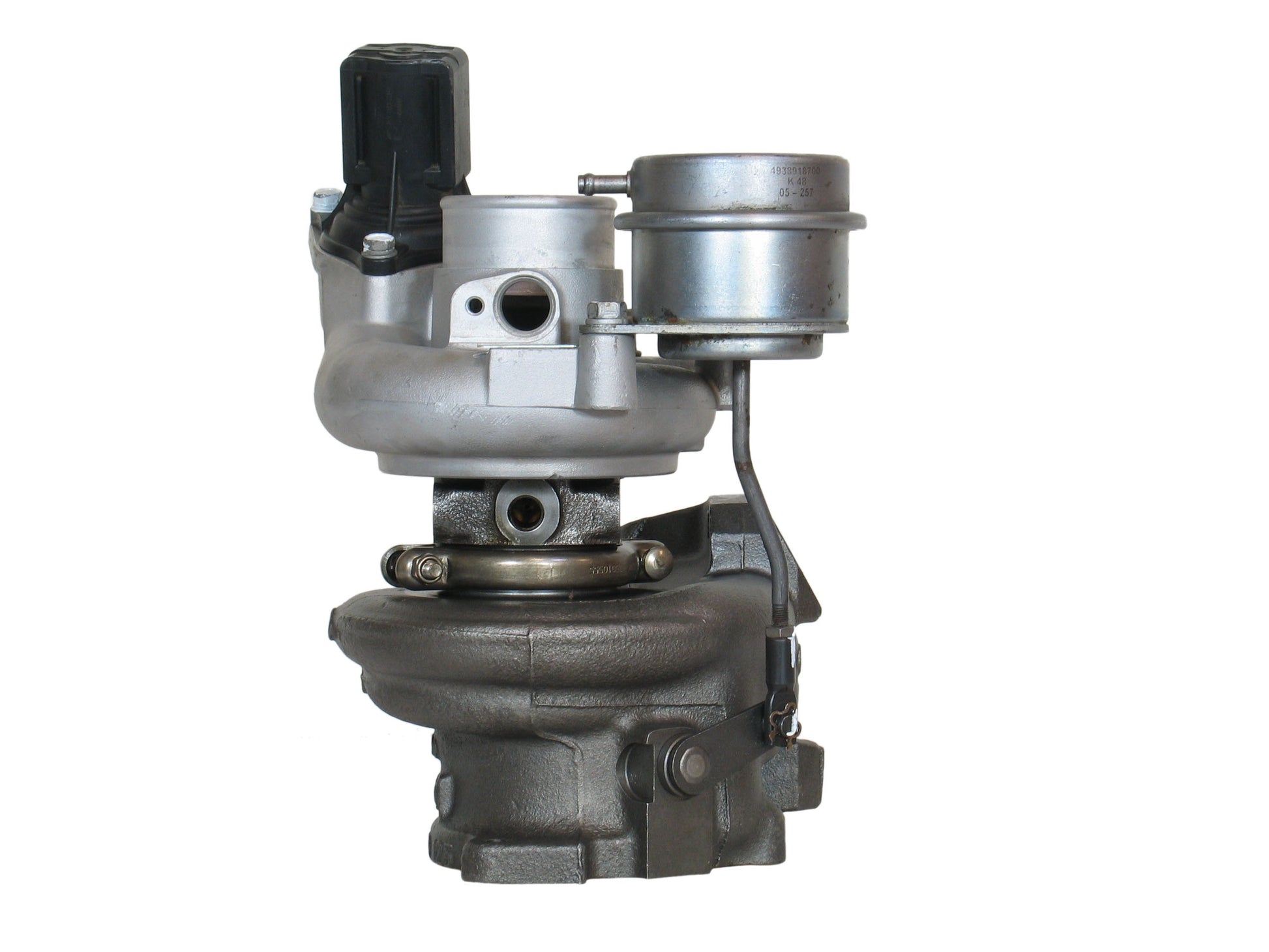

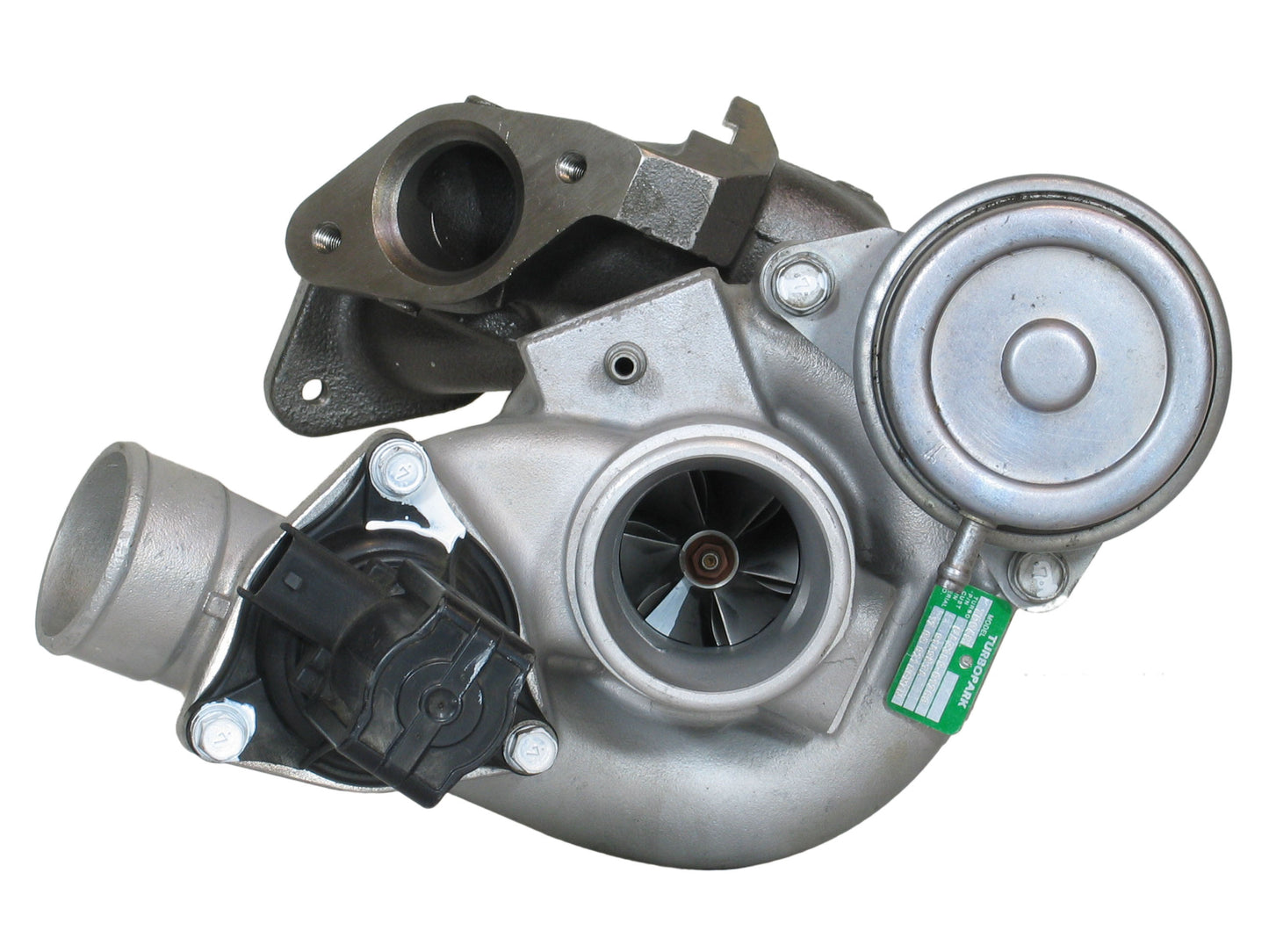

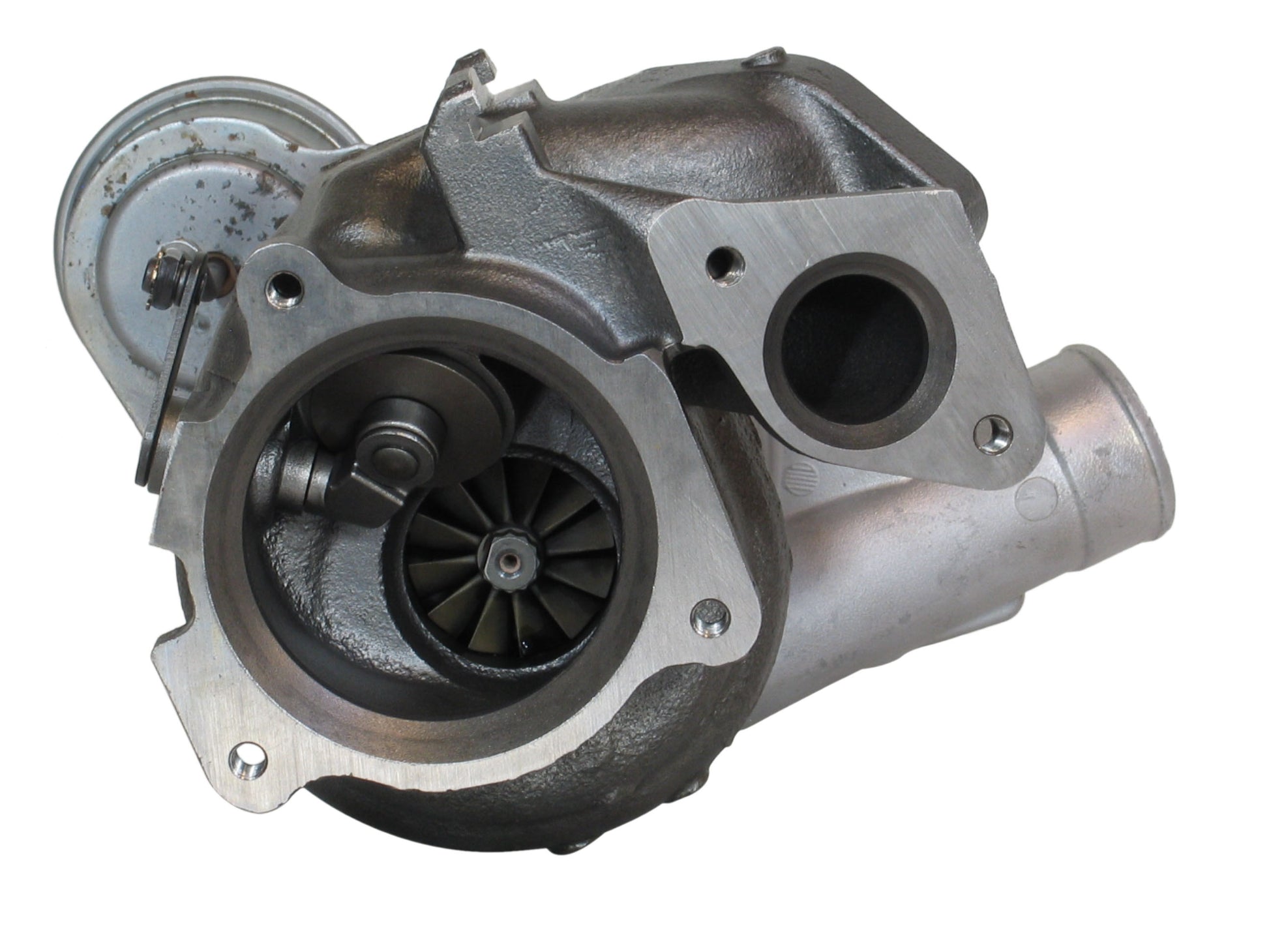

TD04H Turbo Saab 9-3 II Opel Signum Vectra C 2.8L B284L Gas Engine 49389-01700SKU: F49389-01700
This is a TURBOTURBOS REMANUFACTURED TURBOCHARGER. This is an exact, direct fit replacement turbo.
Fits the following:
Part Number: 49389-01700
Interchangeable Number: 4938901700, 49389-01710, 4938901710
OEM Number: 5860017, 55557012, 55564299
Turbo Model: TD04H, TD04H-15TK3-12.5T
Engine Manufacturer: Saab
Displacement: 2.8L, 2792 ccm, V6 Cylinders
Power: 184 kW/250 HP
Actuator Pressure (P1): 27.5 +/- 2 kPa, 207 +/- 15 mmHg, 4 +/- 0.29 PSI
Actuator Pressure (P2): 36 +/- 3 kPa, 270 +/- 22.5 mmHg, 5.22 +/- 0.44 PSI
Back Plate: 49173-22500 (49135-00044, 49135-15405)(1401635300)
Bearing Housing: 49189-20050/49189-26170 (49189-26050, 49189-26020)(1401404462)(Water Cooled)
CHRA: 49389-08110 (49389-08111)
Compressor Housing: 49389-56510/49389-56500
Compressor Wheel: (Ind. 42 mm, Exd. 56 mm, 6+6 Blades)
Heat Shield: 49183-19300 (1401404341)
Repair Kit: 49189-80010/49189-84000 (49177-80410)(1401404755)
Turbine Housing: 49389-16552/49389-16542
Turbine Wheel: 49189-30100 (Ind. 52 mm, Exd. 45.6 mm, 12 Blades)(1401404438)
2005-08 Opel Signum with Z28NEL Engine
2005-08 Opel Vectra C with Z28NEL Engine
2007- Saab 9-3 II with Z28NEL Engine
*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
